Features & Benefits
- Our most adaptable and convenient screw-in LED retrofit.
- 35% more on-target lumens for lower lifetime operating costs.
- Anti-glare performance of <15 UGR surpasses recommended UGR for design & detail work.
- 40% lower operating temperatures with sheet-metal, rather than die-cast, fins and open, flow-through heatsink design
- UL-listed for open, vented, or enclosed fixtures, including IC-rated, low-profile, and deep-recessed downlights.
- Control Ready: Add occupancy/daylight sensor or a Bluetooth Mesh smart control system for greater energy savings & lighting customization
- Lightweight for easier overhead installation.
- Comes standard for E26 socket with E39 converters and socket extenders available.
Replace a Wide Range of Lights, No Matter the Ballast

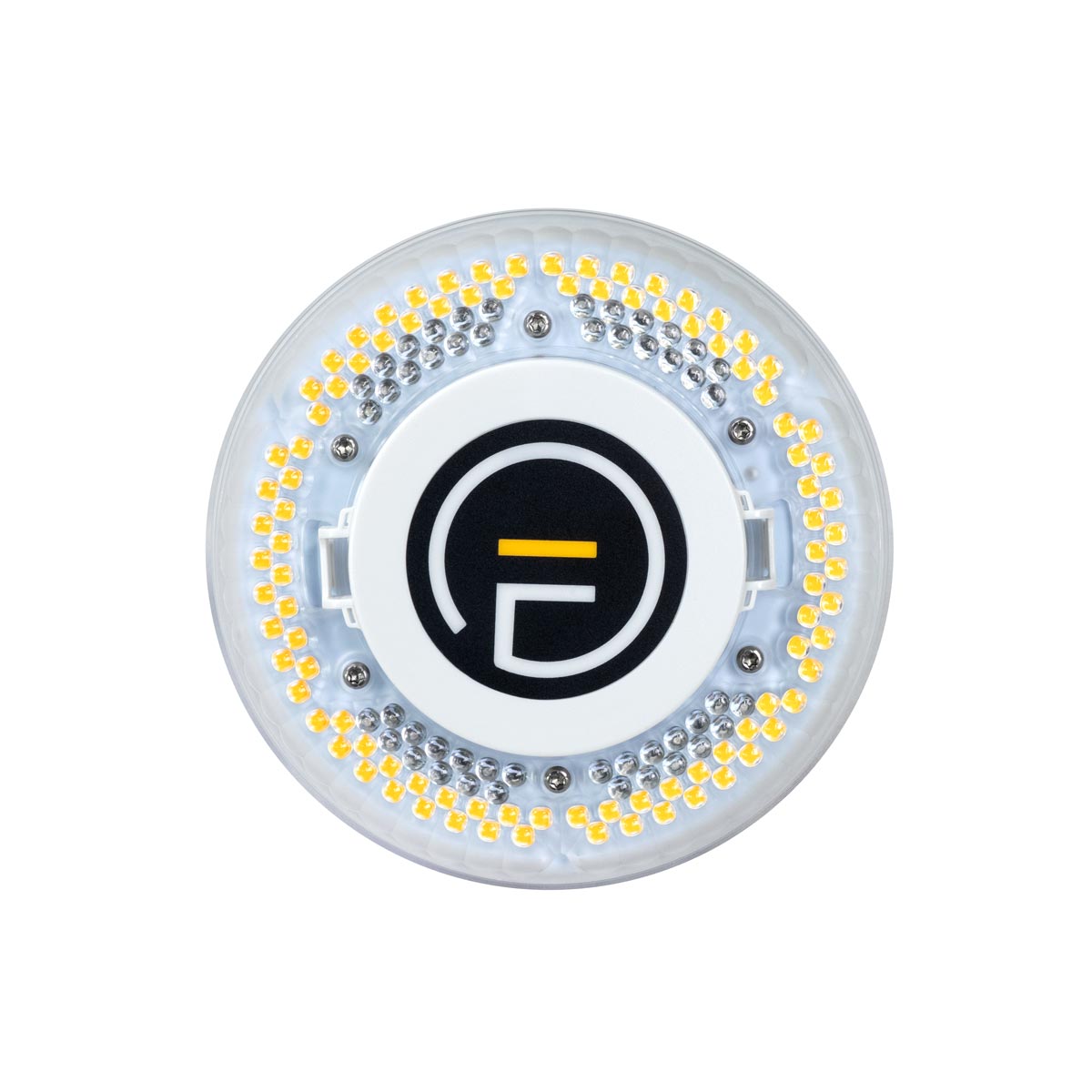

Replace the 250W HID, 700W incandescent, and 500W halogen lights in your commercial space with our equivalent 45W LED retrofit. It has an output of 7,000 lumens (6,800 lumens for the 3500K version), so you won’t sacrifice any brightness for efficiency. Since this hybrid lamp is compatible with all incandescent sockets and HID magnetic ballasts (including probe-start, pulse-start, CWA, and reactive ballast types) it can act as either a Type A or Type B retrofit. For magnetic ballasts and incandescent fixtures, you’ll have a have a no-wiring-required, plug-and-play installation. All other installs will be ballast-bypass, direct-wiring into the sockets. Whether used for Type A or Type B operation, this hybrid retrofit is UL-listed for safety.

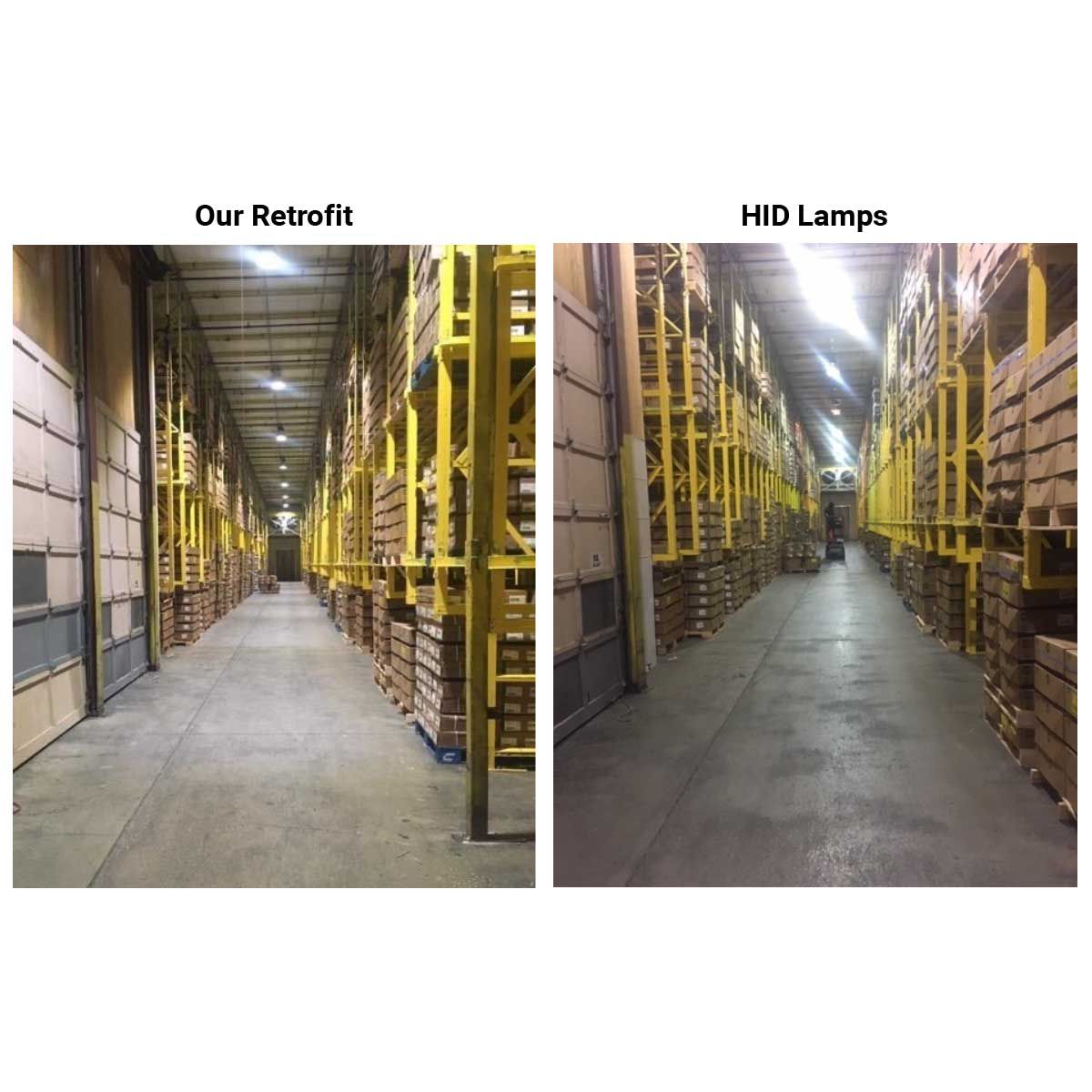

No More Light Loss – Pay Less & Get More
Patent-pending optics integral to this glare-free LED retrofit offer a <15 UGR – which is even lower than what is specified for design and detail work. 35% more lumens are guaranteed to be on target, rather than being lost upwards and outwards (like with comparable options). That means the 7,000 lumens of this lamp are equivalent to 9,450 lumens of competitor’s lighting! Between these advanced optics and the luminous efficacy of up to 155 lm/W, the average savings are 88% (depending on the light you’re switching from). Overall, you’ll get better light output, at a fraction of the operating cost.
High-Tech Temperature Regulation Saves in Energy Usage
This screw-in LED lamp will run cool without the need for a fan. It eliminates energy usage associated with running internal cooling for drivers, reducing overhead. If used in a fully enclosed fixture, this IC-rated LED retrofit will operate in an ambient temperature of up to 122°F (44°C). For non-enclosed fixture (such as a vented low bay) or in an open-air installation, the max temperature increases to 149°F (65°C). If the air in your building reaches a higher temp, this light is designed to automatically dim to reduce heat output and maintain safe operation.
Add Basic Controls
Purchase a factory-installed Occupancy/Daylight Sensor to better optimize your energy usage and extend your lamp's operating life. This two-in-one option gives you control your lighting levels based on motion detection, via an RF occupancy sensor, and daylight, via a photovoltaic sensor. The RF occupancy sensor is able to catch motion from at least 50 feet away and works even when the lamp is installed in an enclosed fixture. The control gives your light three level options—maximum, dimmed, and off—to match with motion and daylight settings. All settings, including hold time and standby, can be set from a distance via an IR remote, which has an operating range of at least 66 feet. Four preset scenes are included for ease of use and programming.
Please note that the factory-installed Occupancy/Daylight Sensor for Hybrid Screw-In Retrofit requires ballast bypass installation, must be purchased at the same time as the light, and is not compatible with the Bluetooth Mesh Controls option (please select one or the other).
Or Smart Controls

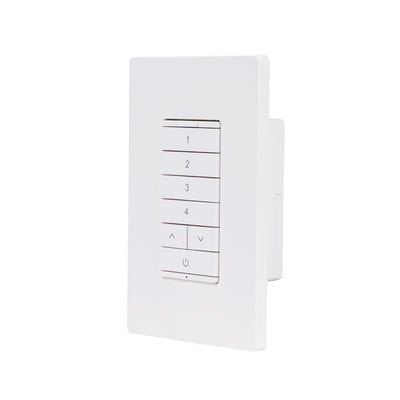

Want more complex control across your lighting installation? A factory-installed Avi-on Bluetooth Mesh controller allows you to group lights into zones and create sophisticated schedules and timers for different zones, all through a simple smartphone app. Provide in-room push-button scene selection with one of the available scene controllers. With the Remote Bridge add-on, you can control multiple deployments from anywhere via a web browser.
Please note that factory-installed Bluetooth Mesh Controls for Hybrid Screw-In Retrofit requires ballast bypass installation, must be purchased at the same time as the light, and is not compatible with the Occupancy/Daylight Sensor (please select one or the other).
|Light Output||6,800 lm (3500K), 7,000 lm (4000K & 5000K)|
|Luminous Efficacy (lm/W)||Up to 155 lm/W|
|Average Lamp Life||50,000 hours|
|Color Temperature(s)||3500K, 4000K, 5000K|
|Base Type||E26 - Edison|
|Ballast Compatibility||100-250W Magnetic Ballast Compatible (Type A)|
|Installation||Vertical orientation only. Type A & Type B: Plug & play install for magnetic ballasts & incandescent sockets. Bypass the ballast when used with electronic ballasts.|
|Working Environment||Indoor / Damp Location - Designed for Open & Vented Fixtures|
|Light Type||Retrofits and Conversion Kits|
|Input Voltage||100-277 VAC (Type B)|
|Temperature Rating||Up to 149°F for vented or open air|
|Housing Material||Anodized Aluminum|
|Dimensions||5.35" x 4.25" x 5.19"|
