150W Premium-Grade Selectable UFO LED High Bay, Ceilings 12 to 20ft
150W Premium-Grade Selectable UFO LED High Bay, Ceilings 12 to 20ft
150W Premium-Grade Selectable UFO LED High Bay, Ceilings 12 to 20ft
150W Premium-Grade Selectable UFO LED High Bay, Ceilings 12 to 20ft
A proven, field-tested high bay with a heavy duty build, DLC Premium listing, and output that can replace up to 600W HID.
- Rotatable lens sets beam at install for aisles, general areas, and open spaces
- 0-10V dimming and sensor port to control energy costs
- Driver isolated from LED heat for extended fixture life
A proven, field-tested high bay with a heavy duty build, DLC Premium listing, and output that can replace up to 600W HID.
- Rotatable lens sets beam at install for aisles, general areas, and open spaces
- 0-10V dimming and sensor port to control energy costs
- Driver isolated from LED heat for extended fixture life
Choose options
Specs
| Wattage(s) | 90W/120W/150W |
| Replaces Wattage(s) | Up to 600W |
| Light Output |
At 4000K: 14,400/19,200/24,000 lumens At 5000K: 13,500/18,000/22,500 lumens |
| Luminous Efficacy (lm/W) |
4000K: 160 lm/W 5000K: 150 lm/W |
| Average Lamp Life |
L80: 83,000 hours L70: 135,000 hours |
| Color Temperature(s) | 4000K/5000K |
| CRI (Color Accuracy) | 80 |
| Dimming | 0-10V |
| Occupancy Sensor | Plug-in sensor available as accessory |
| Beam Angle | 60°/85°/105° selectable at install |
| Installation | Stainless steel loop included for hanging; adjustable bracket available for ceiling mounting |
| Working Environment | Indoor |
| Enclosure Rating | IP65, IK08 |
| Input Voltage | 120-277 VAC, 50/60 Hz |
| Temperature Rating | -22°F to +122°F |
| Housing Material | Aluminum Alloy with Polycarbonate Optical Lens |
| Housing Color | Black |

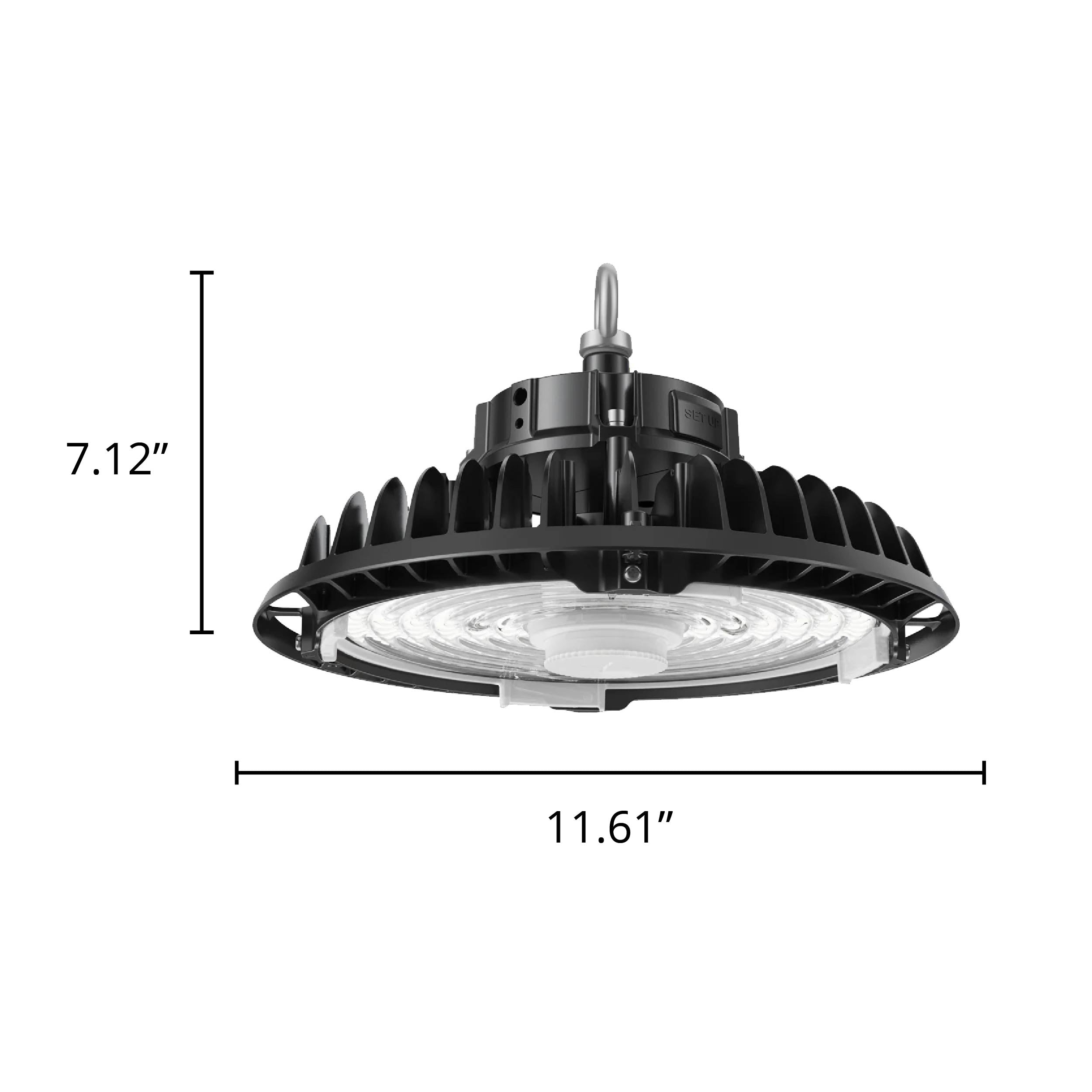

| Dimensions | φ11.61”x7.12” |
| Weight | 4.85 lbs |
| Certification | DLC 5.1, ETL |
| Warranty | 5 Years |
Data SheetDetails
A Design That Has Stood the Test of Time
Some products get redesigned every year because they have to. This one doesn't.
This high bay has been in the field for years, in warehouses, gymnasiums, factories, and distribution centers running long hours in tough conditions. Over time we've updated the internals to keep pace with advances in LED efficiency and controls. The housing design has stayed largely the same, because it works: robust aluminum alloy construction, effective thermal management, and a build quality that holds up where lesser fixtures don't.
When you're mounting a light 12 to 20 feet in the air, reliability isn't a nice-to-have. A failed fixture means renting a scissor lift or scaffolding, typically $150 or more for a half-day, on top of the replacement cost. With a rated lamp life of 83,000 hours, that's a call you're far less likely to have to make. This fixture's 5-year warranty and proven track record are part of the value calculation, not just a spec on a sheet.
Dial In the Exact Light You Need
Most high bays ship with a fixed beam. This one gives you three options, adjustable at install:
- 60° for a tight, focused beam in narrow aisles, tall racking, and high ceilings
- 85° for general-purpose coverage in most warehouse and industrial floor areas
- 105° for wide spread in open spaces, courts, and lower ceiling heights
The rotatable lens physically redirects the optics. It's not a diffuser, not a workaround. Pair that with dip-switch control over wattage (90W / 120W / 150W) and color temperature (4000K / 5000K), and you have a single fixture that covers almost any zone in a facility.
Energy Management Built In
- 0-10V dimming. Connect to any standard commercial dimming controller to reduce output and energy use on demand.
- Plug-in motion sensor port. Add occupancy control without rewiring; sensor sold separately.
- Three wattage settings. Right-size the output to the ceiling height instead of over-lighting and over-paying.
Where It Works
- Warehouses & Distribution Centers
- Manufacturing & Assembly Lines
- Cold Storage & Freezer Warehouses
- Gymnasiums & Indoor Sports Facilities
- Retail Showrooms & Garden Centers
- Airport Hangars & Maintenance Bays
- Exhibition Halls & Convention Spaces
Ceiling heights 12–20 ft. For ceilings above 20 ft, see our 240W high bay in this same style.
Step Up to Smart Controls with Lightcloud Blue
Integrate this fixture with RAB's Lightcloud Blue wireless controls system for phone-based switching, dimming, and scheduling, and add a compatible sensor for occupancy sensing and daylight harvesting too. Maximize your savings and control.
Shown above are our most common recommendations for this fixture's 12–20 ft mounting height. Explore the full Lightcloud Blue Lighting Controls by RAB collection for other configurations, or contact us if you're not sure what fits your space.
ELEDLights Stands Behind It
- 5-year warranty. One of the longest in the category.
- DLC 5.1 listed. Qualifies for most utility rebate programs, allowing us to keep your project costs as low as possible.
- US-based support Monday through Friday, 8am to 8pm EST. Call, text, or email a real person.
- In stock, ships fast. Not a drop-ship; we warehouse what we sell.
