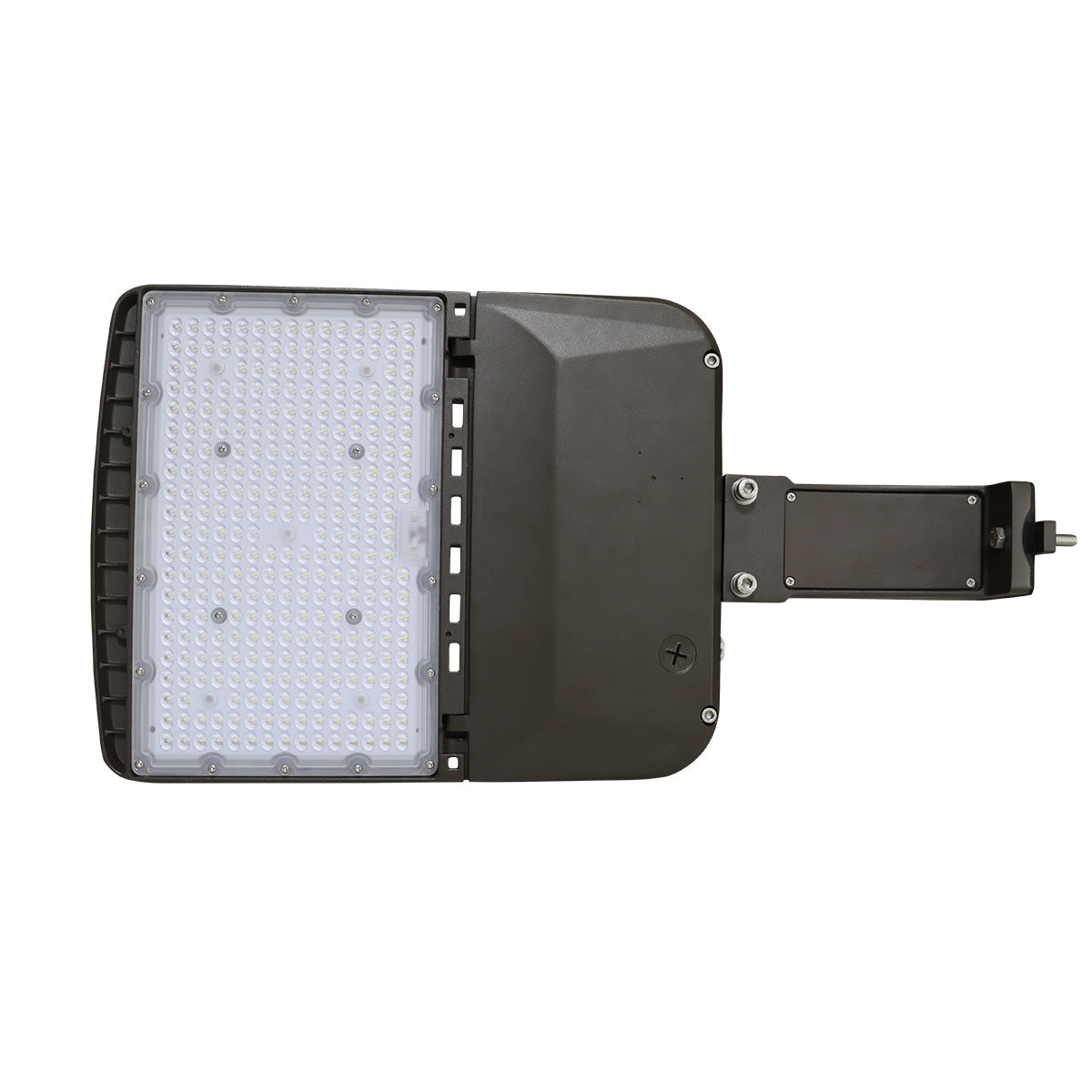

Bottom view of the 150W SBX shoebox in dark bronze showing the LED array

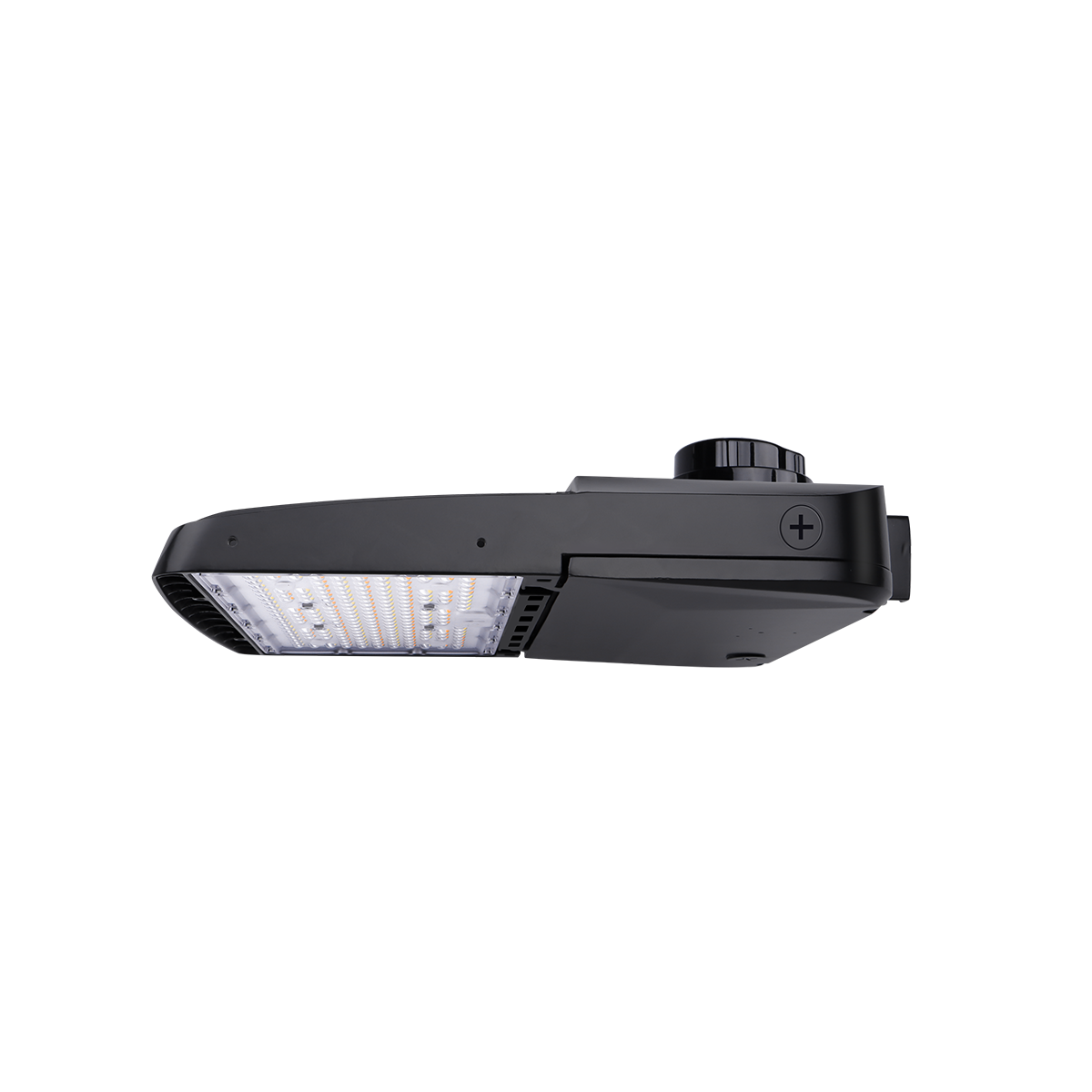

150W SBX LED shoebox area light in black with photocell, angled view

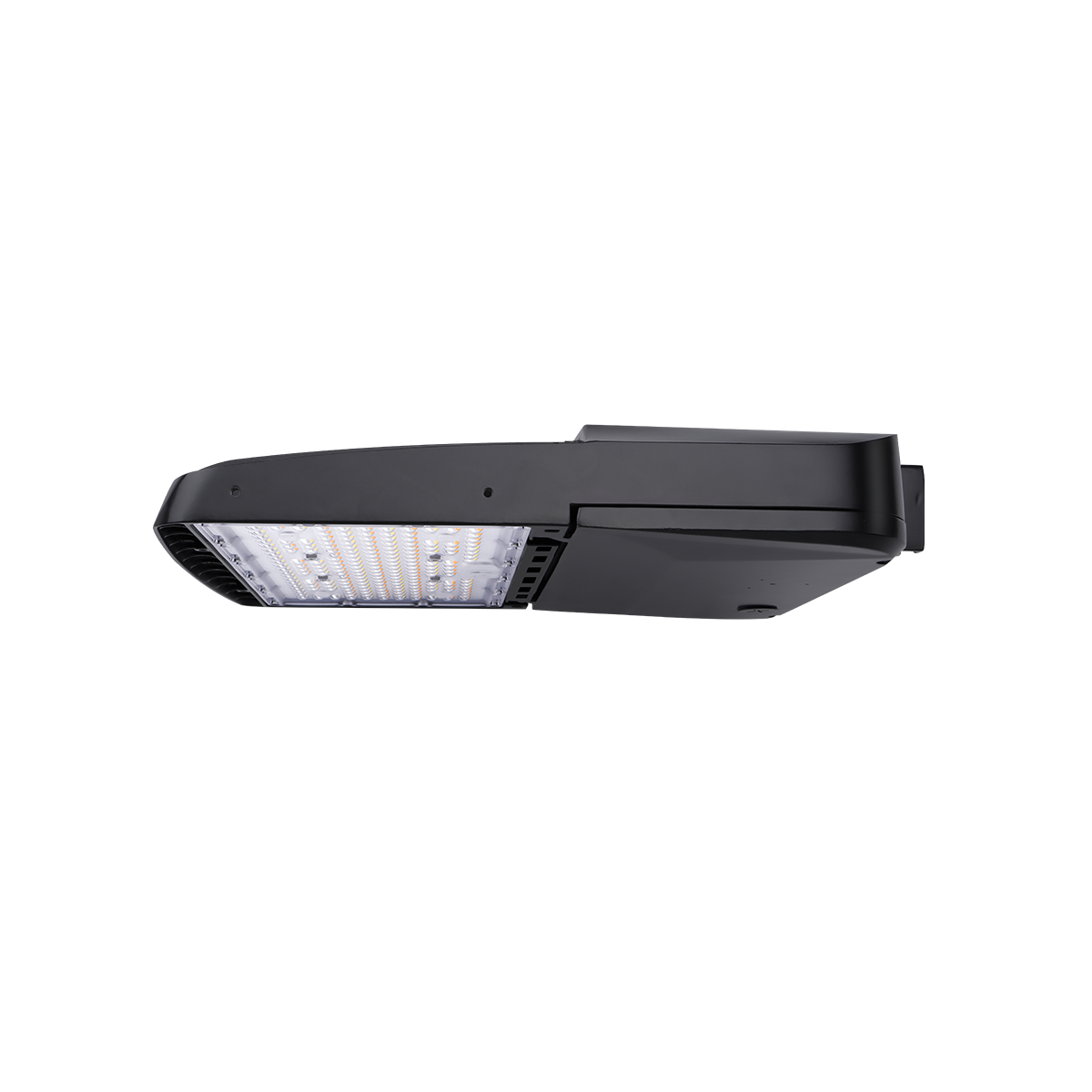

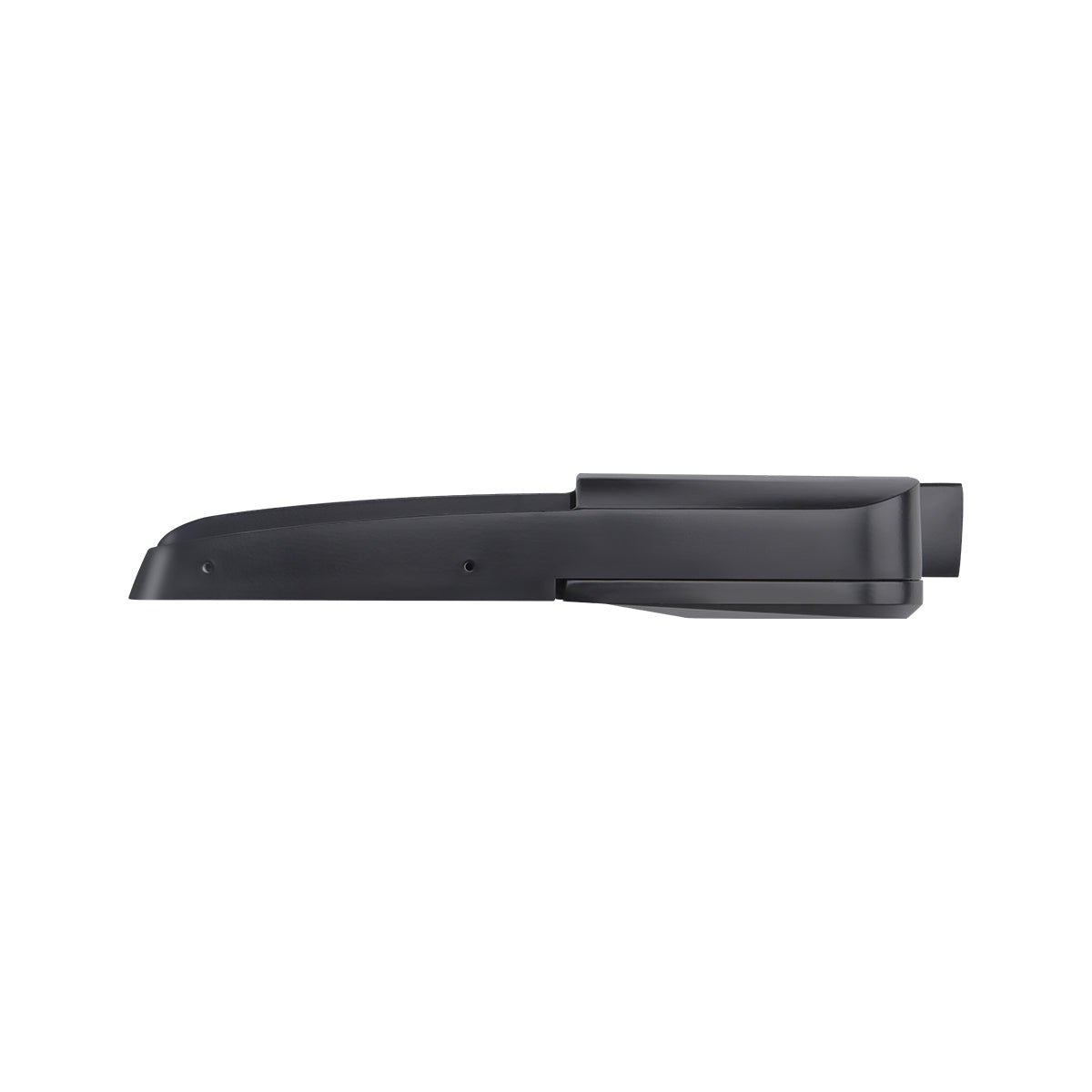

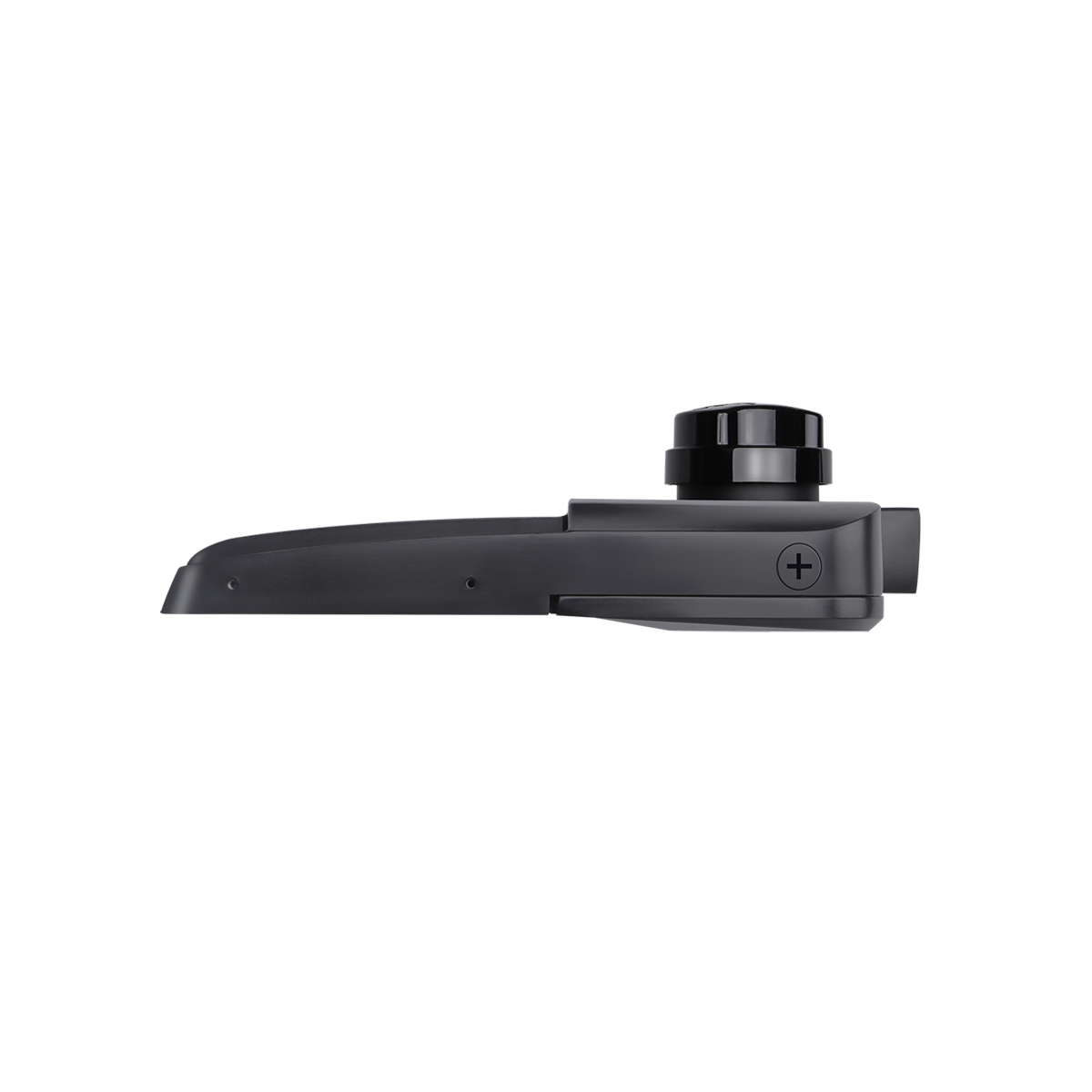

Side profile of the black 150W SBX shoebox with photocell on top

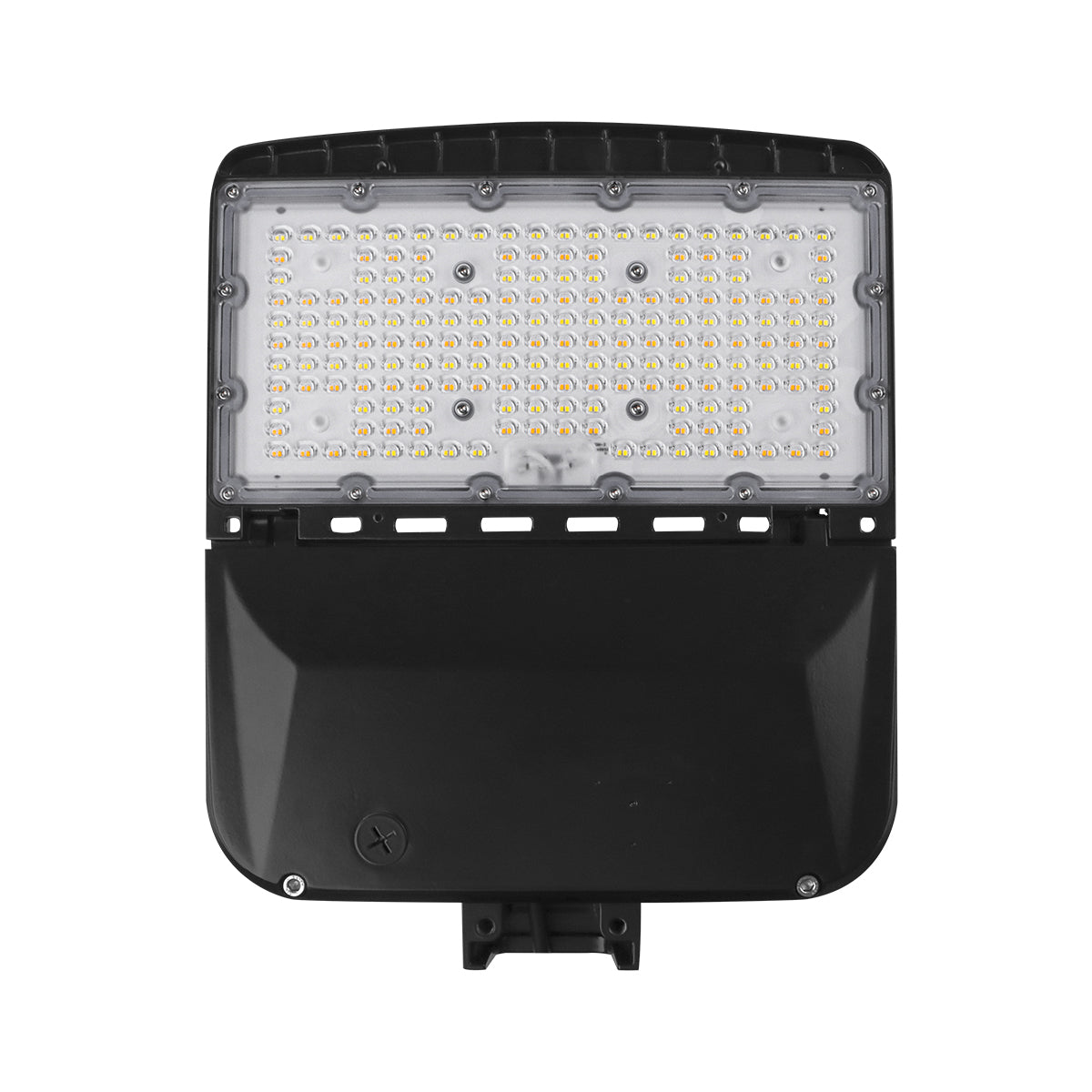

LED Shoebox Area Light 3 CCT 150 120 100 80W front view with multiple LEDs and black casing

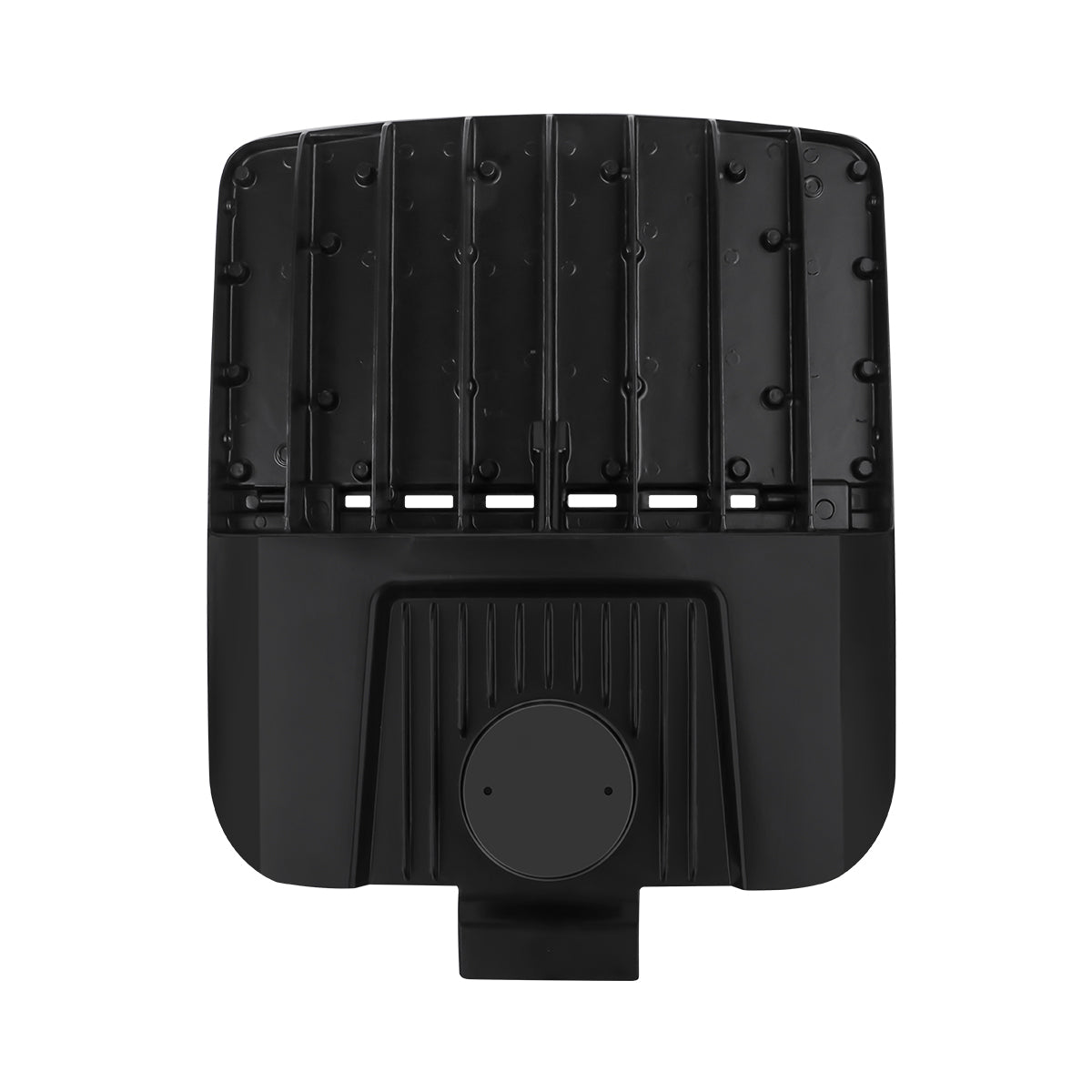

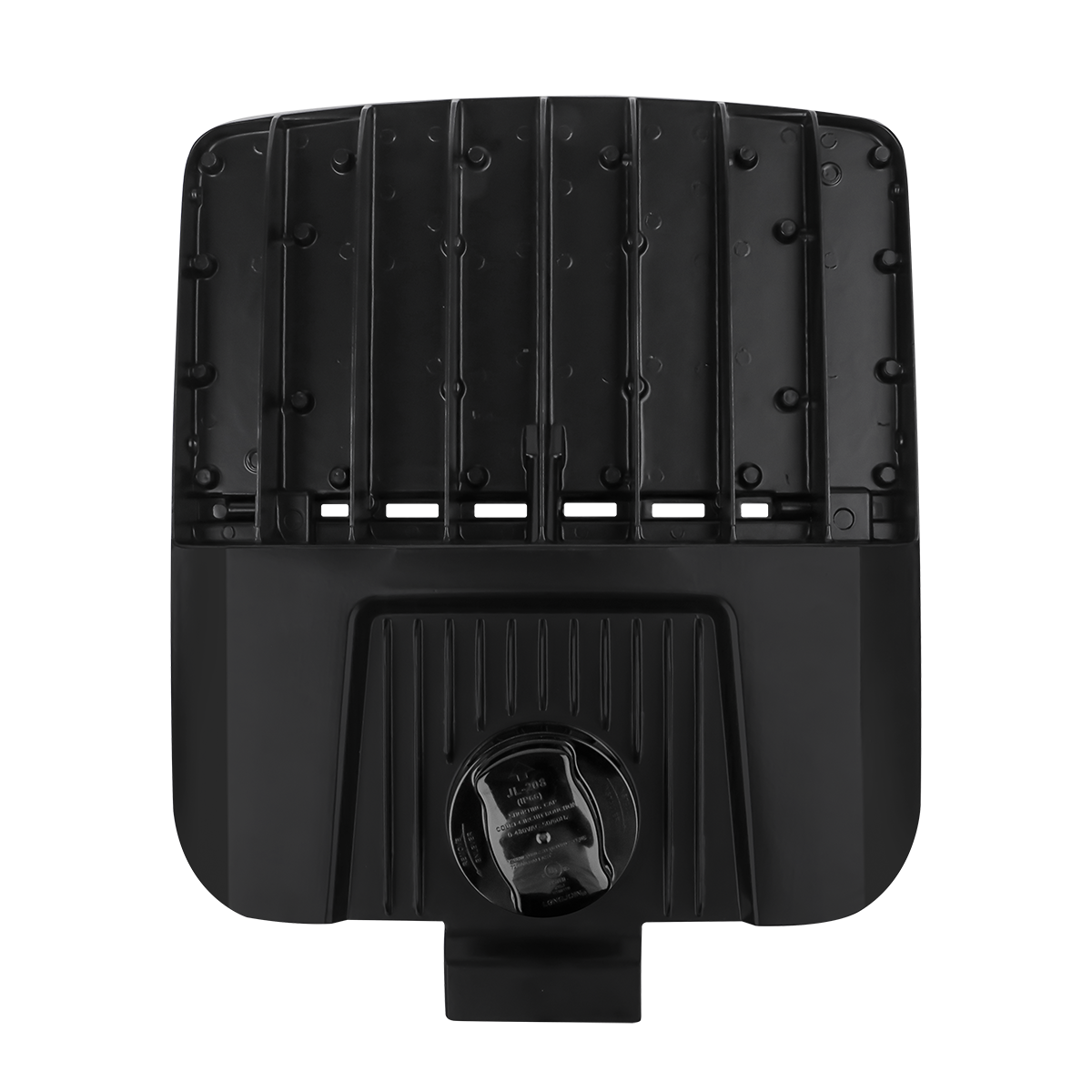

Top of the black 150W SBX shoebox showing cooling fins and photocell receptacle

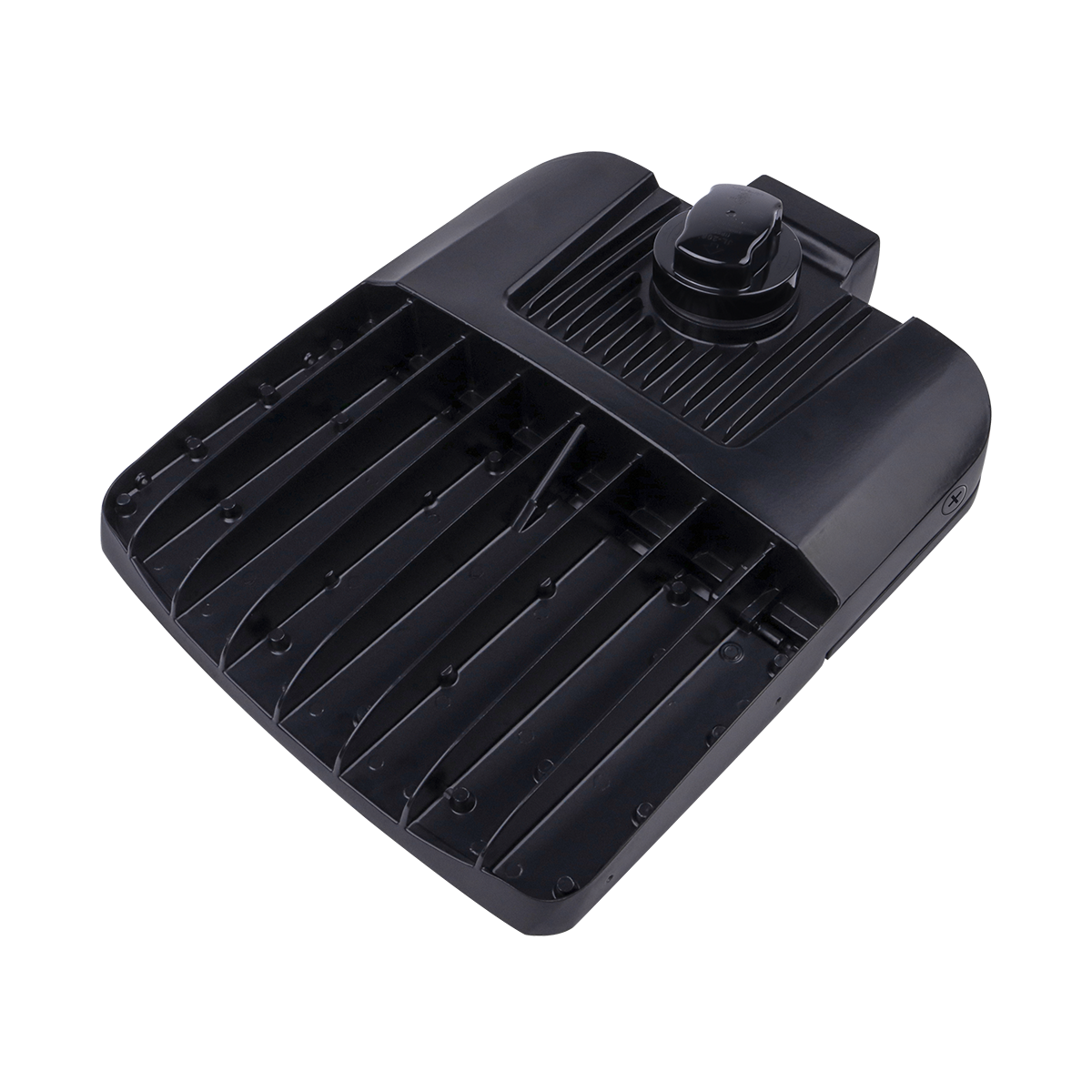

Black 150W SBX shoebox angled from above, showing the finned housing and photocell

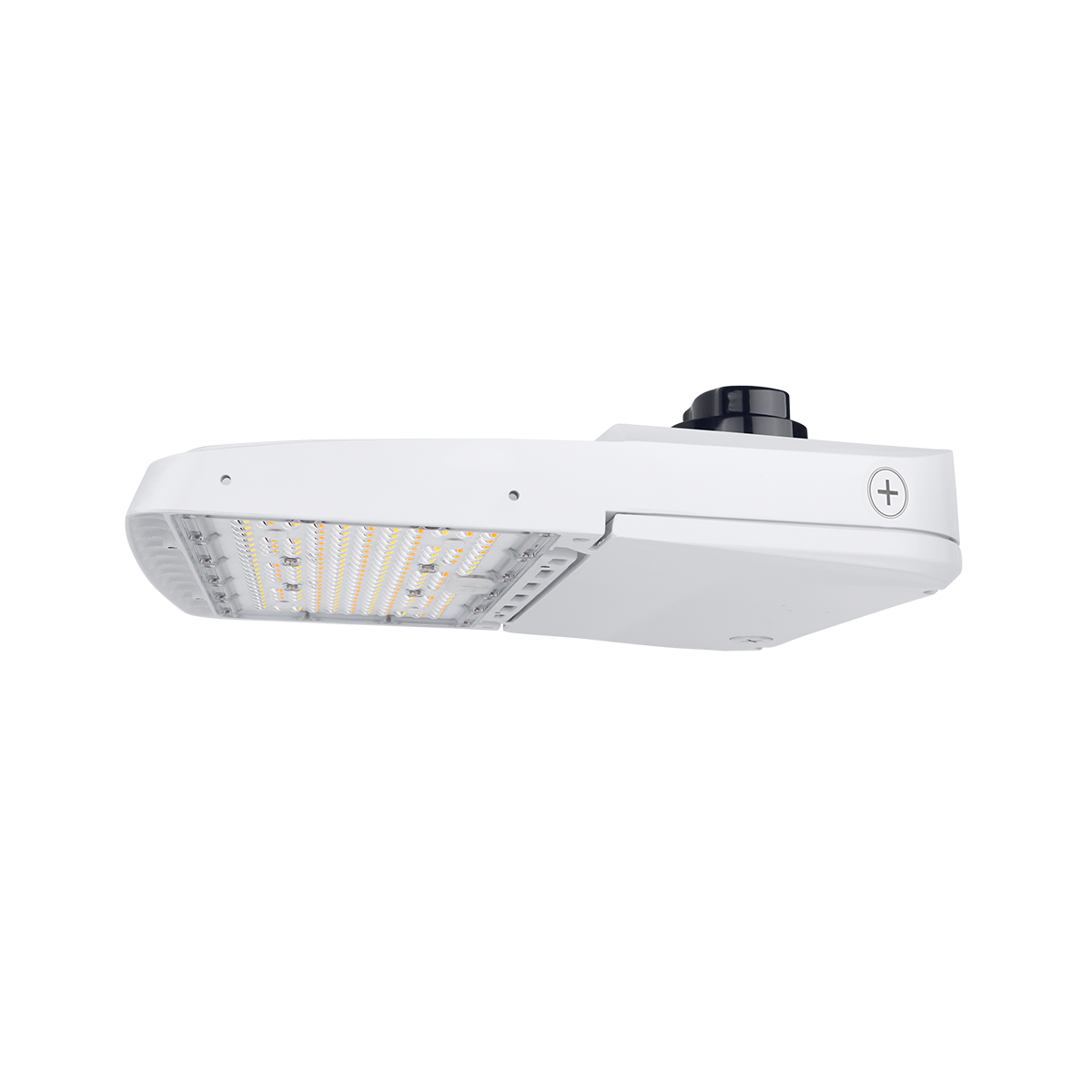

150W SBX LED shoebox area light in white with photocell, angled view

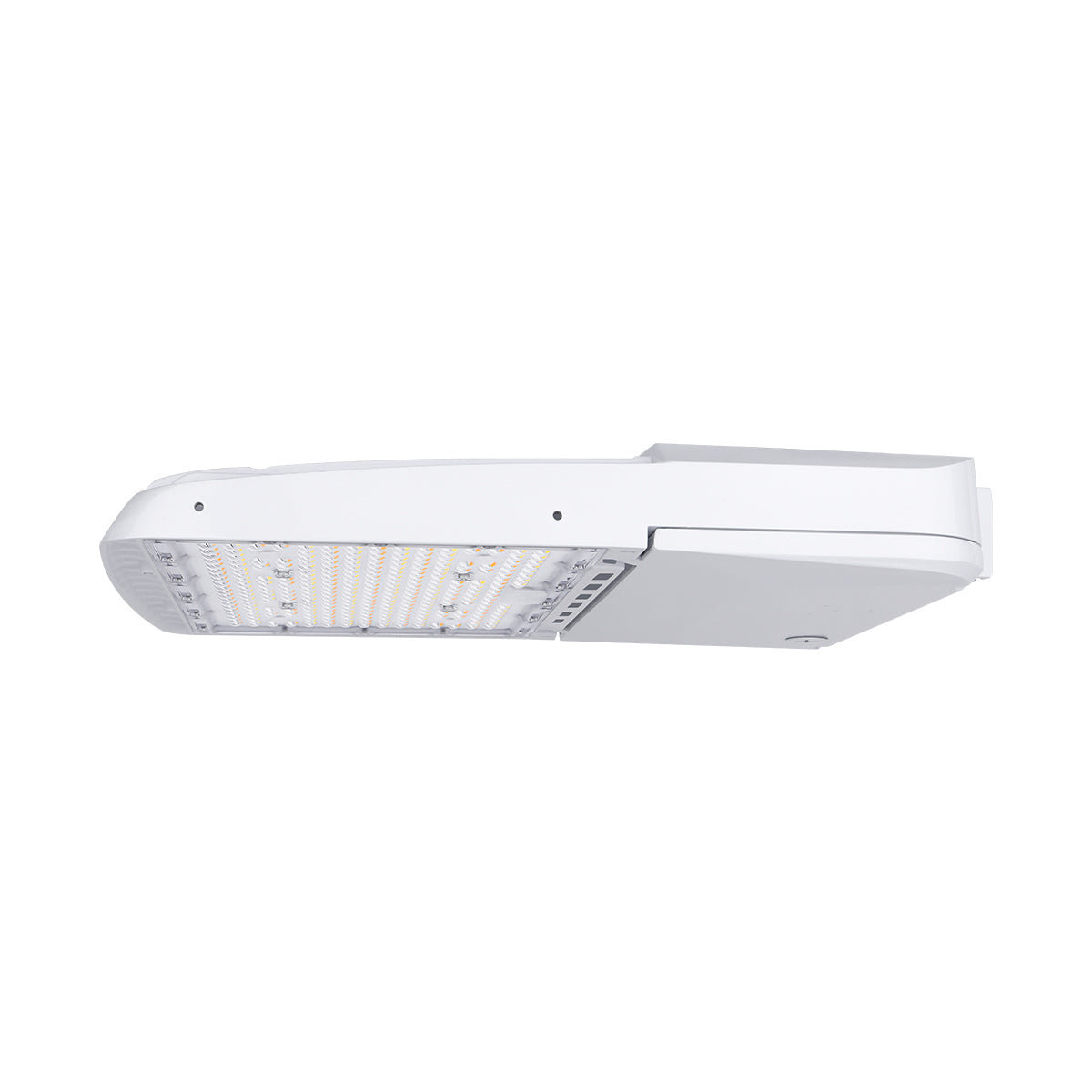

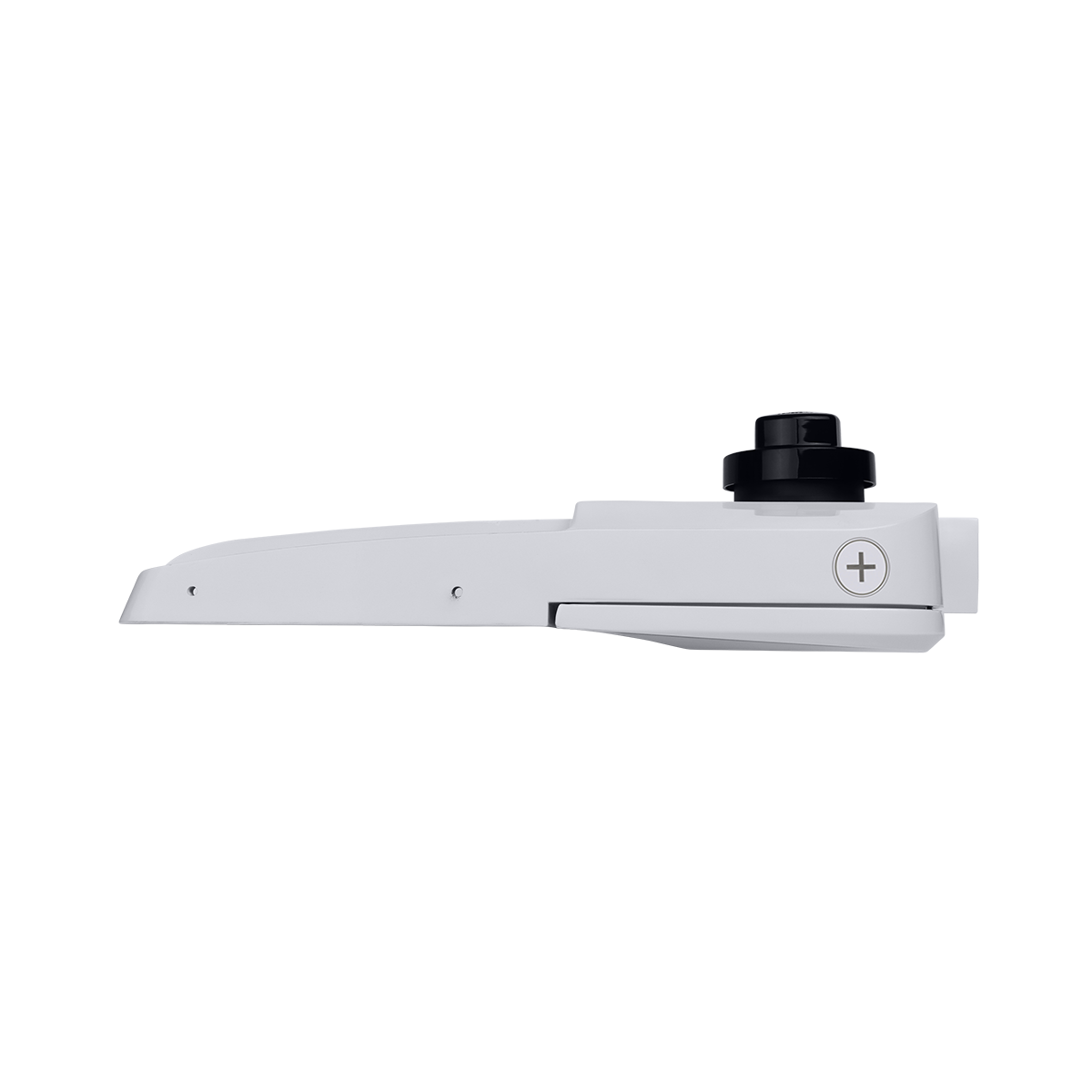

Side profile of the white 150W SBX shoebox with photocell on top

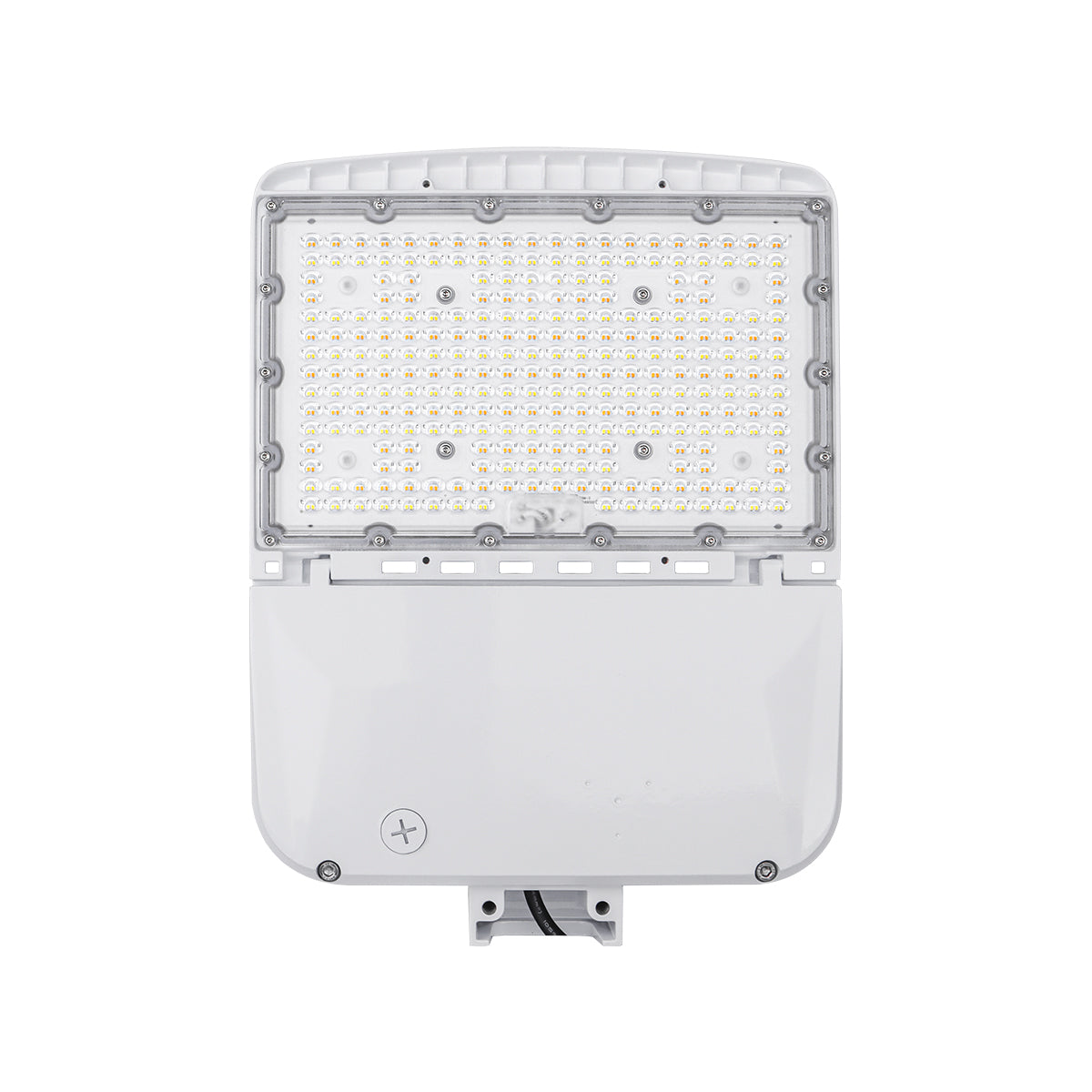

LED Shoebox Area Light 3 CCT 150 120 100 80W with adjustable light output and tone for outdoor areas

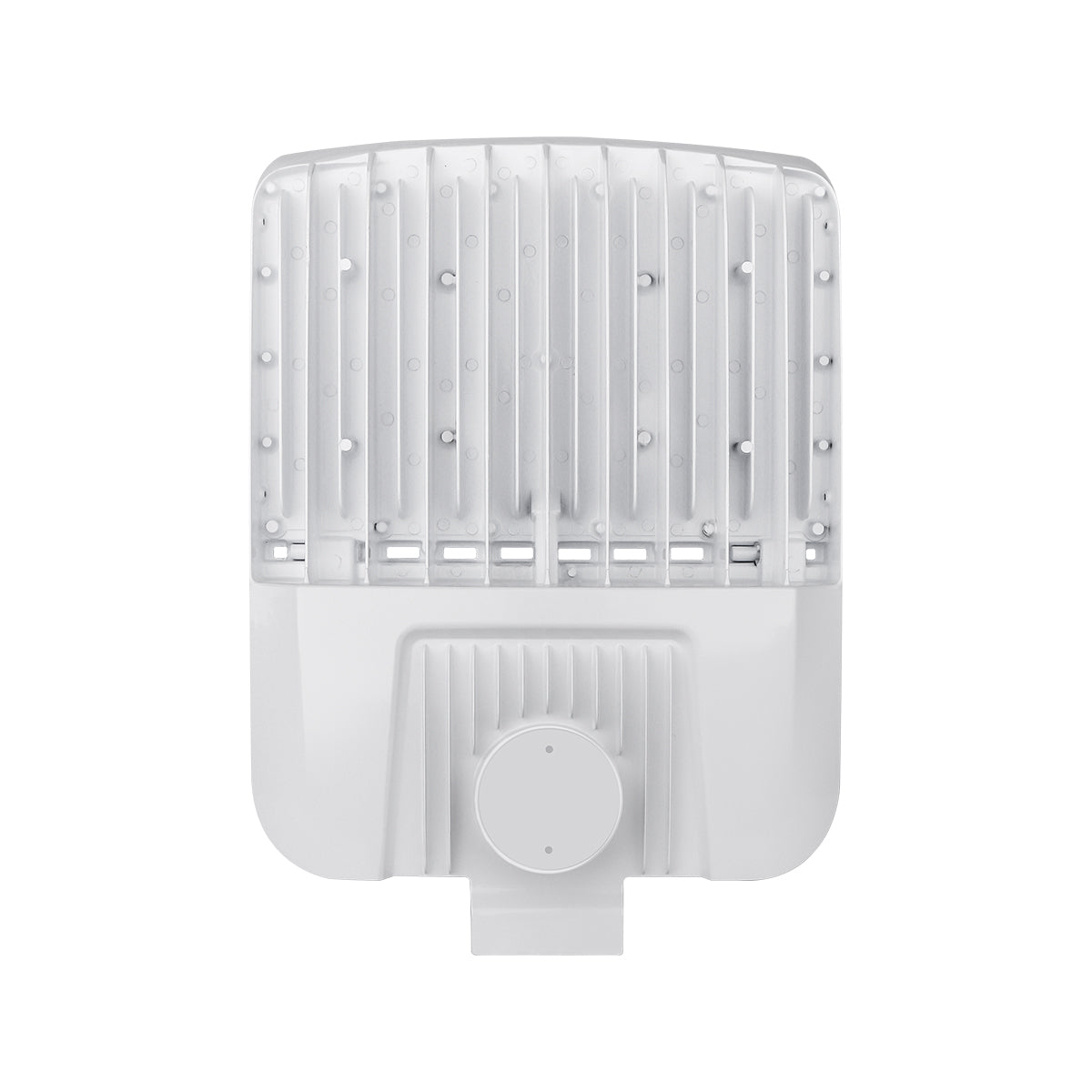

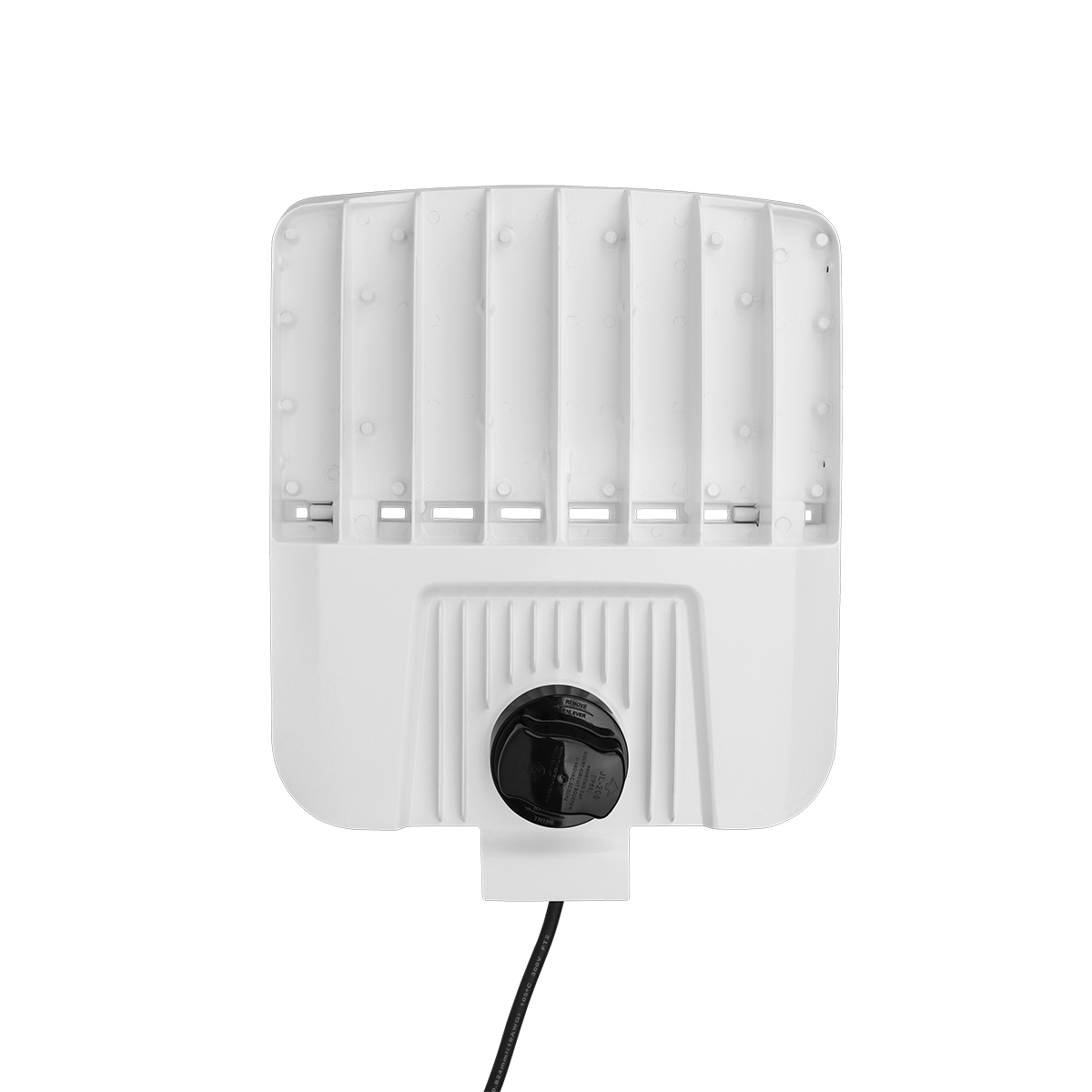

Top of the white 150W SBX shoebox showing cooling fins and photocell

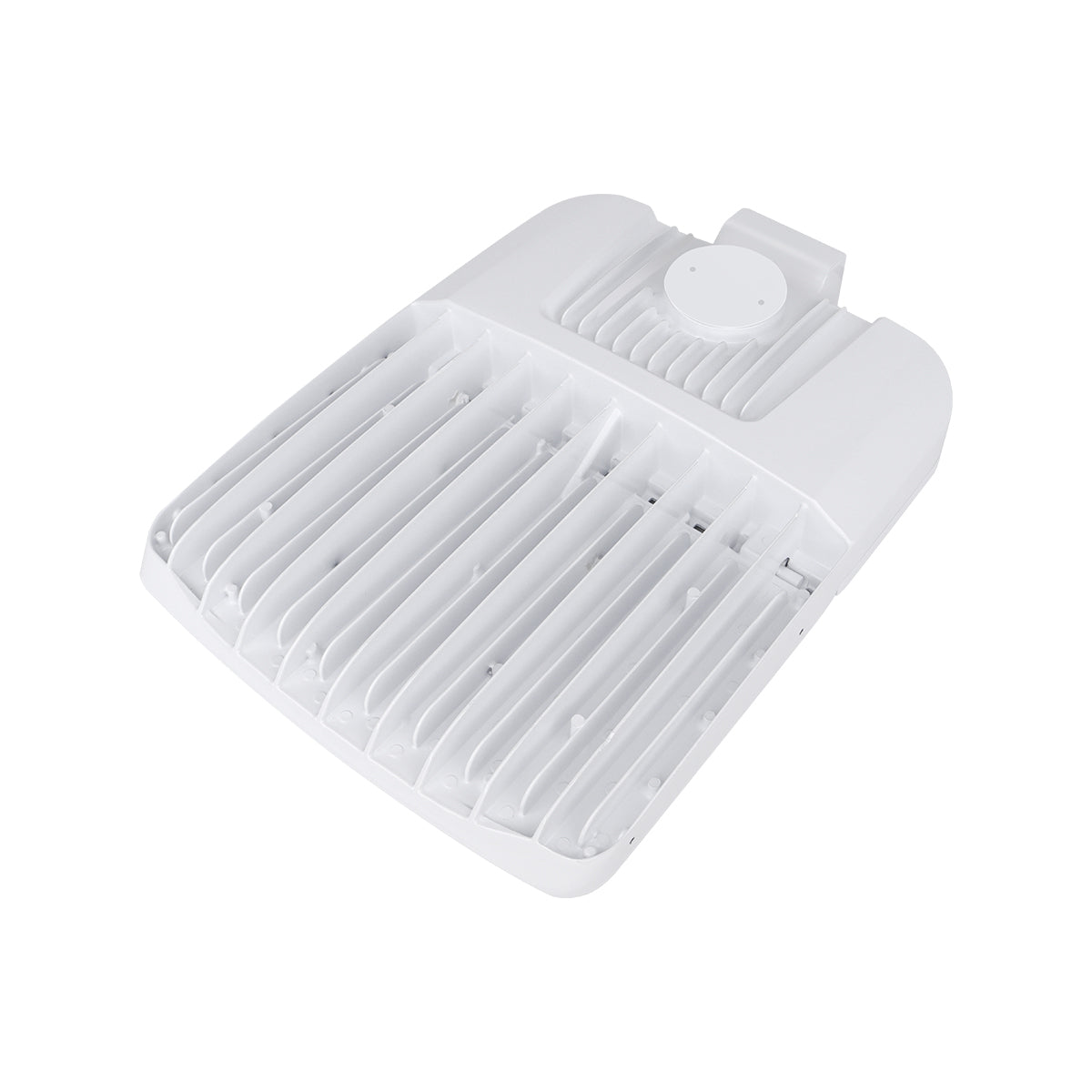

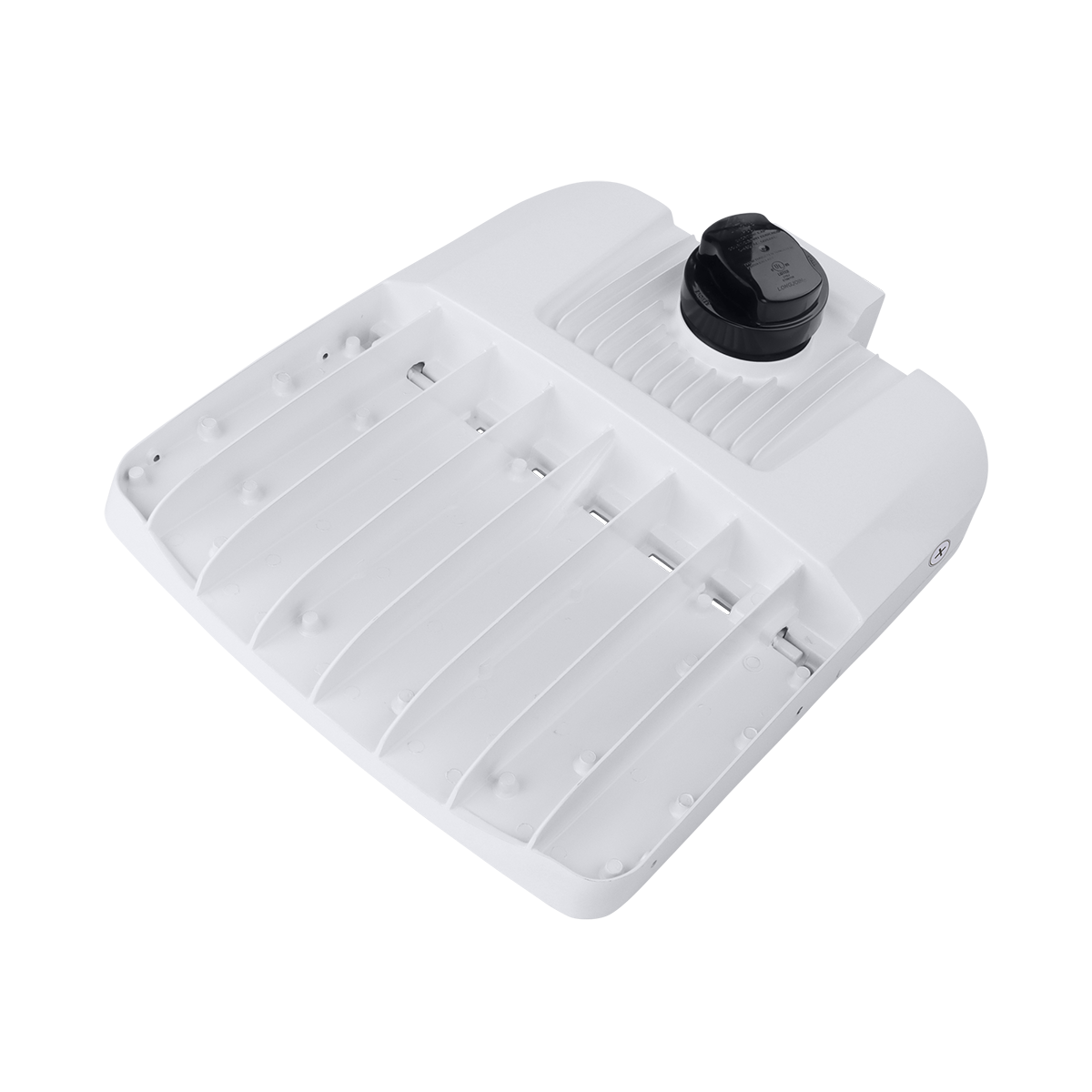

White 150W SBX shoebox angled from above, showing the finned housing and photocell
ELEDLights

150W Selectable LED Shoebox Area Light
SKU: SBXT3DB150WSCSP
$117.95

This high-efficiency, field-selectable 80–150W LED shoebox light is well suited for lower mounting heights in hospitality settings, residential areas, loading yards, driveways, and security perimeters.

  • 160 lm/W: High-efficiency, cost-saving replacement for 250W–400W HIDs
  • Wide range of wattage selection to match output to pole height
  • Delivers up to 24,000 lumens
Housing Color
Free Shipping Over $500

This high-efficiency, field-selectable 80–150W LED shoebox light is well suited for lower mounting heights in hospitality settings, residential areas, loading yards, driveways, and security perimeters.

  • 160 lm/W: High-efficiency, cost-saving replacement for 250W–400W HIDs
  • Wide range of wattage selection to match output to pole height
  • Delivers up to 24,000 lumens

Specs

Wattage(s) 80/100/120/150W
Replaces Wattage(s) 250W to 400W
Light Output 3000K: 11,600/14,500/17,400/21,750 lumens
4000K: 12,800/16,000/19,200/24,000 lumens
5000K: 12,000/15,000/18,000/22,500 lumens
Luminous Efficacy (lm/W) 145-160 lm/W
Average Lamp Life L90: 47,000 hours
L70: 54,000 hours
Color Temperature(s) 3000K/4000K/5000K
CRI (Color Accuracy) 70
Dimming 0-10V
Light Distribution Pattern Type III (T3) Learn More
×

Light Distribution Options

Type III Beam

Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles.

Type IV Beam

Provides forward directed light with minimal backlighting - great for perimeter installations.

Type V Beam

Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.
Installation Pole Mount, Wall Mount, Slipfitter, Trunnion Mount
EPA (Effective Projected Area) See spec sheet
Working Environment Outdoors
Enclosure Rating Wet Location
LED Type 2835
Input Voltage 120-277VAC
Driver Type Constant Current (CC)
Power Supply Sosen
Power Factor >0.95
Surge Protection 10kV
Operating Temperature -40°F to 113°F
Housing Material Die-cast aluminum
Housing Color Dark Bronze, Bright White, or Matte Black
Dimensions See spec sheet
Weight 7.2 lbs
Certification DLC Premium, UL
Warranty 5 Years
Additional Specifications Fixture comes standard with receptacle and shorting cap. Photocell, also available, can be easily installed in the field.

Details

A Light for Just About Any Parking Lot or Outdoor Area

Select the Light Output and Light Tone During Install:

  • Choose from a wide range of output levels from 11,600 to 24,000 lumens.
  • Choose between warm, neutral, and cool white light for each area.

Select the Best Finish for Your Application: Dark bronze, bright white, or matte black.

Select from 6 Mounting Options: Available under the accessories tab.

Add an Easy-Install, Twist-Lock Photocell: Ensures the lights are only on when needed.

Enjoy Highly Efficient, Long-Lasting Outdoor Lights

  • Luminous efficacy of up to 160 lm/W.
  • Rugged die-cast aluminum with flow-through venting.
  • Fully sealed against moisture, dust, and contaminants.
  • 3G vibration rated & low EPA to minimize wind load requirements.
  • Rated for use in temperatures as low as -40°F.

Need 480V? High voltage version available here.


A 24" power cord is included to make installations easier.

Layout & Planning

Request a Custom Layout

Complex or unique space? Get a custom layout plan from our lighting experts.

Save More with Rebates

Check available incentives in your area to reduce your upfront cost.

×
×

Instant Rebates

Check if your utility offers rebates for new LED lights installed in commercial & industrial buildings:

×
