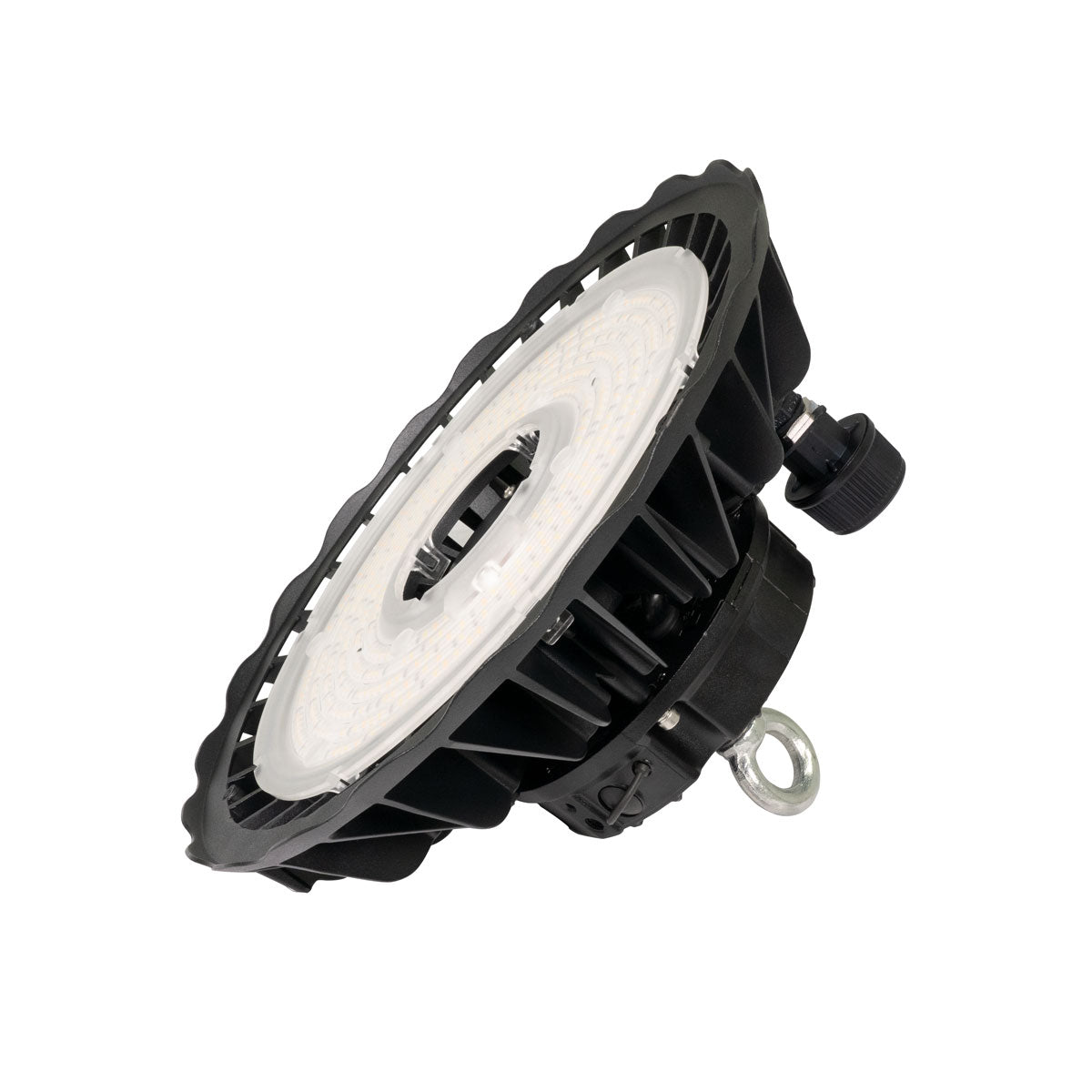

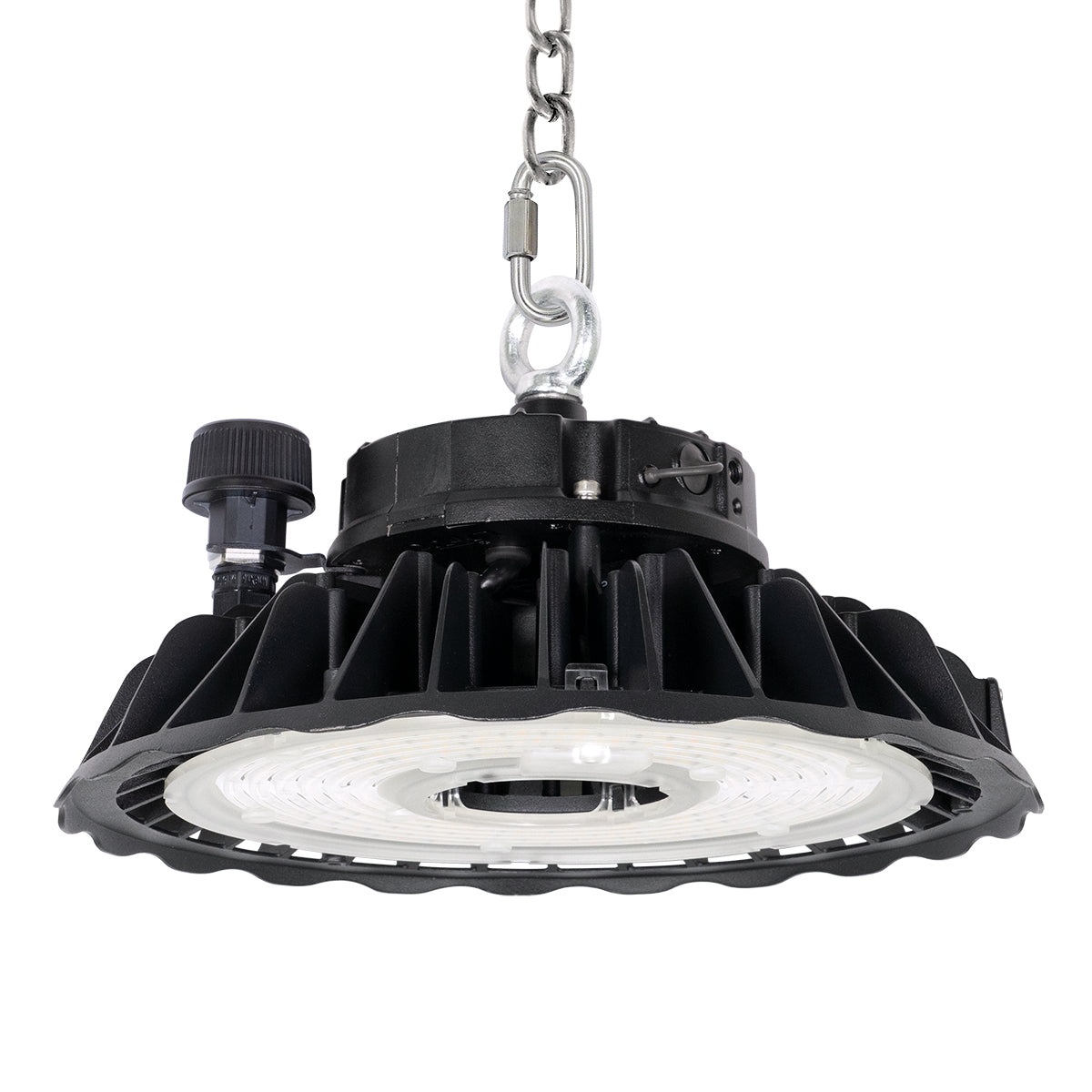

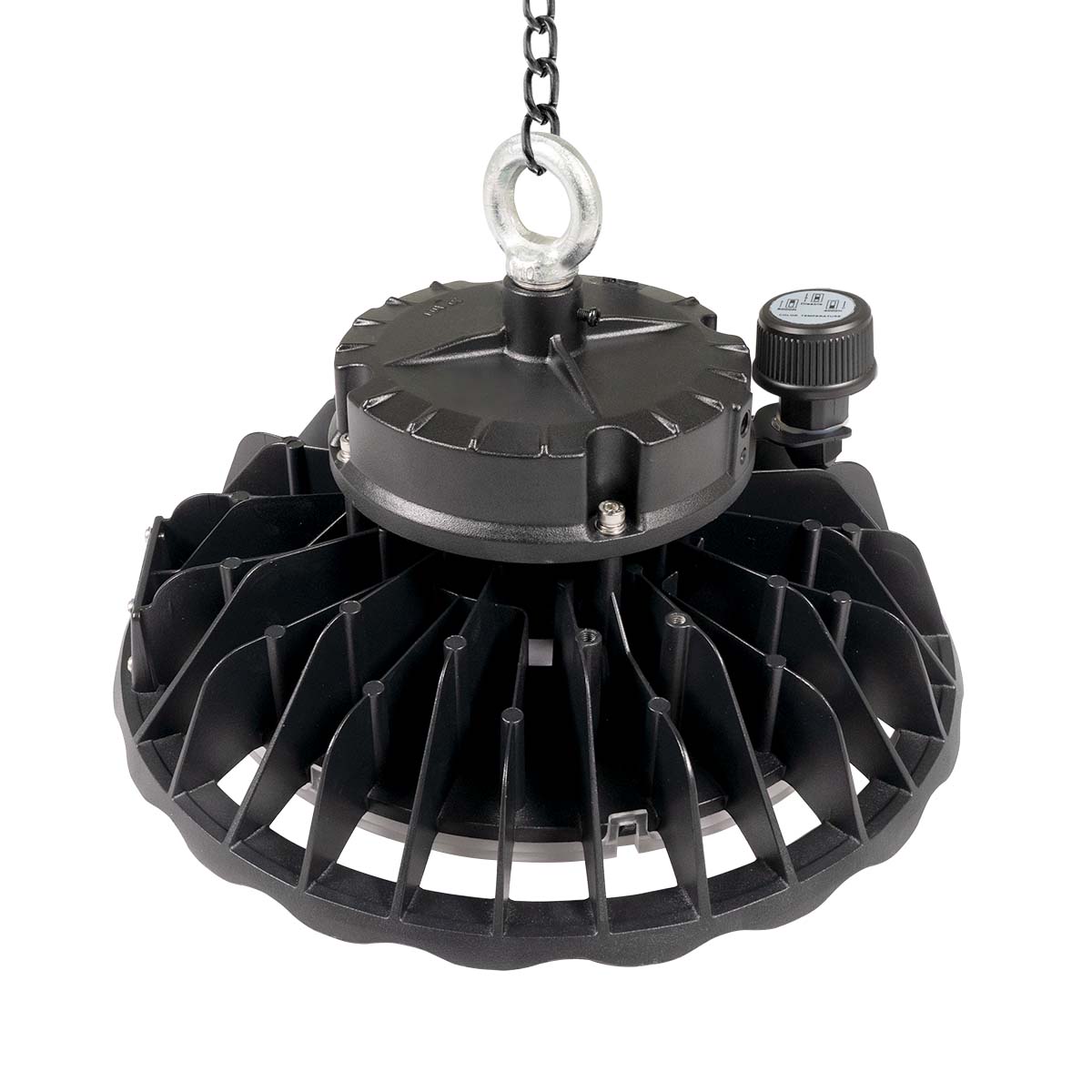

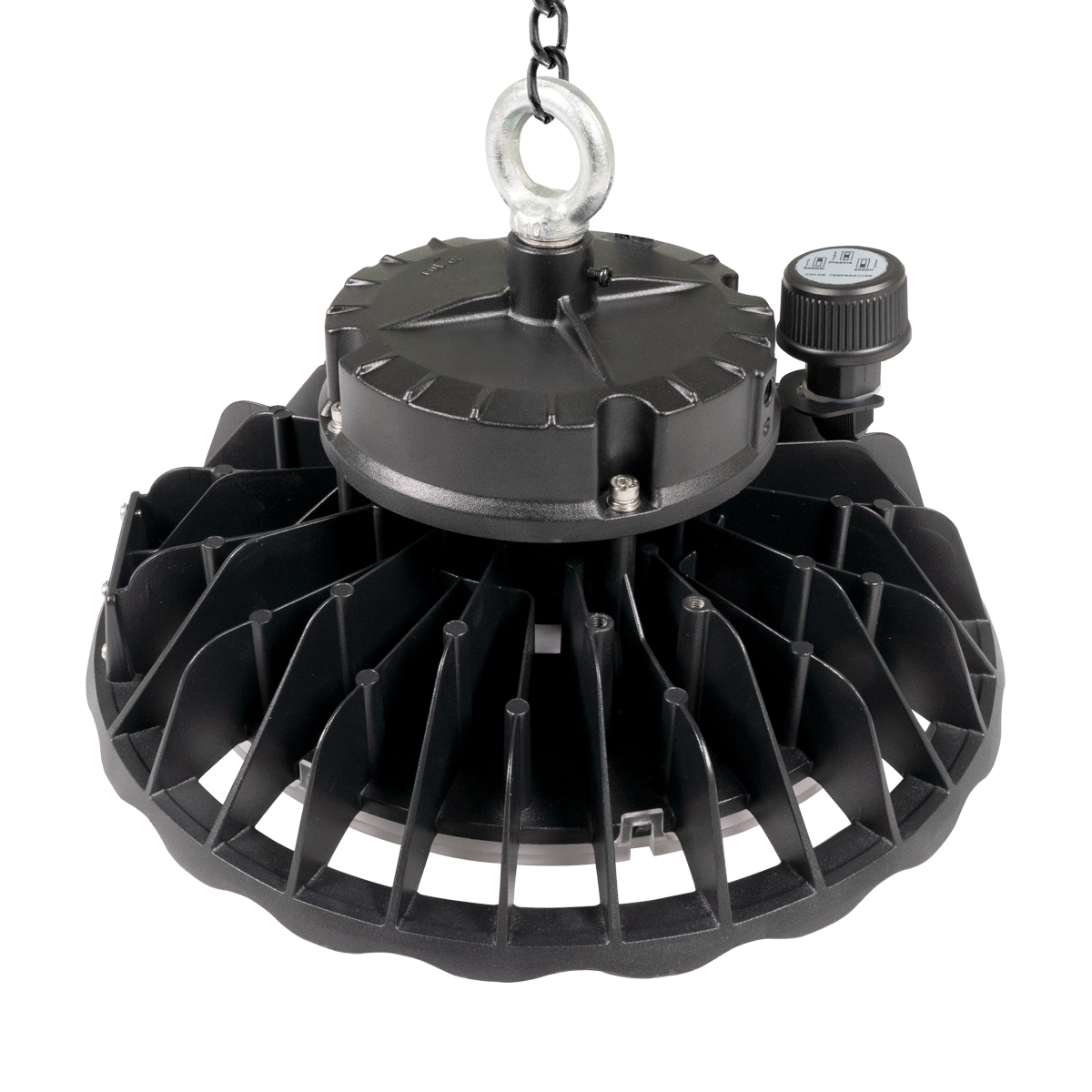

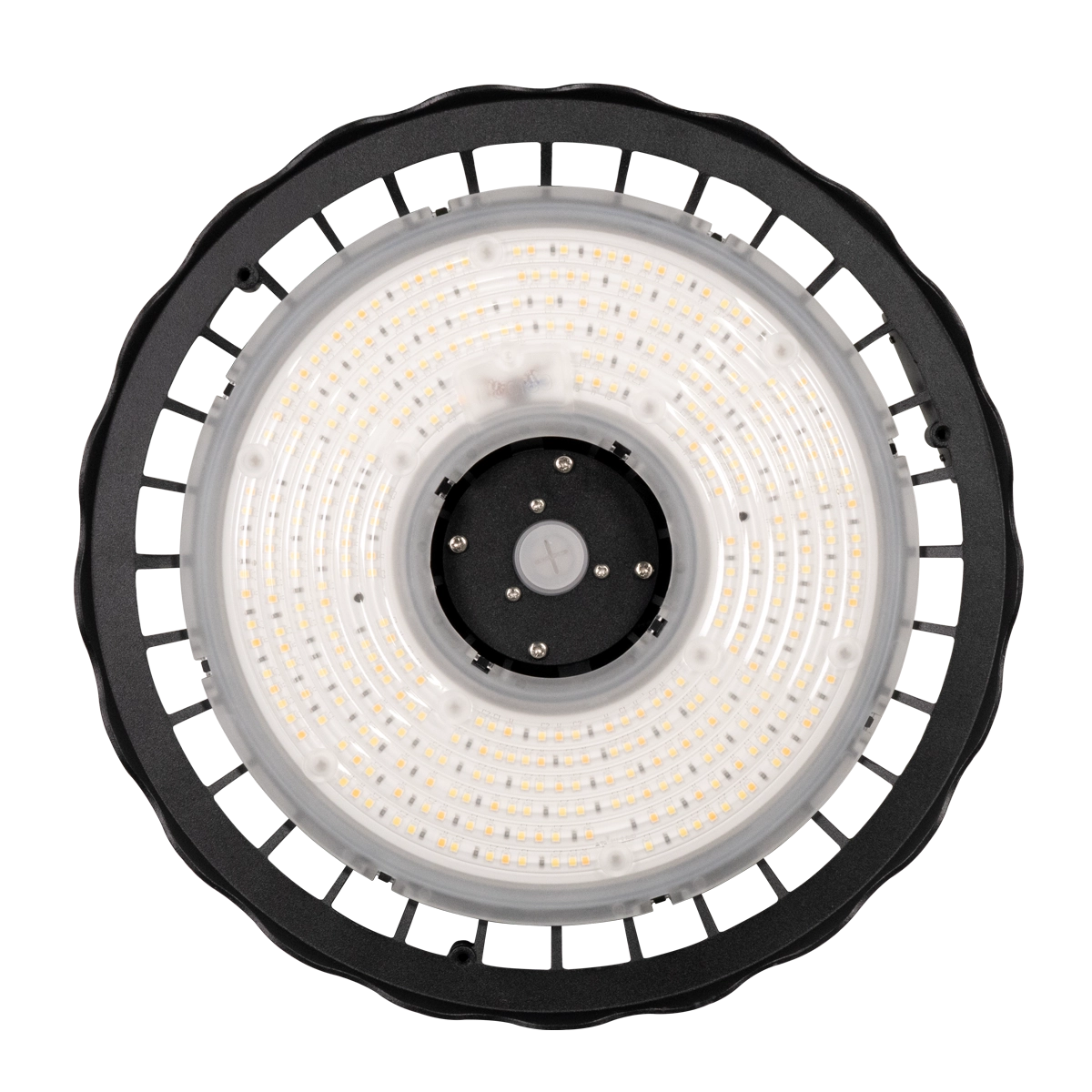

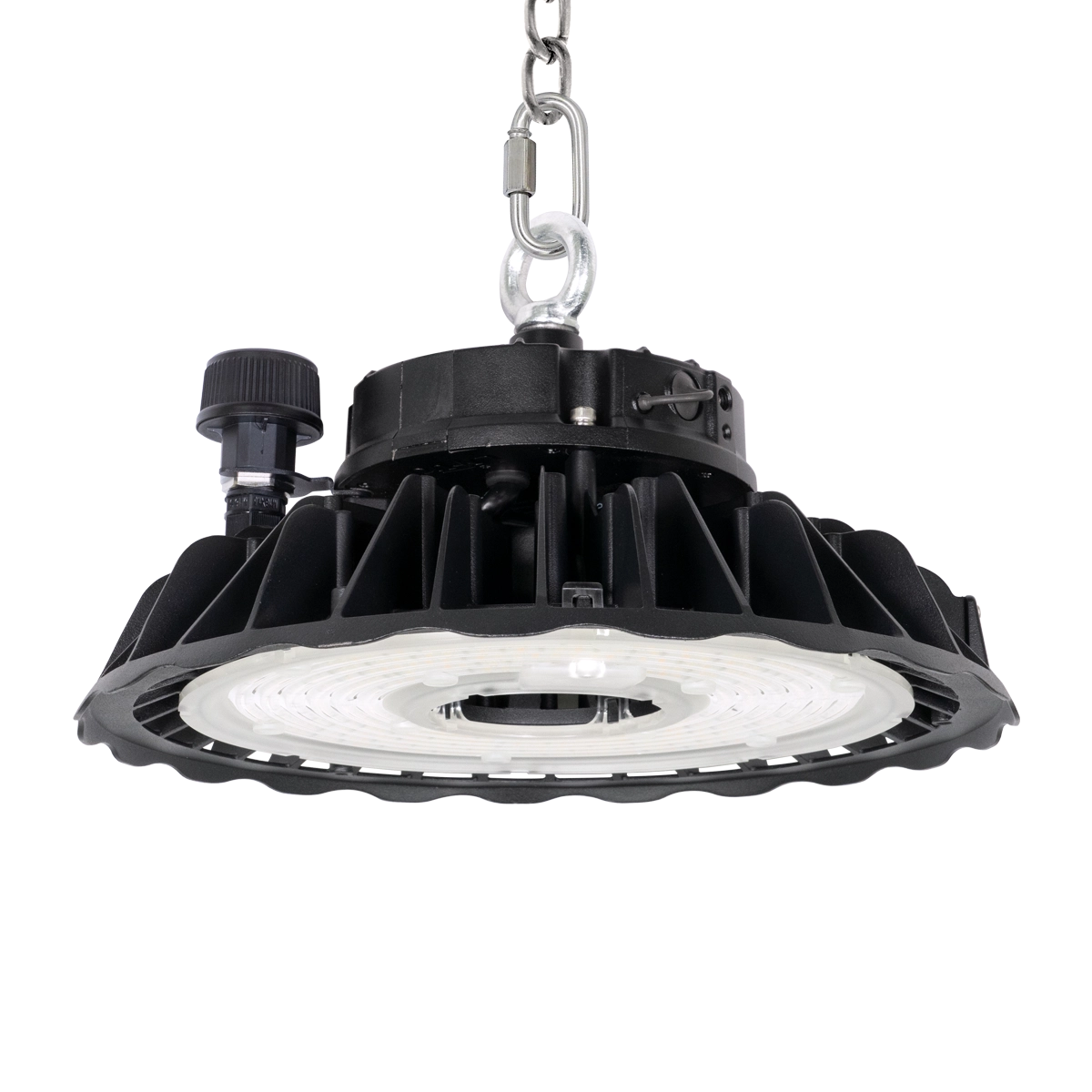

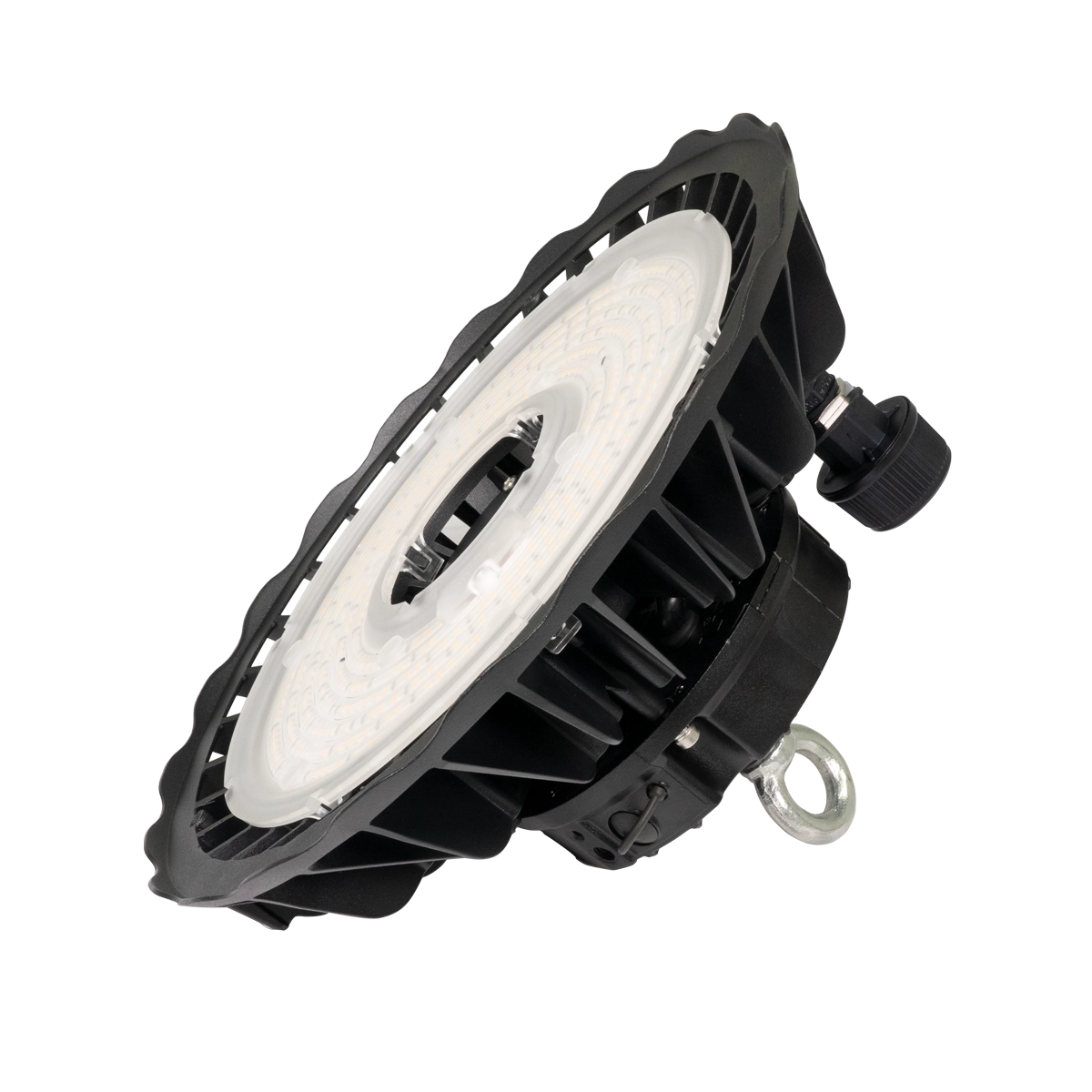

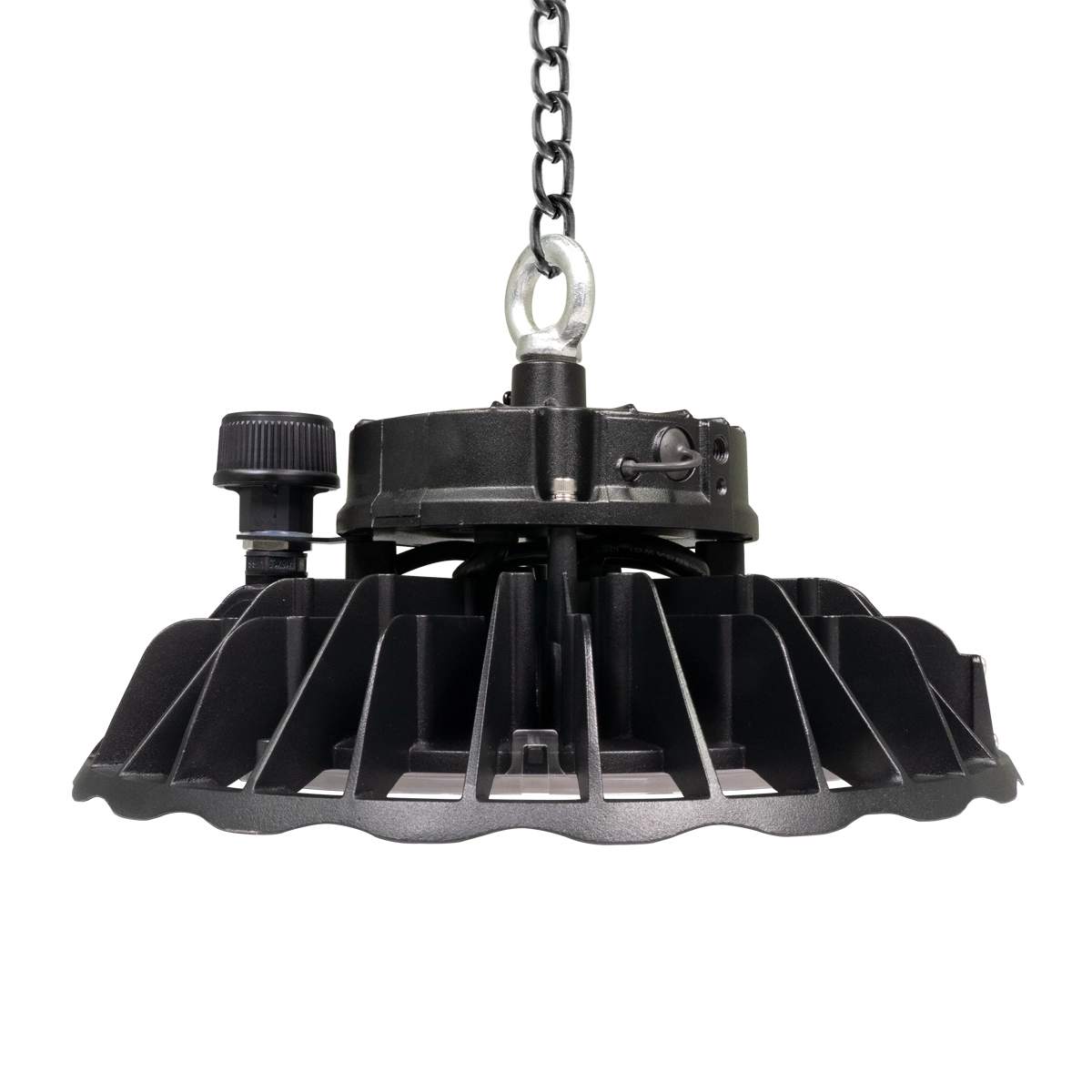

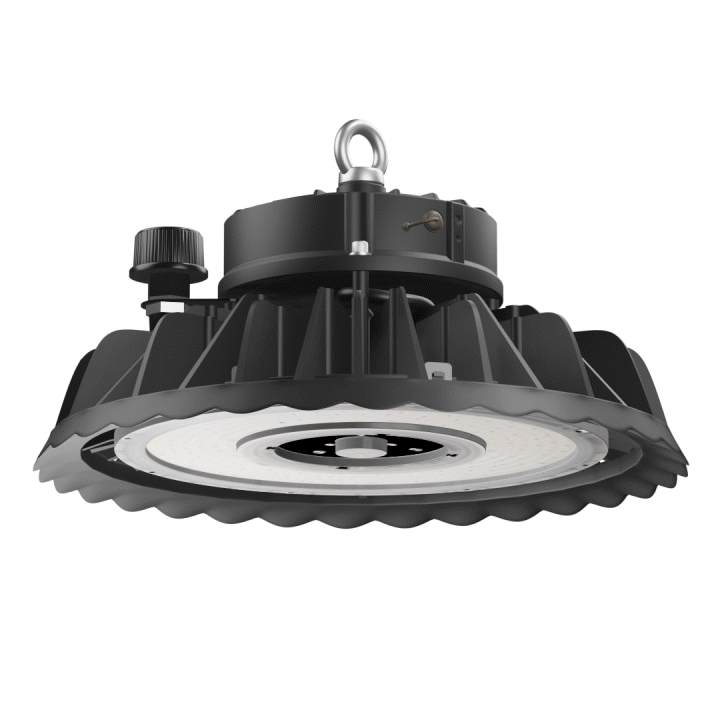

Heavy-Duty Low-Bay UFO Light for Ceilings to 15ft
Lumens:
Watts:
Color Temp:
5 Year Warranty
Take the Guesswork Out of Purchasing
for Various Ceiling Heights

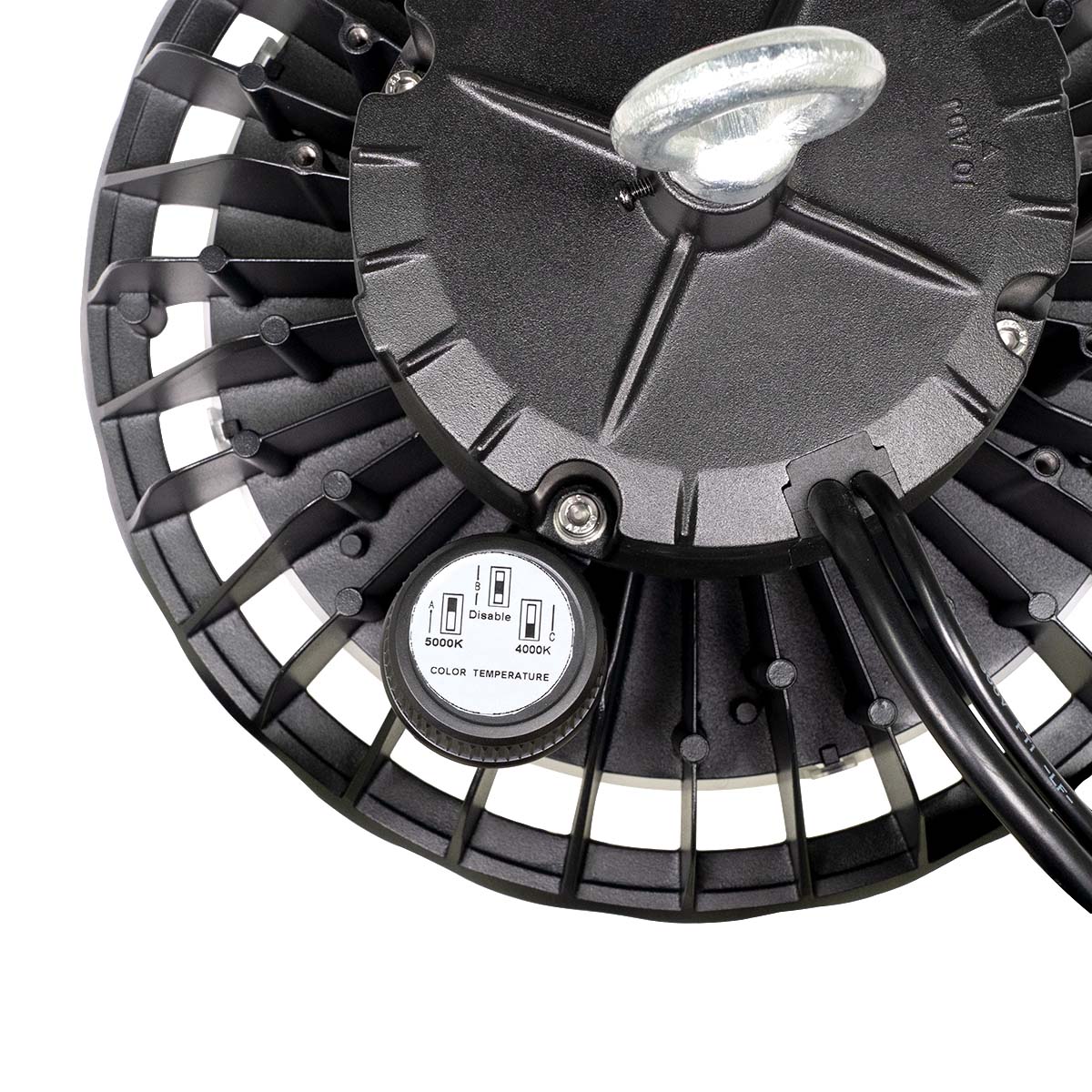

Meets lighting needs across the facility: 3 Wattage and 2 Color Temps Selectable During Install.
Built-in dimming capability with an optional PIR motion sensor for additional lighting control.
A Top-of-the-Line Lighting Solution
- Impact- and Waterproof: Heavy-duty IP65 & IK08 rated housing.
- Reliable in temperatures ranging from -22°F to 122°F.
- Compact size while maintaining great light distribution and heat dissipation.
- Emergency driver available to keep lights on during power outages.

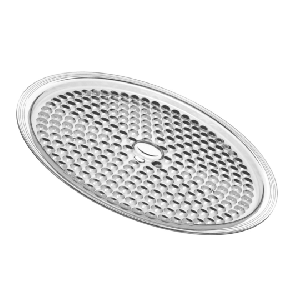

- Popular 120° Beam Angle Lens Included: 90° or 60° options available as accessories.
For installers and distributors, save inventory space and investment: Each model covers a number of wattage/CCT configurations for ceilings 15ft to 20ft, reducing the number of SKUs you need to stock. Quantity discounts are available for bulk purchases.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Take the Guesswork Out of Purchasing
for Various Ceiling Heights
Meets lighting needs across the facility: 3 Wattage and 2 Color Temps Selectable During Install.
Built-in dimming capability with an optional PIR motion sensor for additional lighting control.
A Top-of-the-Line Lighting Solution
- Impact- and Waterproof: Heavy-duty IP65 & IK08 rated housing.
- Reliable in temperatures ranging from -22°F to 122°F.
- Compact size while maintaining great light distribution and heat dissipation.
- Emergency driver available to keep lights on during power outages.
- Popular 120° Beam Angle Lens Included: 90° or 60° options available as accessories.
For installers and distributors, save inventory space and investment: Each model covers a number of wattage/CCT configurations for ceilings 15ft to 20ft, reducing the number of SKUs you need to stock. Quantity discounts are available for bulk purchases.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 60W/80W/100W |
| Light Output |
100W is 15,000 lumens 80W is 12,000 lumens 60W is 9,000 lumens |
| Luminous Efficacy (lm/W) | 150 lm/W |
| Average Lamp Life |
L90: 31,000 hours L80: 64,000 hours L70: 101,000 hours |
| Color Temperature(s) | 4000K/5000K |
| CRI (Color Accuracy) | >80 |
| UGR (Unified Glare Rating) | <25 |
| Dimming | 0-10V |
| Base Type | Fixture |
| Beam Angle | 120° |
| Working Environment | Indoor |
| Enclosure Rating | IK08 & IP65 (Protected against dust and low-pressure jets of water) |
| Light Type | Wired Fixture |
| LED Type | LED 2835 |
| Input Voltage | 100-277VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | Lifud Driver |
| Power Factor | >0.95 |
| Surge Protection | 4kV line-line, 6kV line-earth |
| Temperature Rating | -22°F to +122°F |
| Housing Material | Aluminum alloy with PC lens |
| Housing Color | Black |
| Dimensions | ⌀ 12.4" x 7.32" |
| Weight | 7.28 lbs |
| Certification | DLC 5.1, ETL |
| DLC ID(s) | S-AS6MZY |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
Key Features

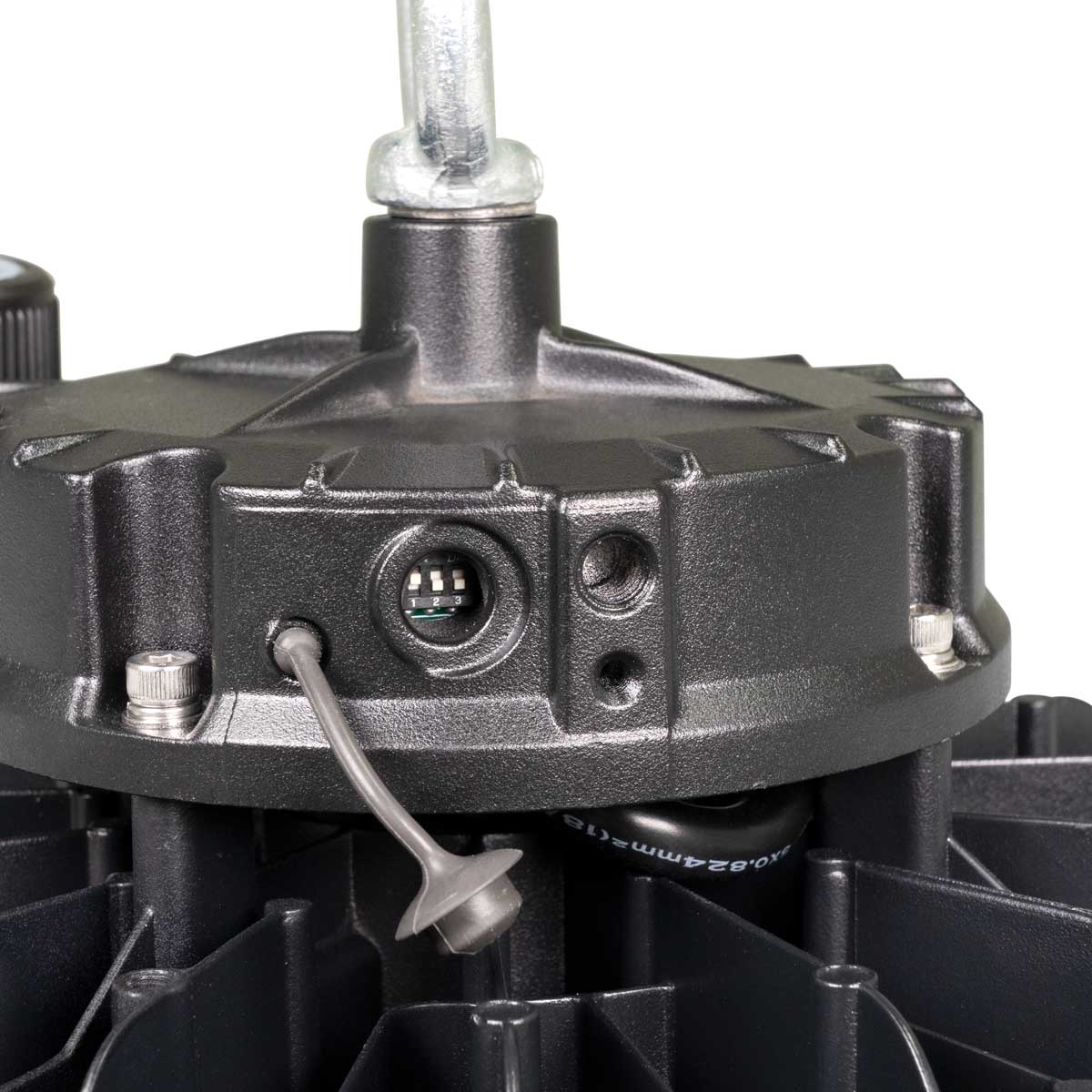

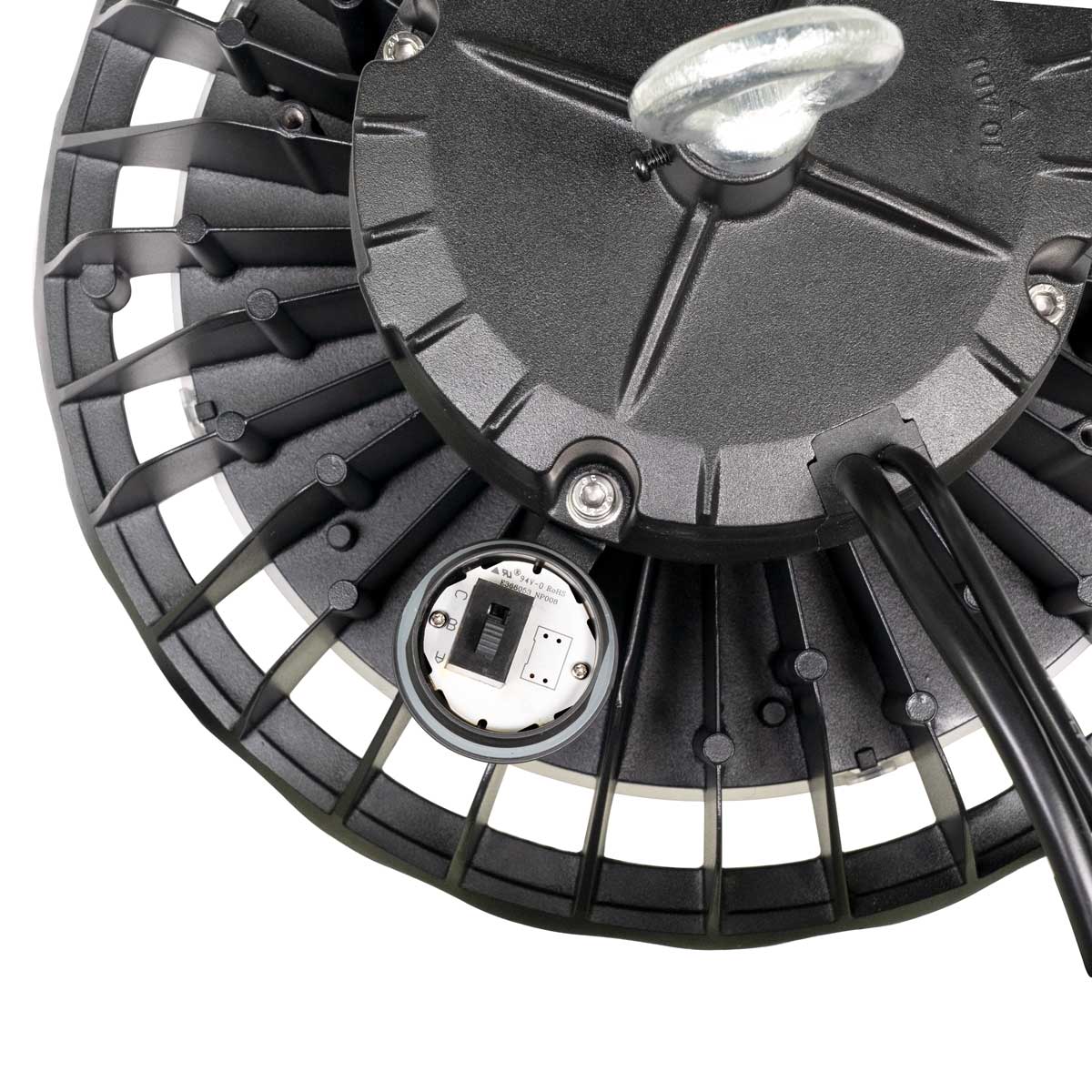

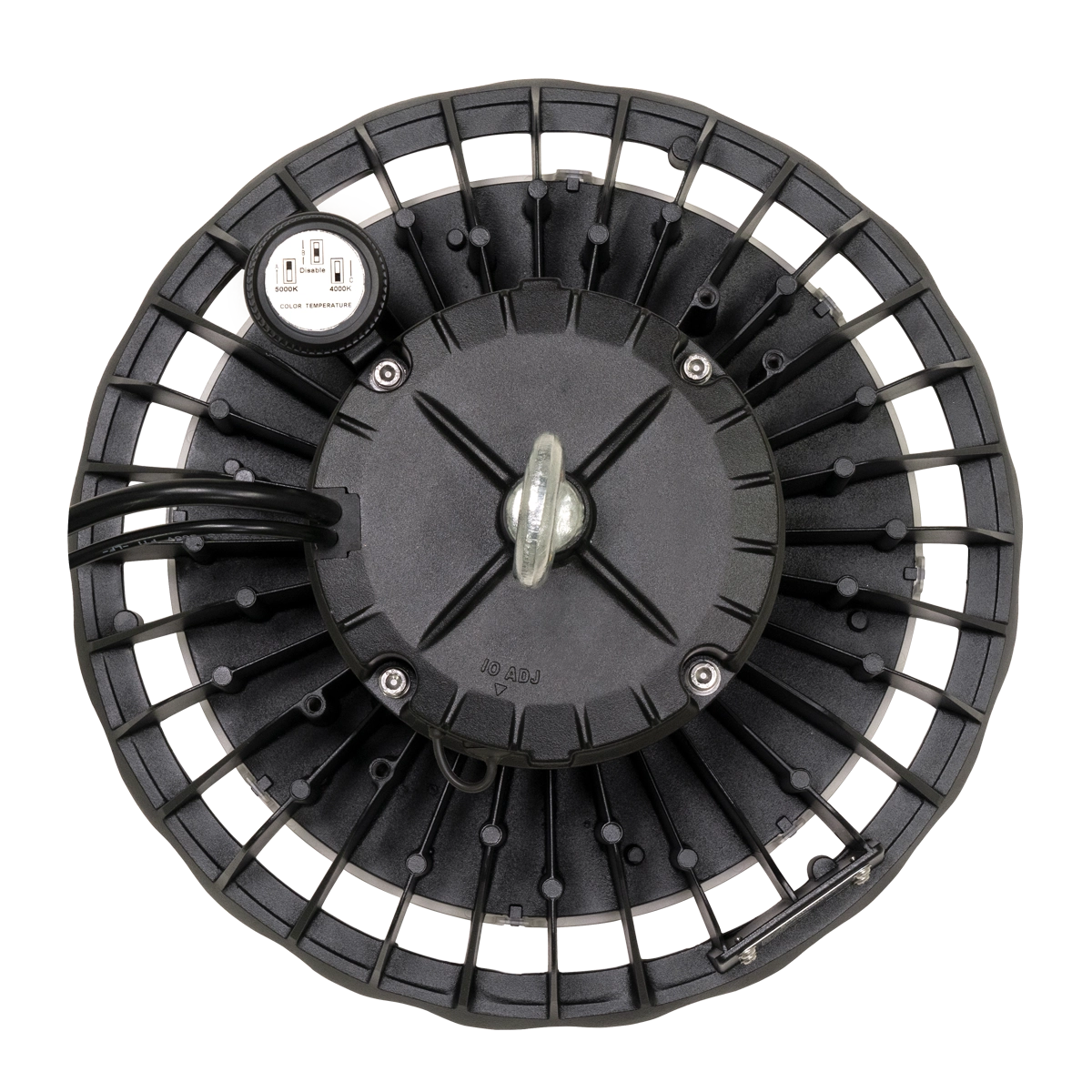

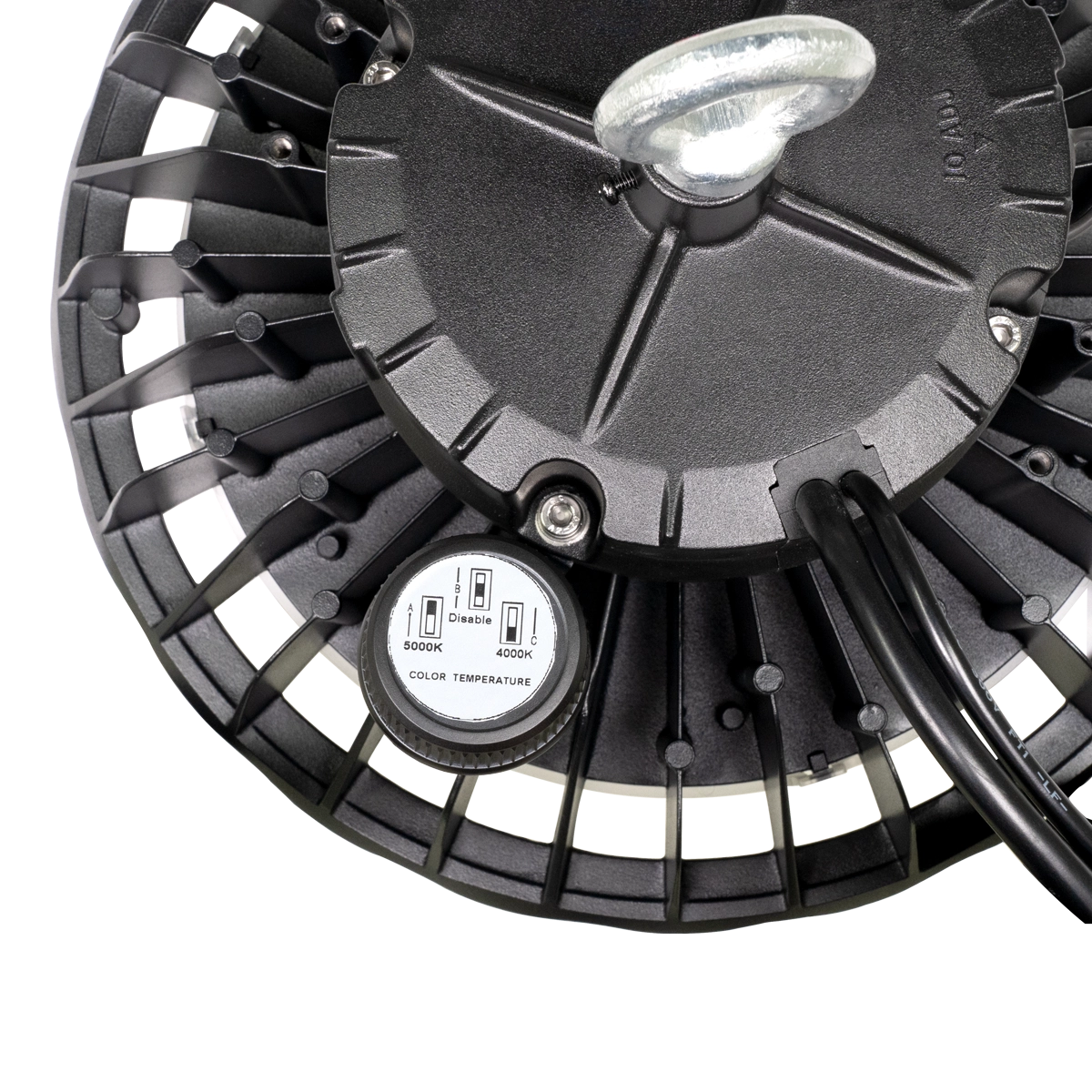

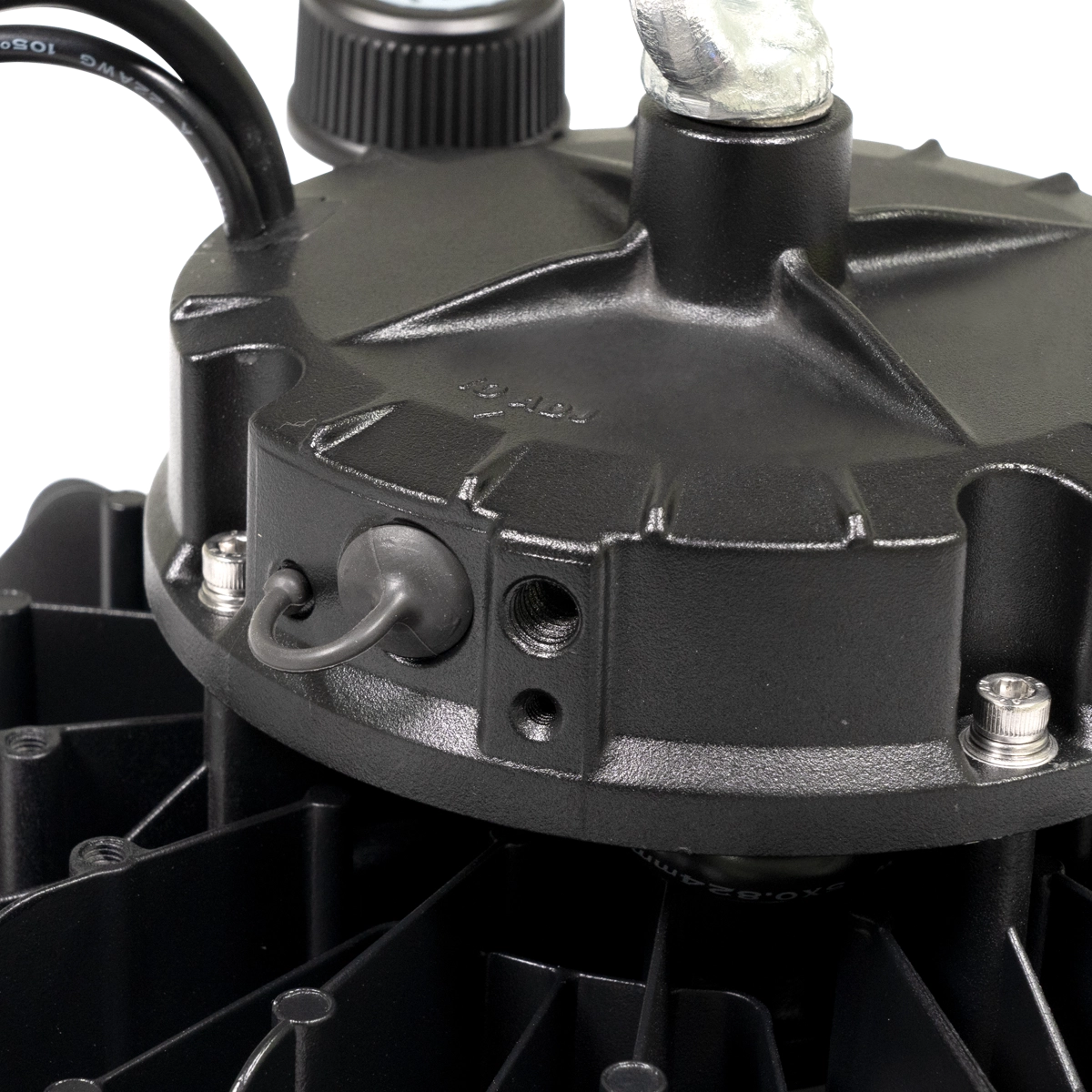

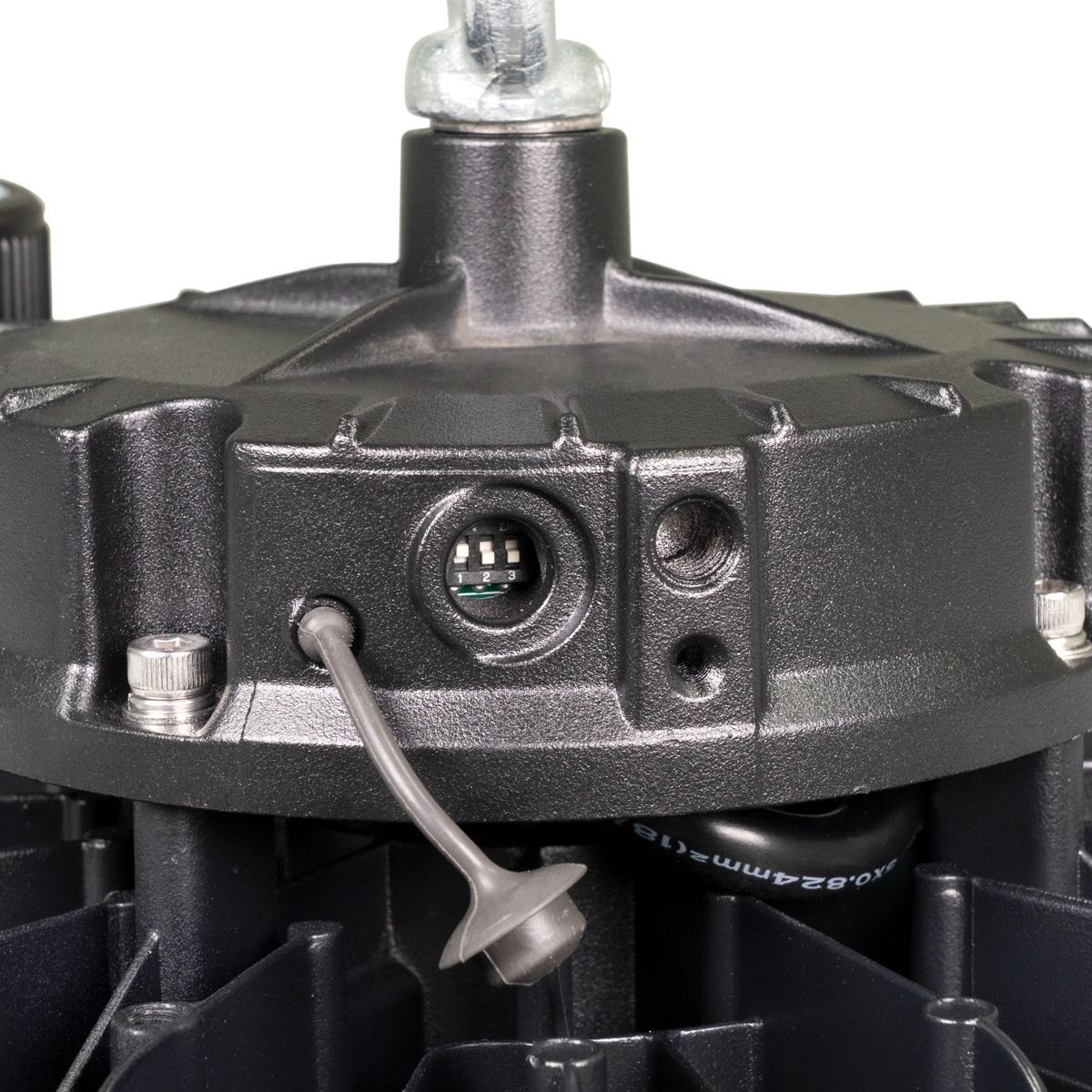

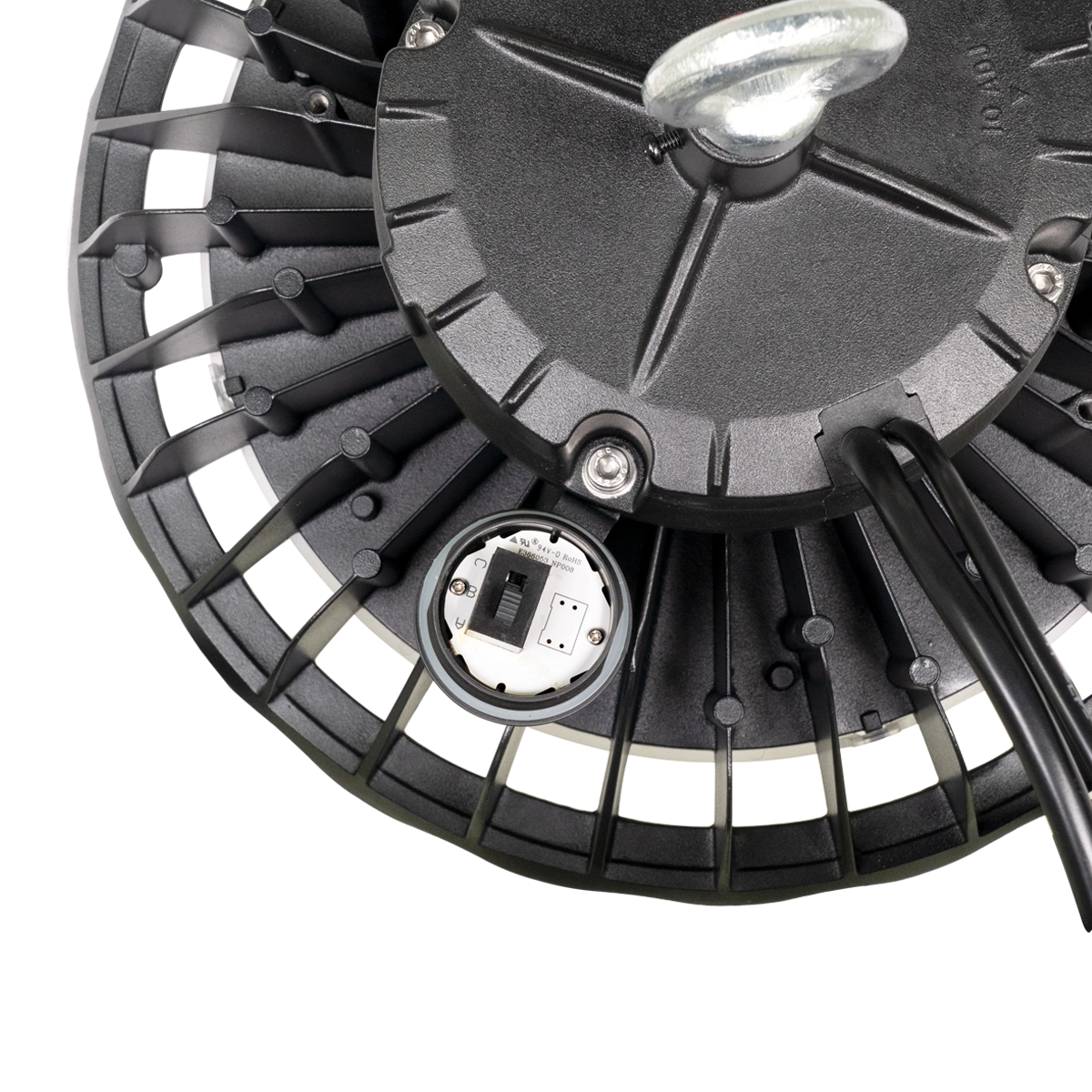

Selectable Wattage & CCT

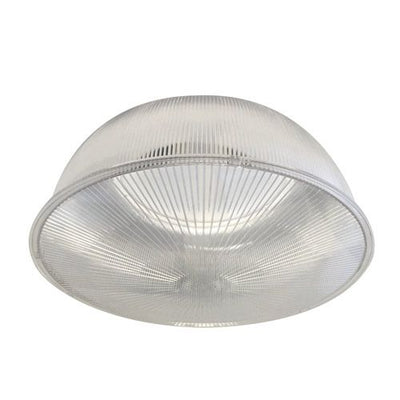

Easy-Install Lens Options
Top Design and Build Quality
Take the Guesswork Out of Purchasing
for Various Ceiling Heights
Meets lighting needs across the facility: 3 Wattage and 2 Color Temps Selectable During Install.
Built-in dimming capability with an optional PIR motion sensor for additional lighting control.
A Top-of-the-Line Lighting Solution
- Impact- and Waterproof: Heavy-duty IP65 & IK08 rated housing.
- Reliable in temperatures ranging from -22°F to 122°F.
- Compact size while maintaining great light distribution and heat dissipation.
- Emergency driver available to keep lights on during power outages.
- Popular 120° Beam Angle Lens Included: 90° or 60° options available as accessories.
For installers and distributors, save inventory space and investment: Each model covers a number of wattage/CCT configurations for ceilings 15ft to 20ft, reducing the number of SKUs you need to stock. Quantity discounts are available for bulk purchases.
Light Output
This light is wattage-selectable. Click a wattage to see the light output for that setting.
