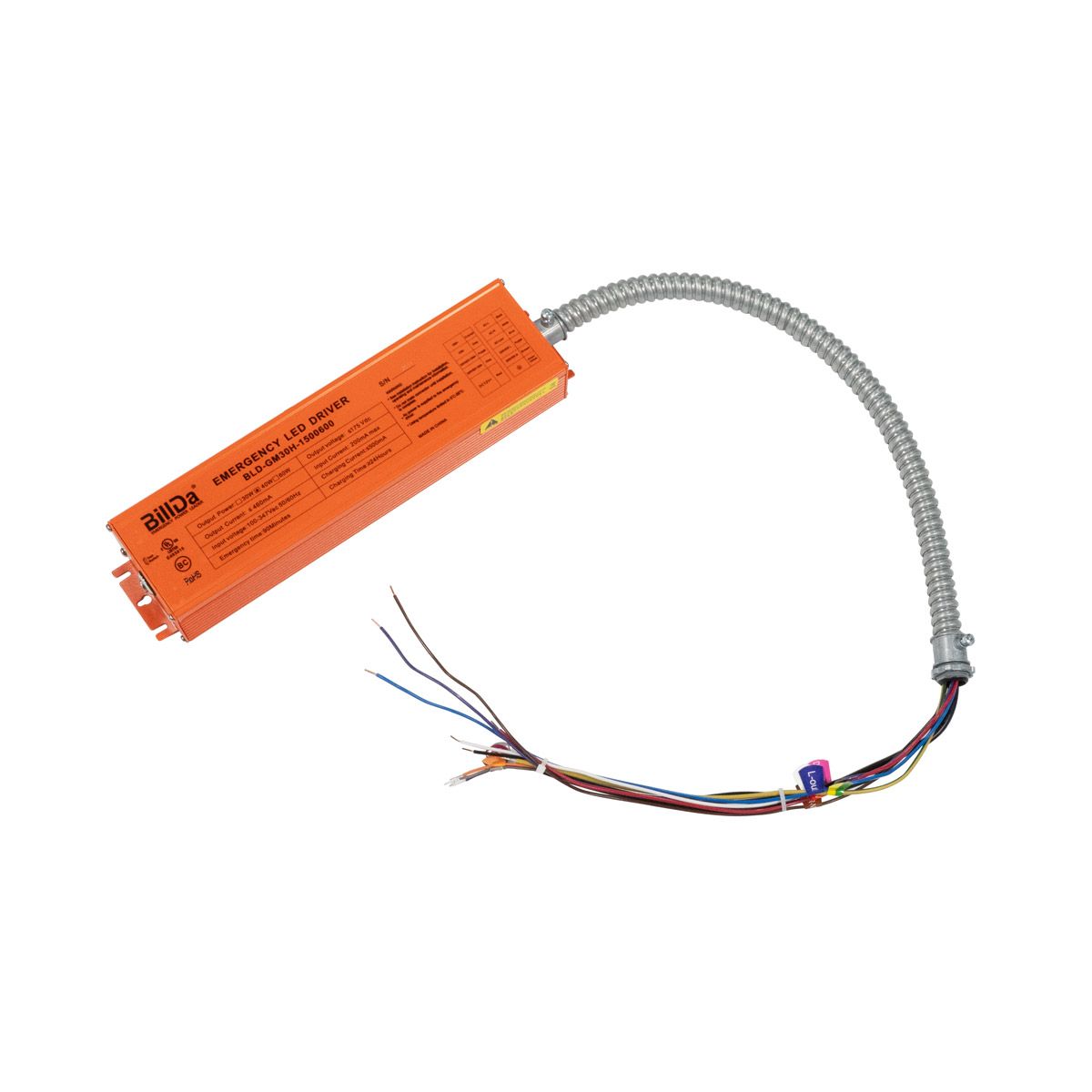

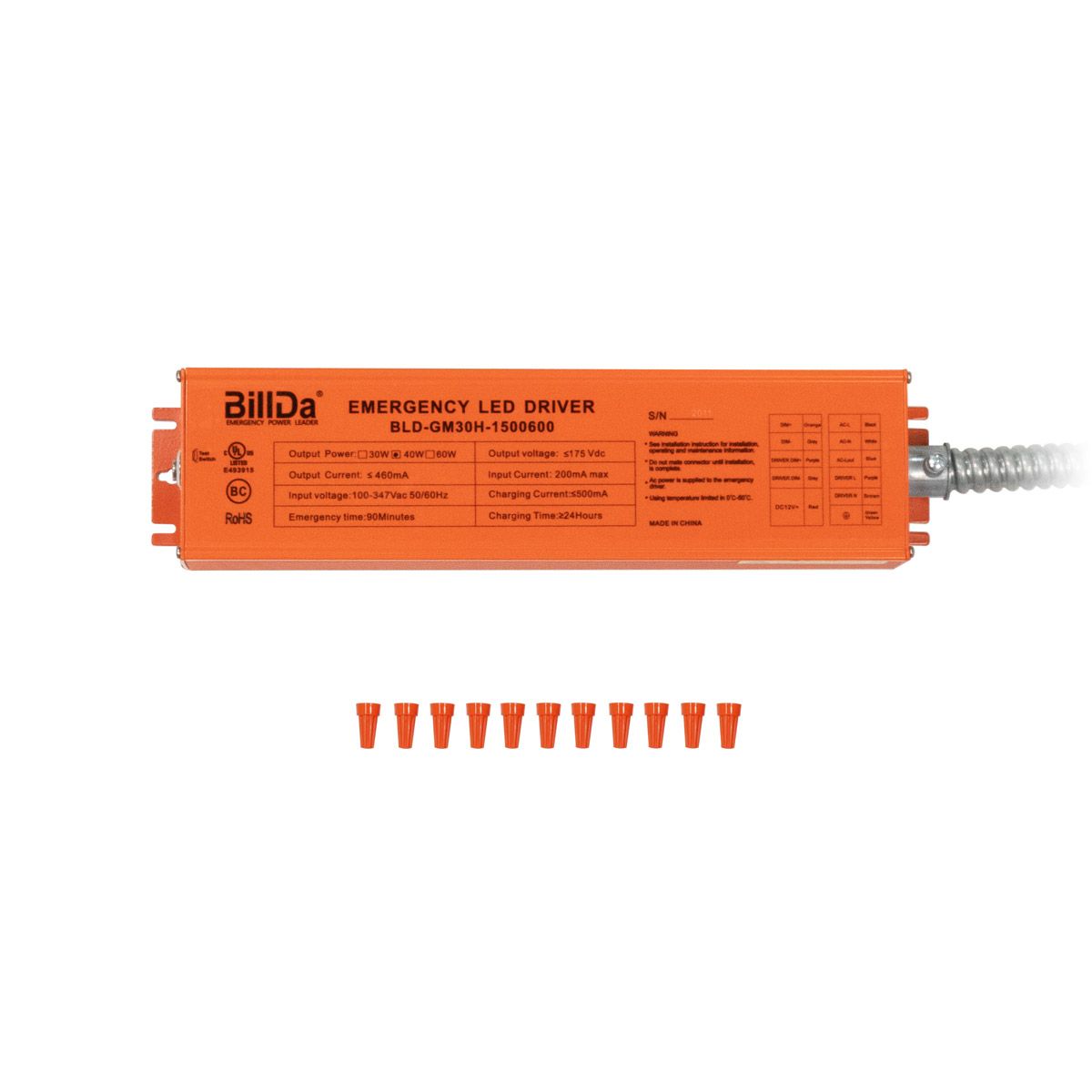

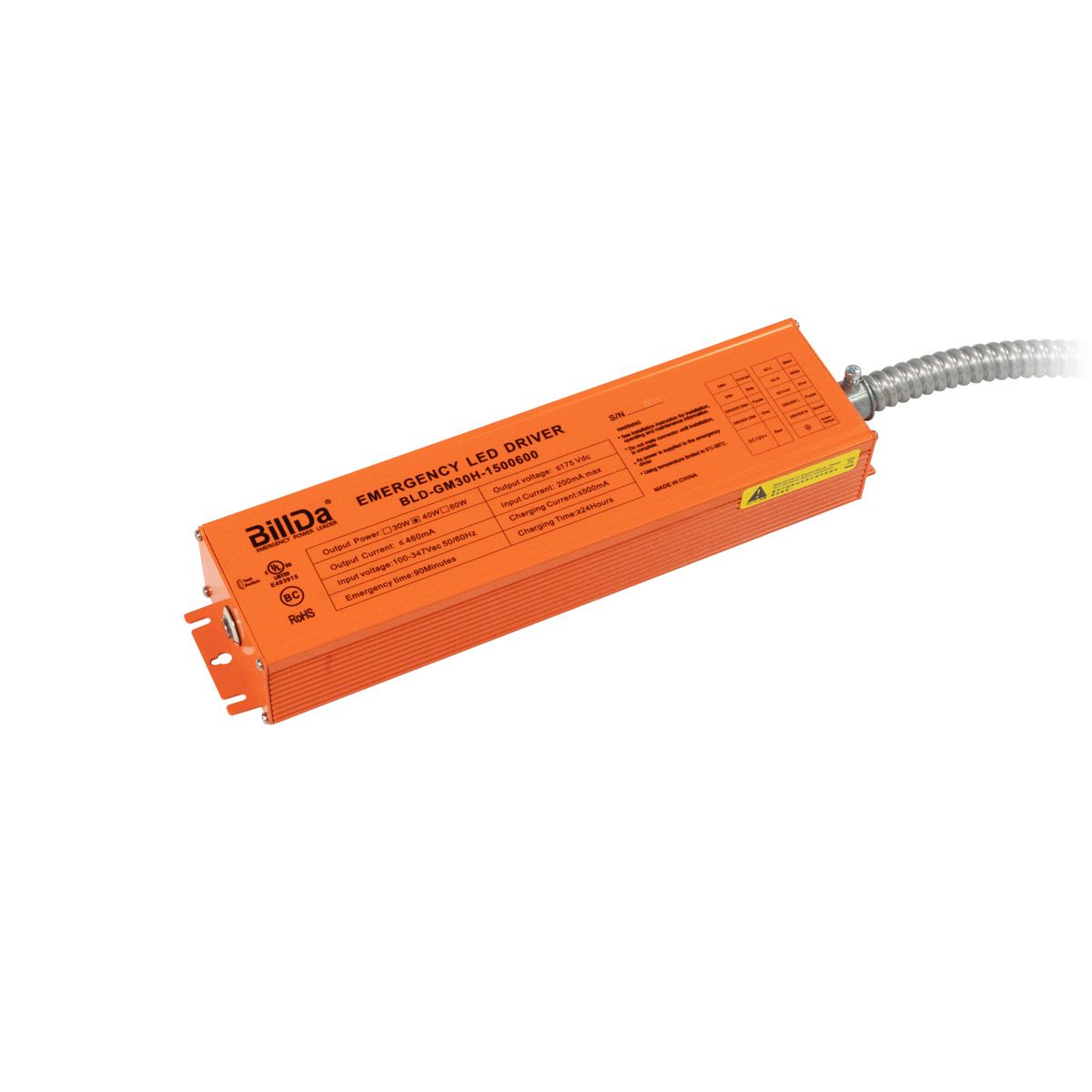

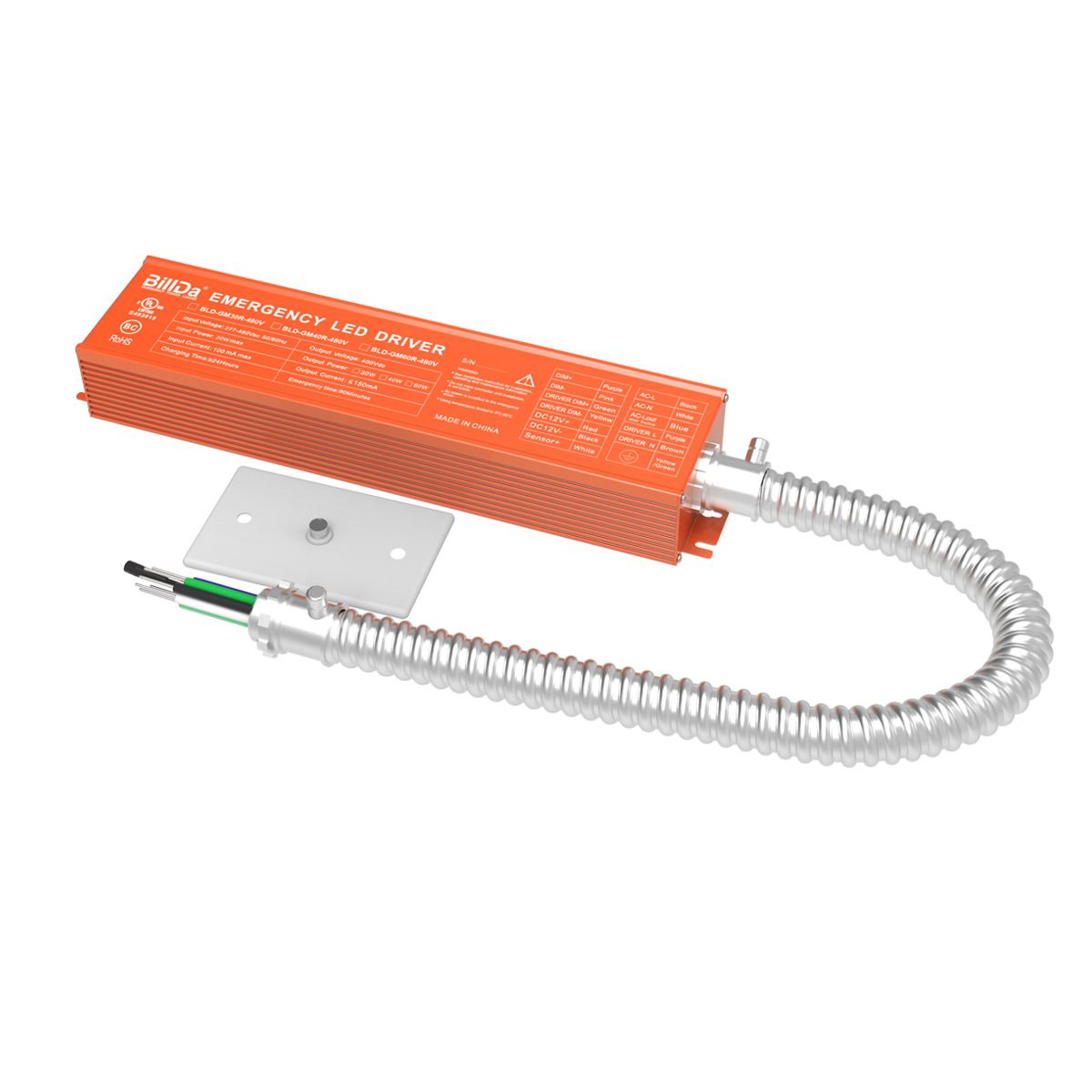

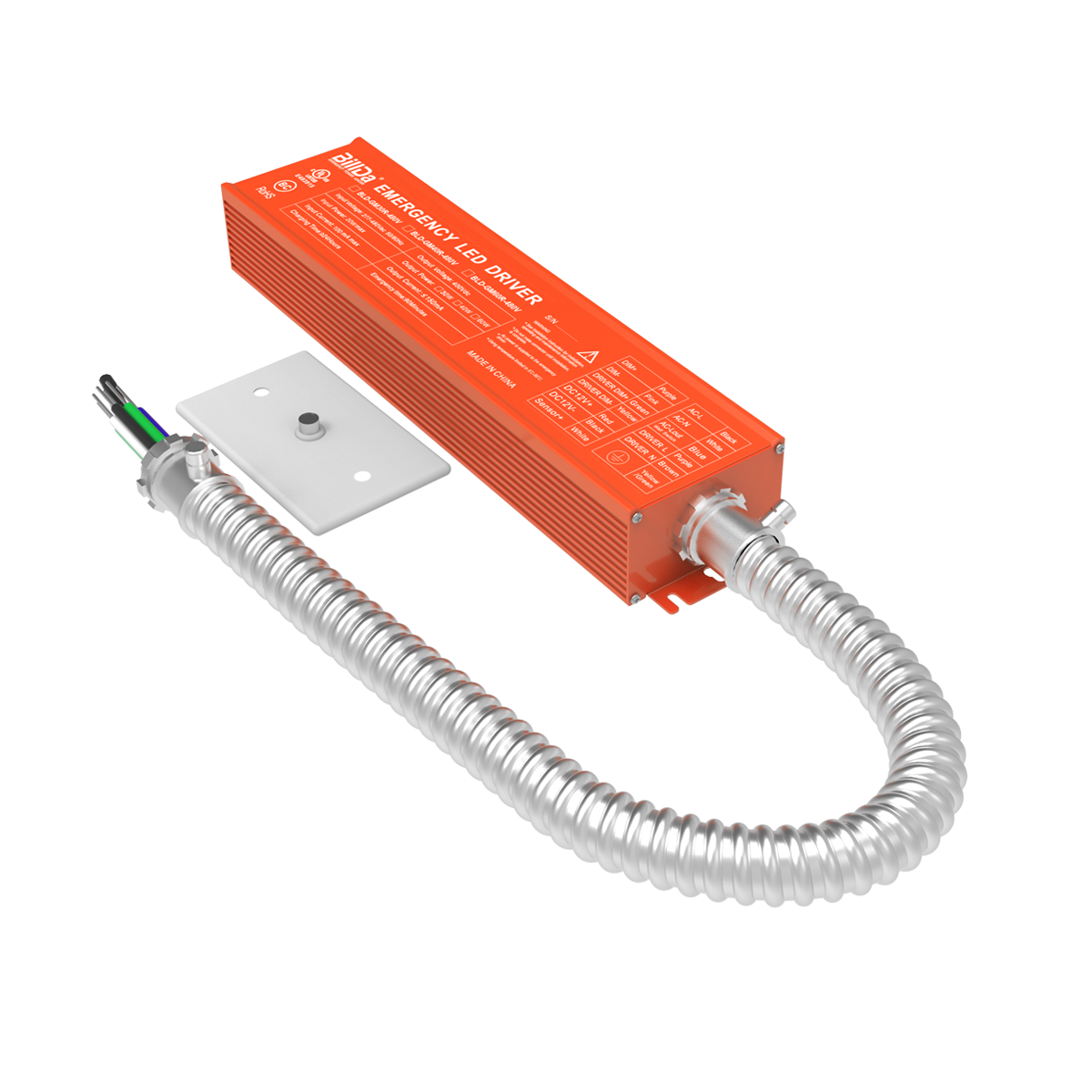

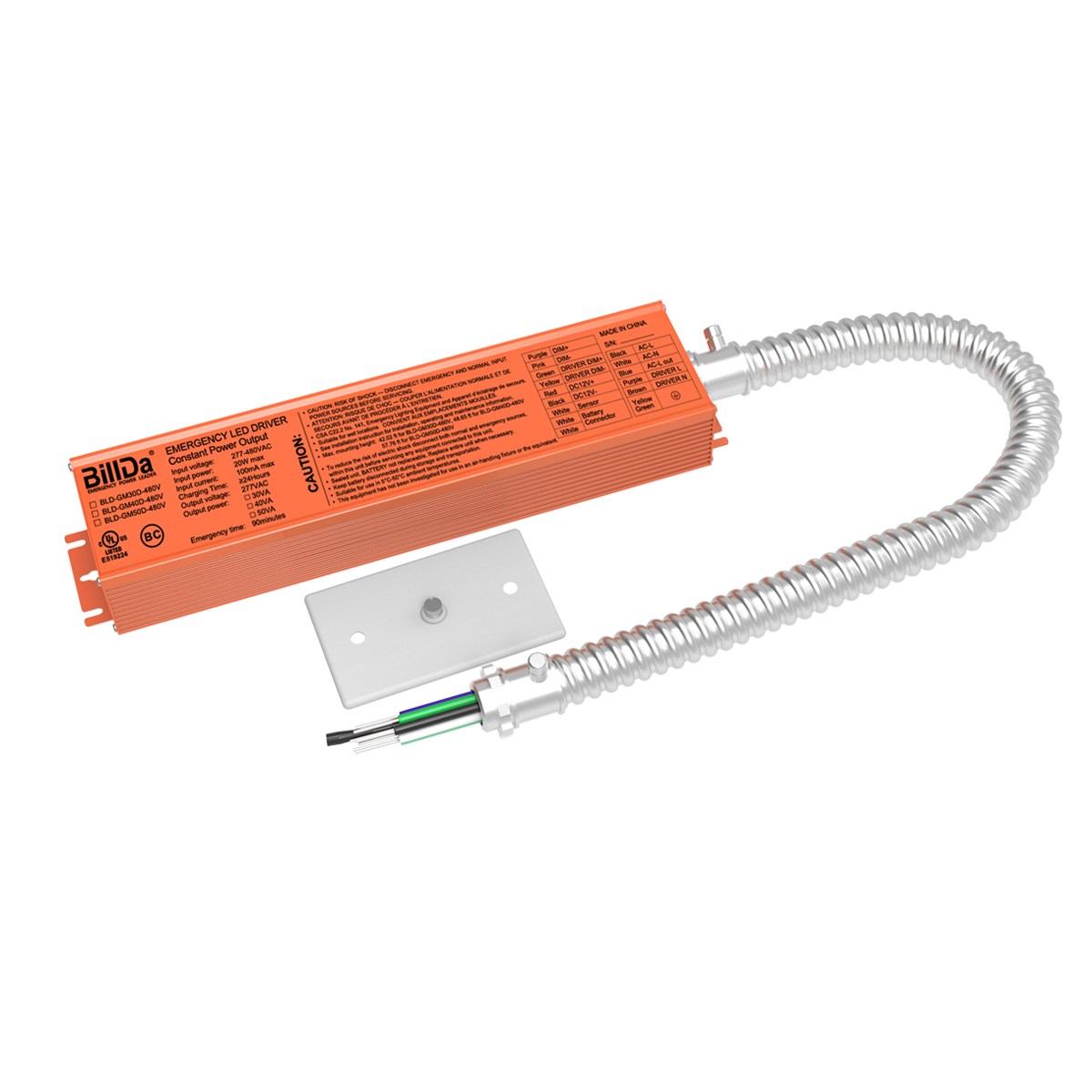

40W Emergency Driver for 100W-240W High Bays
5 Year Warranty
40W Constant-Power Emergency Driver for High Bays & Industrial Fixtures
- Delivers a powerful 40W constant emergency output for 90 minutes, ensuring reliable & code-compliant illumination in warehouses, manufacturing floors, and other high-ceiling environments in the event of a power outage.
- Now available in 100–347VAC or 277–480VAC models, making it fully compatible with virtually any commercial or industrial electrical system.
- Features a durable LiFePO₄ battery and self-diagnostic testing.

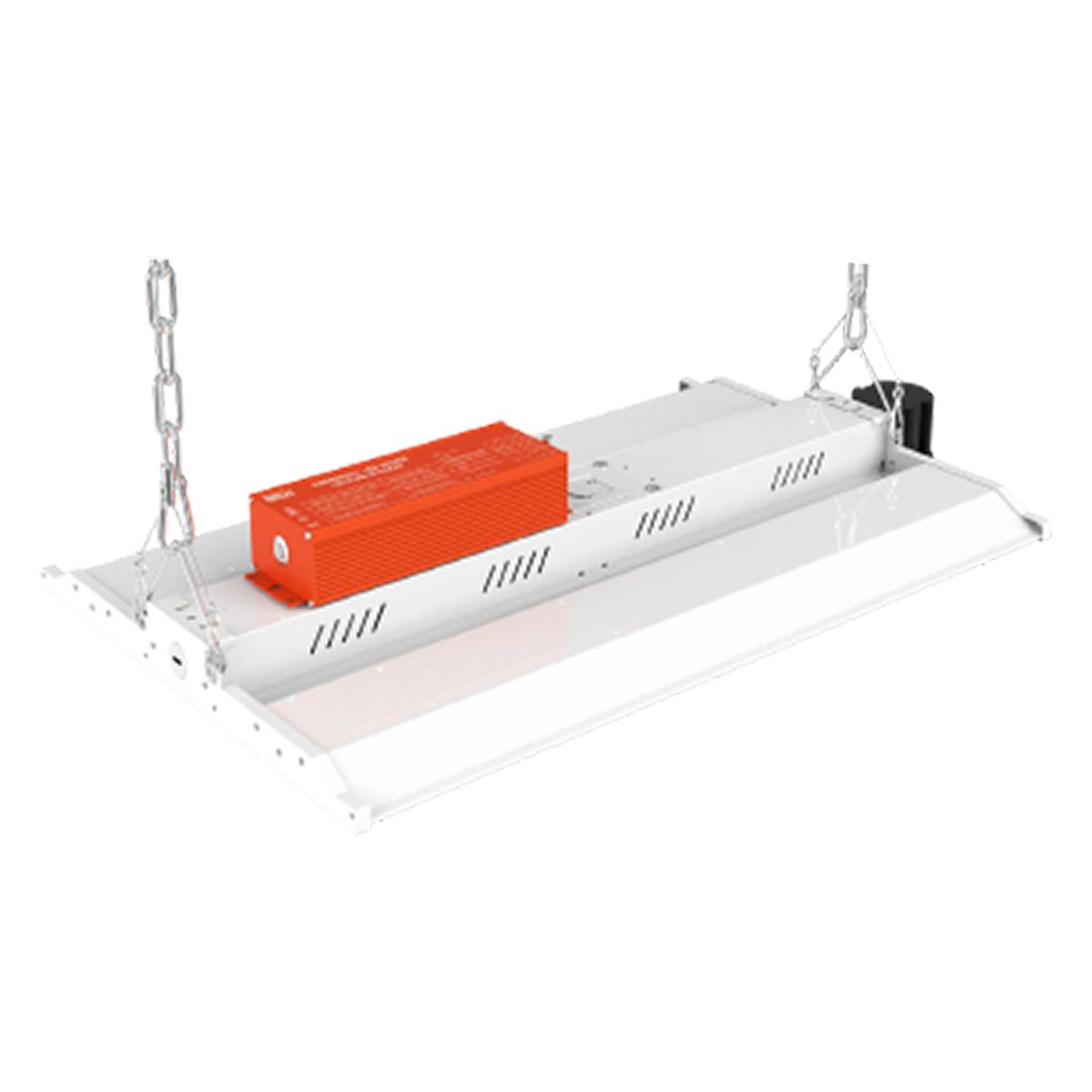

- For use with 0-10V dimmable LED linear high bays up to 240W or non-dimmable fixtures up to 40W.
- Easy installation: connect wiring directly to AC Input side of the LED driver.
- UL listed for both field and factory installation.
Use cases: warehouses, manufacturing plants, gymnasiums, big-box retail, distribution centers, and other facilities requiring high-output emergency illumination for LED high bays and industrial fixtures.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price & free shipping:
40W Constant-Power Emergency Driver for High Bays & Industrial Fixtures
- Delivers a powerful 40W constant emergency output for 90 minutes, ensuring reliable & code-compliant illumination in warehouses, manufacturing floors, and other high-ceiling environments in the event of a power outage.
- Now available in 100–347VAC or 277–480VAC models, making it fully compatible with virtually any commercial or industrial electrical system.
- Features a durable LiFePO₄ battery and self-diagnostic testing.
- For use with 0-10V dimmable LED linear high bays up to 240W or non-dimmable fixtures up to 40W.
- Easy installation: connect wiring directly to AC Input side of the LED driver.
- UL listed for both field and factory installation.
Use cases: warehouses, manufacturing plants, gymnasiums, big-box retail, distribution centers, and other facilities requiring high-output emergency illumination for LED high bays and industrial fixtures.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
SPECIFICATIONS
| Wattage(s) | 40W |
| Battery | Lithium |
| Emergency Time | 90 minutes |
| Charge Time | ≥24 Hours |
| Output Voltage | 170Vdc |
| Input Voltage |
BLD-GM40X-YYY: 100-347VAC, 50/60Hz BLD-GM40D-480V: 277-480VAC |
| Input Power Rating | 15W |
| Input Current | 200mA max |
| Charging Current | ≤500mA |
| Temperature Rating | 5°C ~ 50°C (41°F ~ 122°F) |
| Certification | cUL, IP65 |
| Warranty | 5 Years |
