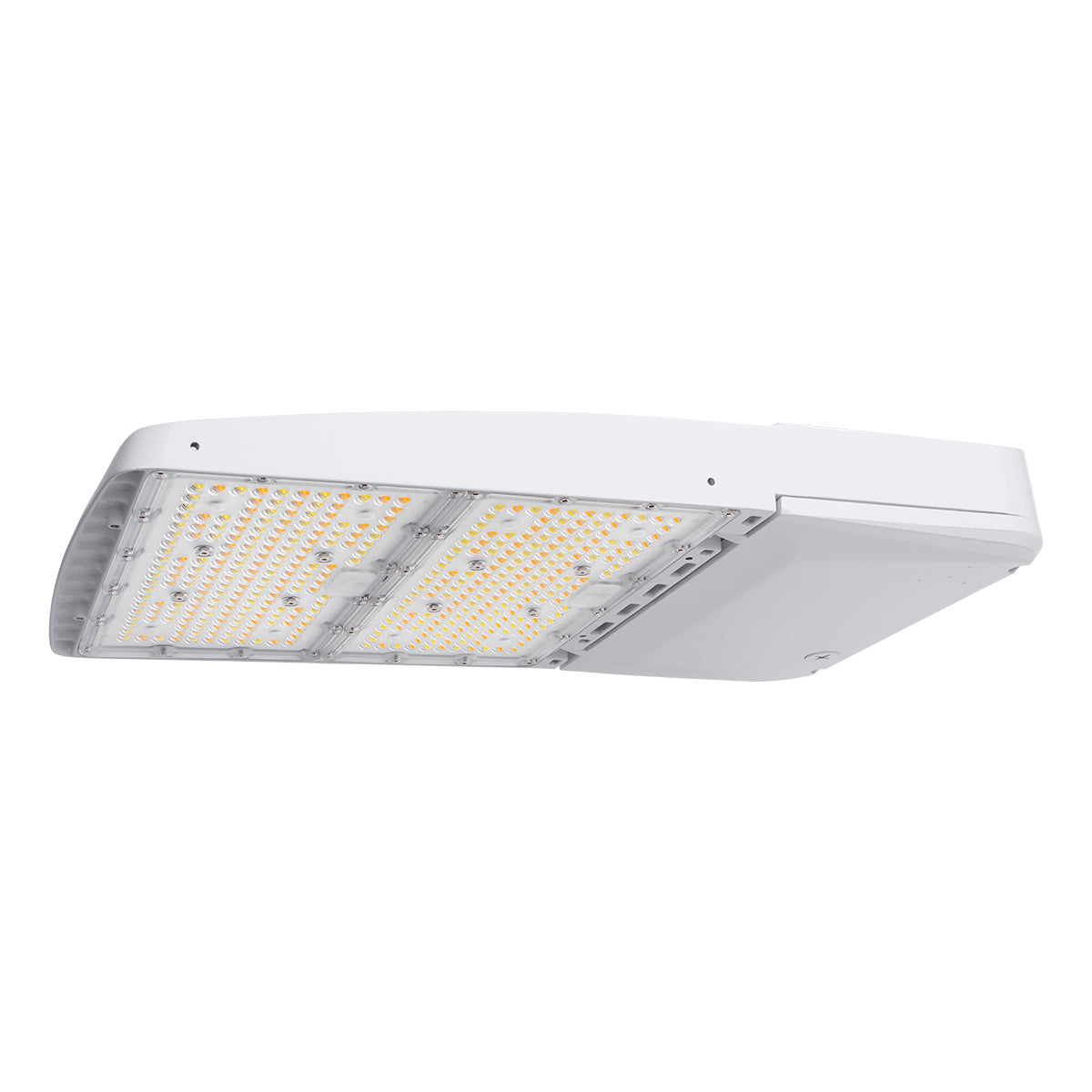

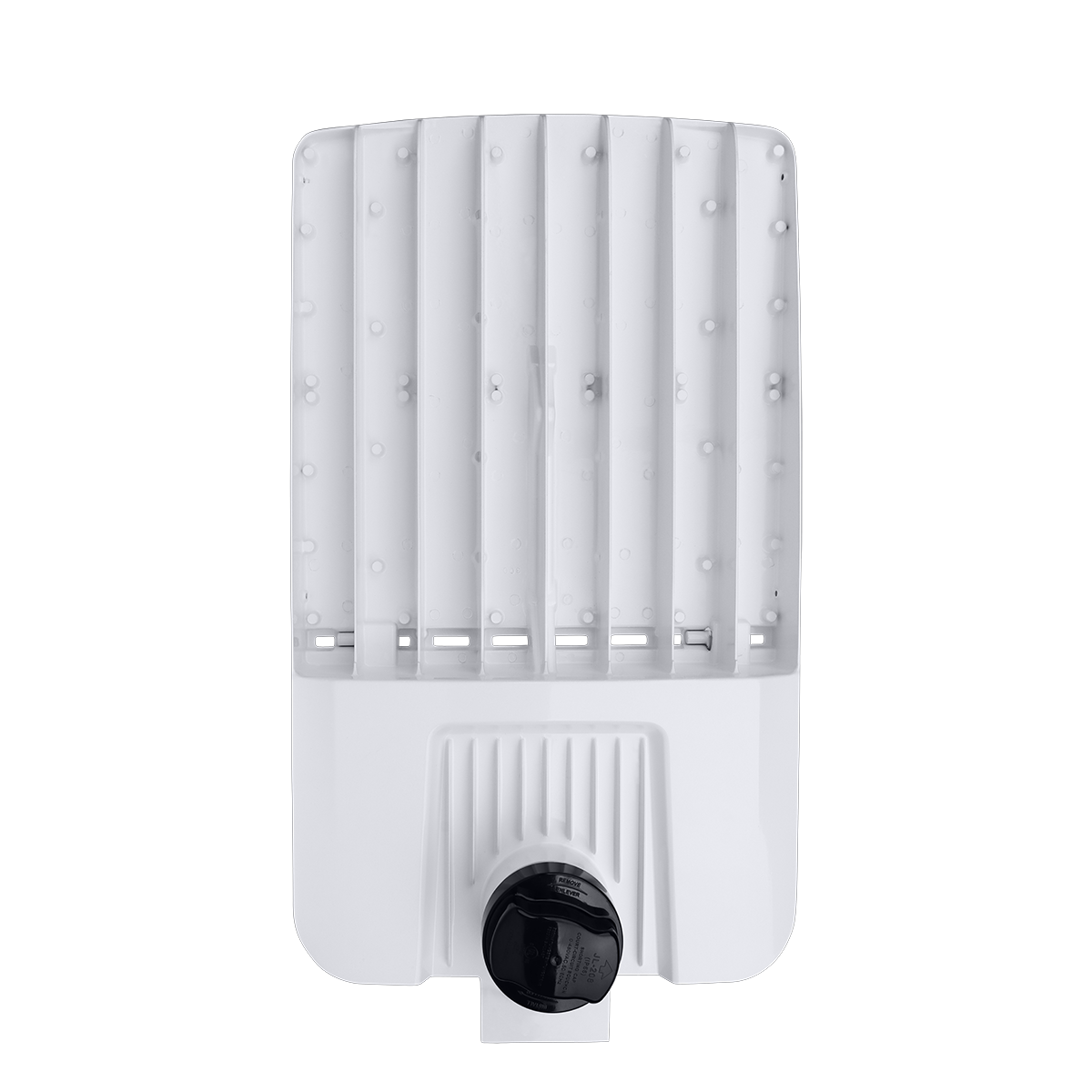

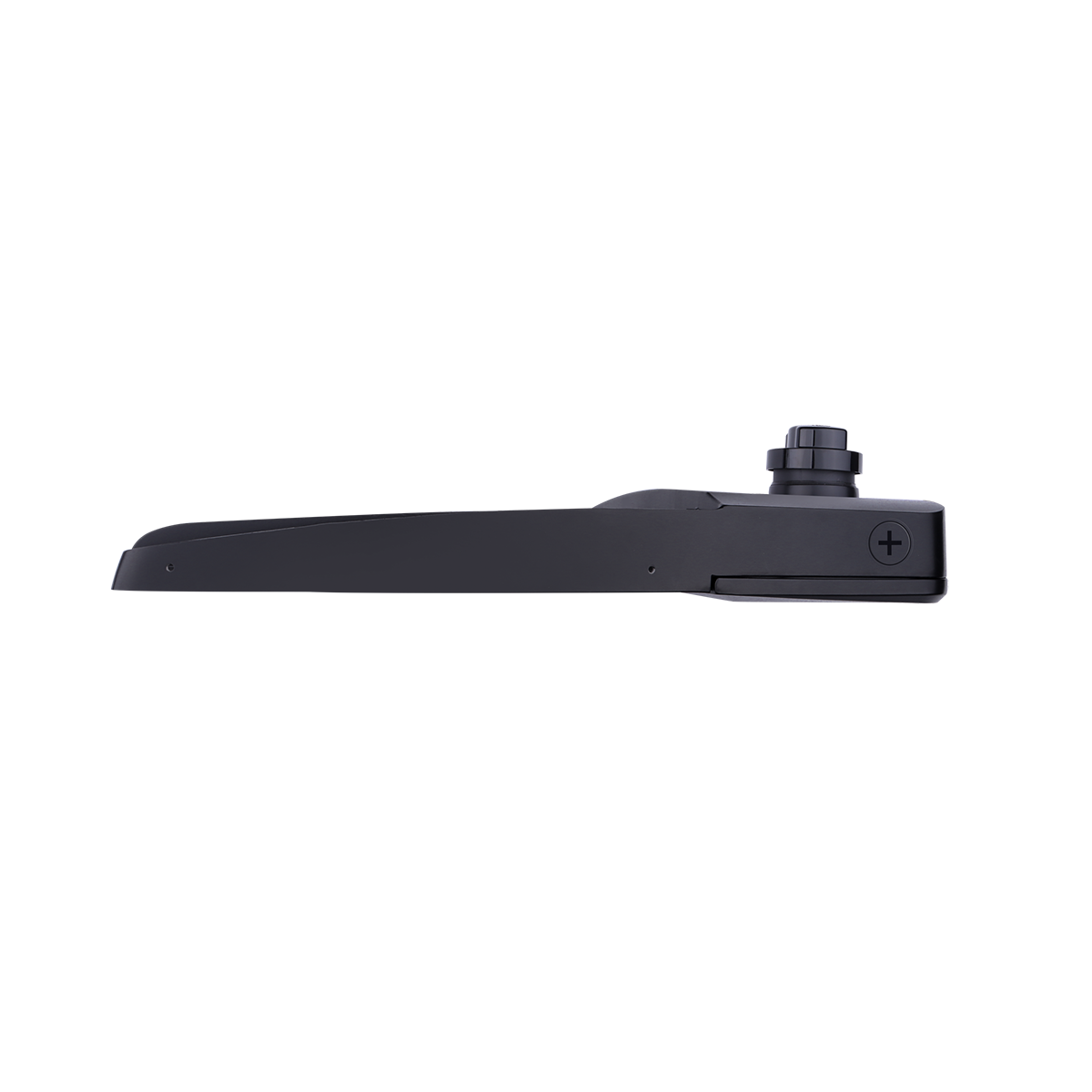

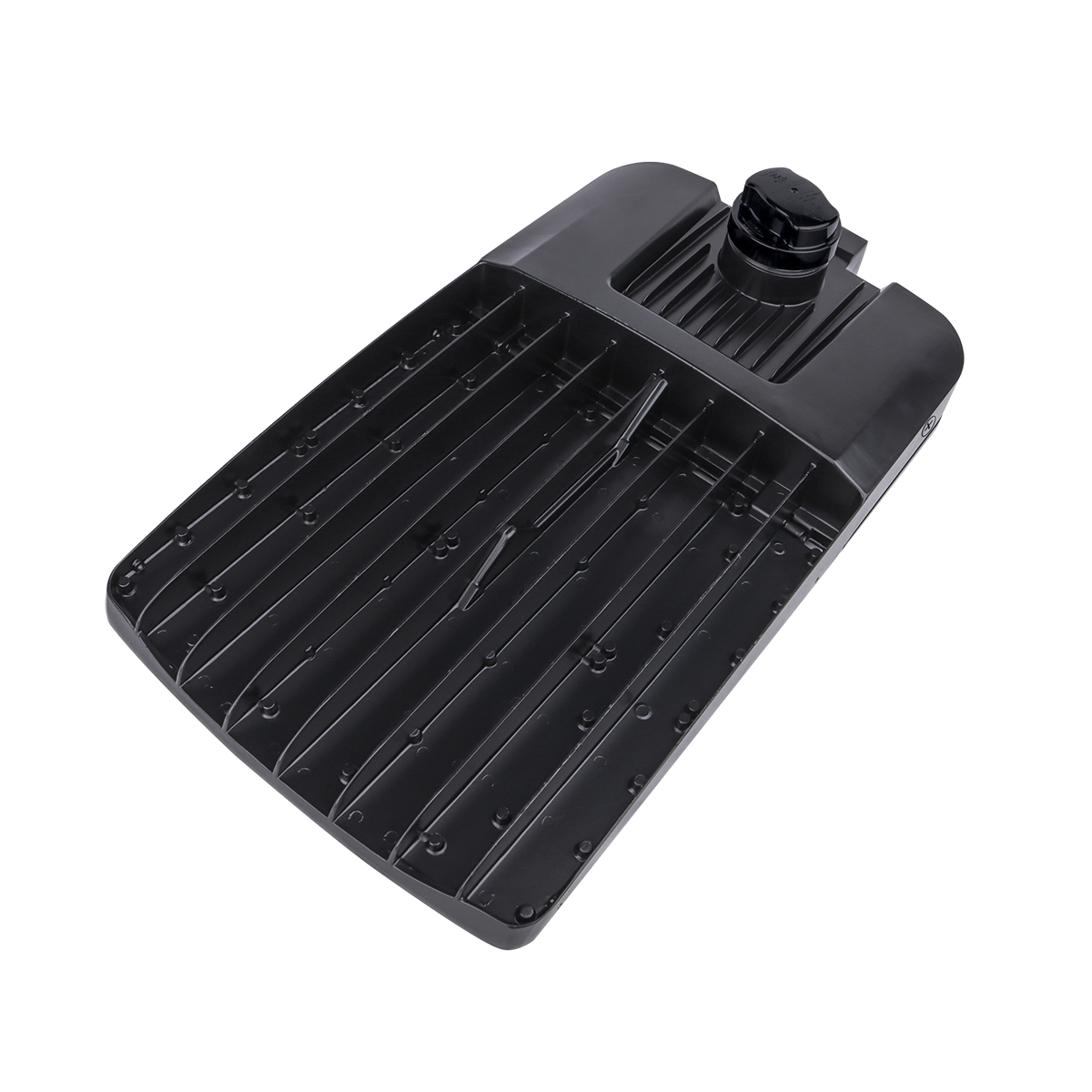

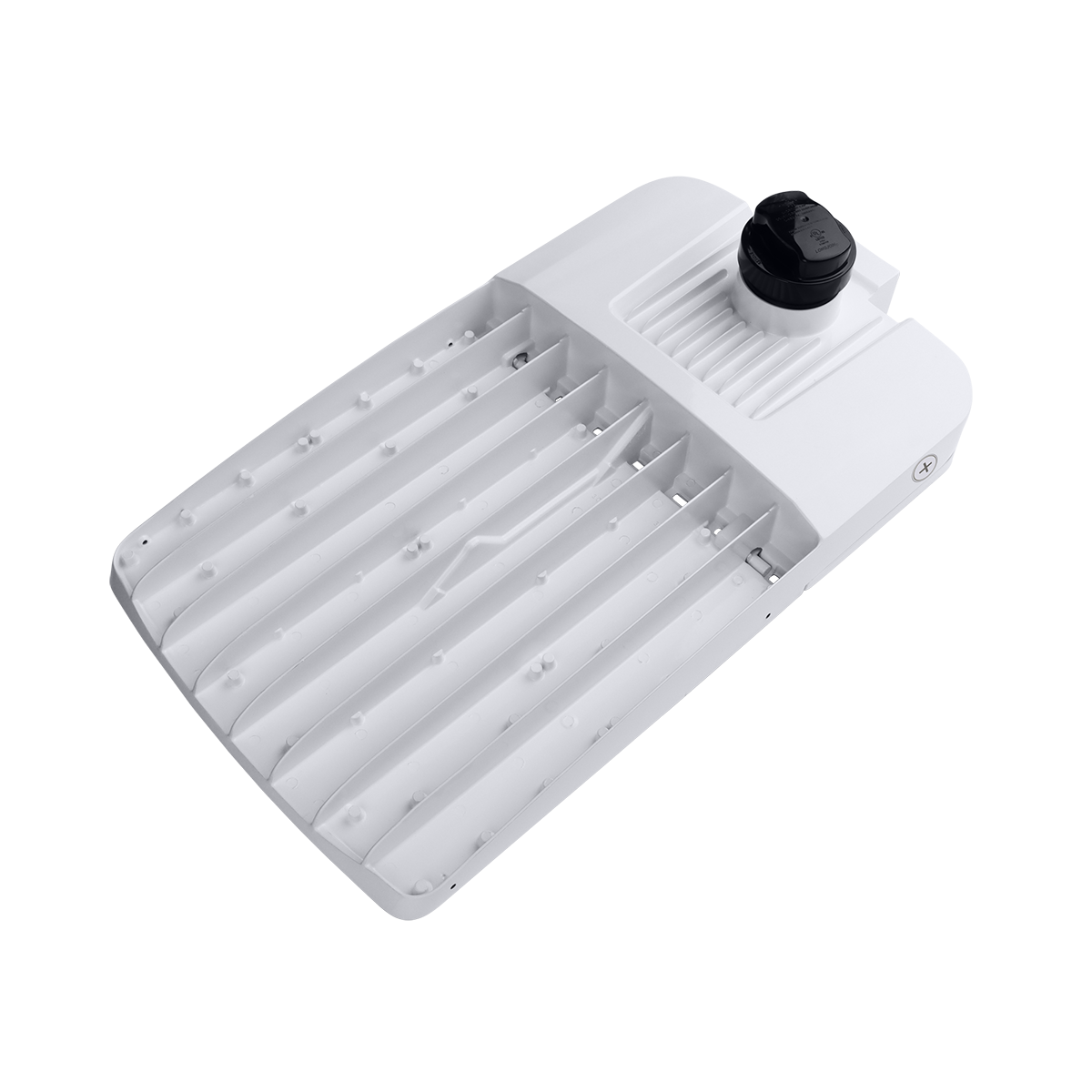

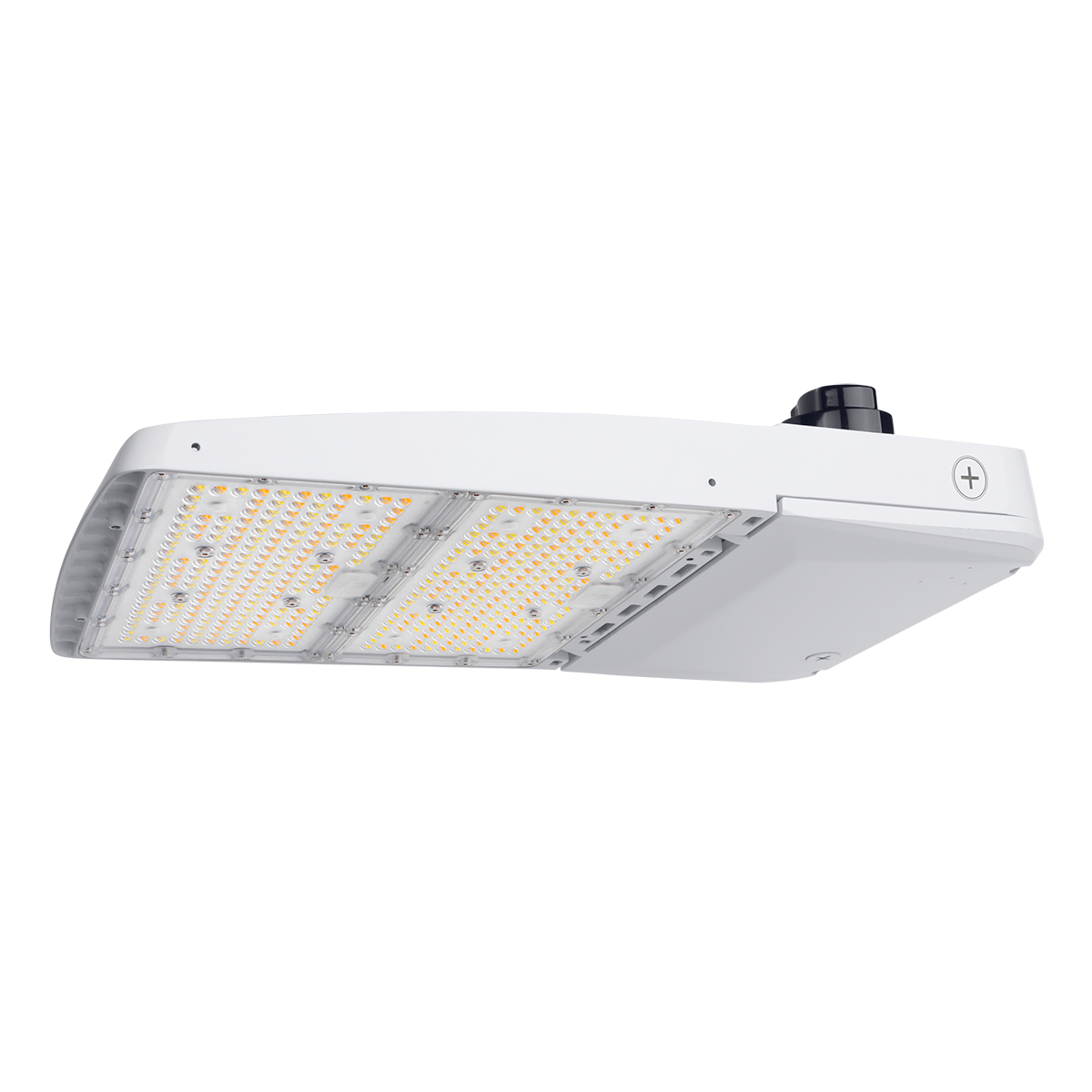

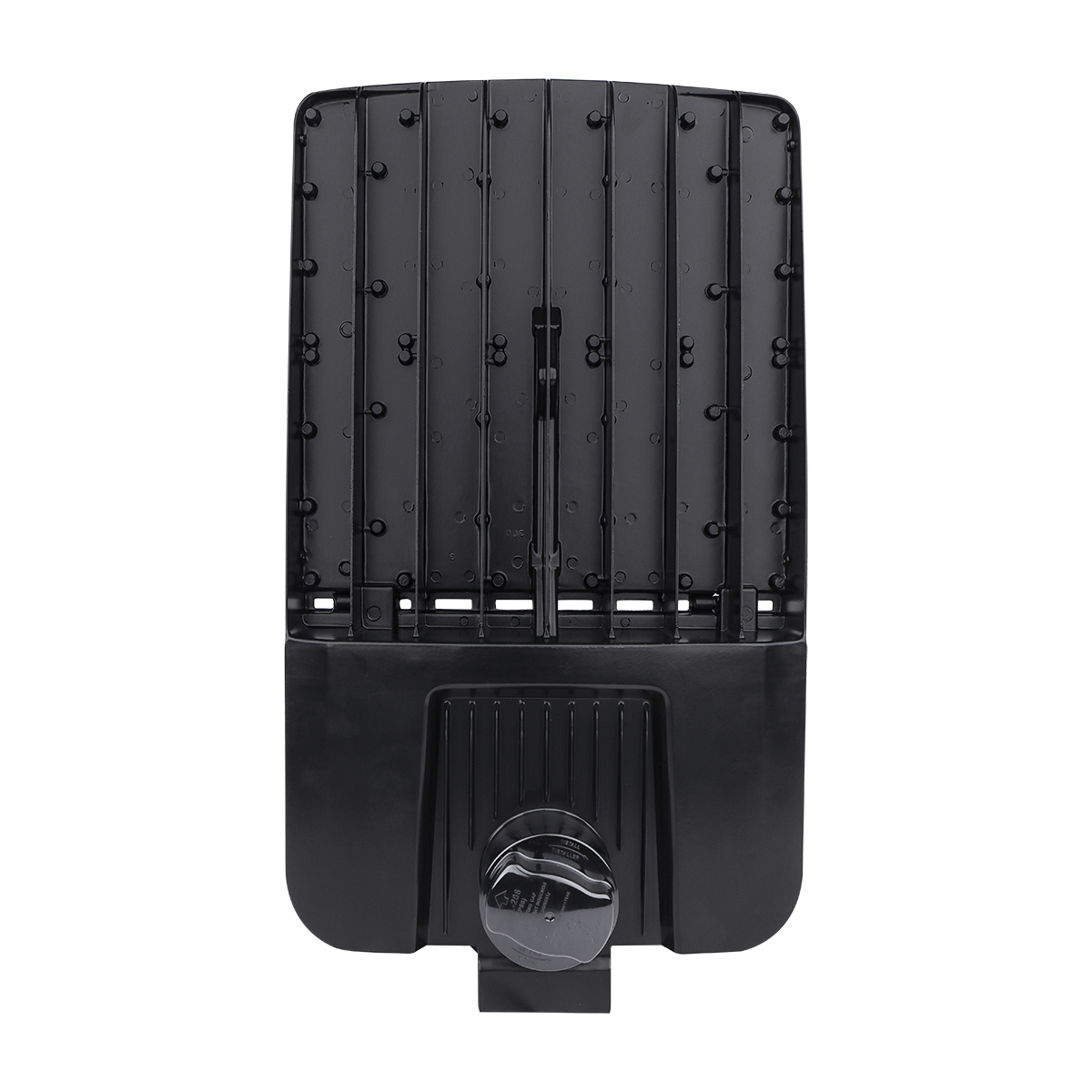

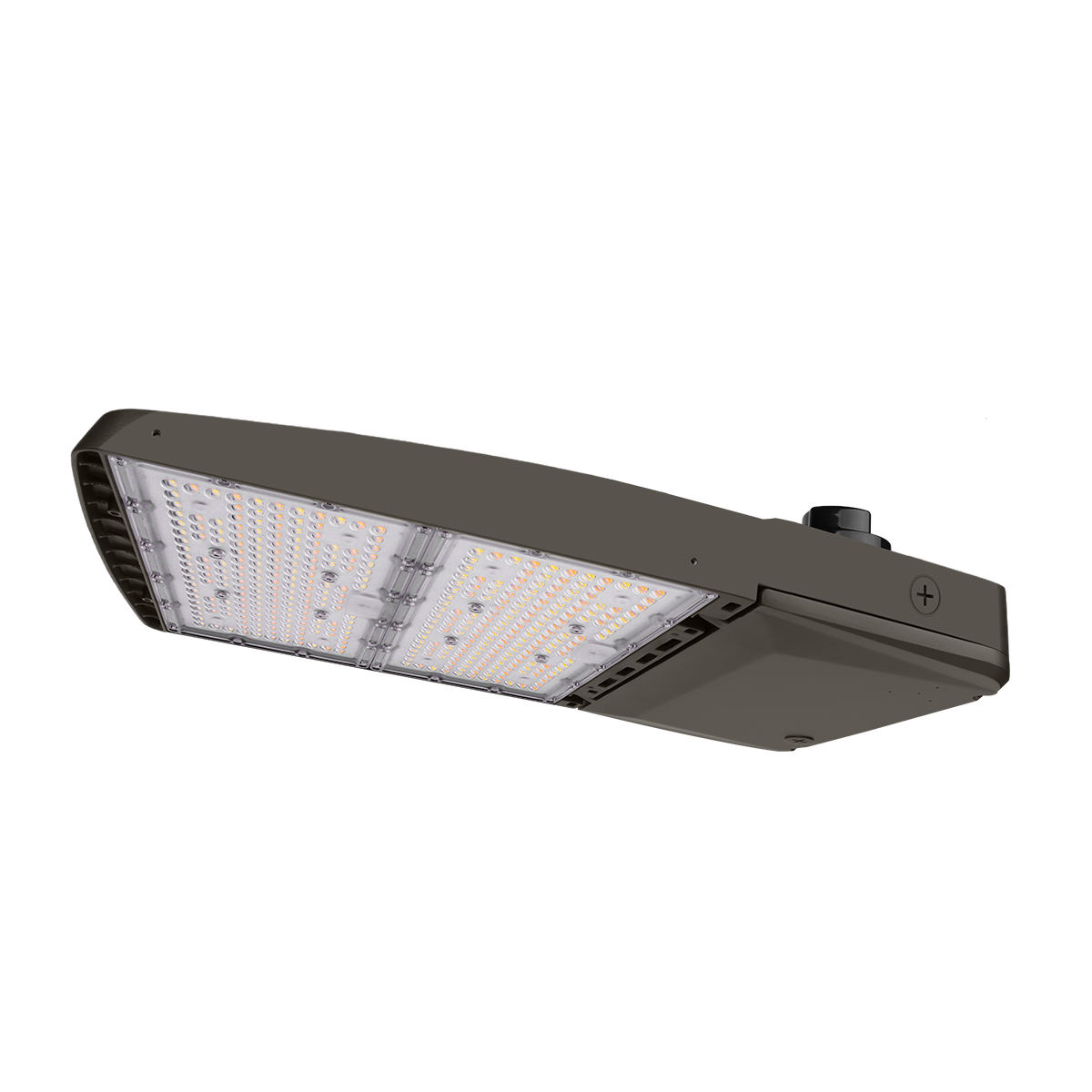

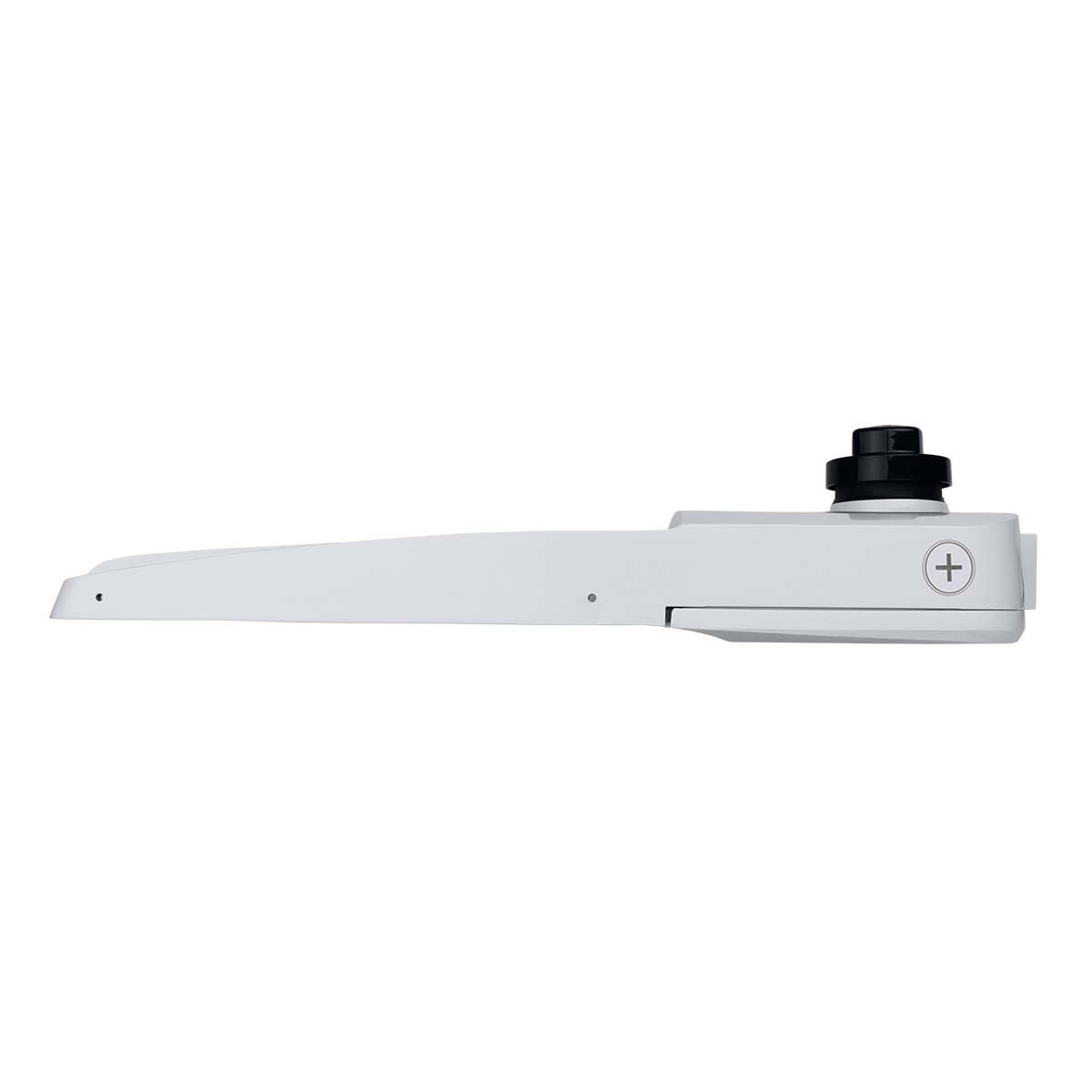

240W Selectable LED Shoebox Area Light
240W Selectable LED Shoebox Area Light
240W Selectable LED Shoebox Area Light
240W Selectable LED Shoebox Area Light

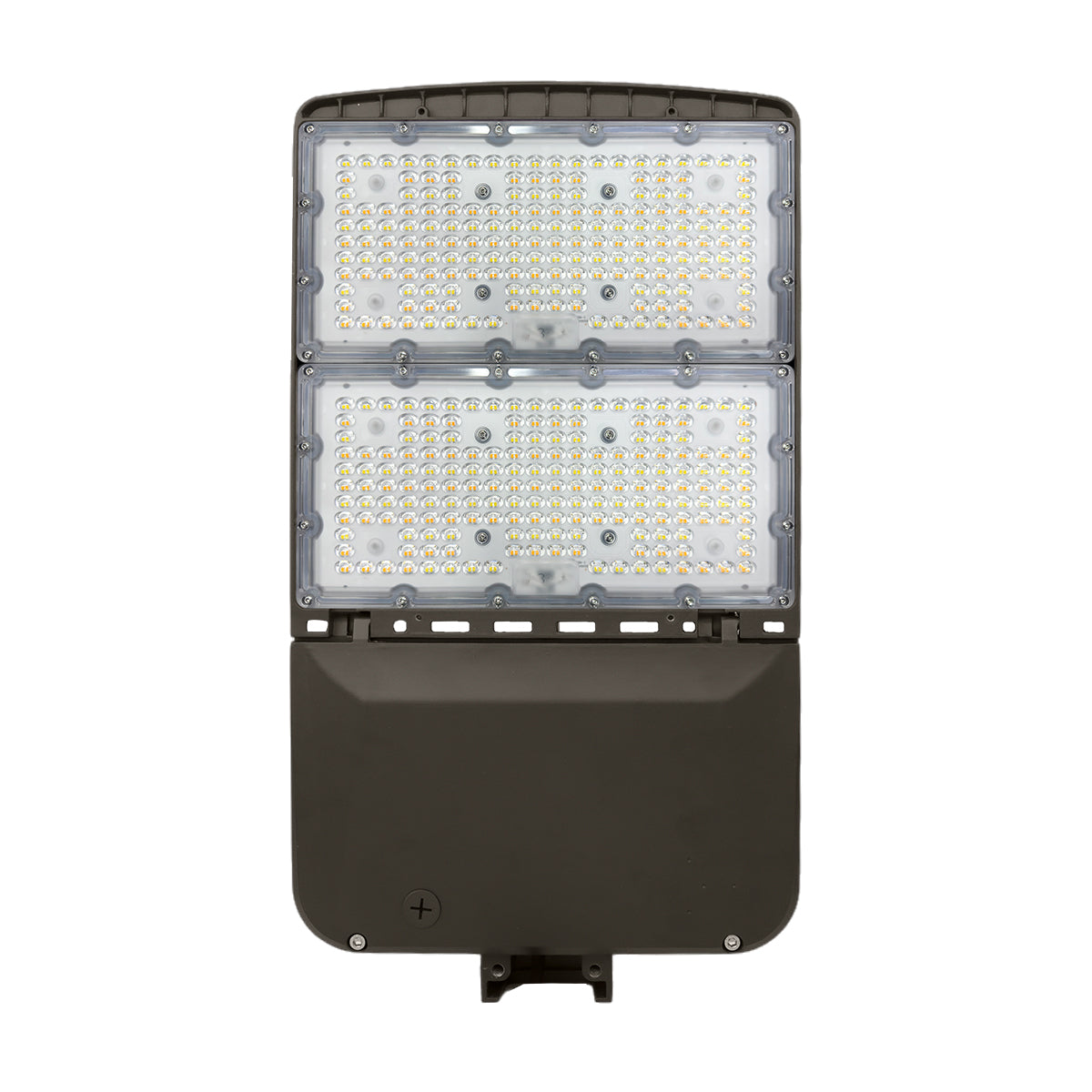

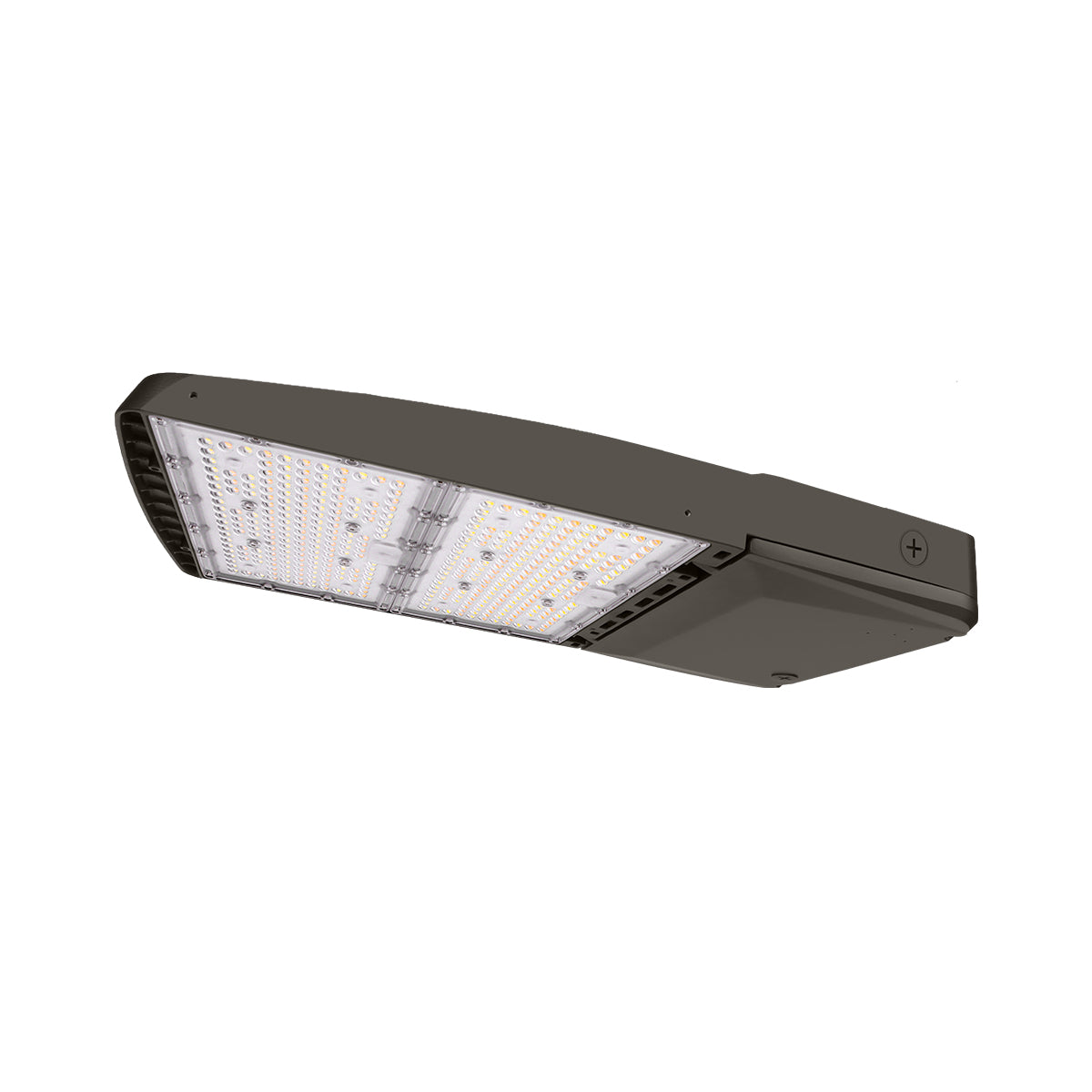

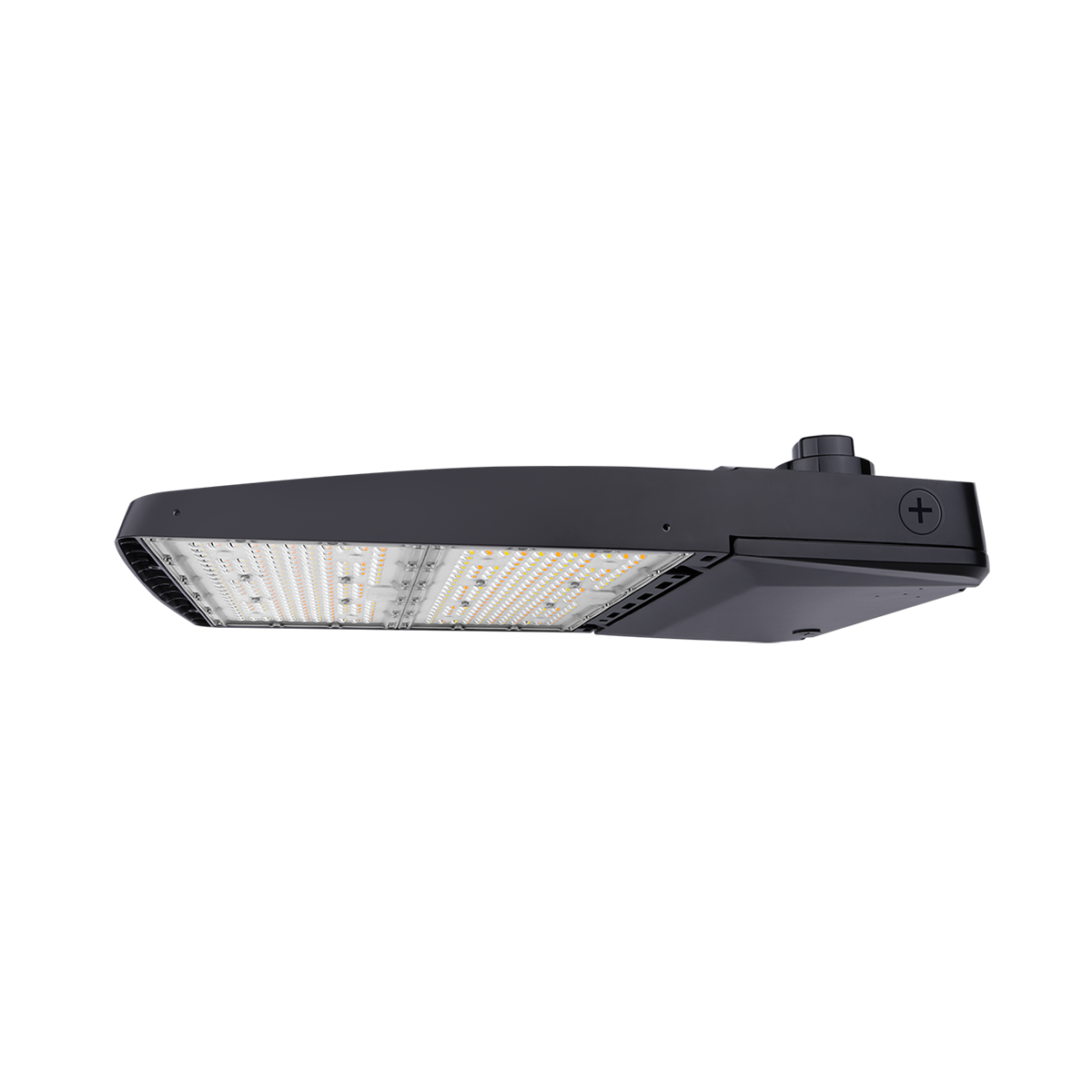

This high-efficiency, field-selectable 170–240W LED shoebox light delivers up to 38,400 lumens and is best mounted 15–30 ft high in and along parking lots, campuses, driveways, and perimeters.
- 160 lm/W: High-efficiency, cost-saving replacement for 400W–750W HIDs
- Wide range of wattage selection to match output to pole height
- High voltage (277–480VAC) option available
This high-efficiency, field-selectable 170–240W LED shoebox light delivers up to 38,400 lumens and is best mounted 15–30 ft high in and along parking lots, campuses, driveways, and perimeters.
- 160 lm/W: High-efficiency, cost-saving replacement for 400W–750W HIDs
- Wide range of wattage selection to match output to pole height
- High voltage (277–480VAC) option available
Choose options
Specs
| Wattage(s) | 170/200/220/240W |
| Replaces Wattage(s) | 400 to 750W |
| Light Output |
3000K: 24,650/29,000/31,900/34,800 lumens 4000K: 27,200/32,000/35,200/38,400 lumens 5000K: 25,500/30,000/33,000/36,000 lumens |
| Luminous Efficacy (lm/W) | 145-160 lm/W |
| Average Lamp Life |
L90: 47,000 hours L70: 54,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | 70 |
| Dimming | 0-10V |
| Light Distribution Pattern |
Type III (T3)
Learn More
×
Light Distribution OptionsType III Beam  Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam  Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam  Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations. |
| Installation | Pole Mount, Wall Mount, Slipfitter, Trunnion Mount |
| EPA (Effective Projected Area) | See spec sheet |
| Working Environment | Outdoors |
| Enclosure Rating | Wet Location |
| LED Type | 2835 (120-277VAC), 3030 (277-480VAC) |
| Input Voltage | 120-277VAC or 277-480VAC |
| Driver Type | Constant Current (CC) |
| Power Supply | Sosen |
| Power Factor | >0.95 |
| Surge Protection | 10kV (120-277VAC), 20kV (277-480VAC) |
| Temperature Rating | -40°F to 113°F |
| Housing Material | Die-cast aluminum |
| Housing Color | Dark Bronze, Bright White, or Matte Black |

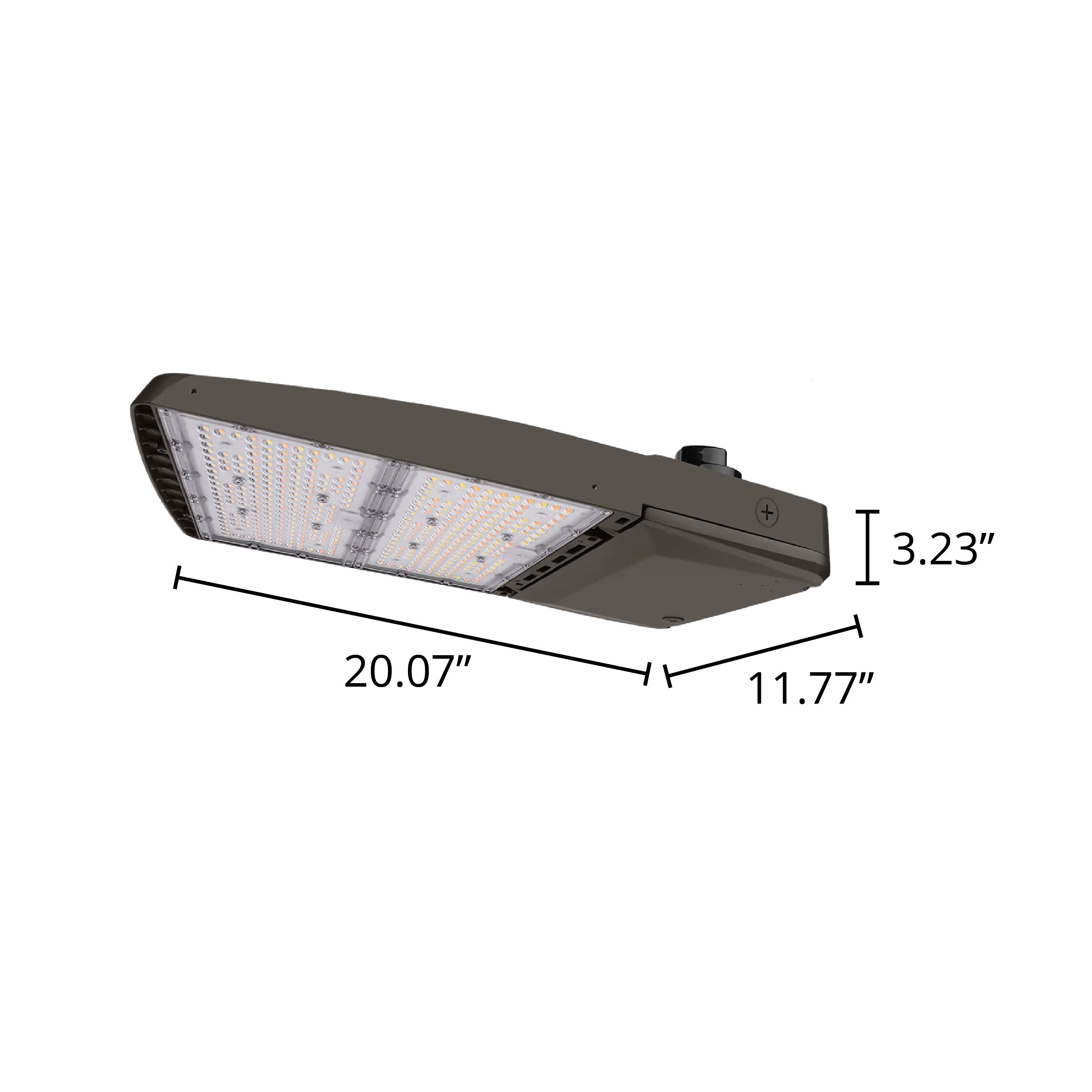

| Dimensions | See spec sheet |
| Weight | 9.1 lbs |
| Certification | DLC Premium, UL |
| Warranty | 5 Years |
Data SheetDetails

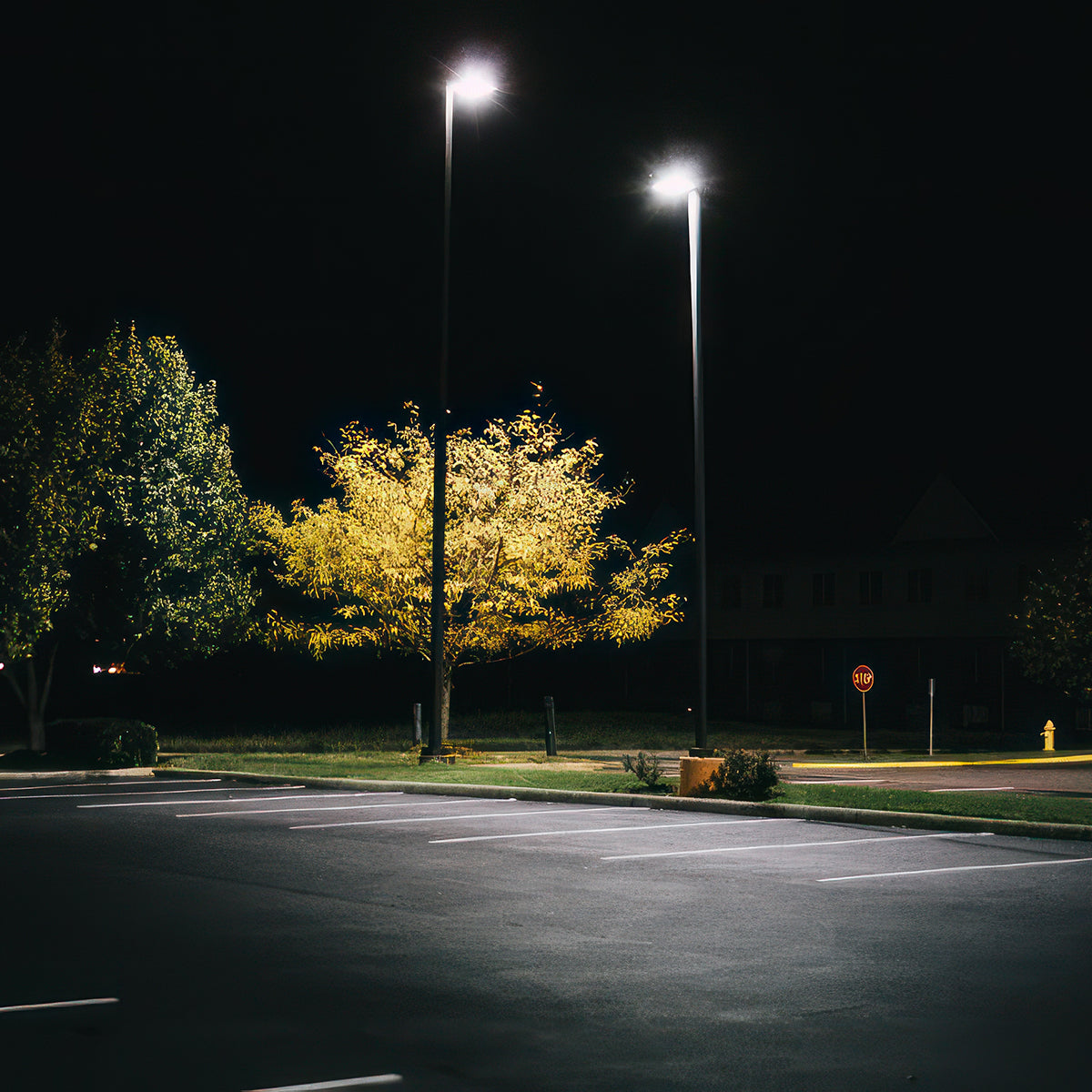

A Light for Just About Any Parking Lot or Outdoor Area
Select the Light Output and Light Tone During Install:
- Choose from a wide range of output levels from 24,650 to 38,400 lumens.
- Choose between warm, neutral, and cool white light for each area.

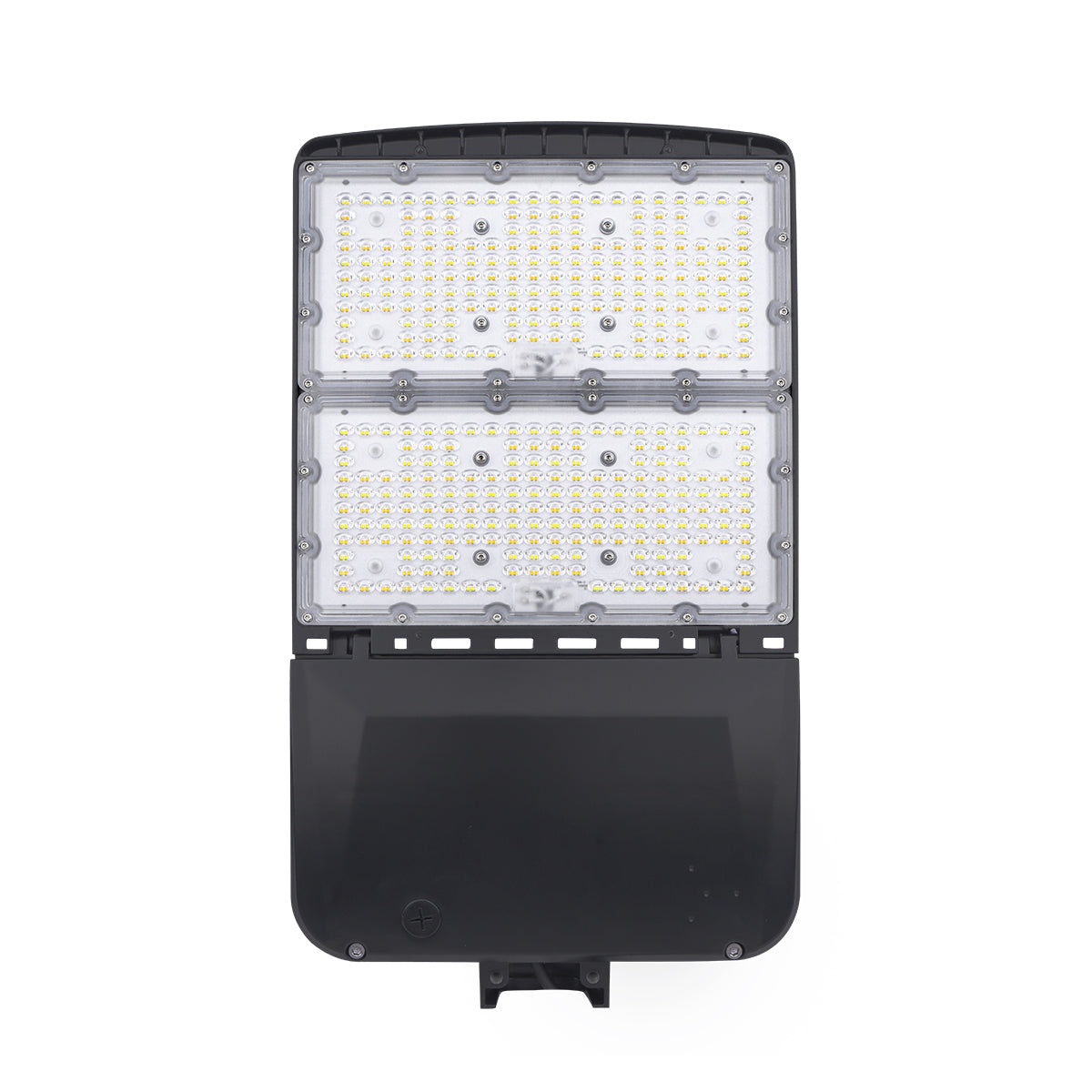

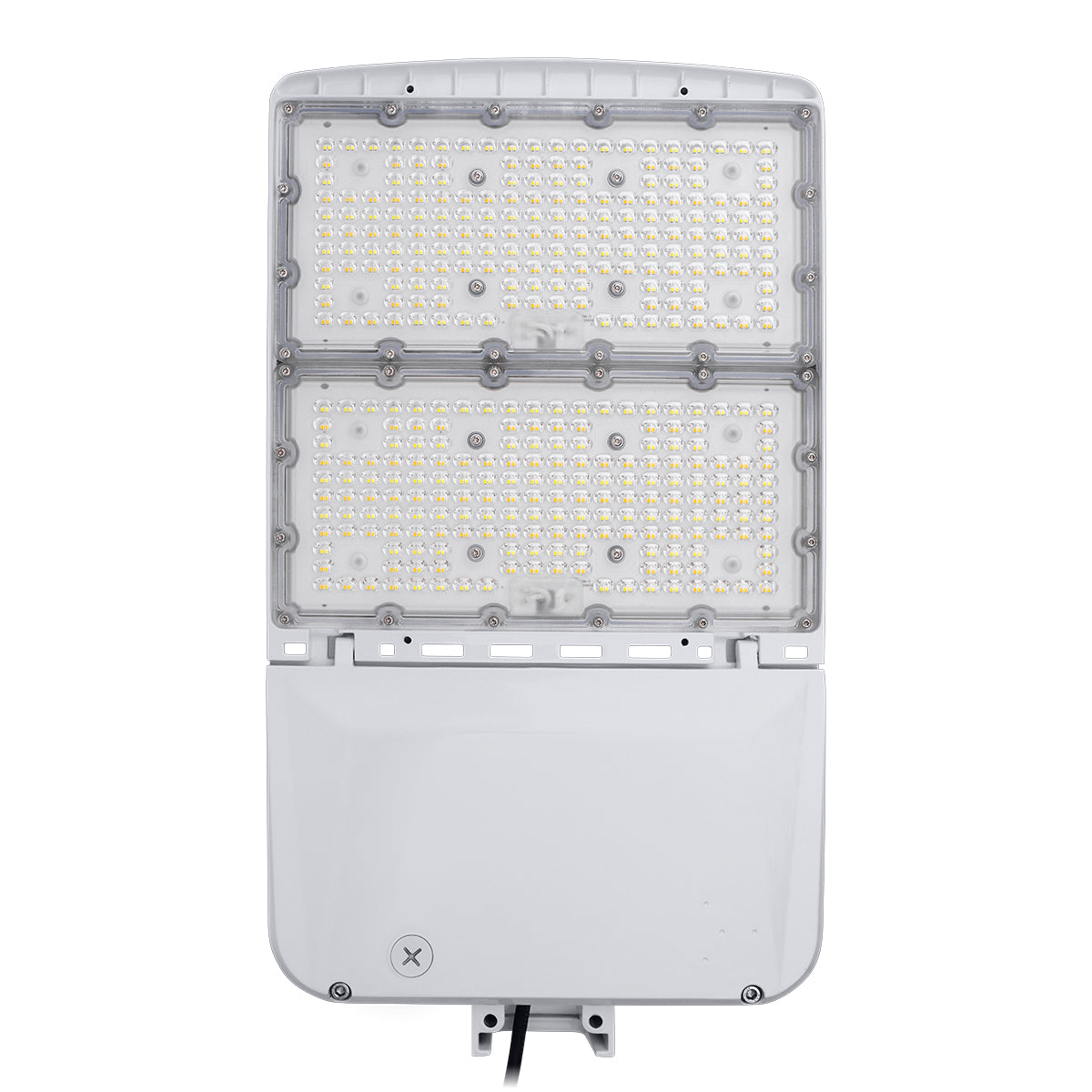

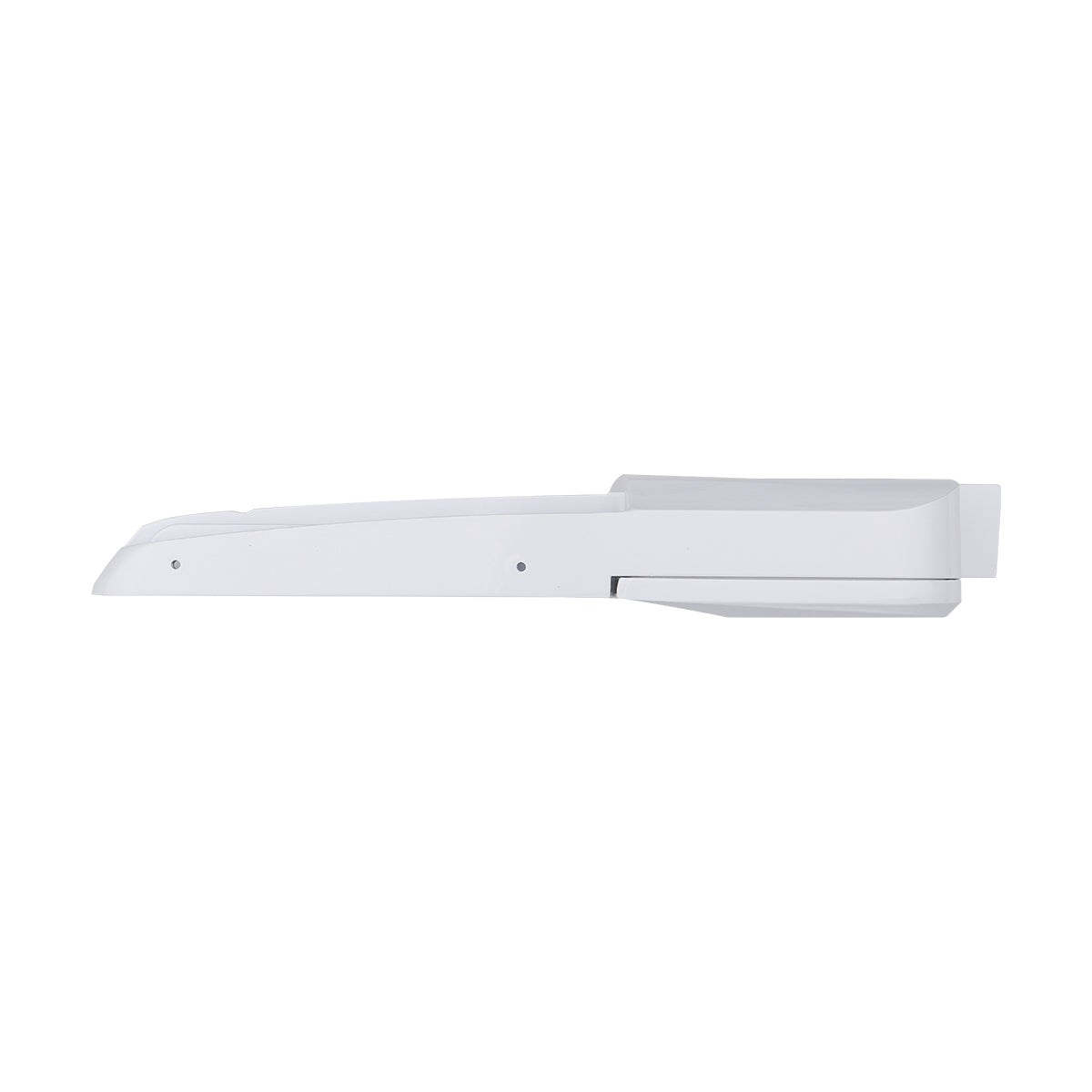

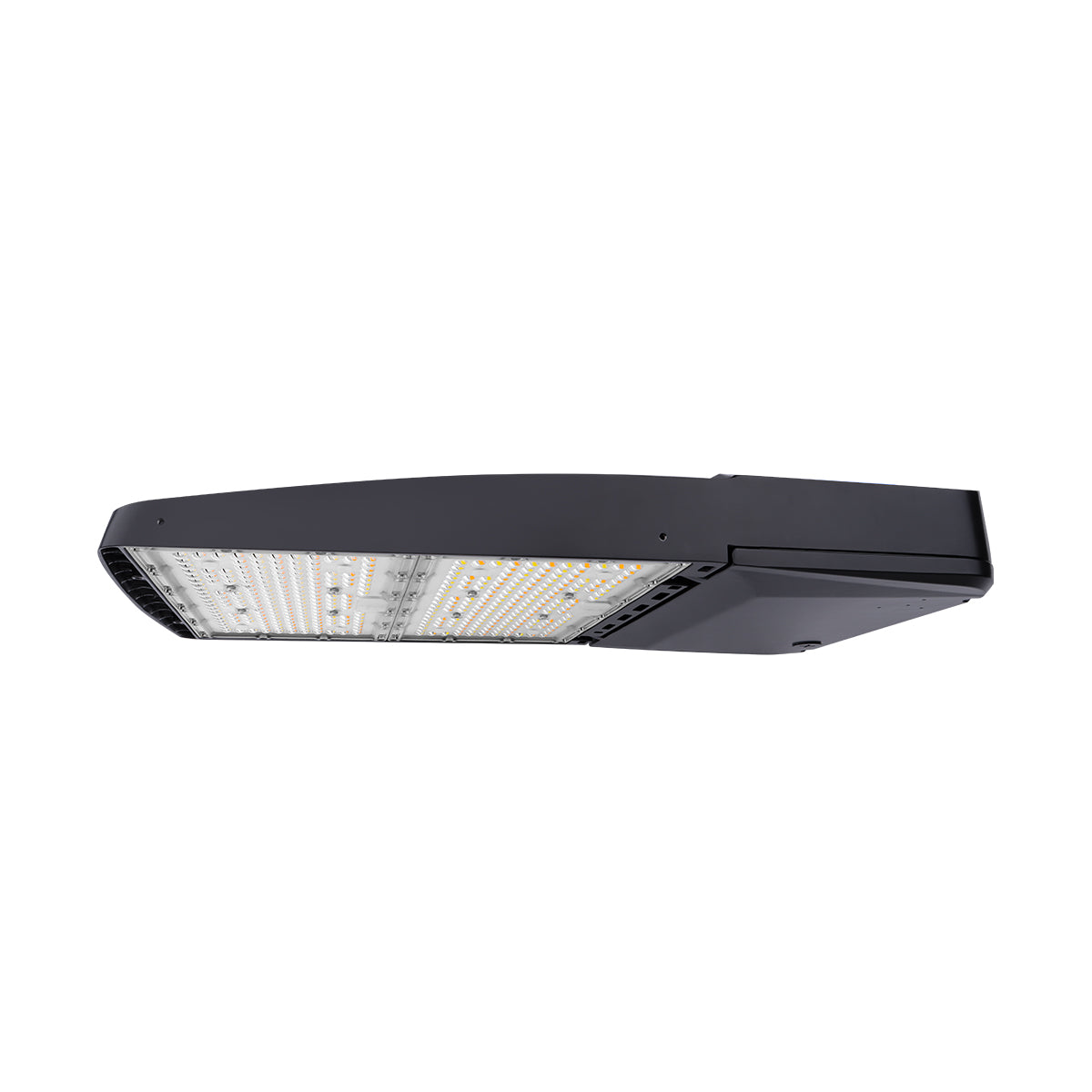

Select the Best Finish for Your Application: Dark bronze, bright white, or matte black.*
Select from 6 Mounting Options: Available under the accessories tab.

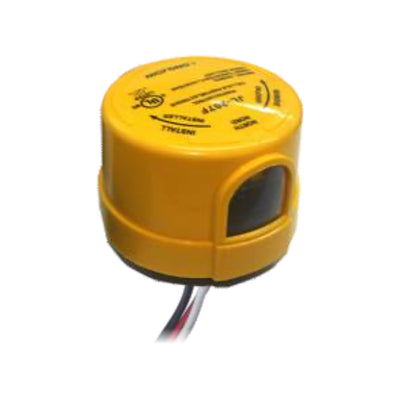

Add an Easy-Install, Twist-Lock Photocell: Ensures the lights are only on when needed.
Enjoy Highly Efficient, Long-Lasting Outdoor Lights
- Luminous efficacy of up to 160 lm/W.

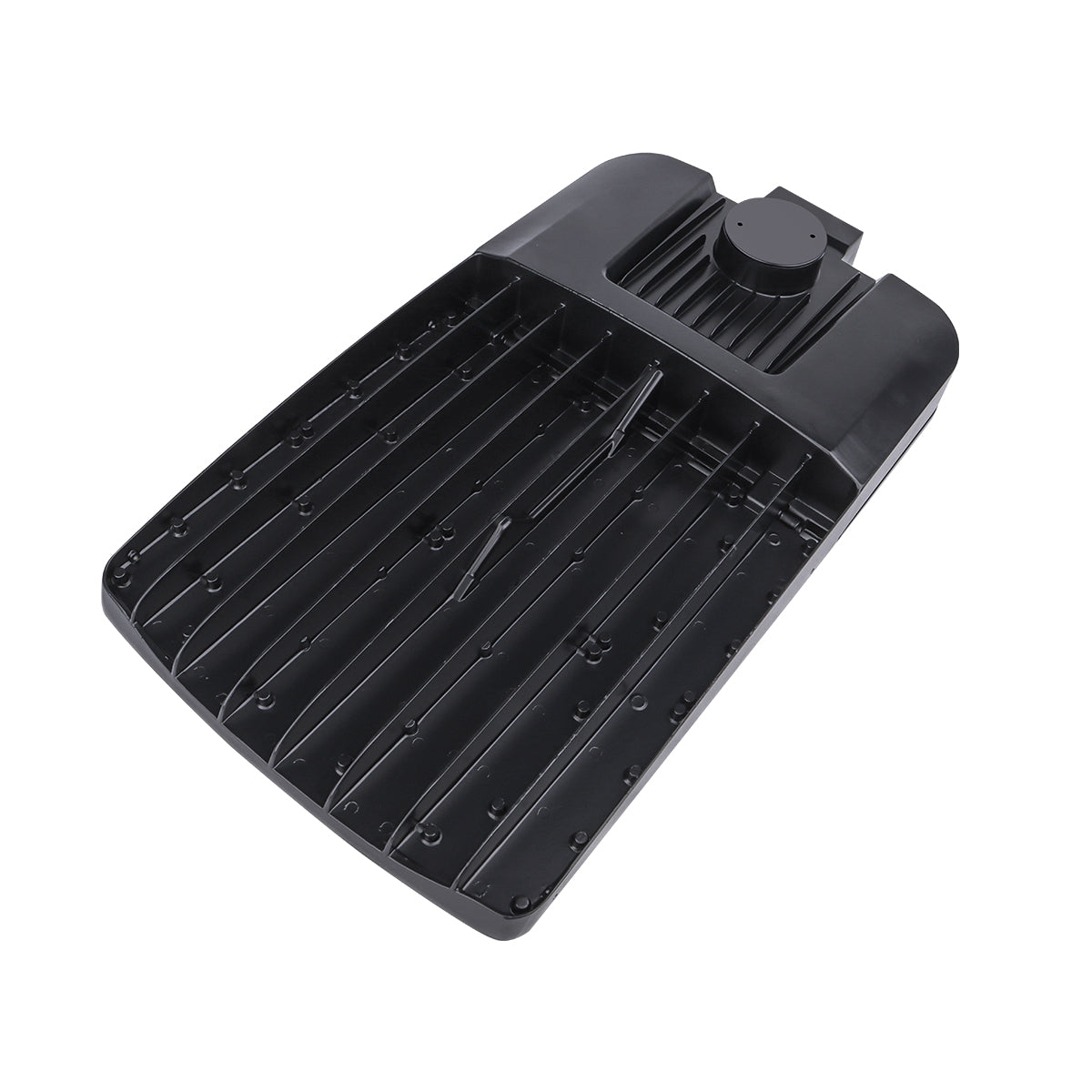

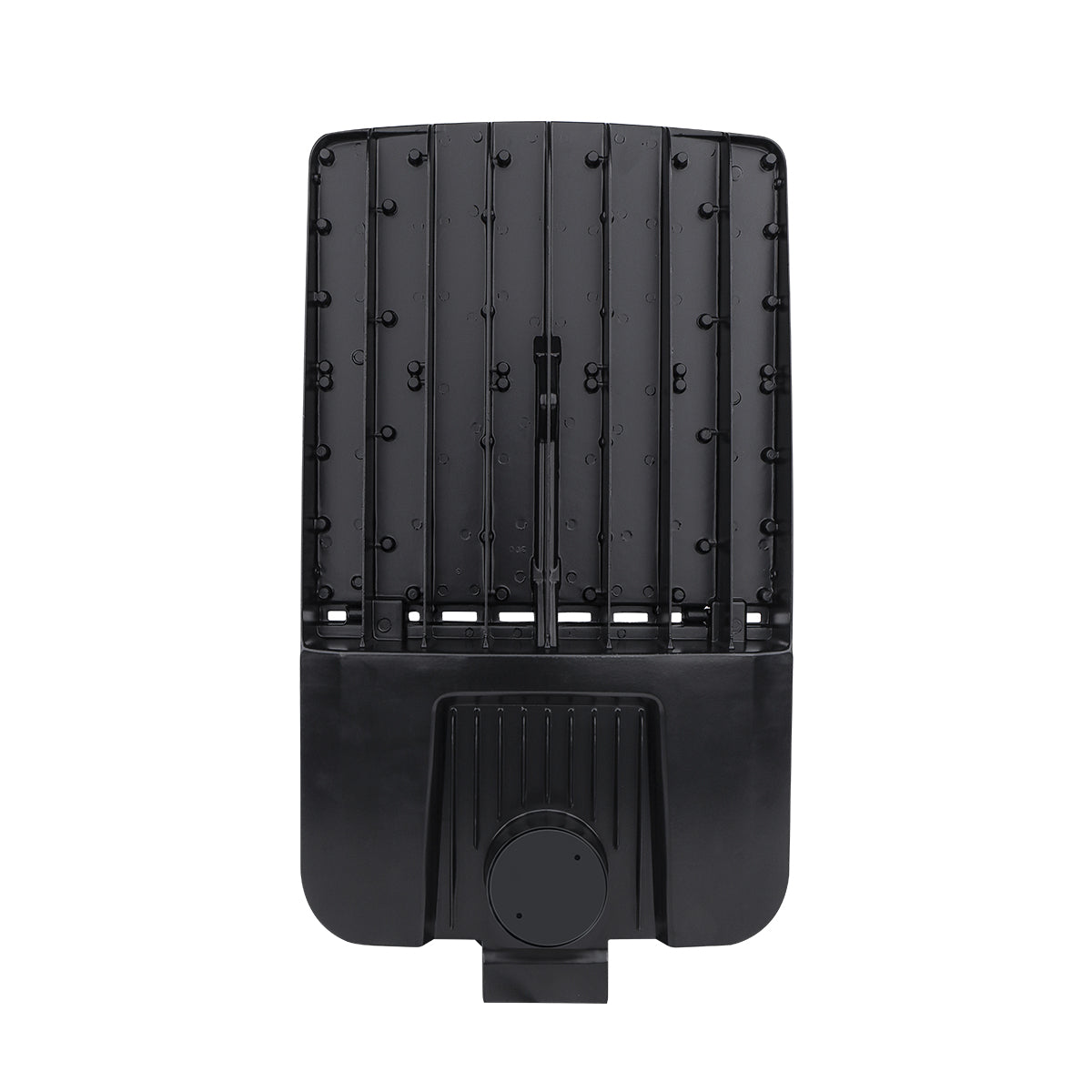

- Rugged die-cast aluminum with flow-through venting.
- Fully sealed against moisture, dust, and contaminants.
- 3G vibration rated & low EPA to minimize wind load requirements.
- Rated for use in temperatures as low as -40°F.
*The 480V model is available only in Dark Bronze.
A 24" power cord is included to make installations easier.
Versatile Options

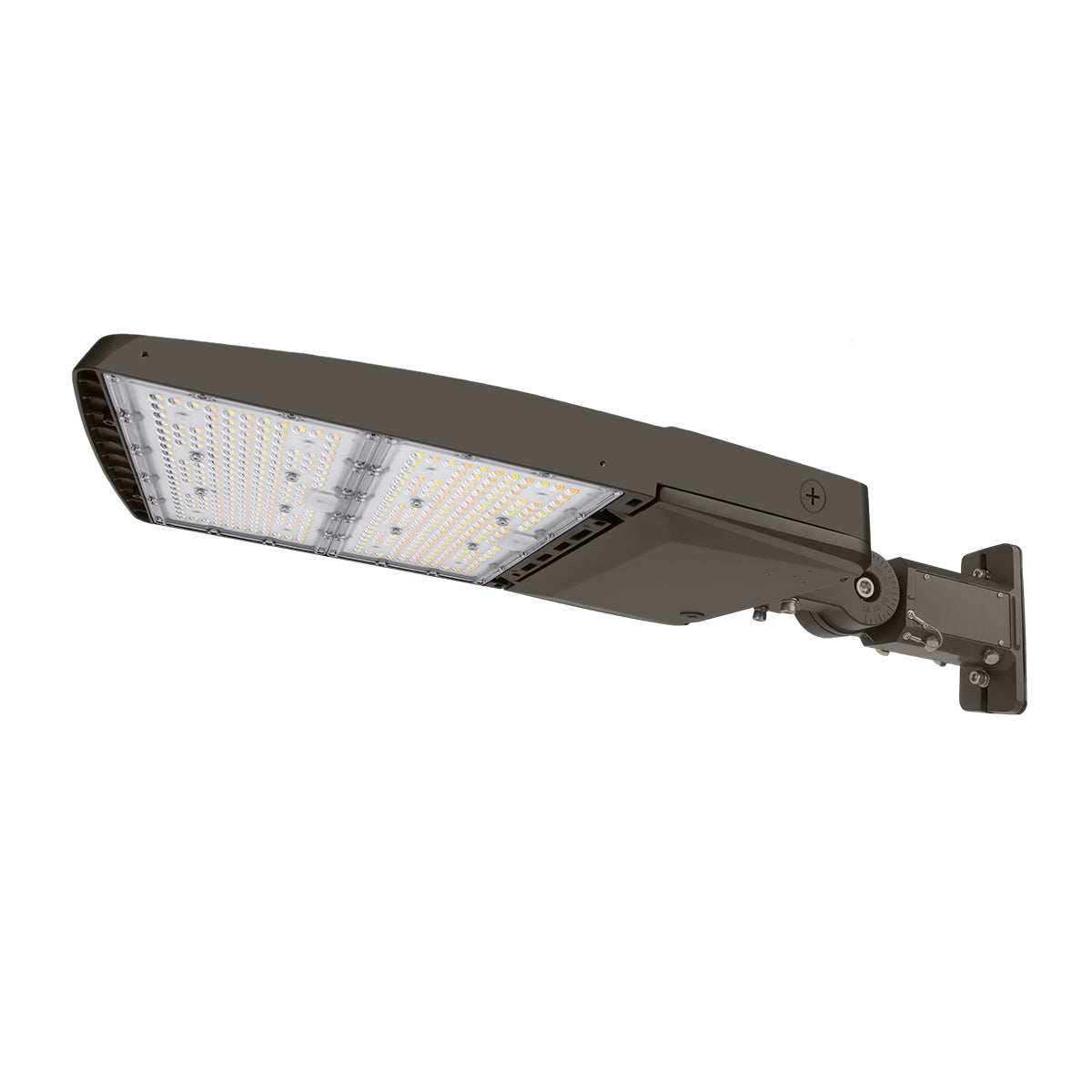

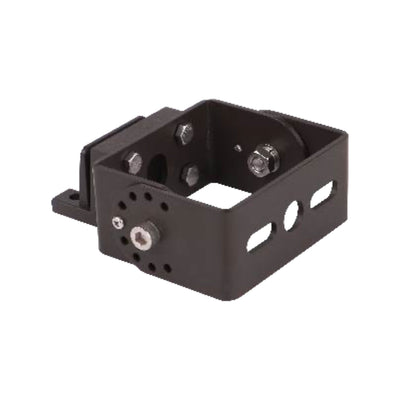

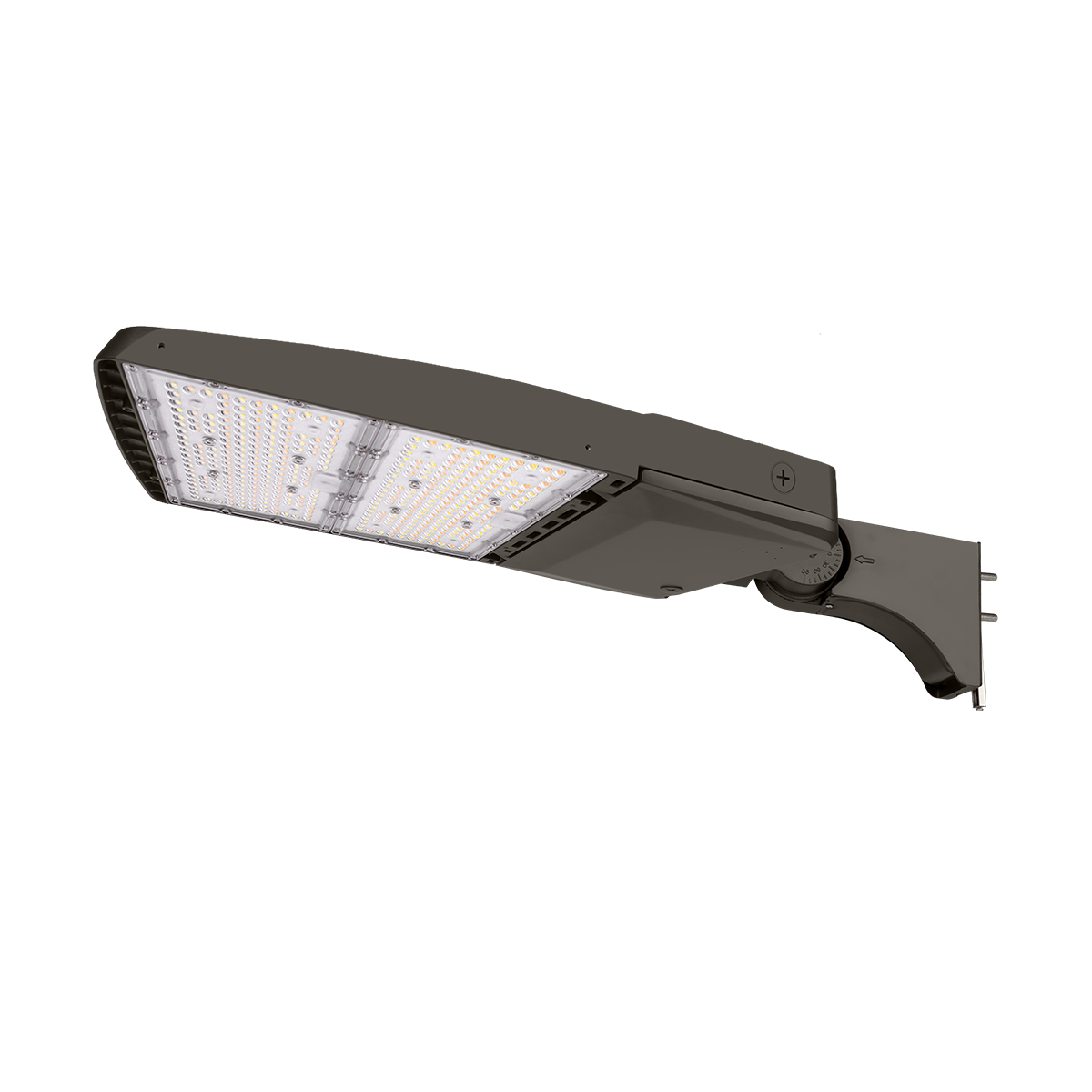

Trunnion Mount
For mounting on walls or poles, with rotational adjustability

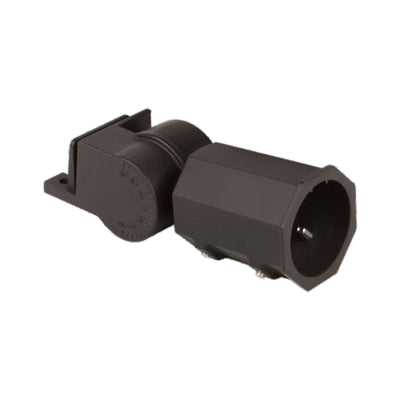

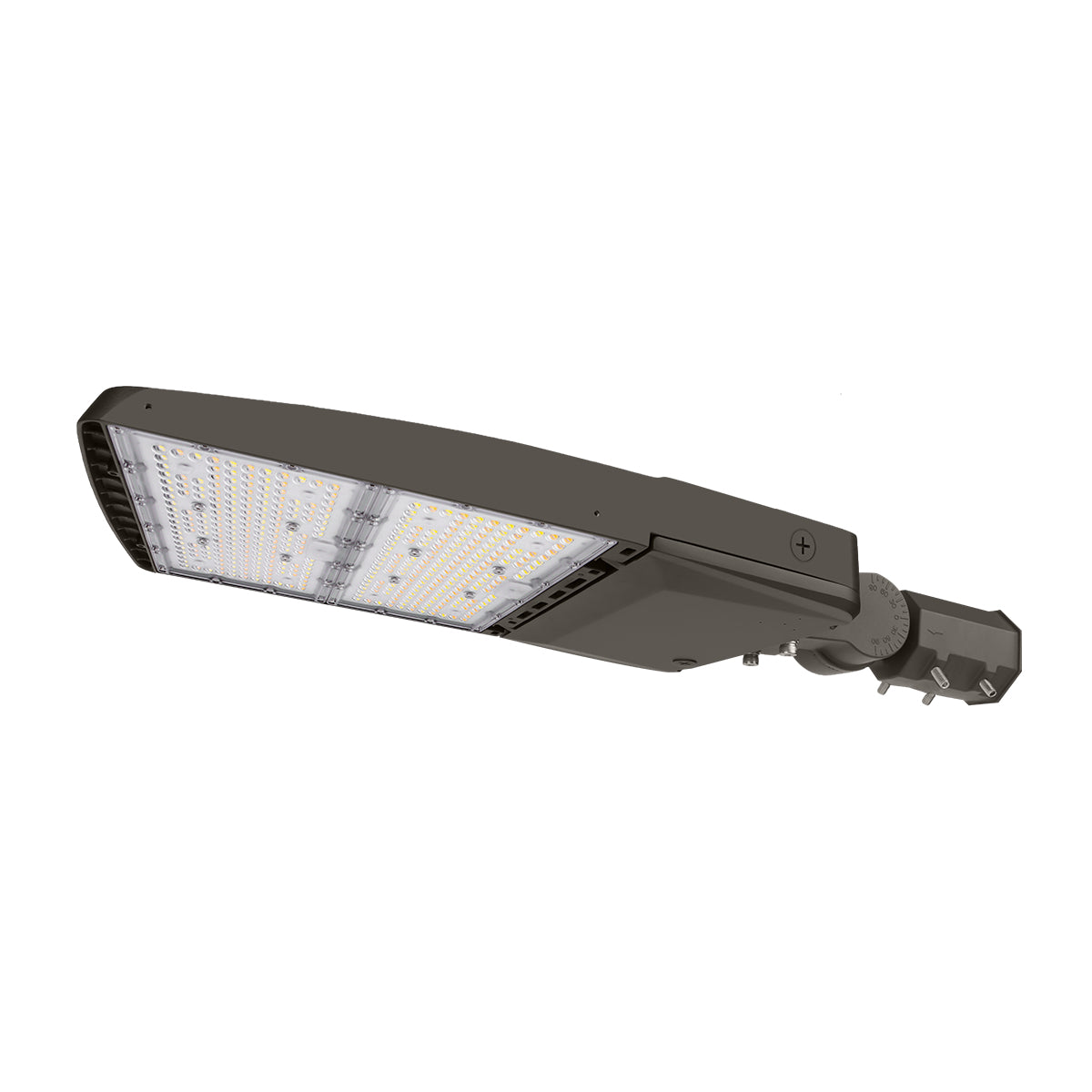

Slipfitter Mount
For use with 2-3/8" OD horizontal steel tenon arms

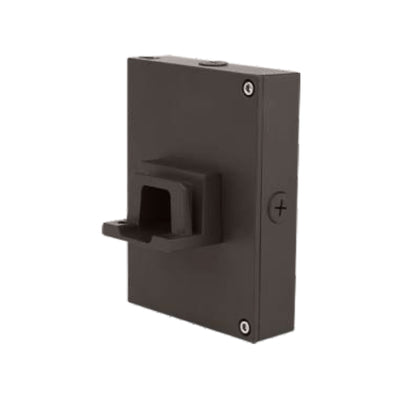

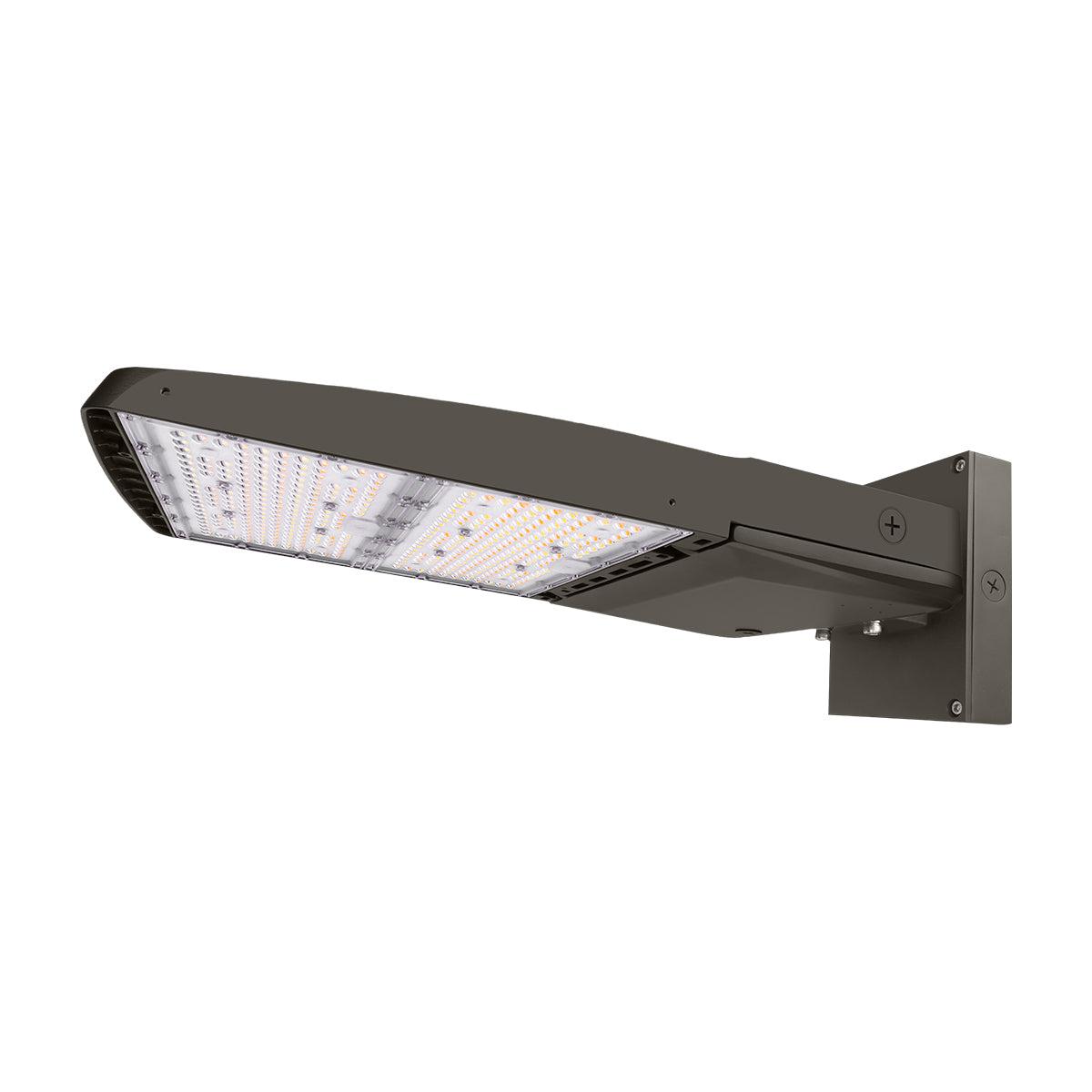

Wall Mount
For building facades - use 0.5" conduit wiring or J-box mounting

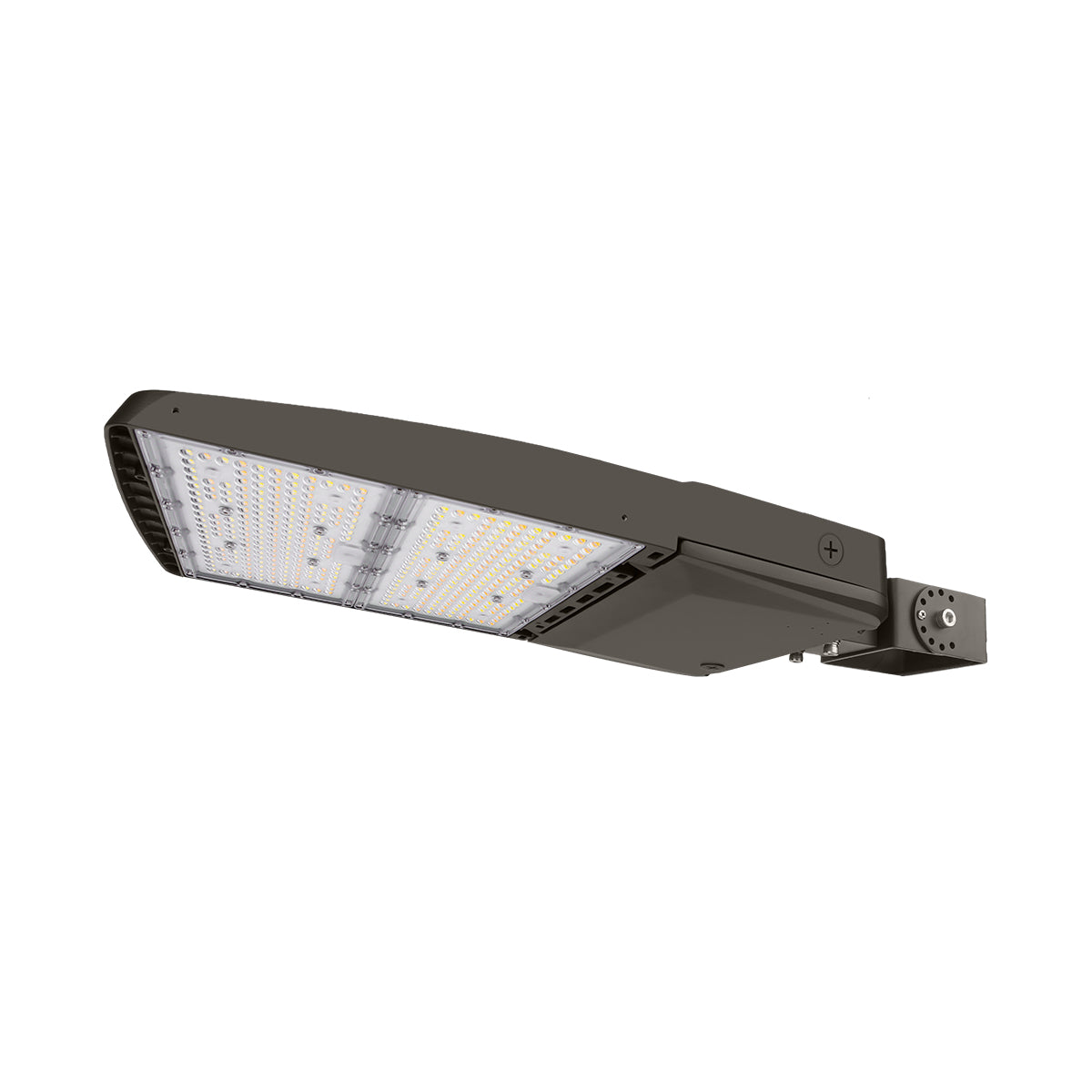

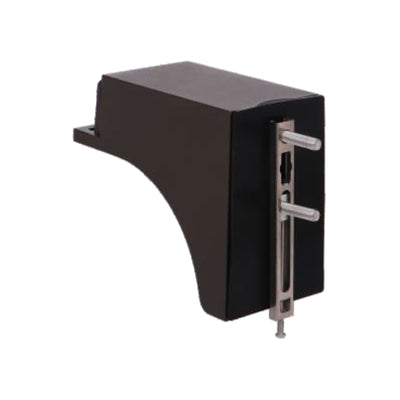

Square & Round Pole Mount
For use with 4" and 5" square or round poles

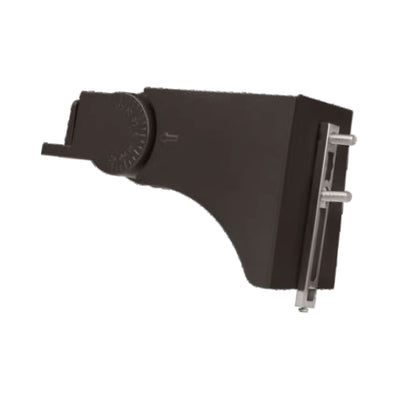

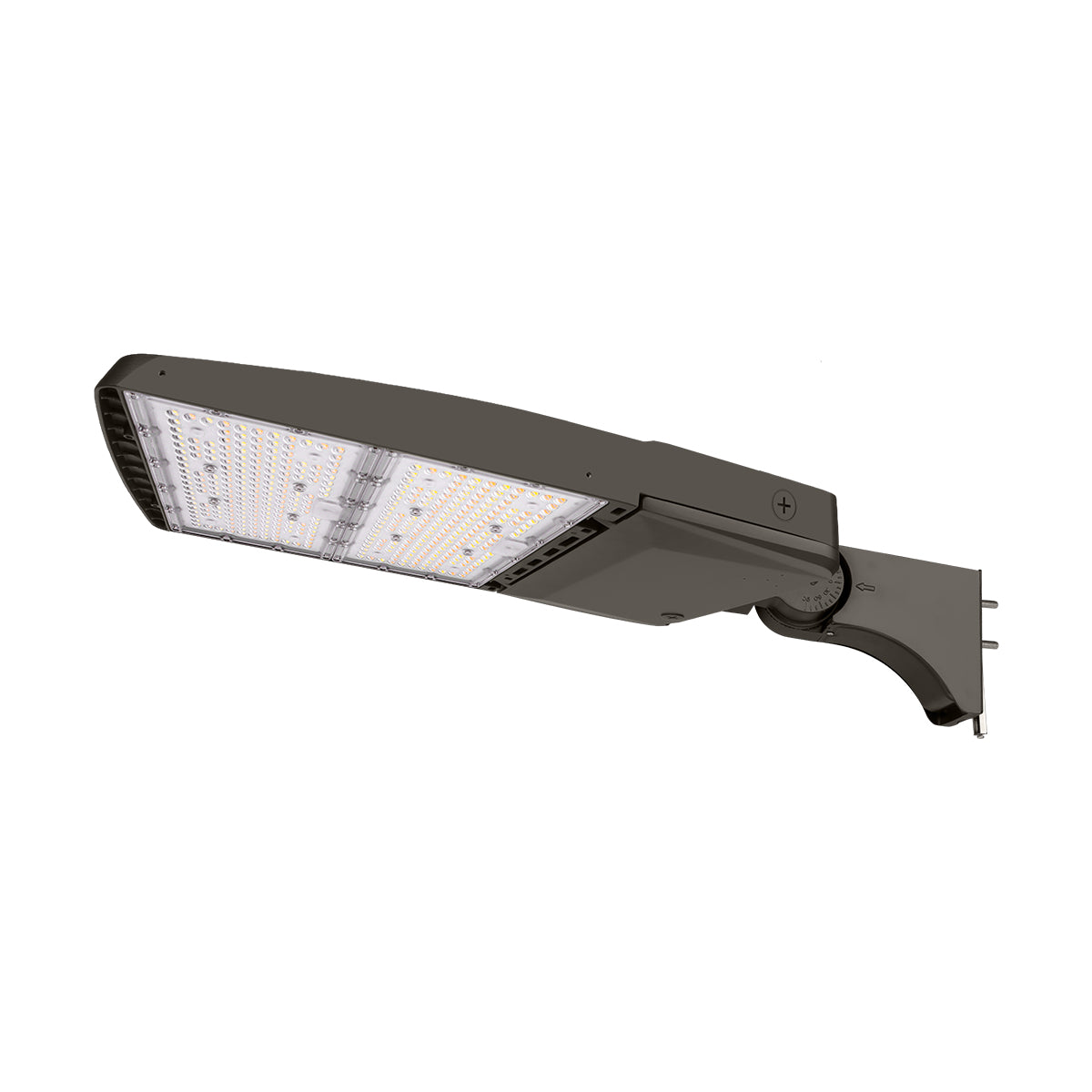

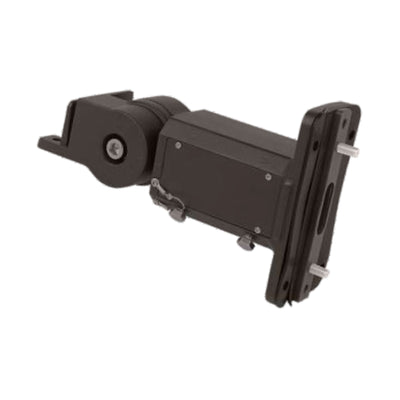

Adjustable Square & Round Pole Mount
For use with 4" and 5" square or round poles; rotatable
