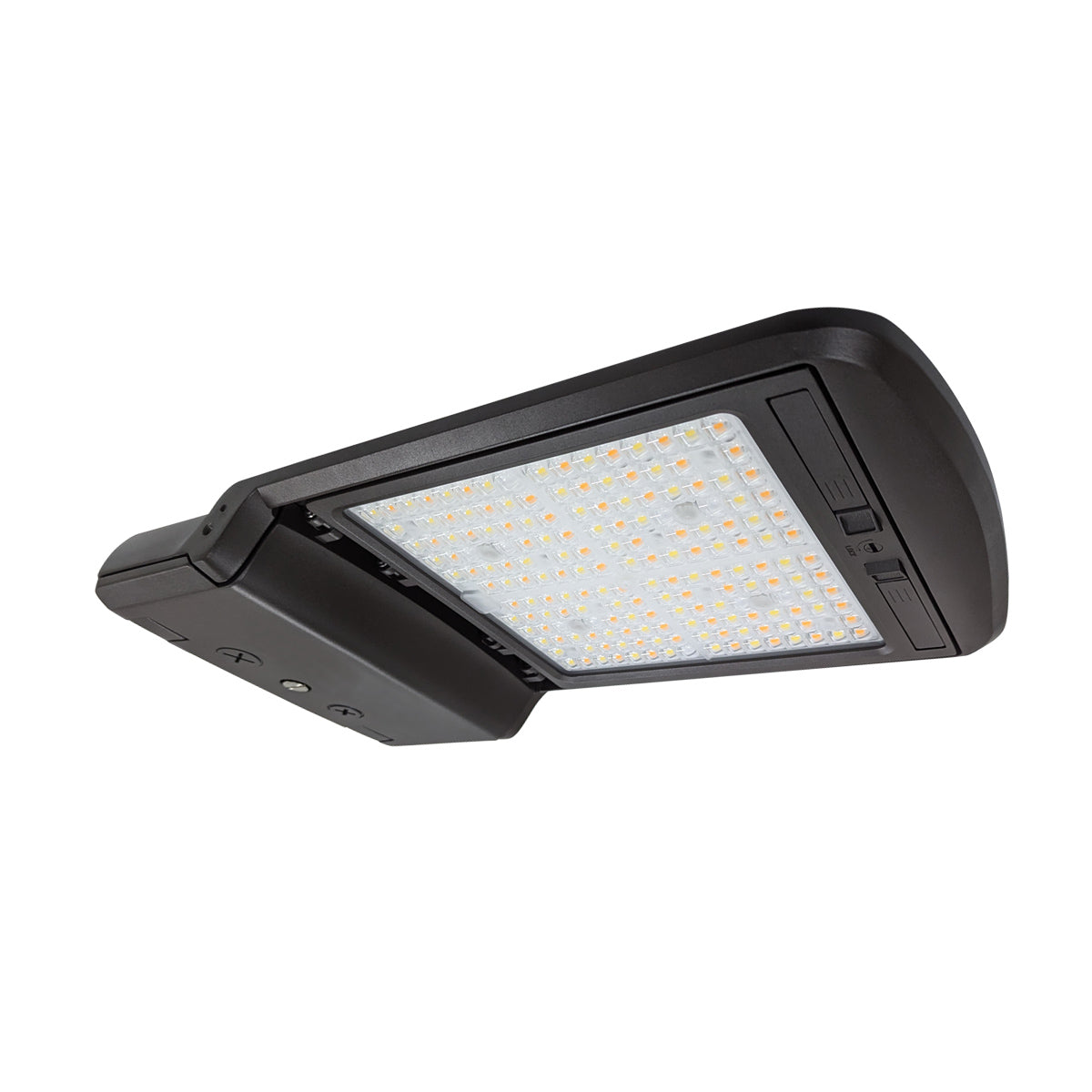

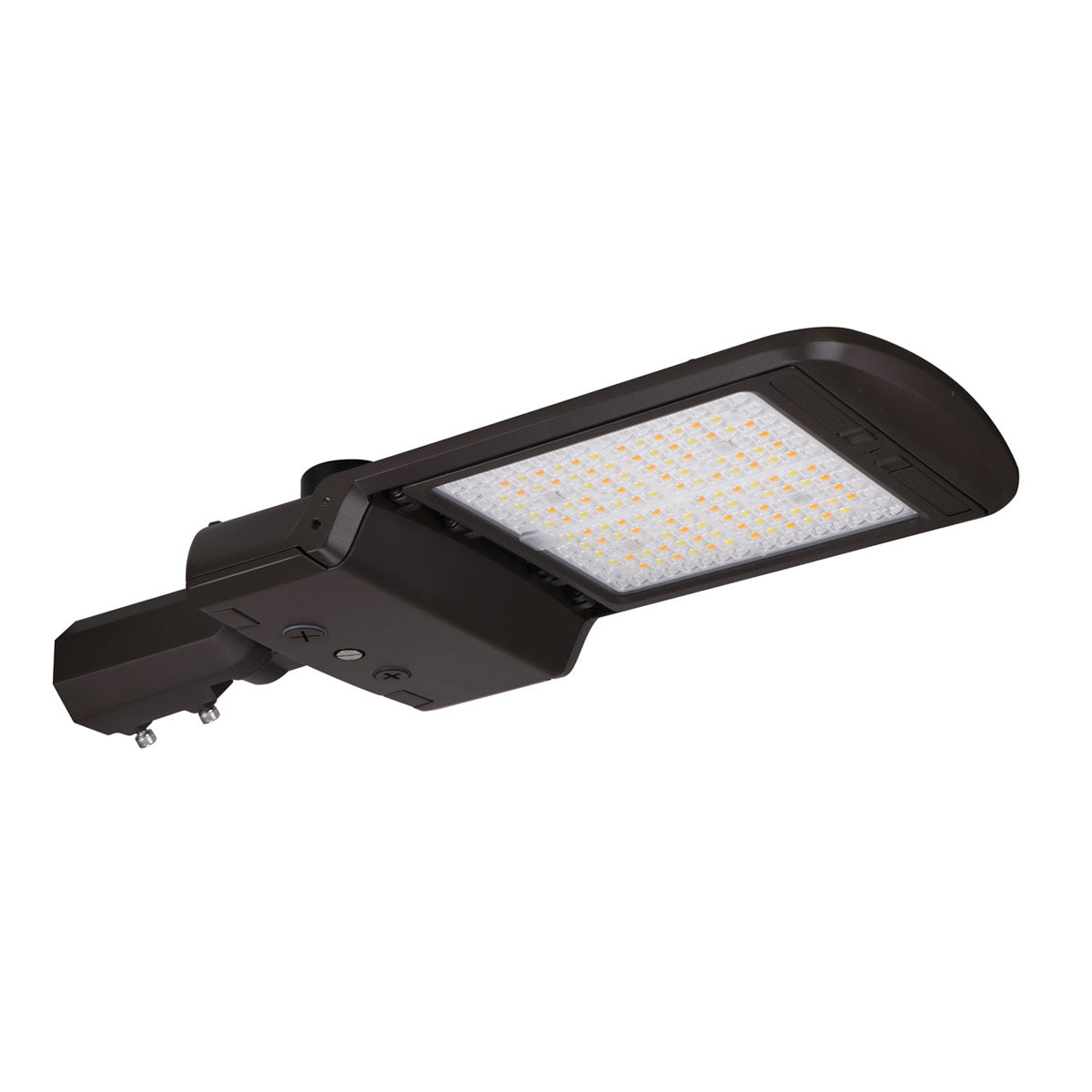

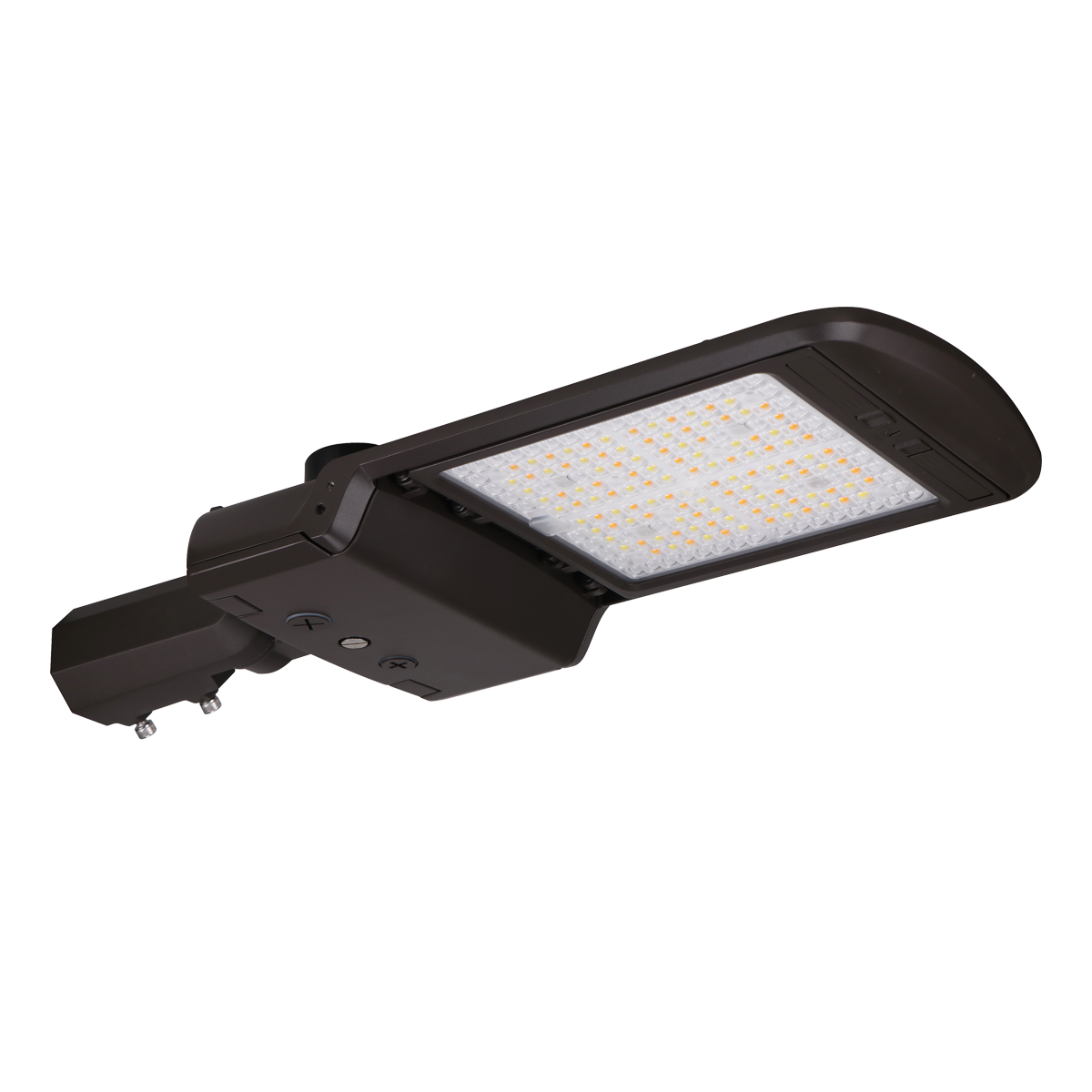

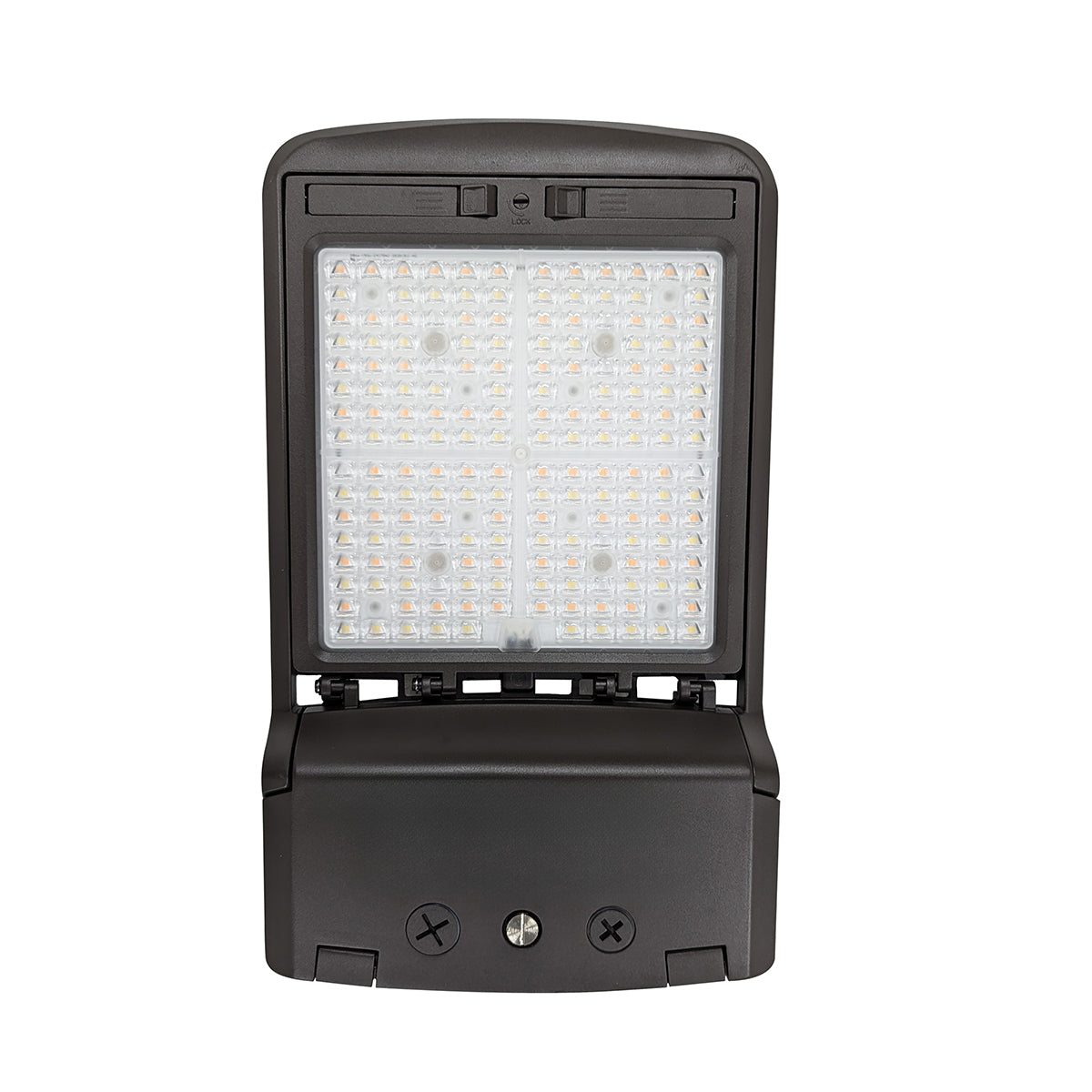

Bright LED Shoebox Area Light w/Easy-Swap Optics - Selectable Color, Wattage
Lumens:
Watts:
Color Temp:
5 Year Warranty
151 in stockAdaptable, Future-Proof Outdoor Area Lighting
Select the Light Output and Light Tone During Install:
- Adjustable Color Temperature: Warm (3000K), Neutral (4000K), and Cool (5000K) options
- Dial in the Best Balance of Output & Savings: Choose your wattage level in the field: 150/120/100W.
- Fine-Tune Control Over Brightness: 0-10V dimming capability (Dim to OFF).

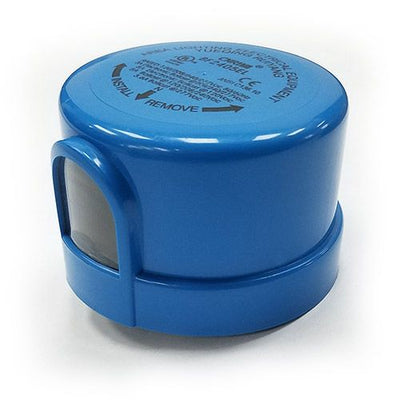

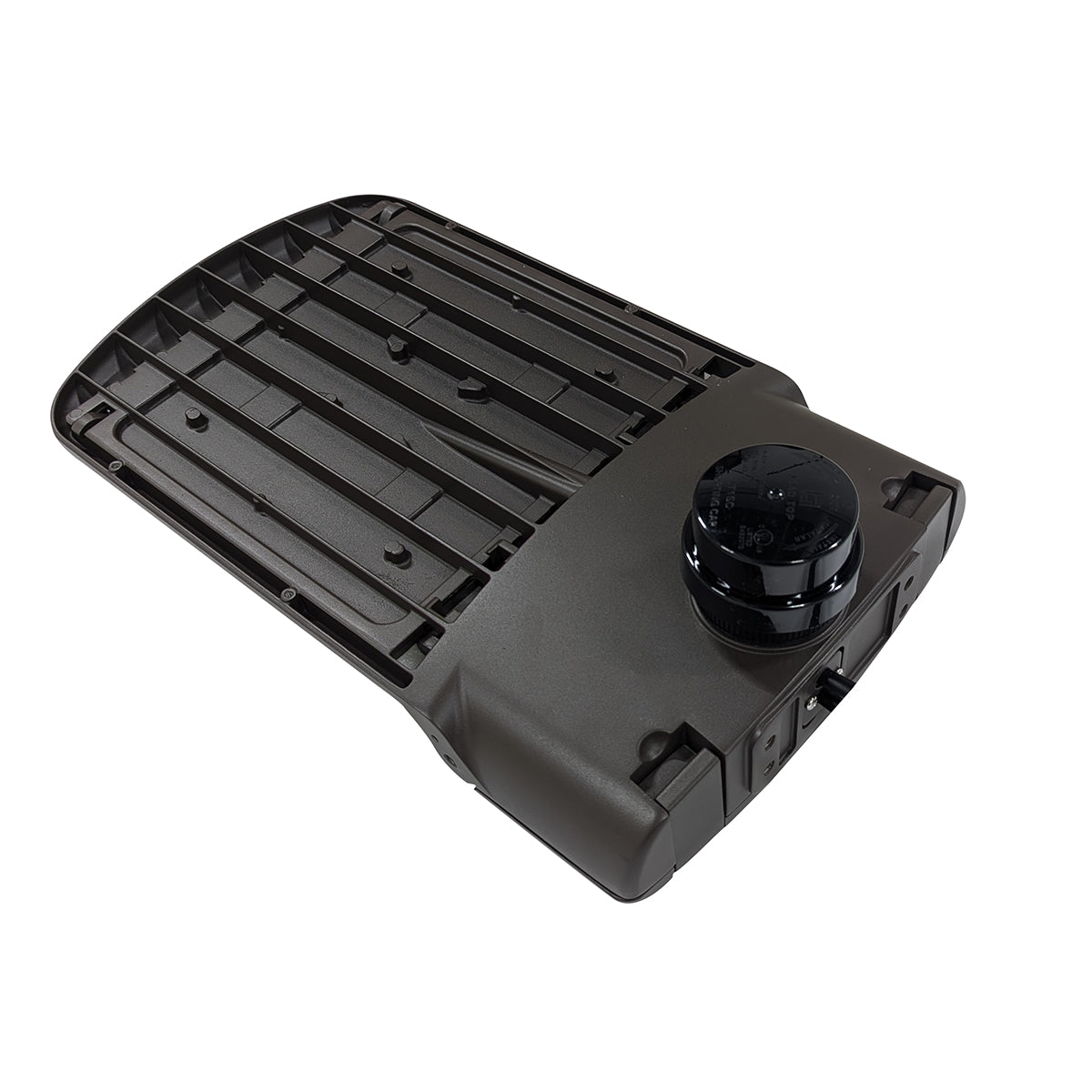

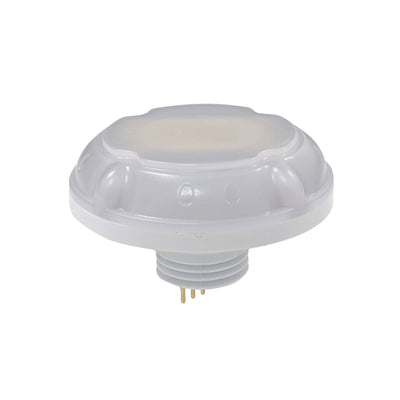

- Automate Lighting Control: Add a plug-and-play PIR and/or photocell sensor.
- Easy-Swap Optics: Easily switch between Type 3 and Type 5 lenses in the field.*

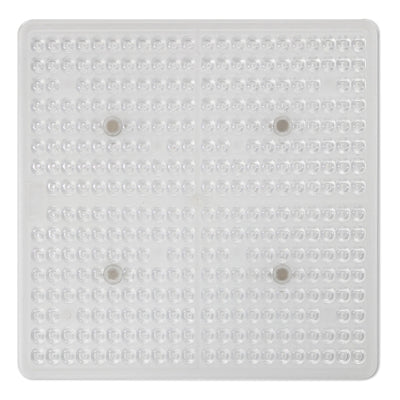

*Comes standard with a Type 3 lens (perimeter optics). Type 5 (interior "umbrella-shaped" optics) is available as an easy-swap accessory.
Saves $/year in energy costs*

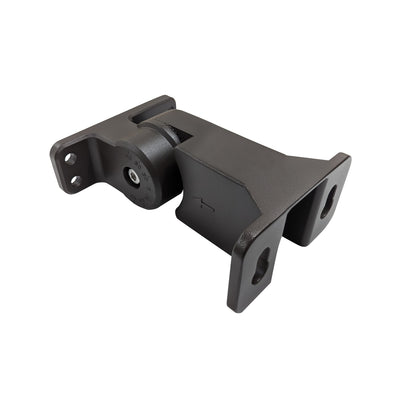

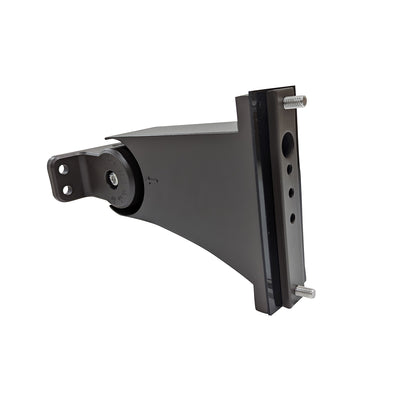

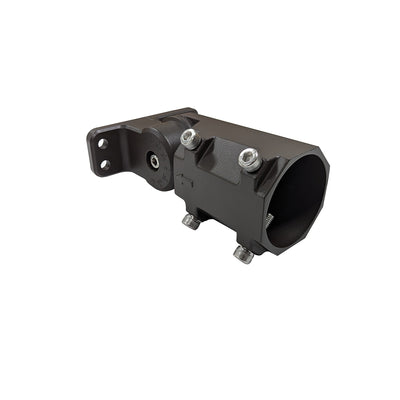

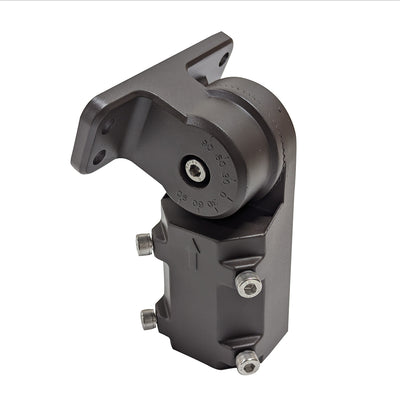

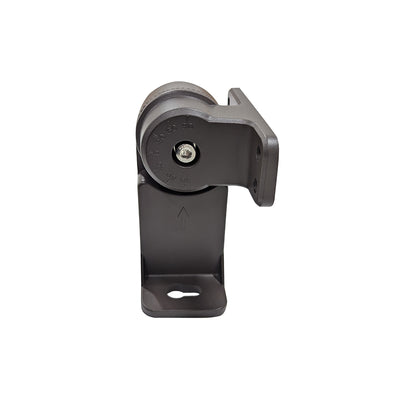

Mounting Bracket*
You must choose a bracket
Buying 12 or more?
Get a better price:
Adaptable, Future-Proof Outdoor Area Lighting
Select the Light Output and Light Tone During Install:
- Adjustable Color Temperature: Warm (3000K), Neutral (4000K), and Cool (5000K) options
- Dial in the Best Balance of Output & Savings: Choose your wattage level in the field: 150/120/100W.
- Fine-Tune Control Over Brightness: 0-10V dimming capability (Dim to OFF).
- Automate Lighting Control: Add a plug-and-play PIR and/or photocell sensor.
- Easy-Swap Optics: Easily switch between Type 3 and Type 5 lenses in the field.*
*Comes standard with a Type 3 lens (perimeter optics). Type 5 (interior "umbrella-shaped" optics) is available as an easy-swap accessory.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
151 in stockMounting Bracket*
You must choose a bracket
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
5 Year Warranty
151 in stockMounting Bracket*
You must choose a bracket
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 150/120/100W |
| Replaces Wattage(s) | 250W to 450W |
| Light Output | 23,250/19,200/16,000 lumens |
| Luminous Efficacy (lm/W) | 155-160 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K |
| CRI (Color Accuracy) | >80 |
| Dimming | 0-10V |
| Light Distribution Pattern | Type III (T3) standard, or convert to Type V (T5) with quick-change field-swappable lens (see accessories in ordering section) |
| Working Environment | Outdoors |
| Enclosure Rating | IP65, IK08 |
| Input Voltage | 120-277VAC |
| Temperature Rating | -40°F to +122°F |
| Housing Material | Die-cast aluminum |
| Housing Color | Bronze |

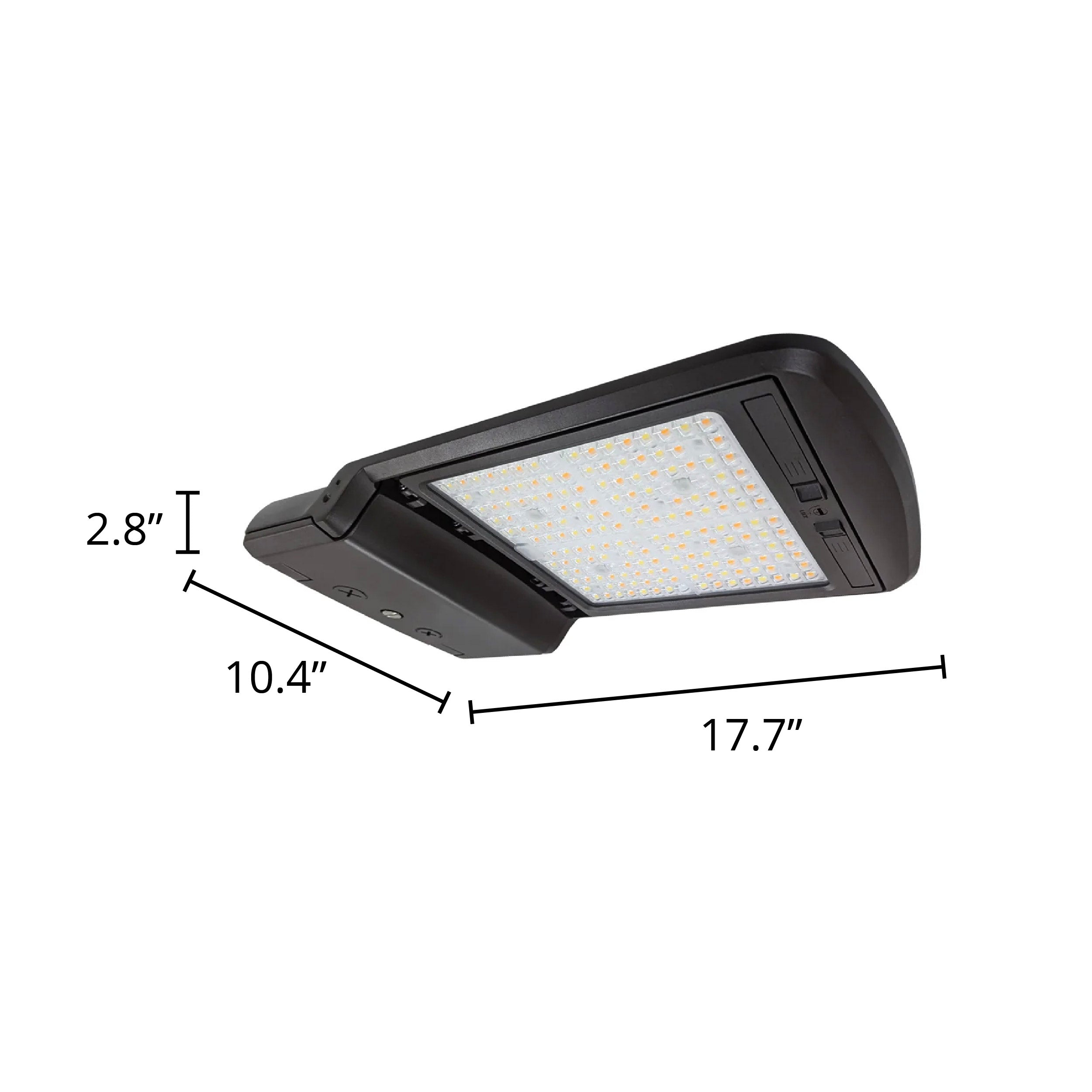

| Dimensions | 17.7” x 10.4” x 2.8” |
| Weight | 9.72 lbs |
| Certification | DLC, UL |
| Warranty | 5 Years |
COMPARE KEY FEATURES
LED Shoebox Area Light - 3 CCT - Swappable Optics - 150/120/100W
|
LED Shoebox Area Light - 3 CCT - 310/280/260/240W
|

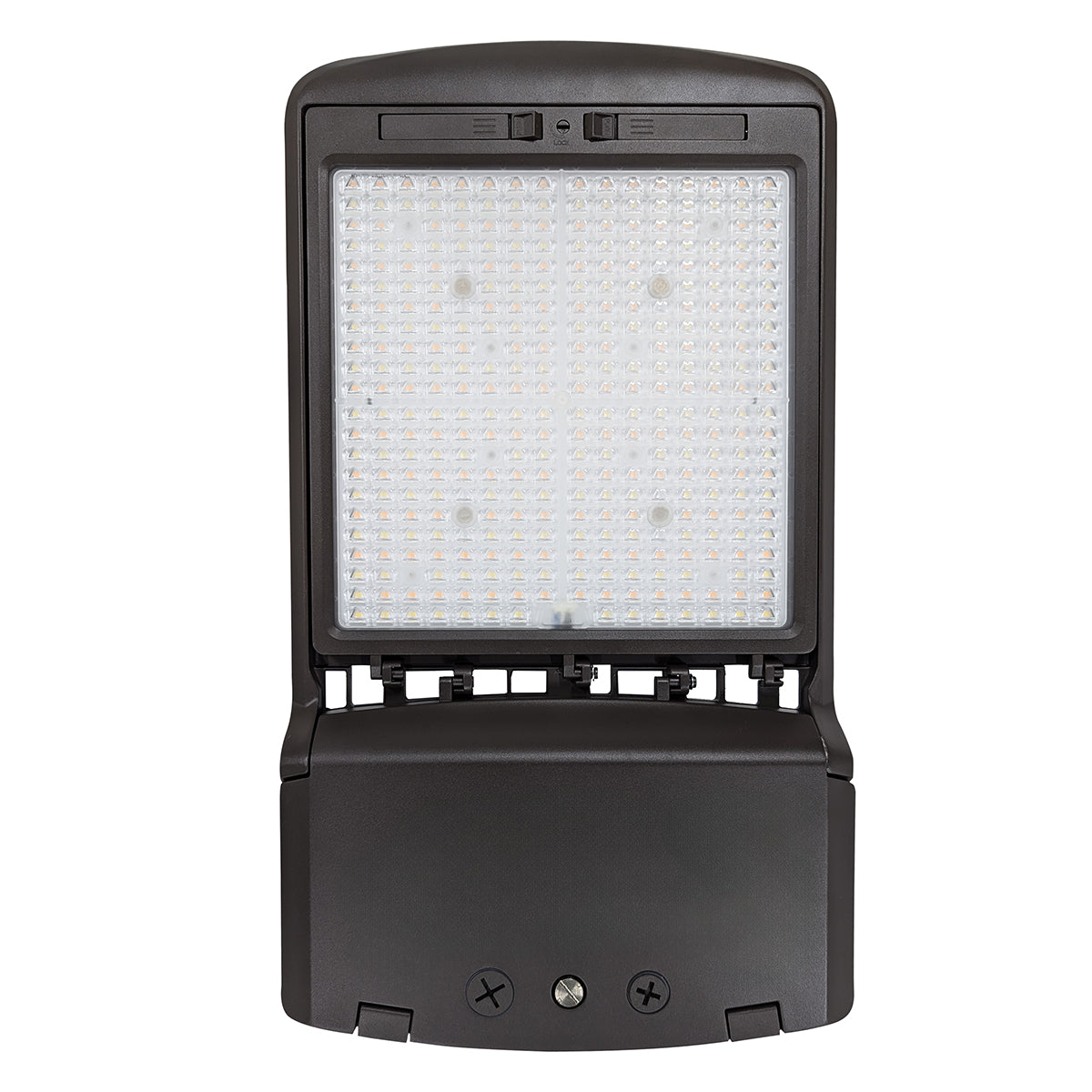

LED Shoebox Area Light - 3 CCT - Swappable Optics - 300/250/200W
|
|
|---|---|---|---|
| Wattage | 150/120/100W | 310/280/260/240W | 300/250/200W |
| Equivalent to | 250W to 450W | 750W to 1000W | 600W to 1000W |
| Luminous Efficacy | 155-160 lm/W | 145-179 lm/W | 155-160 lm/W |
| Color Temperature (CCT) | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K |
| Light Distribution Pattern | Type III (T3) standard, or convert to Type V (T5) with quick-change field-swappable lens (see accessories in ordering section) | Type III (T3) | Type III (T3) standard, or convert to Type V (T5) with quick-change field-swappable lens (see accessories in ordering section) |
| Input Voltage | 120-277VAC | 120-277VAC or 277-480VAC | 120-277VAC |
|
$182.95
|
$214.95
View Details
|
$237.95
View Details
|
Key Features

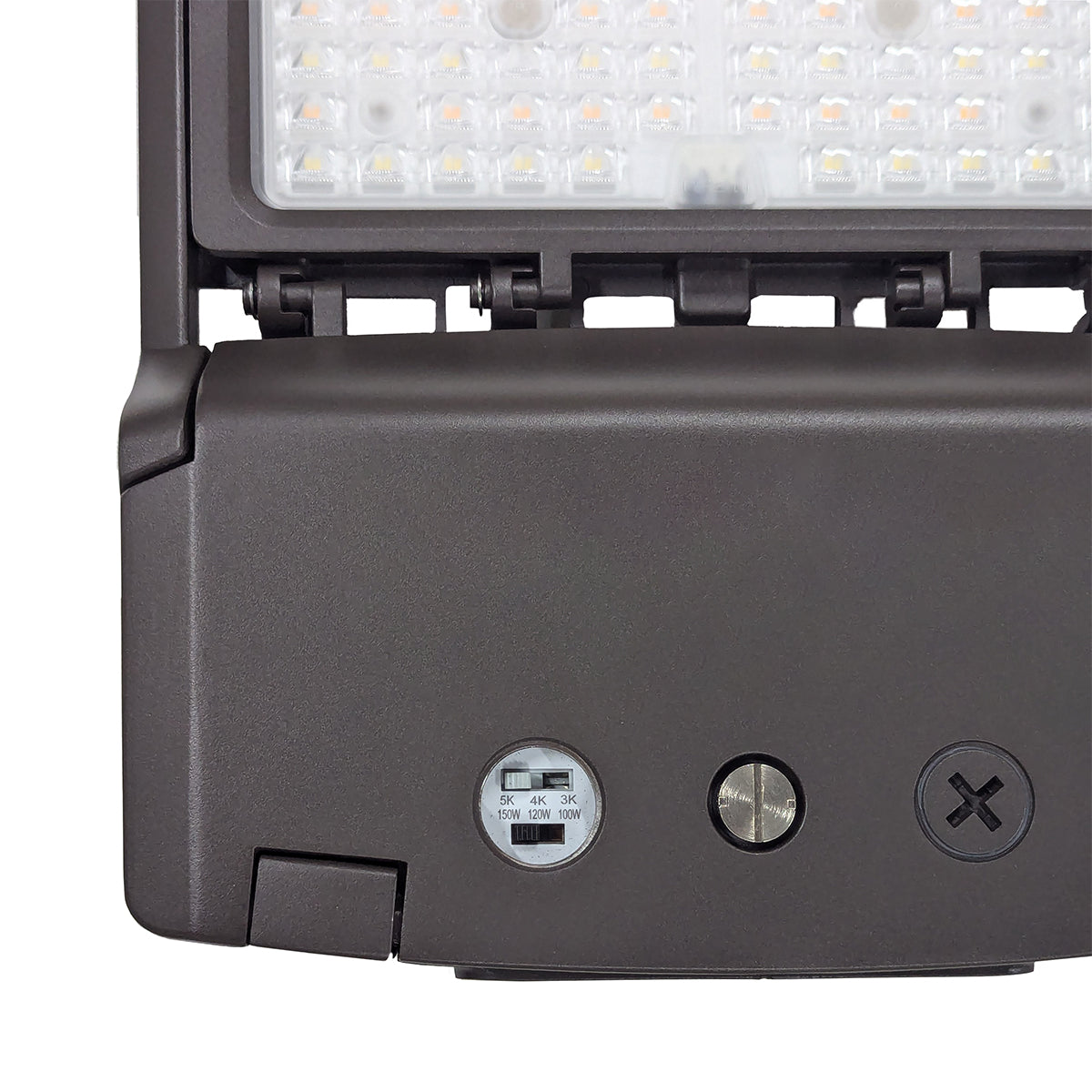

Selectable Wattage & CCT
Swap Type 3 & Type 5 Lenses
Smart Control Ready
Adaptable, Future-Proof Outdoor Area Lighting
Select the Light Output and Light Tone During Install:
- Adjustable Color Temperature: Warm (3000K), Neutral (4000K), and Cool (5000K) options
- Dial in the Best Balance of Output & Savings: Choose your wattage level in the field: 150/120/100W.
- Fine-Tune Control Over Brightness: 0-10V dimming capability (Dim to OFF).
- Automate Lighting Control: Add a plug-and-play PIR and/or photocell sensor.
- Easy-Swap Optics: Easily switch between Type 3 and Type 5 lenses in the field.*
*Comes standard with a Type 3 lens (perimeter optics). Type 5 (interior "umbrella-shaped" optics) is available as an easy-swap accessory.

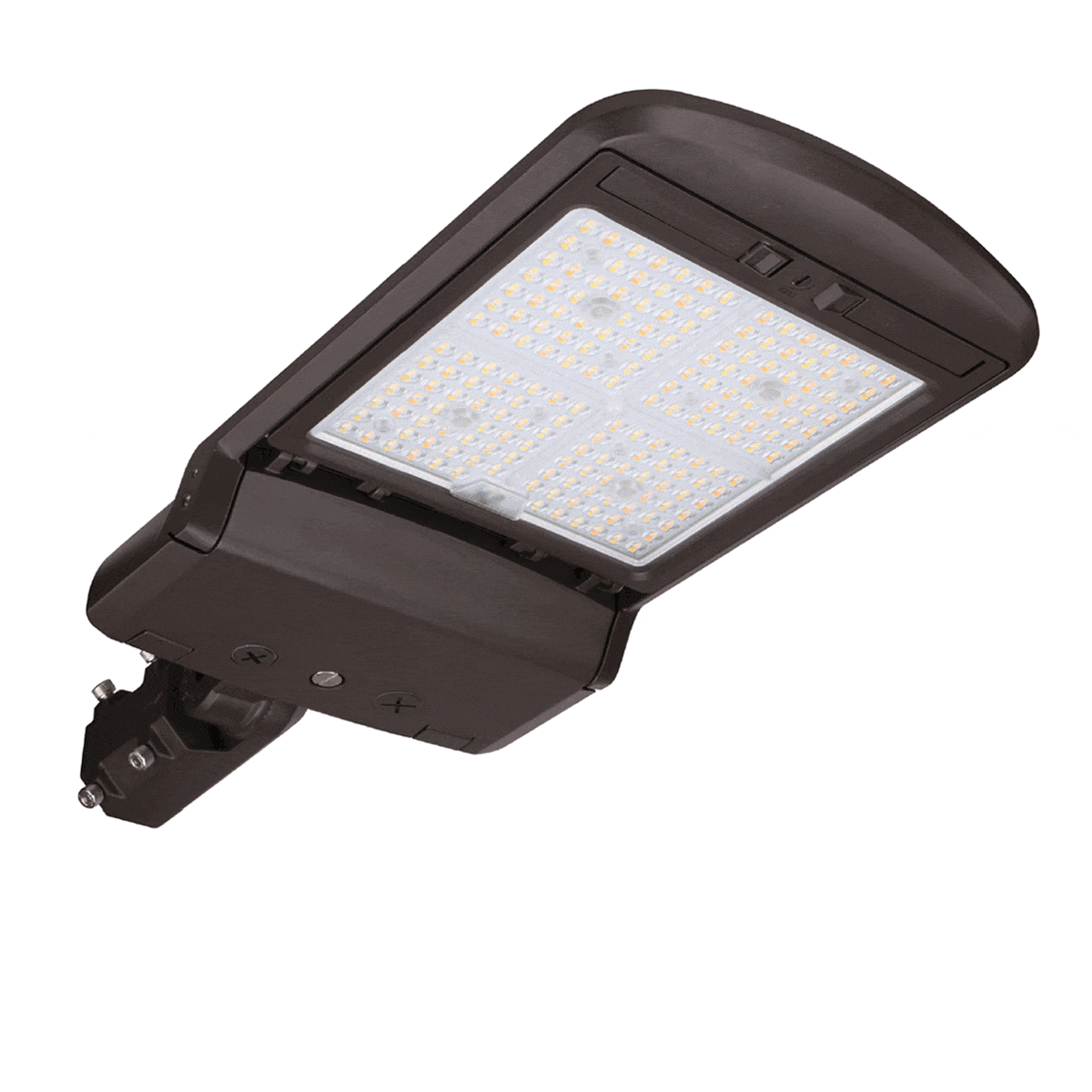

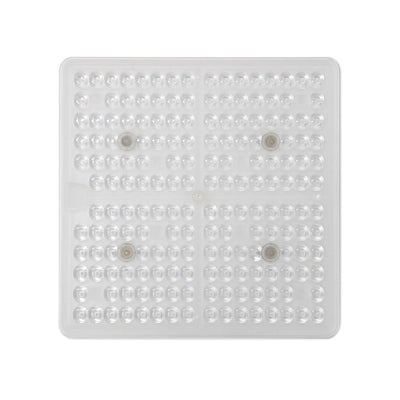

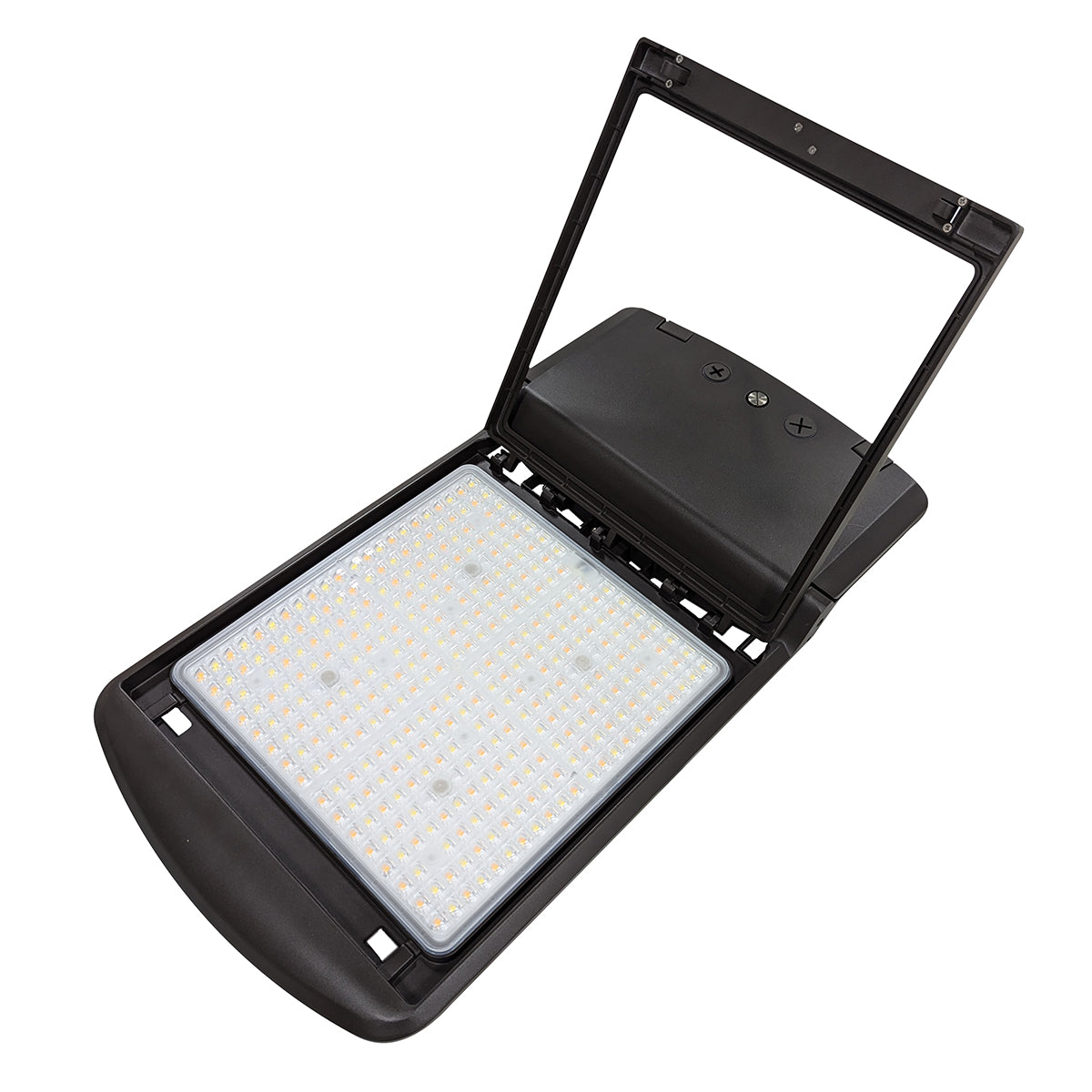

Quick Change Lens
Swap Type 3 for Type 5 Optics On-Site if Needed
Light Output
This light is wattage-selectable. Click a wattage to see the light output for that setting.
