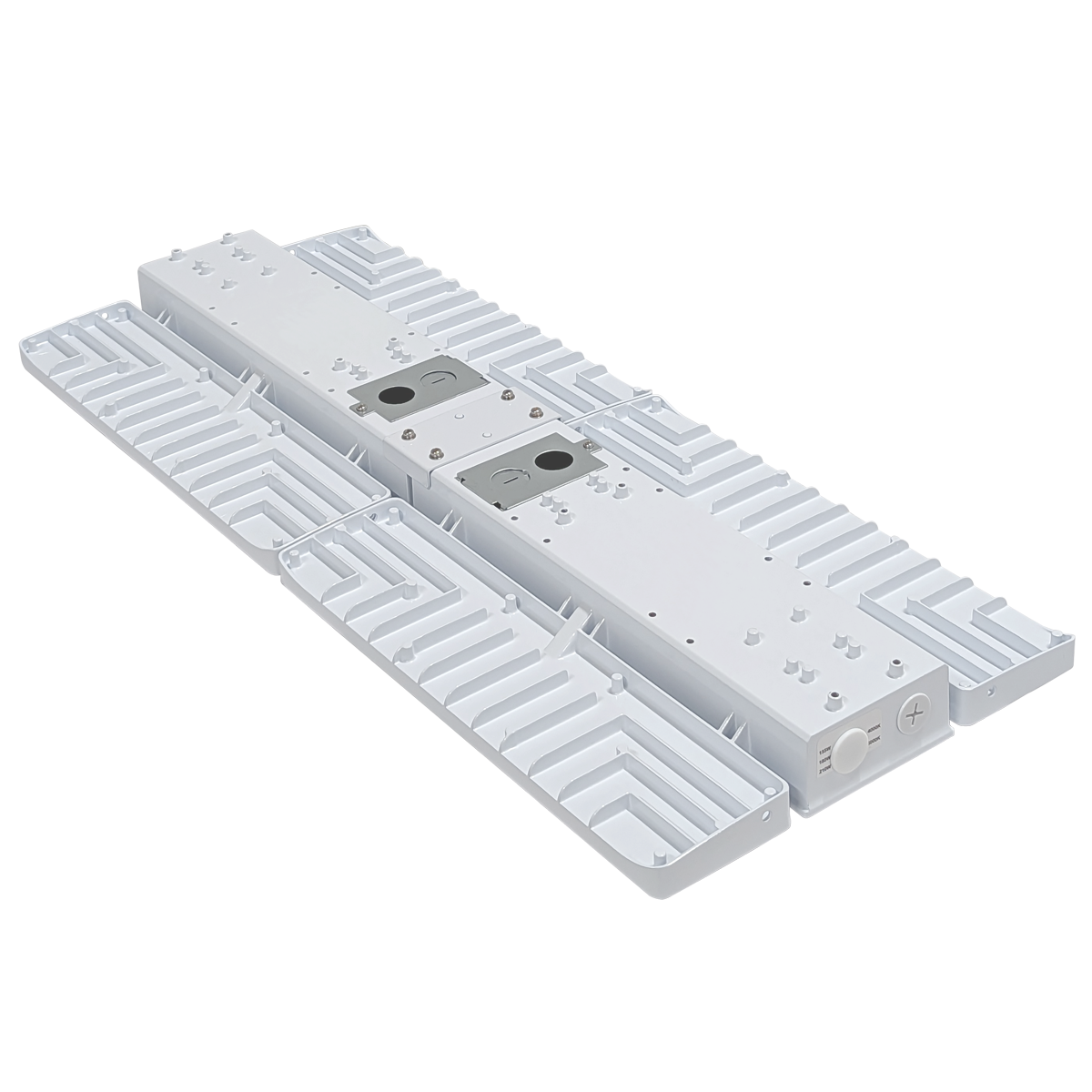

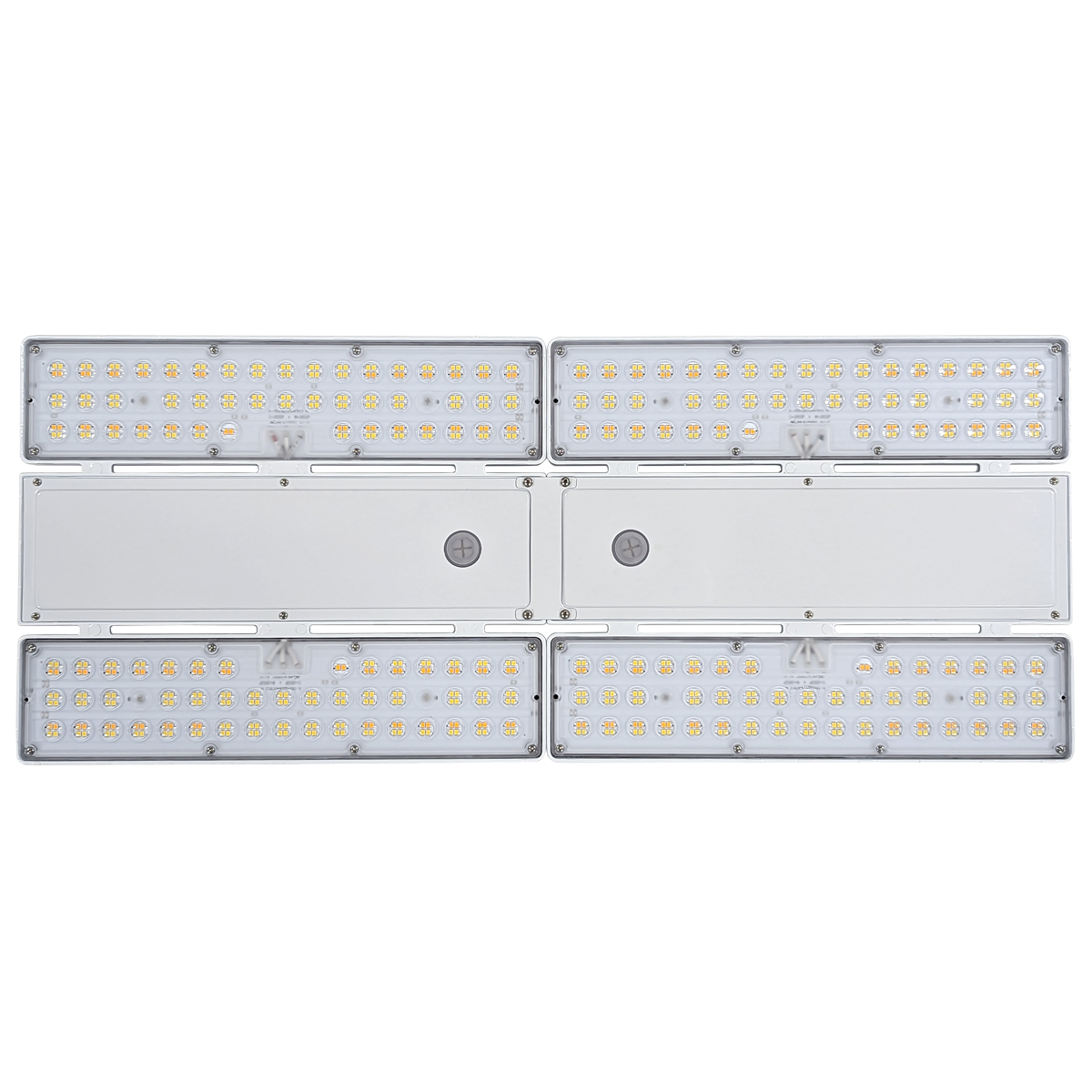

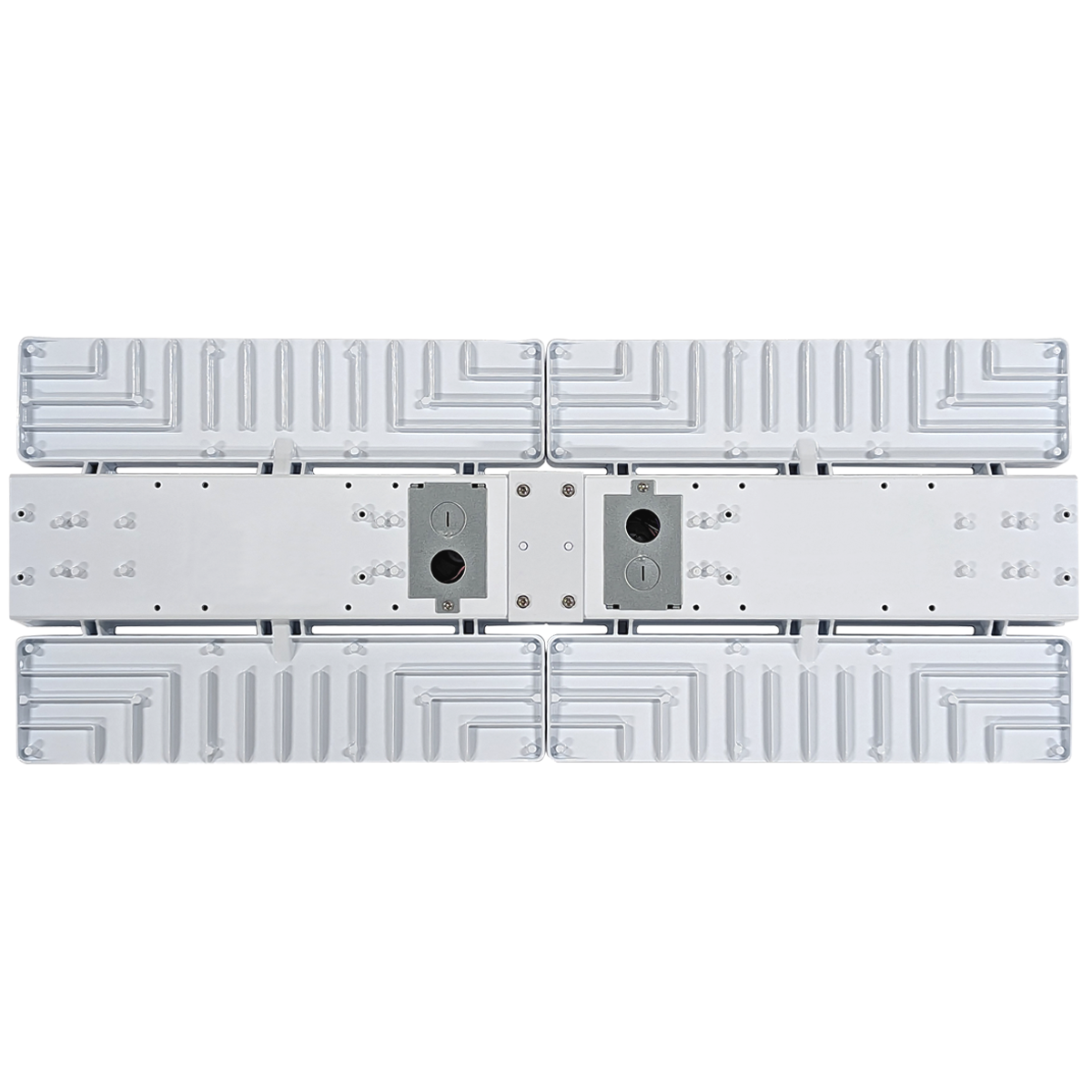

Linear LED High Bay 2 CCT 420W 360W 310W with die-cast aluminum housing for industrial lighting applications

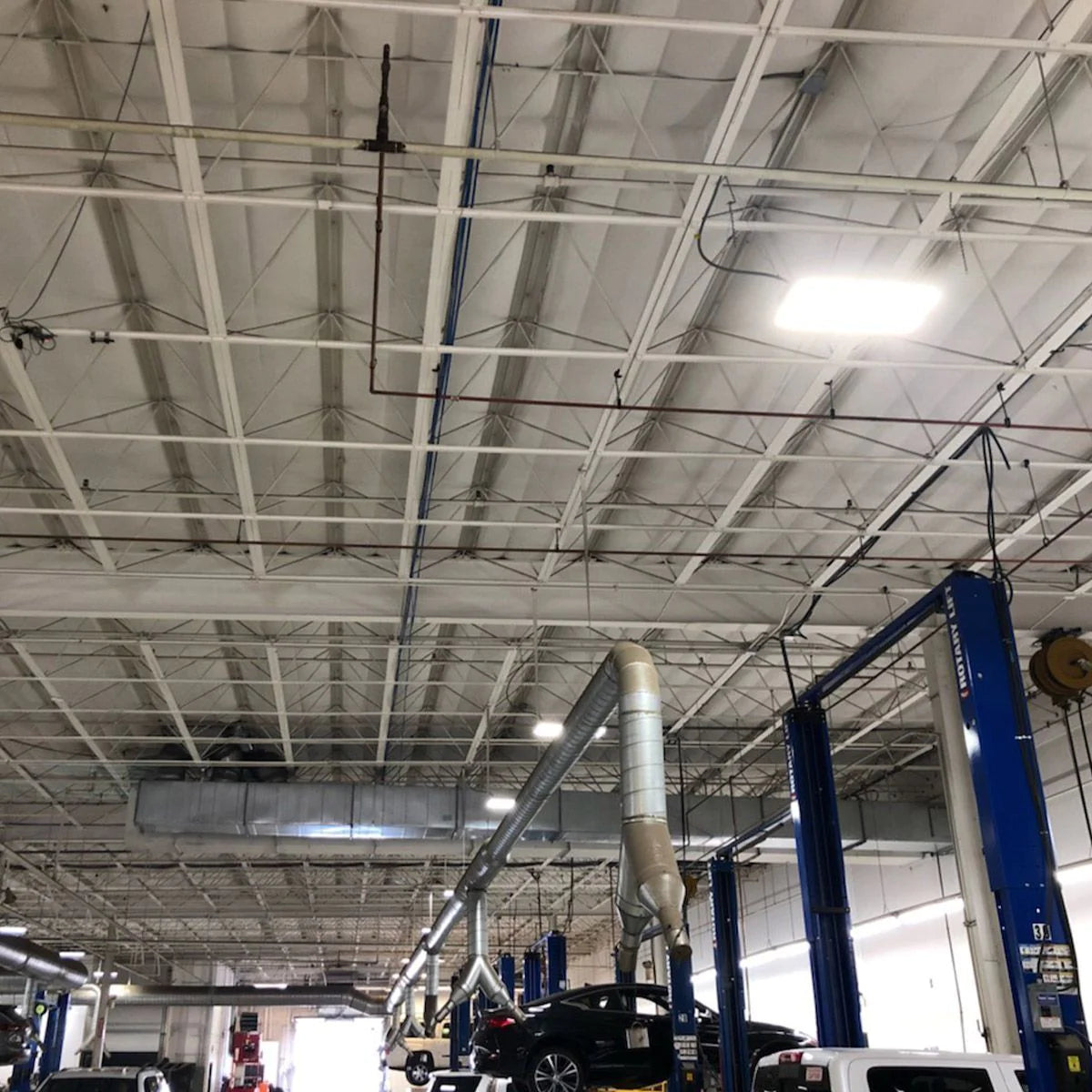

Linear LED High Bay 2 CCT 420W 360W 310W bright industrial lighting in high ceiling warehouse with vehicle lifts
Linear LED High Bay – 2 CCT – 420W/360W/310W with die-cast aluminum housing and built-in surge protection
Linear LED High Bay 2 CCT 420W 360W 310W with die-cast aluminum housing for industrial and warehouse lighting
Linear LED High Bay – 2 CCT – 420W/360W/310W with die-cast aluminum housing and built-in surge protection

Linear LED High Bay – 2 CCT – 420W/360W/310W

$376.88
ELEDLights | SKU: LHBX2D420WSCSUD-HV

5 Year Warranty

Lumens:

46,500-63,000

Watts:

310W-420W

Color Temp:

4000K/5000K
40 to 50 ft ceilings
High voltage available
Great for factories, warehouses
Medium beam
Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
(1)

Versatile Linear LED High Bay Outlasts & Outperforms 1000W HID

    • Average Lifespan of 50,000 Operating Hours
    • Protected by a 5-Year Warranty
    • Built-In Surge Protection
    • Die-Cast Aluminum, Corrosion-Resistant Housing

    Ideal for industrial facilities, high clear height warehouses, and more. A chain suspension mount kit is included; a surface mount kit is available as an accessory.

    Saves $/year in energy costs*

    Input Voltage:
    $376.88
    Outline star
    Outline star
    Outline star
    Outline star
    Outline star
    Filled star
    Filled star
    Filled star
    Filled star
    Filled star
    (1)
    Surface Mount Pendant Mount Box for LHBX2 Linear High Bays with mounting brackets white metal construction
    Surface Mount/Pendant Mount Box for LHBX2 Linear High Bays
    $30.00
    Motion Sensor for LHBX2 Linear High Bays with adjustable hold time and standby dim level settings in white casing
    Motion Sensor for LHBX2 Linear High Bays
    $30.00
    Remote Controller for LHBX2 Linear High Bays Motion Sensor with LCD screen and multiple function buttons in white casing
    Remote Controller for LHBX2 Linear High Bays Motion Sensor
    $40.00
    Wire guard for 155W and 210W LHBX2 Linear High Bays, one of the set of two protective metal grids
    Wire guard from set of 2 for 310W LHBX2 Linear High Bays with durable metal grid design
    Wire Guards (Set of 2) for 310W LHBX2 Linear High Bays
    $22.00
    Emergency Driver for LED High Bays 40W rectangular orange unit with wiring for industrial emergency lighting use
    Emergency Driver for LED High Bays - 40W
    $154.88
    Quantity Price Quote

    FREE Shipping & 30-Day Returns

    Lighting layouts, rebate assistance, project guidance, or special requirements:

    Versatile Linear LED High Bay Outlasts & Outperforms 1000W HID

      • Average Lifespan of 50,000 Operating Hours
      • Protected by a 5-Year Warranty
      • Built-In Surge Protection
      • Die-Cast Aluminum, Corrosion-Resistant Housing

      Ideal for industrial facilities, high clear height warehouses, and more. A chain suspension mount kit is included; a surface mount kit is available as an accessory.

      Saves $/year in energy costs*

      See how much you would save in energy
      costs by allowing access to your location.

      SPECIFICATIONS

      Wattage(s) 310W/360W/420W
      Replaces Wattage(s) 1000W
      Light Output 120-277V Model: 46500 / 54,000 / 63,000 lumens
      277-480V Model: 45,700 / 53,000 / 62,000 lumens
      Luminous Efficacy (lm/W) 150 lm/W
      Average Lamp Life 50,000 hours
      Color Temperature(s) User selectable at install: 4000K/5000K
      CRI >80
      Dimming 0-10V
      Working Environment Indoors
      Input Voltage 120-277V or 277-480V
      Temperature Rating -40˚F to 122˚F
      Housing Material Die-cast aluminum with powder coat corrosion-resistant finish and high transmittance polycarbonate lens
      Housing Color White
      Dimensions When assembled: 28" long x 11.5" wide x 2.1" tall
      Weight 11.5 lbs
      Certification DLC 5.1 Premium, UL
      Warranty 5 Years
