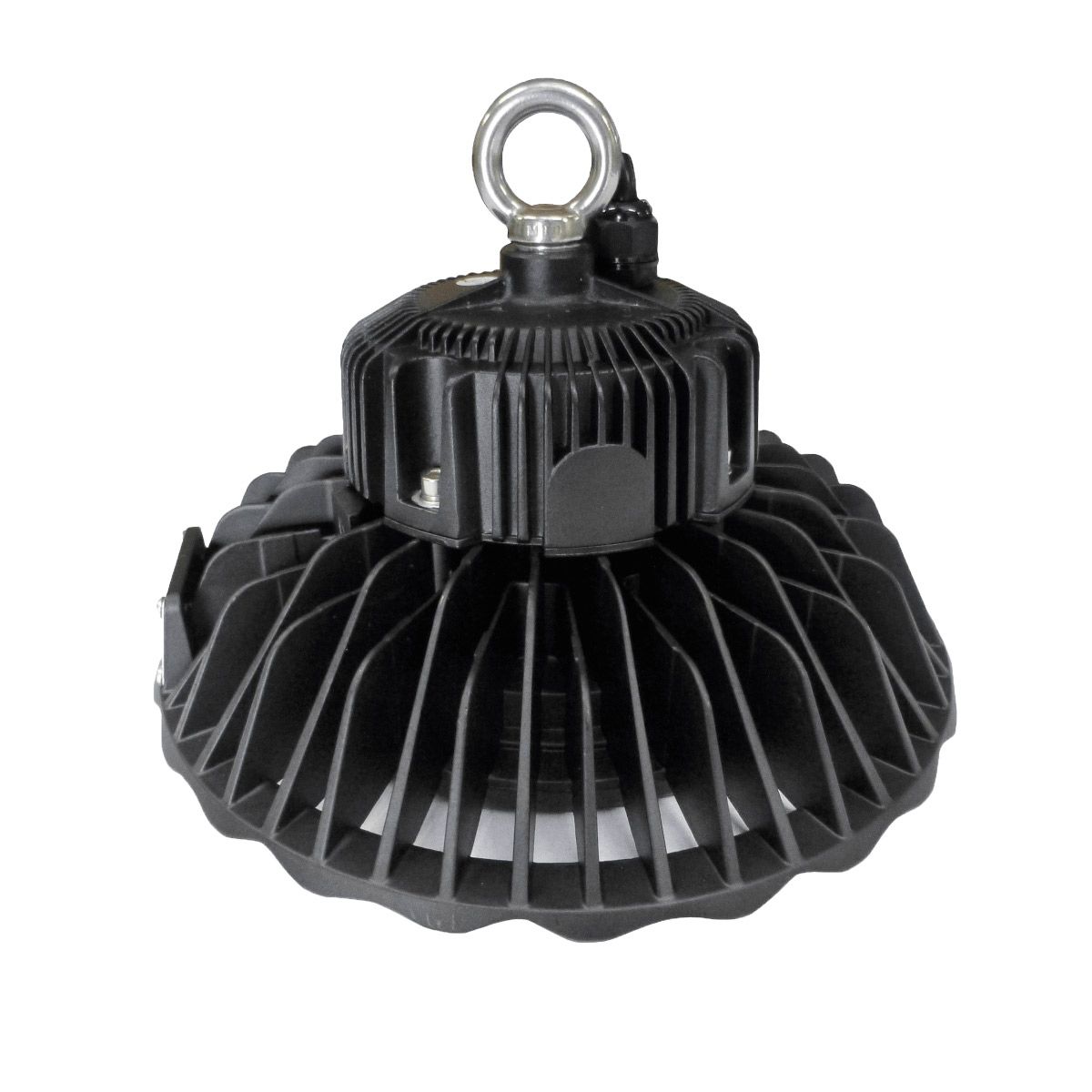

90W High Lumen Dimmable LED Low Bay Fixture with durable heat sink and hanging loop for industrial lighting applications

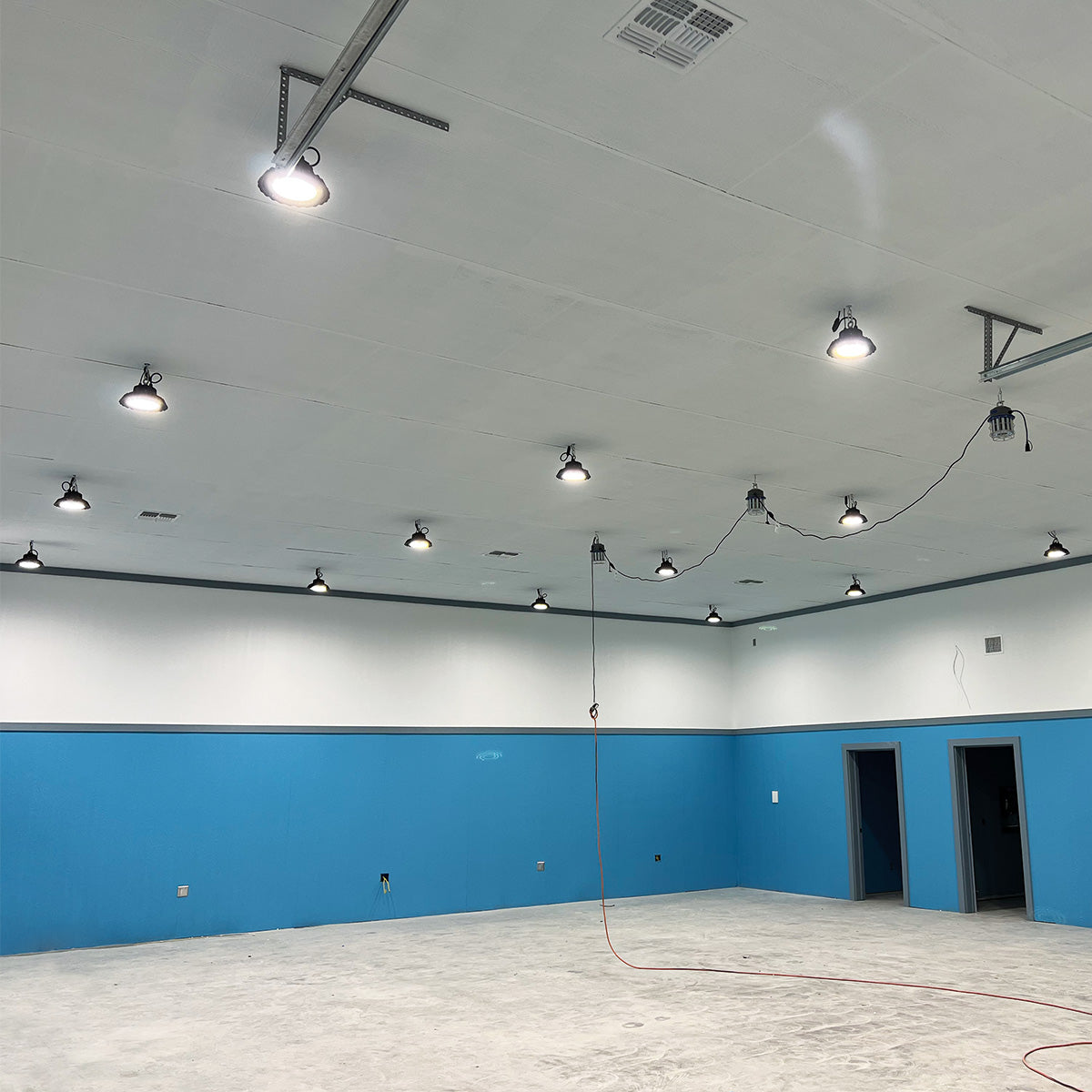

Large industrial room with multiple 90W High Lumen Dimmable LED Low Bay Fixtures mounted on the ceiling illuminating space

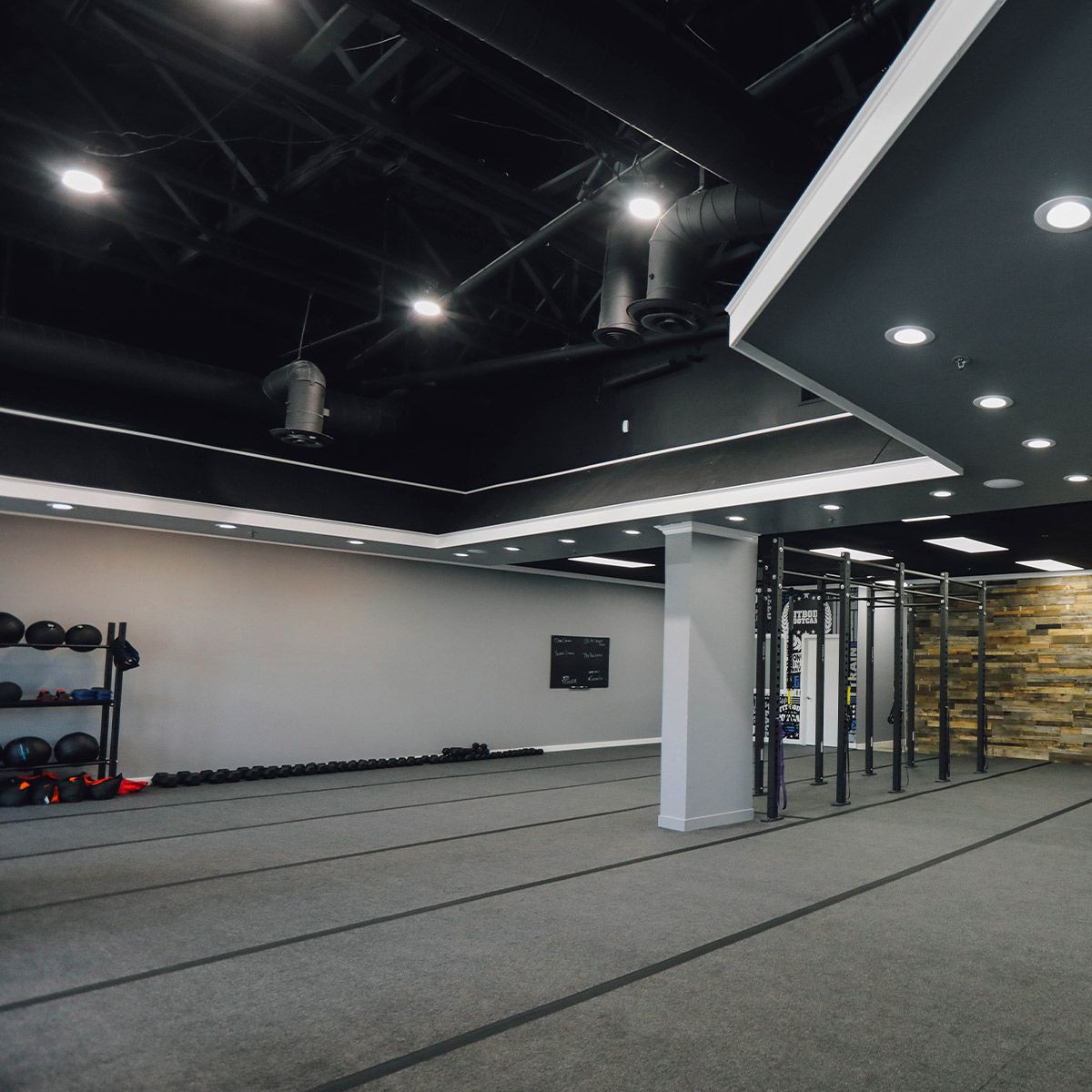

Modern gym interior illuminated by multiple 90W High Lumen Dimmable LED Low Bay Fixtures mounted on a high ceiling

90W High Lumen Dimmable LED Low Bay Fixture

Sale price$114.95
Regular price$214.88
Save 47%
ELEDLights | SKU: HD120BB090UD50L | 48 in stock

5 Year Warranty

Lumens:

12,600

Watts:

90W

Color Temp:

5000K
Wide beam
15 ft ceilings
General purpose
Water resistant
Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
(12)

Our 90W LED low bay light fixture provides up to 12,600 lumens of brilliance, equivalent to a 250W metal halide lamp, but uses only 40% of the energy required by a metal halide lamp.

In addition to their distinctive, low-profile design, and high-quality construction, our High Lumen Designer LED Low Bays deliver up to 12,600 lumens of brilliance at a mere 90W — more than 60% energy savings compared to traditional HID high bay lighting. Their fashionable, high-tech styling, combined with their exceptional performance, have quickly made these lights some of our hottest sellers.

Highest-grade LED components and driver circuitry are protected from dust and moisture by waterproof connections and silicone seals for an IP65 rating. While the heavy-duty, die-cast aluminum housing gives the fixture its unique look, it also serves as a massive, high-efficiency heat sink — dissipating heat and further protecting the system for a lifetime of reliable, maintenance-free service.

The fixture’s design inherently provides a 120˚ beam angle, without the need for a large aluminum reflector. Additional accessories include a frosted lens (for a diffused lighting effect) and a variety of brackets for wall or ceiling mounting. A 4.9 foot (1.5m) cord and a stainless steel loop hanger are included as standard.

Saves $/year in energy costs*

Sale price$114.95
Regular price$214.88
Save 47%
Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
(12)
Get it by Order Within
Clear acrylic reflector and cover designed for LED low bays to enhance light distribution and protection
Adjustable bracket designed for 50W to 90W low bays with mounting holes and sturdy metal construction
Frosted diffusing lens for low bays with smooth matte finish to enhance light distribution and reduce glare
Emergency Driver for LED UFO High Bays 40W in orange with metal conduit and mounting ring for industrial lighting.
Emergency Driver for LED High Bays 40W rectangular orange unit with specifications label and cable attachment

FREE Shipping & 30-Day Returns

Lighting layouts, rebate assistance, project guidance, or special requirements:

Our 90W LED low bay light fixture provides up to 12,600 lumens of brilliance, equivalent to a 250W metal halide lamp, but uses only 40% of the energy required by a metal halide lamp.

In addition to their distinctive, low-profile design, and high-quality construction, our High Lumen Designer LED Low Bays deliver up to 12,600 lumens of brilliance at a mere 90W — more than 60% energy savings compared to traditional HID high bay lighting. Their fashionable, high-tech styling, combined with their exceptional performance, have quickly made these lights some of our hottest sellers.

Highest-grade LED components and driver circuitry are protected from dust and moisture by waterproof connections and silicone seals for an IP65 rating. While the heavy-duty, die-cast aluminum housing gives the fixture its unique look, it also serves as a massive, high-efficiency heat sink — dissipating heat and further protecting the system for a lifetime of reliable, maintenance-free service.

The fixture’s design inherently provides a 120˚ beam angle, without the need for a large aluminum reflector. Additional accessories include a frosted lens (for a diffused lighting effect) and a variety of brackets for wall or ceiling mounting. A 4.9 foot (1.5m) cord and a stainless steel loop hanger are included as standard.

Saves $/year in energy costs*

See how much you would save in energy
costs by allowing access to your location.

Wattage(s) 90W
Replaces Wattage(s) 250W
Light Output 12,600 lumens
Luminous Efficacy (lm/W) 140 lm/W
Average Lamp Life 50000 hours
Color Temperature(s) 5000K
CRI >70
Dimming 0-10V
Beam Angle 120 °
Recommended Installation Height Up to 15 ft (4.5 m)
Enclosure Rating IP65 (Protected against dust and low-pressure jets of water)
Light Type Wired Fixture
Input Voltage 100-277 VAC
Temperature Rating -30° to 50°C
Housing Material Aluminum alloy
Housing Color Black
Dimensions 10.4" dia. x 6.8" high (264 mm dia. x 172.5 mm high)
Weight 7.0 lbs. (3.2 kg)
Package Dimensions 12.2" x 12.2" x 9.25" (310 x 310 x 235 mm)
Certification DLC 5.0, UL
Warranty 5 Years
