90W High Lumen Dimmable LED Low Bay Fixture
90W High Lumen Dimmable LED Low Bay Fixture
90W High Lumen Dimmable LED Low Bay Fixture
ELEDLights
0 Reviews
90W High Lumen Dimmable LED Low Bay Fixture
Regular price$214.88
Only 31 Remaining
Available while supplies last. Lights are new & unused. All sales final. Closeout lights are covered by a 1-year warranty through ELEDLights. Warranty claims may receive a like but not identical replacement product.
A 90W LED low bay for shop floors, retail spaces, and facilities with ceiling heights up to 15 feet, replacing 250W metal halide with 12,600 lumens at 140 lm/W.
- Replaces 250W metal halide (90W) with 12,600 lumens at 140 lm/W for spaces up to 15 feet high
- Reflector-less IP65 housing doubles as a heat sink for reliable, low-maintenance performance
- Includes 4.9-ft cord and stainless steel loop with 0-10V dimming for immediate installation
A 90W LED low bay for shop floors, retail spaces, and facilities with ceiling heights up to 15 feet, replacing 250W metal halide with 12,600 lumens at 140 lm/W.
- Replaces 250W metal halide (90W) with 12,600 lumens at 140 lm/W for spaces up to 15 feet high
- Reflector-less IP65 housing doubles as a heat sink for reliable, low-maintenance performance
- Includes 4.9-ft cord and stainless steel loop with 0-10V dimming for immediate installation
Choose options
Regular price$214.88
Only 31 Remaining
Available while supplies last. Lights are new & unused. All sales final. Closeout lights are covered by a 1-year warranty through ELEDLights. Warranty claims may receive a like but not identical replacement product.
Regular price$214.88
Only 31 Remaining
Available while supplies last. Lights are new & unused. All sales final. Closeout lights are covered by a 1-year warranty through ELEDLights. Warranty claims may receive a like but not identical replacement product.
Specs
| Wattage(s) | 90W |
| Replaces Wattage(s) | 250W |
| Light Output | 12,600 lumens |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Average Lamp Life | 50000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | >70 |
| Dimming | 0-10V |
| Beam Angle | 120 ° |
| Recommended Installation Height | Up to 15 ft (4.5 m) |
| Enclosure Rating | IP65 (Protected against dust and low-pressure jets of water) |
| Light Type | Wired Fixture |
| Input Voltage | 100-277 VAC |
| Temperature Rating | -30° to 50°C |
| Housing Material | Aluminum alloy |
| Housing Color | Black |

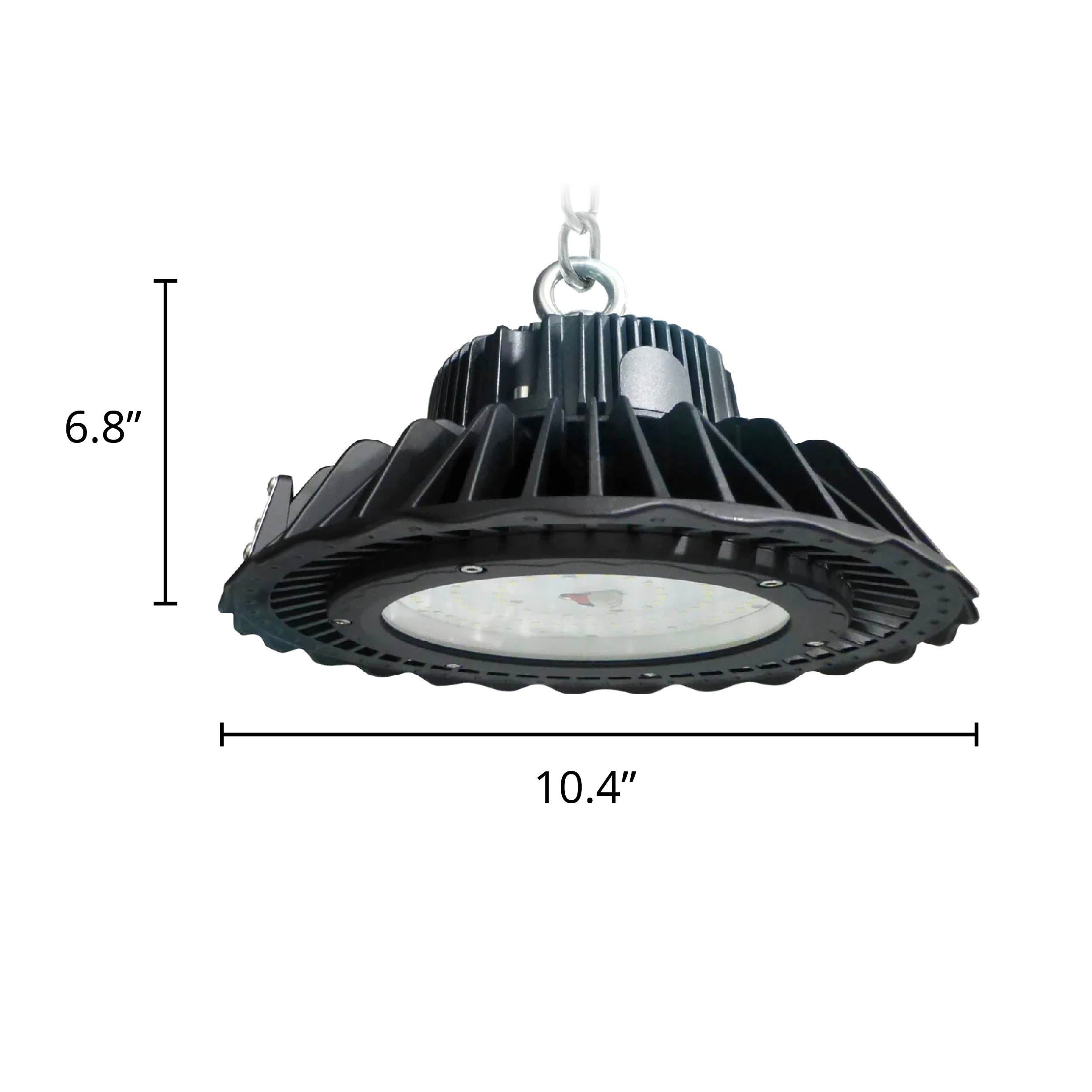

| Dimensions | 10.4" dia. x 6.8" high (264 mm dia. x 172.5 mm high) |
| Weight | 7.0 lbs. (3.2 kg) |
| Package Dimensions | 12.2" x 12.2" x 9.25" (310 x 310 x 235 mm) |
| Certification | DLC 5.0, UL |
| Warranty | Warehouse clearance 1 year warranty with USA warranty support direct from ELEDLights |
Data SheetDetails
This 90W LED low bay replaces 250W metal halide fixtures in shop floors, retail spaces, showrooms, and other facilities with ceiling heights up to 15 feet — delivering 12,600 lumens at 140 lm/W with a compact, reflector-less design and IP65-rated housing built for years of reliable, low-maintenance service.
- Metal Halide Replacement Efficiency: Outputs 12,600 lumens at just 90W (140 lm/W), replacing 250W metal halide lamps and cutting energy consumption by more than 60% with no loss of light coverage at recommended installation heights up to 15 feet.
- Reflector-Less Design: The fixture's lens inherently controls the 120° beam angle without requiring a separate reflector shade, giving it a compact, high-tech appearance at 10.4" diameter while reducing overall fixture depth.
- IP65-Rated Heat Sink Housing: Die-cast aluminum alloy construction is sealed against dust and low-pressure water jets, while the heavy-duty housing simultaneously acts as a high-efficiency heat sink — dissipating heat to protect the LED components and driver for long-term reliability.
- 0-10V Dimmable: Compatible with standard 0-10V dimming controls for adjustable output from 10% to full brightness, supporting energy management and task-appropriate light levels.

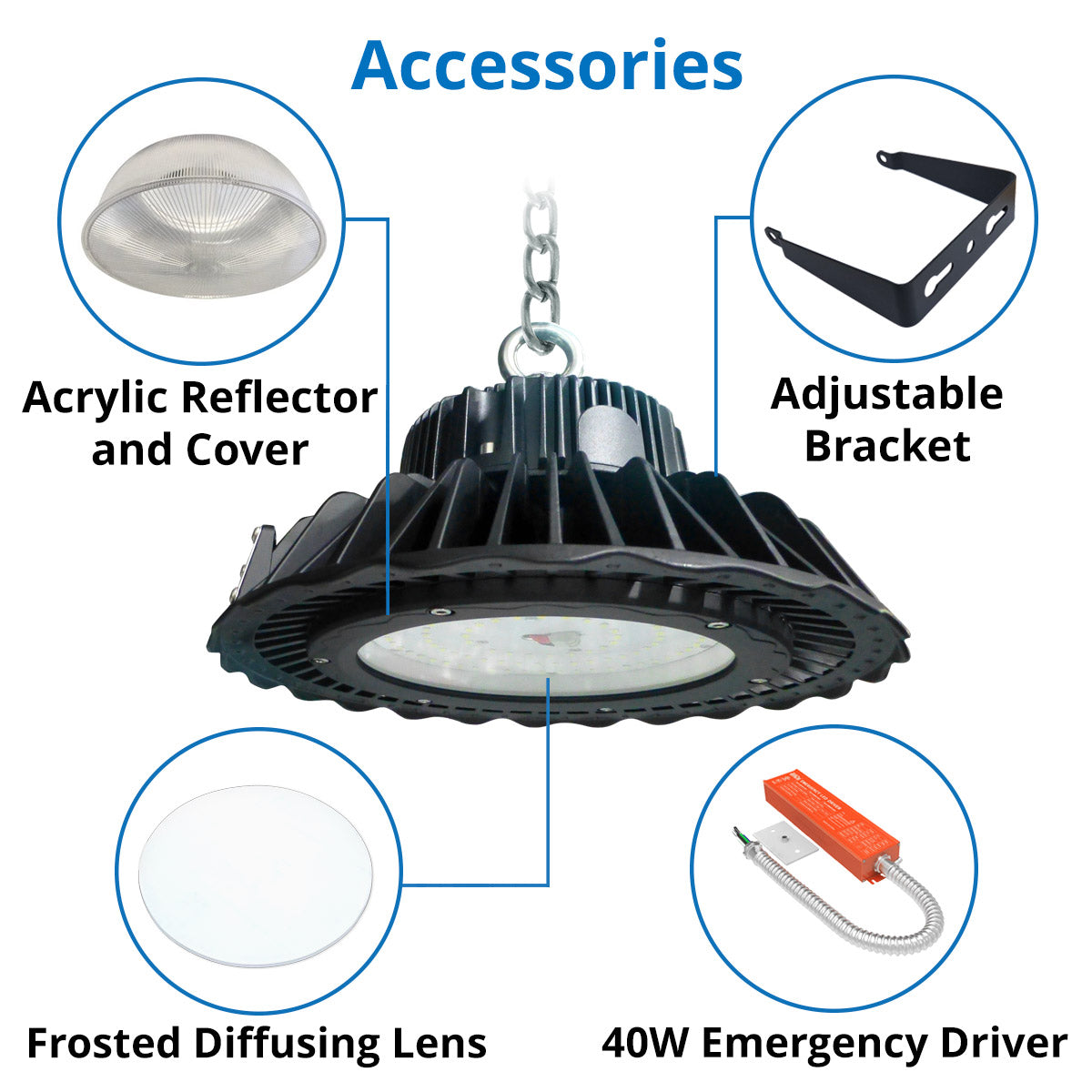

- Ready to Install: Comes standard with a 4.9-foot (1.5m) cord and a corrosion-resistant stainless steel loop hanger for quick hang installation. Optional wall and ceiling mounting brackets are also available separately.
- 50,000-Hour Service Life: Long-rated lifespan significantly outlasts the metal halide fixtures it replaces, reducing relamping frequency and ongoing maintenance costs.
×
×
