250W LED Shoebox Area Light, Heights 25 to 40 ft

Name: 250W LED Shoebox Area Light, Heights 25 to 40 ft
Brand: ELEDLights
SKU: SBM5T3D250UD50
Price: 109.95 USD
Availability: InStock

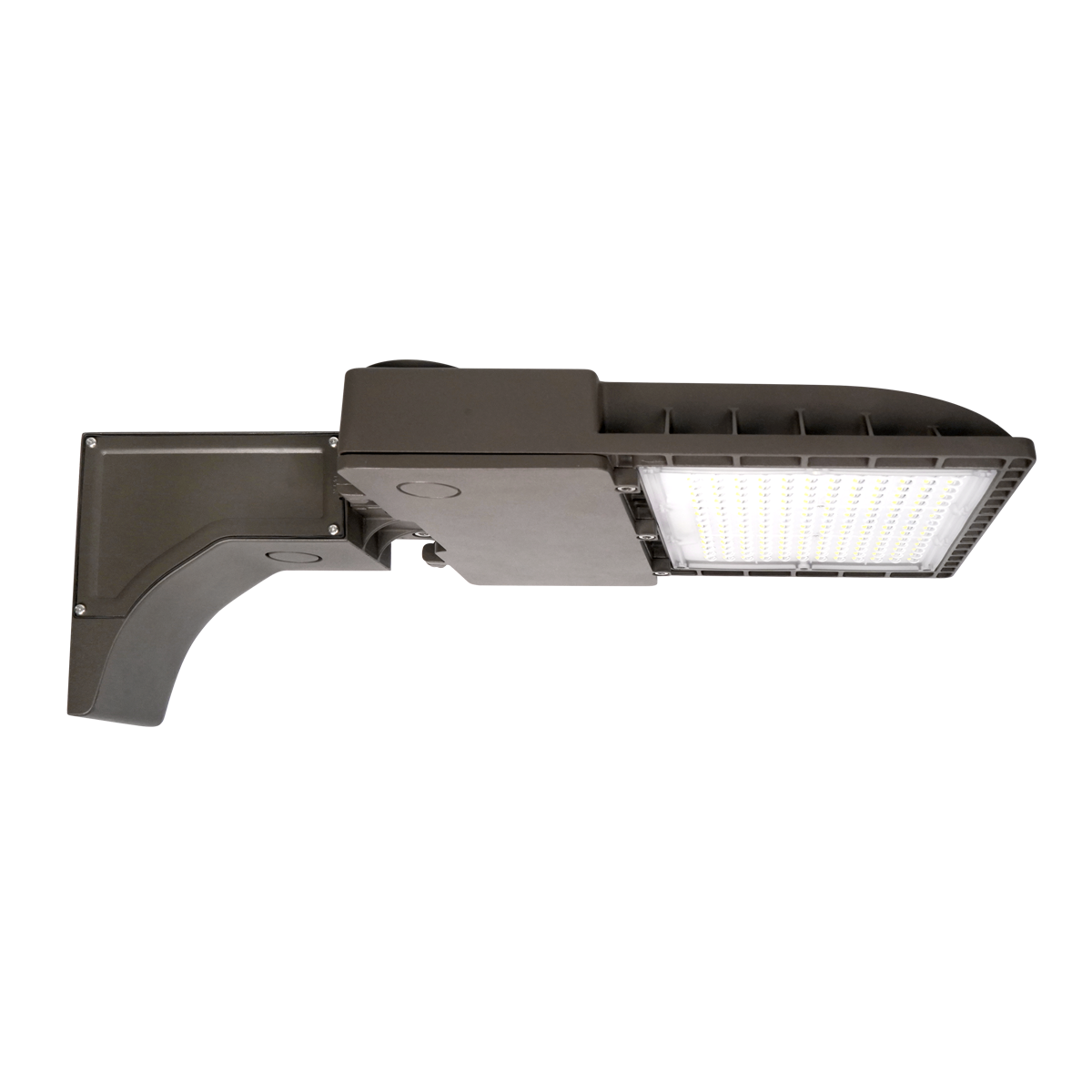

Side view of LED Shoebox Area Light 250W outdoor fixture with mounting bracket and LED panel visible

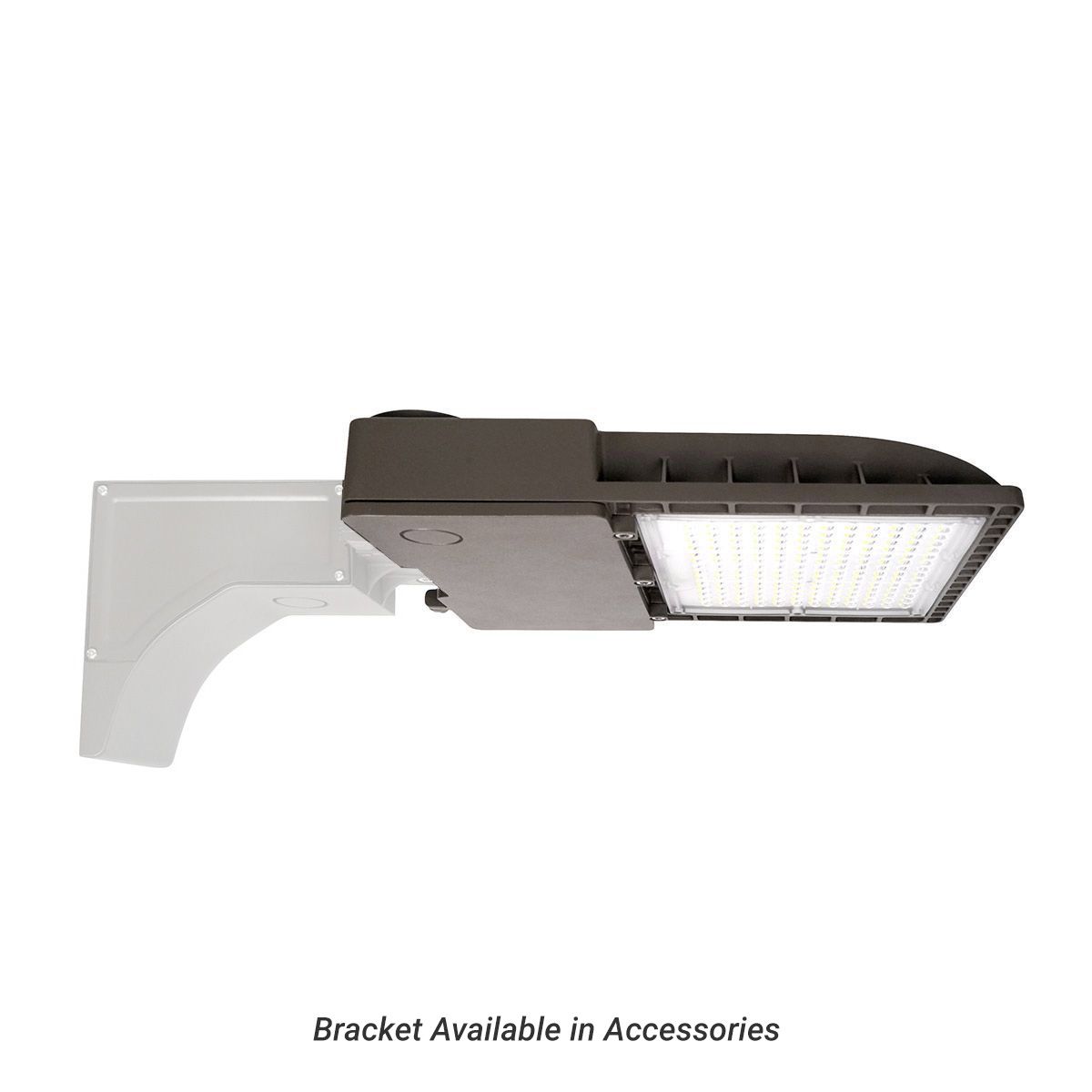

LED Shoebox Area Light 250W mounted on wall bracket with sealed design for outdoor use and long lifespan

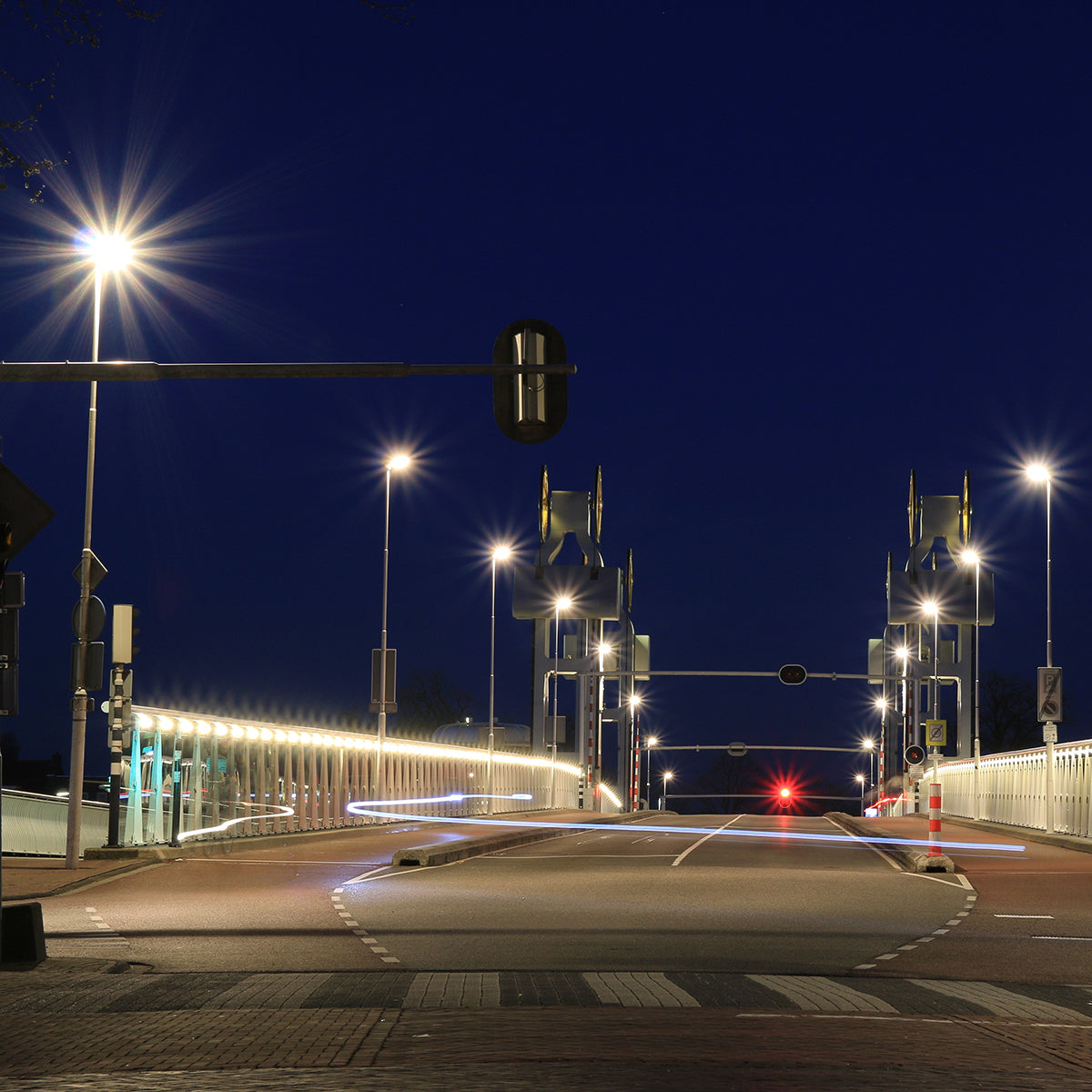

LED Shoebox Area Light 250W illuminating a street at night with bright, clear outdoor lighting fixtures.

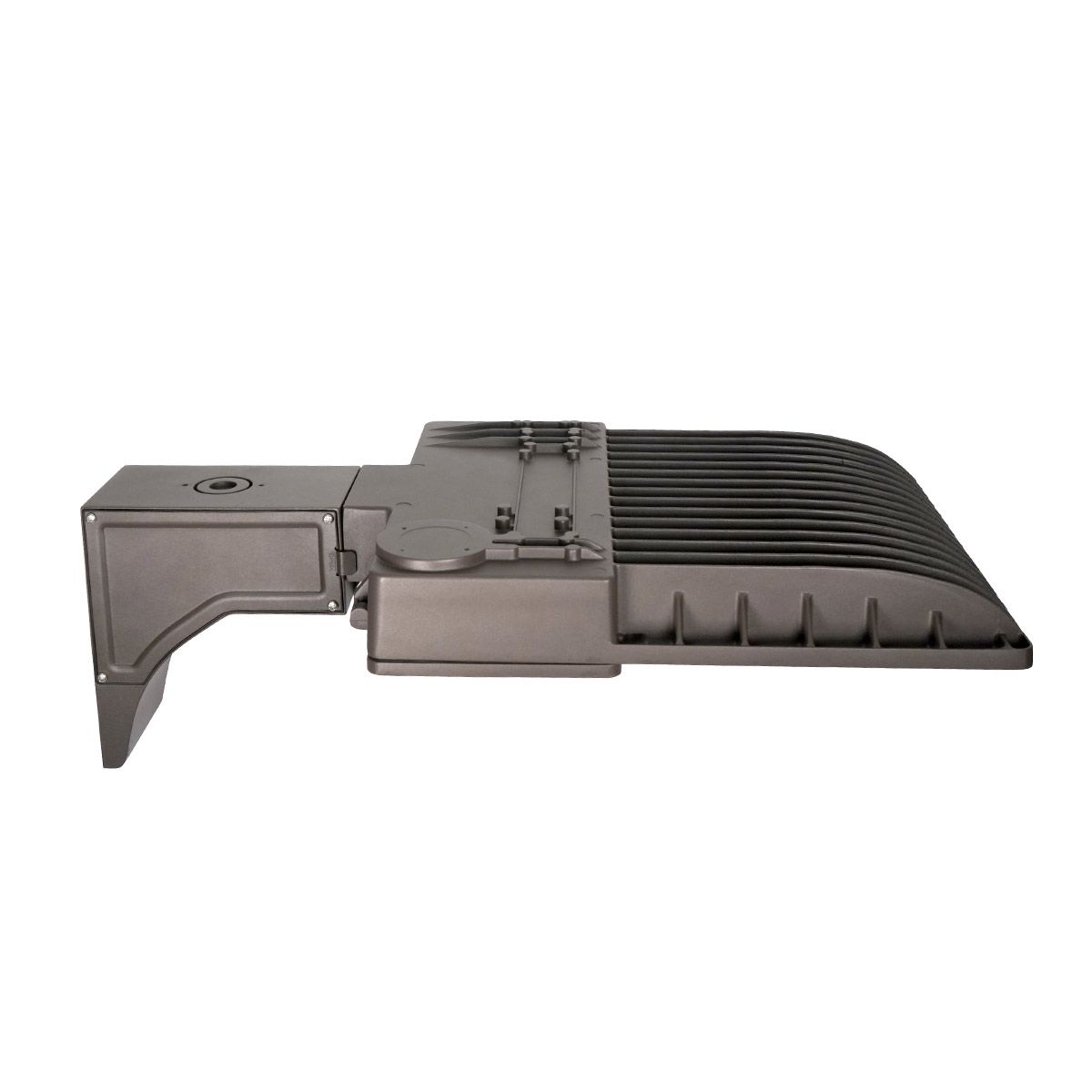

Side view of LED Shoebox Area Light 250W with mounting bracket for outdoor use

ELEDLights

250W LED Shoebox Area Light, Heights 25 to 40 ft

(3)

0 Reviews

SKU: SBM5T3D250UD50

$137.95

Built for 20–40 ft poles in large parking lots, industrial sites, freight yards, and roadways, this 250W LED shoebox delivers 35,000 lumens of high-contrast 5000K light.

140 lm/W, cost-saving replacement for 750W HIDs
Rugged die-cast aluminum housing withstands water, dust, and vibrations
Plug-and-play photocell option for automated dusk-to-dawn operation

Mounting Bracket

Need More? Text/call (858) 650-9400

Built for 20–40 ft poles in large parking lots, industrial sites, freight yards, and roadways, this 250W LED shoebox delivers 35,000 lumens of high-contrast 5000K light.

140 lm/W, cost-saving replacement for 750W HIDs
Rugged die-cast aluminum housing withstands water, dust, and vibrations
Plug-and-play photocell option for automated dusk-to-dawn operation

Details

Reliable, Easy-Install, Extra-Long-Life Outdoor Fixture

One-Person Install
UL Wet Location Listed
Completely Sealed from Debris
Designed to Withstand High Winds
Average Lifespan of 100,000 Hours

Customizable with Add-Ons and Options

Choose Your Mounting Bracket: A variety of options for your application.

Lighting Distribution Options: Comes standard with Type 3 optics; Type 4 and 5 can be special ordered.

*Type 3 lenses offer wide perimeter optics, Type 4 offer focused perimeter optics, and Type 5 offer interior "umbrella shaped" optics.

Versatile Options

Pole Mount

For use with 4" and 5" square or round poles

Adjustable Pole Mount

For use with 4" and 5" square or round poles; rotatable

Slipfitter Mount

For use with 2-3/8" OD horizontal steel tenon arms

Wall Mount

For building facades - use 0.5" conduit wiring or J-box mounting

Yoke Mount

For installing the fixture at an angle, like a flood light

Specs

Wattage(s)	250W
Replaces Wattage(s)	750W
Light Output	35,000 lm
Luminous Efficacy (lm/W)	140 lm/W
Average Lamp Life	50,000
Color Temperature(s)	5000K
CRI (Color Accuracy)	70
Dimming	1-10V
Base Type	Fixture
Light Distribution Pattern	Type III (T3) Learn More × Light Distribution Options Type III Beam Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles. Type IV Beam Provides forward directed light with minimal backlighting - great for perimeter installations. Type V Beam Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.
Working Environment	Outdoor
Enclosure Rating	IP65 (Protected against dust and low-pressure jets of water)
Light Type	Wired Fixture
Input Voltage	120-277 VAC
Temperature Rating	-40 °F to 104 °F )
Housing Material	One-piece, die-cast aluminum housing

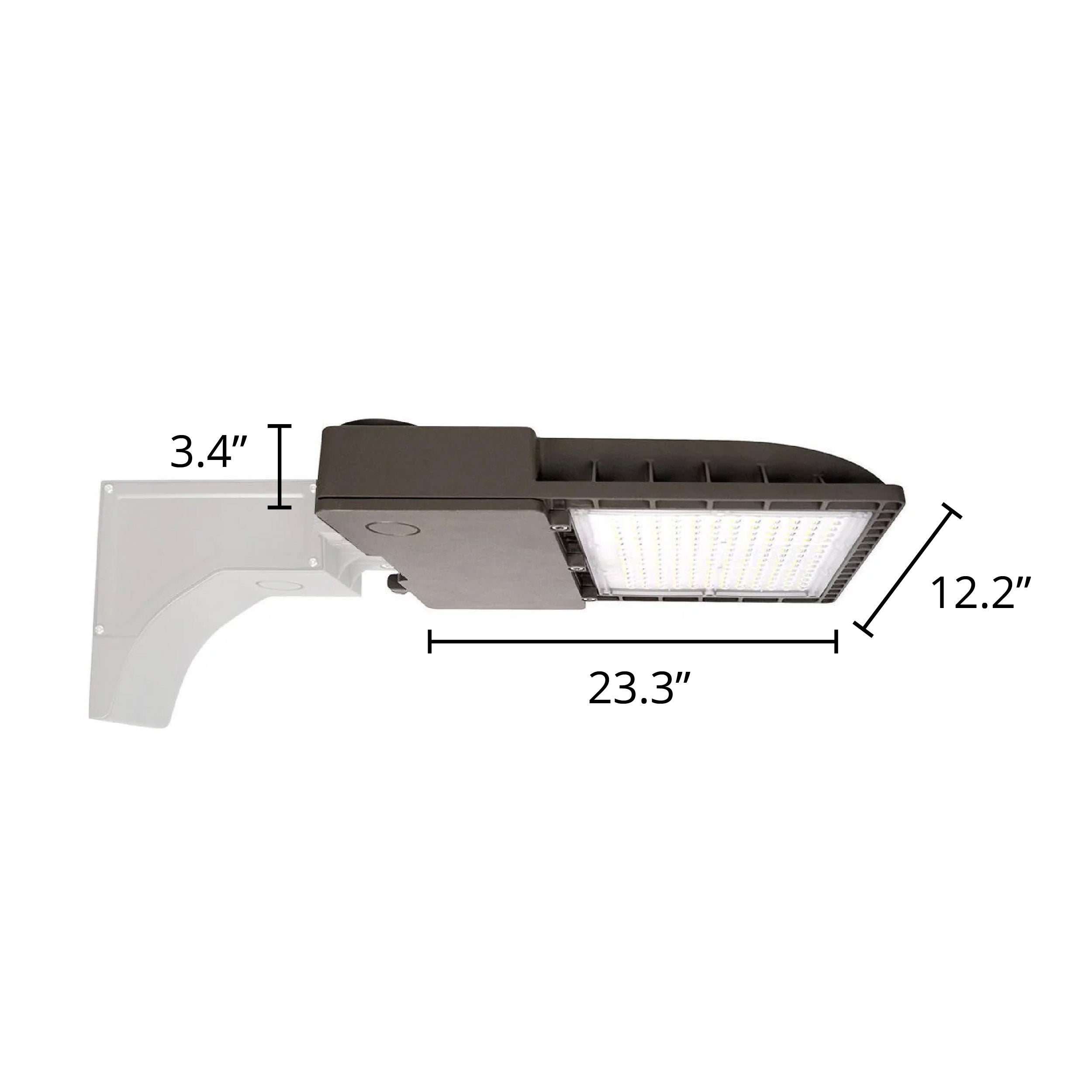

Dimensions	12.2" W x 23.3" D x 3.4" T not including mount
Weight	15.98 lb
Certification	UL
Warranty	1 Year

Data Sheet

Install Guide

Compare Key Features

Compare

	250W LED Shoebox Area Light, Heights 25 to 40 ft	300W LED Shoebox Area Light, Heights 40 to 50 ft	240W Selectable LED Shoebox Area Light
Wattage	250W	300W	240/220/200/170W
Equivalent to	750W	1000W	400 to 750W
Luminous Efficacy	140 lm/W	140 lm/W	145-168 lm/W
Color Temperature (CCT)	5000K	5000K	3000K/4000K/5000K
Light Distribution Pattern	Type III (T3)	Type III (T3)	Type III (T3)
Input Voltage	120-277 VAC	120-277 VAC	120-277VAC or 277-480VAC
	$109.95	$119.95 View Details	$144.95 View Details
