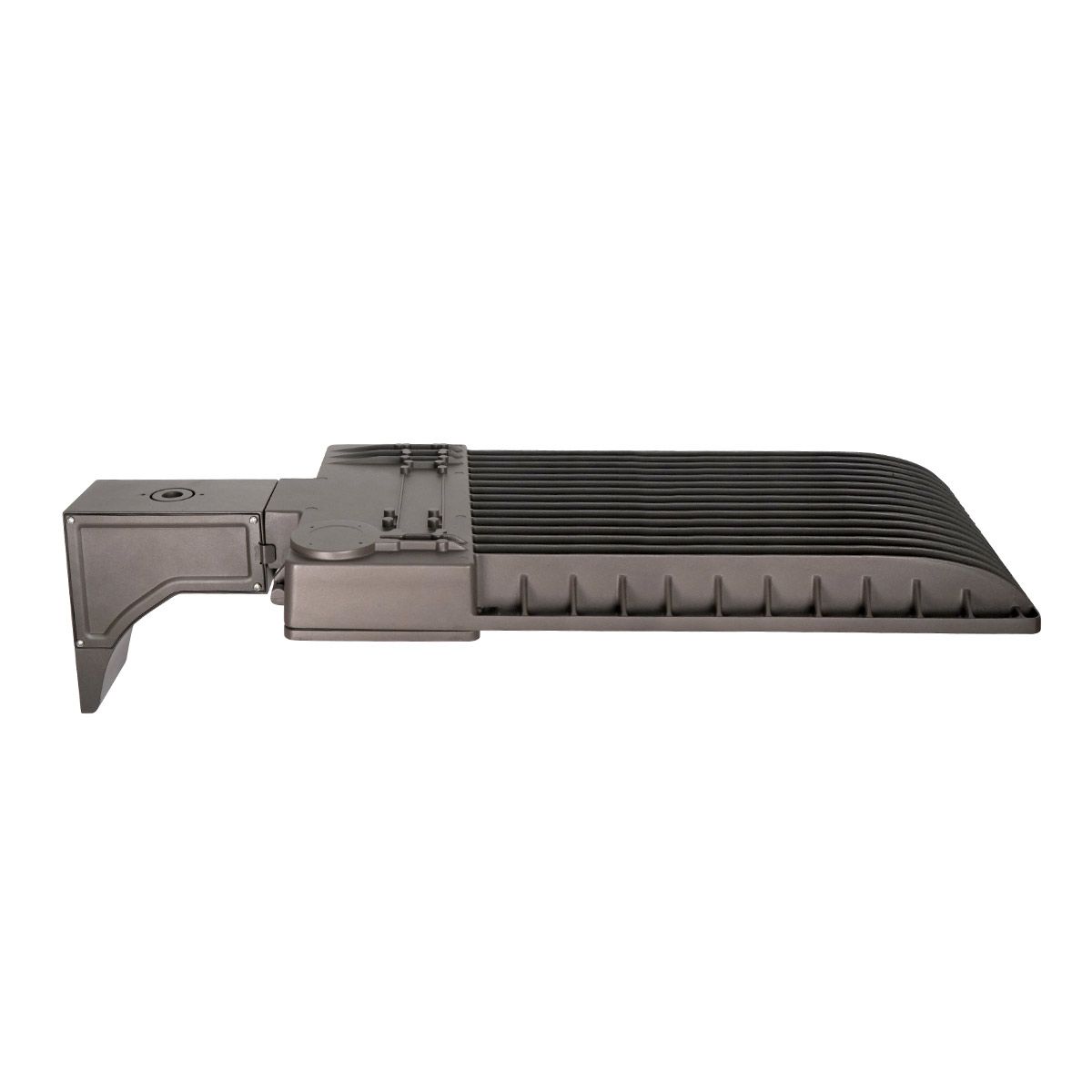

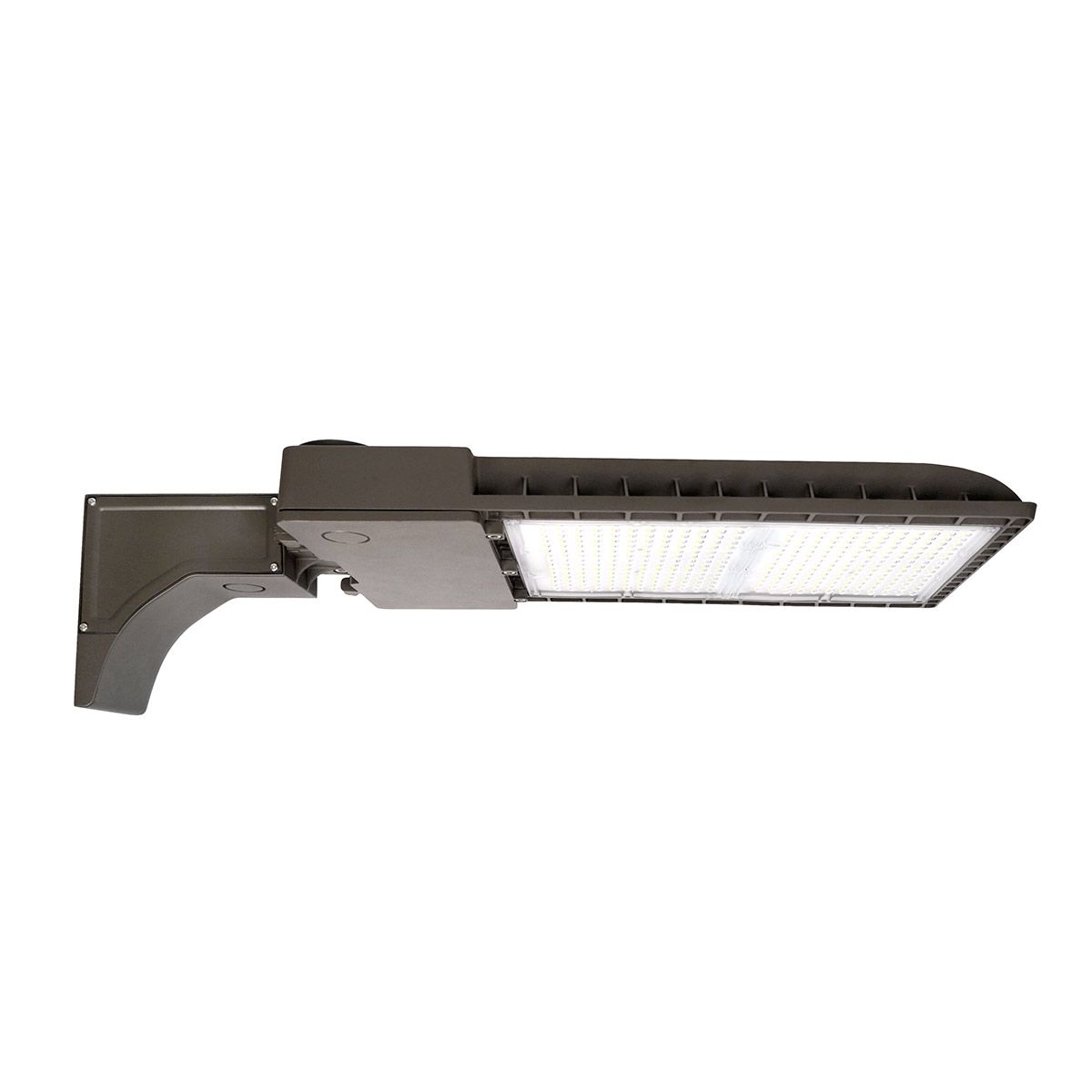

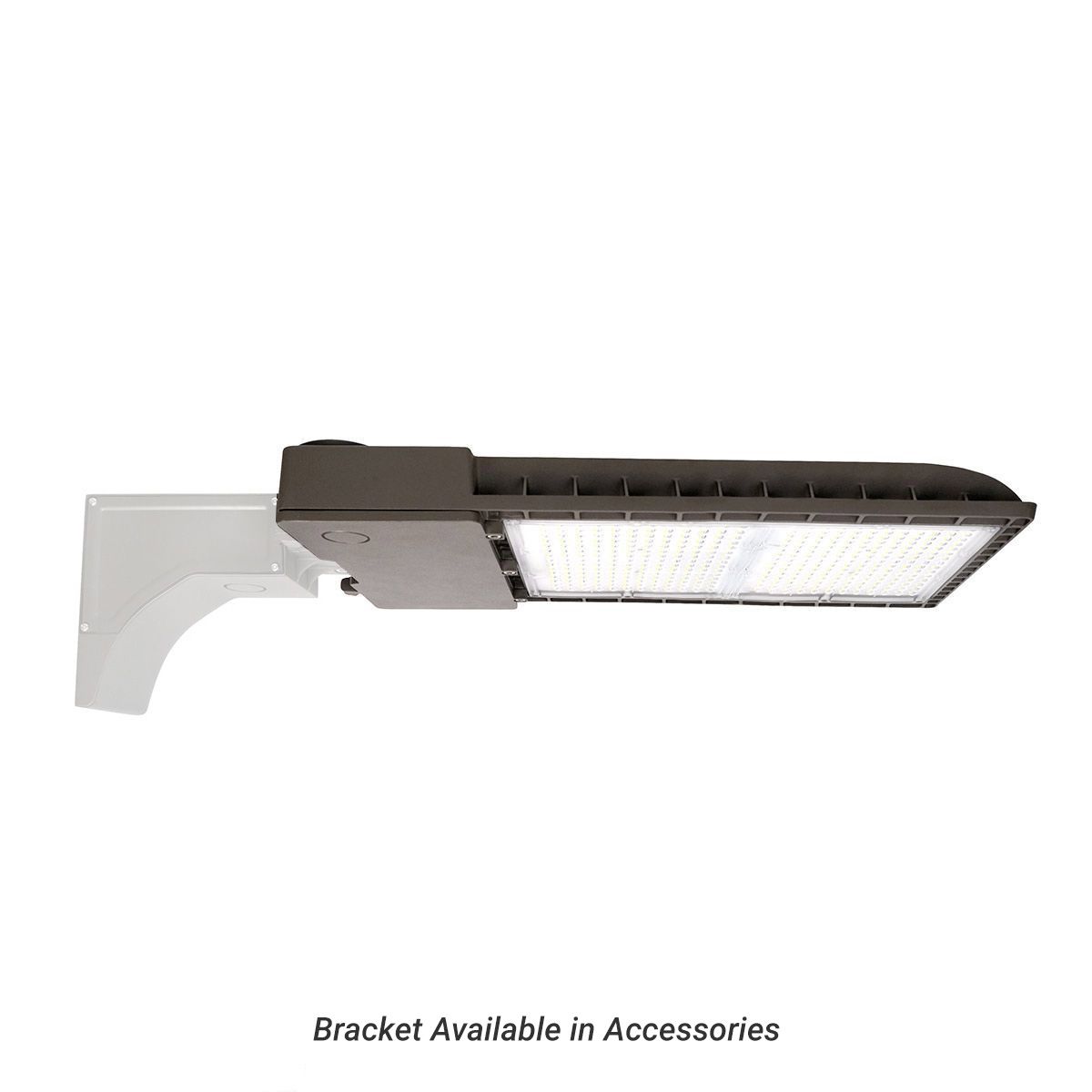

Ultra Bright Essentials 300W LED Shoebox Area Light
Lumens:
Watts:
Color Temp:
1 Year Warranty

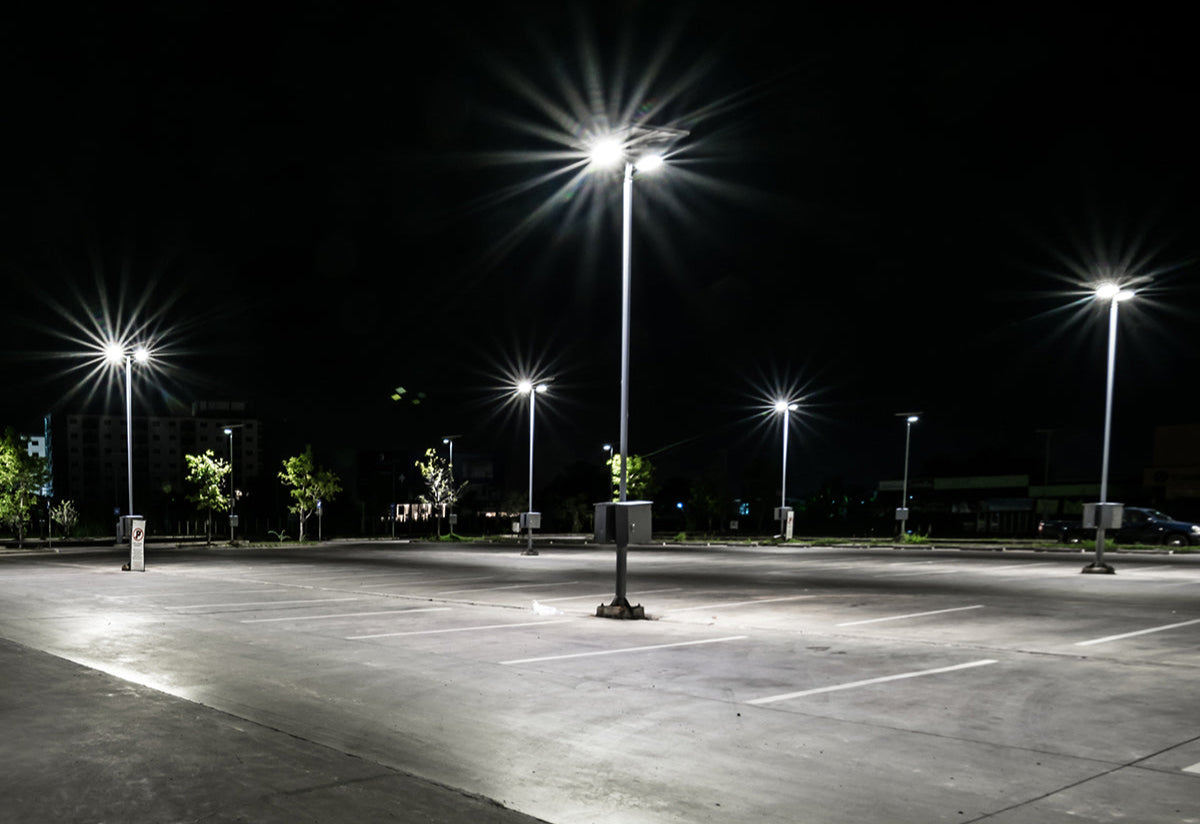

1246 in stockHigh-Brightness, Rugged Parking Lot Luminaire
Rugged, One-Piece, Die-Cast Housing: Completely sealed against moisture and contaminants.
Low-Profile Design: The size & shape ensures a greater ability to withstand wind loads.
3G Vibration Rating: Allows for safe usage on roadways, bridges, and overpasses.
Easy Installation and Beam Angle Options
- Simple, 1-Person Install: Keep labor costs low.
- Recommended Mounting Height: 40-50ft.
- Type 3 Optics Come Standard: Type 4 & Type 5 can be special ordered.*
Customizable with Add-Ons and Options
Choose Your Mounting Bracket: A variety of options for your application.
Add Smart Daylight Detection: The plug-and-play photocell is available as an accessory.
Select the Right Poles for the Project: Square and round steel pole options available as accessories.
*Type 3 lenses offer wide perimeter optics, Type 4 offer focused perimeter optics, and Type 5 offer interior "umbrella shaped" optics.
Saves $/year in energy costs*
Mounting Bracket*
You must choose a bracket
Buying 12 or more?
Get a better price:
High-Brightness, Rugged Parking Lot Luminaire
Rugged, One-Piece, Die-Cast Housing: Completely sealed against moisture and contaminants.
Low-Profile Design: The size & shape ensures a greater ability to withstand wind loads.
3G Vibration Rating: Allows for safe usage on roadways, bridges, and overpasses.
Easy Installation and Beam Angle Options
- Simple, 1-Person Install: Keep labor costs low.
- Recommended Mounting Height: 40-50ft.
- Type 3 Optics Come Standard: Type 4 & Type 5 can be special ordered.*
Customizable with Add-Ons and Options
Choose Your Mounting Bracket: A variety of options for your application.
Add Smart Daylight Detection: The plug-and-play photocell is available as an accessory.
Select the Right Poles for the Project: Square and round steel pole options available as accessories.
*Type 3 lenses offer wide perimeter optics, Type 4 offer focused perimeter optics, and Type 5 offer interior "umbrella shaped" optics.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
1 Year Warranty
1246 in stockMounting Bracket*
You must choose a bracket
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
1 Year Warranty
1246 in stockMounting Bracket*
You must choose a bracket
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 300W |
| Replaces Wattage(s) | 1000W |
| Light Output | 42,000 lm |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Average Lamp Life | 50,000 |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Dimming | 1-10V |
| Base Type | Fixture |
| Light Distribution Pattern | Type III (T3) |
| Working Environment | Outdoor |
| Enclosure Rating | IP65 (Protected against dust and low-pressure jets of water |
| Light Type | Wired Fixture |
| Input Voltage | 120-277 VAC |
| Temperature Rating | -40 °F to 104 °F ) |
| Housing Material | One-piece, die-cast aluminum housing |

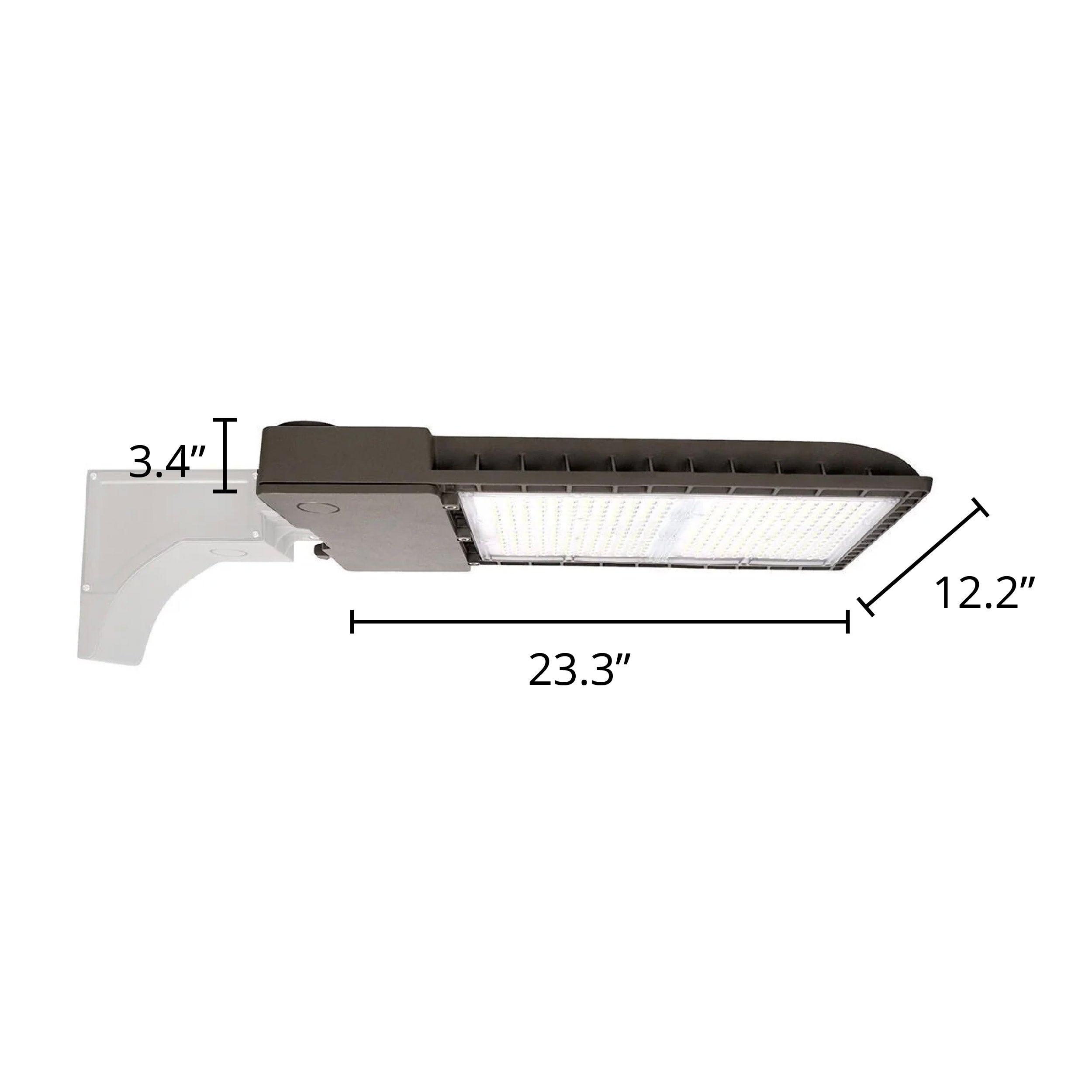

| Dimensions | 12.2" W x 23.3" D x 3.4" T not including mount |
| Weight | 16.84 lb |
| Certification | UL |
| Warranty | 1 Year |
COMPARE KEY FEATURES
LED Shoebox Area Light - 300W
|
LED Shoebox Area Light - 3 CCT - 310/280/260/240W
|
LED Shoebox Area Light - 3 CCT - Swappable Optics - 300/250/200W
|
|
|---|---|---|---|
| Wattage | 300W | 310/280/260/240W | 300/250/200W |
| Equivalent to | 1000W | 750W to 1000W | 600W to 1000W |
| Luminous Efficacy | 140 lm/W | 145-179 lm/W | 155-160 lm/W |
| Color Temperature (CCT) | 5000K | 3000K/4000K/5000K | 3000K/4000K/5000K |
| Light Distribution Pattern | Type III (T3) | Type III (T3) | Type III (T3) standard, or convert to Type V (T5) with quick-change field-swappable lens (see accessories in ordering section) |
| Input Voltage | 120-277 VAC | 120-277VAC or 277-480VAC | 120-277VAC |
|
$132.95
|
$214.95
View Details
|
$167.00
View Details
|
Key Features
Ideal for 40-50ft Poles
Replaces 1000W Metal Halide
Smart Control Ready
High-Brightness, Rugged Parking Lot Luminaire
Rugged, One-Piece, Die-Cast Housing: Completely sealed against moisture and contaminants.
Low-Profile Design: The size & shape ensures a greater ability to withstand wind loads.
3G Vibration Rating: Allows for safe usage on roadways, bridges, and overpasses.
Easy Installation and Beam Angle Options
- Simple, 1-Person Install: Keep labor costs low.
- Recommended Mounting Height: 40-50ft.
- Type 3 Optics Come Standard: Type 4 & Type 5 can be special ordered.*
Customizable with Add-Ons and Options
Choose Your Mounting Bracket: A variety of options for your application.
Add Smart Daylight Detection: The plug-and-play photocell is available as an accessory.
Select the Right Poles for the Project: Square and round steel pole options available as accessories.
*Type 3 lenses offer wide perimeter optics, Type 4 offer focused perimeter optics, and Type 5 offer interior "umbrella shaped" optics.
Versatile Mounting Options
We offer a variety of mounting options for you to choose from. Be sure to select the appropriate mounting bracket for each shoebox added to your cart.

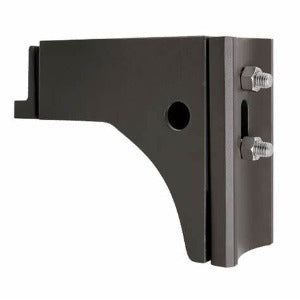

Pole Mount
For use with 4" and 5" square or round poles
Up/Down Adjustable Pole Mount
For use with 4" and 5" square or round poles

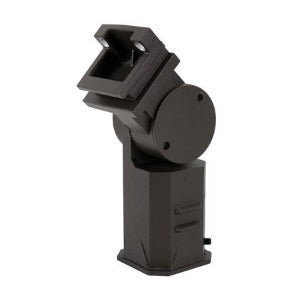

Slipfitter
For use with 2-3/8" OD horizontal steel tenon arms.

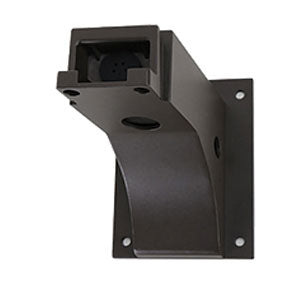

Wall Mount
For building facades - use 0.5" conduit wiring or J-box mounting.

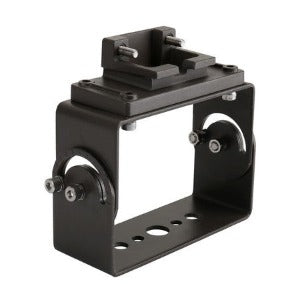

Yoke Mount
For installing the fixture at an angle, like a flood light.
Light Distribution Options
This shoebox comes standard with a Type III beam angle, but we offer several optical configurations to accommodate your lighting requirements. If you need a Type IV or Type V beam, reach out and we will special-order it for you!
Type III Beam
(Standard for this light)
Throws light forward and sideways. Suitable for either perimeter lighting, or, when fixtures are installed back-to-back, for interior poles.
Type IV Beam
(Special-order for this light)
Provides forward directed light with minimal backlighting - great for perimeter installations.
Type V Beam
(Special-order for this light)
Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.
