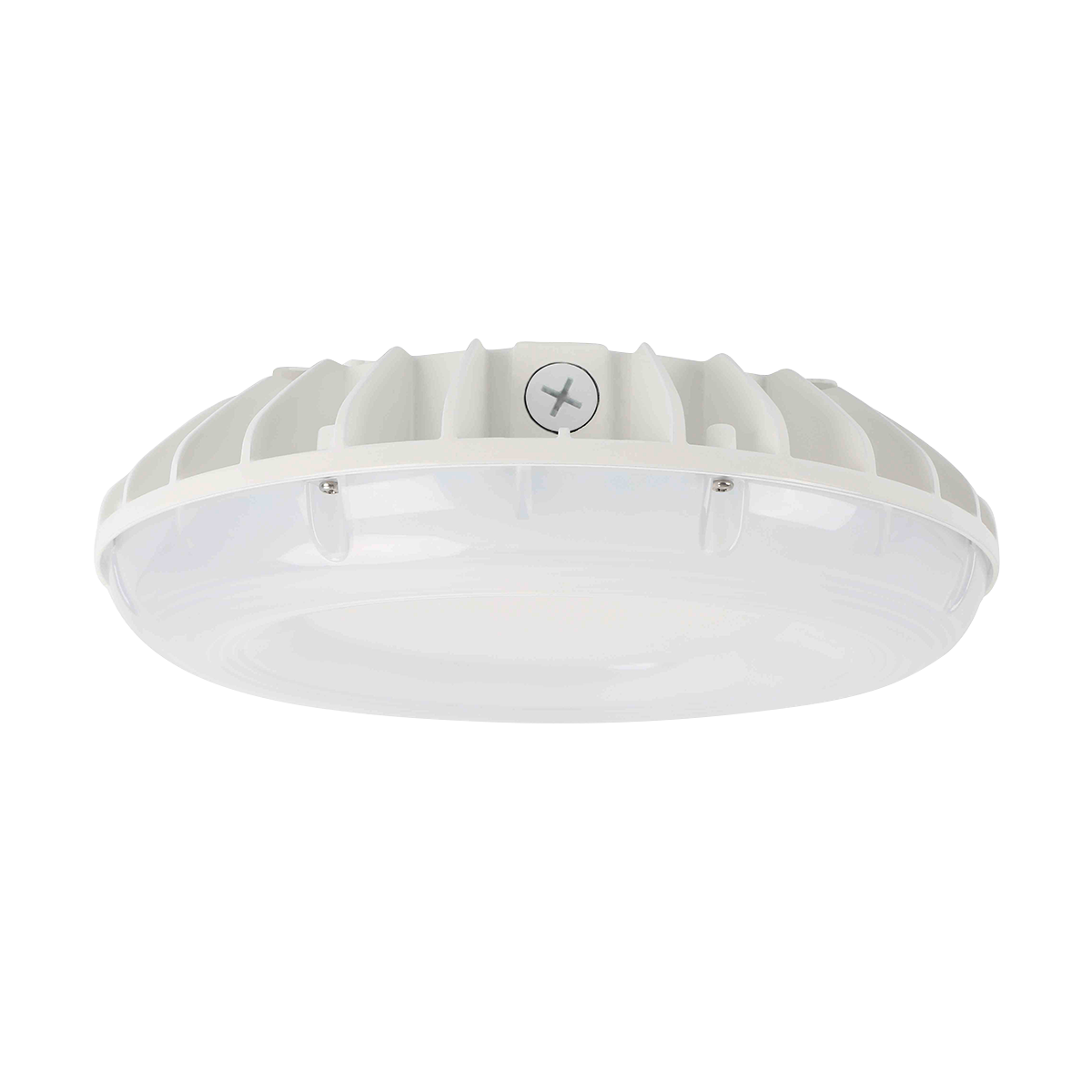

Bright Round Canopy Light - Color, Wattage Selectable
Lumens:
Watts:
Color Temp:
5 Year Warranty
Affordable, Customizable, Space-Enhancing Parking Garage Light
No More Cave-Effect: The wide angle light beam makes spaces feel bigger and safer.
Customizable: Adjust light tone and wattage to suit the space - great for bulk buying.
Less Glare: Low UGR helps drivers and pedestrians see more clearly to avoid accidents.

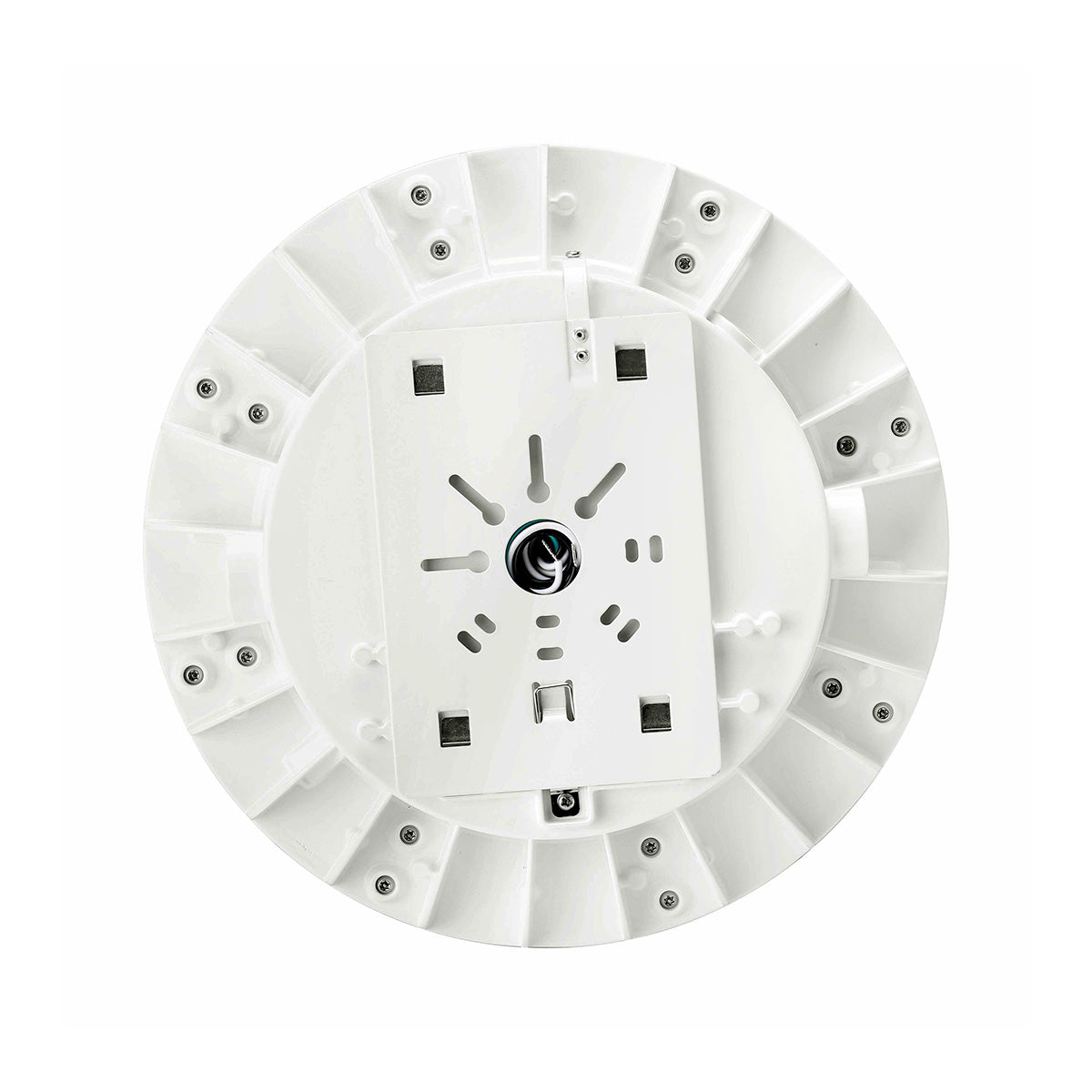

Hassle-Free Installation: Quick-mount plate for surface or junction-box installs.
All-Weather Lighting: UL Wet Location listed and operates in temps from -40°F to 113°F.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Affordable, Customizable, Space-Enhancing Parking Garage Light
No More Cave-Effect: The wide angle light beam makes spaces feel bigger and safer.
Customizable: Adjust light tone and wattage to suit the space - great for bulk buying.
Less Glare: Low UGR helps drivers and pedestrians see more clearly to avoid accidents.
Hassle-Free Installation: Quick-mount plate for surface or junction-box installs.
All-Weather Lighting: UL Wet Location listed and operates in temps from -40°F to 113°F.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 60W/46W/36W/22W selectable at install |
| Replaces Wattage(s) | Up to 200W |
| Light Output | 7700/6500/5000/3600 lumens |
| Luminous Efficacy (lm/W) | Up to 163 lm/W, dependent on wattage selected at install |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 4000K/5000K selectable at install |
| CRI (Color Accuracy) | 70 |
| Beam Angle | Parking garage photometry |

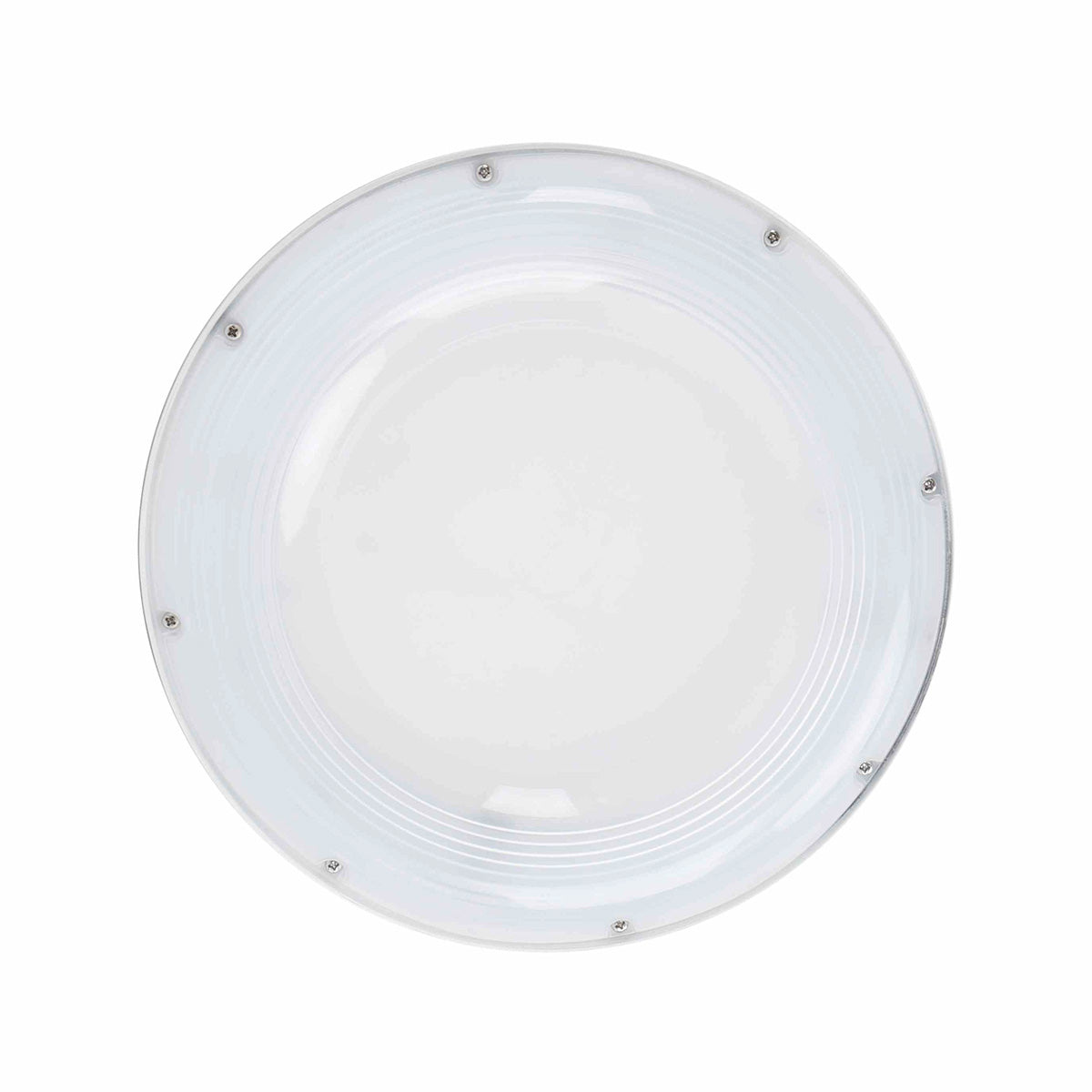

| Lens Cover | Clear |
| Installation | J-Box or pendant mount |
| Working Environment | Wet location |
| Enclosure Rating | UL cUL Wet Location |
| Input Voltage | 120-277V |
| Temperature Rating | -40˚F to 113˚F |
| Housing Material | One-piece sealed die-cast housing with PC lens |
| Housing Color | White |
| Dimensions | 12" diameter x 3.32" high |
| Weight | 5.73 lbs |
| Certification | DLC 5.1 Premium, UL cUL Wet Location |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
COMPARE KEY FEATURES
LED Canopy Light - 2 CCT - 60/46/36/22W
|
LED Canopy Light - 3 CCT - 110/85/63/41W
|
LED Canopy Light with Uplight - 3 CCT - 100/75/50/30W
|
|
|---|---|---|---|
| Wattage | 60W/46W/36W/22W selectable at install | 110W/85W/63W/41W selectable at install | 100W driver with 100%, 75%, 50%, and 30% power selectable at install |
| Equivalent to | Up to 200W | Up to 350W | Up to 350W |
| Light Output | 7700/6500/5000/3600 lumens | At 3000K: 15,500/12,800/9,800/6,800 lumens At 4000K: 16,500/13,600/10,500/7,200 lumens At 5000K: 16,000/13,000/10,000/7,000 lumens |
At 3000K: 14,000/10,500/7,000/4,200 lumens At 4000K: 16,000/12,000/8,000/4,800 lumens At 5000K: 15,000/11,250/7,500/4,500 lumens |
| Color Temperature (CCT) | 4000K/5000K selectable at install | 3000K/4000K/5000K selectable at install | 3000K/4000K/5000K selectable at install |
| Warranty | 5 Years | 5 Years | 5 Years |
|
$89.95
|
$114.95
View Details
|
$182.95
View Details
|
Key Features
Low UGR for Less Glare
Selectable Wattage & CCT
Wide Beam Angle
Affordable, Customizable, Space-Enhancing Parking Garage Light
No More Cave-Effect: The wide angle light beam makes spaces feel bigger and safer.
Customizable: Adjust light tone and wattage to suit the space - great for bulk buying.
Less Glare: Low UGR helps drivers and pedestrians see more clearly to avoid accidents.
Hassle-Free Installation: Quick-mount plate for surface or junction-box installs.
All-Weather Lighting: UL Wet Location listed and operates in temps from -40°F to 113°F.
Light Output
This light is wattage-selectable. Click a wattage to see the light output for that setting.
