LED Canopy Light - 3 CCT - 110/85/63/41W
5 Year Warranty
Lumens:
Watts:
Color Temp:
Very High Efficiency Canopy Lighting for Parking Garages
Low Energy Cost: Provides bright light with a great luminous efficacy of 176 lumens per Watt.
Dimmable: Get fine tune control over the appearance and power consumption while dimming.

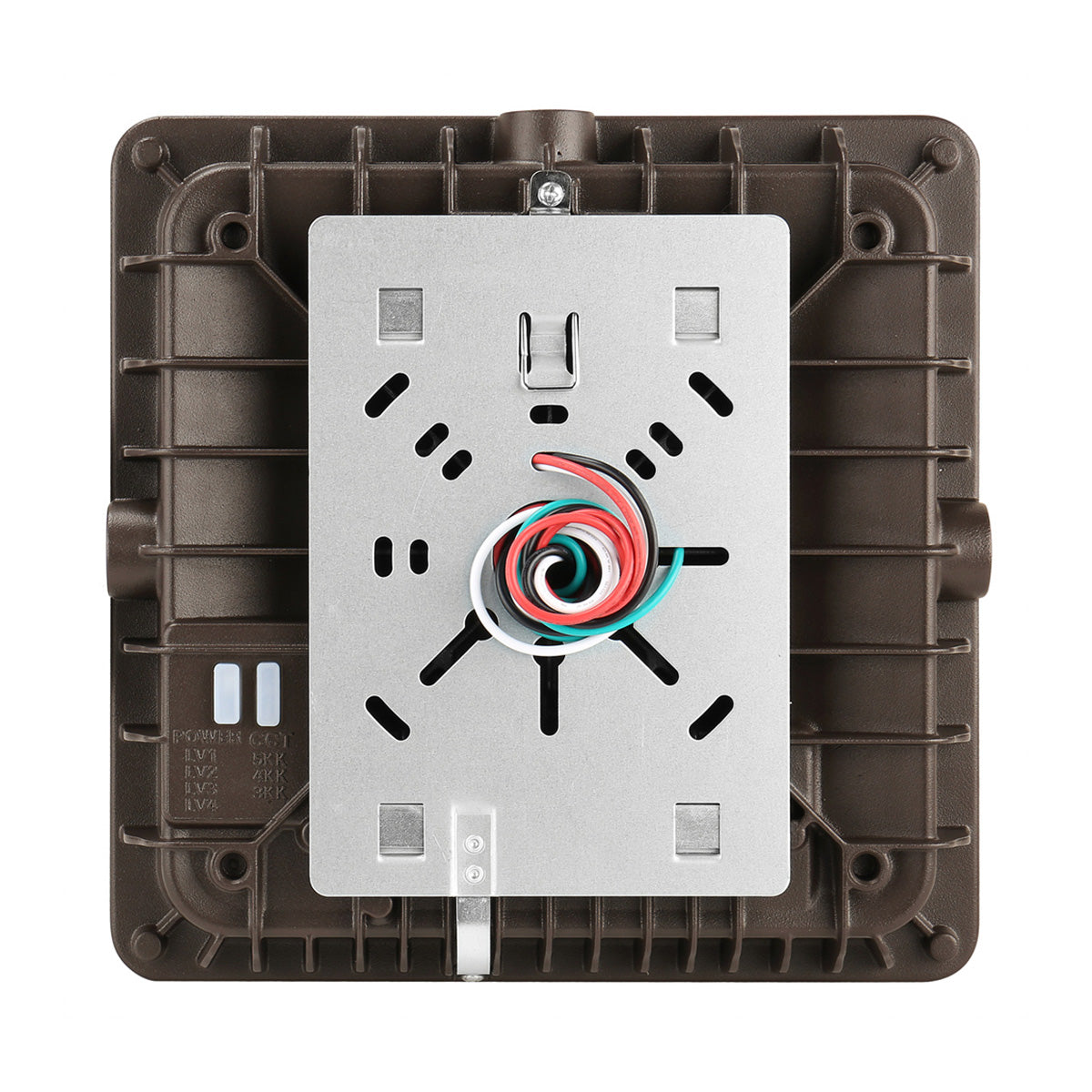

Set the Wattage & CCT: During install, choose the best light tone and power usage for the space.

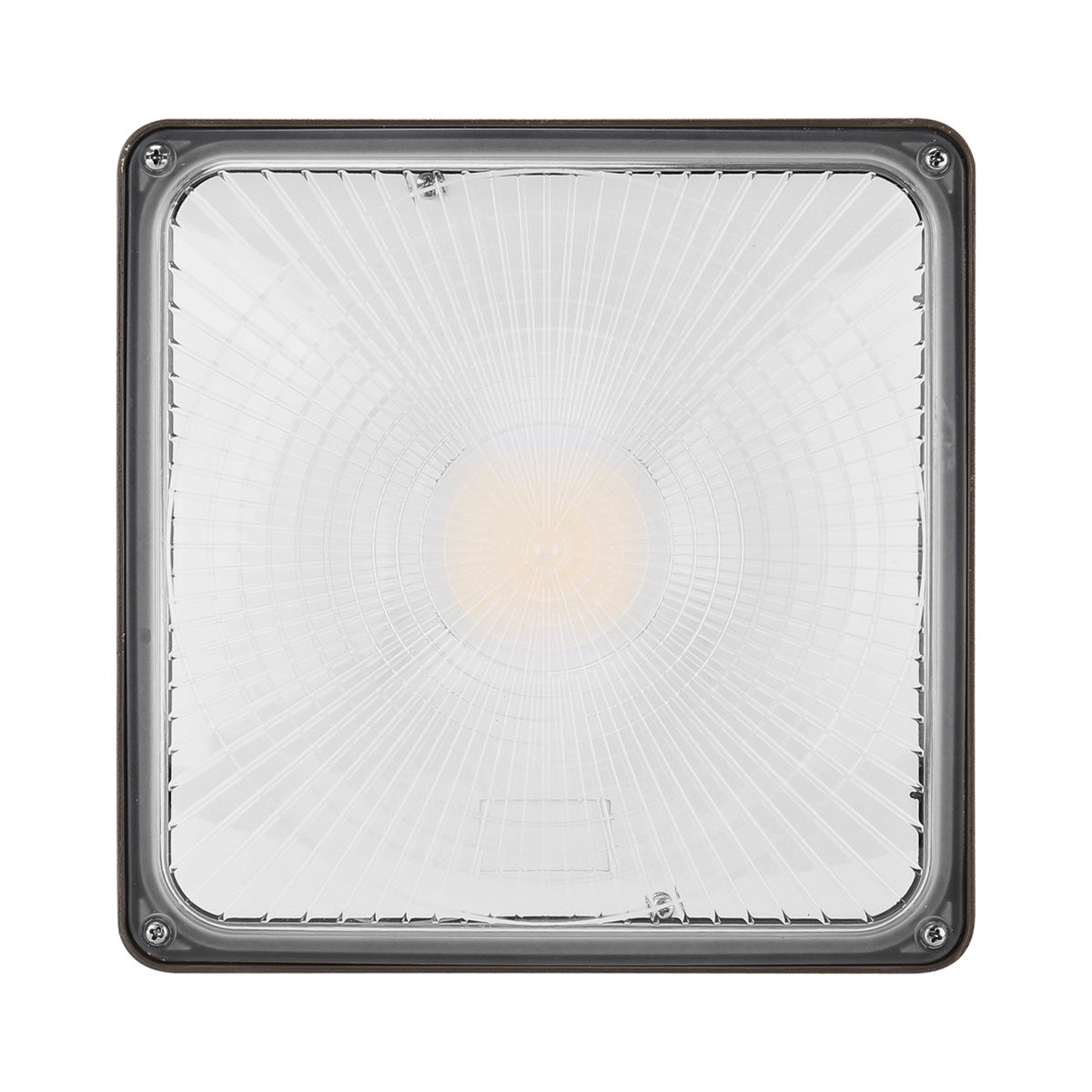

Reduced Glare: Anti-UV prismatic lens provides lighting that's easy on the eyes & prolongs LED life.
Flexible Install Options: Mount this canopy light on a ceiling or 3/4" conduit.

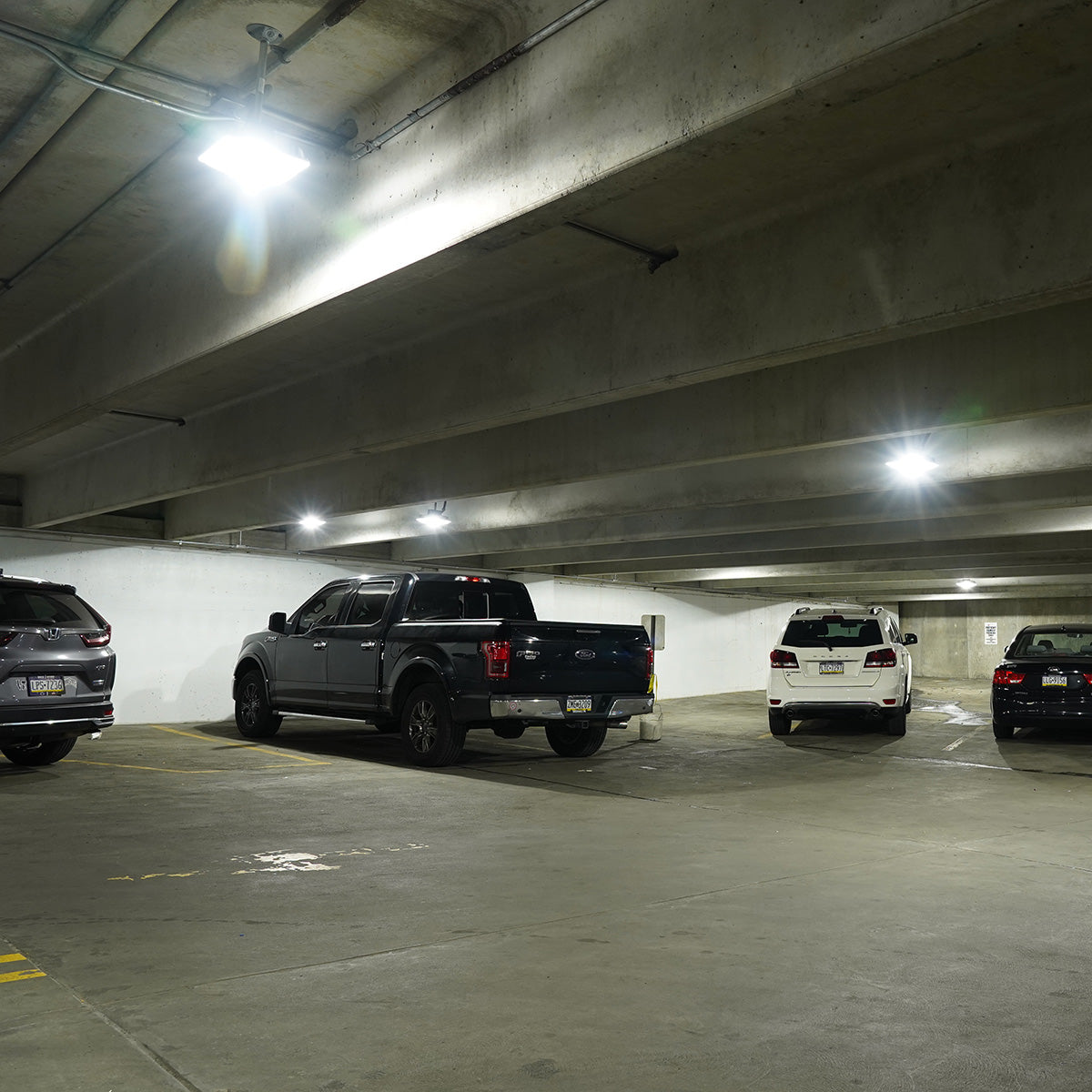

Designed for covered spaces like parking garages, toll stations, exterior canopies, entryways, and more.
Saves $/year in energy costs*
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
Very High Efficiency Canopy Lighting for Parking Garages
Low Energy Cost: Provides bright light with a great luminous efficacy of 176 lumens per Watt.
Dimmable: Get fine tune control over the appearance and power consumption while dimming.
Set the Wattage & CCT: During install, choose the best light tone and power usage for the space.
Reduced Glare: Anti-UV prismatic lens provides lighting that's easy on the eyes & prolongs LED life.
Flexible Install Options: Mount this canopy light on a ceiling or 3/4" conduit.
Designed for covered spaces like parking garages, toll stations, exterior canopies, entryways, and more.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 110W/85W/63W/41W user selectable during installation |
| Replaces Wattage(s) | Up to 350W |
| Light Output | Up to 176 lm/W |
| Luminous Efficacy (lm/W) |
At 3000K: 15,500/12,800/9,800/6,800 lumens At 4000K: 16,500/13,600/10,500/7,200 lumens At 5000K: 16,000/13,000/10,000/7,000 lumens |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K user selectable during install |
| CRI | >70 |
| Dimming | 0-10V |
| Lens Cover | Anti-UV prismatic lens |

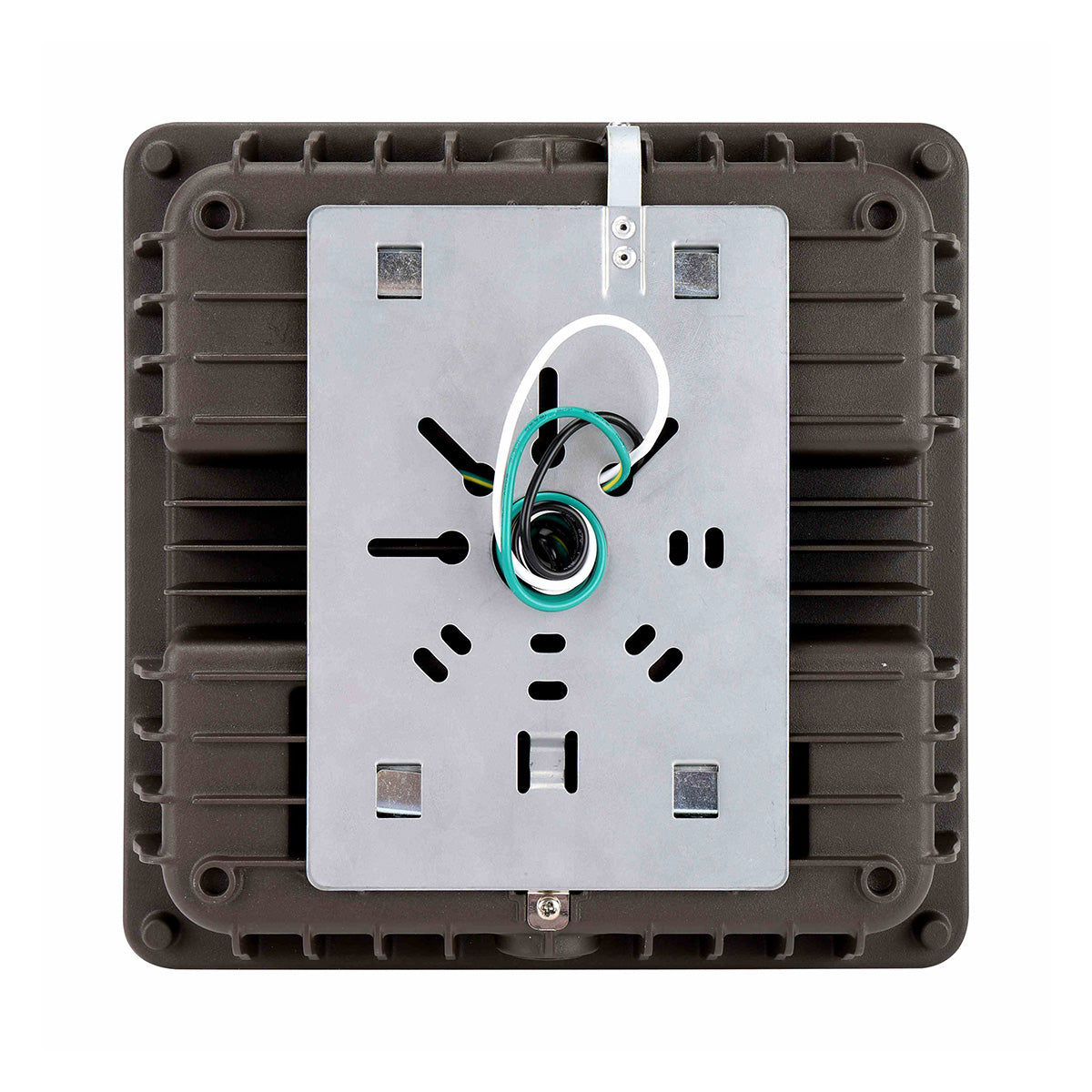

| Installation | J-box mount or 3/4" conduit mount; includes 1/2" knock-out holes on three sides |
| Working Environment | Outdoor |
| Enclosure Rating | UL cUL Wet Location |
| Light Type | Fixture |
| Input Voltage | 120-277VAC,50/60Hz |
| Temperature Rating | -40°F to 104°F |
| Housing Material | Die cast aluminum with fade-resistant powder coat finish |
| Housing Color | Dark bronze |
| Dimensions | 11.52" x 11.52" x 3.8" |
| Certification | UL cUL Wet Location |
| Warranty | 5 Years |
