Extra Bright LED Canopy Light with Uplight
Lumens:
Watts:
Color Temp:
5 Year Warranty
68 in stockHighly Adaptable Parking Garage Light with Built-in Uplight
Pleasant Up-Light Feature: Produces both a downward beam of light and a less intense upward beam to reduce the cave-like effect dark ceilings can cause in parking structures.
Built to Last 5+ Years: Withstands dust, damp, impact, jets of water, and both sweltering and freezing temperatures - all while protected by a 5-year warranty.
High Adaptability: The color temperature and wattage can be adjusted to meet the needs of multiple spaces, varying ceiling heights, and changing needs over time.
Can be either surface mounted or pendant mounted on 3/4" NPT conduit.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Highly Adaptable Parking Garage Light with Built-in Uplight
Pleasant Up-Light Feature: Produces both a downward beam of light and a less intense upward beam to reduce the cave-like effect dark ceilings can cause in parking structures.
Built to Last 5+ Years: Withstands dust, damp, impact, jets of water, and both sweltering and freezing temperatures - all while protected by a 5-year warranty.
High Adaptability: The color temperature and wattage can be adjusted to meet the needs of multiple spaces, varying ceiling heights, and changing needs over time.
Can be either surface mounted or pendant mounted on 3/4" NPT conduit.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
68 in stock
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
5 Year Warranty
68 in stock
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 100W driver with 100%, 75%, 50%, and 30% power selectable at install |
| Replaces Wattage(s) | Up to 350W |
| Light Output |
At 3000K: 14,000/10,500/7,000/4,200 lumens At 4000K: 16,000/12,000/8,000/4,800 lumens At 5000K: 15,000/11,250/7,500/4,500 lumens |
| Luminous Efficacy (lm/W) | 160 lm/W at 4000K, 150 lm/W at 5000K, 140 lm/W at 3000K |
| Average Lamp Life |
L80: 91,000 hours L70: 153,000 hours |
| Color Temperature(s) | 3000K/4000K/5000K selectable at install |
| CRI (Color Accuracy) | 70 |
| Dimming | Yes |
| Light Distribution Pattern | Type V |
| Installation | Surface or pendant (3/4" NPT) mount |
| Working Environment | Indoor or outdoor |
| Enclosure Rating | IP65, IK08 |
| LED Type | LED 2835 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | Becky |
| Power Factor | >0.9 |
| Surge Protection | 4kV line-line, 6kV line-earth |
| Temperature Rating | -22˚F to 122˚F |
| Housing Material | Aluminum alloy with polycarbonate lens |
| Housing Color | White |

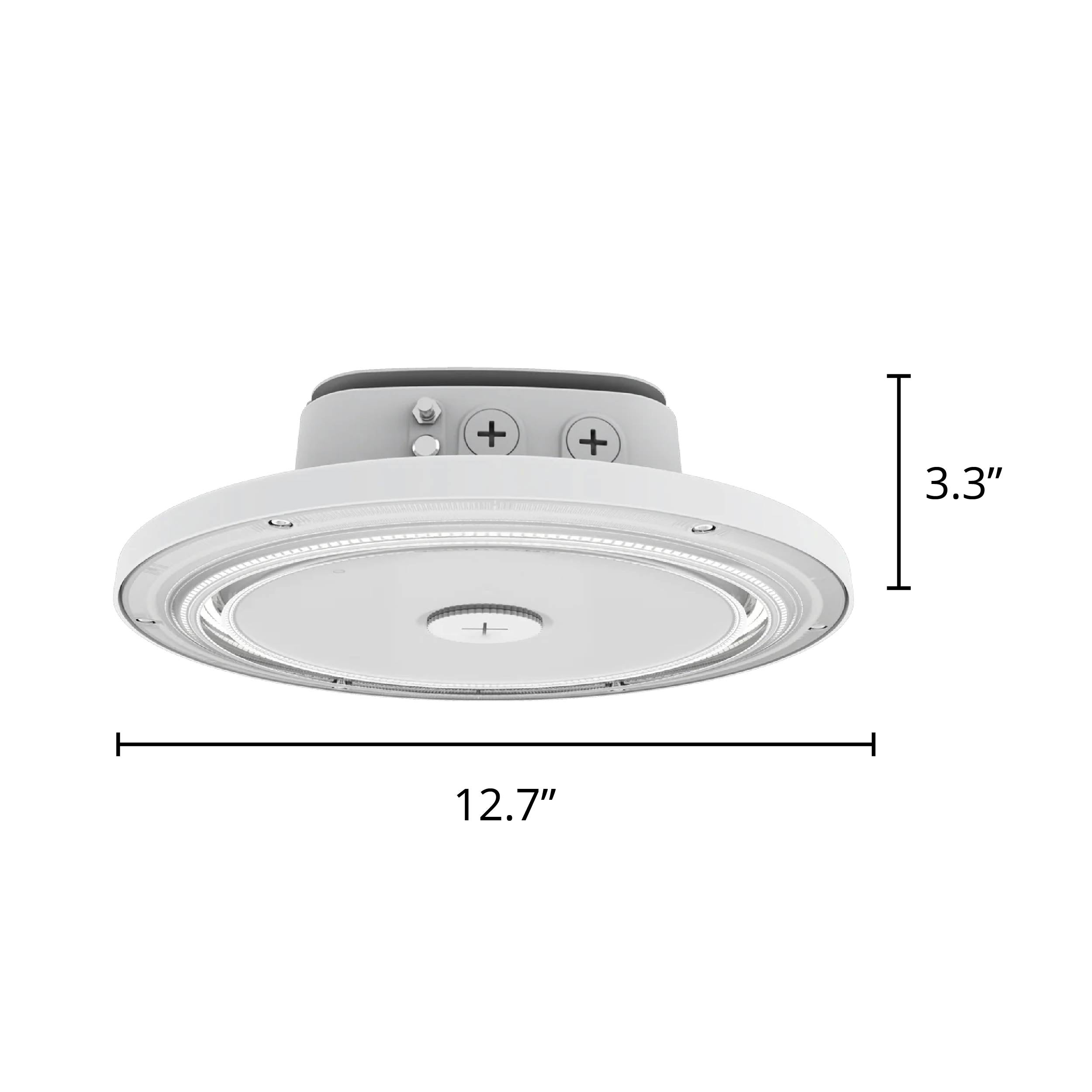

| Dimensions | 12.7" diameter x 3.3" high |
| Weight | 5.73 lbs |
| Certification | ETL, DLC Premium |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
Key Features
Dimming Capability
CCT Options: Warm, Neutral, Cool
Provides Downlight & Uplight
Highly Adaptable Parking Garage Light with Built-in Uplight
Pleasant Up-Light Feature: Produces both a downward beam of light and a less intense upward beam to reduce the cave-like effect dark ceilings can cause in parking structures.
Built to Last 5+ Years: Withstands dust, damp, impact, jets of water, and both sweltering and freezing temperatures - all while protected by a 5-year warranty.
High Adaptability: The color temperature and wattage can be adjusted to meet the needs of multiple spaces, varying ceiling heights, and changing needs over time.
Can be either surface mounted or pendant mounted on 3/4" NPT conduit.
Light Output
This light is wattage and color selectable. Click a wattage to see the light output for that setting.
