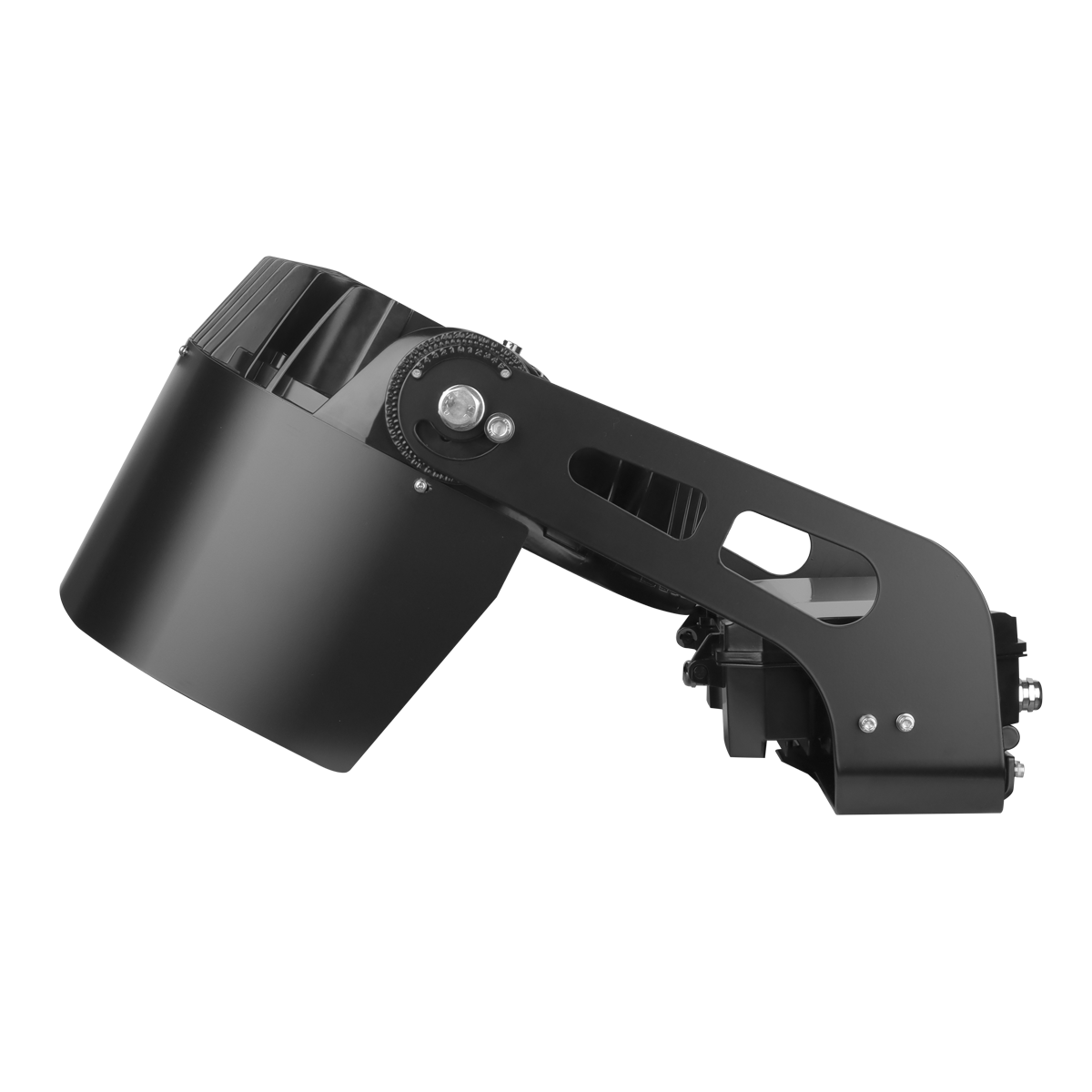

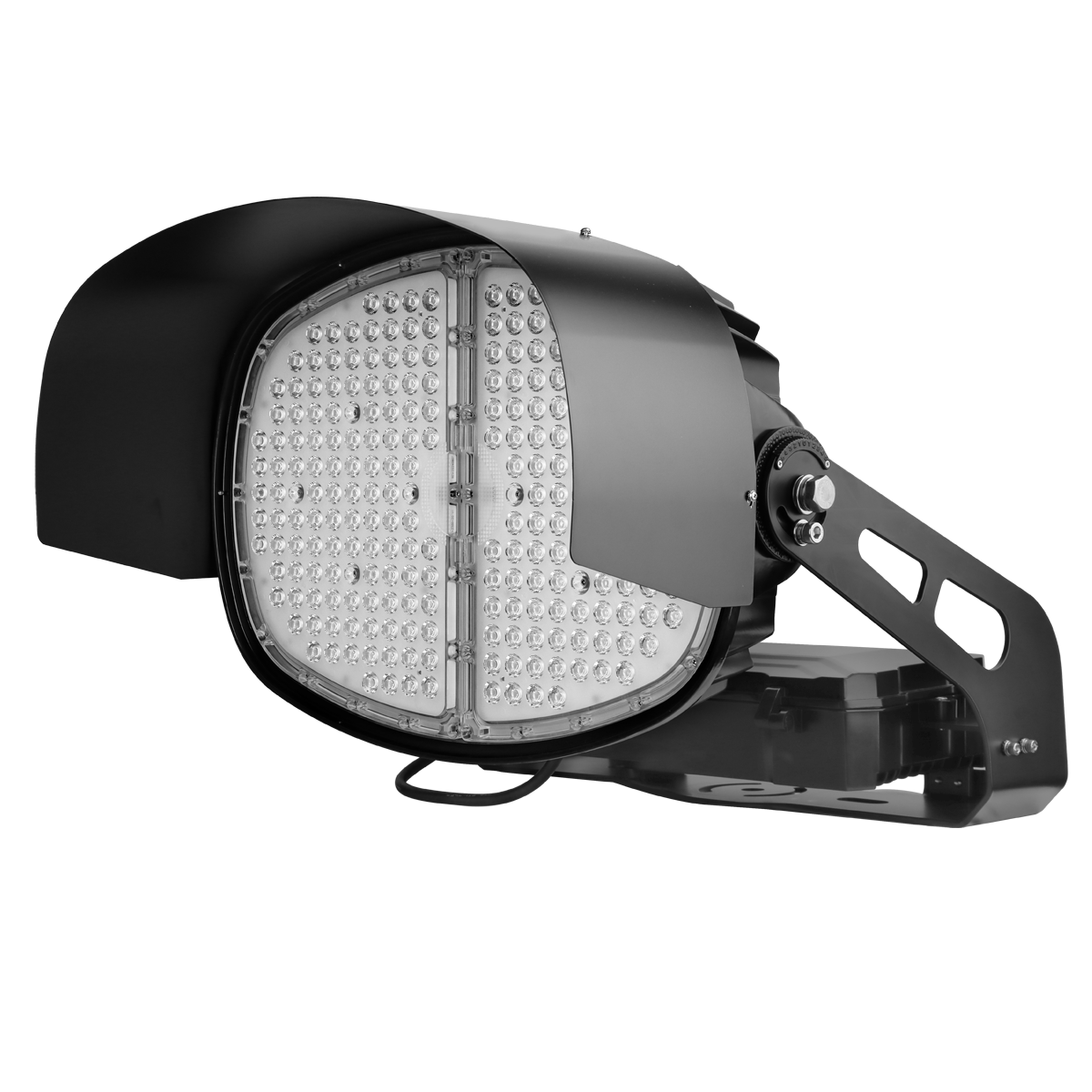

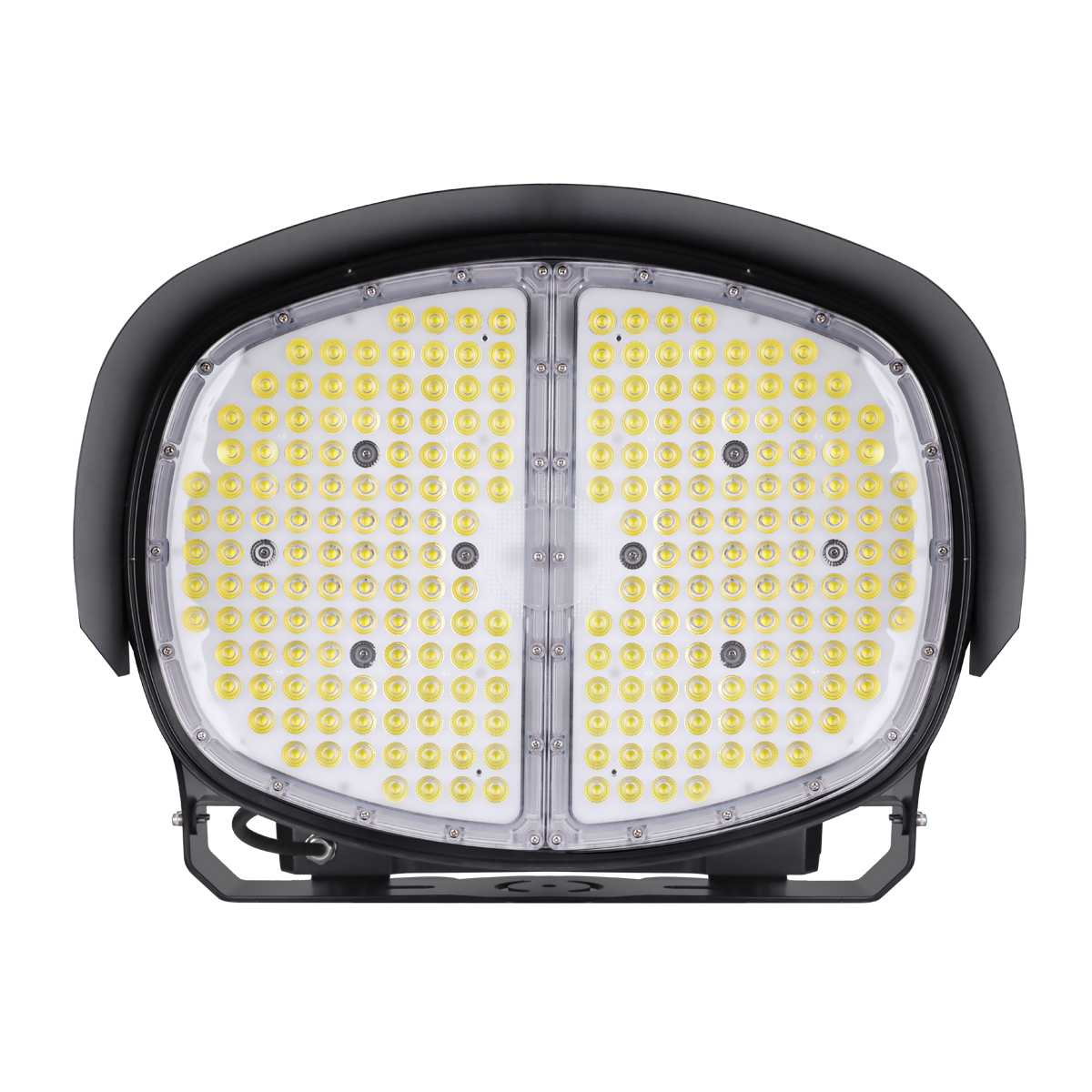

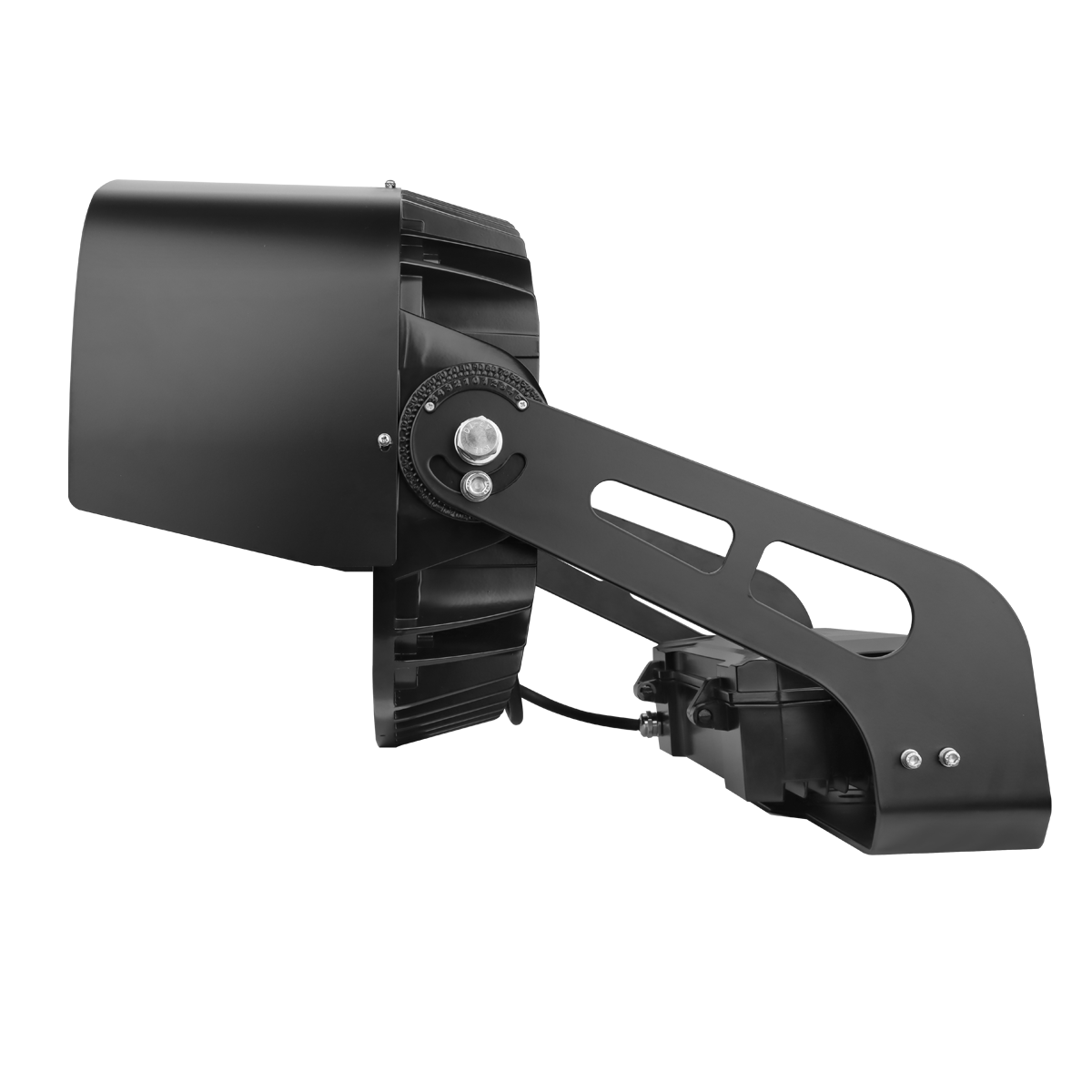

LED Stadium Light with Remote Driver Box – 800W, 5700K
Narrow/Medium-Beam 800W LED Stadium Flood Light with Easy-Maintenance Remote Driver, 60 to 90 ft
Regular price
Lumens:
125,600
Watts:
800W
Color Temp:
5700K
125,000+ lumens of high contrast, 5700K light for easy viewing of sports and races with fast-moving objects. Fixture mounts 60-90 ft high, but remote driver can be installed nearer the ground for easy maintenance. Narrow (NEMA 3x3) and medium (NEMA 4x4) distributions limit spill and focus light on fields of various sizes.
10 Year Warranty
High-Powered Illumination for Large Fields & Venues
Great for collegiate-level stadiums, large community sports complexes, venues needing broadcast-quality lighting, and soccer, football, and baseball fields. Recommended for 60 to 90 ft poles.
- Massive Light Output – 125,600 lumens at 157 lm/W lights even the largest fields.
- 5700K White Light – Crisp, daylight-quality illumination improves visibility for athletes and fans.
- Choice of Beams – Select 3Hx3V for focused throw or 4Hx4V for balanced, uniform coverage.
- Matches Your Power – 120–277V and 200–480V input voltage models are available.

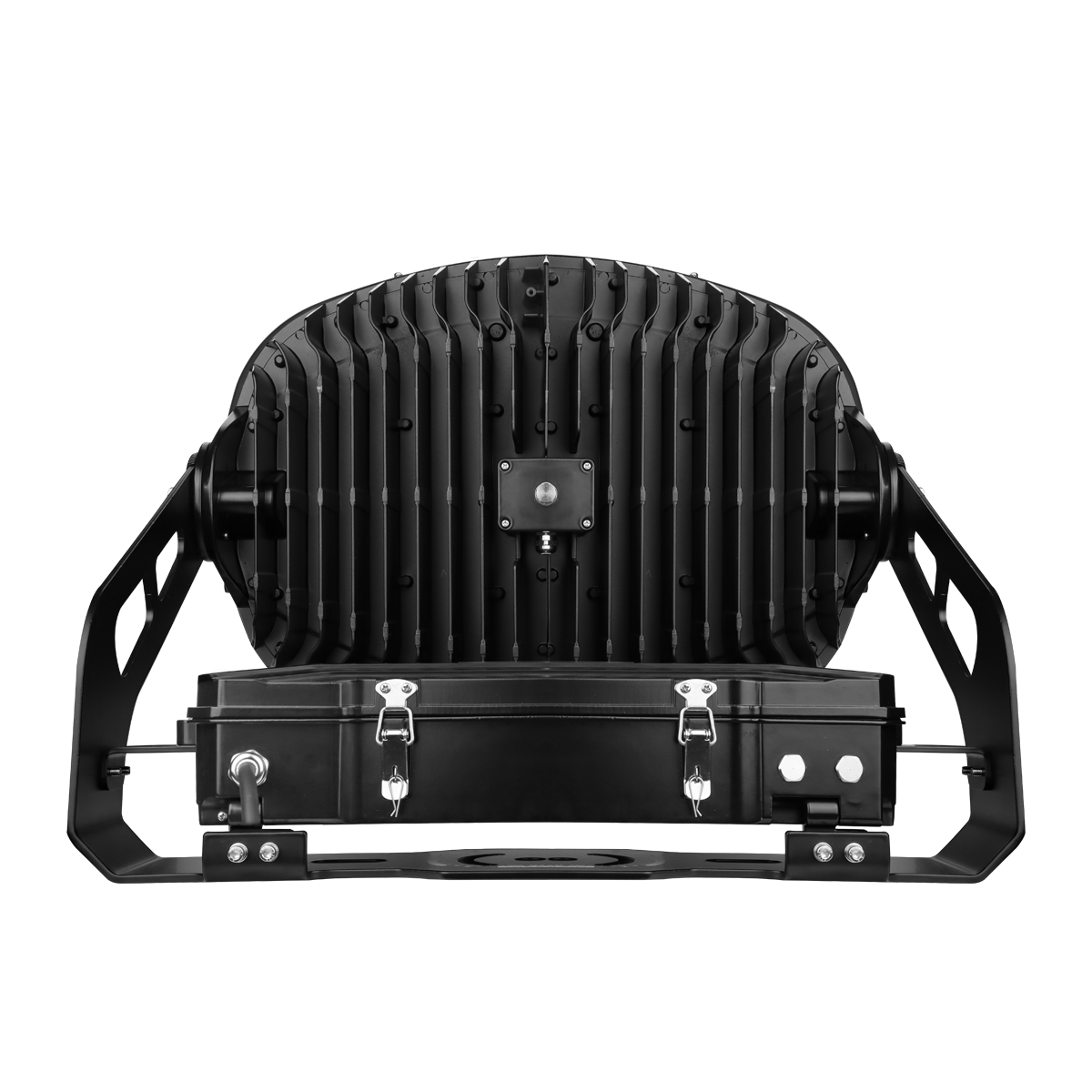

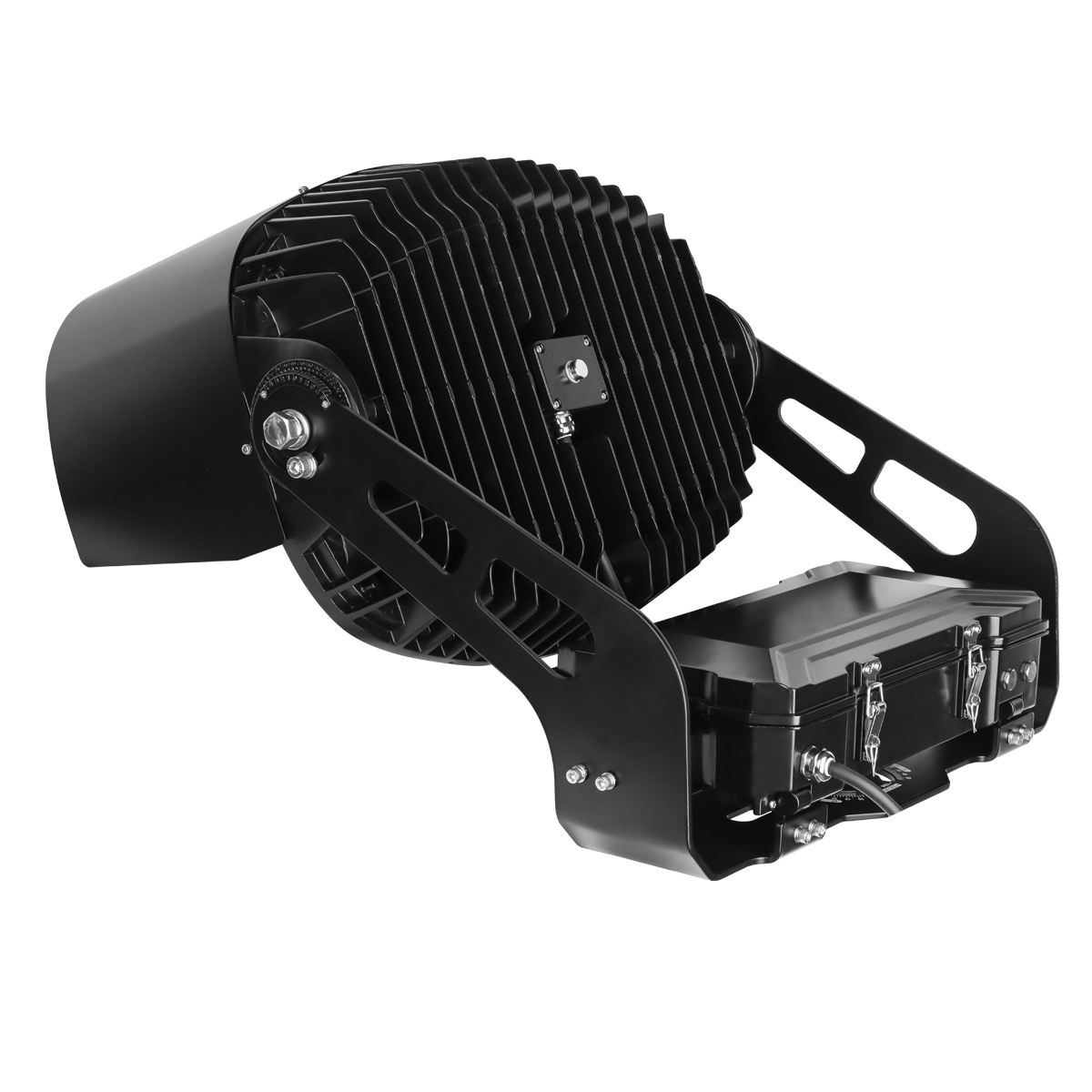

- Modular Installation - Driver can be installed on the fixture, the light pole, or a distribution box for easier installation and maintenance.
Saves $/year in energy costs*
Input Voltage:
Beam Angle:
Regular price
Order Within
Ships free!
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
High-Powered Illumination for Large Fields & Venues
Great for collegiate-level stadiums, large community sports complexes, venues needing broadcast-quality lighting, and soccer, football, and baseball fields. Recommended for 60 to 90 ft poles.
- Massive Light Output – 125,600 lumens at 157 lm/W lights even the largest fields.
- 5700K White Light – Crisp, daylight-quality illumination improves visibility for athletes and fans.
- Choice of Beams – Select 3Hx3V for focused throw or 4Hx4V for balanced, uniform coverage.
- Matches Your Power – 120–277V and 200–480V input voltage models are available.
- Modular Installation - Driver can be installed on the fixture, the light pole, or a distribution box for easier installation and maintenance.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Regular price
Lumens:
125,600
Watts:
800W
Color Temp:
5700K
125,000+ lumens of high contrast, 5700K light for easy viewing of sports and races with fast-moving objects. Fixture mounts 60-90 ft high, but remote driver can be installed nearer the ground for easy maintenance. Narrow (NEMA 3x3) and medium (NEMA 4x4) distributions limit spill and focus light on fields of various sizes.
10 Year Warranty
Input Voltage:
Beam Angle:
Regular price
Order Within
Ships free!
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
Regular price
Lumens:
125,600
Watts:
800W
Color Temp:
5700K
125,000+ lumens of high contrast, 5700K light for easy viewing of sports and races with fast-moving objects. Fixture mounts 60-90 ft high, but remote driver can be installed nearer the ground for easy maintenance. Narrow (NEMA 3x3) and medium (NEMA 4x4) distributions limit spill and focus light on fields of various sizes.
10 Year Warranty
Input Voltage:
Beam Angle:
Regular price
Order Within
Ships free!
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
SPECIFICATIONS
| Wattage(s) | 800W |
| Replaces Wattage(s) | 2500W |
| Light Output | 125,600 lumens |
| Luminous Efficacy (lm/W) | 157 lm/W |
| Color Temperature(s) | 5700K |
| CRI (Color Accuracy) | >70 |
| Dimming | 0-10V |
| Light Distribution Pattern | 4Hx4V |
| Installation | Yoke mount, 3ft power cord, and glare shield included. Driver box can be installed with the fixture or remotely, on the pole or a distribution box. |
| Recommended Installation Height | 40 to 90 feet |
| Enclosure Rating | UL Wet Location |
| Input Voltage | 120-277V or 200-480V |
| Temperature Rating | -40°F to 122°F |
| Housing Material | Die-cast aluminum with durable powder coating |
| Housing Color | Matte Black |
| Dimensions |
With glare shield (standard): 24.4" x 18.9" x 25.6" Without glare shield: 24.4" x 18.9" x 18.3" |
| Certification | DLC, UL |
| Warranty | 10 Years |
| Additional Specifications | EPA (sq ft): Front: 2.44 / Side: 1.43 / Top: 2.75 |
COMPARE KEY FEATURES
LED Stadium Light with Remote Driver Box – 800W, 5700K
|
850W LED Stadium Light – 5700K, 4Hx4V Beam
|
Ultra-High Output LED Sports Light (400/600/800W) - 5000K, 30˚ Beam, 480V
|
|
|---|---|---|---|
| Replaces Wattage(s) | 2500W | 2500W | 2400W |
| Light Output | 125,600 lumens | 125,000 lumens | 400W: 70,400–72,300 lumens 600W: 102,100–104,800 lumens 800W: 132,800–135,800 lumens |
| Color Temperature (CCT) | 5700K | 5700K | 5000K |
| Enclosure Rating | UL Wet Location | IP65, UL Wet Location | IP66, IK08, C4 ISO 9223:2012 |
| Installation | Yoke mount, 3ft power cord, and glare shield included. Driver box can be installed with the fixture or remotely, on the pole or a distribution box. | Trunnion mount | Bracket mount |
| Temperature Rating | -40°F to 122°F | -40°F to 122°F | -30˚C to 50˚C (-22˚F to 122˚F) |
|
