Designed for stadiums, large sports complexes, and high-mast municipal lighting, this field-selectable 400–800W LED sports light delivers up to 135,800 lumens at 165 lm/W.
- ~10% brighter than other 800W fixtures
- 30° standard beam; 45° and 60° lens accessories available
- Impact-resistant, water-tight aluminum alloy housing
Designed for stadiums, large sports complexes, and high-mast municipal lighting, this field-selectable 400–800W LED sports light delivers up to 135,800 lumens at 165 lm/W.
- ~10% brighter than other 800W fixtures
- 30° standard beam; 45° and 60° lens accessories available
- Impact-resistant, water-tight aluminum alloy housing
Choose options
Specs
| Wattage(s) | 400W/600W/800W |
| Replaces Wattage(s) | 2400W |
| Light Output |
400W: 70,400–72,300 lumens 600W: 102,100–104,800 lumens 800W: 132,800–135,800 lumens |
| Luminous Efficacy (lm/W) | 165 lm/W |
| Average Lamp Life | L90: >100,000 hrs L80: >100,000 hrs L70: >100,000 hrs |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | >70 |
| Dimming |
DALI D4I dimming with Zhaga base for Synapse. >Users with Synapse controller can mount the controller on the Zhaga base. For users without Synapse controller, the unit functions as ON/OFF. Note that the DALI function and the power-selectable function cannot be used simultaneously. |
| Beam Angle |
30˚ Standard Optional lenses for 45˚ and 60˚ |
| Lens Cover | High-transmittance polycarbonate lens |
| Installation | Bracket mount |
| EPA (Effective Projected Area) |
@20˚: 0.120m² (1.292ft²) @40˚: 0.174m² (1.873ft²) @60˚: 0.214m² (2.299ft²) @80˚: 0.228m² (2.454ft²) |
| Enclosure Rating | IP66, IK08, C4 ISO 9223:2012 |
| LED Type | LED 3737 |
| Input Voltage | 200-480VAC, 50/60 Hz |
| Driver Type | Constant Current |
| Power Factor | >0.97 at full load |
| THD (Total Harmonic Distortion) | <20% |
| Surge Protection | 10KV L-N, 20KV L/N-E |
| Temperature Rating | -30˚C to 50˚C (-22˚F to 122˚F) |
| Housing Material |
Low-copper die cast aluminum alloy housing ZAM-treated powder-coated SPCC steel mounting brackets |

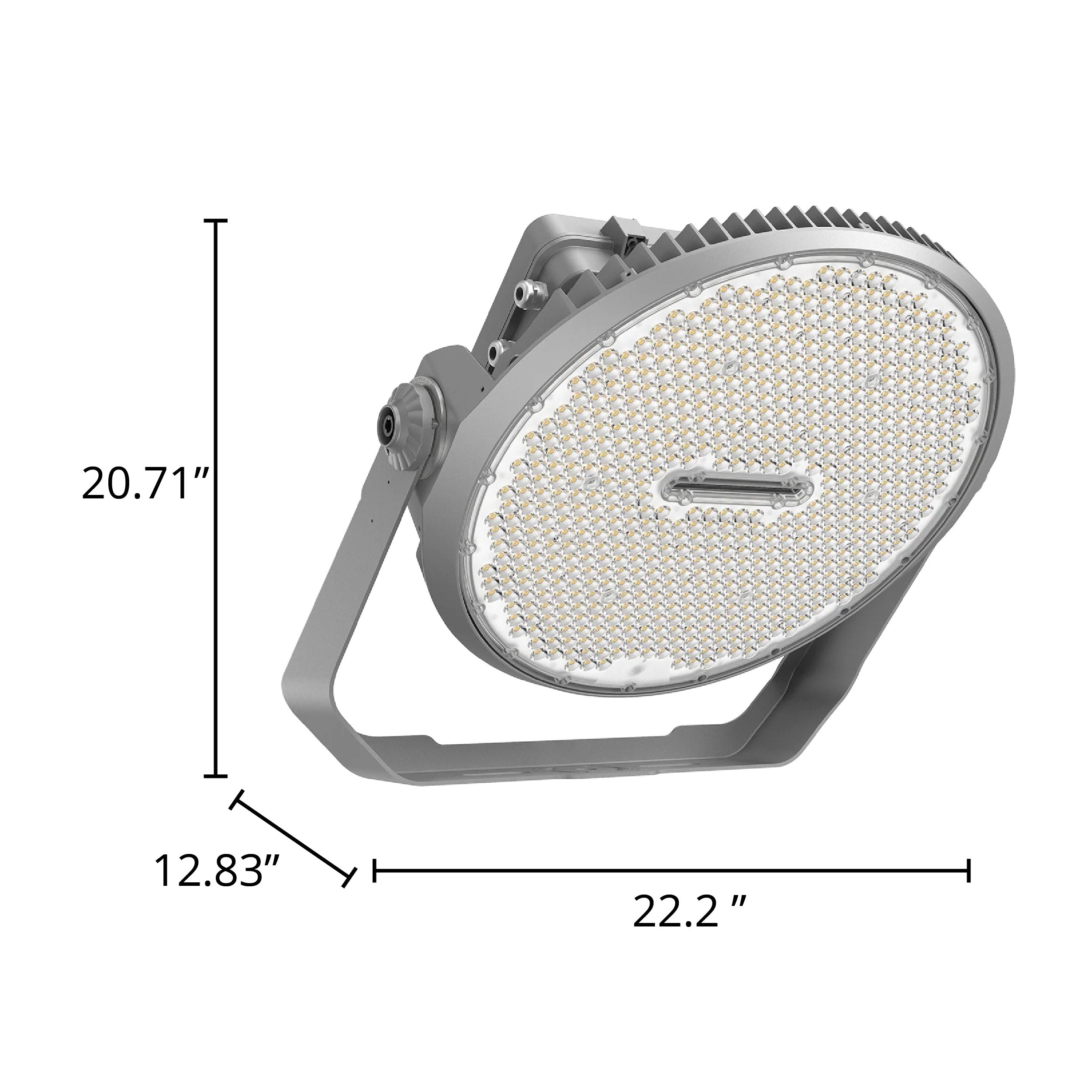

| Dimensions | 526 x 564 x 326mm (20.71" x 22.20" x 12.83") |
| Weight | 17.60 kg (38.80 Ibs) |
| Certification | UL, DLC Premium |
| Warranty | 5 Years |
Data SheetDetails
High-Output LED Sports Light for Large Outdoor Venues
- Adjustable wattage (800W/600W/400W) provides on-site flexibility to match light levels to each field, pole height, or installation condition.
- Powerful illumination delivering up to 135,800 lumens at 165 lm/W for superior visibility across stadiums and high-mast areas.
- Controls ready with Zhaga base supporting DALI D4 control through Synapse dimming module.
- Built for harsh outdoor environments with an IP66, IK08, corrosion-resistant housing and 200–480VAC input for dependable performance.
- Customize with accessories

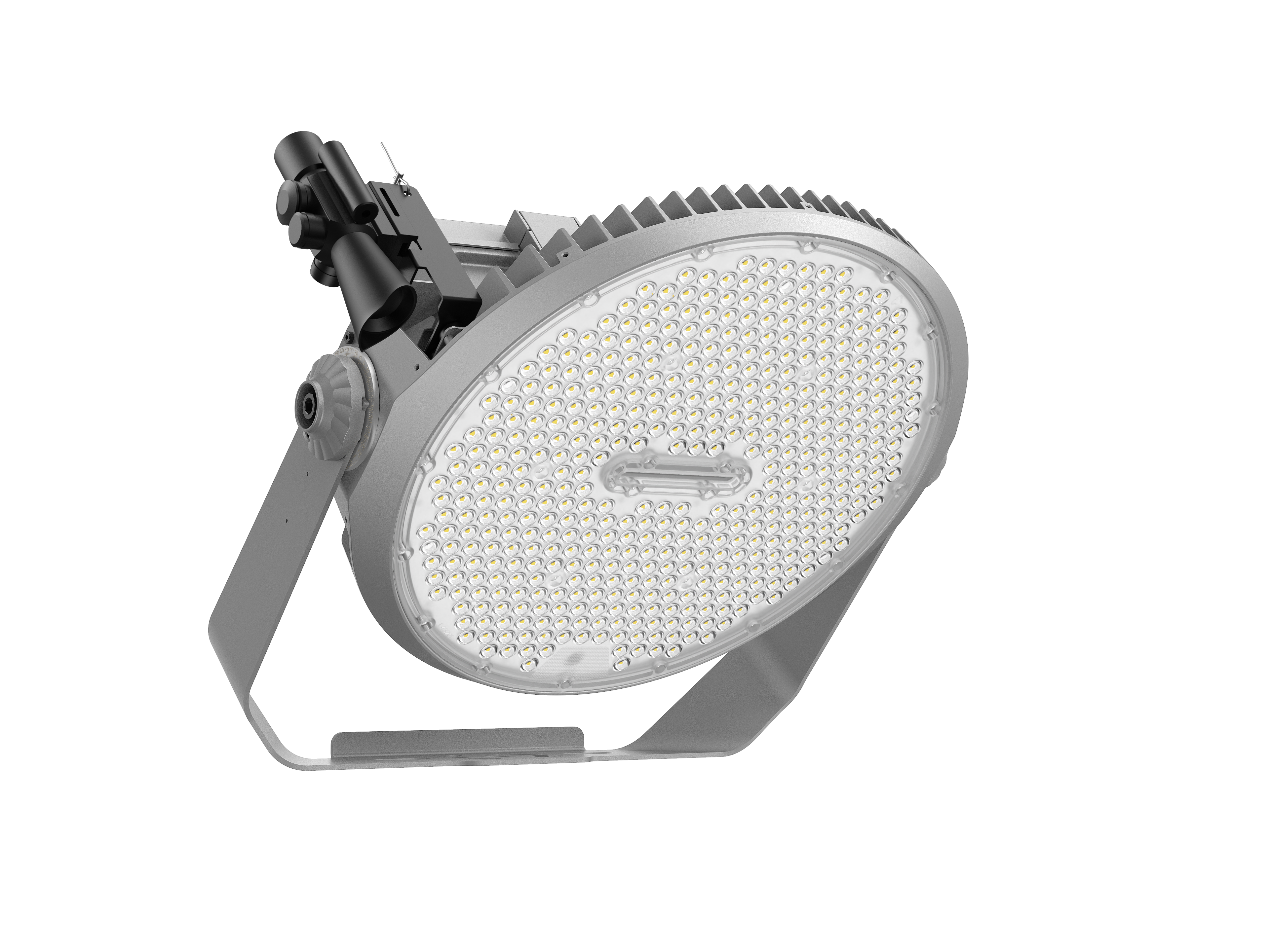

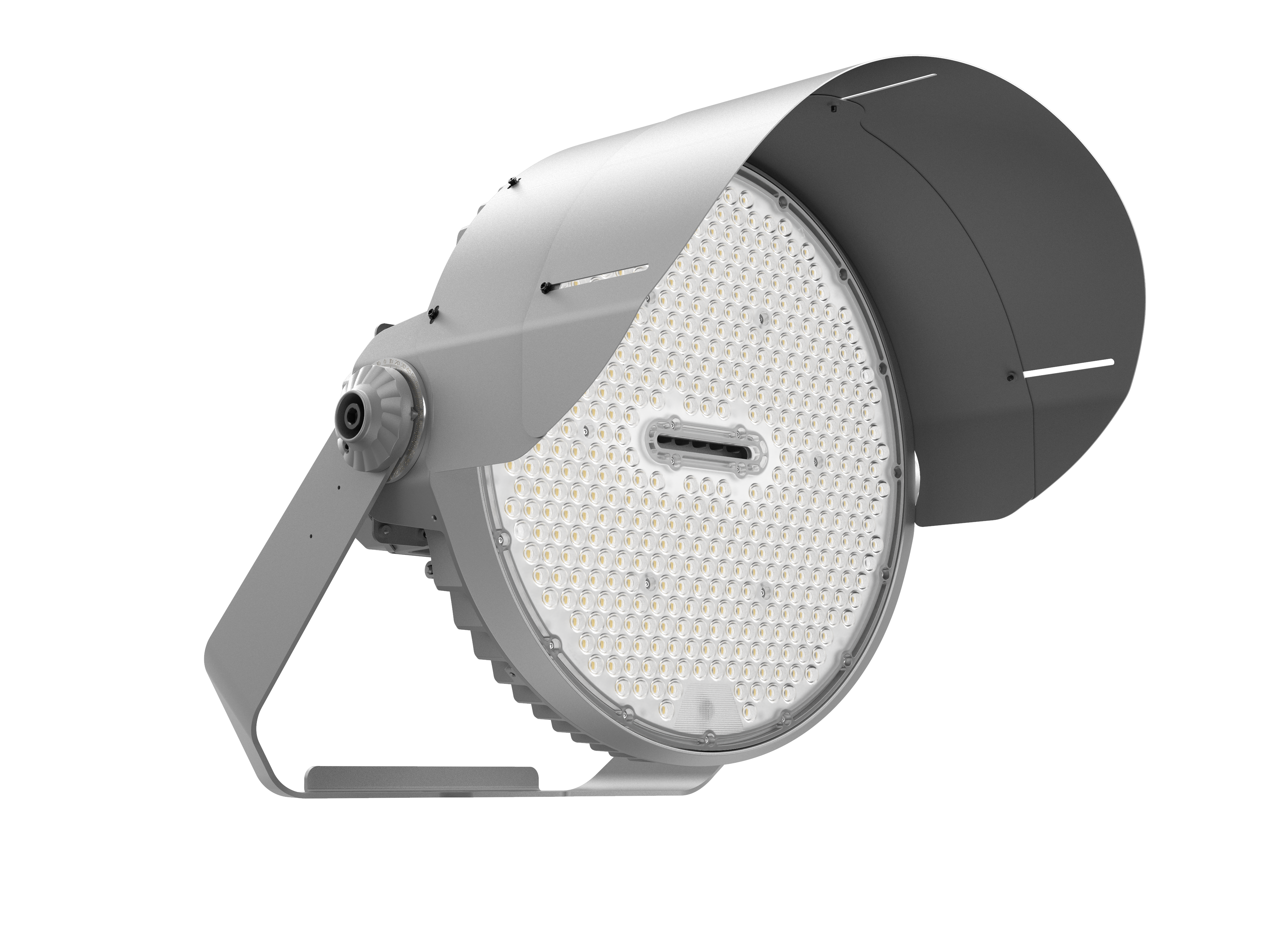

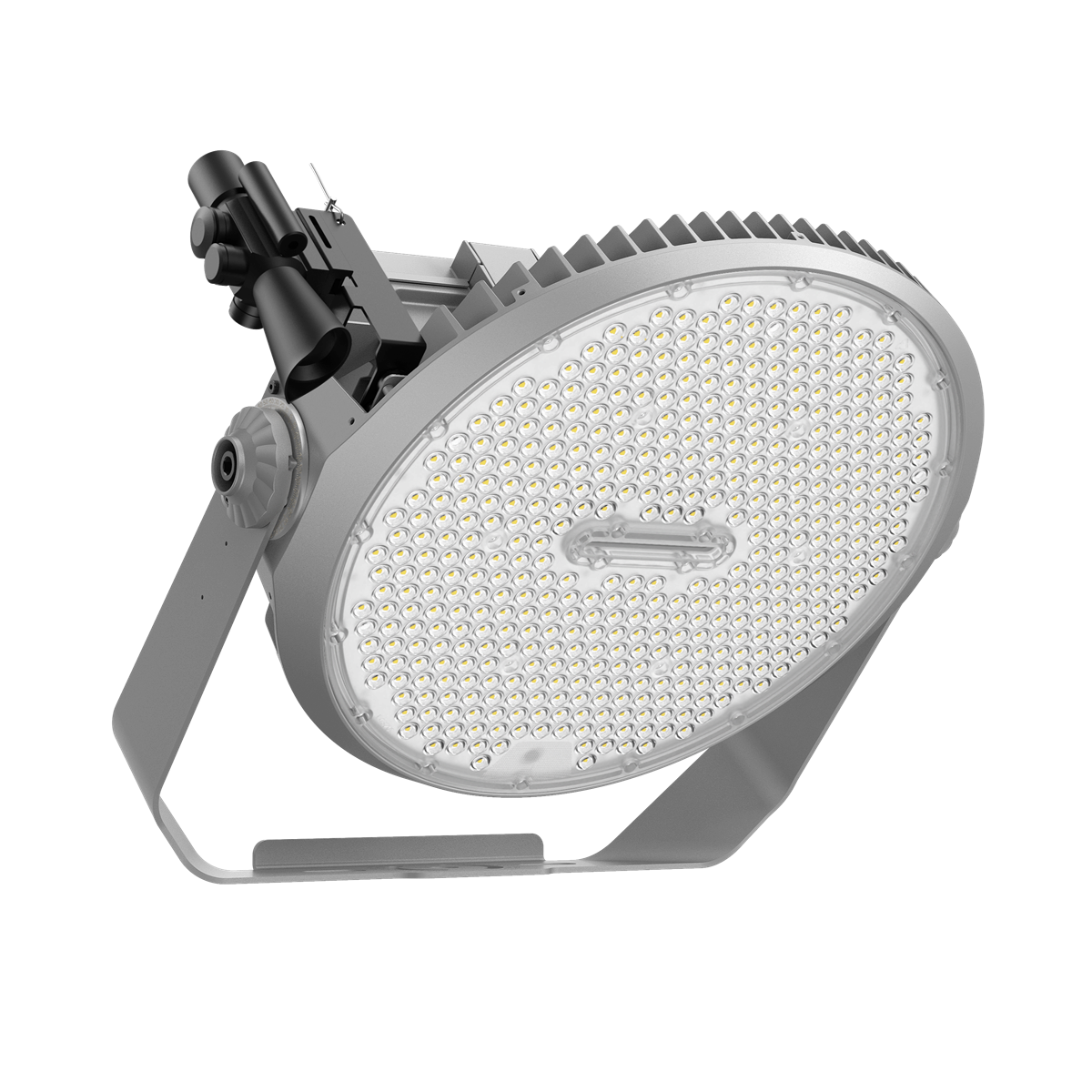

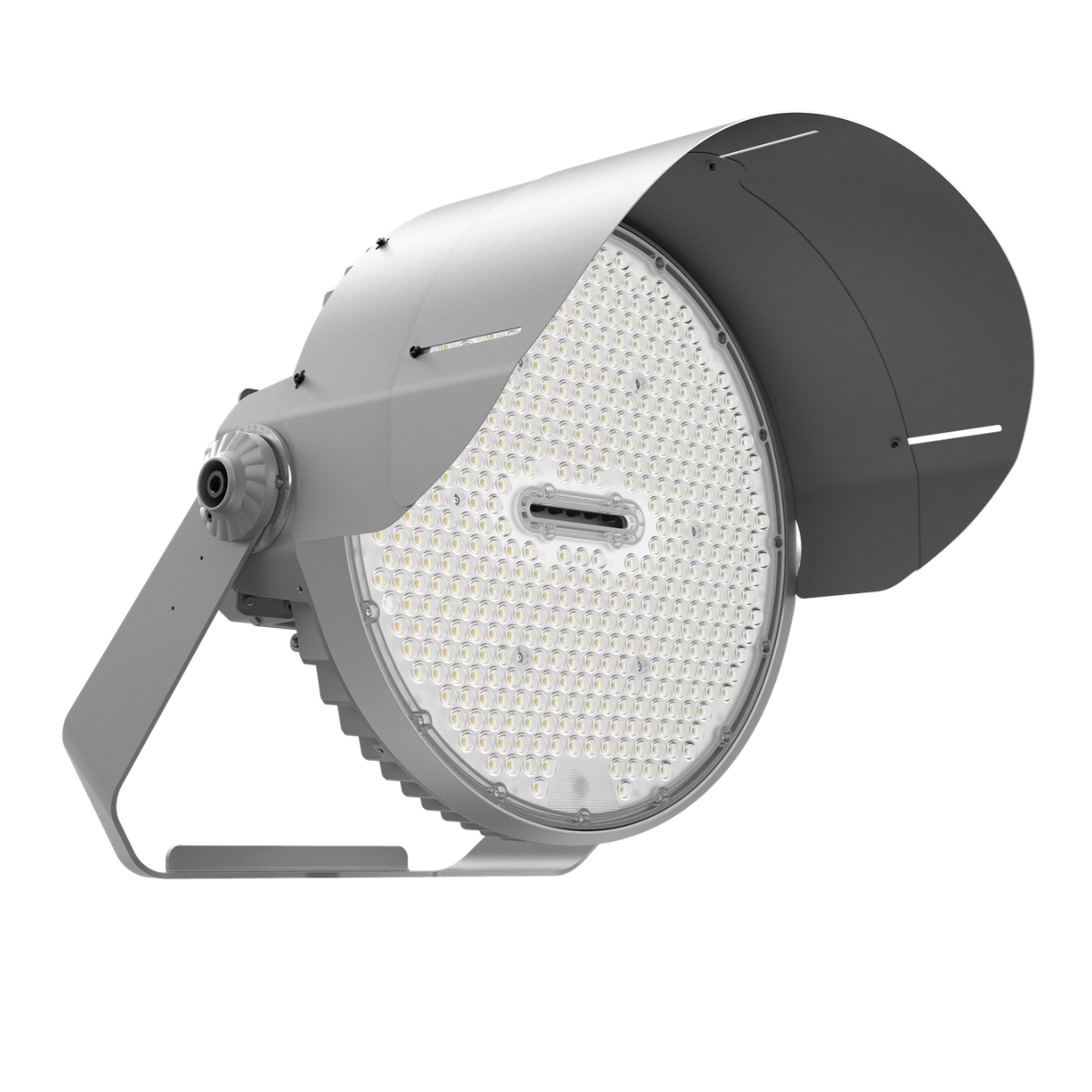

- Keep illumination focused on the field with optional visor. Ensure uniform illuminance levels across the playing surface with the available aiming device. Easily change the optics with accessory lenses.
Use cases

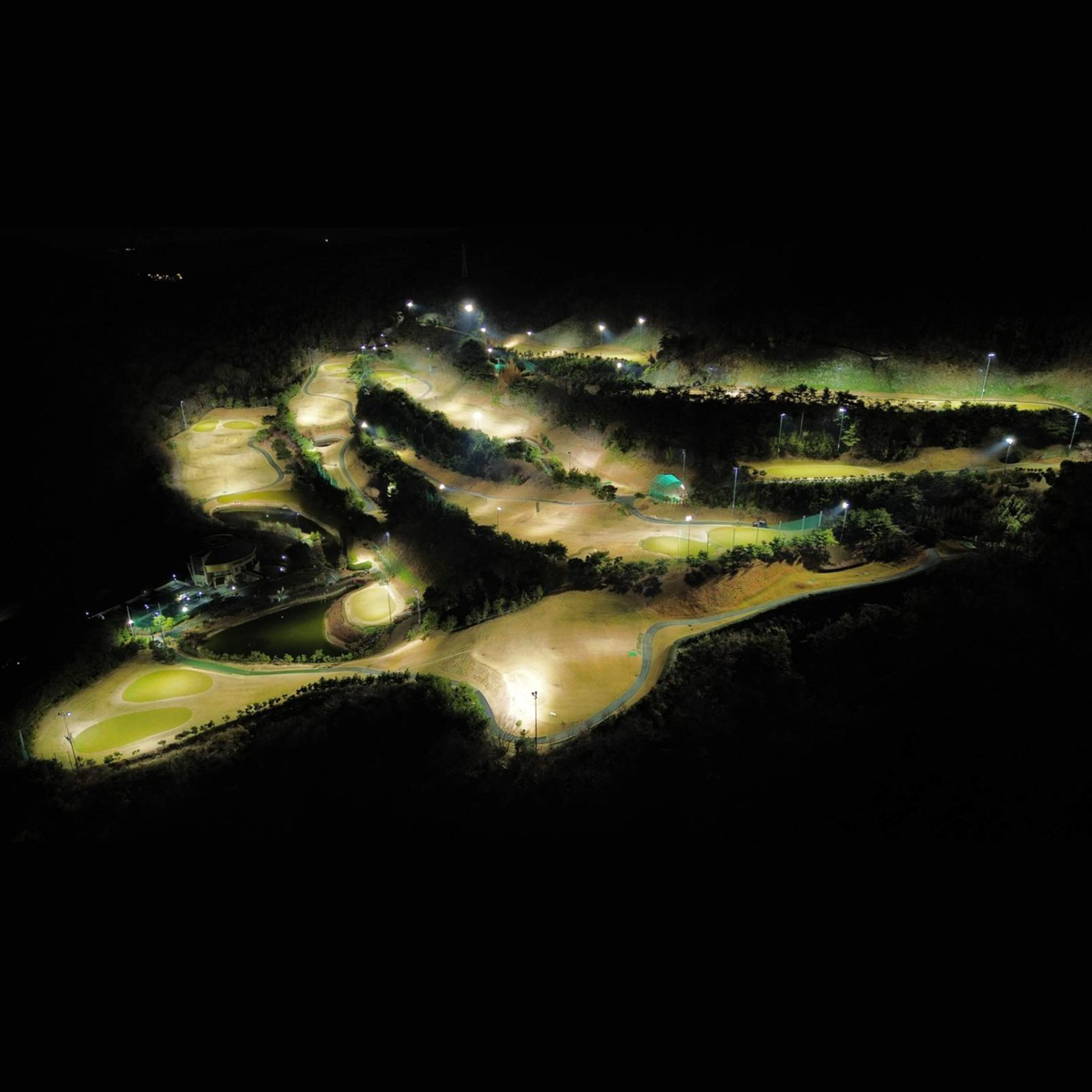

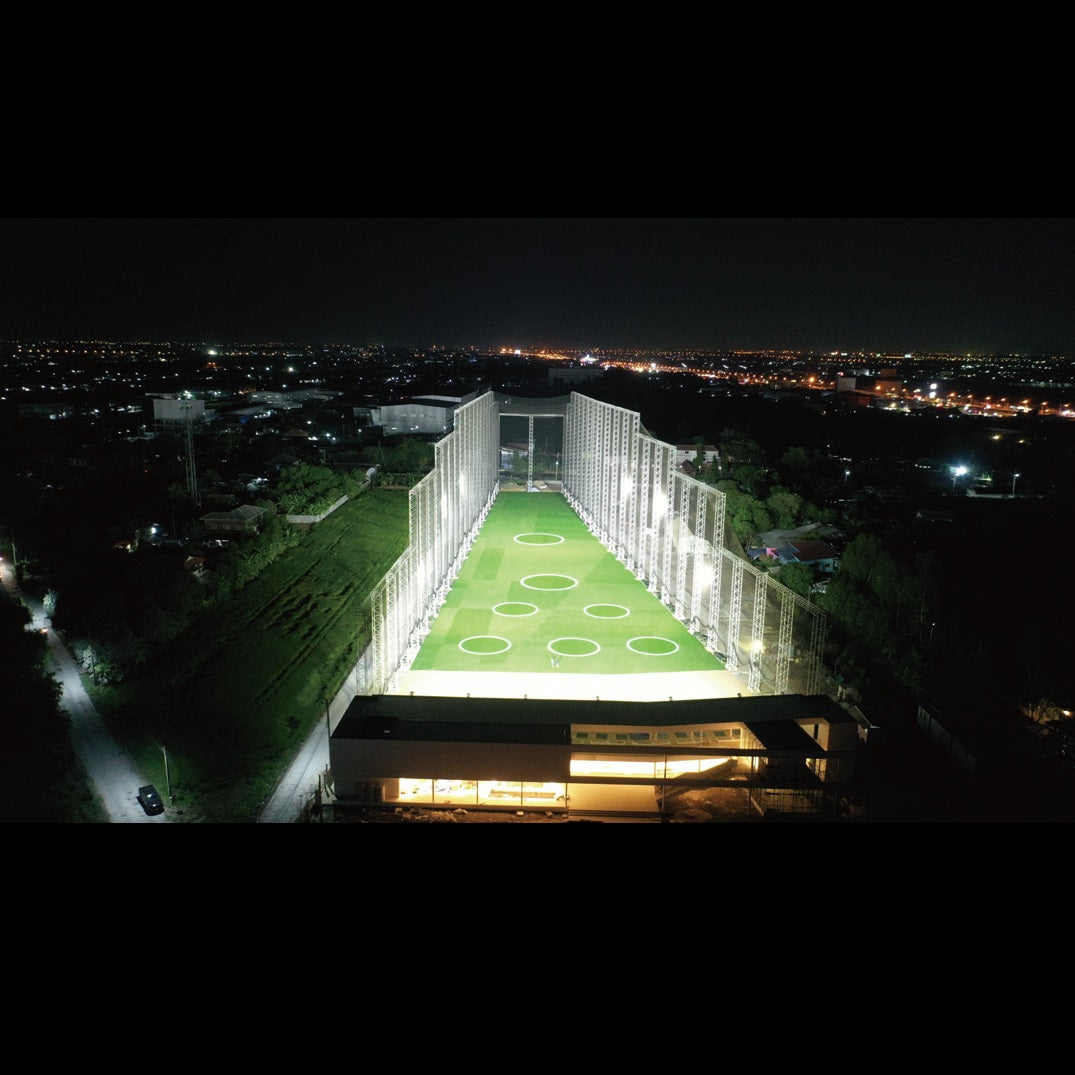

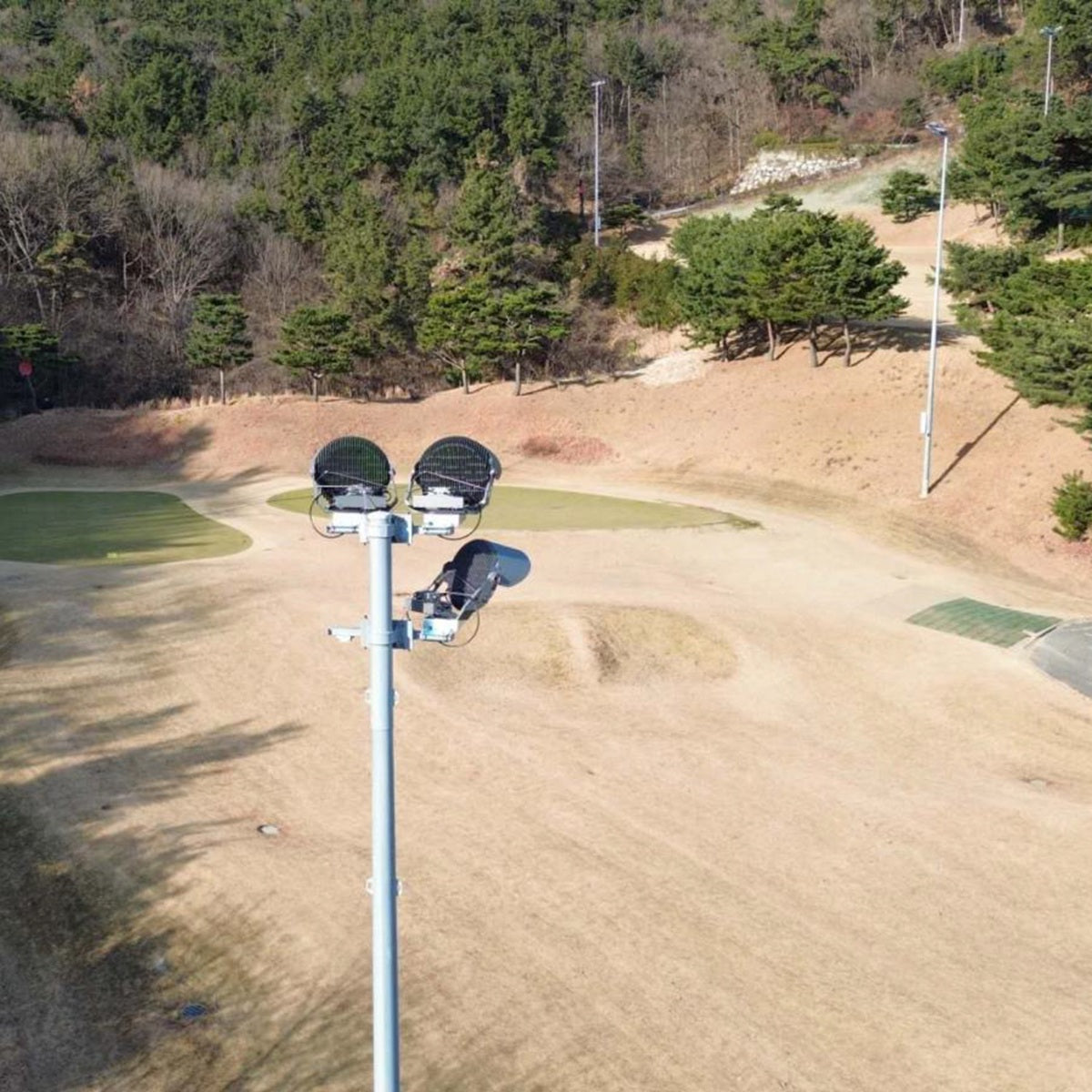

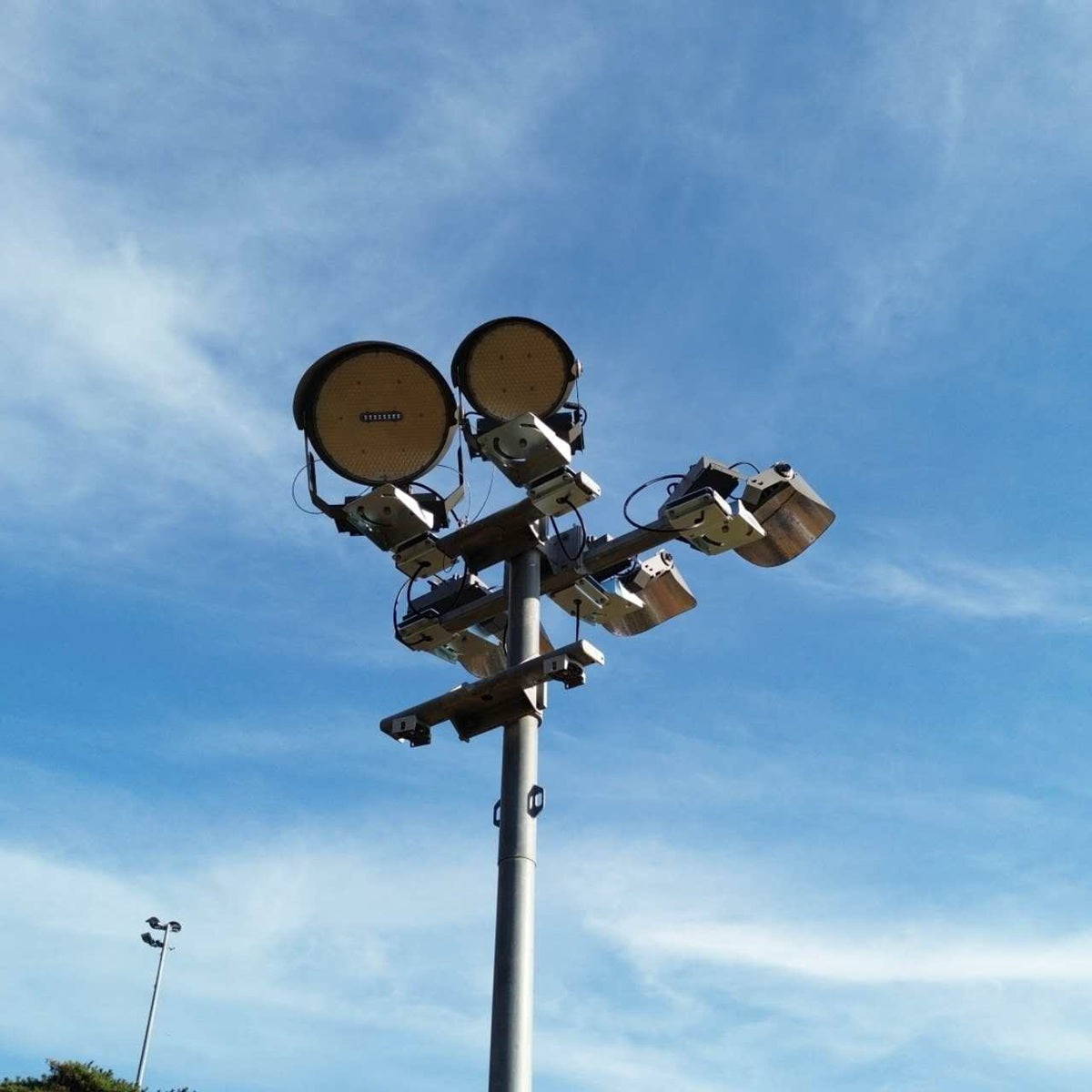

Stadiums, large sports complexes, high-mast municipal lighting, airport aprons, industrial yards, and multi-field athletic facilities.
