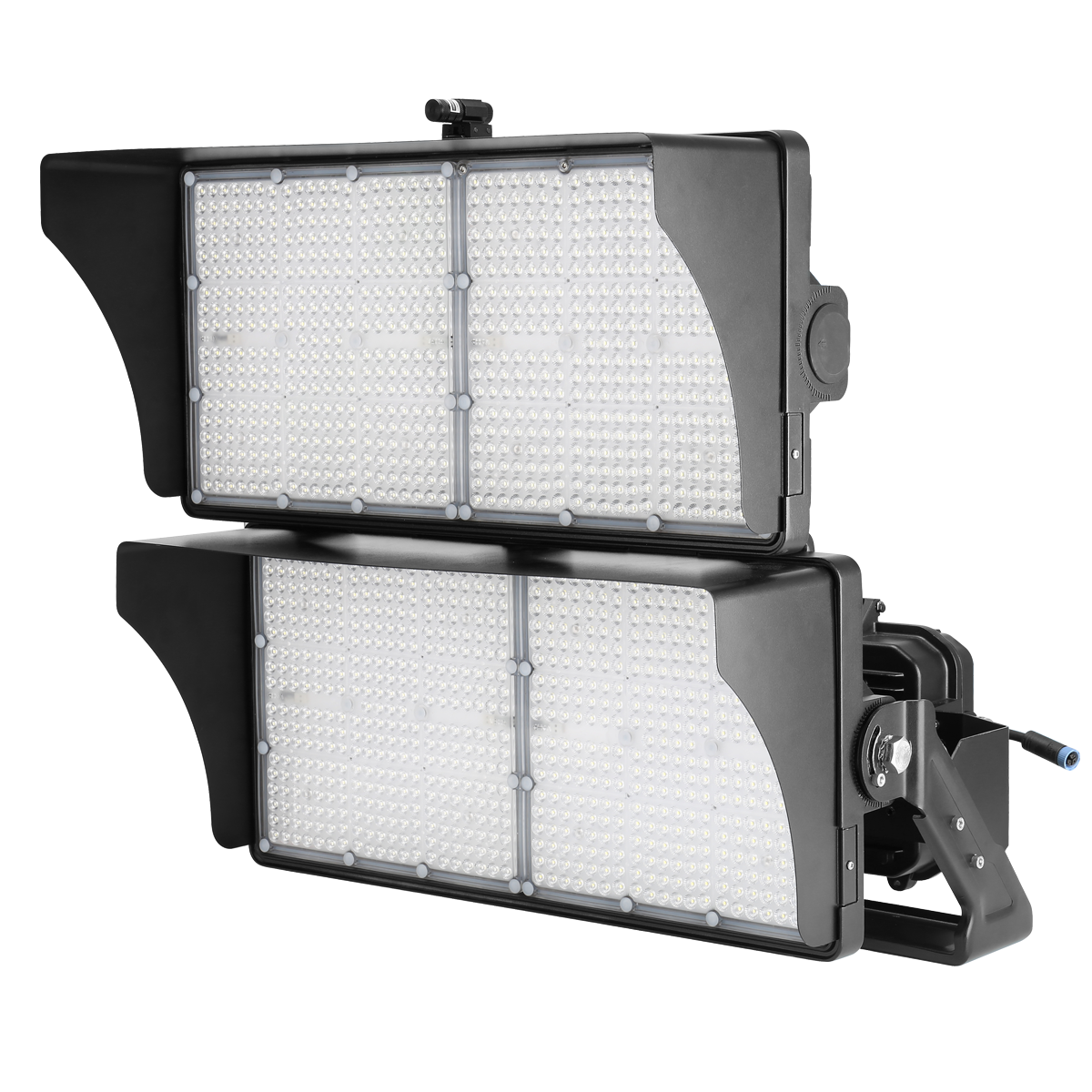

The 850W and 1200W LED stadium lights from ELEDLights are designed for pole heights from 60 to 90 ft and for large school or collegiate fields or mid-sized stadiums. The light is shown with its included glare shields and aiming sight.

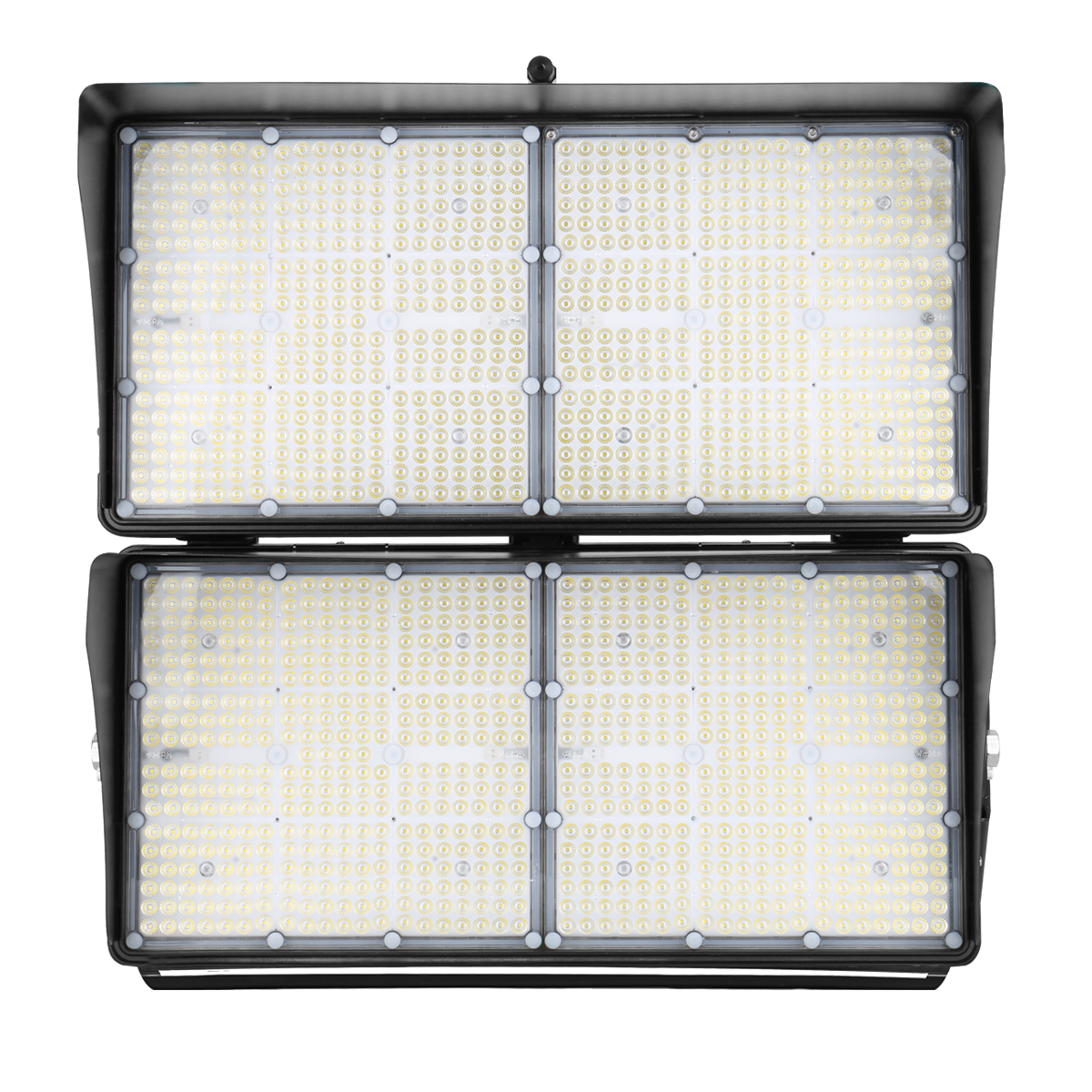

Front view of the 850W LED stadium light from ELEDLights. The light, consisting of two modules with two lights each, forms a square shape. The 1200W LED stadium light is the same size and appearance.

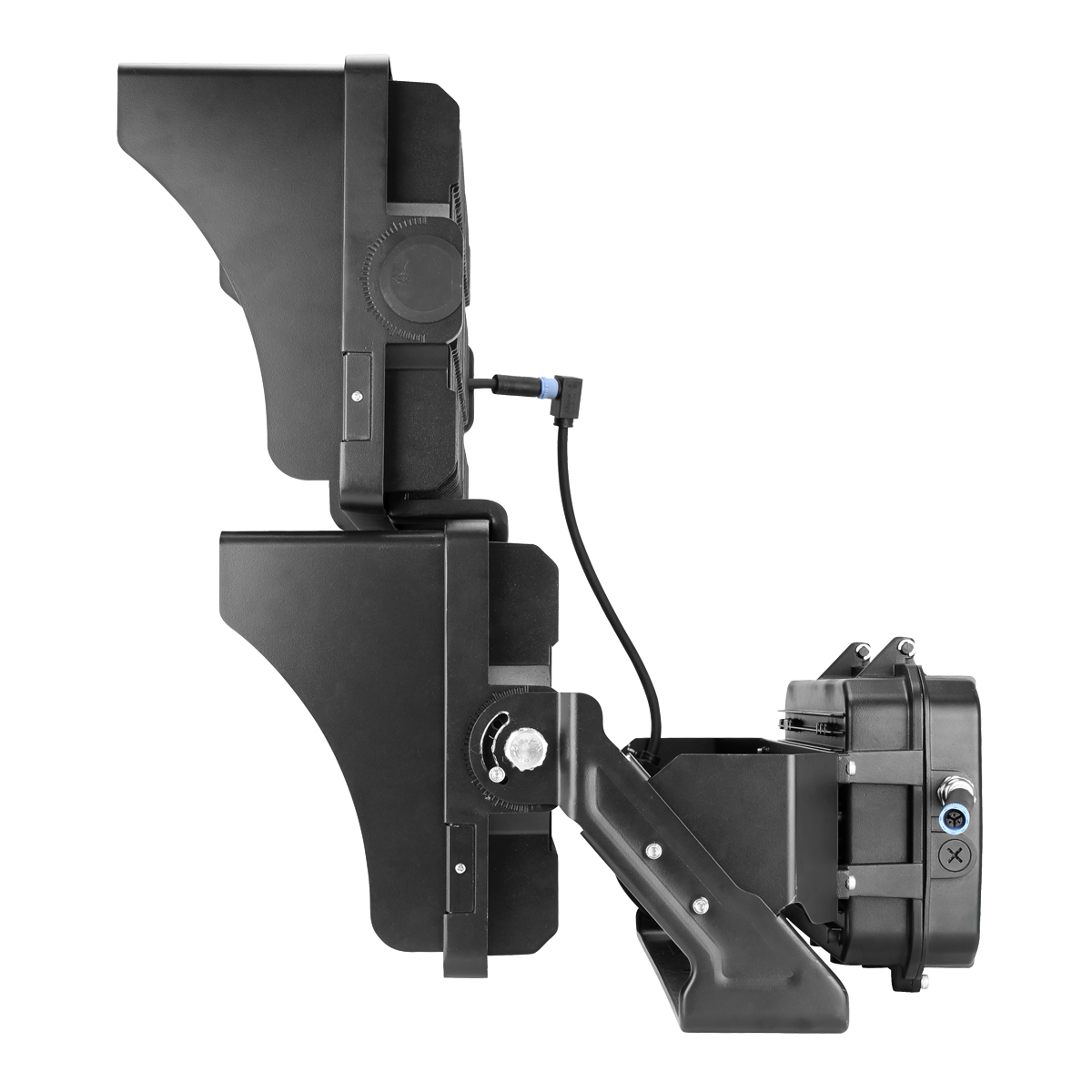

Side view of the 850W LED stadium light from ELEDLights. In addition to the two light modules, you can see the trunnion mount bracket with the power driver box mounted behind it. The 1200W LED stadium light is the same size and appearance.

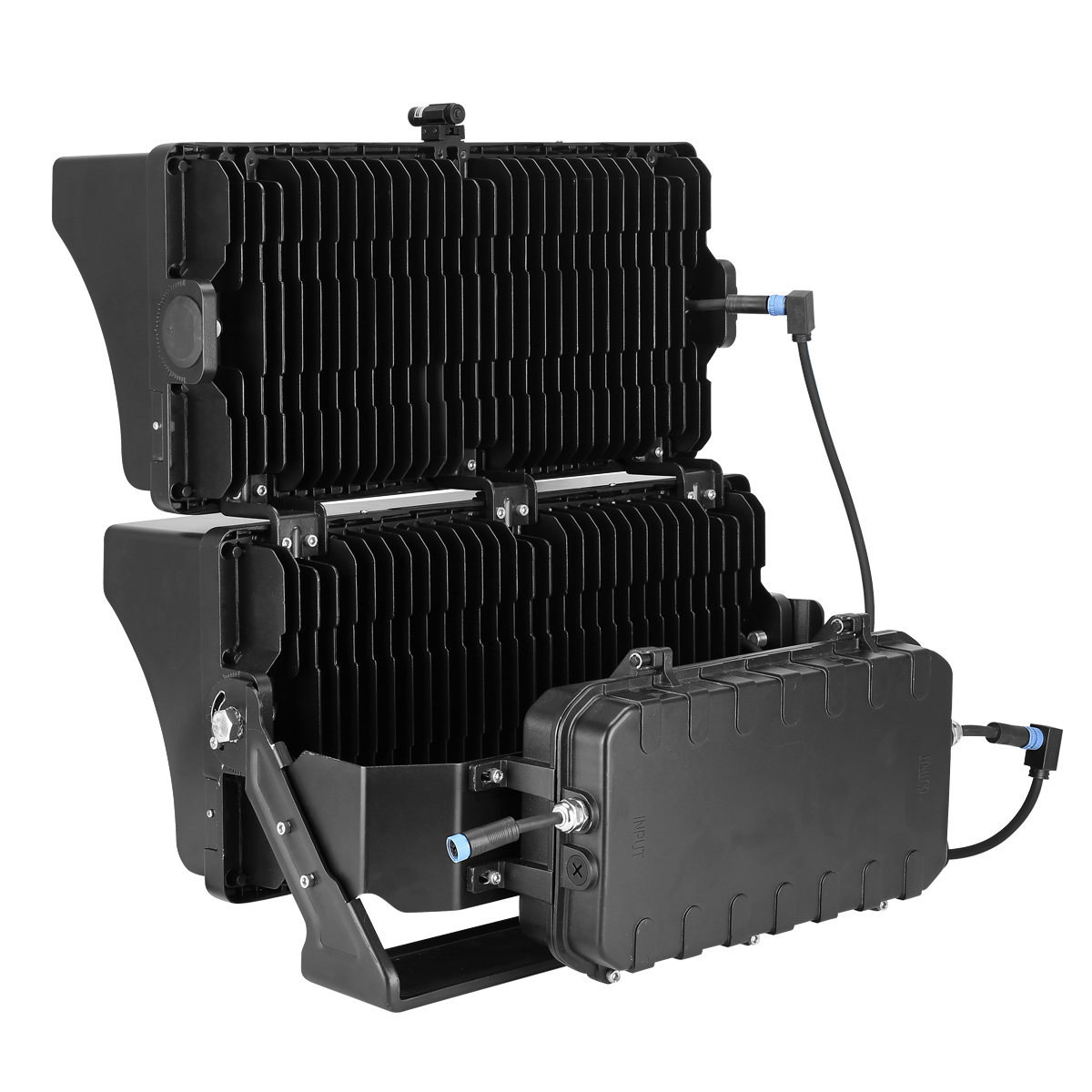

The 850W LED stadium light from ELEDLights features two modules stacked on top of each other. From this back view, you can see the cooling fins of the light fixture and the power driver box. The 1200W LED stadium light is the same size and appearance.

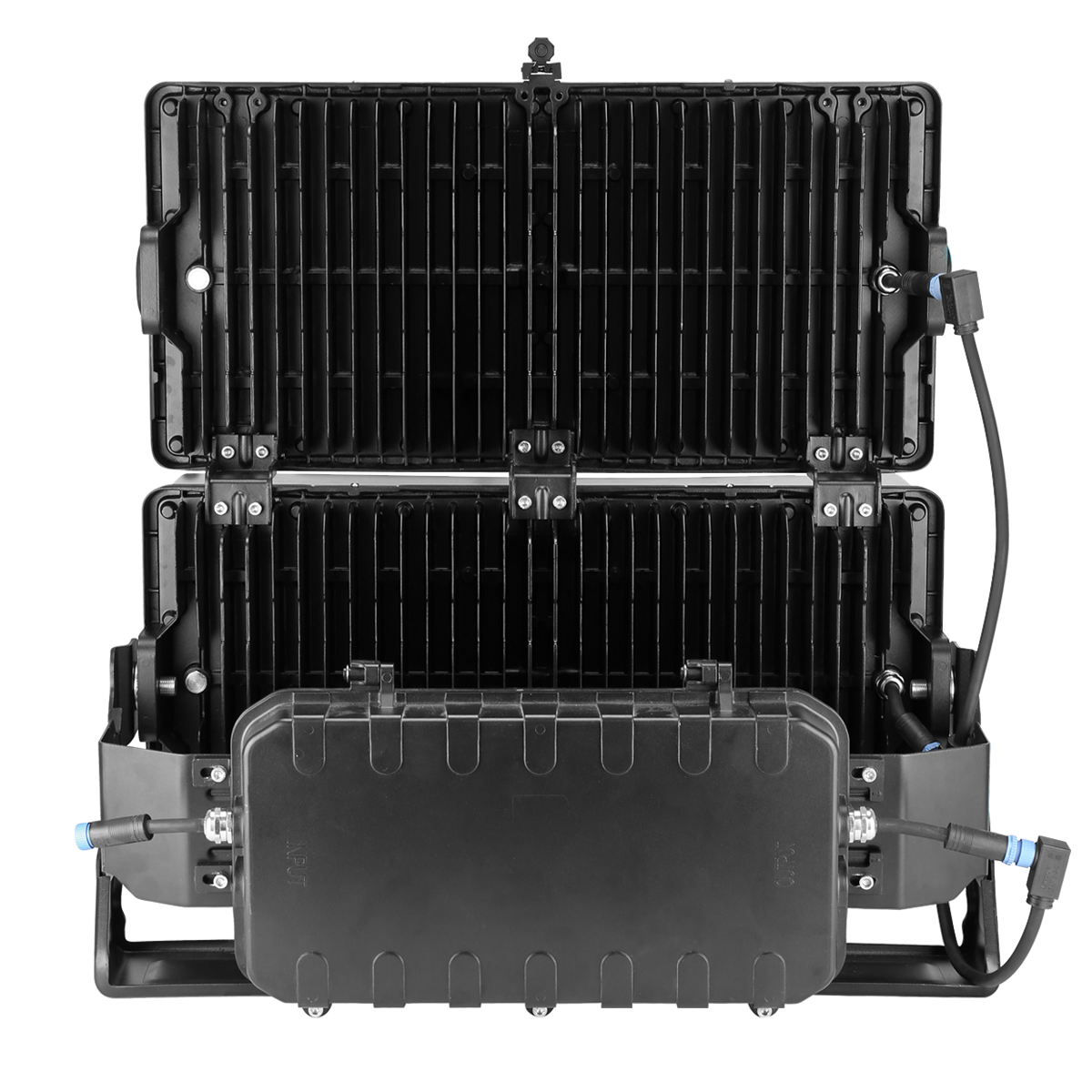

Back view of the 850W LED stadium light from ELEDLights. Black, protected cables connect from the box to both light modules as well as to power. The 1200W LED stadium light is the same size and appearance.

850W LED Stadium Light – 5700K, 4Hx4V Beam

$987.95
ELEDLights | SKU: SPORTSQ850M57K480 | 155 in stock

5 Year Warranty

Lumens:

125,000

Watts:

850W

Color Temp:

5700K
Medium beam angle
For 60 to 90 ft poles
200-480VAC
Trunnion mount

Powerful, Precision Lighting for Large Sports Venues

At 125,000 lm, the 850W can throw light far enough to provide uniform coverage from higher poles without excessive glare, while still being efficient in fixture count.

  • High-Output Performance – Delivers up to 125,000 lumens for large school or collegiate fields, mid-sized stadiums and arenas, and outdoor sports complexes requiring fewer fixtures with wider spacing. Great for 60 to 90 ft poles.
  • Low Energy Cost – 147 lm/W efficacy reduces power consumption while maximizing brightness. You get phenomenal light without the high overhead.
  • Optimized 4Hx4V Beam – Provides wide, uniform coverage with fewer fixtures needed, while the crisp 5700K white light ensures daylight-like clarity for optimum visibility for players, fans, and broadcasts.
  • Long Life, Low Maintenance – 100,000-hour lifespan ensures reliable performance season after season, and the IP65-rated housing resists dust, rain, and outdoor conditions.

Saves $/year in energy costs*

$987.95
Get it by Order Within
Quantity Price Quote

FREE Shipping & 30-Day Returns

Lighting layouts, rebate assistance, project guidance, or special requirements:

Powerful, Precision Lighting for Large Sports Venues

At 125,000 lm, the 850W can throw light far enough to provide uniform coverage from higher poles without excessive glare, while still being efficient in fixture count.

  • High-Output Performance – Delivers up to 125,000 lumens for large school or collegiate fields, mid-sized stadiums and arenas, and outdoor sports complexes requiring fewer fixtures with wider spacing. Great for 60 to 90 ft poles.
  • Low Energy Cost – 147 lm/W efficacy reduces power consumption while maximizing brightness. You get phenomenal light without the high overhead.
  • Optimized 4Hx4V Beam – Provides wide, uniform coverage with fewer fixtures needed, while the crisp 5700K white light ensures daylight-like clarity for optimum visibility for players, fans, and broadcasts.
  • Long Life, Low Maintenance – 100,000-hour lifespan ensures reliable performance season after season, and the IP65-rated housing resists dust, rain, and outdoor conditions.

Saves $/year in energy costs*

See how much you would save in energy
costs by allowing access to your location.

SPECIFICATIONS

Custom Savings Calculator
Wattage(s) 850W
Replaces Wattage(s) 2500W
Light Output 125,000 lumens
Luminous Efficacy (lm/W) 144 lm/W
Average Lamp Life 100,000 hours
Color Temperature(s) 5700K
CRI >70
Dimming 0-10V
Light Distribution Pattern 4Hx4V
Installation Trunnion mount included
Recommended Installation Height 60 to 90 feet
Enclosure Rating IP65, UL Wet Location
Input Voltage 200-480VAC
Temperature Rating -40˚C to 50˚C (-40˚F to 122˚F)
Housing Color Black
Dimensions 24.8" x 24.7" x 22.4"
Certification UL
Warranty 5 Years
