2x2 LED Troffer Retrofit – 3 CCT – 18W/25W/30W – RAB RTLED
941 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
Easily Convert 2x2 Fluorescent Troffers to Energy-Saving LED
Hassle-Free Upgrade in Just 3 Minutes: One-person can quickly do the install.
Customize Your Lighting On-Site: Choose from 3 wattage options & 3 color temperatures.
Fine-Tune Energy Consumption: 100%-10% dimming capability provides even more control.
Sleek Design & Even Illumination for Drop Ceilings
- Attractive Center Basket Design
- Light Diffusing Lenses
- Natural Color Rendering
- Thin-Profile for Flat T-Grid Ceilings

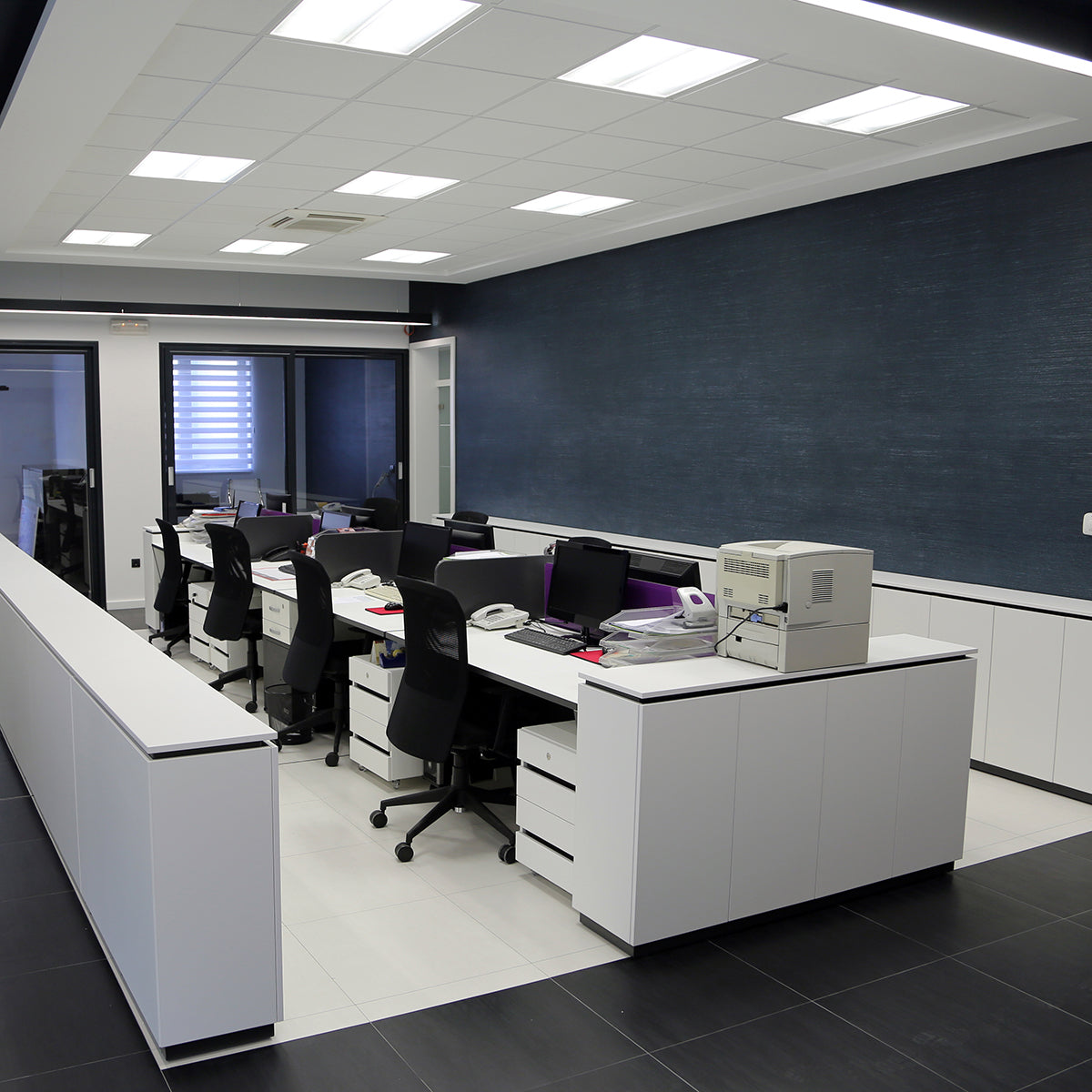

A versatile option that creates an ideal lighting environment for offices, classrooms, healthcare spaces, retail stores, and more.
Saves $/year in energy costs*
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
Easily Convert 2x2 Fluorescent Troffers to Energy-Saving LED
Hassle-Free Upgrade in Just 3 Minutes: One-person can quickly do the install.
Customize Your Lighting On-Site: Choose from 3 wattage options & 3 color temperatures.
Fine-Tune Energy Consumption: 100%-10% dimming capability provides even more control.
Sleek Design & Even Illumination for Drop Ceilings
- Attractive Center Basket Design
- Light Diffusing Lenses
- Natural Color Rendering
- Thin-Profile for Flat T-Grid Ceilings
A versatile option that creates an ideal lighting environment for offices, classrooms, healthcare spaces, retail stores, and more.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
2x2 LED Troffer Retrofit – 3 CCT – 18W/25W/30W – RAB RTLED
941 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
2x2 LED Troffer Retrofit – 3 CCT – 18W/25W/30W – RAB RTLED
941 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 30W/25W/18W |
| Light Output |
At 3500K: 3,583/3,193/2,293 lumens At 4000K: 3,814/3,357/2,343 lumens At 5000K: 3,635/3,257/2,311 lumens |
| Luminous Efficacy (lm/W) | 125.7 to 138.1 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K selectable |
| CRI | >84 |
| Dimming | 0-10V |
| Dimming Range | Dims down to 10% |
| Installation | Recessed into T-grid ceiling. |
| Working Environment | Indoors |
| Input Voltage | 120-277V |
| Temperature Rating | -4°F to 104°F |
| Housing Material | Steel sheet metal with polycarbonate lens |
| Dimensions | 24" x 24" x 1.5" |
| Weight | 7.3 lbs |
| Certification | DLC, UL |
| Warranty | 5 Years |
