RAB IC Rated 2x2 LED Troffer Retrofit – Selectable Color & Wattage
Lumens:
Watts:
Color Temp:
5 Year Warranty
1274 in stockEasily Convert 2x2 Fluorescent Troffers to Energy-Saving LED
Hassle-Free Upgrade in Just 3 Minutes: One-person can quickly do the install.
Customize Your Lighting On-Site: Choose from 3 wattage options & 3 color temperatures.
Fine-Tune Energy Consumption: 100%-10% dimming capability provides even more control.
Sleek Design & Even Illumination for Drop Ceilings
- Attractive Center Basket Design
- Light Diffusing Lenses
- Natural Color Rendering
- Thin-Profile for Flat T-Grid Ceilings
A versatile option that creates an ideal lighting environment for offices, classrooms, healthcare spaces, retail stores, and more.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Easily Convert 2x2 Fluorescent Troffers to Energy-Saving LED
Hassle-Free Upgrade in Just 3 Minutes: One-person can quickly do the install.
Customize Your Lighting On-Site: Choose from 3 wattage options & 3 color temperatures.
Fine-Tune Energy Consumption: 100%-10% dimming capability provides even more control.
Sleek Design & Even Illumination for Drop Ceilings
- Attractive Center Basket Design
- Light Diffusing Lenses
- Natural Color Rendering
- Thin-Profile for Flat T-Grid Ceilings
A versatile option that creates an ideal lighting environment for offices, classrooms, healthcare spaces, retail stores, and more.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
1274 in stock
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
5 Year Warranty
1274 in stock
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 30W/25W/18W |
| Light Output |
@3500K: 3,583/3,193/2,293 lumens @4000K: 3,814/3,357/2,343 lumens @5000K: 3,635/3,257/2,311 lumens |
| Luminous Efficacy (lm/W) | 125.7 to 138.1 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K selectable |
| CRI (Color Accuracy) | >84 |
| Dimming | 0-10V |
| Dimming Range | Dims down to 10% |
| Installation | Recessed into T-grid ceiling. |
| Working Environment | Indoors |
| Input Voltage | 120-277V, 50/60Hz |
| Driver Type | Constant Current, Class 2 |
| Power Factor | @30W, 4000K: 99.7% at 120V, 96.4% at 277V |
| THD (Total Harmonic Distortion) | @30W, 4000K: 3.41% at 120V, 4.37% at 277V |
| Surge Protection | 2.5kV |
| Temperature Rating | -4°F to 104°F |
| Housing Material | Steel sheet metal with polycarbonate lens |

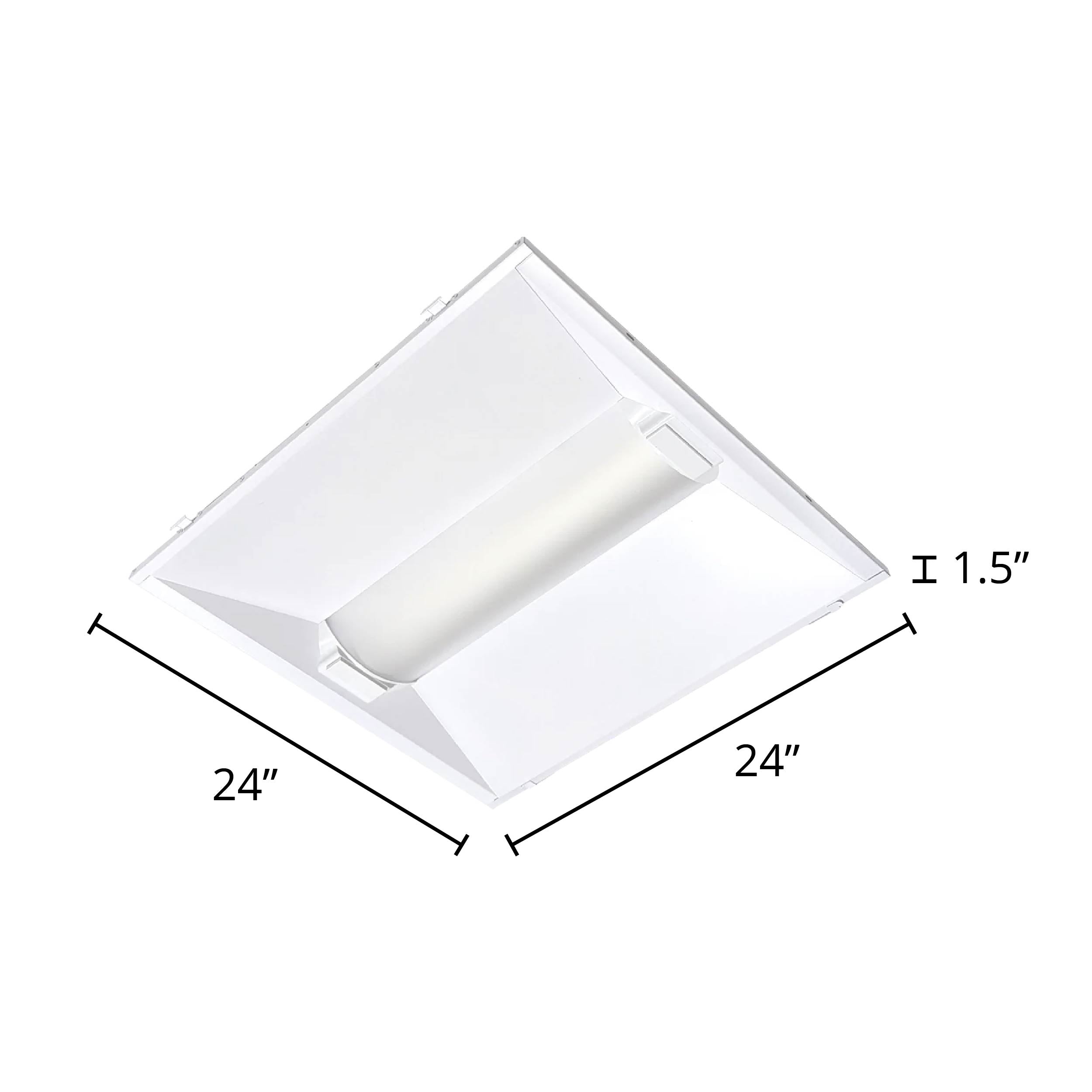

| Dimensions | 24" x 24" x 1.5" |
| Weight | 7.3 lbs |
| Certification | DLC Premium, UL |
| DLC ID(s) | S-R1IK8X |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
Key Features
Selectable Wattage & CCT
Quick & Easy Install
Built-in Dimmability
Easily Convert 2x2 Fluorescent Troffers to Energy-Saving LED
Hassle-Free Upgrade in Just 3 Minutes: One-person can quickly do the install.
Customize Your Lighting On-Site: Choose from 3 wattage options & 3 color temperatures.
Fine-Tune Energy Consumption: 100%-10% dimming capability provides even more control.
Sleek Design & Even Illumination for Drop Ceilings
- Attractive Center Basket Design
- Light Diffusing Lenses
- Natural Color Rendering
- Thin-Profile for Flat T-Grid Ceilings
A versatile option that creates an ideal lighting environment for offices, classrooms, healthcare spaces, retail stores, and more.
Light Output
This light is wattage and color selectable. Click a wattage to see the light output for that setting.
