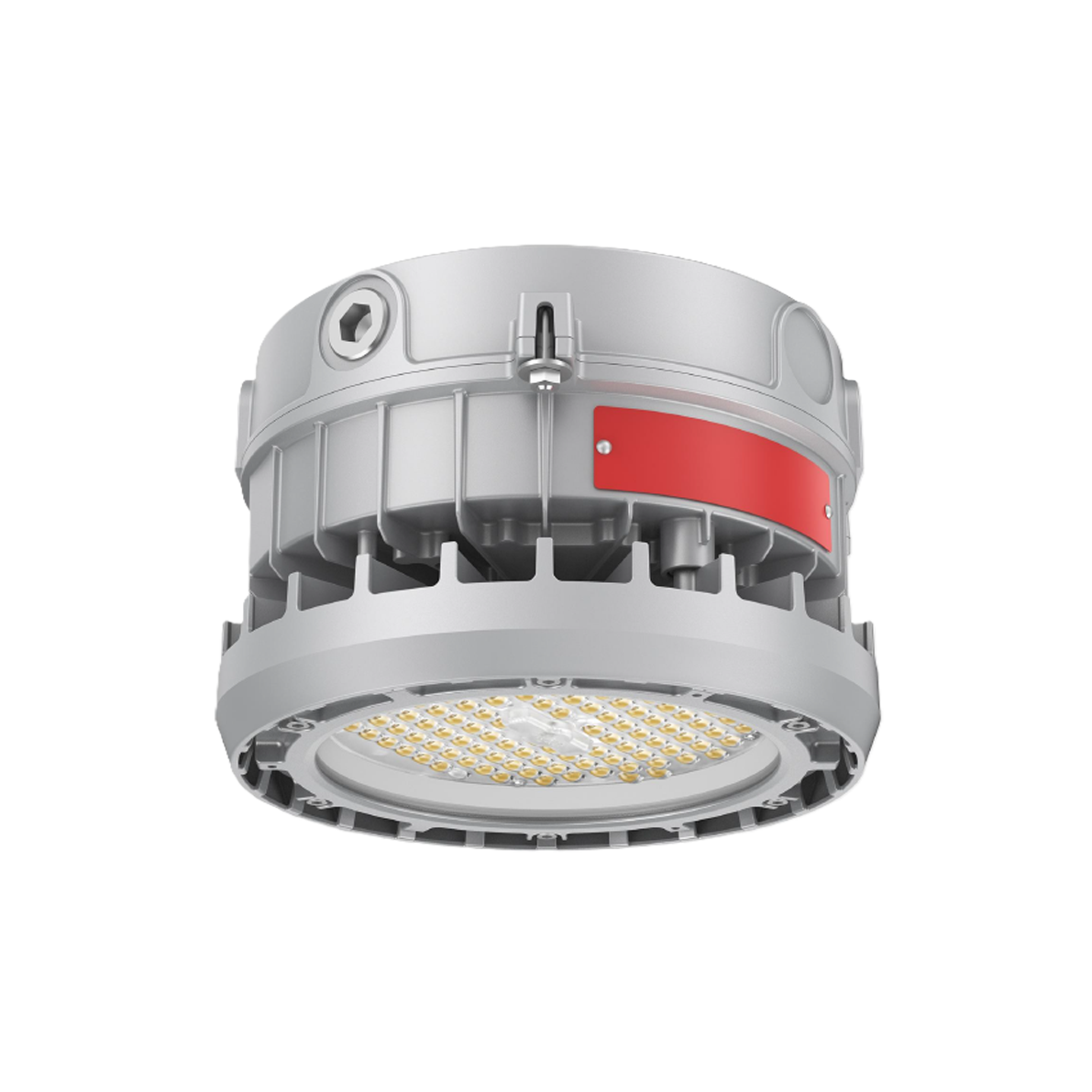

Wattage-Selectable LED Hazardous Location & Marine Grade Light - 30/53/75W - LED Living
75W Max Wattage-Selectable LED Low Bay Light - Hazardous Location & Marine Grade - LED Living - C1D2
Regular price
Lumens:
3,300-11,250
Watts:
30-75W
Color Temp:
5000K
Rated for C1D2, C2D2, and C3
Anti-Corrosion Construction
Pendant + Trunnion Mounting Standard
Stanchion, Ceiling, & Wall Mounting Accessories
5 Year Warranty
Wattage-Selectable Hazardous Location Lighting with Mounting Accessories for Difficult Sites
Corrosion-resistant marine-grade build to deliver 10+ years of safe, high-efficiency LED lighting in hazardous locations.
-
Flexible installation options with trunnion/pendant mounting hardware standard. Wall, ceiling, and 25°/90° stanchion mounting accessories available for compatibility with oil rigs, drilling platforms, and other difficult locations.
-
Hazardous Location Rated (Class I Div 2) – For areas where explosive gases may be present during leaks, failures, or other abnormal conditions.
- Dust-ignition Proof (Class II Div 2) – Safe for use in environments where combustible dusts are present but not normally in explosive concentrations.
- Simultaneous Presence – This light can be used in environments with both flammable gases/vapors and combustible dust/fibers.
- Weather Resistant (Type 4X, IP66, Marine-rated) – Withstands rain, hose-downs, and salt spray.
- Suited to Cold Environments with an operating temperature down to -40°F.
LED Living Technology's HRHB03 is a safe, long-lasting, and energy-saving choice for use in drilling rigs, petrochemical facilities & refineries, food & beverage plants, and other hazardous environments.
Saves $/year in energy costs*
Regular price
Order Within
$12 flat rate / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
Wattage-Selectable Hazardous Location Lighting with Mounting Accessories for Difficult Sites
Corrosion-resistant marine-grade build to deliver 10+ years of safe, high-efficiency LED lighting in hazardous locations.
-
Flexible installation options with trunnion/pendant mounting hardware standard. Wall, ceiling, and 25°/90° stanchion mounting accessories available for compatibility with oil rigs, drilling platforms, and other difficult locations.
-
Hazardous Location Rated (Class I Div 2) – For areas where explosive gases may be present during leaks, failures, or other abnormal conditions.
- Dust-ignition Proof (Class II Div 2) – Safe for use in environments where combustible dusts are present but not normally in explosive concentrations.
- Simultaneous Presence – This light can be used in environments with both flammable gases/vapors and combustible dust/fibers.
- Weather Resistant (Type 4X, IP66, Marine-rated) – Withstands rain, hose-downs, and salt spray.
- Suited to Cold Environments with an operating temperature down to -40°F.
LED Living Technology's HRHB03 is a safe, long-lasting, and energy-saving choice for use in drilling rigs, petrochemical facilities & refineries, food & beverage plants, and other hazardous environments.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Regular price
Lumens:
3,300-11,250
Watts:
30-75W
Color Temp:
5000K
Rated for C1D2, C2D2, and C3
Anti-Corrosion Construction
Pendant + Trunnion Mounting Standard
Stanchion, Ceiling, & Wall Mounting Accessories
5 Year Warranty
Regular price
Order Within
$12 flat rate / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
Regular price
Lumens:
3,300-11,250
Watts:
30-75W
Color Temp:
5000K
Rated for C1D2, C2D2, and C3
Anti-Corrosion Construction
Pendant + Trunnion Mounting Standard
Stanchion, Ceiling, & Wall Mounting Accessories
5 Year Warranty
Regular price
Order Within
$12 flat rate / FREE over $500
Buying 12 or more?
Get a better price & free shipping:
Text: (858) 650-9400
Call: (215) 355-7200
or Request Bulk Quote
SPECIFICATIONS
| Wattage(s) | 30W/53W/75W |
| Replaces Wattage(s) | 250W |
| Light Output | 3,300-11,250 lumens |
| Luminous Efficacy (lm/W) | 150 lm/W |
| Average Lamp Life |
L90: 48,000 hours L80: 102,300 hours L70: 164,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Dimming | 0-10V |
| Beam Angle | Type V |
| Installation |
Trunnion & Pendant Mount Standard Accessories available for Wall Mount, Ceiling Mount, 25° Stanchion Mount, and 90° Stanchion Mount |
| Enclosure Rating | IP66, IK08 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | >0.95 |
| Surge Protection | 10kV line-line, 10kV line-earth |
| Temperature Rating | -40°C to +60°C (-40°F to +140°F) |
| Housing Material | Aluminum Alloy (less than 0.4% copper content), Tempered Glass |
| Housing Color | Gray |
| Dimensions | 10.55" x ø9.68” x 11.77” |
| Weight | 9.7lbs |
| Certification | UL, CSA |
| Warranty | 5 Years |
| Additional Specifications |
Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 2, GR. F, G Class III Class I, Zone 2, Group IIC Zone 21, Group IIIC Zone 22 |
COMPARE KEY FEATURES
Wattage-Selectable LED Hazardous Location & Marine Grade Light - 30/53/75W - LED Living
|
LED Hazardous Location & Marine Grade Light - 75W - LED Living
|
LED Hazardous Location, Explosion Proof & Marine Grade Light - 70W - LED Living
|
|
|---|---|---|---|
| Wattage | 30W/53W/75W | 75W | 70W |
| Efficacy | 150 lm/W | 140 lm/W | 140 lm/W |
| CCT | 5000K | 5000K | 5000K |
| Temperature Rating | -40°C to +60°C (-40°F to +140°F) | -40°F to +113°F | -40°F to +149°F |
| Additional Info | Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 2, GR. F, G Class III Class I, Zone 2, Group IIC Zone 21, Group IIIC Zone 22 |
Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 1, GR. E, F, G Class II, Div. 2, GR. F, G Class III Class l, Zone 2, Group IlC Zone 20 and Zone 21 Zone 22 |
Classifications Class I, Division 1, Groups B, C, D Class I, Division 2, Groups B, C, D Class II, Division 1, Groups E, F, G Class II, Division 2, Groups F, G Class III Class l, Zone 1, Group llB plus hydrogen Class l, Zone 2, Group llB plus hydrogen Zone 20 and Zone 21 Zone 22 |
|
