75W Hazardous Location & Marine Grade LED Living Low Bay Light
75W Hazardous Location & Marine Grade LED Living Low Bay Light
75W Hazardous Location & Marine Grade LED Living Low Bay Light
75W Hazardous Location & Marine Grade LED Living Low Bay Light
A 75W Class I Div 2 and Class II Div 1 round high bay — rated for combustible dust explosions.
- Class I Div 2 & Zone 2; Class II Div 1 & Zone 20/21 — Type 4X, IP66, marine-rated, to -40°F.
- Waterproof, dustproof, corrosion-resistant — trunnion and pendant mounting included.
- 5-year warranty for fuel storage, aircraft hangars, chemical plants, and offshore platforms.
Bulk Pricing: Text (858) 650-9400 or Request Quote
A 75W Class I Div 2 and Class II Div 1 round high bay — rated for combustible dust explosions.
- Class I Div 2 & Zone 2; Class II Div 1 & Zone 20/21 — Type 4X, IP66, marine-rated, to -40°F.
- Waterproof, dustproof, corrosion-resistant — trunnion and pendant mounting included.
- 5-year warranty for fuel storage, aircraft hangars, chemical plants, and offshore platforms.
Choose options
Details
Safety, Durability, and Performance
Waterproof, dustproof, corrosion-resistant, impact-resistant, and certified explosion proof, the HRHB02 provides reliable operation in tough and hazardous conditions.
-

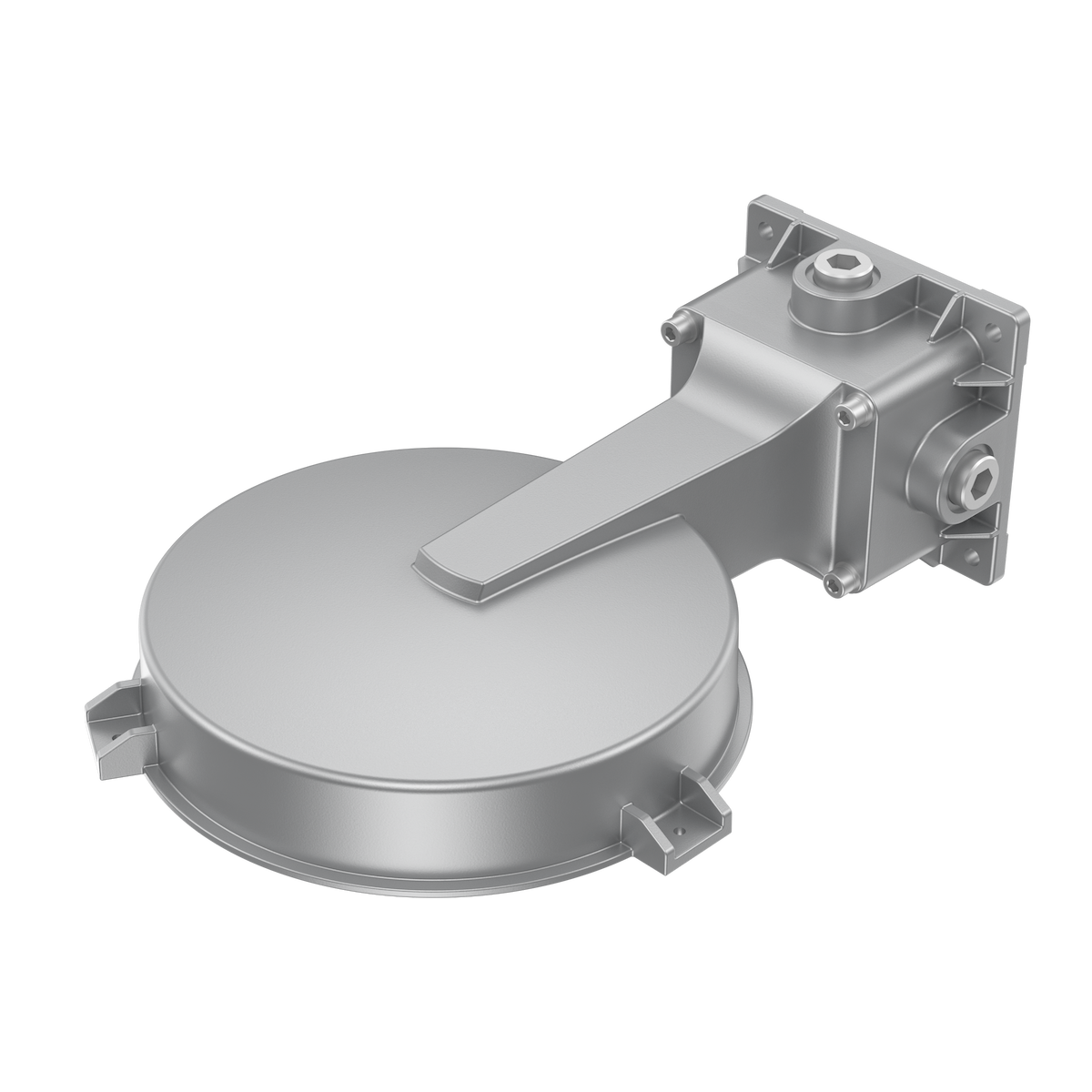

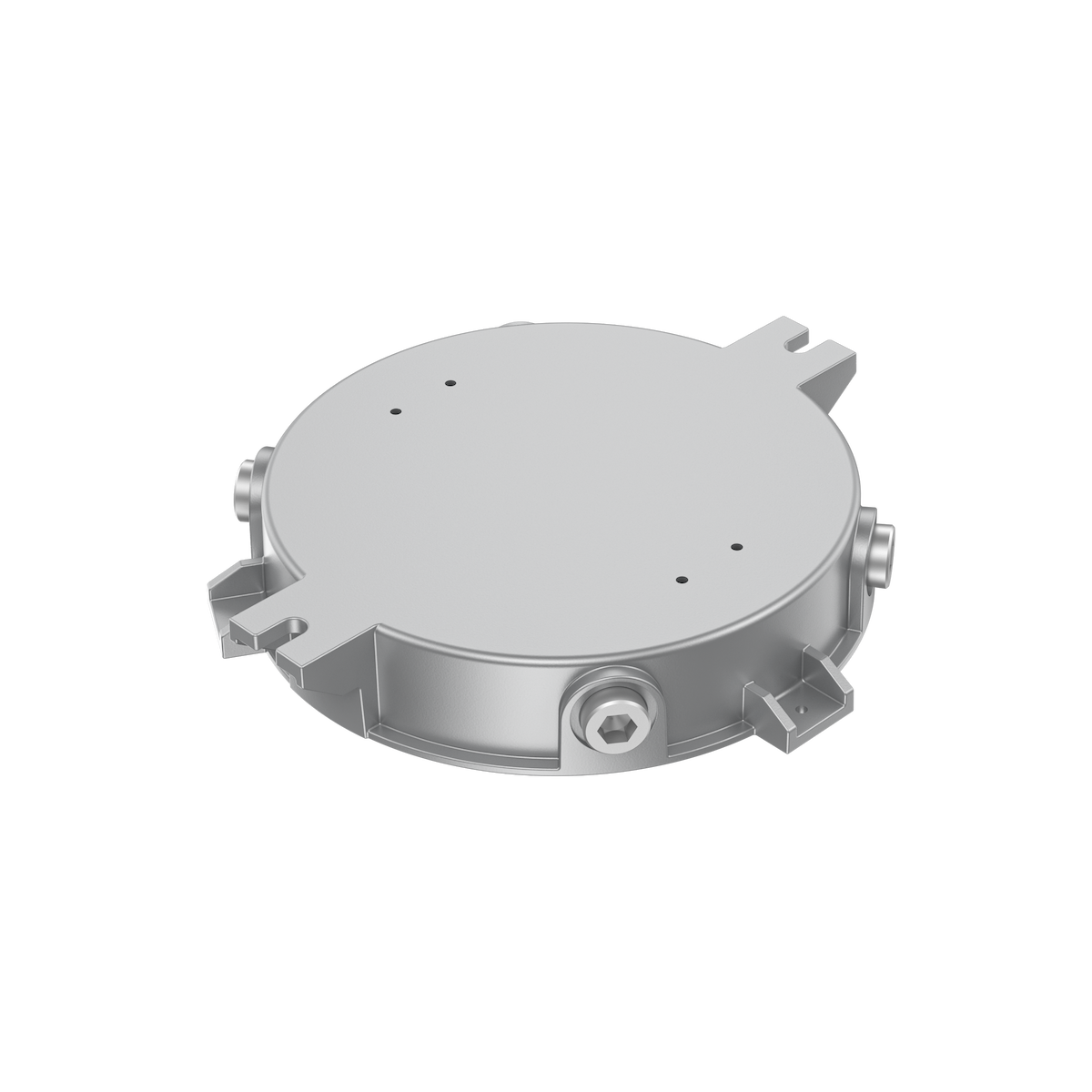

Easy Installation with self-locking terminals and both a trunnion and a pendant (3/4" NPT conduit) mount included in the box. (Wall & ceiling mount accessories available.)
- Hazardous Location Rated (Class I Div 2 & Zone 2) – For areas where explosive gases may be present only under abnormal conditions, such as in the event of a leak or failure.
- Dust-ignition Proof (Class II Div 1 & Zone 20/21) – Safe for use in environments where there's a risk of combustible dust explosion
- Weather Resistant (Type 4X, IP66, Marine-rated) – Withstands rain, hose-downs, and salt spray
- Suited to Cold Environments with an operating temperate down to -40°F
This light is safe to use in many challenging applications, including fuel storage areas, aircraft hangars, pipelines, chemical plants, pharmaceutical labs, grain and food processing, mining & coal handling, metal processing, woodworking and sawmills, textile mills, paper & pulp plants, and marine & offshore environments.
Specs
| Wattage(s) | 75W |
| Replaces Wattage(s) | 250W |
| Light Output | 10,500 lumens |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Average Lamp Life |
L80: 96,395 hours L70: 153,225 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Beam Angle | 120° |
| Enclosure Rating | IP66, IK08 |
| LED Type | LED 3030 |
| Input Voltage | 100-277VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | INVENTRONICS |
| Power Factor | >0.9 |
| Surge Protection | 10kV line-line, 10kV line-earth |
| Temperature Rating | -40°F to +113°F |
| Housing Material | Aluminum Alloy (less than 0.4% copper content), Polycarbonate Optical Lens, Tempered Glass |
| Housing Color | Gray |
| Dimensions |
φ300x230mm (φ11.81” x 9.05”) with pendant mount φ300x348mm (φ11.81” x 13.7”) with trunnion mount |
| Weight |
6.1±0.3kg (13.45±0.66lbs) with pendant mount 8.1±0.3kg (17.86±0.66lbs) with trunnion mount |
| Certification | UL, CSA |
| Warranty | 5 Years |
| Additional Specifications |
Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 1, GR. E, F, G Class II, Div. 2, GR. F, G Class III Class l, Zone 2, Group IlC Zone 20 and Zone 21 Zone 22 |
Data SheetCompare Key Features
Compare
75W Hazardous Location & Marine Grade LED Living Low Bay Light
|
100W Hazardous Location & Marine Grade LED Living Low Bay Light
|
70W Hazardous Location, Explosion Proof & Marine Grade LED Living Light
|
|
|---|---|---|---|
| Wattage | 75W | 100W | 70W |
| Efficacy | 140 lm/W | 140 lm/W | 140 lm/W |
| CCT | 5000K | 5000K | 5000K |
| Temperature Rating | -40°F to +113°F | -40°F to +113°F | -40°F to +149°F |
| Additional Info | Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 1, GR. E, F, G Class II, Div. 2, GR. F, G Class III Class l, Zone 2, Group IlC Zone 20 and Zone 21 Zone 22 |
Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 1, GR. E, F, G Class II, Div. 2, GR. F, G Class III Class l, Zone 2, Group IlC Zone 20 and Zone 21 Zone 22 |
Classifications Class I, Division 1, Groups B, C, D Class I, Division 2, Groups B, C, D Class II, Division 1, Groups E, F, G Class II, Division 2, Groups F, G Class III Class l, Zone 1, Group llB plus hydrogen Class l, Zone 2, Group llB plus hydrogen Zone 20 and Zone 21 Zone 22 |
|
$457.95
|
$521.95
View Details
|
$560.95
View Details
|
