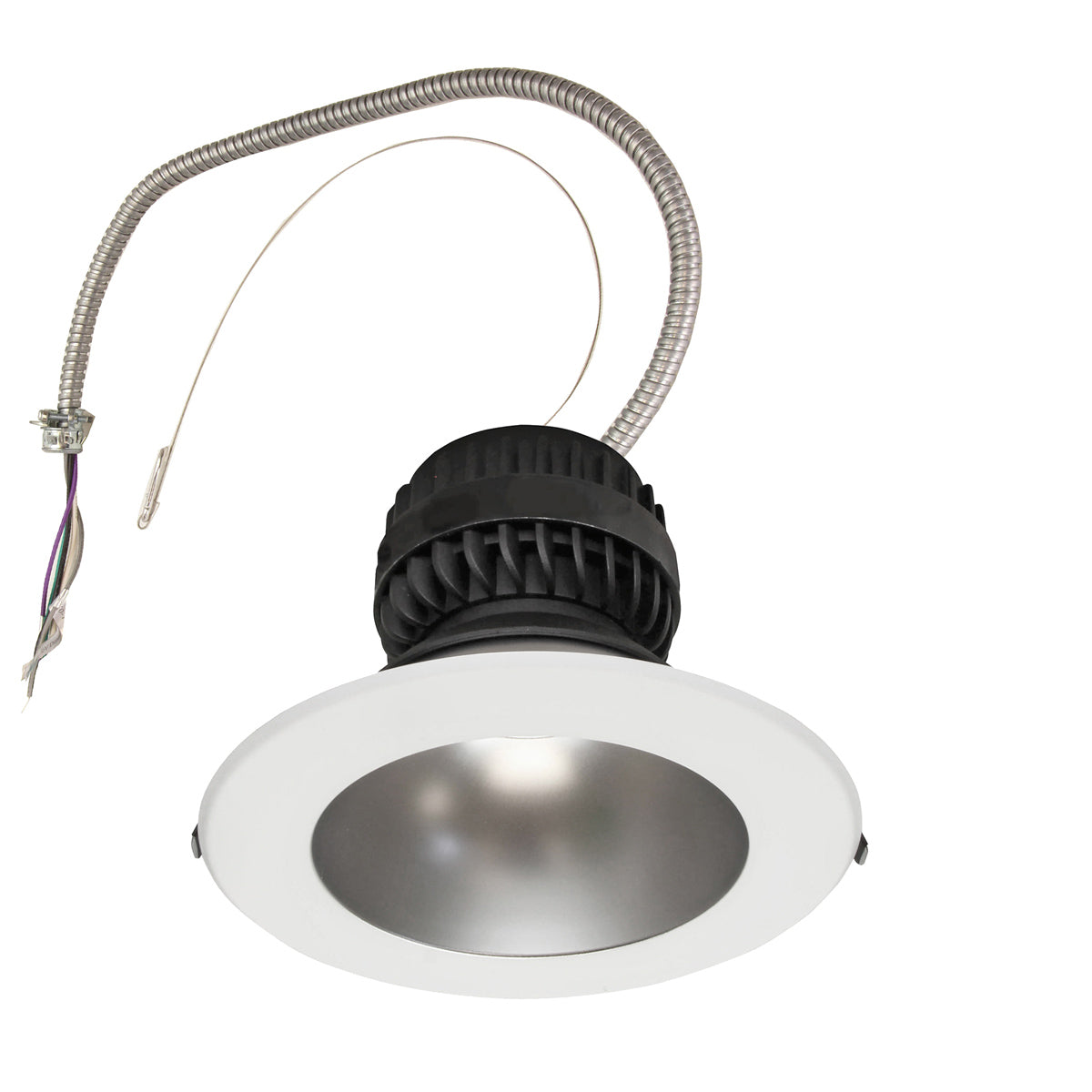

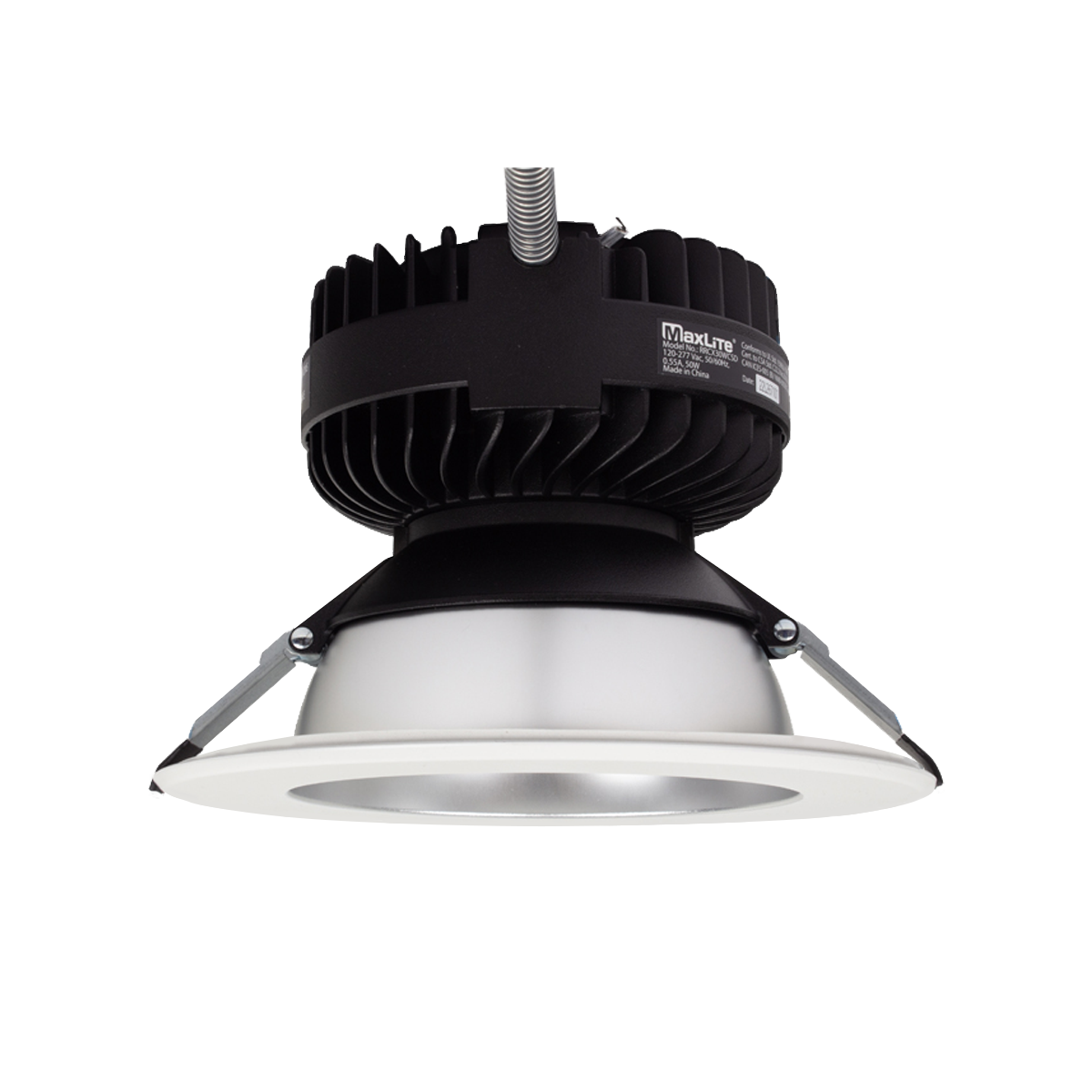

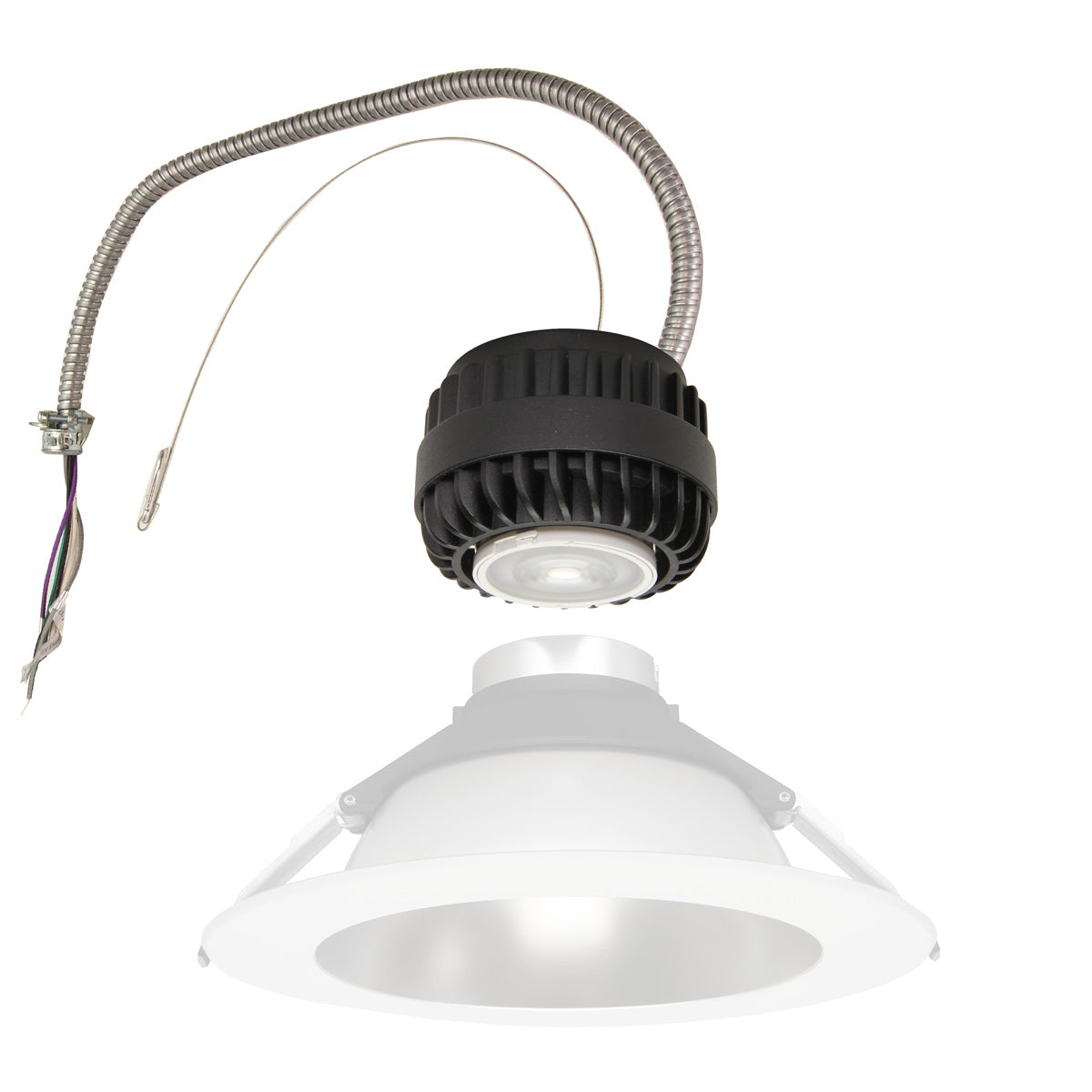

Architectural LED Downlight - 5 CCT - 10/15/20W - MaxLite RRC
20 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
Future-Proof Recessed Lighting
- 3 Wattages and 5 CCT Settings: Easily adapts to needs now and in the future.
- Adjustable Beam Angle on the 10W/15W/20W model: Adjust from 24° to 45°.
- Controls-Ready: Field-installable upgrades available to create scenes and high-trim/tubing - contact us for more information.
A Perfect Downlight for Upgrades or New Construction
- Upgrade: Compatible with most existing fluorescent, incandescent, and metal halide downlight housings.
- New Construction: Use a commercial recessed frame; 2-piece, twist-lock design makes for a quick install.
A versatile lighting solution for offices, hotels, classrooms, restaurants, retail, and any other application that requires dependable, recessed downlighting. The 10W/15W/20W model is airtight and rated for contact with insulation.
Saves $/year in energy costs*
You must choose a bracket
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
Future-Proof Recessed Lighting
- 3 Wattages and 5 CCT Settings: Easily adapts to needs now and in the future.
- Adjustable Beam Angle on the 10W/15W/20W model: Adjust from 24° to 45°.
- Controls-Ready: Field-installable upgrades available to create scenes and high-trim/tubing - contact us for more information.
A Perfect Downlight for Upgrades or New Construction
- Upgrade: Compatible with most existing fluorescent, incandescent, and metal halide downlight housings.
- New Construction: Use a commercial recessed frame; 2-piece, twist-lock design makes for a quick install.
A versatile lighting solution for offices, hotels, classrooms, restaurants, retail, and any other application that requires dependable, recessed downlighting. The 10W/15W/20W model is airtight and rated for contact with insulation.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Architectural LED Downlight - 5 CCT - 10/15/20W - MaxLite RRC
20 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
You must choose a bracket
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
Architectural LED Downlight - 5 CCT - 10/15/20W - MaxLite RRC
20 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
You must choose a bracket
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 10W/15W/20W |
| Light Output |
1,046/1,476/1,944 lumens @ 25° beam angle 1,065/1,550/1,960 lumens @ 45° beam angle |
| Luminous Efficacy (lm/W) | Up to 106.5 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 2700K/3000K/3500K/4000K/5000K CCT Selectable |
| CRI | ≥ 80 |
| Dimming | 0-10V dimming |
| Beam Angle | 24° to 45° adjustable with 30° cutoff |
| Working Environment | Indoor |
| Enclosure Rating | Damp Location |
| Input Voltage | 120-277V |
| Housing Color | Reflector flange is white. Reflector finish is available in white and matte silver. |
| Certification | ETL Listed & Classified for Damp locations, IC Rated (Up to 20W), Airtight Construction (up to 20W), Energy Star Certified |
| Warranty | 5 Years |
| Additional Specifications | Reflector (required) available in 4", 6", 8", or 9.5". Select at time of purchase. |
