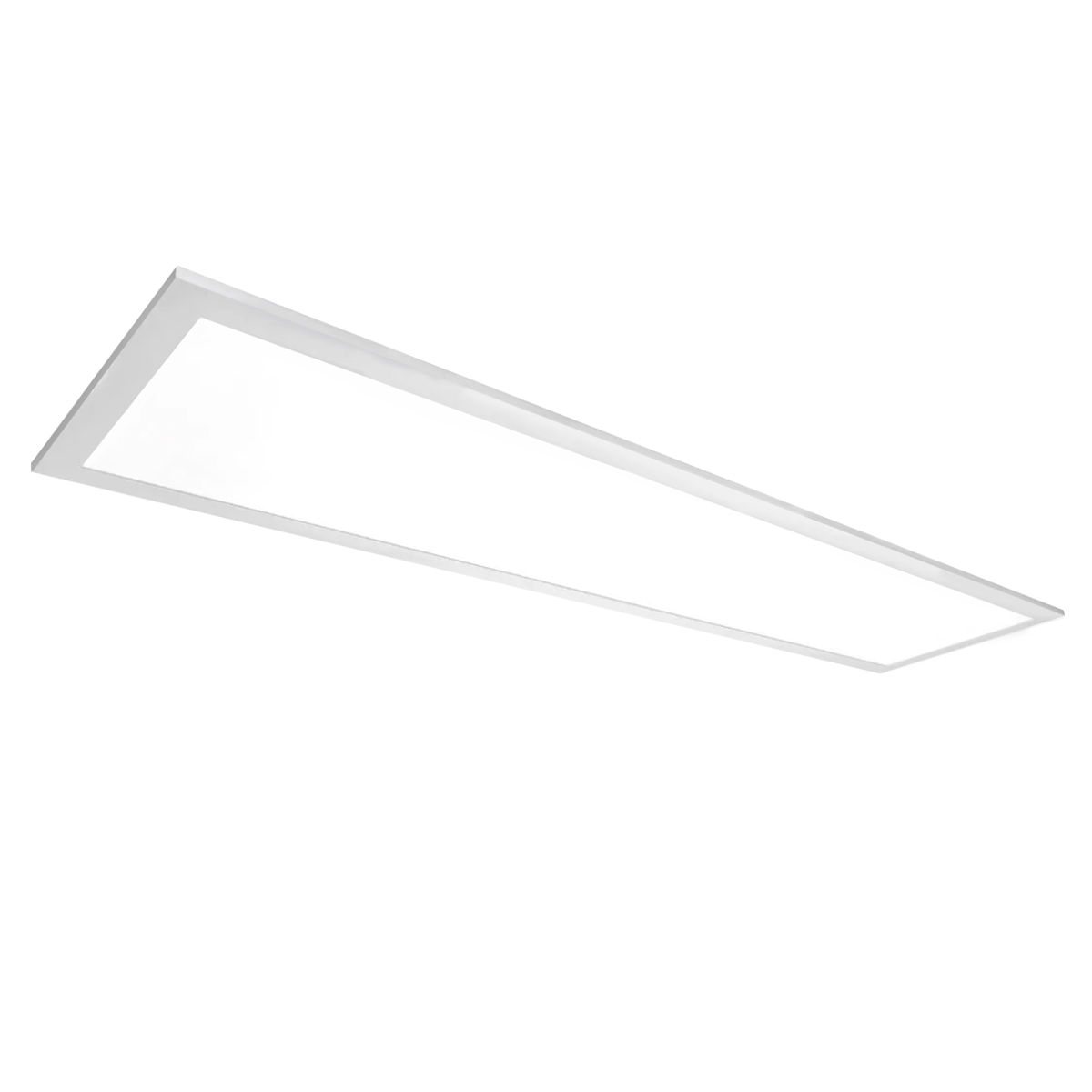

1x4 Backlit LED Panel – 3 CCT – 15W/20W/25W – MaxLite FlatMax Gen5
10 Year Warranty
Lumens:
Watts:
Color Temp:
Long-Lifespan Drop Ceiling Lights with a Special Warranty
Control-Ready Lighting: Easily plug in smart sensors to add dimming, daylight harvesting, and more.
Great for Bulk-Buying: Buy one SKU and select the right wattage & CCT for each space during install.
Lasts 10+ Years: Has an average lifespan of 100,000 hours and is backed by a special 10-year warranty.

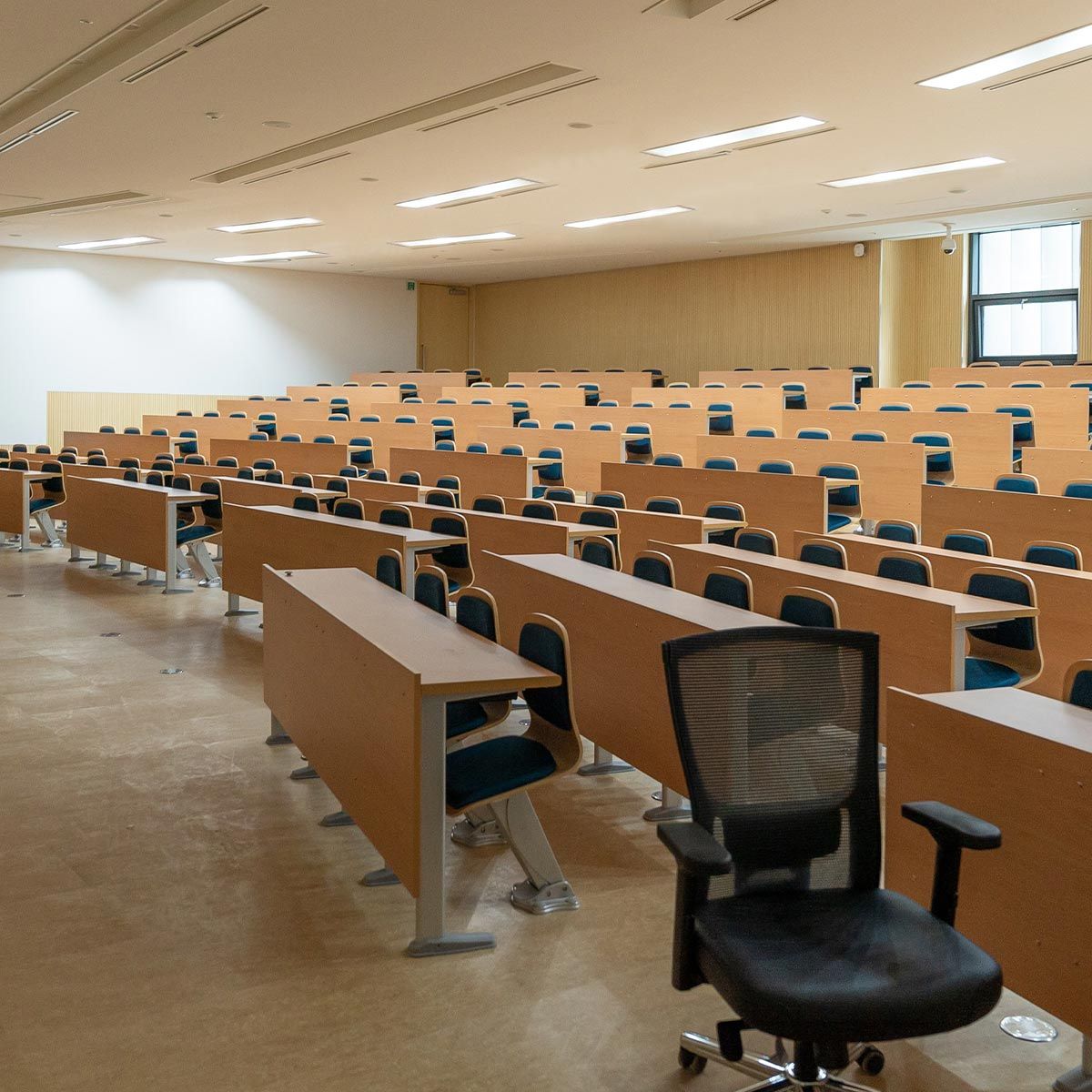

Trust in these panels to illuminate your office, healthcare facility, classroom, or other indoor space.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Long-Lifespan Drop Ceiling Lights with a Special Warranty
Control-Ready Lighting: Easily plug in smart sensors to add dimming, daylight harvesting, and more.
Great for Bulk-Buying: Buy one SKU and select the right wattage & CCT for each space during install.
Lasts 10+ Years: Has an average lifespan of 100,000 hours and is backed by a special 10-year warranty.
Trust in these panels to illuminate your office, healthcare facility, classroom, or other indoor space.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
10 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
10 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 15W/20W/25W |
| Light Output | 2,100/2,800/3,500 lumens |
| Luminous Efficacy (lm/W) | 140 lm/W |
| Average Lamp Life | L70: ≥100,000 hours |
| Color Temperature(s) | 3500K/4000K/5000K |
| CRI (Color Accuracy) | ≥80 |
| Dimming | 0-10V |
| Beam Angle | 120° |
| Lens Cover | Frosted |
| Working Environment | Indoor |
| Light Type | Wired Fixture |
| Input Voltage | 120-277VAC 50/60Hz |
| Power Factor | ≥ 0.90 |
| Temperature Rating | -4°F - 104°F |
| Humidity | 10%-85% RH non-condensing |
| Housing Material | Steel with polystyrene lens |
| Housing Color | White Frame |
| Dimensions | 47.75" x 11.90" x 2.4" |
| Certification | DLC Premium, ETL |
| DLC ID(s) | S-1BKC7F |
| Warranty | 10 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
Key Features

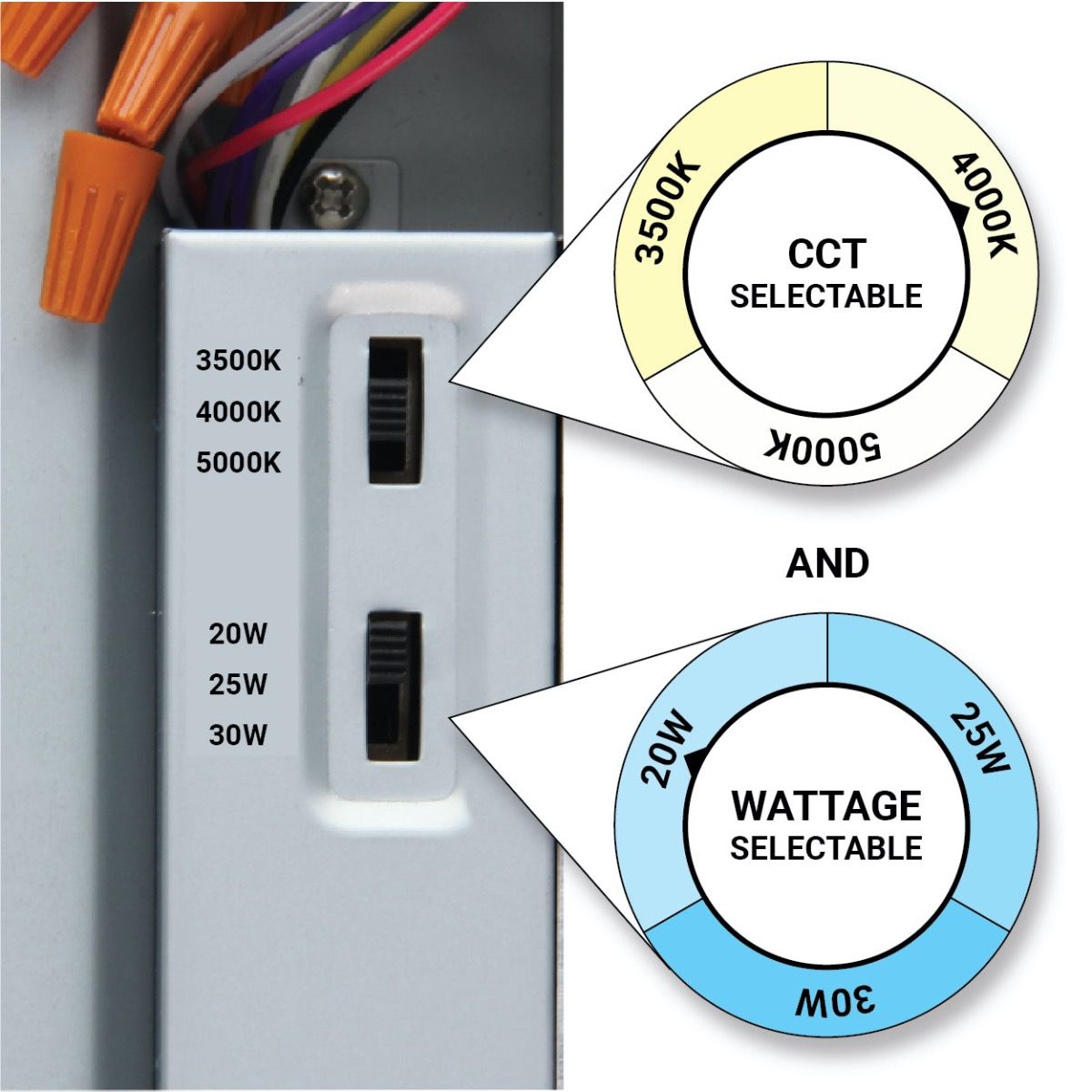

Selectable Wattage & CCT
Easily Transforms into Smart Light

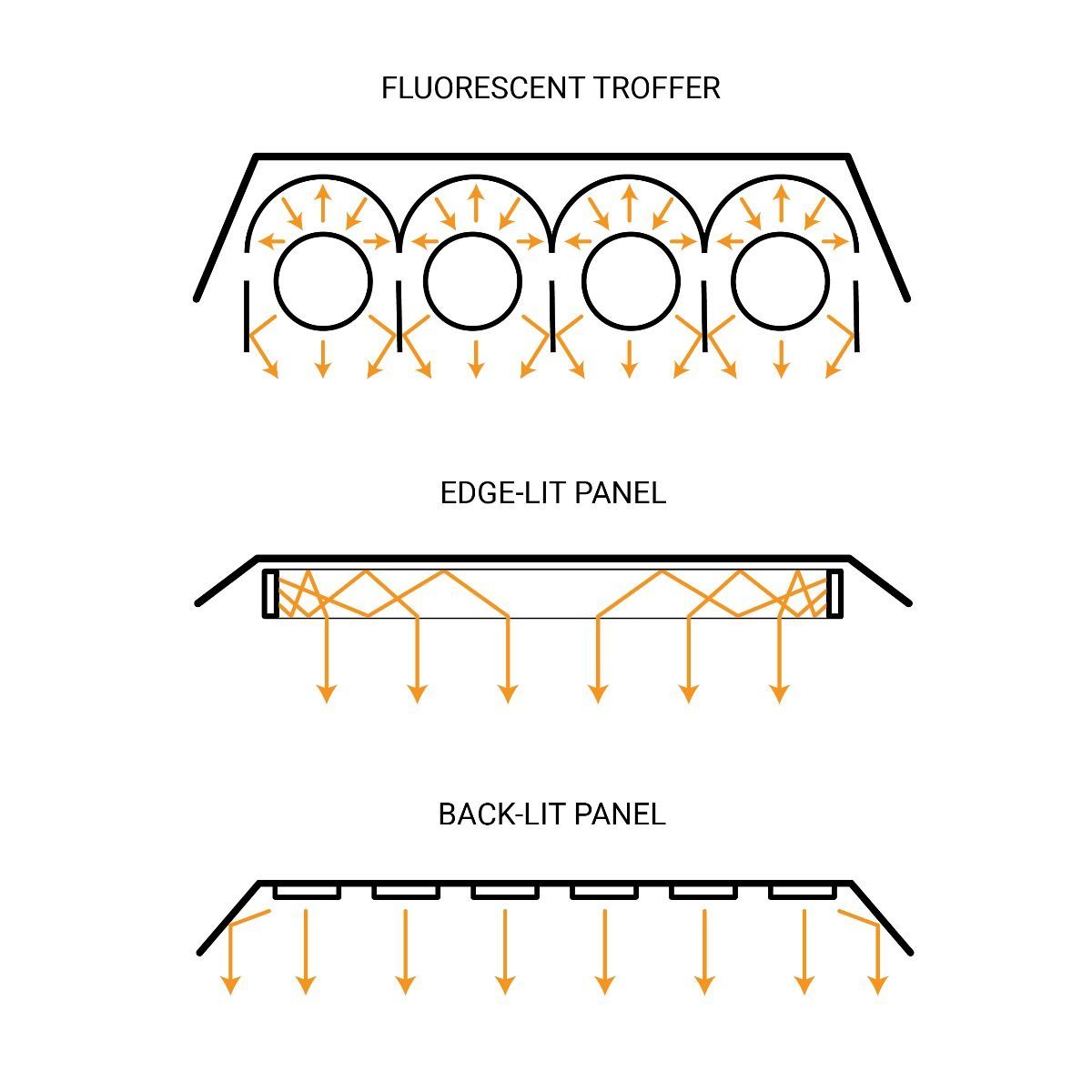

Lightweight, Backlit Design
Long-Lifespan Drop Ceiling Lights with a Special Warranty
Control-Ready Lighting: Easily plug in smart sensors to add dimming, daylight harvesting, and more.
Great for Bulk-Buying: Buy one SKU and select the right wattage & CCT for each space during install.
Lasts 10+ Years: Has an average lifespan of 100,000 hours and is backed by a special 10-year warranty.
Trust in these panels to illuminate your office, healthcare facility, classroom, or other indoor space.
Light Output
This light is wattage-selectable. Click a wattage to see the light output for that setting.
