2x2 Backlit LED Panel – 3 CCT – 18W/27W/36W – MaxLite FlatMax Gen4
15 in stock
10 Year Warranty
Lumens:
Watts:
Color Temp:
Long-Lifespan Drop Ceiling Lights with a Special Warranty

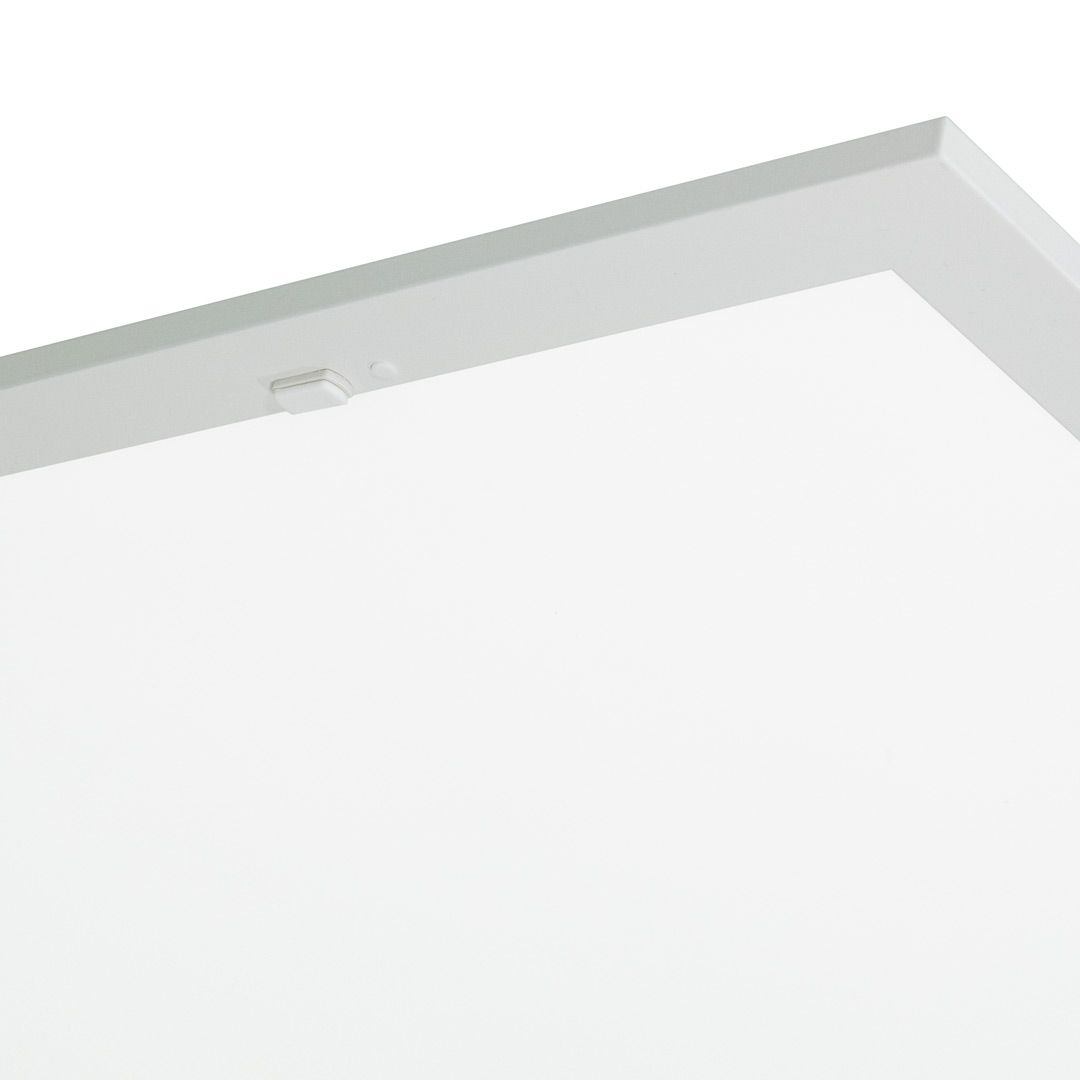

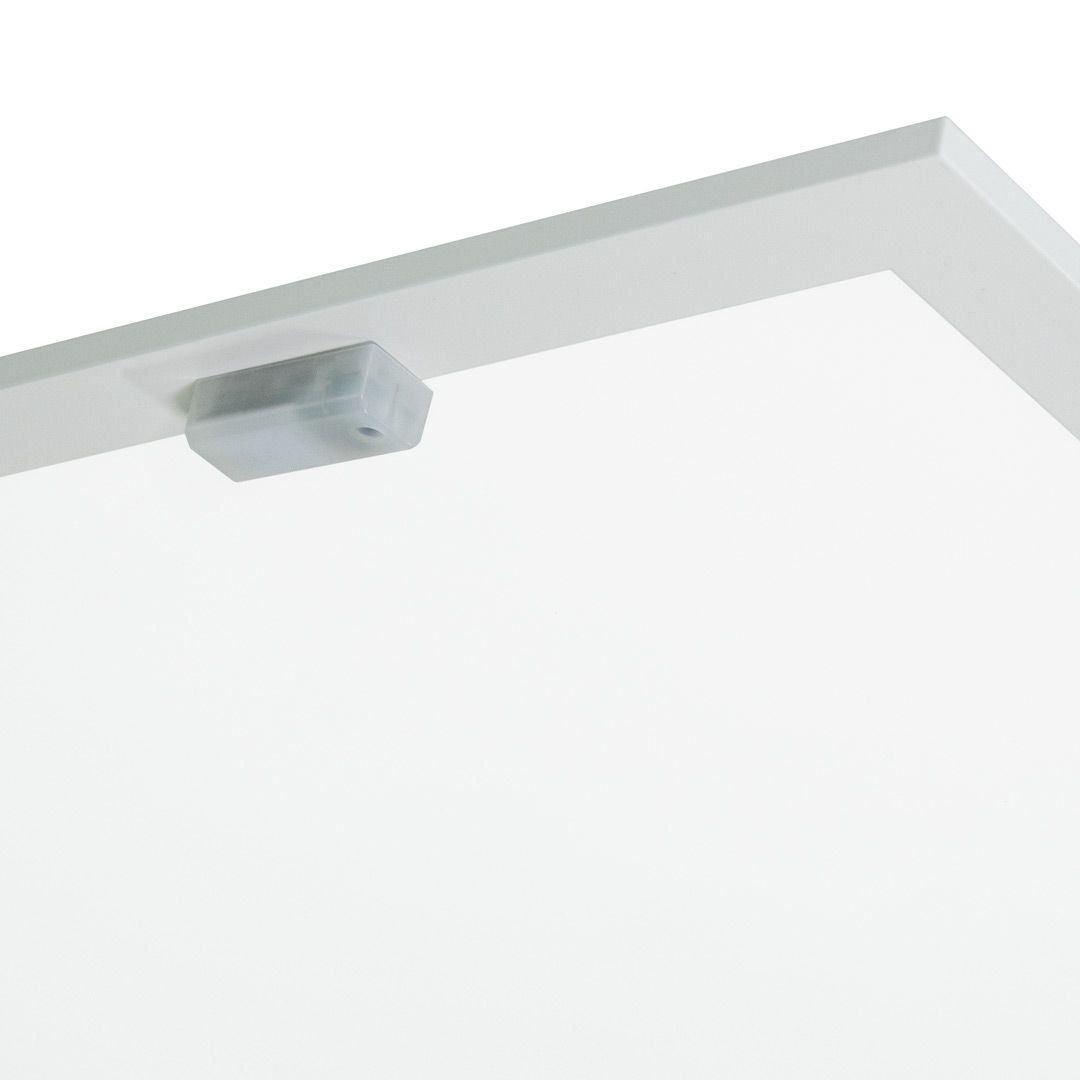

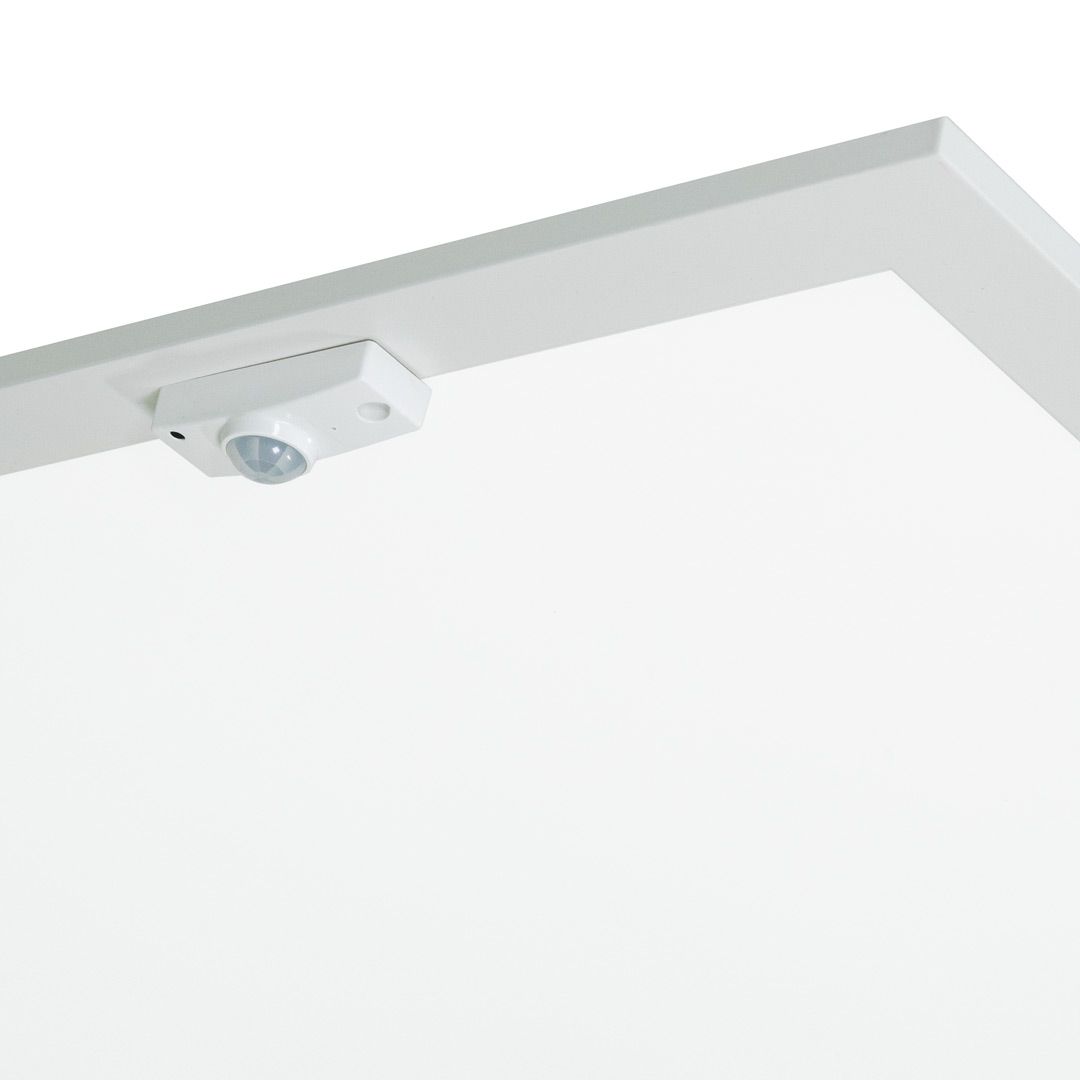

Control-Ready Lighting: Easily plug in smart sensors to add dimming, daylight harvesting, and more.

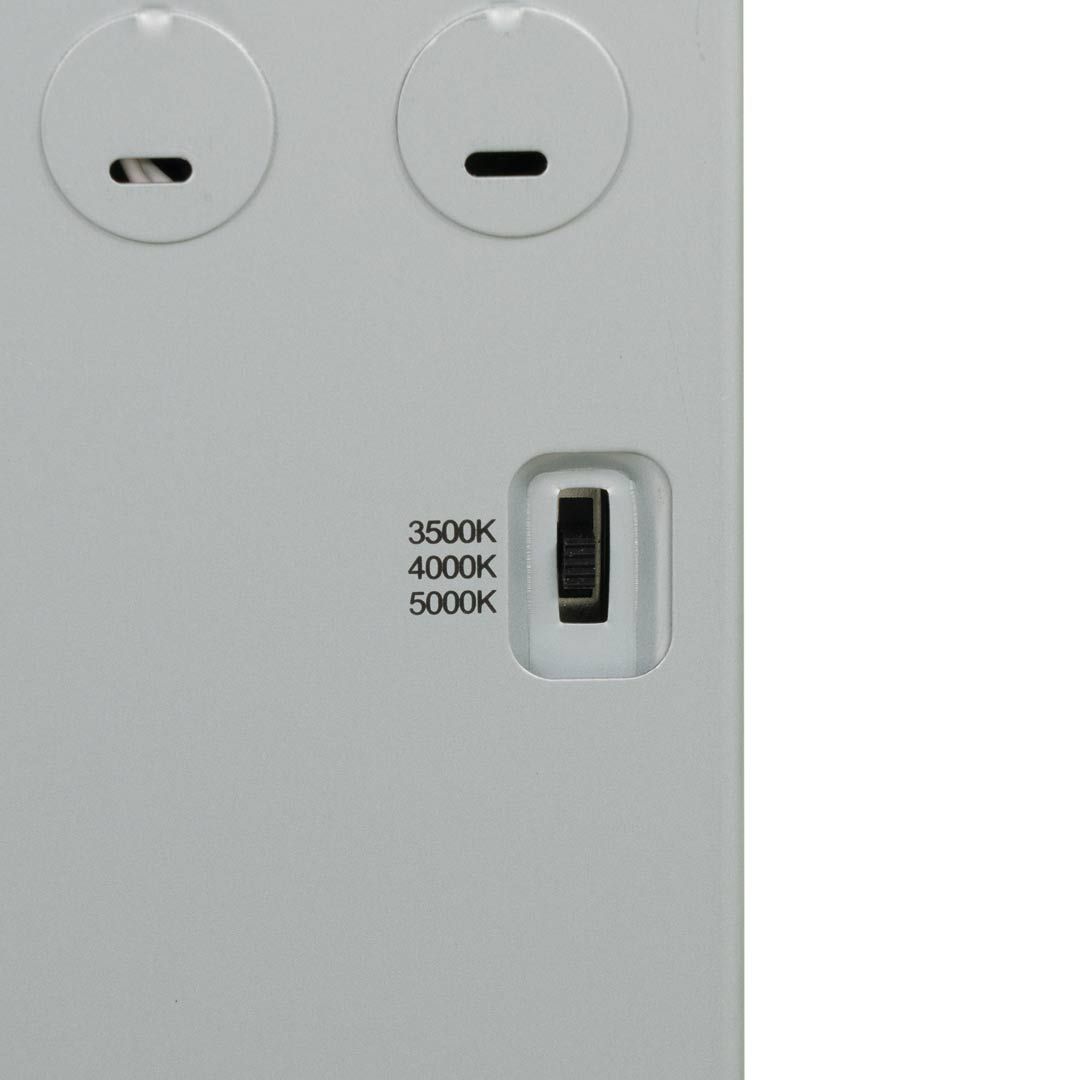

Great for Bulk-Buying: Buy one SKU and select the right wattage & CCT for each space during install.
High-Quality Design: Fully sealed against bugs, dust, and dampness.
Lasts 10+ Years: Has an average lifespan of 100,000 hours and is backed by a special 10-year warranty.

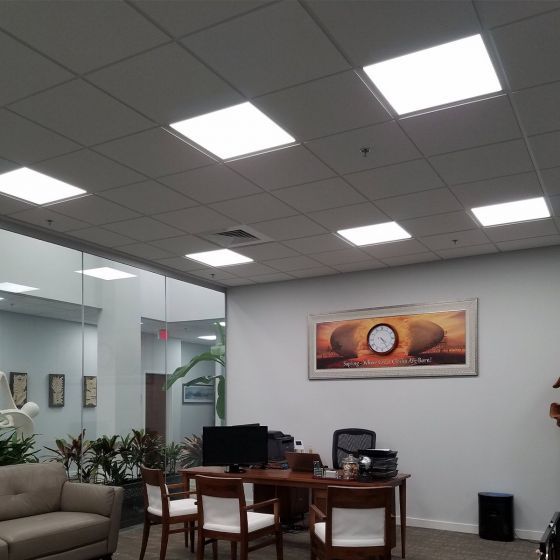

Trust in these panels to illuminate your office, healthcare facility, classroom, or other indoor space.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Long-Lifespan Drop Ceiling Lights with a Special Warranty
Control-Ready Lighting: Easily plug in smart sensors to add dimming, daylight harvesting, and more.
Great for Bulk-Buying: Buy one SKU and select the right wattage & CCT for each space during install.
High-Quality Design: Fully sealed against bugs, dust, and dampness.
Lasts 10+ Years: Has an average lifespan of 100,000 hours and is backed by a special 10-year warranty.
Trust in these panels to illuminate your office, healthcare facility, classroom, or other indoor space.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
15 in stock
10 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
15 in stock
10 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 36W, 27W, 18W |
| Light Output |
At 3500K / 4000K / 5000K: 18W: 2,000 / 2,040 / 2,080 lumens 27W: 2,900 / 3,040 / 3,030 lumens 36W: 3,820 / 4,000 / 4,000 lumens |
| Luminous Efficacy (lm/W) | Up to 119 lm/W |
| Average Lamp Life | L70: ≥100,000 hours |
| Color Temperature(s) | 3500K, 4000K, 5000K |
| CRI (Color Accuracy) | ≥80 |
| Dimming | 0-10V |
| Beam Angle | 120° |
| Lens Cover | Frosted |
| Working Environment | Indoor |
| Light Type | Wired Fixture |
| Input Voltage | 120-277VAC |
| Power Factor | >0.9 |
| Temperature Rating | -4°F to 122°F (-20°C to 50°C) |
| Humidity | 20% to 85% RH non-condensing |
| Housing Material | Aluminum Alloy |
| Housing Color | White Frame |
| Dimensions | 23.7" x 23.7" x 2.2" |
| Weight | 5.73 lbs. |
| Certification | DLC, ETL |
| DLC ID(s) | PX9RHOZS |
| Warranty | 10 Years |
Key Features
Selectable Wattage & CCT
Easily Transforms into Smart Light

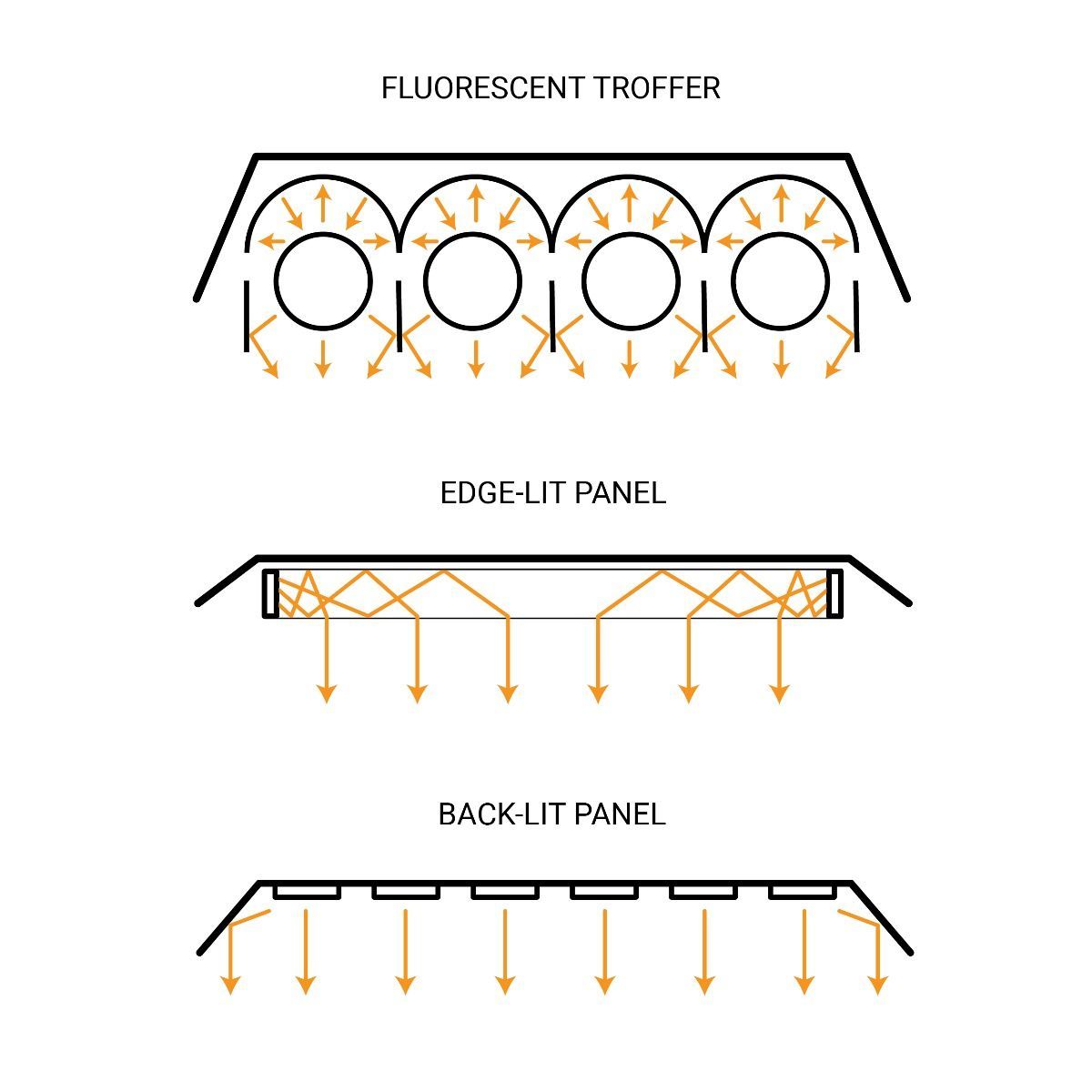

Lightweight, Backlit Design
Long-Lifespan Drop Ceiling Lights with a Special Warranty
Control-Ready Lighting: Easily plug in smart sensors to add dimming, daylight harvesting, and more.
Great for Bulk-Buying: Buy one SKU and select the right wattage & CCT for each space during install.
High-Quality Design: Fully sealed against bugs, dust, and dampness.
Lasts 10+ Years: Has an average lifespan of 100,000 hours and is backed by a special 10-year warranty.
Trust in these panels to illuminate your office, healthcare facility, classroom, or other indoor space.
Light Output
This light is wattage-selectable. Click a wattage to see the light output for that setting.
