LED Magnetic Retrofit Kit for 2x4 Parabolic Troffer - 5-CCT - 20W/30W/40W
753 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
Easier Way to Convert 4ft Fluorescent Troffers to LED
- Magnetic Strips & Driver: Magnetic-backing holds these pieces in place, making install and adjustments easier.
- Quick-Connect Plug: The included strip connector reduces the amount of wiring you have to do.
- Selectable Color Temp & Wattage: A switch on the driver allows users to select the level of power used and the color temperature of the light.
-
3-Strip Kit: Three strips provides more even illumination & a better appearance for parabolic/open grate ceiling lights.

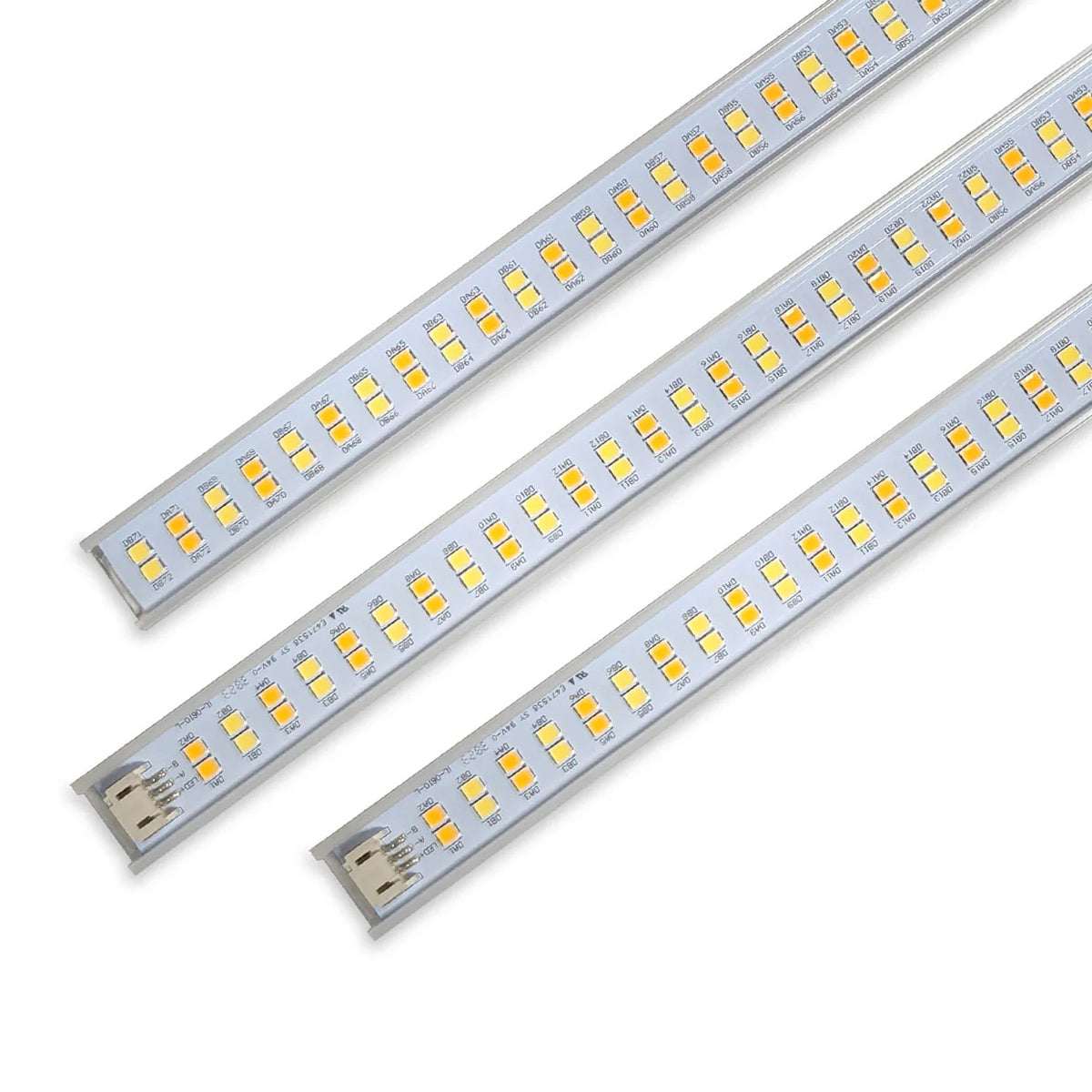

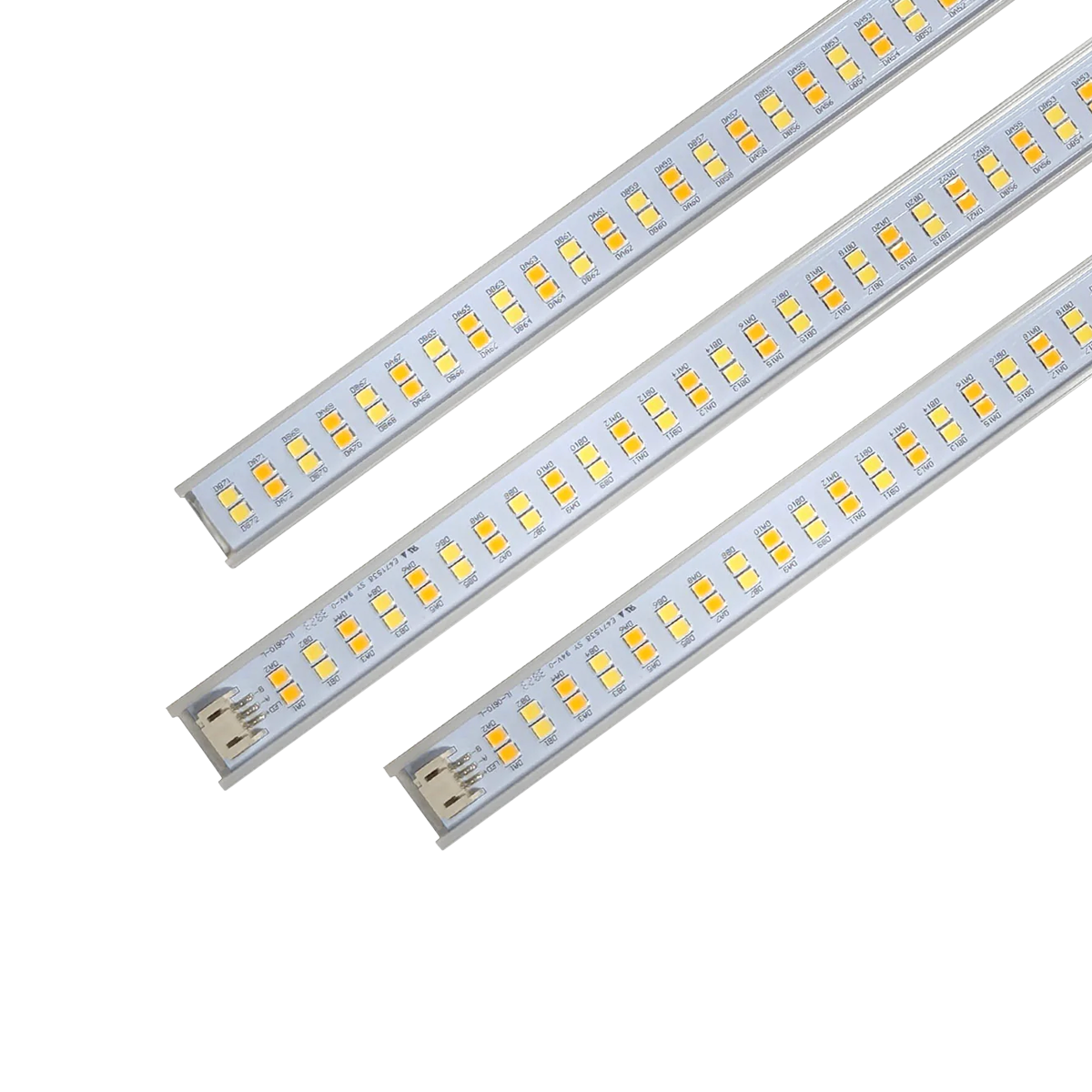

Each Kit Includes: Three 4ft Light Strips and One 0-10V Dimmable LED Driver
A perfect choice for offices, classrooms, restrooms, and wherever parabolic troffers are used.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Easier Way to Convert 4ft Fluorescent Troffers to LED
- Magnetic Strips & Driver: Magnetic-backing holds these pieces in place, making install and adjustments easier.
- Quick-Connect Plug: The included strip connector reduces the amount of wiring you have to do.
- Selectable Color Temp & Wattage: A switch on the driver allows users to select the level of power used and the color temperature of the light.
-
3-Strip Kit: Three strips provides more even illumination & a better appearance for parabolic/open grate ceiling lights.
Each Kit Includes: Three 4ft Light Strips and One 0-10V Dimmable LED Driver
A perfect choice for offices, classrooms, restrooms, and wherever parabolic troffers are used.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
753 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
753 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 20W / 30W / 40W Selectable |
| Light Output | 2,360 to 5,800 lm |
| Luminous Efficacy (lm/W) | 110 to 145 lm/W |
| Average Lamp Life | L70: Calculated >100,000 hours, Reported: >60,000 hours |
| Color Temperature(s) | 2700K/3000K/3500K/4000K/5000K Selectable |
| Dimming | 0-10V |
| Bulb Shape | Linear Strips |
| Lens Cover | Frosted lens cover optional |
| Installation | Wire driver into your mains, attach kits to metal surface, plug kits into driver |
| Working Environment | Indoor |
| Light Type | Retrofits and Conversion Kits |
| LED Type | LED 2835 |
| Input Voltage | 120-277VAC / 120-347VAC, 50/60 Hz |
| Power Factor | >0.90 |
| Surge Protection | 1kV line-line, 2kV line-earth |
| Housing Material | Aluminum |
| Certification | DLC 5.1, ETL |
| DLC ID(s) | S-N41LGW |
| Warranty | 5 Years |
| Additional Specifications |
Each kit contains three 4ft magnetic linear LED retrofit strips + an external magnetic-mount LED driver capable of 0-10V dimming. Frosted lens covers optional. |
Key Features
Selectable Wattage & CCT
0-10V Dimming
Magnetic for Easy Install
An Easier Way to Convert 4ft Fluorescent Troffers to LED
- Magnetic Strips & Driver: Magnetic-backing holds these pieces in place, making install and adjustments easier.
- Quick-Connect Plug: The included strip connector reduces the amount of wiring you have to do.
- Selectable Color Temp & Wattage: A switch on the driver allows users to select the level of power used and the color temperature of the light.
- 3-Strip Kit: Three strips provides more even illumination for parabolic/open grate ceiling lights.
Each Kit Includes: Three 4ft Light Strips and One 0-10V LED Driver

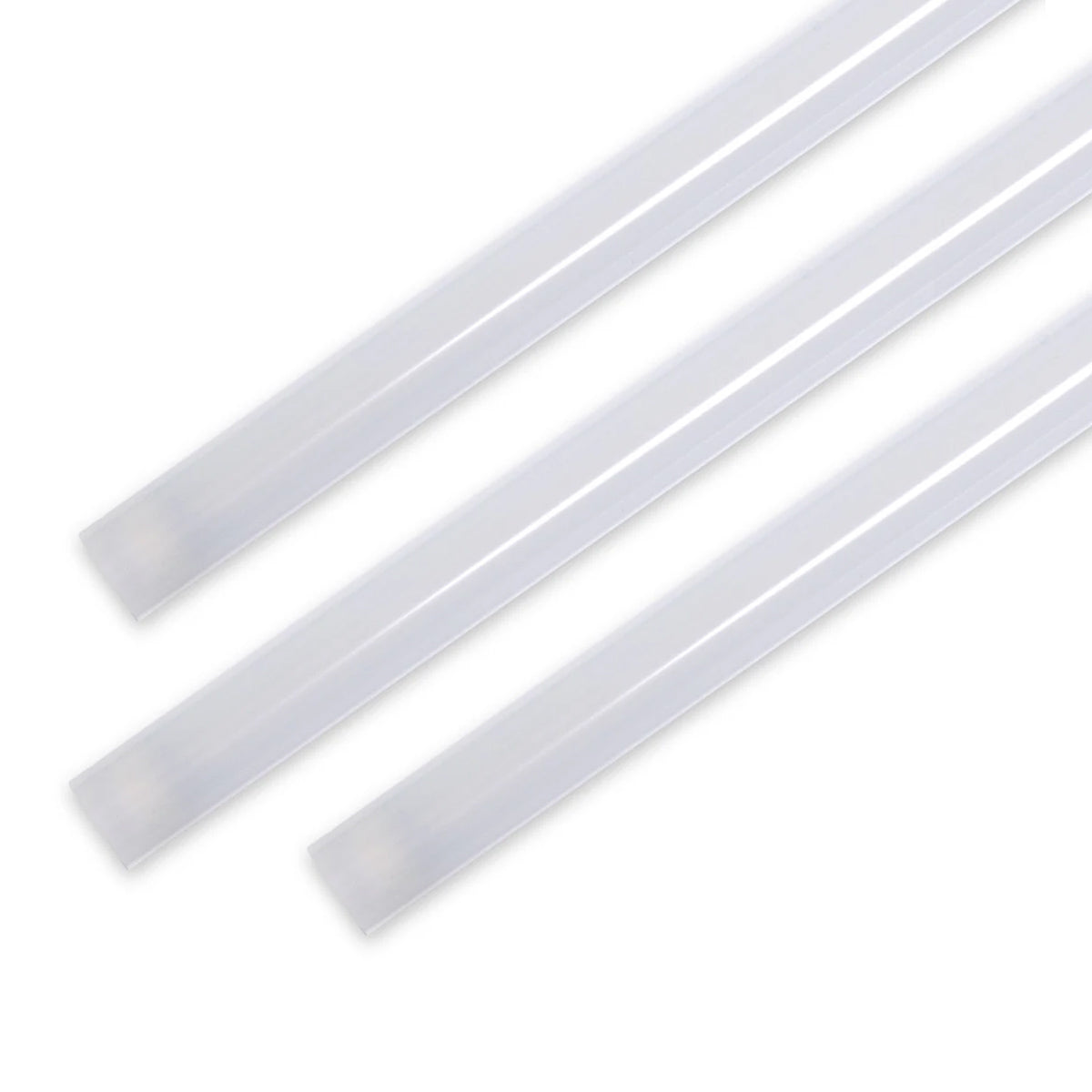

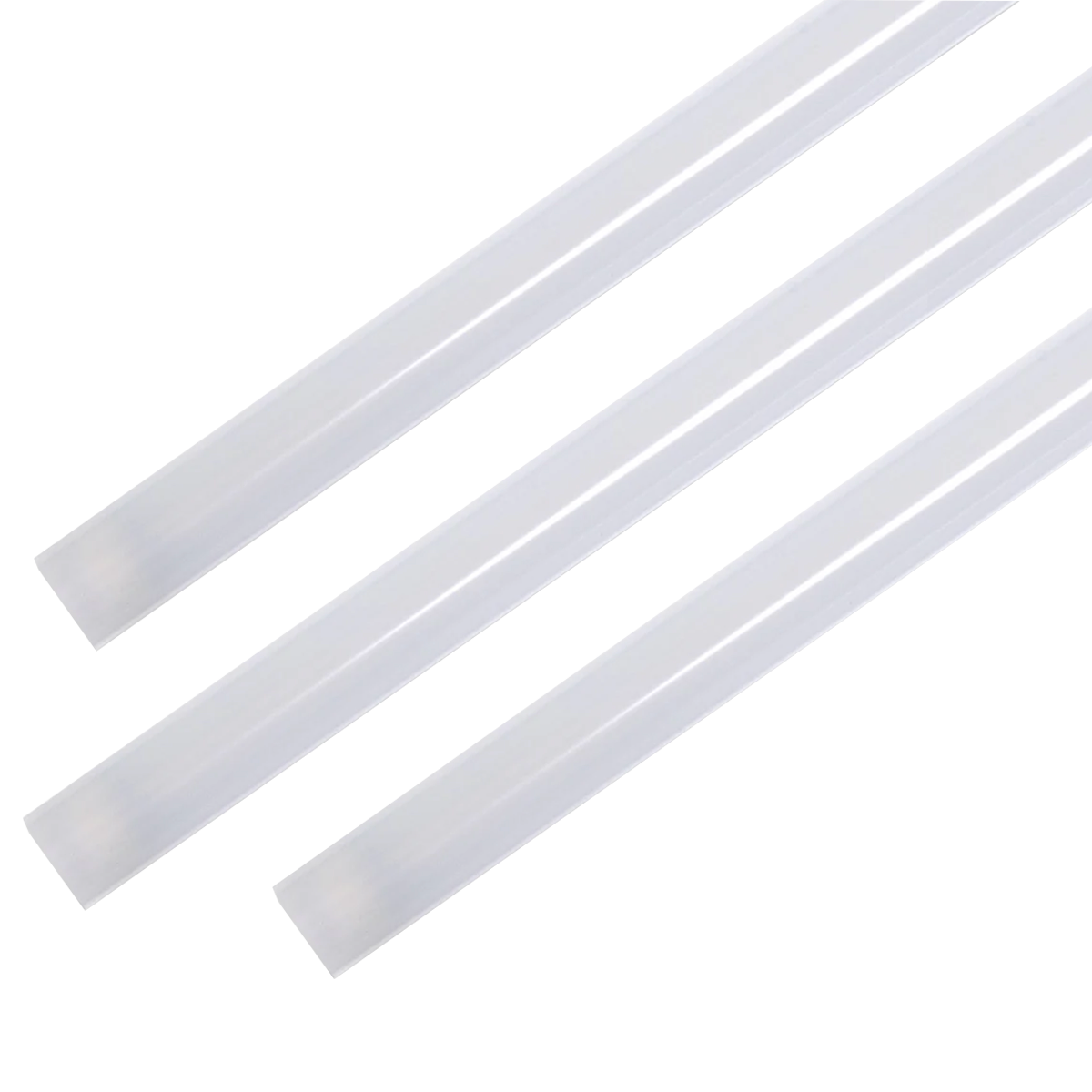

Optional: Screw-in Frosted Lenses (A great solution for non-magnetic troffers)
A perfect choice for offices, classrooms, restrooms, hallways, hospitals, utility rooms, retail stores, fitness centers, cafeterias, and more. For non-magnetic troffers, we recommend the frosted lens accessory, which allows you to attach the strips with screws.
