LED Magnetic Retrofit Kit for 2x4 Parabolic Troffer - 5-CCT - 20W/30W/40W
752 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
Easier Way to Convert 4ft Fluorescent Troffers to LED
- Magnetic Strips & Driver: Magnetic-backing holds these pieces in place, making install and adjustments easier.
- Quick-Connect Plug: The included strip connector reduces the amount of wiring you have to do.
- Selectable Color Temp & Wattage: A switch on the driver allows users to select the level of power used and the color temperature of the light.
-
3-Strip Kit: Three strips provides more even illumination & a better appearance for parabolic/open grate ceiling lights.
Each Kit Includes: Three 4ft Light Strips and One 0-10V Dimmable LED Driver
A perfect choice for offices, classrooms, restrooms, and wherever parabolic troffers are used.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Easier Way to Convert 4ft Fluorescent Troffers to LED
- Magnetic Strips & Driver: Magnetic-backing holds these pieces in place, making install and adjustments easier.
- Quick-Connect Plug: The included strip connector reduces the amount of wiring you have to do.
- Selectable Color Temp & Wattage: A switch on the driver allows users to select the level of power used and the color temperature of the light.
-
3-Strip Kit: Three strips provides more even illumination & a better appearance for parabolic/open grate ceiling lights.
Each Kit Includes: Three 4ft Light Strips and One 0-10V Dimmable LED Driver
A perfect choice for offices, classrooms, restrooms, and wherever parabolic troffers are used.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
752 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
752 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 20W / 30W / 40W Selectable |
| Light Output | 2,360 to 5,800 lm |
| Luminous Efficacy (lm/W) | 110 to 145 lm/W |
| Average Lamp Life | L70: Calculated >100,000 hours, Reported: >60,000 hours |
| Color Temperature(s) | 2700K/3000K/3500K/4000K/5000K Selectable |
| Dimming | 0-10V |
| Bulb Shape | Linear Strips |
| Lens Cover | Frosted lens cover optional |
| Installation | Wire driver into your mains, attach kits to metal surface, plug kits into driver |
| Working Environment | Indoor |
| Light Type | Retrofits and Conversion Kits |
| LED Type | LED 2835 |
| Input Voltage | 120-277VAC / 120-347VAC, 50/60 Hz |
| Power Factor | >0.90 |
| Surge Protection | 1kV line-line, 2kV line-earth |
| Housing Material | Aluminum |
| Certification | DLC 5.1, ETL |
| DLC ID(s) | S-N41LGW |
| Warranty | 5 Years |
| Additional Specifications |
Each kit contains three 4ft magnetic linear LED retrofit strips + an external magnetic-mount LED driver capable of 0-10V dimming. Frosted lens covers optional. |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
Key Features
Selectable Wattage & CCT
0-10V Dimming
Magnetic for Easy Install
An Easier Way to Convert 4ft Fluorescent Troffers to LED
- Magnetic Strips & Driver: Magnetic-backing holds these pieces in place, making install and adjustments easier.
- Quick-Connect Plug: The included strip connector reduces the amount of wiring you have to do.
- Selectable Color Temp & Wattage: A switch on the driver allows users to select the level of power used and the color temperature of the light.
- 3-Strip Kit: Three strips provides more even illumination for parabolic/open grate ceiling lights.
Each Kit Includes: Three 4ft Light Strips and One 0-10V LED Driver
Optional: Screw-in Frosted Lenses (A great solution for non-magnetic troffers)

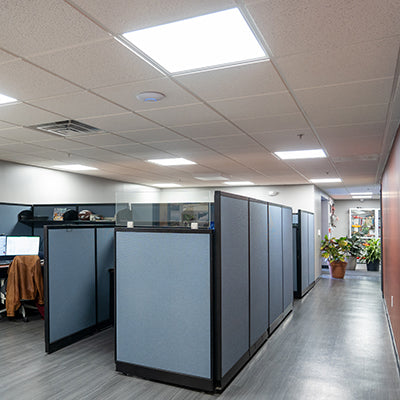

A perfect choice for offices, classrooms, restrooms, hallways, hospitals, utility rooms, retail stores, fitness centers, cafeterias, and more. For non-magnetic troffers, we recommend the frosted lens accessory, which allows you to attach the strips with screws.
