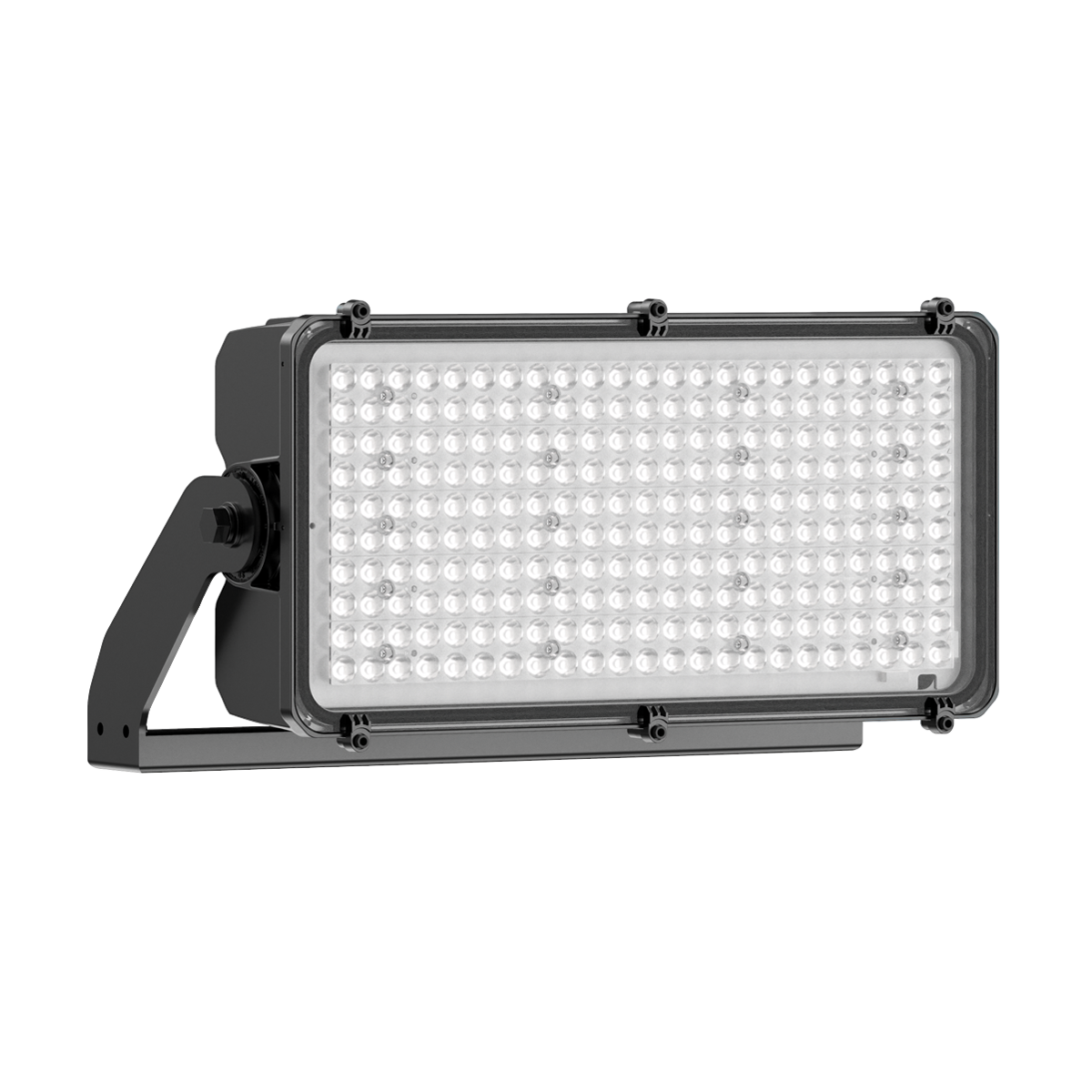

LED High Mast Flood Light 600/480/400W with adjustable mounting bracket and multiple LED array for powerful illumination

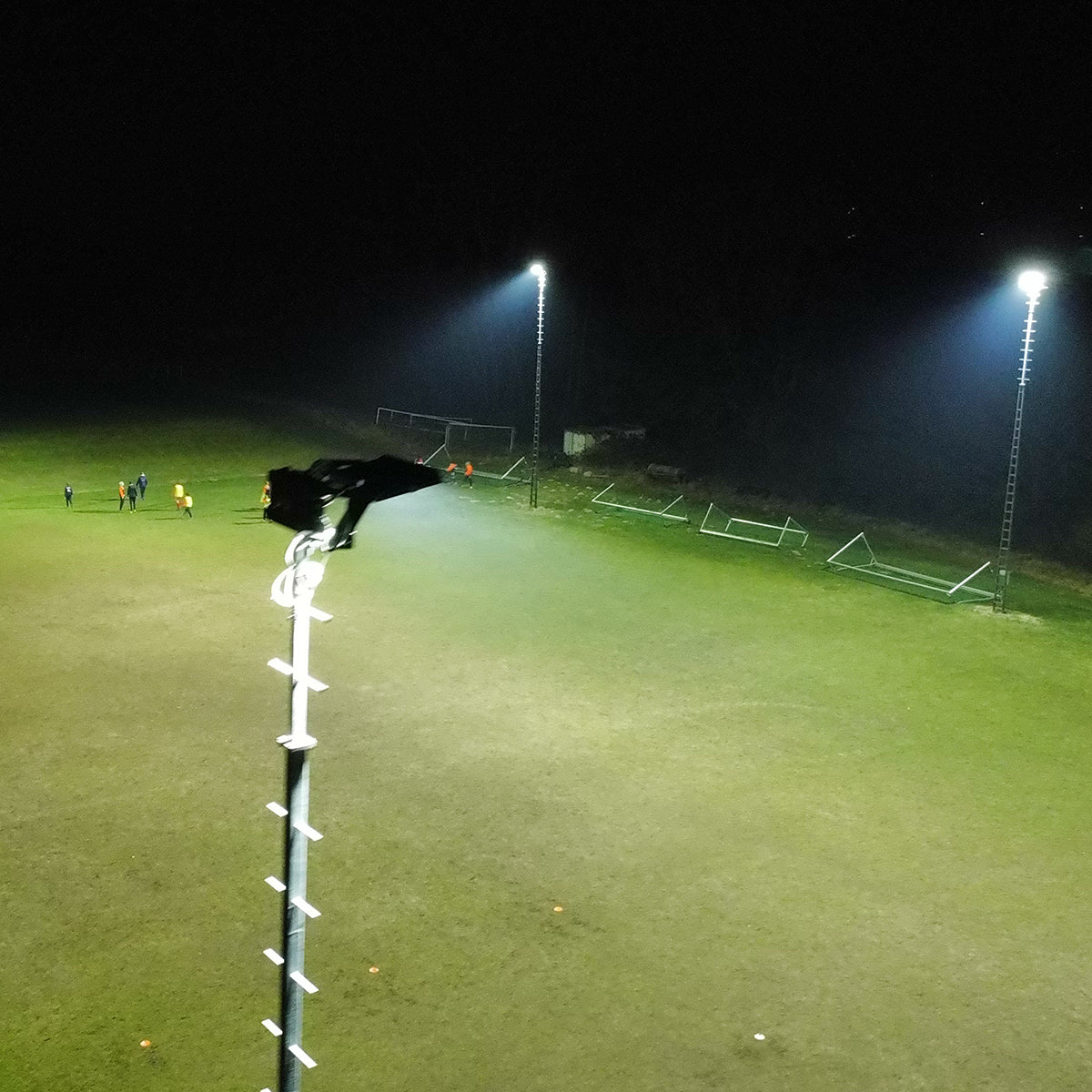

LED High Mast Flood Light 1200/960/800W illuminating a large outdoor field with bright, uniform light at night

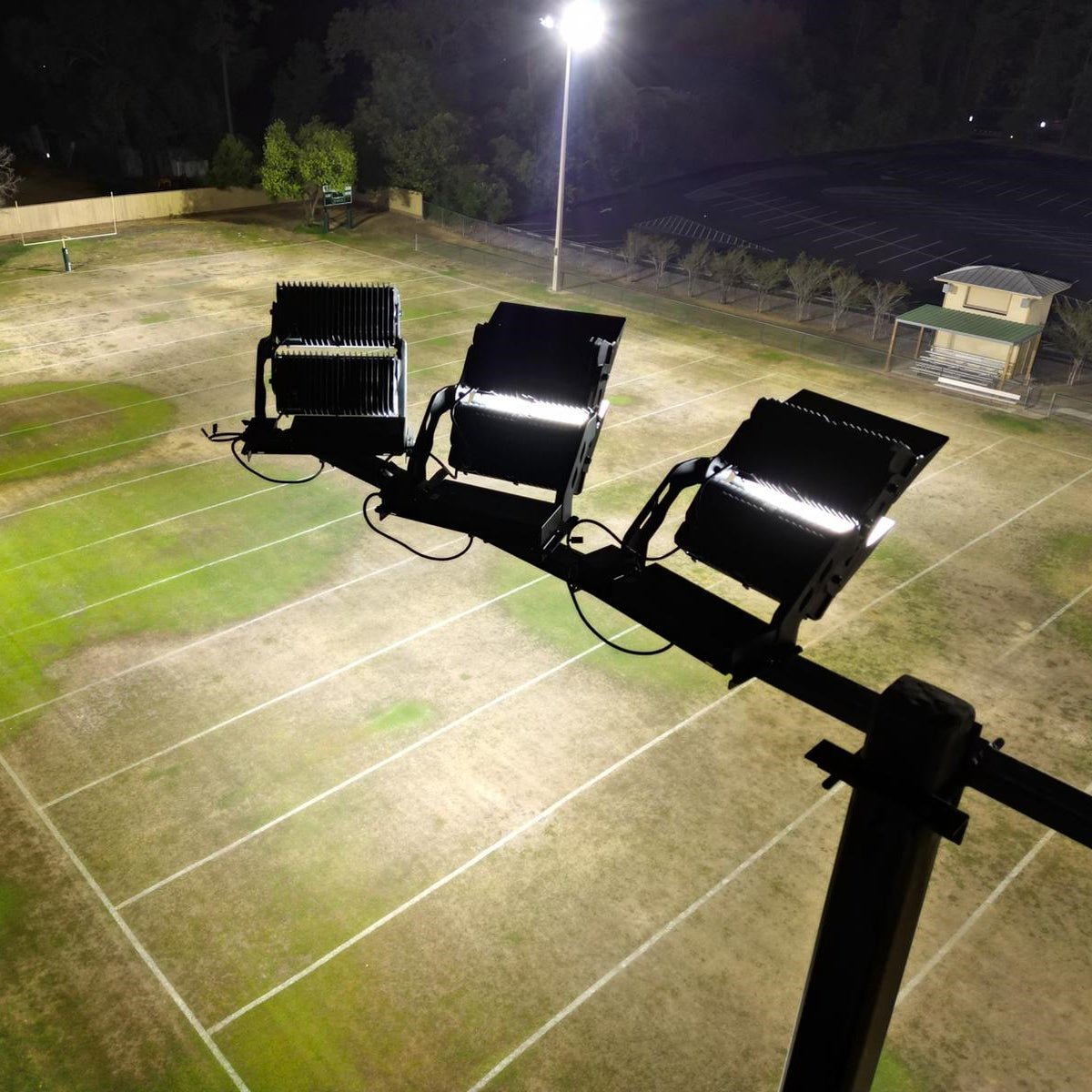

LED High Mast Flood Light - 1200/960/800W illuminating a sports field with bright, uniform light at night

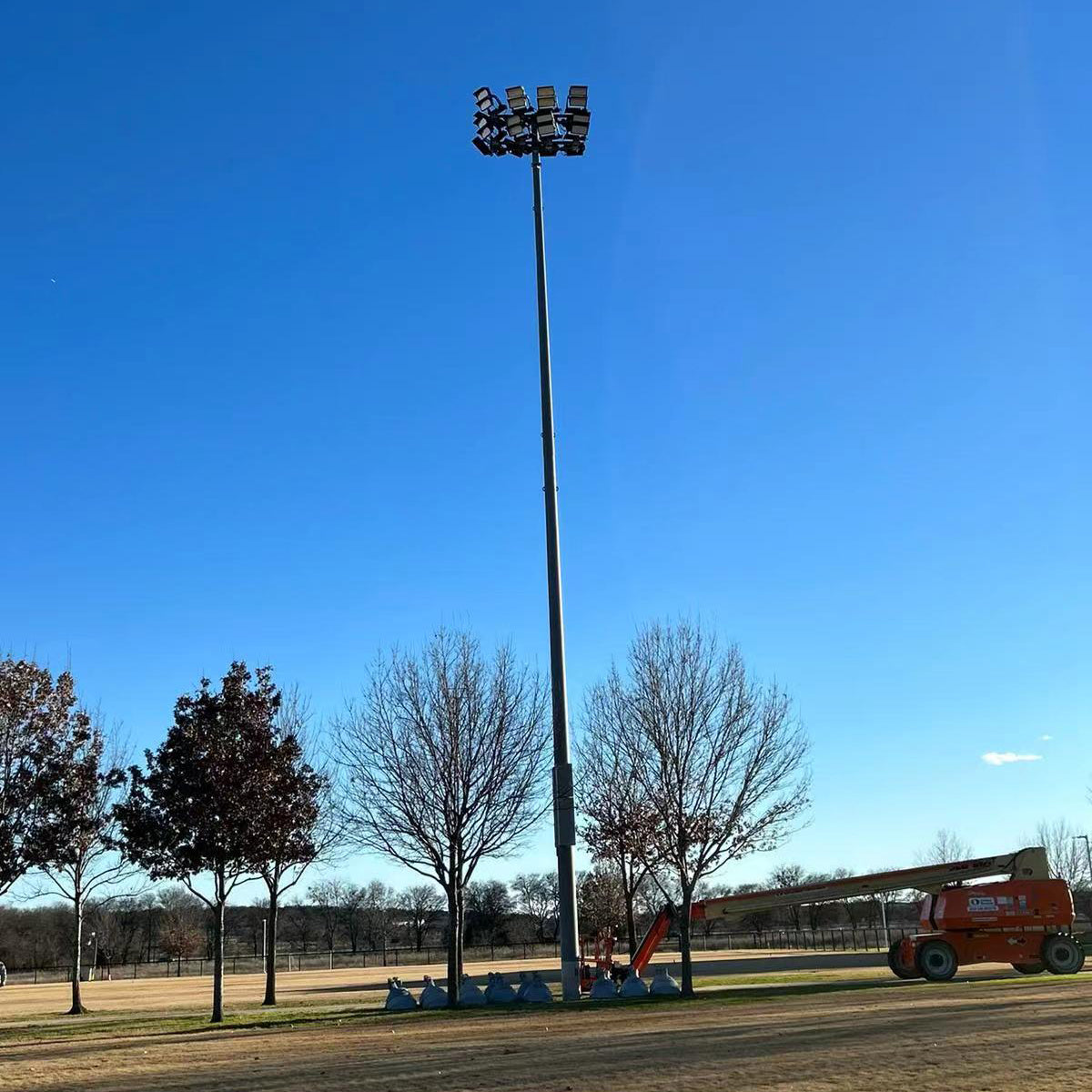

LED High Mast Flood Light 1200W mounted on tall pole illuminating large open outdoor area with clear blue sky background

LED High Mast Flood Light - 600/480/400W

$1,902.95
LED Living | SKU: LLTVHS01-0600WS-577A-T4-480 | 20 in stock

5 Year Warranty

Lumens:

58,180-87,270

Watts:

400W-600W

Color Temp:

5700K
Asymmetrical forward throw
Large-scale outdoor applications
Smooth 0-10V Dimming
Bracket mount

Powerful, Uniform Illumination for Large Open Spaces

Wherever high power lighting is needed, the HS01 high mast LED lights brightly illuminate while saving as much as 60% less compared to HID.

Advanced LED technology ensures minimal glare and shadows, promoting safety, visibility, and smooth operations in areas that require extensive coverage.

A Well Thought-Out Lighting Solution

  • Light Where You Need It: Asymmetrical forward-throw optics keeps light on the field, not in the stands.
  • Built to Endure: From minimized wind resistance to anti-corrosion materials and IP66/IK08 ratings, the HS01 is designed to last
  • Flexible Setup: Modules are angle adjustable by ±90°, and the external driver can be installed on the bracket or up to 200 meters away from the light.
Perfect for highways, ports, airports, industrial zones, stadiums, and more, the HS01 high mast light is an investment in both sustainability and top-notch performance.

Saves $/year in energy costs*

$1,902.95
Get it by Order Within
Quantity Price Quote

FREE Shipping & 30-Day Returns

Lighting layouts, rebate assistance, project guidance, or special requirements:

Powerful, Uniform Illumination for Large Open Spaces

Wherever high power lighting is needed, the HS01 high mast LED lights brightly illuminate while saving as much as 60% less compared to HID.

Advanced LED technology ensures minimal glare and shadows, promoting safety, visibility, and smooth operations in areas that require extensive coverage.

A Well Thought-Out Lighting Solution

  • Light Where You Need It: Asymmetrical forward-throw optics keeps light on the field, not in the stands.
  • Built to Endure: From minimized wind resistance to anti-corrosion materials and IP66/IK08 ratings, the HS01 is designed to last
  • Flexible Setup: Modules are angle adjustable by ±90°, and the external driver can be installed on the bracket or up to 200 meters away from the light.
Perfect for highways, ports, airports, industrial zones, stadiums, and more, the HS01 high mast light is an investment in both sustainability and top-notch performance.

Saves $/year in energy costs*

See how much you would save in energy
costs by allowing access to your location.

SPECIFICATIONS

Wattage(s) 600/480/400W
Light Output 87,270/69,816/58,180 lumens
Luminous Efficacy (lm/W) 145 lm/W
Average Lamp Life L90: 82,000 hours
L80: 197,000 hours
L70: 326,000 hours
Color Temperature(s) 5700K
CRI 70
Dimming 0-10V Dimming
Light Distribution Pattern Type IV
Working Environment Outdoors
Enclosure Rating IP66, IK08
Input Voltage 277-480VAC
Temperature Rating -22°F to 122°F
Housing Material Aluminum Alloy, Glass, Polycarbonate Optical Lens
Housing Color Black
Certification DLC, ETL
Warranty 5 Years
