LED Magnetic Retrofit Kit for 2x4 or 1x4 Troffer - 5-CCT - 20W/28W/35W
4777 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
An Easier Way to Convert 4ft Fluorescent Troffers to LED
- Magnetic Strips & Driver: Magnetic-backing holds these pieces in place, making install and adjustments easier.
- Quick-Connect Plug: The included strip connector reduces the amount of wiring you have to do.

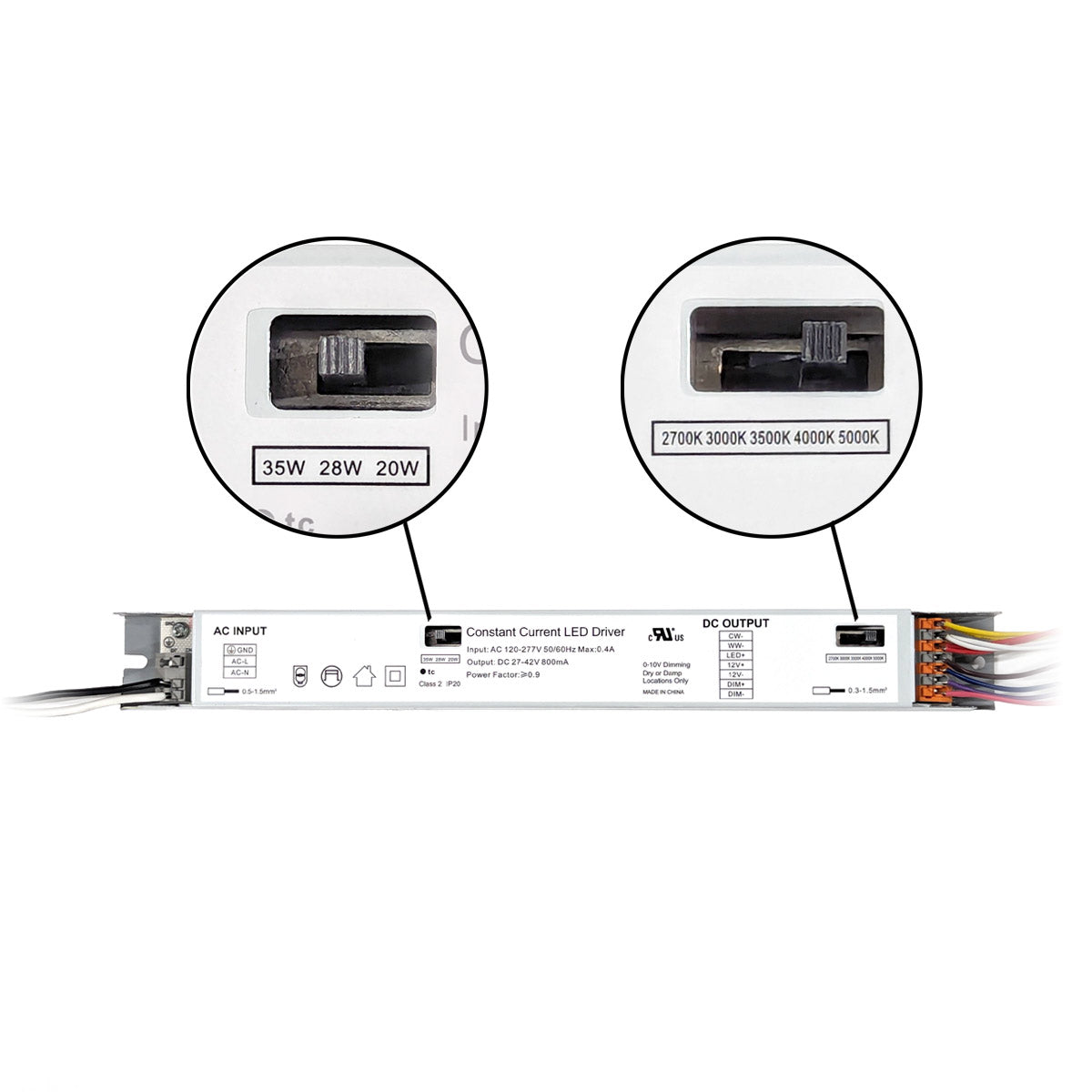

- Selectable Color Temp & Wattage: A switch on the driver allows users to select the level of power used and the color temperature of the light.

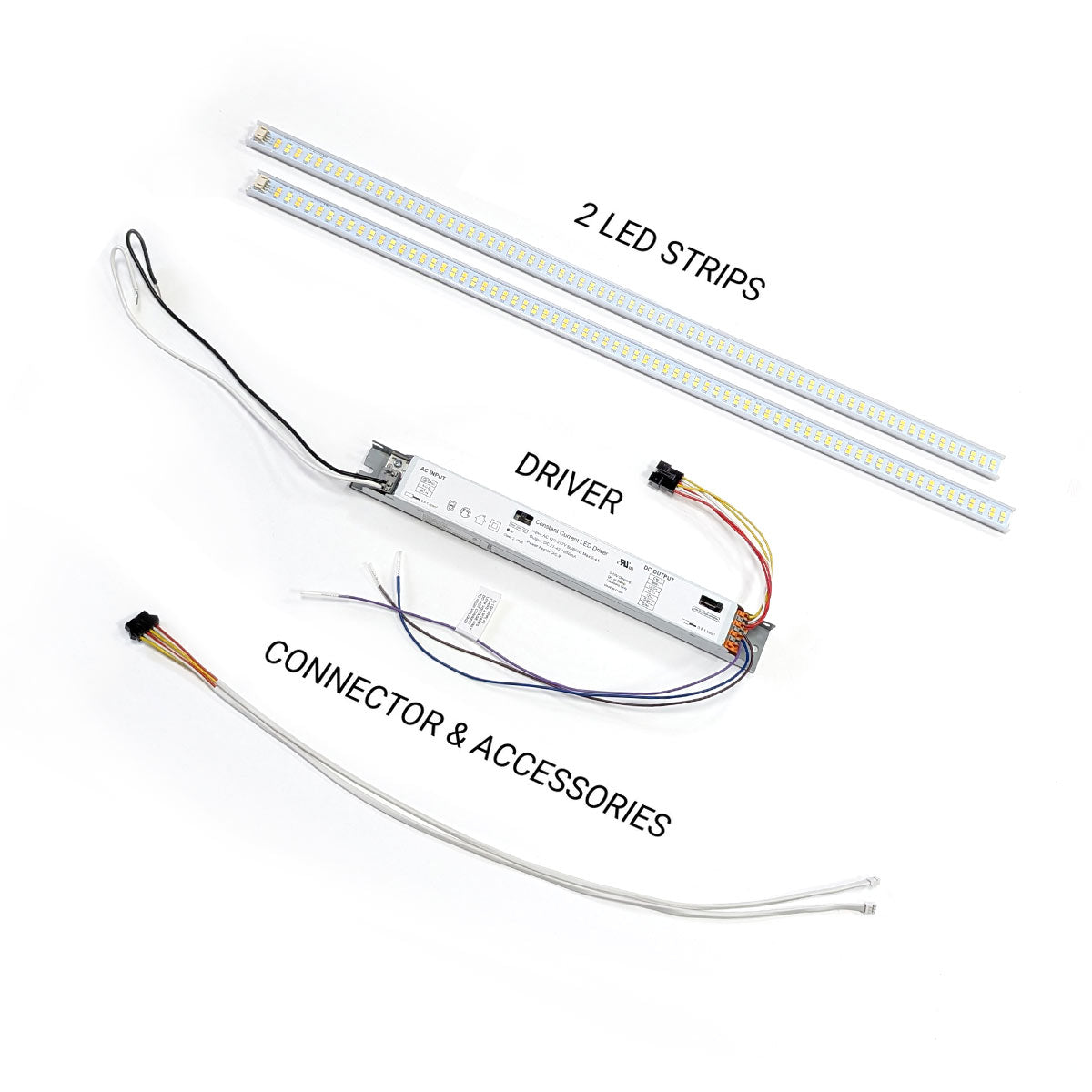

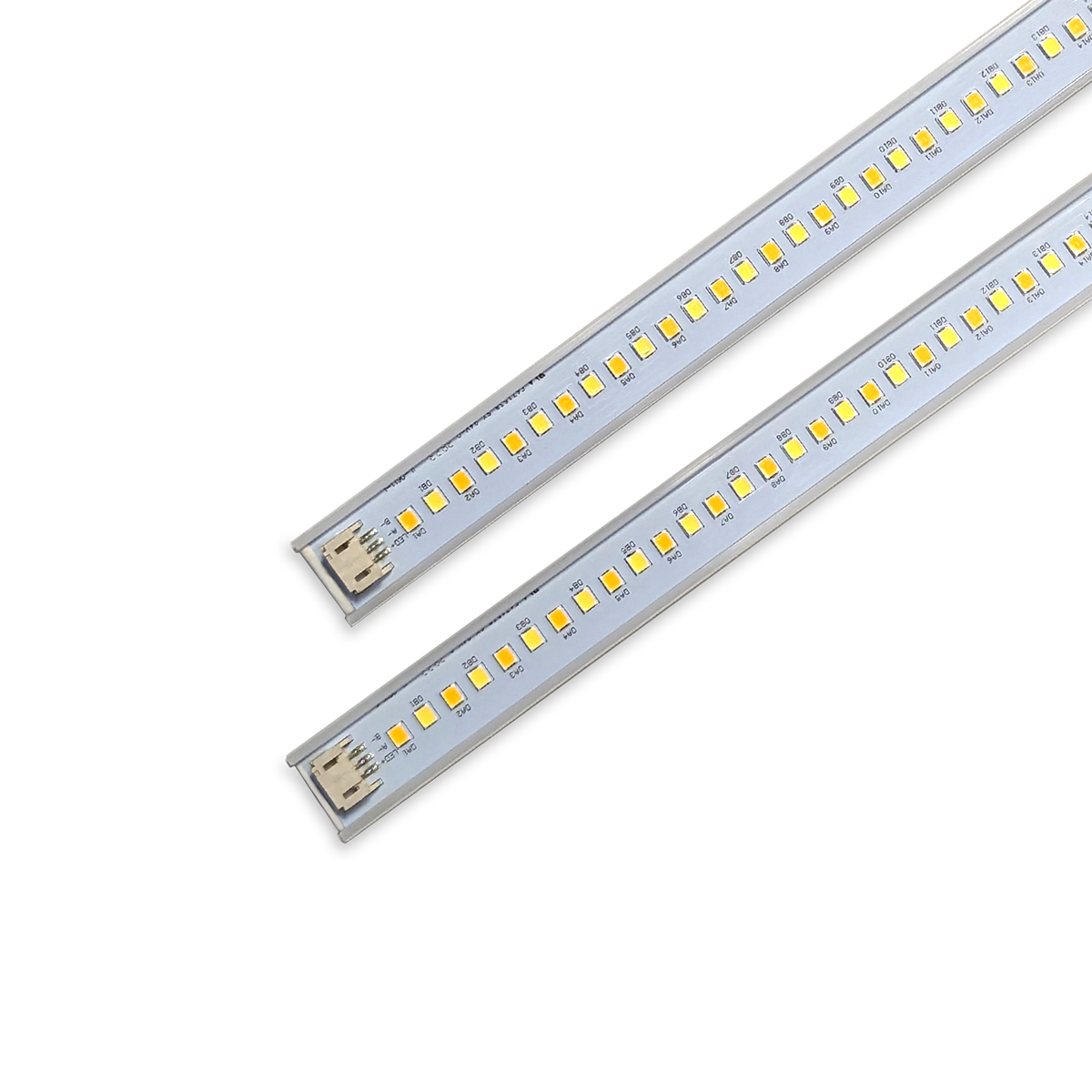

Each Kit Includes: Two 4ft Light Strips and One 0-10V Dimmable LED Driver

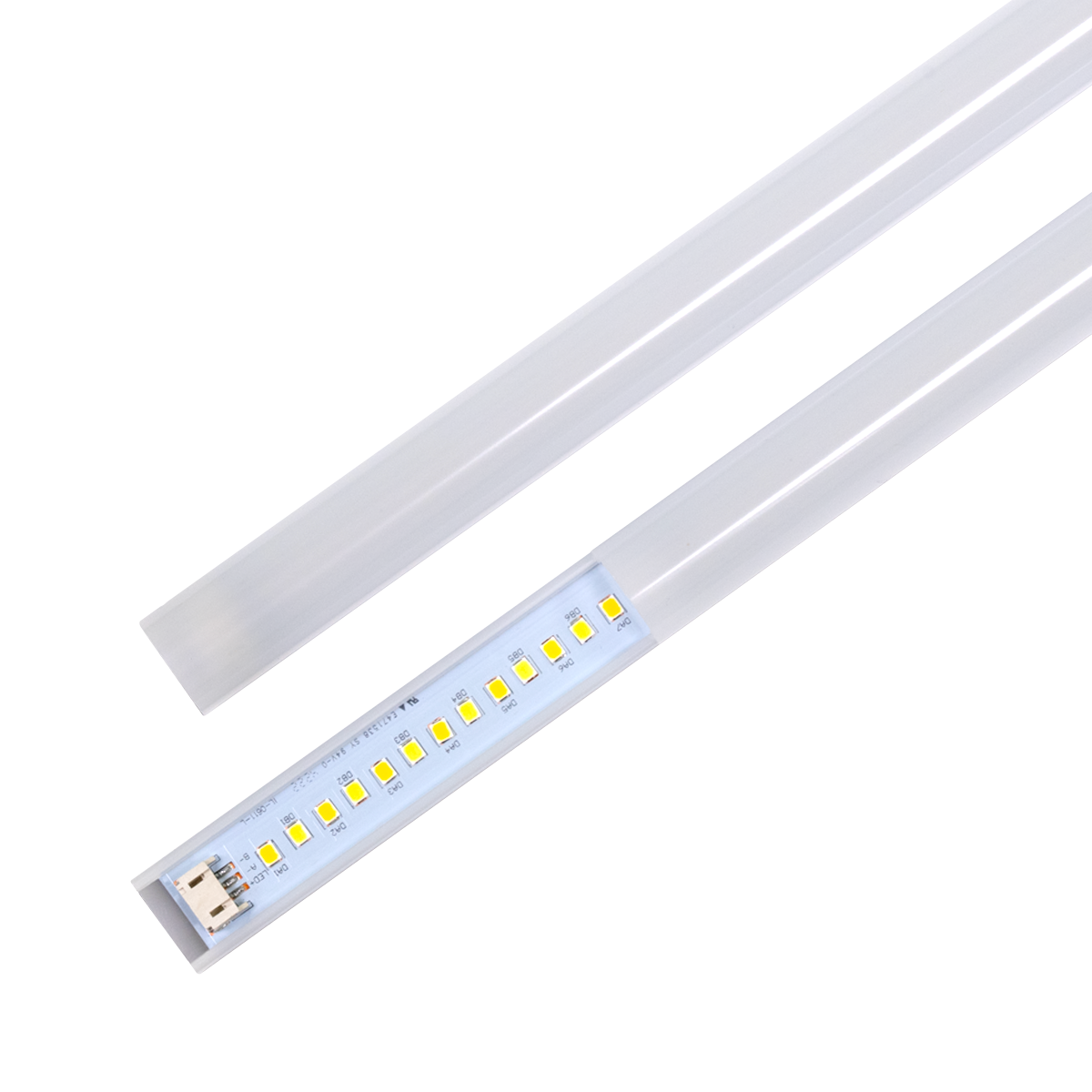

Optional: Screw-in Frosted Lenses (A great solution for non-magnetic troffers)

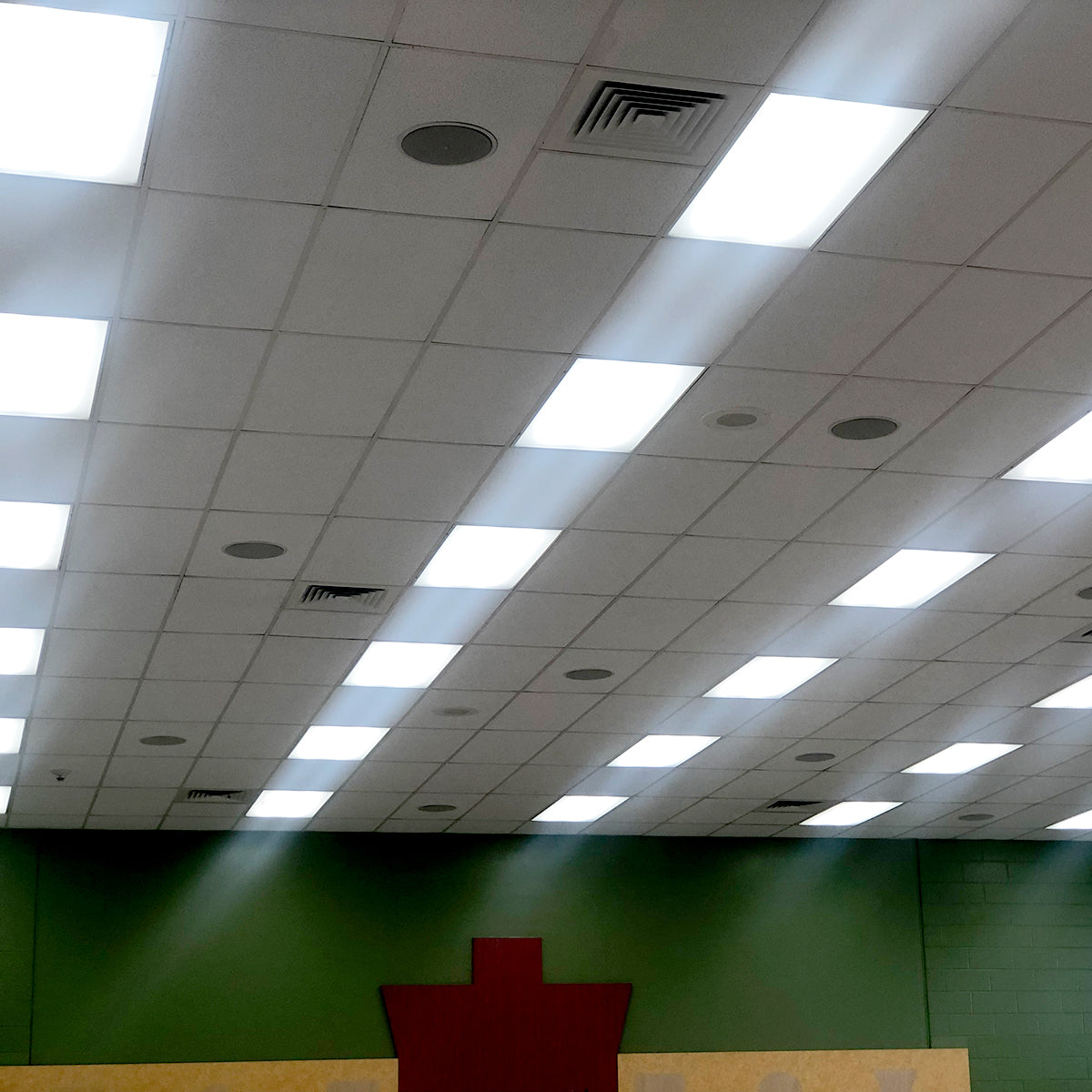

A perfect choice for offices, classrooms, restrooms, hallways, hospitals, utility rooms, retail stores, fitness centers, cafeterias, and more. For non-magnetic troffers, we recommend the frosted lens accessory, which allows you to attach the strips with screws.
Saves $/year in energy costs*
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
An Easier Way to Convert 4ft Fluorescent Troffers to LED
- Magnetic Strips & Driver: Magnetic-backing holds these pieces in place, making install and adjustments easier.
- Quick-Connect Plug: The included strip connector reduces the amount of wiring you have to do.
- Selectable Color Temp & Wattage: A switch on the driver allows users to select the level of power used and the color temperature of the light.
Each Kit Includes: Two 4ft Light Strips and One 0-10V Dimmable LED Driver
Optional: Screw-in Frosted Lenses (A great solution for non-magnetic troffers)
A perfect choice for offices, classrooms, restrooms, hallways, hospitals, utility rooms, retail stores, fitness centers, cafeterias, and more. For non-magnetic troffers, we recommend the frosted lens accessory, which allows you to attach the strips with screws.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
LED Magnetic Retrofit Kit for 2x4 or 1x4 Troffer - 5-CCT - 20W/28W/35W
4777 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
LED Magnetic Retrofit Kit for 2x4 or 1x4 Troffer - 5-CCT - 20W/28W/35W
4777 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 20W / 28W / 35W Selectable |
| Light Output | 2,300 to 5,075 lm |
| Luminous Efficacy (lm/W) | 110 to 145 lm/W |
| Average Lamp Life | 50,000 |
| Color Temperature(s) | 2700K/3000K/3500K/4000K/5000K Selectable |
| Dimming | 0-10V |
| Lens Cover | Frosted lens cover optional |
| Installation | Wire driver into your mains, attach kits to metal surface, plug kits into driver |
| Working Environment | Indoor |
| Light Type | Retrofits and Conversion Kits |
| Input Voltage | 120-277V |
| Housing Material | Aluminum |
| Certification | DLC 5.1, ETL |
| Warranty | 5 Years |
| Additional Specifications |
Each kit contains two 4ft magnetic linear LED retrofit strips + an external magnetic-mount LED driver capable of 0-10V dimming. Frosted lens covers optional. |
