8ft LED Tube - 40W / 7,200 lm - Ballast Bypass
200 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
It's a Whole New Level of Light
Our brightest, most efficient 8ft LED tube ever is also listed on the Design Lights Consortium Qualified Products List, making it eligible for energy efficiency rebates and incentives offered by many utility companies. This means you could realize significant savings on both your energy costs and your lighting upgrade. And, with such high efficiency (180 lm/W), it is able to qualify for rebates even when replacing many older-model LED tubes. The time to upgrade is now!
- Easy install: ballast-bypass (Type B) tube with double-ended power—connect one end to line power and the other to neutral
- Replace 110W or 95W fluorescents with this tube and save up to 63% on electricity costs, or replace two 59W fluorescents with one of these super-bright tubes and save 61% on electricity costs plus 50% on lamp costs
- Available with FA8 (single pin) or R17D endcaps and clear or frosted lens
- Dimming capable when connected to an LED compatible dimming controller
- 5-year warranty is backed by ELEDLights' responsive product support team
Order your ultra-bright, ultra-efficient 8ft LED tubes today & experience your space under a whole new light.
Saves $/year in energy costs*
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
It's a Whole New Level of Light
Our brightest, most efficient 8ft LED tube ever is also listed on the Design Lights Consortium Qualified Products List, making it eligible for energy efficiency rebates and incentives offered by many utility companies. This means you could realize significant savings on both your energy costs and your lighting upgrade. And, with such high efficiency (180 lm/W), it is able to qualify for rebates even when replacing many older-model LED tubes. The time to upgrade is now!
- Easy install: ballast-bypass (Type B) tube with double-ended power—connect one end to line power and the other to neutral
- Replace 110W or 95W fluorescents with this tube and save up to 63% on electricity costs, or replace two 59W fluorescents with one of these super-bright tubes and save 61% on electricity costs plus 50% on lamp costs

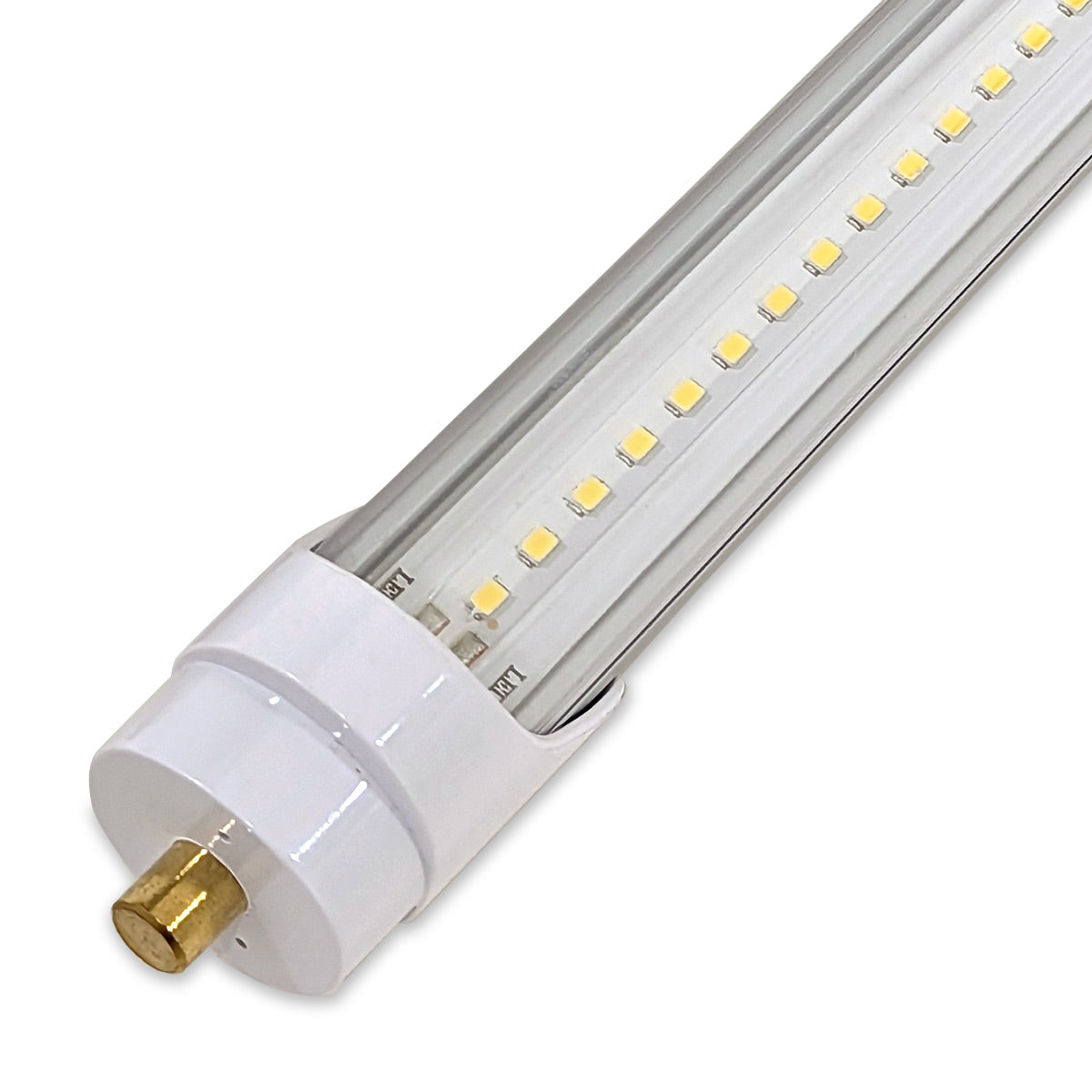

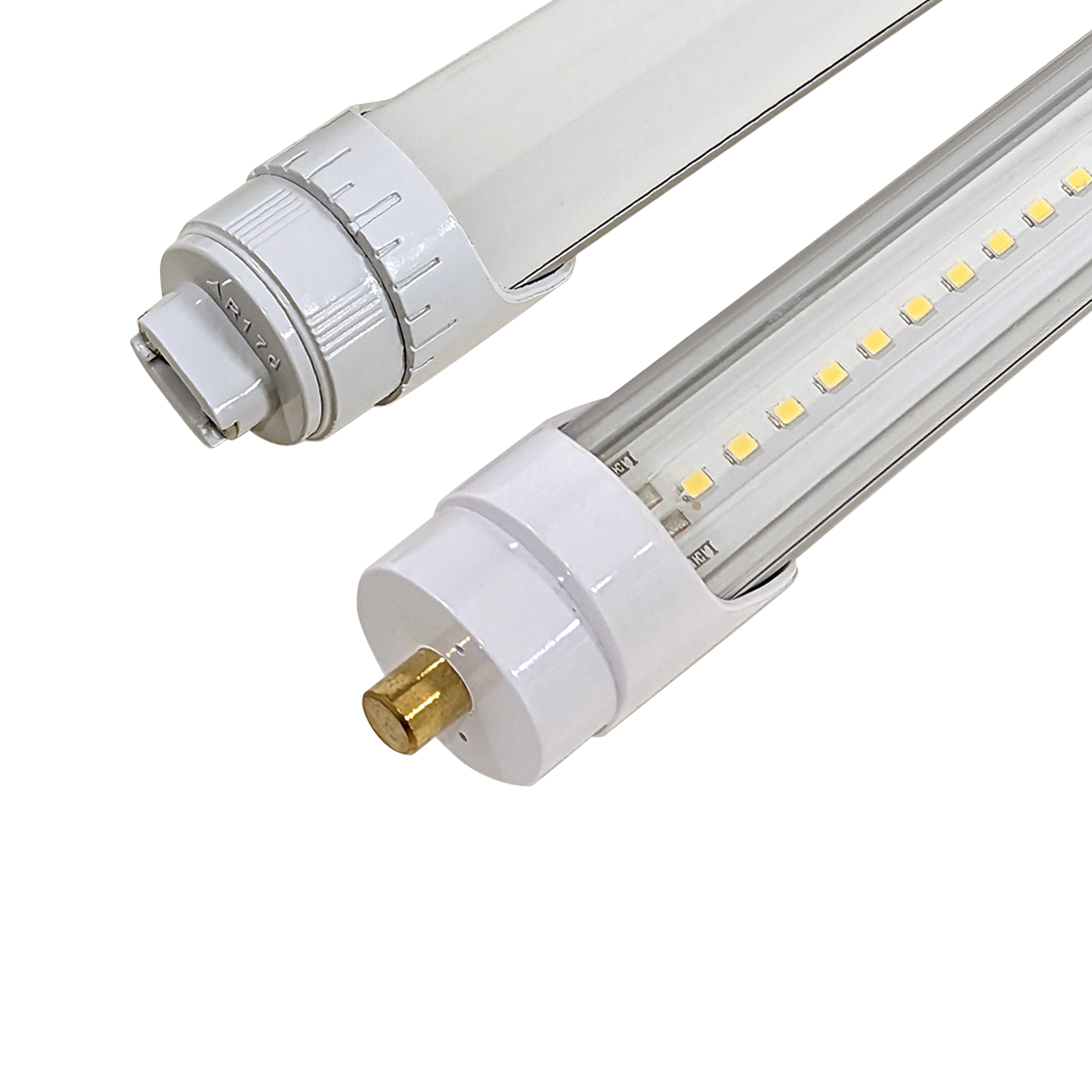

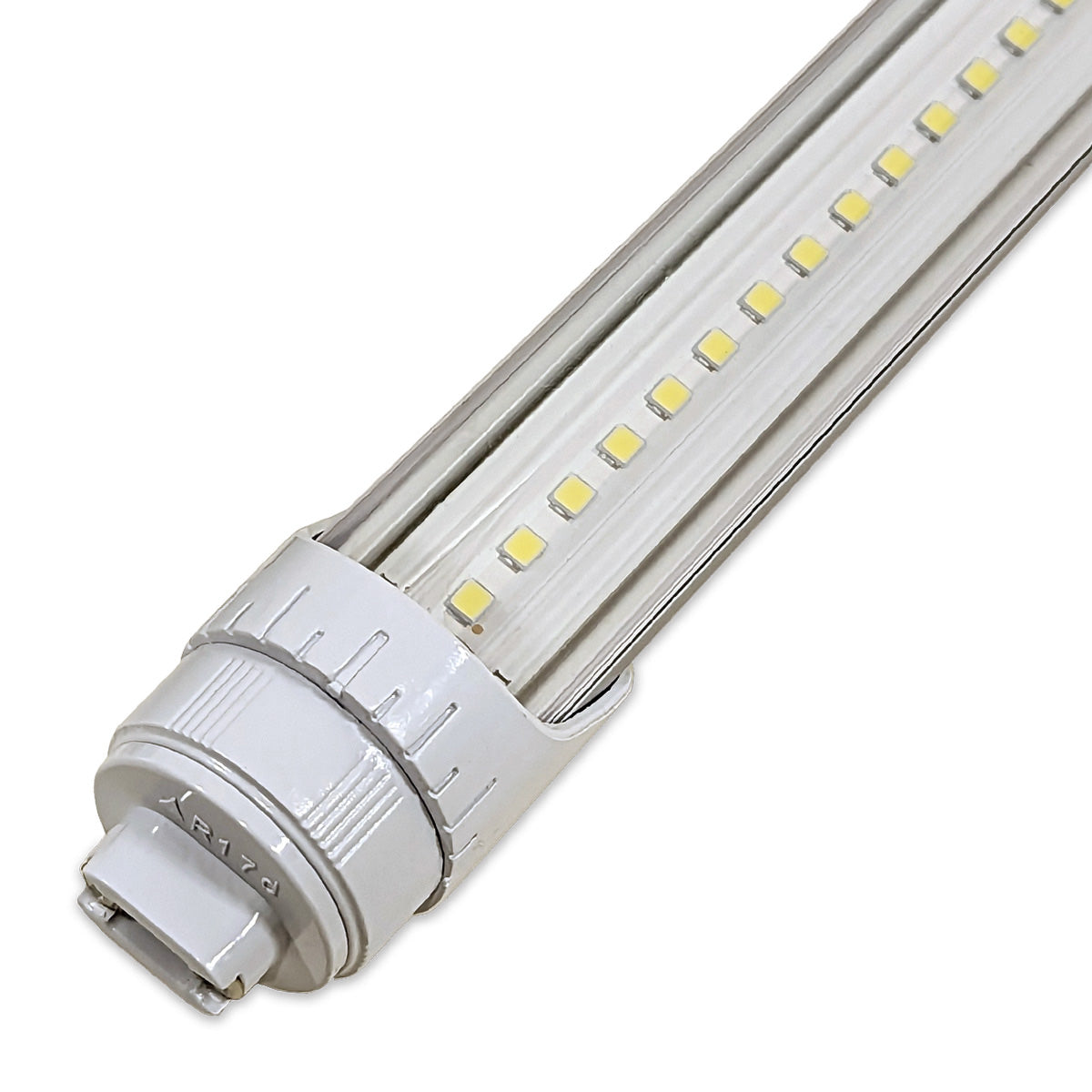

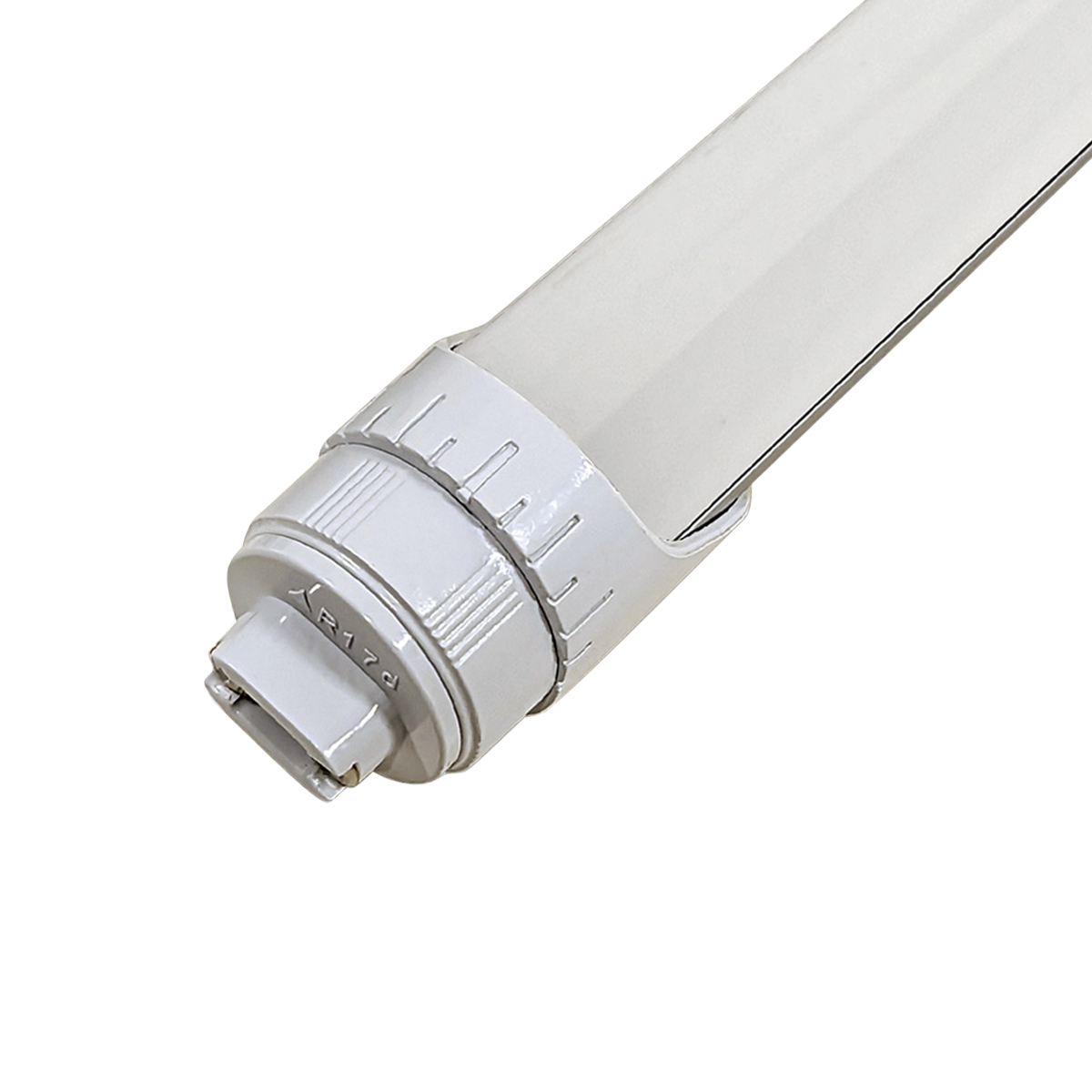

- Available with FA8 (single pin) or R17D endcaps and clear or frosted lens
- Dimming capable when connected to an LED compatible dimming controller
- 5-year warranty is backed by ELEDLights' responsive product support team
Order your ultra-bright, ultra-efficient 8ft LED tubes today & experience your space under a whole new light.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
8ft LED Tube - 40W / 7,200 lm - Ballast Bypass
200 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
8ft LED Tube - 40W / 7,200 lm - Ballast Bypass
200 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 40W |
| Replaces Wattage(s) | Up to 110W |
| Light Output | 7,200 lumens |
| Luminous Efficacy (lm/W) | 180 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5000K (all models) or 6500K (R17D only) |
| CRI | >83 |
| Dimming | Yes |
| Base Type | FA8 (single pin) or R17D |
| Lens Cover | Frosted or Clear |
| Ballast Compatibility | Compatible with all fluorescent fixtures—Bypass the ballast before installing tube |
| Installation | Type B ballast bypass with double-ended power |
| Recommended Installation Height | High ceilings (over 22 feet) and low-ceiling applications that require more light |
| Working Environment | Indoor |
| Light Type | Retrofits and Conversion Kits |
| Input Voltage | 120-277VAC |
| Temperature Rating | -4°F - 122°F |
| Housing Material | Aluminum with polycarbonate lens |
| Certification | DLC 5.1 (5000K models), ETL |
| Warranty | 5 Years |
