5 Year Warranty
181 in stockSafe, Low Energy Cost Lights for Hazardous Locations
Safe Around Comubustible Dust: Ideal for grain silos, flour mills, coal handling and mining faciliites, metal processing, and woodworking and sawmills.
Safe Around Fuel Storage, Fuel Pumps, and Other Such Locations: This light is designed for areas where explosive gases are only present under abnormal conditions, such as leaks or failures.
IP66 and IK07 Ratings: Protected against powerful jets of water and has some resistance to impacts.
Built to Last: Constructed with corrosion-resistant die-cast aluminum.
Marine-Grade Security Lighting for Harsh and Hazardous Locations:
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
This light is especially useful for high foot traffic locations, such as in walkways, doorways, emergency call stations, and around scaffolding. Compatible with a variety of brackets.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Safe, Low Energy Cost Lights for Hazardous Locations
Safe Around Comubustible Dust: Ideal for grain silos, flour mills, coal handling and mining faciliites, metal processing, and woodworking and sawmills.
Safe Around Fuel Storage, Fuel Pumps, and Other Such Locations: This light is designed for areas where explosive gases are only present under abnormal conditions, such as leaks or failures.
IP66 and IK07 Ratings: Protected against powerful jets of water and has some resistance to impacts.
Built to Last: Constructed with corrosion-resistant die-cast aluminum.
Marine-Grade Security Lighting for Harsh and Hazardous Locations:
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
This light is especially useful for high foot traffic locations, such as in walkways, doorways, emergency call stations, and around scaffolding. Compatible with a variety of brackets.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
181 in stock
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
5 Year Warranty
181 in stock
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 65W |
| Replaces Wattage(s) | 175W |
| Light Output | 8,900 lumens |
| Luminous Efficacy (lm/W) | 136 lm/W |
| Average Lamp Life | L70: 50,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | >70 |
| Beam Angle | 130° |
| Installation | Ceiling mount |
| Working Environment | Harsh and hazardous locations |
| Enclosure Rating | IP66 (Protected against dust and high-pressure jets of water) |
| Light Type | HazLoc |
| Input Voltage | 120-277VAC |
| Power Factor | 0.95 |
| Temperature Rating | -40°F to 131°F |
| Humidity | 5%-95% RH |
| Housing Material | Die cast aluminum housing & PC lens |
| Housing Color | Gray |

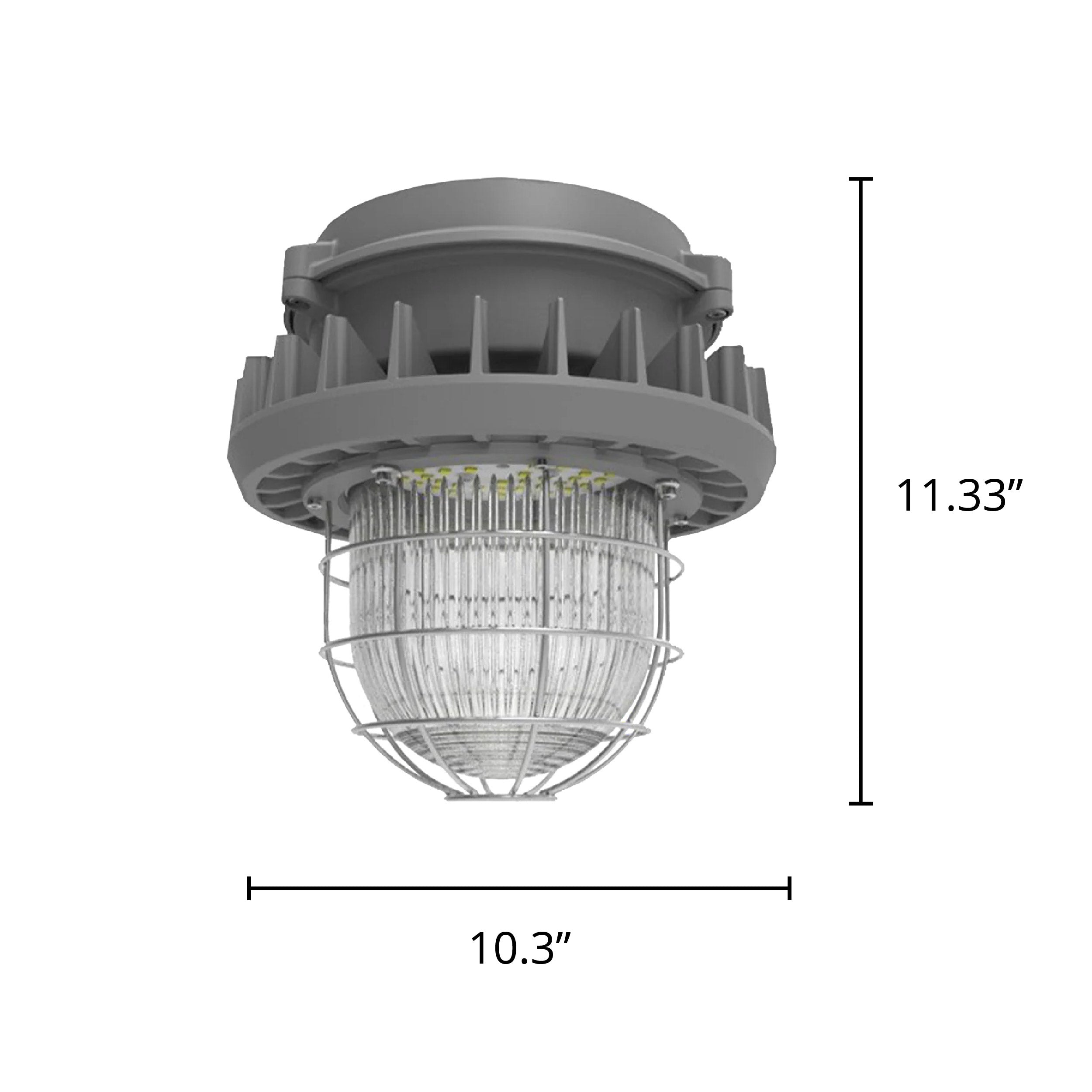

| Dimensions | 11.33” x 10.30” x 10.30” |
| Weight | 10.8 lbs. |
| Certification | DLC 5.1, UL |
| DLC ID(s) | PYU2YCX6 |
| Warranty | 5 Years |
| Additional Specifications | Class I Division 2 Rating |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
Key Features
Great for Ceilings Over 20ft
Not Explosion Proof
High-Pressure Waterproof
Safe, Low Energy Cost Lights for Hazardous Locations
Safe Around Comubustible Dust: Ideal for grain silos, flour mills, coal handling and mining faciliites, metal processing, and woodworking and sawmills.
Safe Around Fuel Storage, Fuel Pumps, and Other Such Locations: This light is designed for areas where explosive gases are only present under abnormal conditions, such as leaks or failures.
IP66 and IK07 Ratings: Protected against powerful jets of water and has some resistance to impacts.
Built to Last: Constructed with corrosion-resistant die-cast aluminum.
Marine-Grade Security Lighting for Harsh and Hazardous Locations:
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
This light is especially useful for high foot traffic locations, such as in walkways, doorways, emergency call stations, and around scaffolding. Compatible with a variety of brackets.
