LED Shoebox Area Light - 150W / 21,000 lumens

LED Shoebox Area Light - 150W / 21,000 lumens

Name: LED Shoebox Area Light - 150W / 21,000 lumens
Brand: Mester
SKU: SBM5T3D150UD50
Price: 159.88 USD
Availability: InStock

$159.88

SKU: SBM5T3D150UD50 | 1103 in stock

Estimated 5-year energy savings^*: $655

Replaces 400W
21,000 Lumens / 140 lm/W

DLC 5.1 & UL Wet Location
5-Year Warranty

Quantity:

Looking for more? Find Rebates, Calculate Savings or Request Bulk Quote

Save Big on Your Outdoor Lighting Costs

Our 150W LED shoebox light is a one-to-one replacement for 400W metal halide or high-pressure sodium area lights that will last longer and reduce energy usage. By making the switch, you will save 63% in monthly overhead and your lights will last an average of 100,000 operating hours!

Meet Standard or High-Demand Lighting Needs

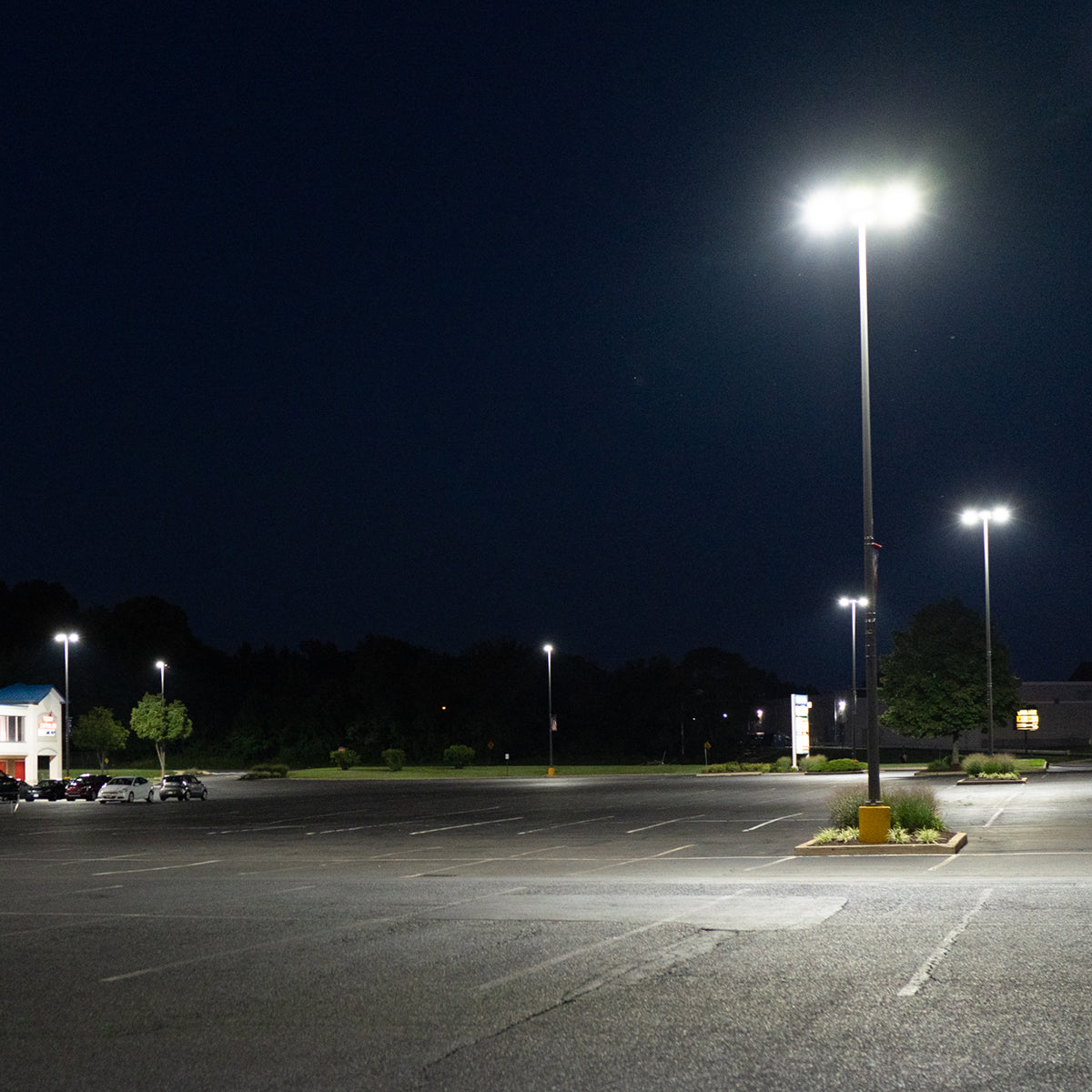

In standard outdoor area lighting applications, these fixtures will be ideal for 20 to 30 ft poles.
To meet high-demand lighting requirements (for security or after-dark customer and employee activity) an ideal mounting height for these fixtures is under 25 ft.

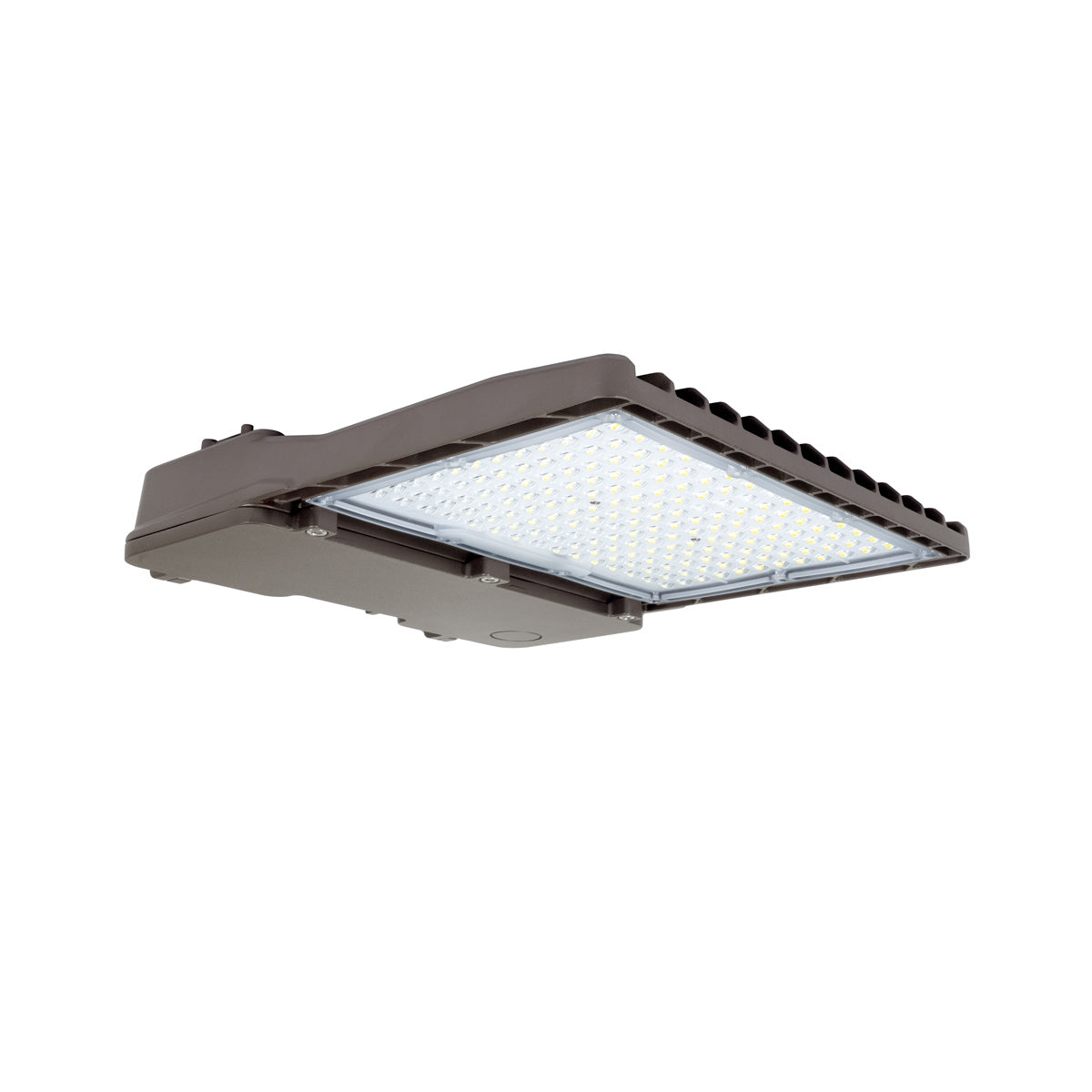

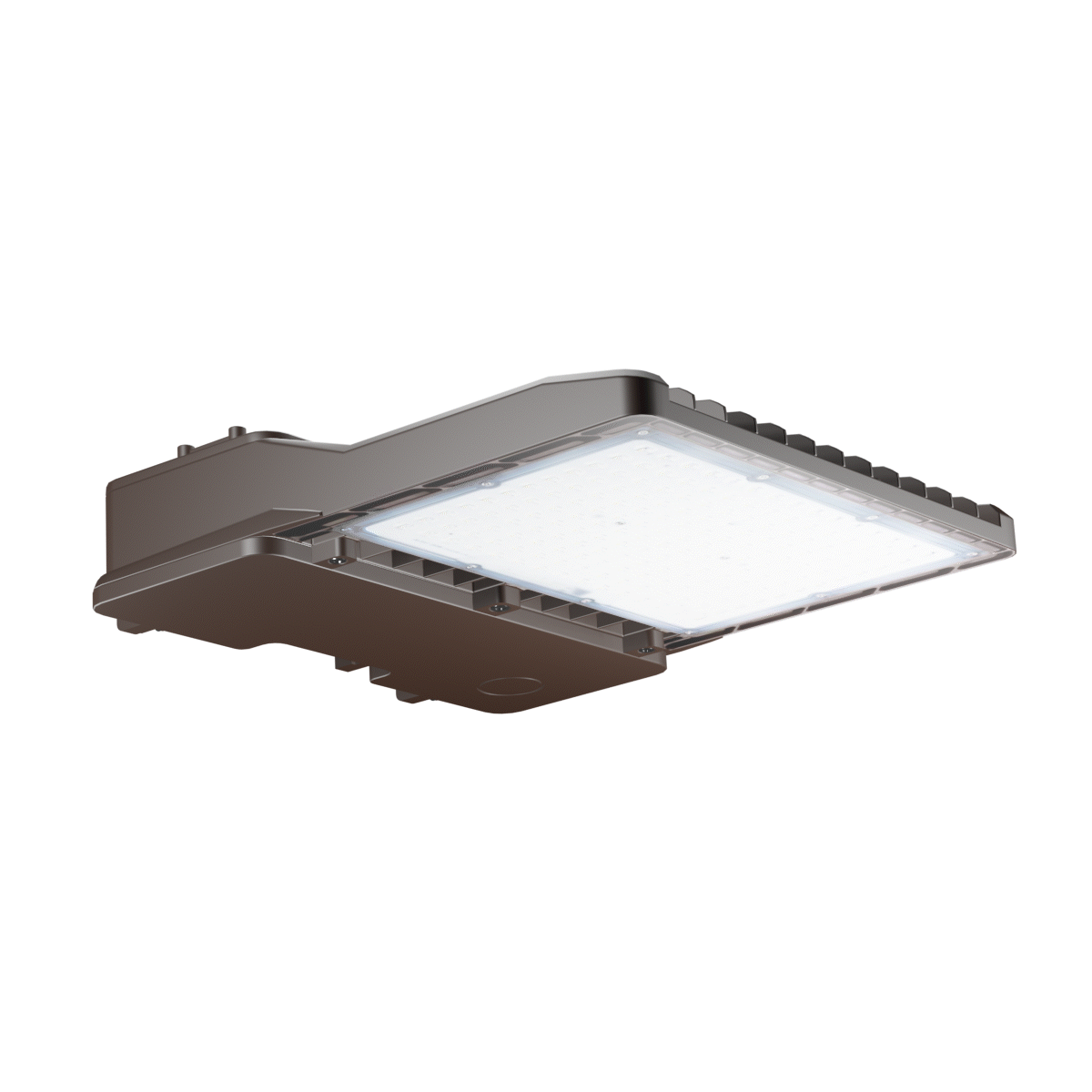

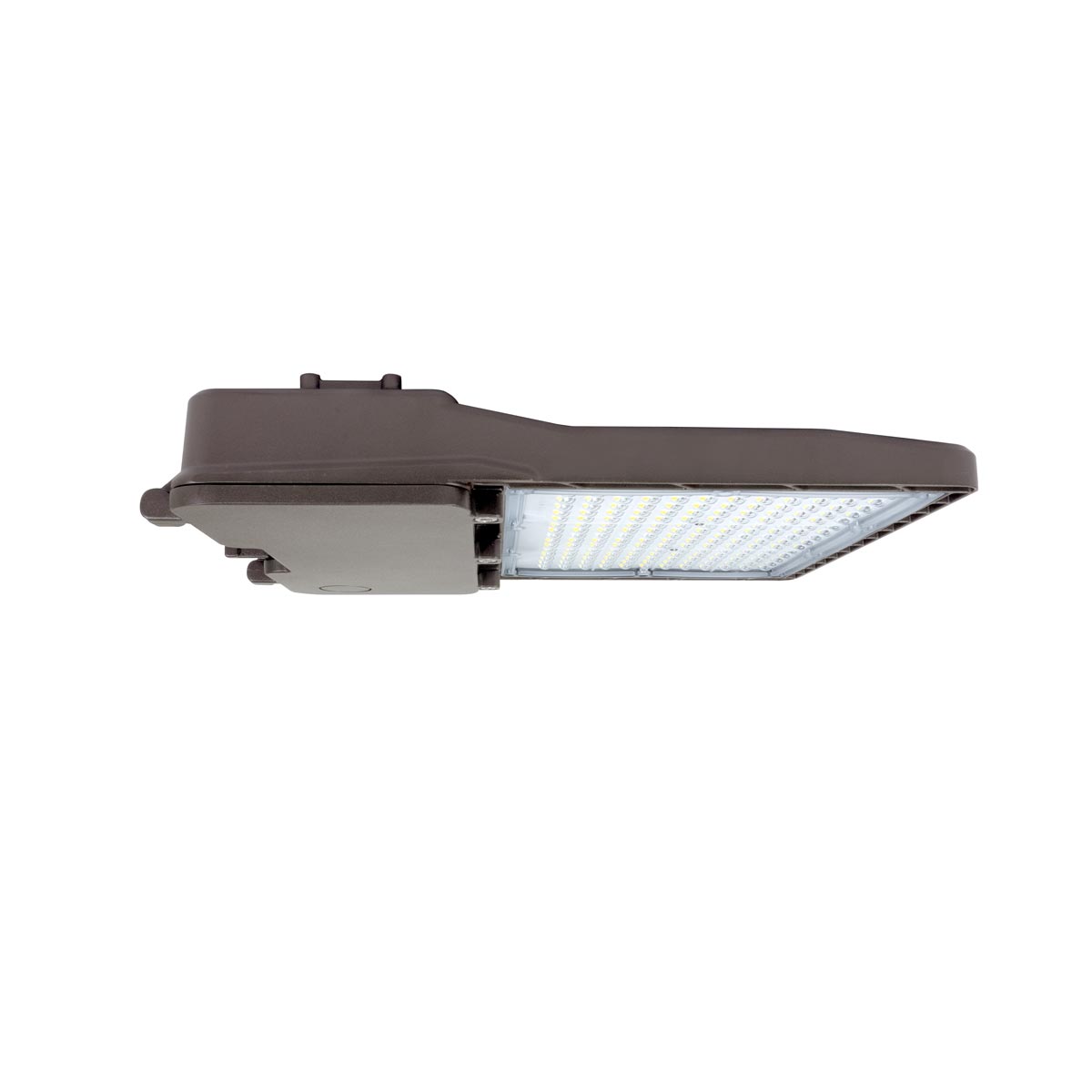

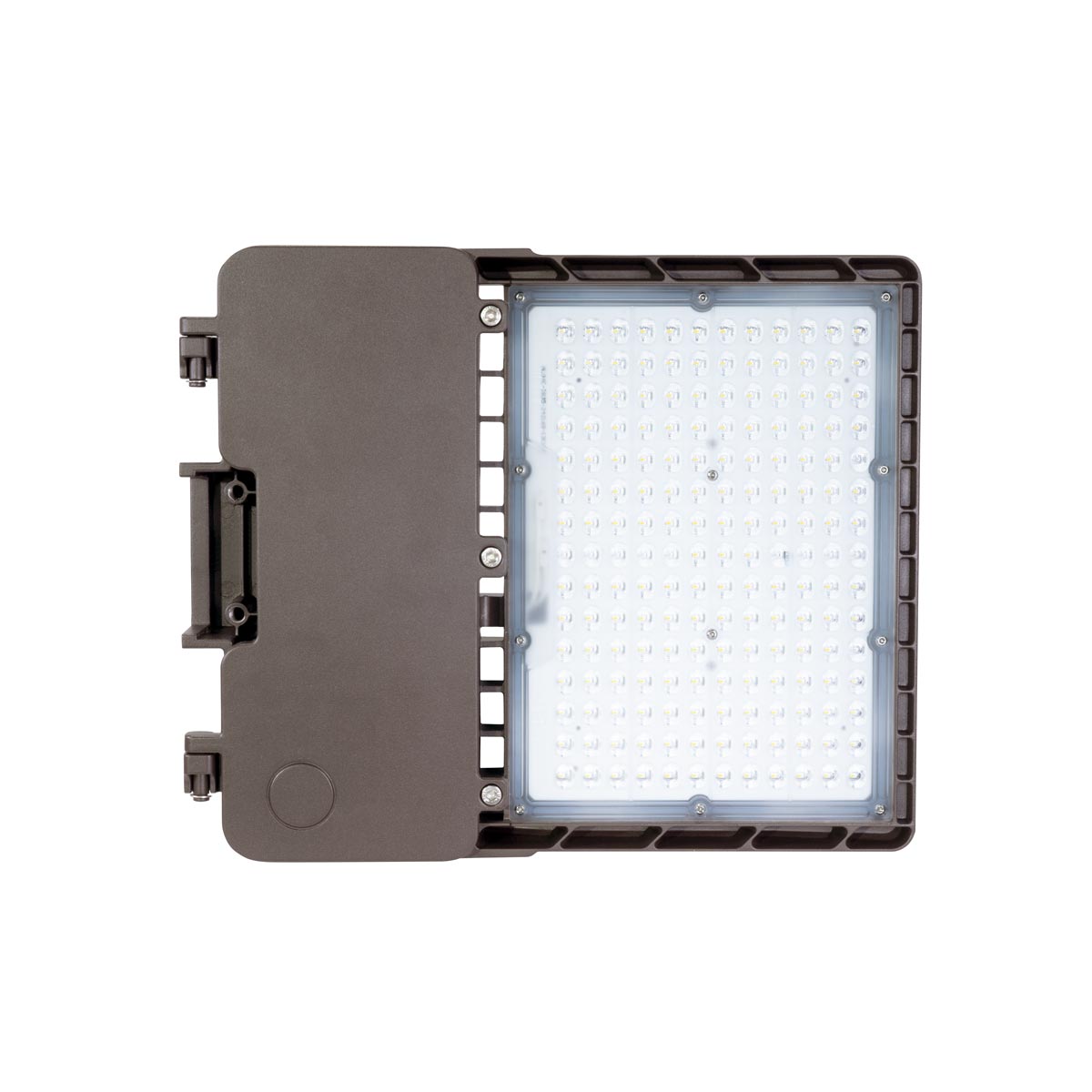

Get Compact, Rugged Area Lighting

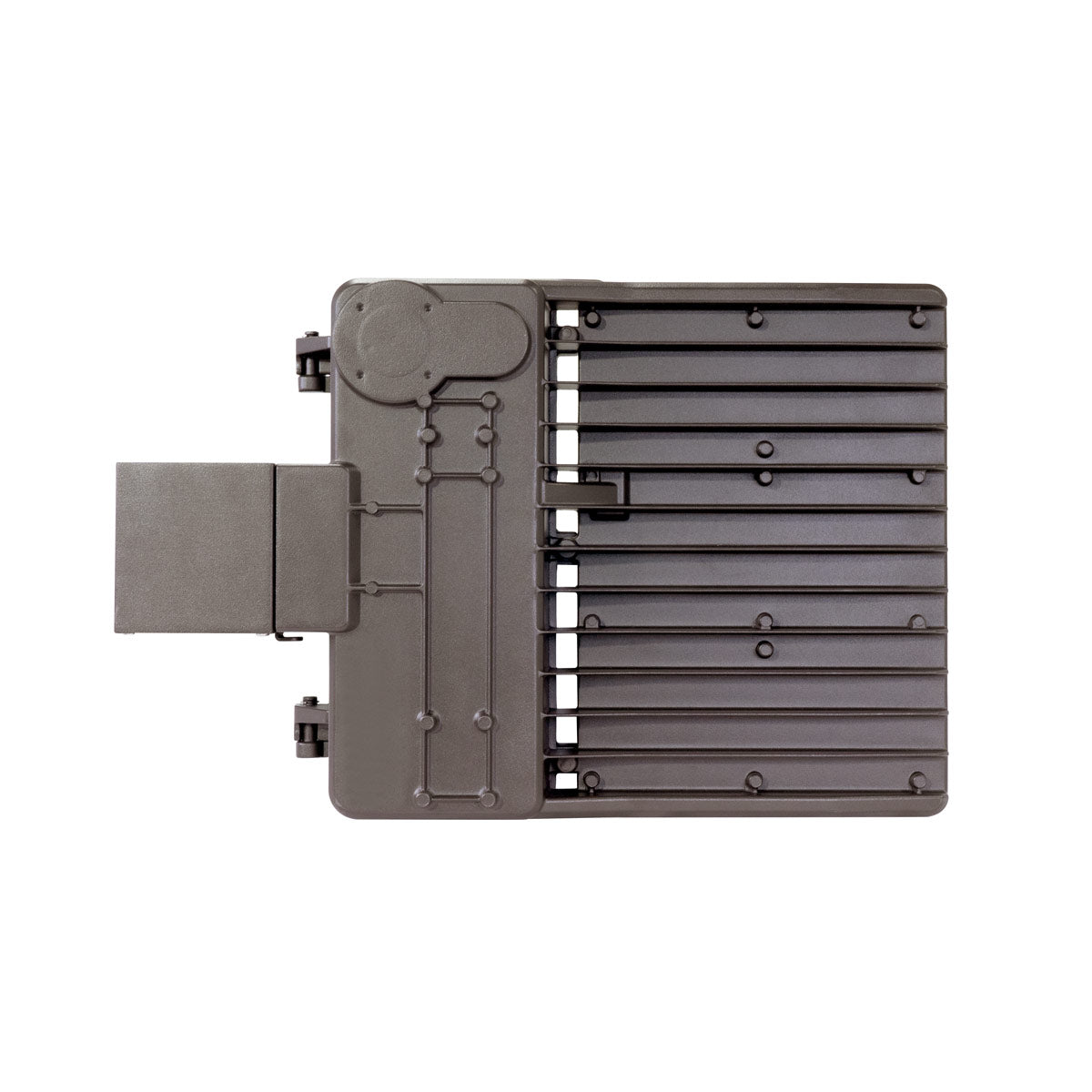

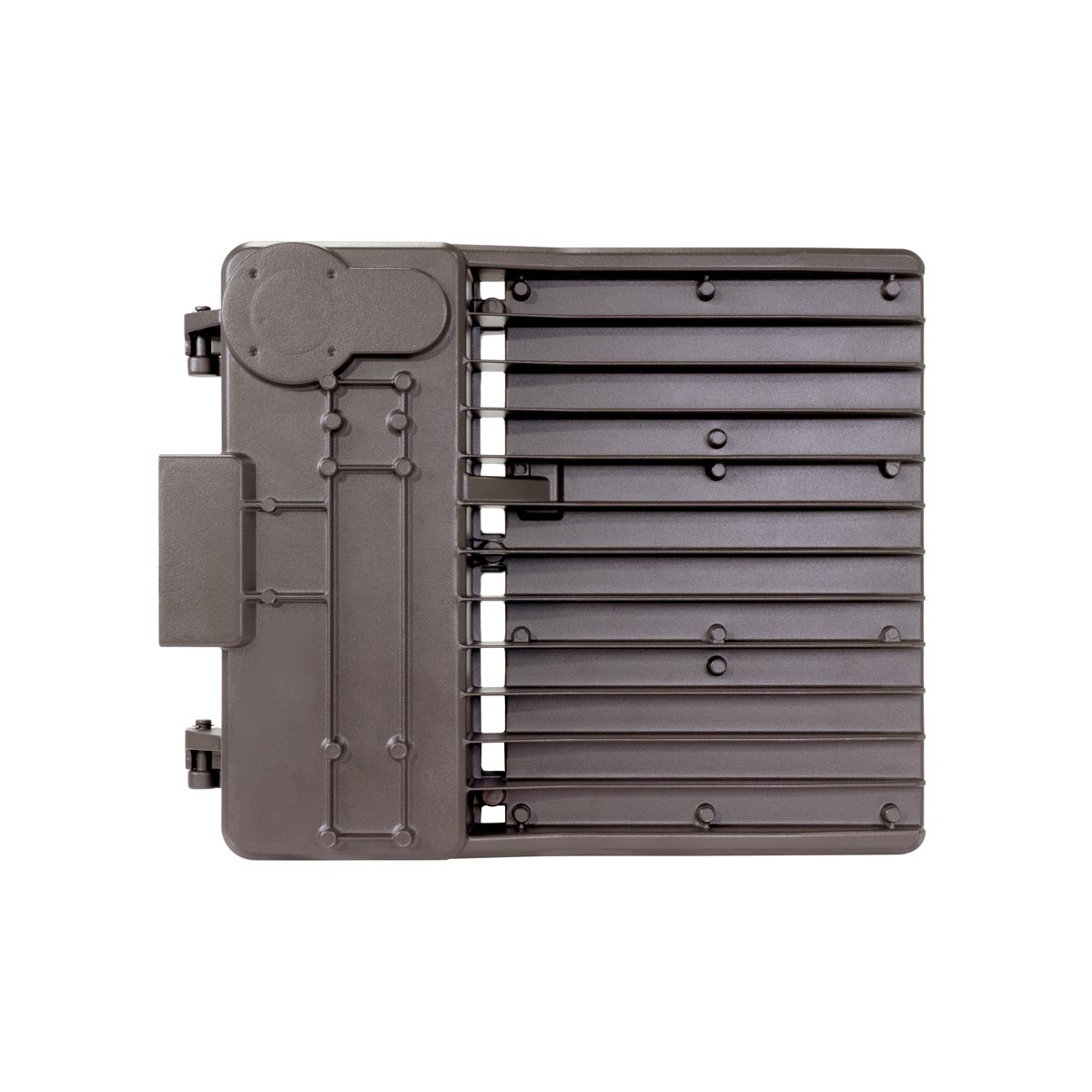

The compact design of this luminaire allows it to be installed by a single person. Since it is low-profile, the design reduces wind load and has a 3G vibration rating, meaning it is safe for use on roadways, bridges, and overpasses. It also has full-enclosed, one-piece, die-cast housing that is completely sealed to prevent ingress of moisture and environmental contaminants.

Pick Your Mounting Bracket

Since each application calls for a specific mounting solution, we offer a variety of options for you to choose from. When adding your shoebox light to the cart, be sure to also select the appropriate mounting bracket from the accessories tab before placing your order.

Pole Mount

For use with 4" and 5" square or round poles

Slipfitter

For use with 2-3/8" OD horizontal steel tenon arms.

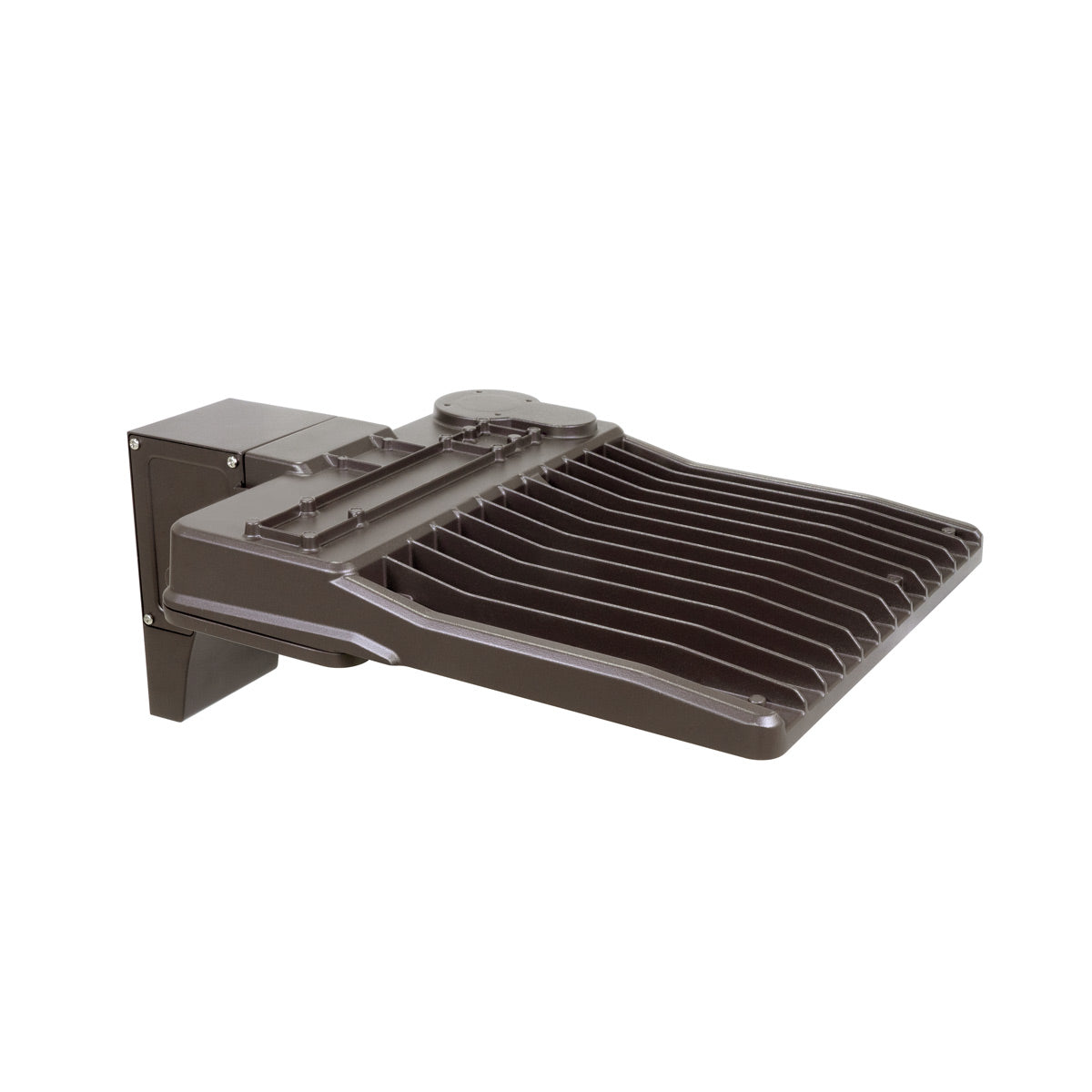

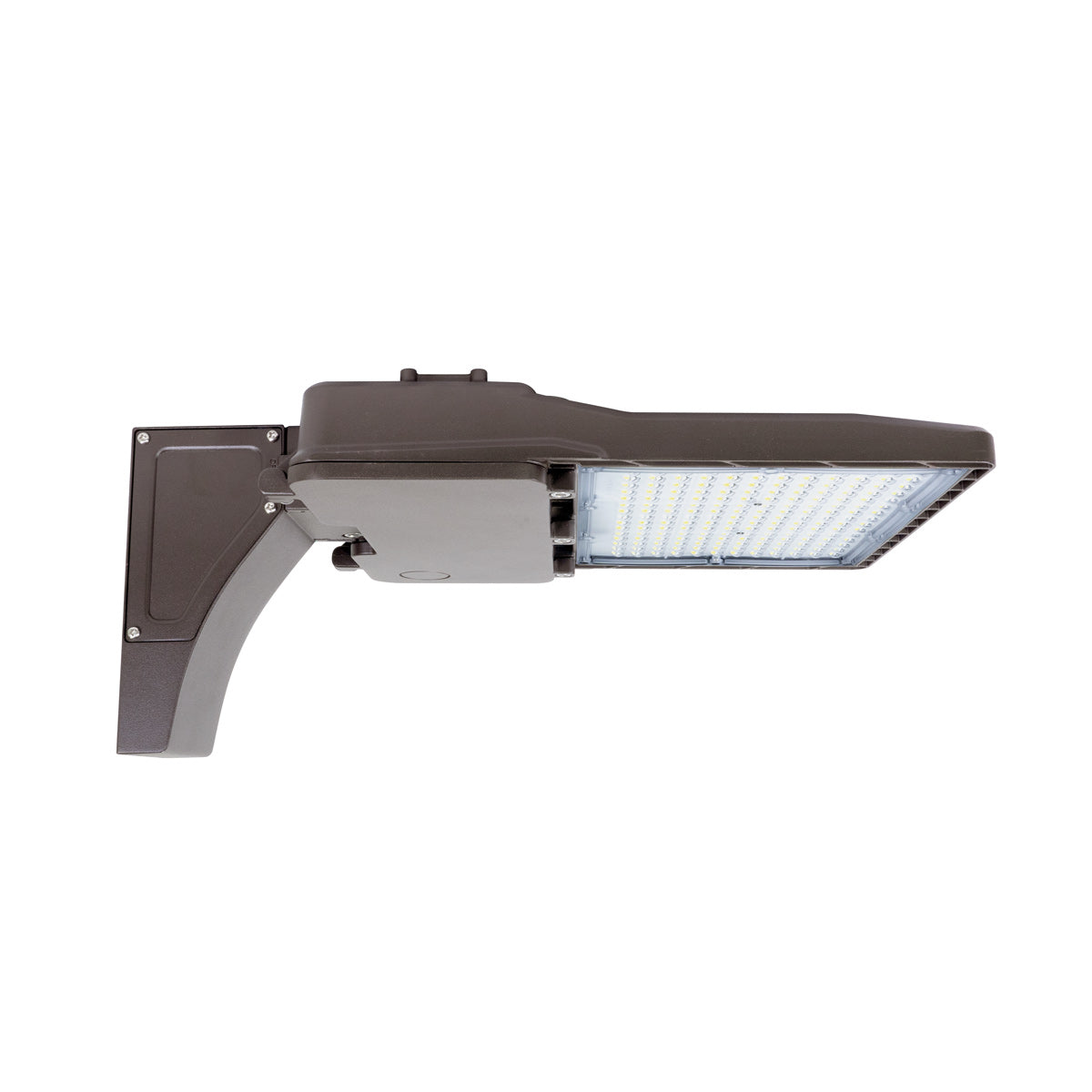

Wall Mount

For building facades - use 0.5" conduit wiring or J-box mounting.

Yoke Mount

For installing the fixture at an angle, like a flood light.

Add Daylight-Detecting Controls

Reduce monthly energy overhead even further by adding daylight-sensing capability to your fixtures. With the optional photocell added, each shoebox will be fully bright in the dark, dim in low-to-moderate levels of light, and then turn completely off during the day. This will ensure your lighting is only in-use when needed.

Lighting Distribution Options:

This shoebox comes standard with a Type III beam angle, but we offer several optical configurations to accommodate your lighting requirements. If you need a Type IV or Type V beam, reach out and we will special-order it for you!

Type III Beam

Throws light forward and sideways. Suitable for either perimeter lighting or, when fixtures are installed back-to-back, for interior poles.

Type IV Beam

Provides forward directed lighting with minimal backlighting - great for perimeter installations.

Type V Beam

Creates a square umbrella pattern of light ideal for interior (rather than perimeter) pole locations.

Wattage(s)	150W
Replaces Wattage(s)	400W
Light Output	21,000 lm
Luminous Efficacy (lm/W)	140 lm/W
Average Lamp Life	50,000
Color Temperature(s)	5000K
CRI	70
Dimming	1-10V
Base Type	Fixture
Light Distribution Pattern	T3 (pushes light forward)
Working Environment	Outdoor
Enclosure Rating	IP65 (Protected against dust and low-pressure jets of water
Light Type	Wired Fixture
Input Voltage	120-277 VAC
Temperature Rating	-40 °F to 104 °F )
Housing Material	One-piece, die-cast aluminum housing
Qty in Package	1

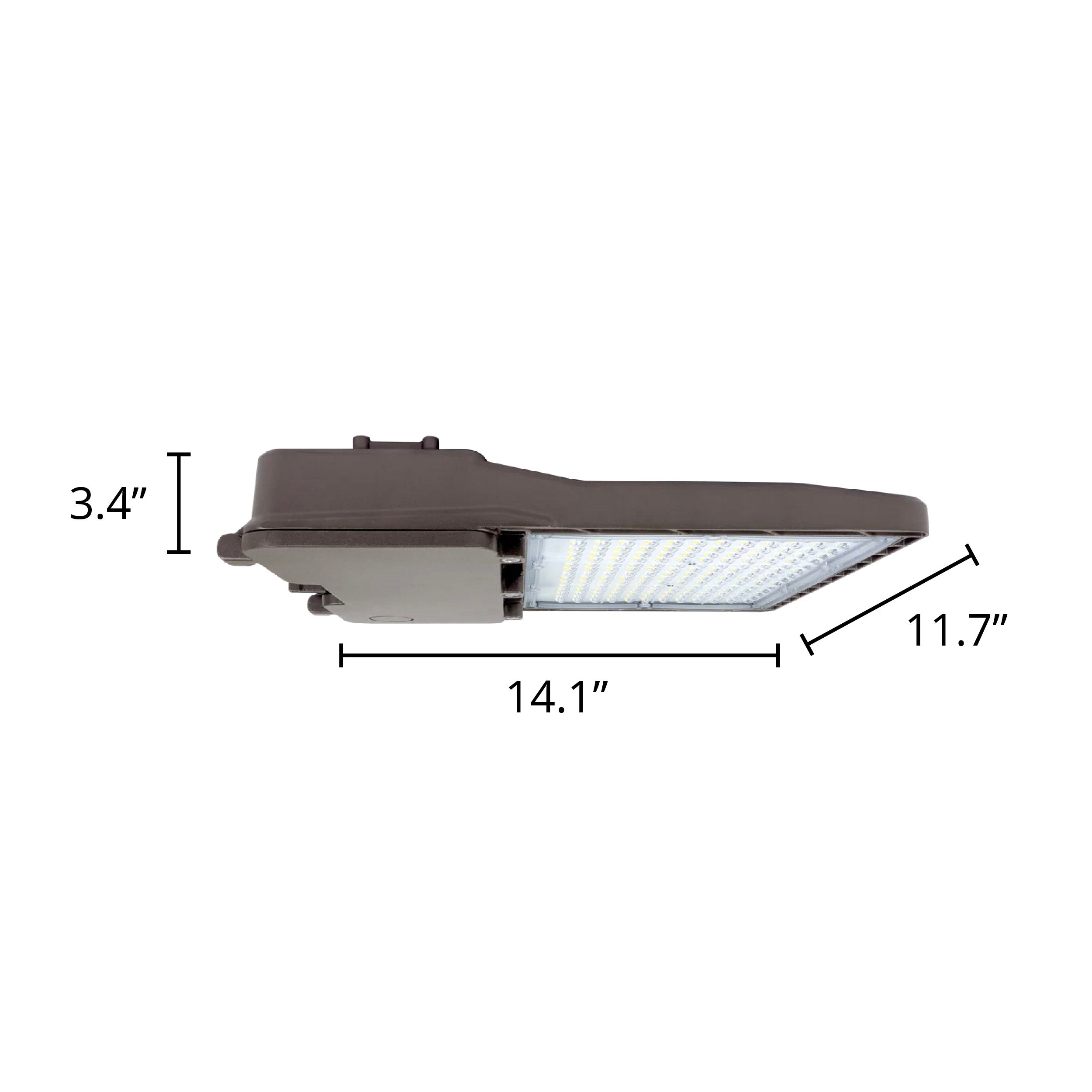

Dimensions	11.7" W x 14.1" D x 3.4" T not including mount
Weight	8.84 lb
Certification	DLC 5.1 \| UL Wet Location
Warranty	5 Years
