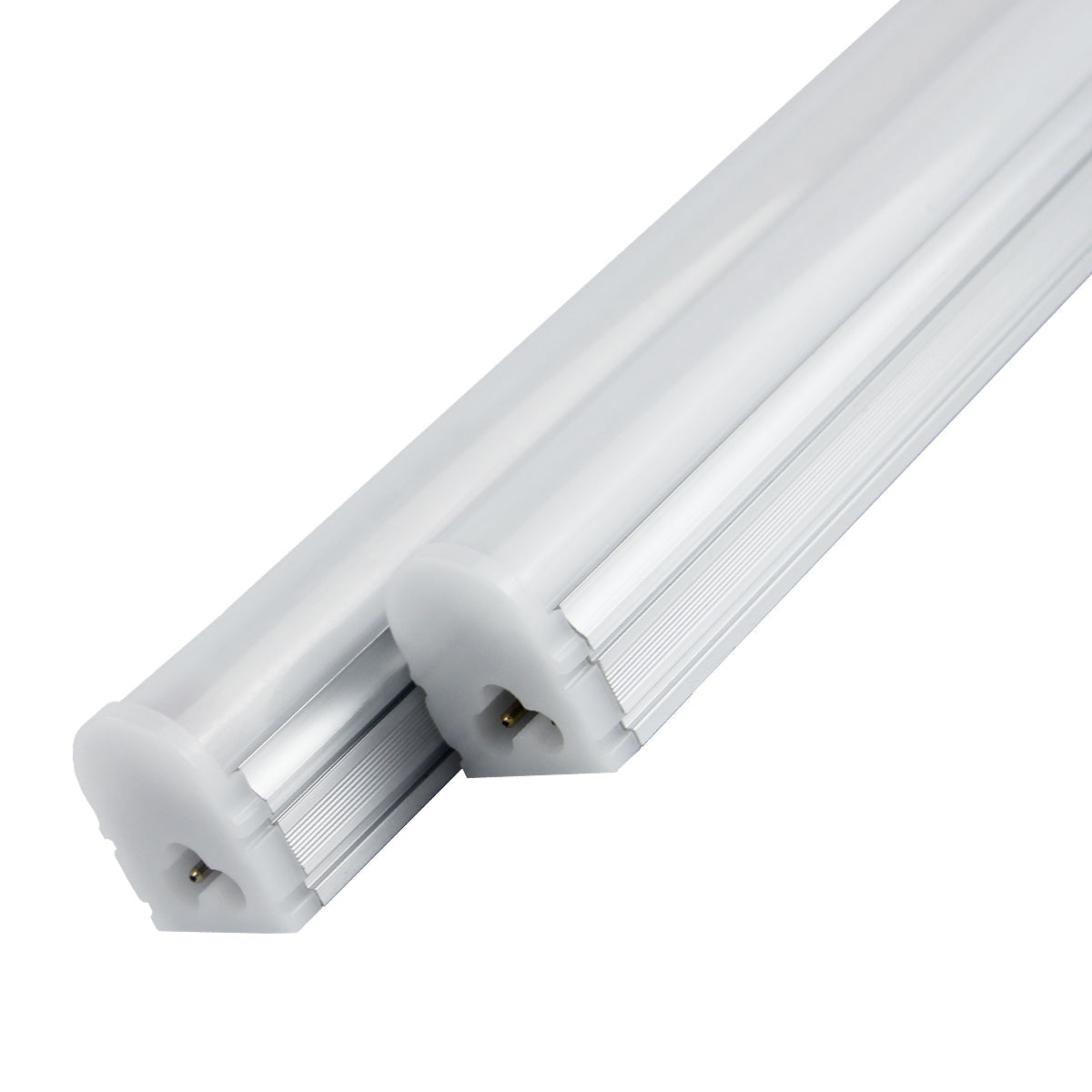

New & improved from our original integrated LED tube shop lights. This new model is brighter, more efficient, and includes the linking cable in the box rather than as a separate accessory. Plus, we're able to offer it at a new, lower price!
Integrated LED strip lights are an ideal solution for replacing commercial fluorescent strip lights. These integrated LED fixtures, available in 4ft or 8ft lengths, offer more illumination than even our brightest LED replacement tubes. And, because these lights are self-contained, there's no need for a separate, bulky fixture.
You can also link these fixtures end-to-end, for up to 48 feet of continuous lighting.
Each fixture includes a pigtail cable for wiring into your main power, clips and screws to mount the fixture, a plastic connector for optionally linking two fixtures together end-to-end, and a 9" linking cable for optionally connecting two fixtures with spacing between.
The fixture can also be wired to a TRIAC dimmer if needed.
Choose these integrated LED lights for your retail store, supermarket, office, workshop, and many other low ceiling applications.
Wattage(s) |
4ft: 30W 8ft: 60W |
Replaces Wattage(s) |
4ft: 60W 8ft: 120W |
Light Output |
4ft: 4,500 lumens 8ft: 9,000 lumens |
Luminous Efficacy (lm/W) | 150 lm/W |
Average Lamp Life | 50,000 hours |
Color Temperature(s) | 5000K |
CRI | 83 |
Dimming | Can be wired to TRIAC dimmer. |
Lens Cover | Frosted |
Installation | Hardwired fixture |
Working Environment | Indoor |
Light Type | Wired Fixture |
Input Voltage | AC120-277V |
Temperature Rating | -3°F ~ 113°F |
Housing Material | Aluminum housing with PC cover |
Housing Color | Silver |
Qty in Package | 20 (4ft) or 25 (8ft) |
Dimensions |
4ft: 45" L x 1.3" W x 1.4" H 8ft: 90" L x 1.3" W x 1.4" H |
Certification | DLC, ETL |
Warranty | 5 Years |
Additional Specifications | Each integrated linear LED fixture includes pigtail wires with a connector, mounting clips, screws, plastic expansion screws, a removable endcap, a secure plastic connector for end-to-end linking of fixtures, and a 9" cable for linking fixtures with some separation between them. |
