4ft 30W Linkable LED Shop Light - Integrated Tube
4ft 30W Linkable LED Shop Light - Integrated Tube
4ft 30W Linkable LED Shop Light - Integrated Tube
ELEDLights
0 Reviews
4ft 30W Linkable LED Shop Light - Integrated Tube
Regular price
A slim, linkable shop light for garages, basements, and narrow ceiling beams — snaps in fast.
- Link up to 48' of continuous lighting end-to-end or with the included 9" cable.
- Replaces 120W fluorescents at just 30W — 4,500 lumens at 150 lm/W efficiency.
- Narrow 1.3" profile fits where full-sized fixtures can't — no separate ballast to deal with.
A slim, linkable shop light for garages, basements, and narrow ceiling beams — snaps in fast.
- Link up to 48' of continuous lighting end-to-end or with the included 9" cable.
- Replaces 120W fluorescents at just 30W — 4,500 lumens at 150 lm/W efficiency.
- Narrow 1.3" profile fits where full-sized fixtures can't — no separate ballast to deal with.
Choose options
Regular price
Regular price
Specs
| Wattage(s) | 30W |
| Replaces Wattage(s) | 120W |
| Light Output | 4,500 lumens |
| Luminous Efficacy (lm/W) | 150 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 83 |
| Dimming | Can be wired to TRIAC dimmer. |
| Lens Cover | Frosted |
| Installation | Surface mount |
| Working Environment | Indoor |
| Light Type | Hardwired |
| Input Voltage | AC120-277V |
| Operating Temperature | -3°F ~ 113°F |
| Housing Material | Aluminum housing with PC cover |
| Housing Color | Silver |
| Dimensions | 45" L x 1.3" W x 1.4" H |
| Certification | ETL, DLC |
| Warranty | 5 Years |
| Additional Specifications | Each integrated linear LED fixture includes mounting clips, screws, plastic expansion screws, a removable endcap, a secure plastic connector for end-to-end linking of fixtures, and a 9" cable for linking fixtures with some separation between them. Each box of 25 includes five pigtail cables for connecting to main power. |
Data SheetDetails
Bright, Efficient Self-Contained Tube Lighting
- Integrated = Self-Contained (No need for a separate, bulky fixture).
- Linkable: Up to 48' of Continuous Lighting (Linking cable included).
- Dimmable: Can be wired to a TRIAC dimmer, if needed.
What Comes in the Box:
- Pigtail cables for wiring to main power (five cables per box of 25 lights)

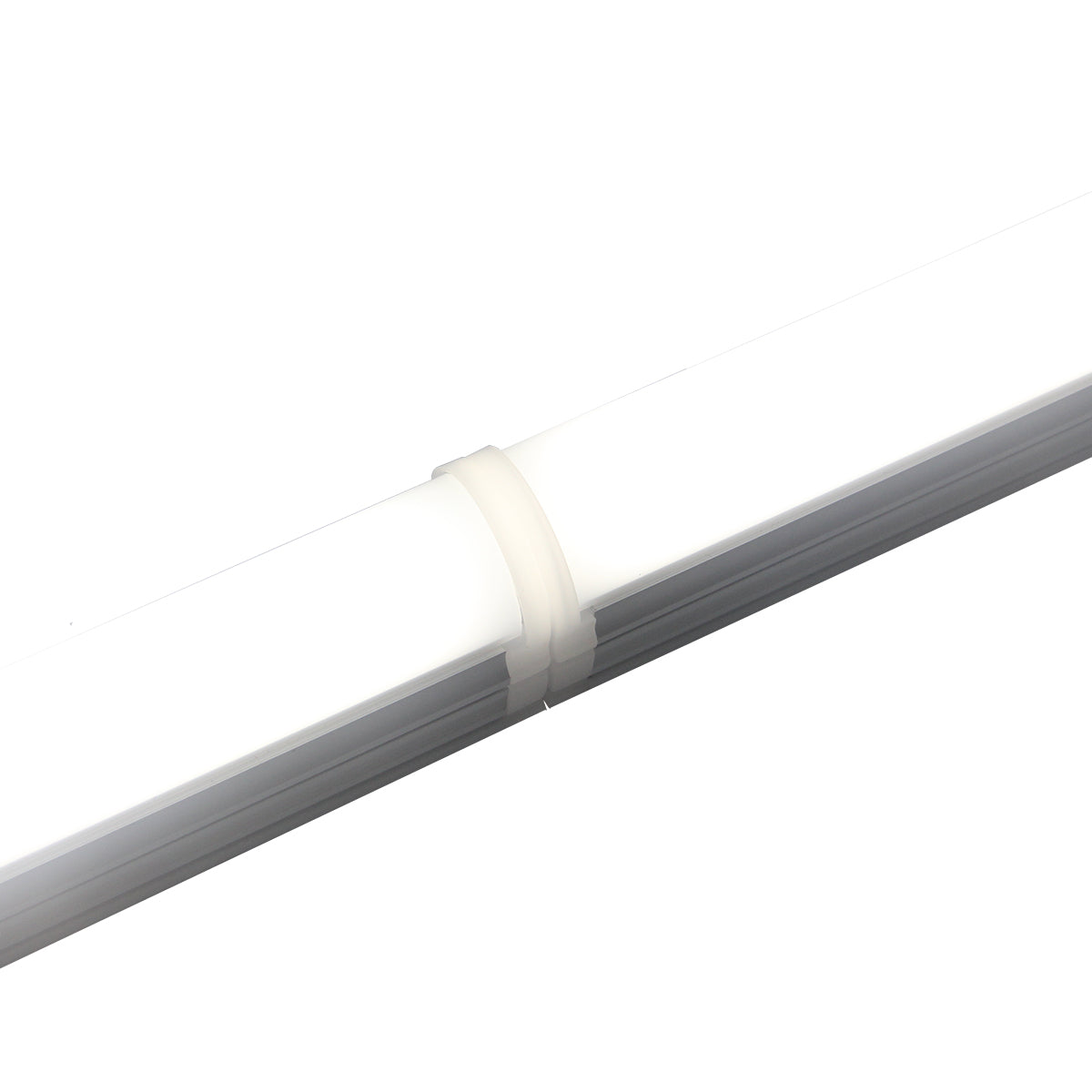

- Clips and screws to mount the fixture

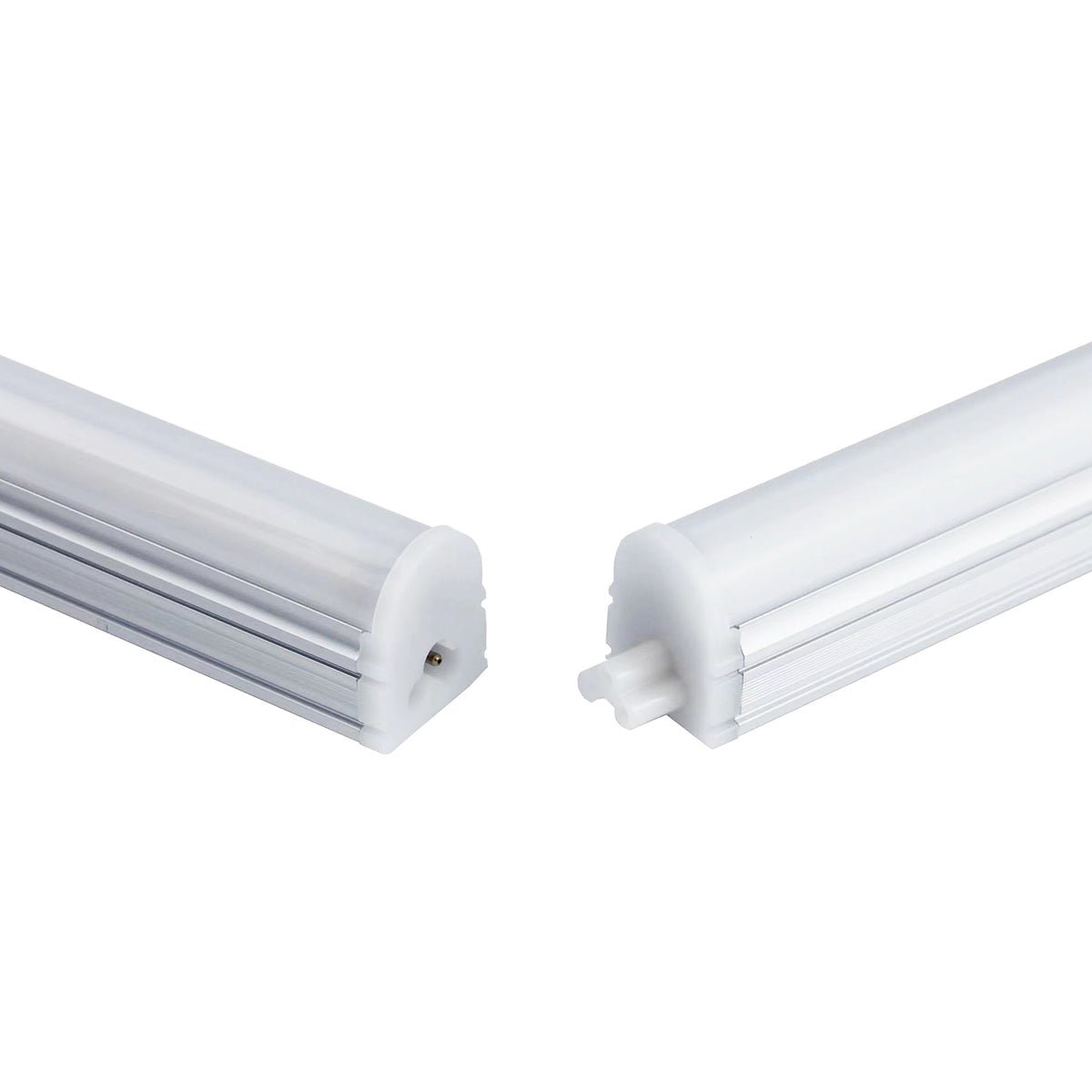

- Plastic connector for linking fixtures end to end
- 9" cable for connecting fixtures with space between (five cables per box of 25 lights)
An ideal solution for replacing commercial fluorescent strip lights in retail stores, supermarkets, offices, workshops, and many other low ceiling applications.
