LED Architectural Shoebox Light - 240W
LED Architectural Shoebox Light - 240W
LED Architectural Shoebox Light - 240W
LED Architectural Shoebox Light - 240W
Only 4 Remaining
A 240W architectural LED shoebox light for parking lots, roadways, campuses, gas stations, and pathways, replacing 750W metal halide with 28,800 lumens at 120 lm/W.
- Replaces 750W metal halide (240W) with 28,800 lumens at 120 lm/W for significant energy savings
- IP66-rated dark bronze aluminum housing handles extreme weather with a polished architectural look
- 50,000-hour rated lifespan outlasts metal halide fixtures for years of low-maintenance operation
Need More? Text/call (858) 650-9400
A 240W architectural LED shoebox light for parking lots, roadways, campuses, gas stations, and pathways, replacing 750W metal halide with 28,800 lumens at 120 lm/W.
- Replaces 750W metal halide (240W) with 28,800 lumens at 120 lm/W for significant energy savings
- IP66-rated dark bronze aluminum housing handles extreme weather with a polished architectural look
- 50,000-hour rated lifespan outlasts metal halide fixtures for years of low-maintenance operation
Choose options
Only 4 Remaining
Need More? Text/call (858) 650-9400
Only 4 Remaining
Need More? Text/call (858) 650-9400
Details

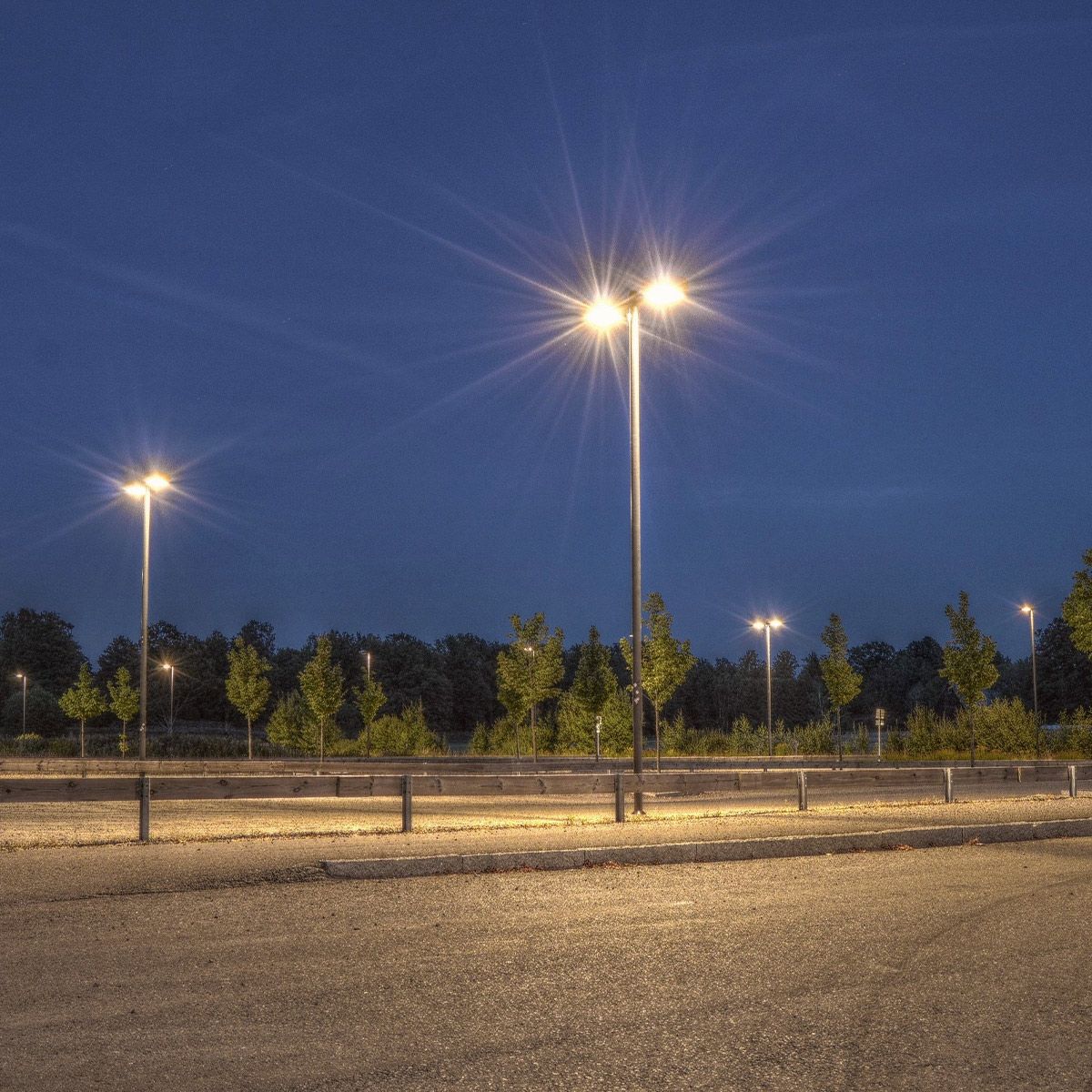

The architectural 240W LED shoebox light puts out 28,800 lumens and offers 120 lumens per watt. Its glare-free cold white light (5000K) will light up your parking lot, garage, roadway, pathways, gas station, campus and more. It shines bright when reliability is critical.

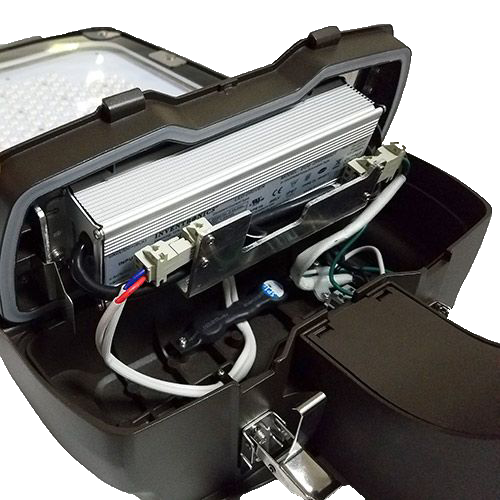

This UL-listed light is great for designers and architects due to its sleek finish and elegant design. Other features include easy installation and maintenance capabilities, a high efficiency LED driver and high grade LED chips. It’s IP66 rating also means this module can withstand extreme weather conditions.

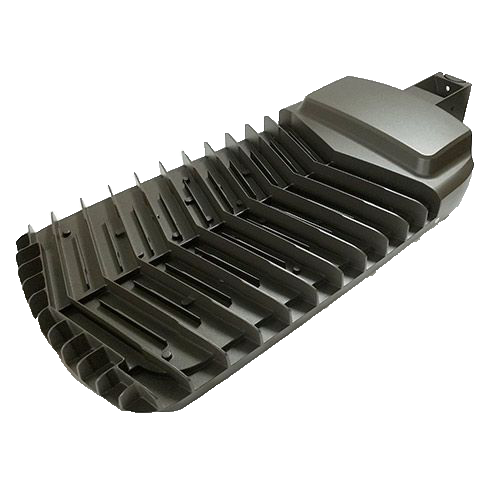

A dark bronze aluminum design offers better cooling for low maintenance lighting. This light will last longer than 750W metal halides and it will prove more efficient as it’s built to last more than 50,000 working hours.
Specs
| Wattage(s) | 240W |
| Replaces Wattage(s) | 600W |
| Light Output | 28,800 lumens |
| Luminous Efficacy (lm/W) | 120 lm/W |
| Average Lamp Life | 50000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Beam Angle | T3 (pushes light forward) |
| Recommended Installation Height | 42 – 52 ft. |
| Working Environment | Outdoor |
| Enclosure Rating | IP66 (Protected against dust and high-pressure jets of water) |
| Light Type | Wired Fixture |
| Input Voltage | 100-277 VAC |
| Temperature Rating | -30 to 50 C / -22 to 122 F |
| Housing Material | Aluminum Alloy |
| Housing Color | Dark Bronze |
| Dimensions |
499 × 320 × 106 mm/ 19.6” x 12.6” x 4.2” (excluding mounting hardware) |
| Certification | DLC 5.0, UL |
| Warranty | Warehouse clearance 1 year warranty with USA warranty support direct from ELEDLights |
