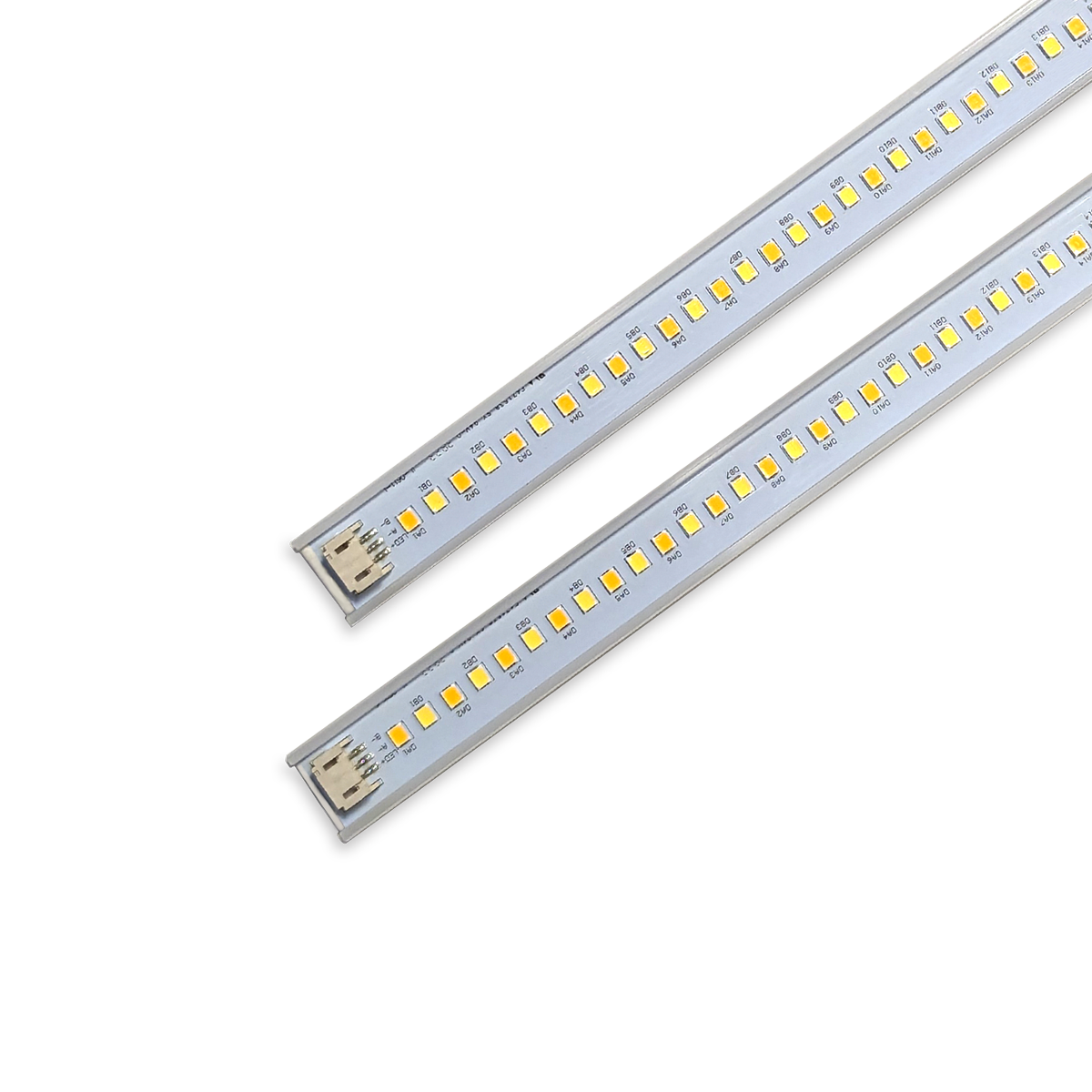

Two LED light strips for the LED High Lumen Magnetic Retrofit Kit for 2x4 Troffer with 3-CCT and variable wattage options
Bright LED ceiling lights installed in a large room using the LED High Lumen Magnetic Retrofit Kit for 2x4 Troffer
LED High Lumen Magnetic Retrofit Kit driver showing power and color temperature switch options for 2x4 troffer.
LED High Lumen Magnetic Retrofit Kit for 2x4 Troffer including two LED strips driver and connector accessories
LED High Lumen Magnetic Retrofit Kit for 2x4 Troffer with adjustable 3-CCT and 30W 38W 46W power settings

LED High Lumen Magnetic Retrofit Kit for 2x4 Troffer - 3-CCT - 30W/38W/46W

Sale price$34.95
Regular price$47.95
Save 27%
ELEDLights | SKU: 2X4STRPD46WSCS | 423 in stock

5 Year Warranty

Lumens:

3,450-6,670

Watts:

30W-46W

Color Temp:

3500K/4000K/5000K
Fast fluorescent upgrade
3 selectable color temperatures
Frosted lens available for open fixtures
Smooth dimming (0-10V)
Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
(175)

An Easier Way to Convert 4ft Fluorescent Troffers to LED

  • Really Bright, for Medium to High Ceilings: High lumen kit provides output from 3,450 to 6,670 lumens while still being light on energy overhead.
  • Three Light Output Settings: A switch on the driver allows users to select the level of power used—46W, 38W, or 30W—to achieve the best lighting for their space.
  • Three CCT Settings: Set each kit’s color temperature to 3500K, 4000K, or 5000K.
  • Magnetic Strips & Driver: Magnetic-backing holds these pieces in place, making install and adjustments easier.
  • Quick-Connect Plug: The included strip connector reduces the amount of wiring required, for faster installation.

Each Kit Includes: Two 4ft Light Strips and One 0-10V Dimmable LED Driver.

A perfect choice for offices, classrooms, restrooms, hallways, hospitals, utility rooms, retail stores, fitness centers, cafeterias, and more. For non-magnetic troffers, we recommend the frosted lens accessory, which allows you to attach the strips with screws.

Saves $/year in energy costs*

Sale price$34.95
Regular price$47.95
Save 27%
Outline star
Outline star
Outline star
Outline star
Outline star
Filled star
Filled star
Filled star
Filled star
Filled star
(175)
Get it by Order Within

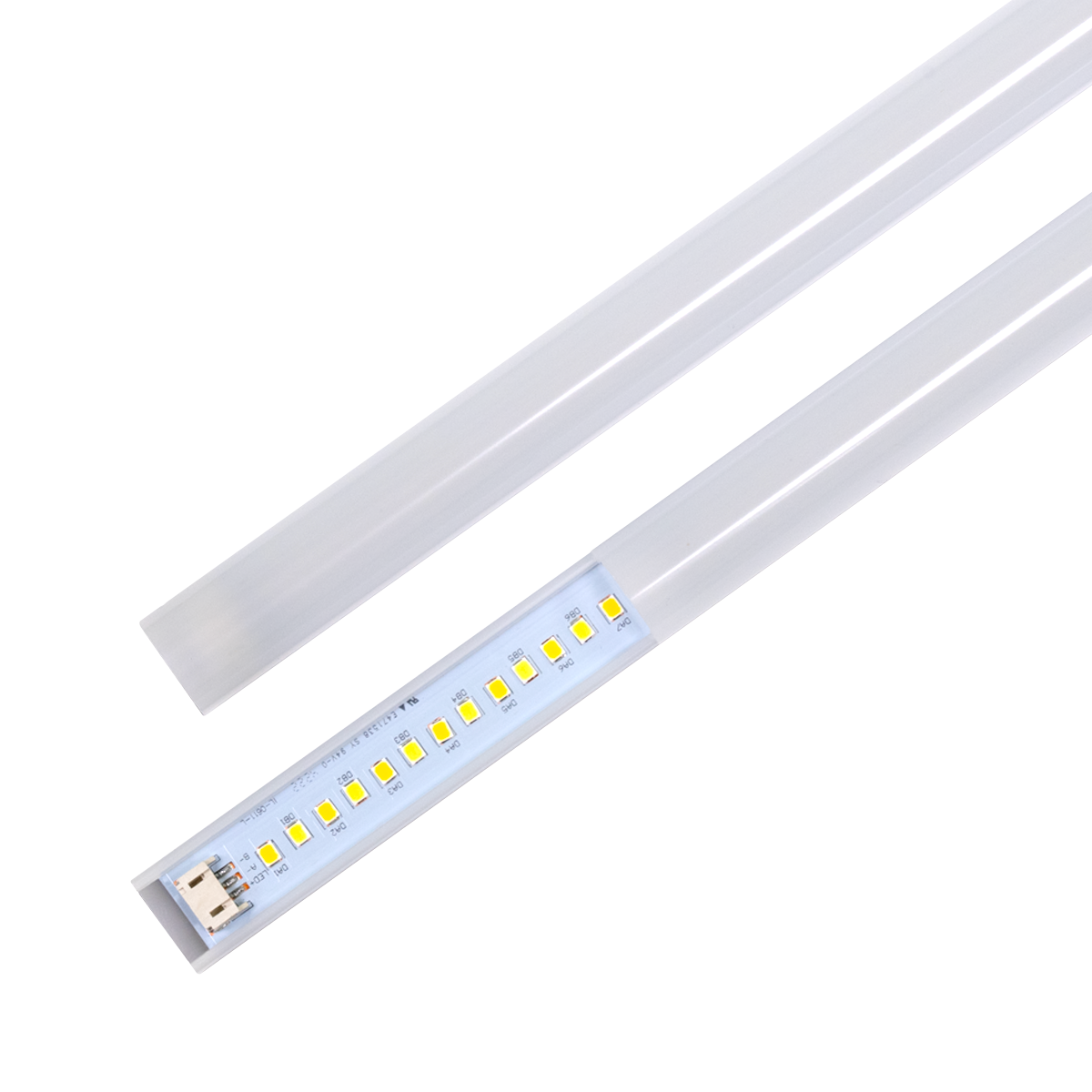

Frosted lens covers for 2x4 color and wattage selectable retrofit kits with LED strip partially visible
Emergency Driver for LED Lights - 20W in bright orange casing with wiring conduits for emergency lighting backup.

FREE Shipping & 30-Day Returns

Lighting layouts, rebate assistance, project guidance, or special requirements:

An Easier Way to Convert 4ft Fluorescent Troffers to LED

  • Really Bright, for Medium to High Ceilings: High lumen kit provides output from 3,450 to 6,670 lumens while still being light on energy overhead.
  • Three Light Output Settings: A switch on the driver allows users to select the level of power used—46W, 38W, or 30W—to achieve the best lighting for their space.
  • Three CCT Settings: Set each kit’s color temperature to 3500K, 4000K, or 5000K.
  • Magnetic Strips & Driver: Magnetic-backing holds these pieces in place, making install and adjustments easier.
  • Quick-Connect Plug: The included strip connector reduces the amount of wiring required, for faster installation.

Each Kit Includes: Two 4ft Light Strips and One 0-10V Dimmable LED Driver.

A perfect choice for offices, classrooms, restrooms, hallways, hospitals, utility rooms, retail stores, fitness centers, cafeterias, and more. For non-magnetic troffers, we recommend the frosted lens accessory, which allows you to attach the strips with screws.

Saves $/year in energy costs*

See how much you would save in energy
costs by allowing access to your location.

SPECIFICATIONS

Custom Savings Calculator
Wattage(s) 30W / 38W / 46W Selectable
Light Output 3,450 to 6,670 lm
Luminous Efficacy (lm/W) 110 to 145 lm/W
Average Lamp Life 50,000
Color Temperature(s) 3500K/4000K/5000K Selectable
Dimming 0-10V
Lens Cover Frosted lens cover optional
Installation Wire driver into your mains, attach kits to metal surface, plug kits into driver
Working Environment Indoor
Light Type Retrofits and Conversion Kits
Input Voltage 120-277V
Housing Material Aluminum
Certification DLC 5.1, ETL
Warranty 5 Years
Additional Specifications

Each kit contains two 4ft magnetic linear LED retrofit strips + an external magnetic-mount LED driver capable of 0-10V dimming. Frosted lens covers optional.
