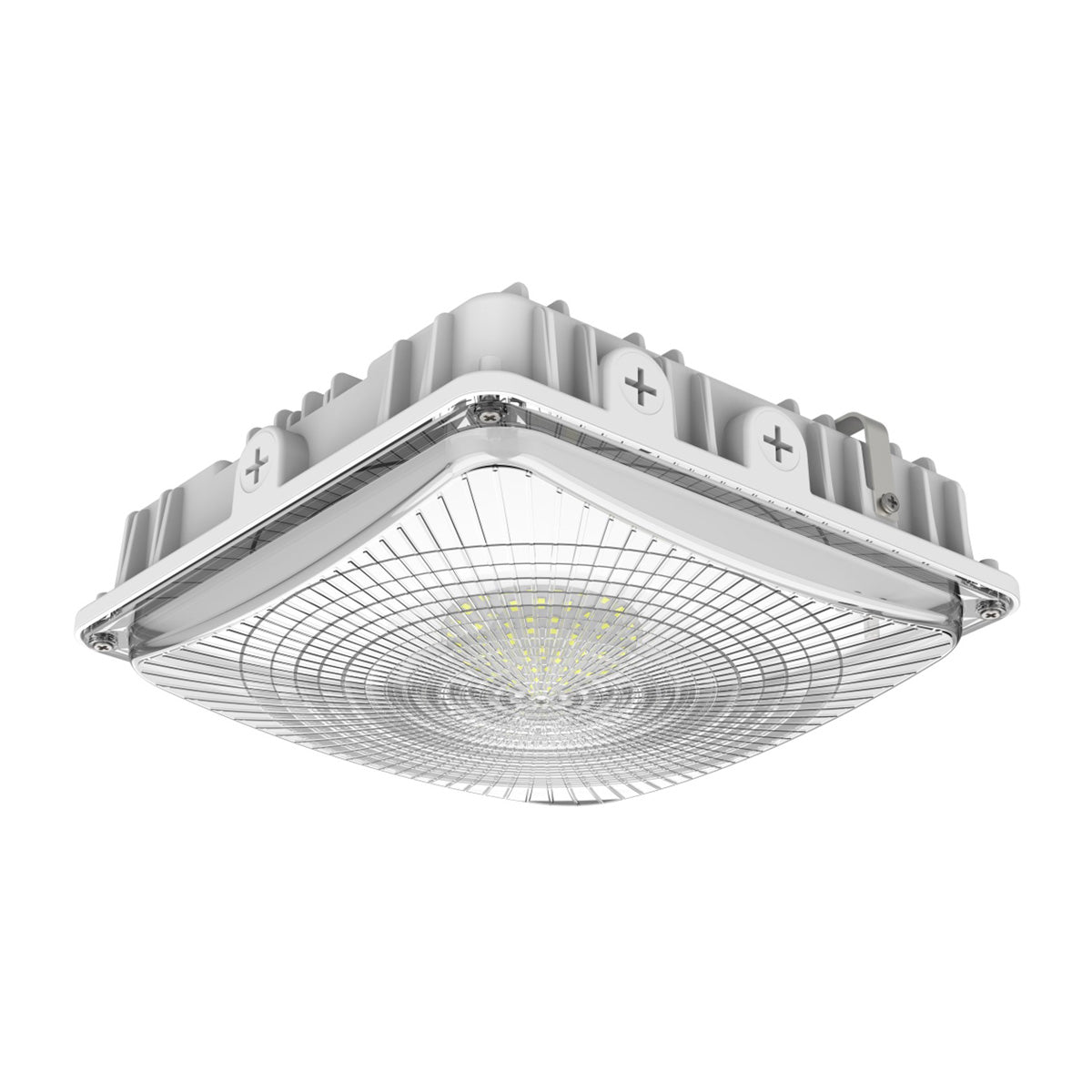

LED Canopy Light - 2 CCT - 63/45/30W
1133 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:

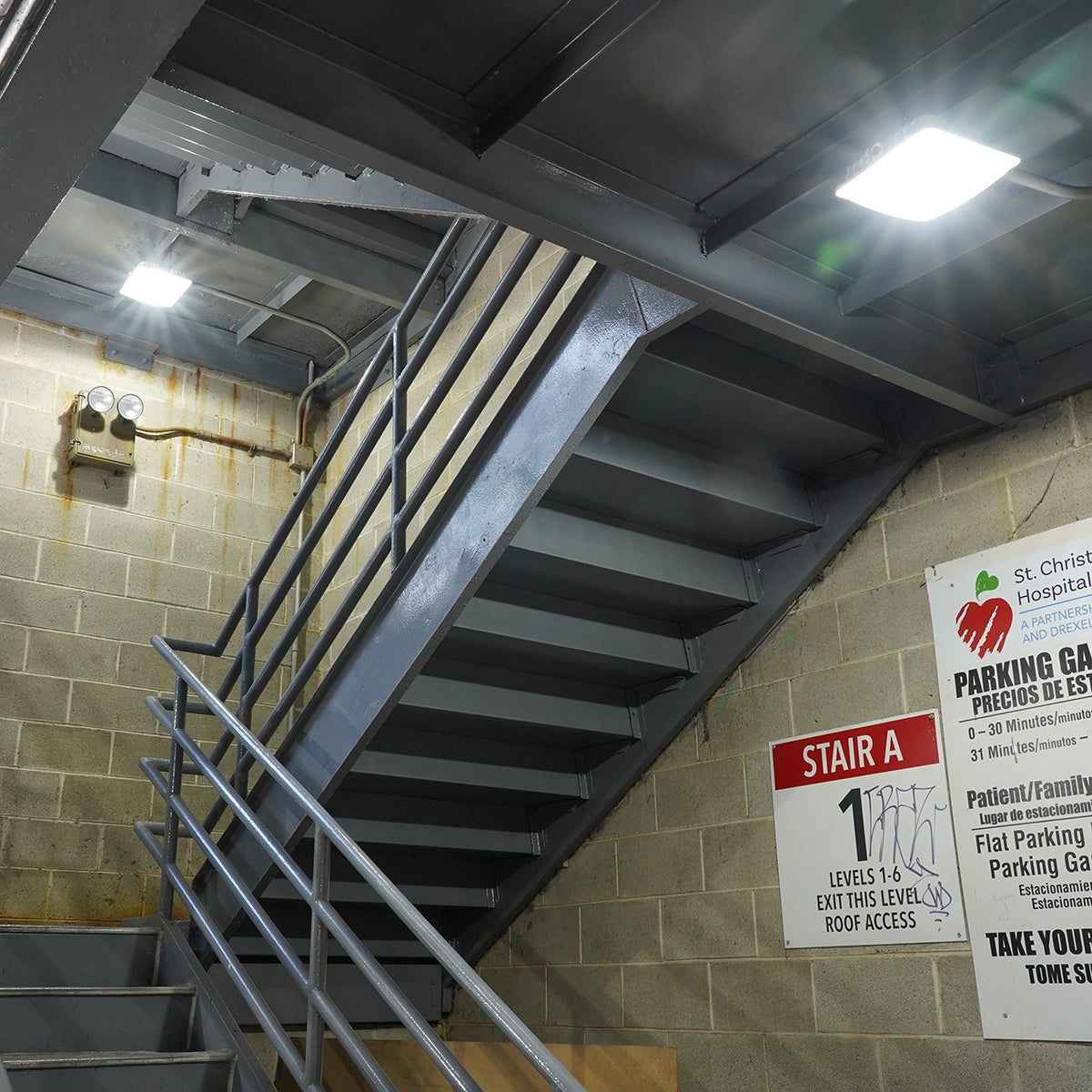

Cost Reducing Lighting for Parking Garages & Gas Stations
- Highly Adaptable: Select the best light tone and wattage during install.
- Dimmable: Adjust brightness levels from 100% to 0% (off).
- Large Spread of Light: 150° beam angle for maximum coverage.
- Built to Last: Robust die-cast aluminum housing and heat-resistant polycarbonate lens.

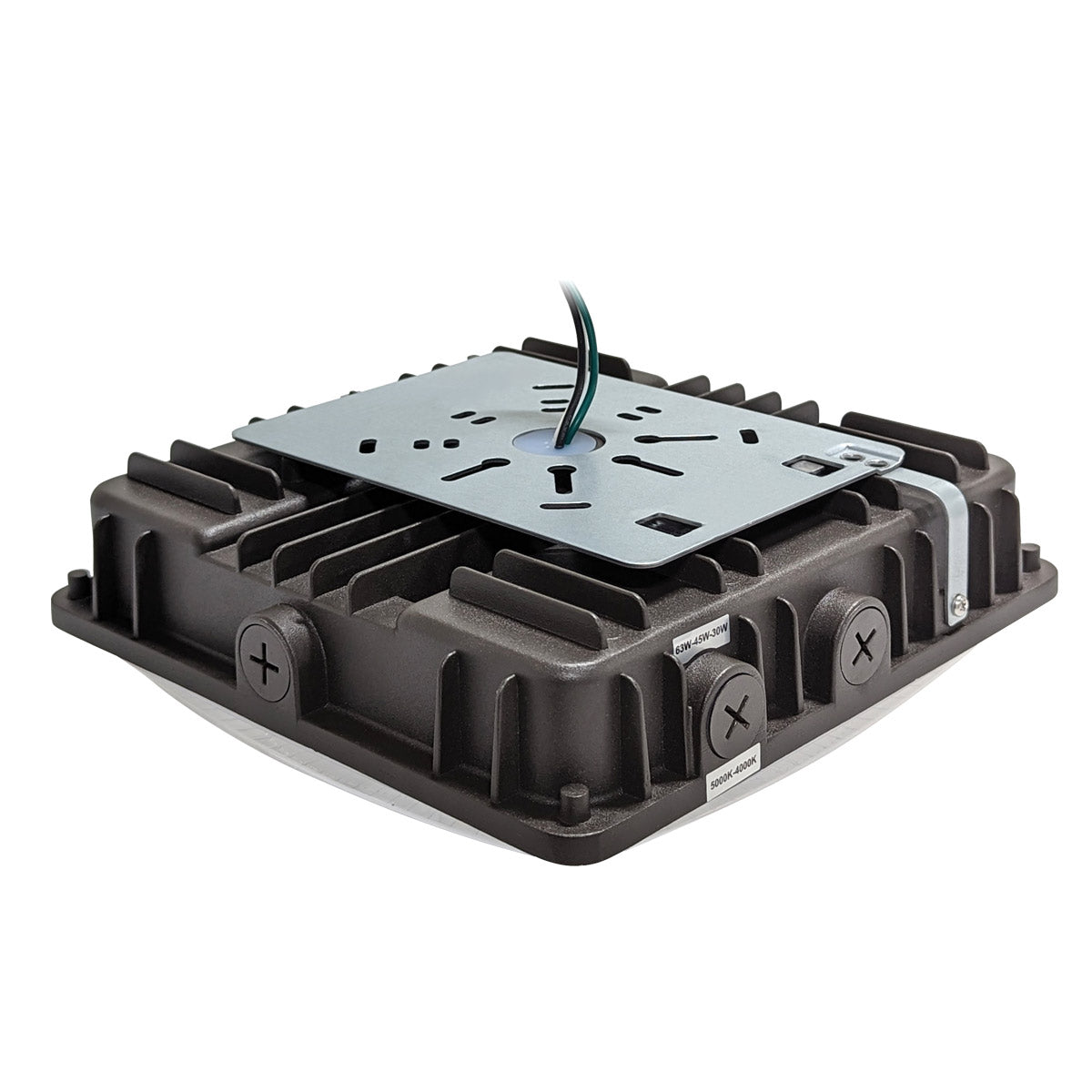

- Hassle-Free Installation: Quick-mount plate for surface or junction-box installs.
- Safe for Wet, Hot, and Cold Environments: UL Wet Location listed and operates in temps from -40°F to 113°F.
Pendant mounting on a 3/4" conduit is also possible (conduit not included); the housing includes four 1/2" NPT side conduit entries for added installation flexibility.
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Cost Reducing Lighting for Parking Garages & Gas Stations
- Highly Adaptable: Select the best light tone and wattage during install.
- Dimmable: Adjust brightness levels from 100% to 0% (off).
- Large Spread of Light: 150° beam angle for maximum coverage.
- Built to Last: Robust die-cast aluminum housing and heat-resistant polycarbonate lens.
- Hassle-Free Installation: Quick-mount plate for surface or junction-box installs.
- Safe for Wet, Hot, and Cold Environments: UL Wet Location listed and operates in temps from -40°F to 113°F.
Pendant mounting on a 3/4" conduit is also possible (conduit not included); the housing includes four 1/2" NPT side conduit entries for added installation flexibility.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
1133 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
1133 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | User selectable at install: 63W/45W/30W |
| Replaces Wattage(s) | 250W, 175W, 100W |
| Light Output | 4,050 lm, 6,075 lm, or 8,505 lm |
| Luminous Efficacy (lm/W) | 135 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | User selectable at install: 4000K/5000K |
| CRI (Color Accuracy) | >70 |
| Dimming | 0-10V |
| Beam Angle | 150° |
| Lens Cover | Heat-resistant polycarbonate |
| Installation | Surface, junction box, or pendant mount (on 3/4" conduit, not included). |
| Working Environment | Wet location |
| Enclosure Rating | UL cUL Wet Location |
| Input Voltage | 120-277V |
| Temperature Rating | -40˚F to 113˚F |
| Housing Material | Die-cast aluminum |
| Housing Color | Bronze |
| Dimensions | 9.53" x 9.53" x 3.39" |
| Weight | 3.62 lbs |
| Certification | DLC 5.1 Premium, UL cUL Wet Location |
| Warranty | 5 Years |
Key Features
Dimming Capability
Selectable Wattage & CCT
Easy Installation
Cost Reducing Lighting for Parking Garages & Gas Stations
- Highly Adaptable: Select the best light tone and wattage during install.
- Dimmable: Adjust brightness levels from 100% to 0% (off).
- Large Spread of Light: 150° beam angle for maximum coverage.
- Built to Last: Robust die-cast aluminum housing and heat-resistant polycarbonate lens.
- Hassle-Free Installation: Quick-mount plate for surface or junction-box installs.
- Safe for Wet, Hot, and Cold Environments: UL Wet Location listed and operates in temps from -40°F to 113°F.
Pendant mounting on a 3/4" conduit is also possible (conduit not included); the housing includes four 1/2" NPT side conduit entries for added installation flexibility.
Light Output
This light is wattage-selectable. Click a wattage to see the light output for that setting.
