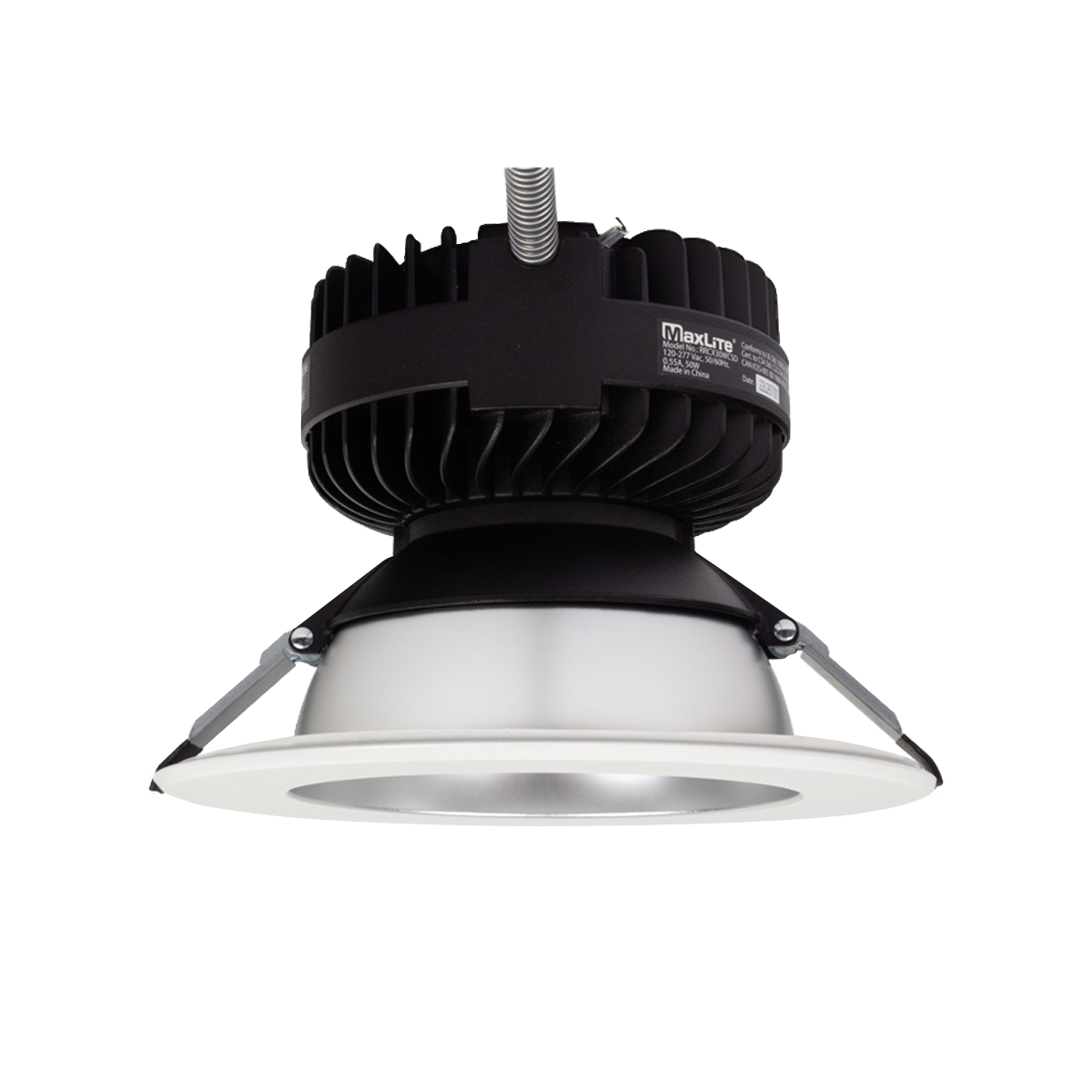

High-Output MaxLite 6"/8"/9.5" Modular Recessed Architectural LED Downlight for Ceilings up to 25ft, Max 50W
Lumens:
Watts:
Color Temp:
5 Year Warranty
Future-Proof Recessed Lighting
- 3 Wattages and 5 CCT Settings: Easily adapts to needs now and in the future.
- Controls-Ready: Field-installable upgrades available to create scenes and high-trim/tubing - contact us for more information.
A Perfect Downlight for Upgrades or New Construction
- Upgrade: Compatible with most existing fluorescent, incandescent, and metal halide downlight housings.
- New Construction: Use a commercial recessed frame; 2-piece, twist-lock design makes for a quick install.
A versatile lighting solution for offices, hotels, classrooms, restaurants, retail, and any other application that requires dependable, recessed downlighting.
Saves $/year in energy costs*
Mounting Bracket*
You must choose a bracket
Buying 12 or more?
Get a better price & free shipping:
Future-Proof Recessed Lighting
- 3 Wattages and 5 CCT Settings: Easily adapts to needs now and in the future.
- Controls-Ready: Field-installable upgrades available to create scenes and high-trim/tubing - contact us for more information.
A Perfect Downlight for Upgrades or New Construction
- Upgrade: Compatible with most existing fluorescent, incandescent, and metal halide downlight housings.
- New Construction: Use a commercial recessed frame; 2-piece, twist-lock design makes for a quick install.
A versatile lighting solution for offices, hotels, classrooms, restaurants, retail, and any other application that requires dependable, recessed downlighting.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
Mounting Bracket*
You must choose a bracket
Buying 12 or more?
Get a better price & free shipping:
Lumens:
Watts:
Color Temp:
5 Year Warranty
Mounting Bracket*
You must choose a bracket
Buying 12 or more?
Get a better price & free shipping:
SPECIFICATIONS
| Wattage(s) | 30W/40W/50W |
| Light Output | 3,116/3,936/4,554 lumens |
| Luminous Efficacy (lm/W) | Up to 106.5 lm/W |
| Average Lamp Life | L70: ≥ 50,000 hours |
| Color Temperature(s) | 2700K/3000K/3500K/4000K/5000K |
| CRI (Color Accuracy) | ≥ 80 |
| UGR (Unified Glare Rating) | <16 |
| Dimming | 0-10V dimming |
| Beam Angle | 40° |
| Working Environment | Indoor |
| Enclosure Rating | Damp Location |
| Input Voltage | 120-277VAC |
| Power Factor | ≥ 0.9 |
| Housing Color | Reflector flange is white. Reflector finish is available in white and matte silver. |
| Certification | ETL Listed & Classified for Damp locations, IC Rated (Up to 20W), Airtight Construction (up to 20W), Energy Star Certified |
| Warranty | 5 Years |
| Additional Specifications | Reflector (required) available in 6", 8", or 9.5". Select at time of purchase. |
Key Features
Selectable Wattage & CCT
Smart Control Ready
Quick Installation
Future-Proof Recessed Lighting
- 3 Wattages and 5 CCT Settings: Easily adapts to needs now and in the future.
- Adjustable Beam Angle on the 10W/15W/20W model: Adjust from 24° to 45°.
- Controls-Ready: Field-installable upgrades available to create scenes and high-trim/tubing - contact us for more information.
A Perfect Downlight for Upgrades or New Construction
- Upgrade: Compatible with most existing fluorescent, incandescent, and metal halide downlight housings.
- New Construction: Use a commercial recessed frame; 2-piece, twist-lock design makes for a quick install.
A versatile lighting solution for offices, hotels, classrooms, restaurants, retail, and any other application that requires dependable, recessed downlighting. The 10W/15W/20W model is airtight and rated for contact with insulation.
Light Output
This light is wattage-selectable. Click a wattage to see the light output for that setting.
