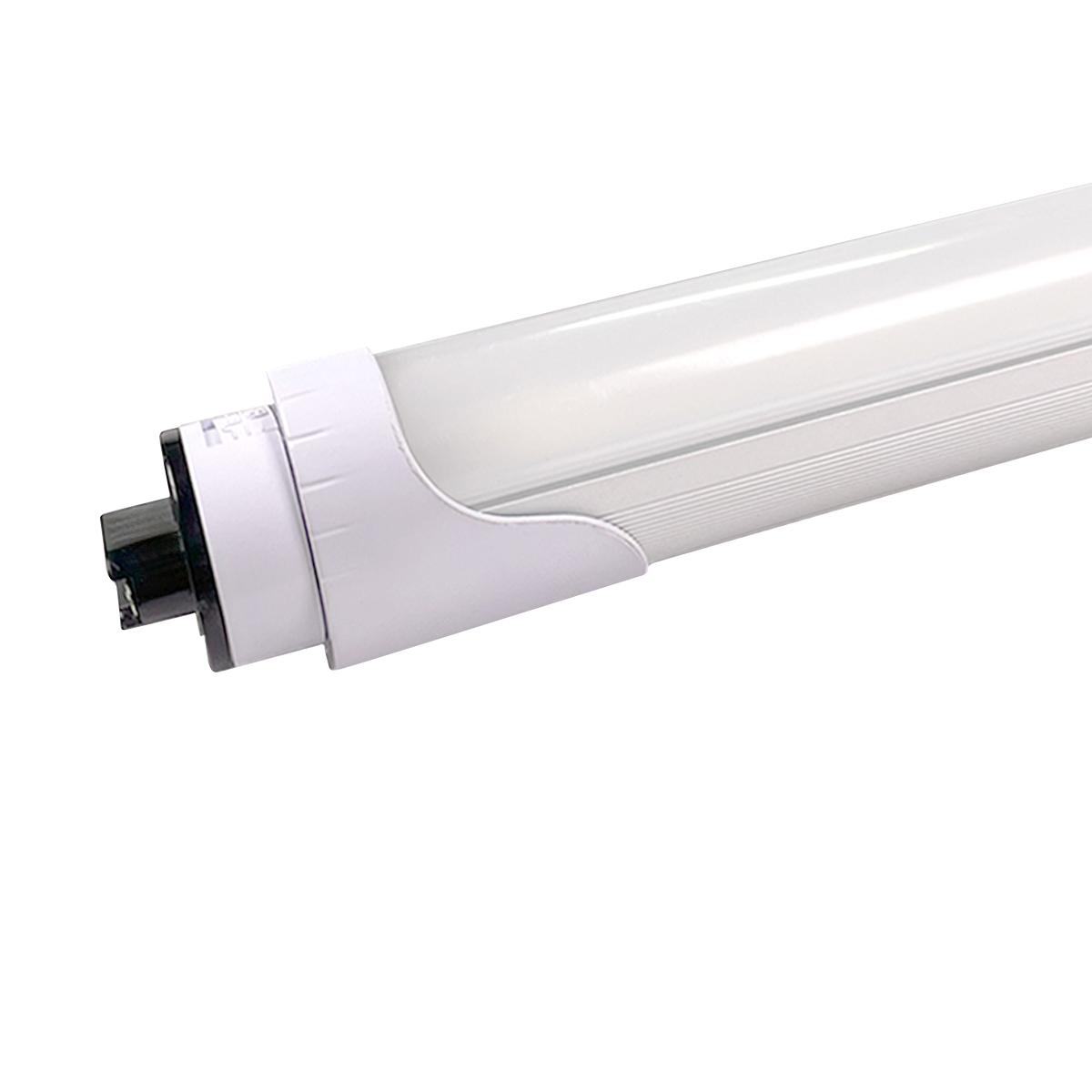

46" High Output LED Tube - 20W - R17D – Type B
350 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
Fits Where Other 4ft Tubes Can't
Two Inches Shorter than Standard 4ft Tubes: Fits in fluorescent fixtures other bulbs are too long for.
A Direct Replacement for the 46" T12 GE Fluorescent Tube: F48T12/CW/HO
Why Choose This LED Replacement Tube
- Energy Savings - Swap 60W fluorescent tubes for these ultra-high efficacy (200 lm/W) LED tubes and cut lighting costs by 67%.

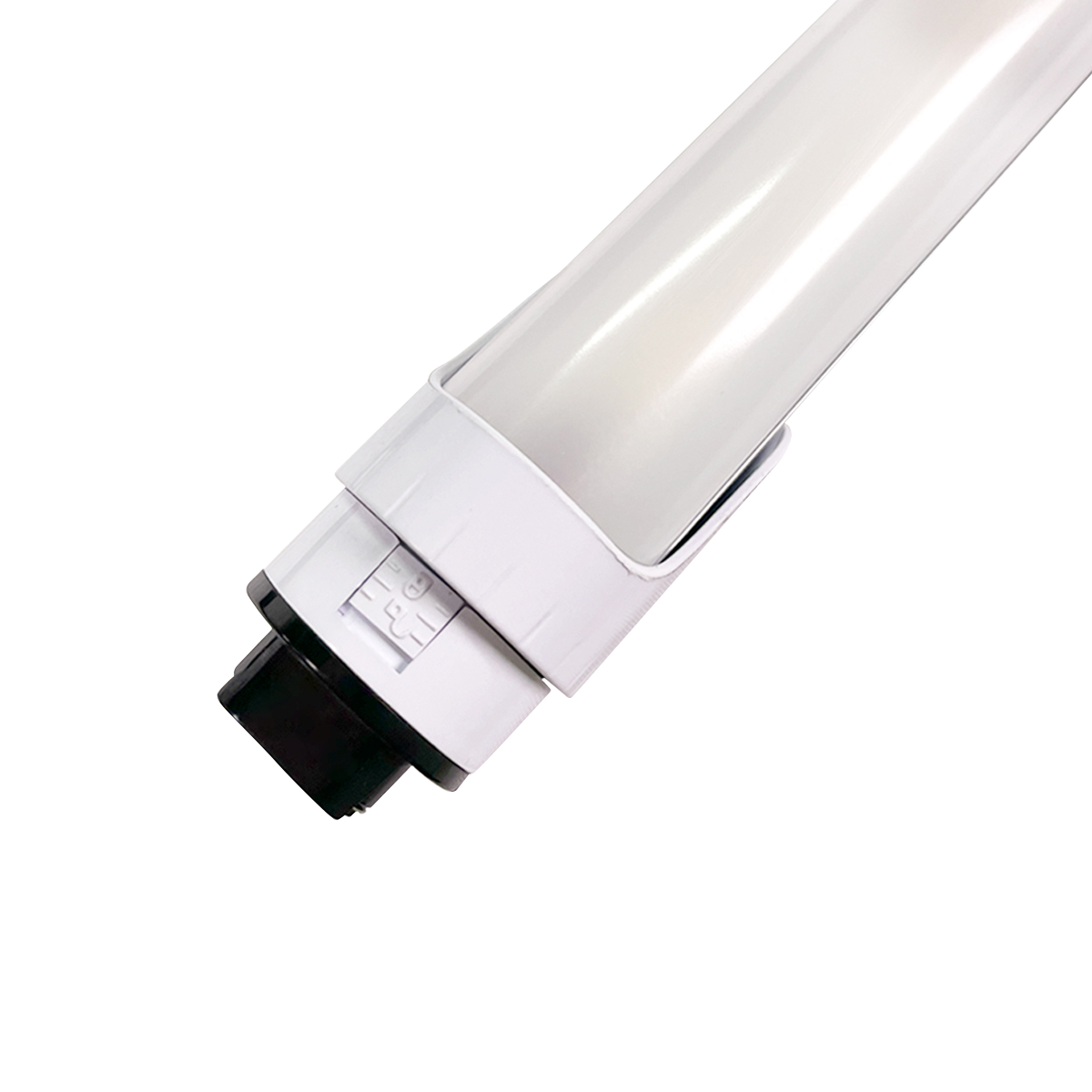

- Rotating & Locking End Cap - Install at the best angle for your fixture, then lock the end cap to prevent turning.
- Extended Life - Enjoy freedom from re-lamping for years when you install this long-life LED tube.

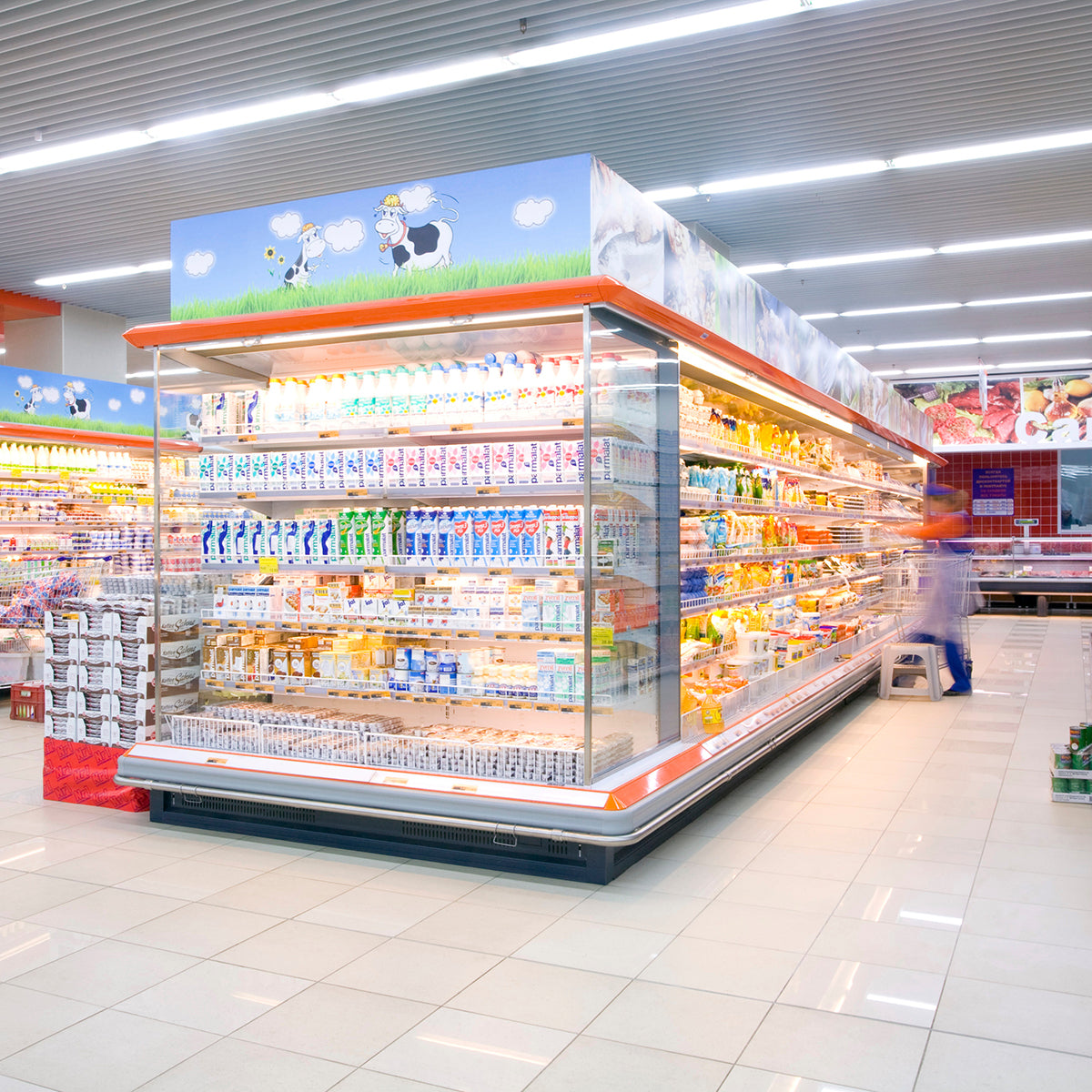

Great for use in sign boxes, grocery stores, and other locations that are still using high output T12 fluorescent fixtures for 46-inch tubes.
Saves $/year in energy costs*
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
Fits Where Other 4ft Tubes Can't
Two Inches Shorter than Standard 4ft Tubes: Fits in fluorescent fixtures other bulbs are too long for.
A Direct Replacement for the 46" T12 GE Fluorescent Tube: F48T12/CW/HO
Why Choose This LED Replacement Tube
- Energy Savings - Swap 60W fluorescent tubes for these ultra-high efficacy (200 lm/W) LED tubes and cut lighting costs by 67%.
- Rotating & Locking End Cap - Install at the best angle for your fixture, then lock the end cap to prevent turning.
- Extended Life - Enjoy freedom from re-lamping for years when you install this long-life LED tube.
Great for use in sign boxes, grocery stores, and other locations that are still using high output T12 fluorescent fixtures for 46-inch tubes.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
46" High Output LED Tube - 20W - R17D – Type B
350 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
46" High Output LED Tube - 20W - R17D – Type B
350 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
FREE Shipping & 30-Day Returns
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 20W |
| Replaces Wattage(s) | 60W |
| Light Output | 4000 lm |
| Luminous Efficacy (lm/W) | 200 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 5000K |
| CRI | >83 |
| Lens Cover | Frosted |
| Ballast Compatibility | Type B ballast bypass direct wire lamp with double-end power |
| Installation | Suitable for use in both enclosed and open fixtures |
| Working Environment | Indoors |
| Input Voltage | 120-277V |
| Temperature Rating | -3 - 113 °F |
| Housing Material | Aluminum with polycarbonate lens |
| Dimensions | 45.78 in long, including R17D base. Tube itself is 45.22 in long. |
| Certification | ETL, ETL Sanitation, DLC |
| Warranty | 5 Years |
