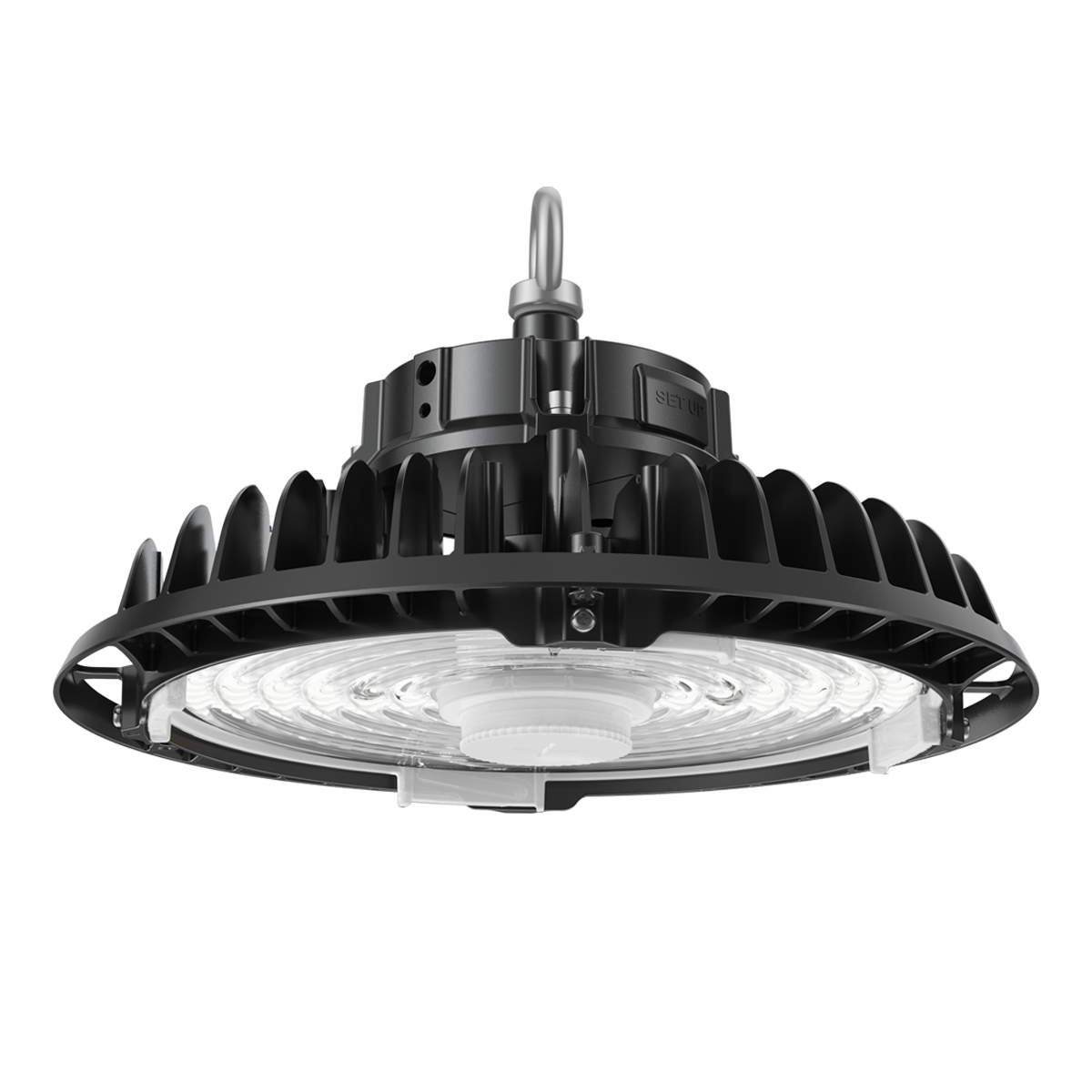

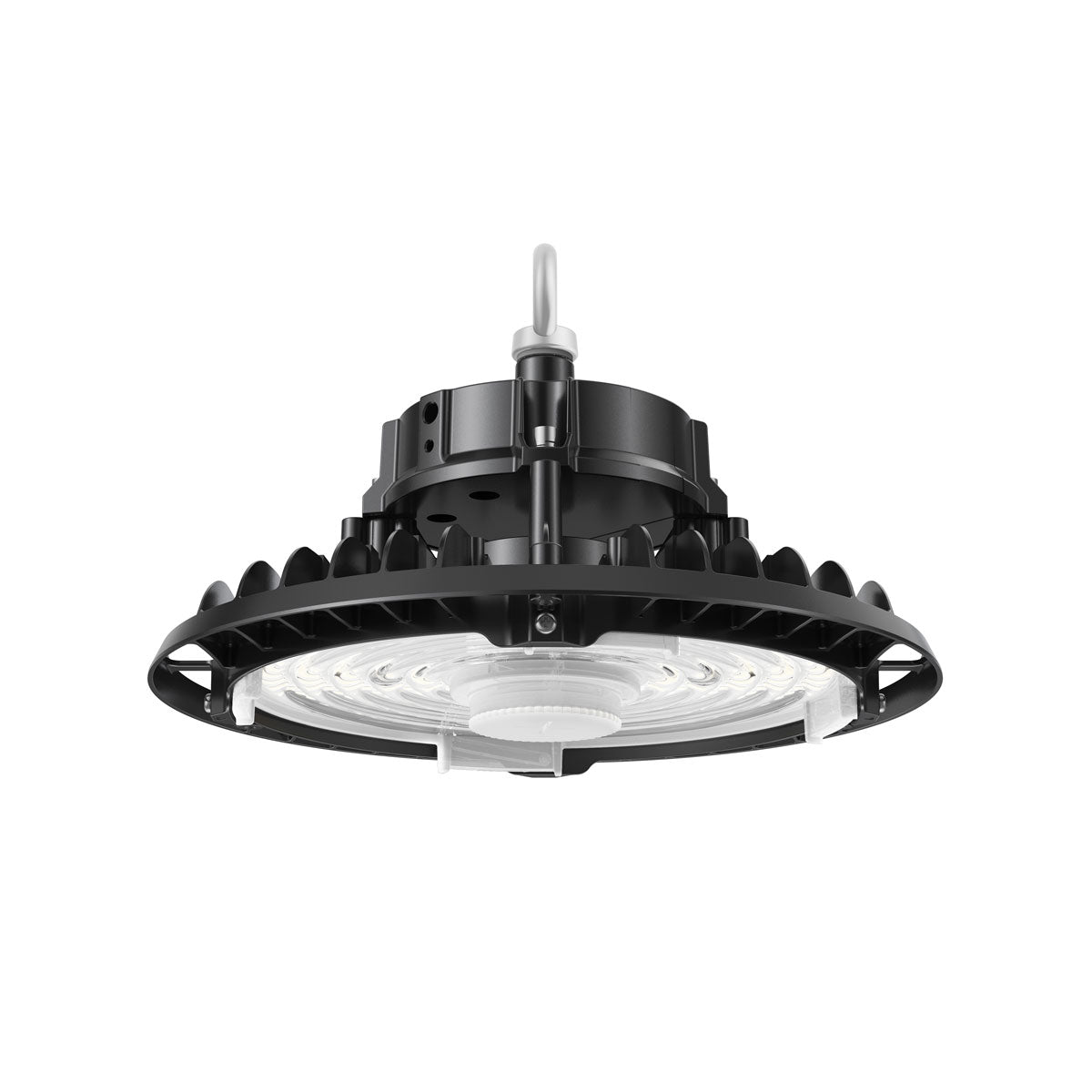

100W Selectable UFO LED Low Bay, Up to 18ft Ceilings
100W Selectable UFO LED Low Bay, Up to 18ft Ceilings
100W Selectable UFO LED Low Bay, Up to 18ft Ceilings
100W Selectable UFO LED Low Bay, Up to 18ft Ceilings
A proven, field-tested low bay with three beam angles and a lamp life rated to outlast most fixtures in its class.
- Rotatable lens sets beam at install: 60° for focused work areas, 85° for general coverage, 105° for wide spread.
- 83,000-hour rated lamp life means years longer between replacements than typical low bay fixtures.
- IP65 and IK08-rated housing with 0-10V dimming and a plug-in sensor port for added energy savings.
A proven, field-tested low bay with three beam angles and a lamp life rated to outlast most fixtures in its class.
- Rotatable lens sets beam at install: 60° for focused work areas, 85° for general coverage, 105° for wide spread.
- 83,000-hour rated lamp life means years longer between replacements than typical low bay fixtures.
- IP65 and IK08-rated housing with 0-10V dimming and a plug-in sensor port for added energy savings.
Choose options
Specs
| Wattage(s) | 60W/80W/100W |
| Replaces Wattage(s) | Up to 300W. |
| Light Output |
At 4000K: 9,600/12,800/16,000 lumens At 5000K: 9,000/12,000/15,000 lumens |
| Luminous Efficacy (lm/W) | Up to 160 lm/W |
| Average Lamp Life |
L80: 83,000 hours L70: 135,000 hours |
| Color Temperature(s) | 4000K/5000K |
| CRI (Color Accuracy) | 80 |
| Dimming | 0-10V |
| Occupancy Sensor | Plug-in sensor available as accessory |
| Beam Angle | 60°/85°/105° selectable at install |
| Installation | Stainless steel loop included for hanging; adjustable bracket available for ceiling mounting |
| Working Environment | Indoor |
| Enclosure Rating | IP65, IK08 |
| Input Voltage | 120-277 VAC, 50/60 Hz |
| Temperature Rating | -30°C to +50°C (-22°F to +122°F) |
| Housing Material | Aluminum Alloy with Polycarbonate Optical Lens |
| Housing Color | Black |

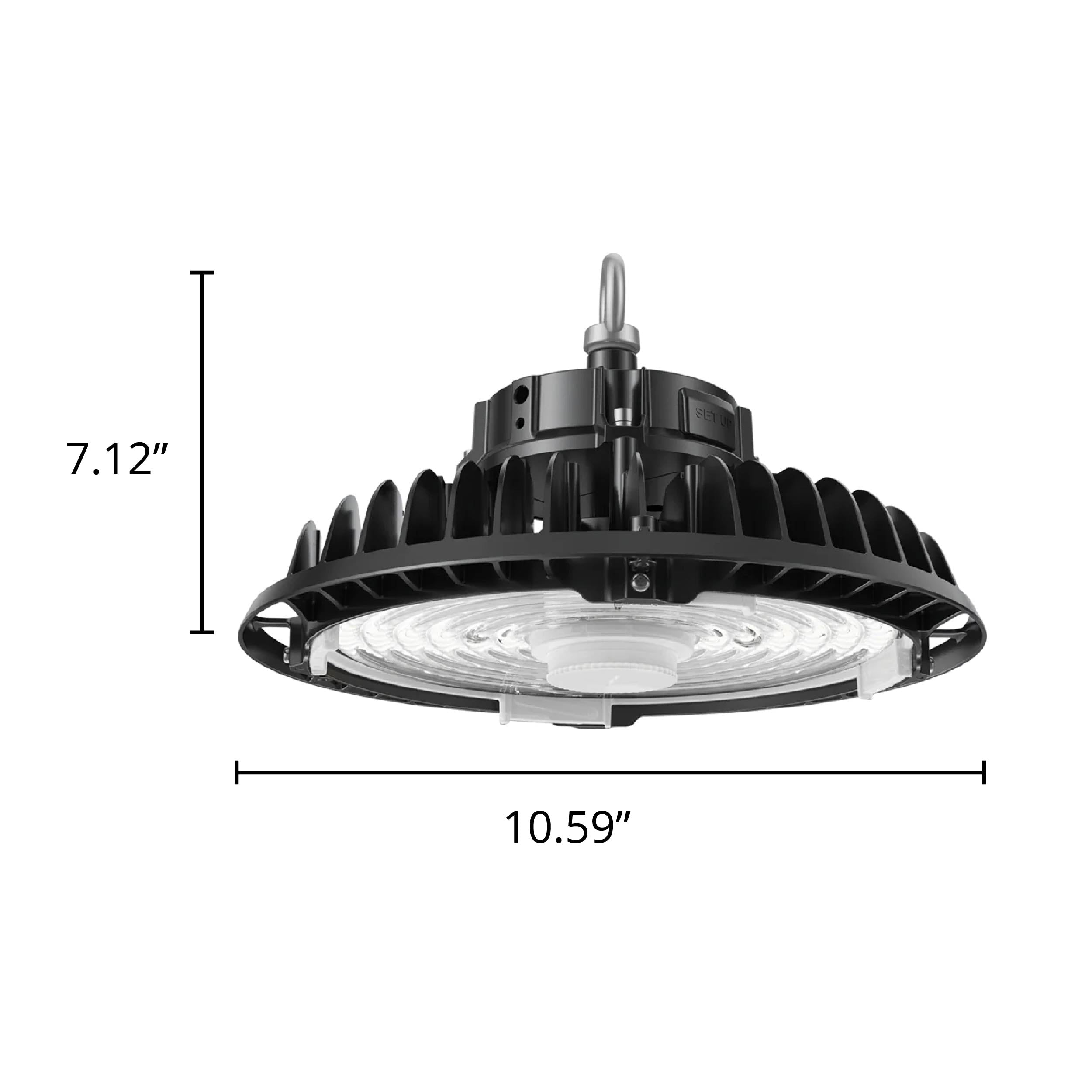

| Dimensions | φ10.59”x7.12” |
| Weight | 4.19 lbs |
| Certification | DLC Premium, ETL |
| Warranty | 5 Years |
Data SheetDetails
A Design That Has Stood the Test of Time
Some products get redesigned every year because they have to. This one doesn't.
This fixture comes from the same proven design as our 150W and 240W high bays. The housing and rotatable-lens system have been in the field for years, sized down here for lower ceilings without losing any of the durability or control that made the larger versions reliable. The internals have kept pace with advances in LED efficiency, but the build itself is the same one that's already logged years of runtime in workshops, stockrooms, and shop floors.
At ceiling heights up to roughly 18 feet, a tall ladder is often enough to reach this fixture, so a failure here isn't the major undertaking it is on a high bay overhead. It still costs you something: a ladder, a person, and time pulled away from other work to swap a fixture that should have lasted. An 83,000-hour rated lamp life means you're far less likely to be making that trip at all.
Dial In the Exact Light You Need
Most low bays ship with a fixed beam. This one gives you three options, adjustable at install:
- 60° for narrow aisles and focused work areas
- 85° for general-purpose coverage in most rooms and shop floors
- 105° for wide spread in open areas and stockrooms
The rotatable lens physically redirects the optics, not a diffuser, not a workaround. Pair that with dip-switch control over wattage (60W / 80W / 100W) and color temperature (4000K / 5000K), and you have a single fixture that covers almost any zone in a facility.
Energy Management Built In
- 0-10V dimming. Connect to any standard commercial dimming controller to reduce output and energy use on demand.
- Plug-in motion sensor port. Add occupancy control without rewiring; sensor sold separately.
- Three wattage settings. Right-size the output to the ceiling height instead of over-lighting and over-paying.
Where It Works
- Workshops & Repair Bays
- Retail Stockrooms & Back-of-House Spaces
- Auto Dealership Service Areas
- Small Manufacturing & Assembly Spaces
- Garages & Maintenance Facilities
- Gymnasiums with Lower Ceiling Heights
Best suited for ceilings up to roughly 18 ft. For ceilings up to 20 ft, see our 150W high bay. For taller ceilings, see our 240W high bay.
Step Up to Smart Controls with Lightcloud Blue
Integrate this fixture with RAB's Lightcloud Blue wireless controls system for phone-based switching, dimming, and scheduling, and add a compatible sensor for occupancy sensing and daylight harvesting too. Maximize your savings and control.
Shown above are our most common recommendations for this fixture's ceilings up to 18 ft. Explore the full Lightcloud Blue Lighting Controls by RAB collection for other configurations, or contact us if you're not sure what fits your space.
ELEDLights Stands Behind It
- 5-year warranty. One of the longest in the category.
- DLC Premium listed. Qualifies for most utility rebate programs, allowing us to keep your project costs as low as possible.
- US-based support Monday through Friday, 8am to 8pm EST. Call, text, or email a real person.
- In stock, ships fast. Not a drop-ship; we warehouse what we sell.
Instant Rebates
Check if your utility offers rebates for new LED lights installed in commercial & industrial buildings:
Reviews

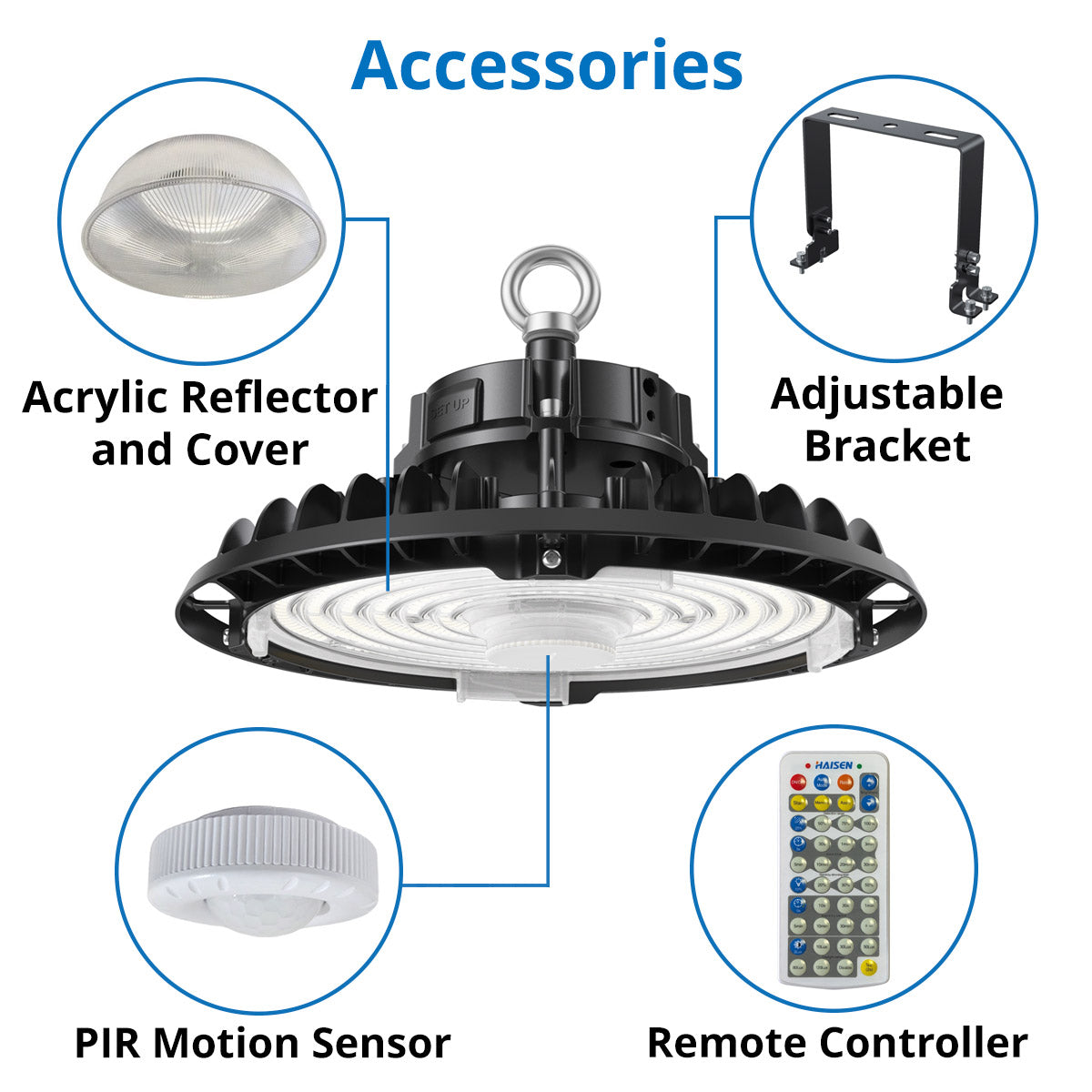

ACCESSORIES
