Heavy-Duty Impact Resistant Linear High Bay with Swappable Optics, Ceilings up to 20 ft
Lumens:
Watts:
Color Temp:
5 Year Warranty
119 in stockTough Lighting for Cold, Dusty, Wet, and Impact-Risk Locations
- Safe to be washed down and exposed to the weather.
- Operates at low temps for drive-in cooler/freezer applications.
- Resists impact for use in indoor ball courts & sports arenas.
An Adaptable Solution for Warehouse Storage and Open Spaces
- For Open Areas: Standard wide angle lens included.
- For Wide Aisles: Choose the 60° x 100° lens accessory.
- For Narrow Aisles: Choose the 25° x 85° lens accessory.
Performs well for service bays, recreational facilities, exhibition halls, shipping & receiving areas, floor-stacked storage, and production & assembly lines.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price:
Tough Lighting for Cold, Dusty, Wet, and Impact-Risk Locations
- Safe to be washed down and exposed to the weather.
- Operates at low temps for drive-in cooler/freezer applications.
- Resists impact for use in indoor ball courts & sports arenas.
An Adaptable Solution for Warehouse Storage and Open Spaces
- For Open Areas: Standard wide angle lens included.
- For Wide Aisles: Choose the 60° x 100° lens accessory.
- For Narrow Aisles: Choose the 25° x 85° lens accessory.
Performs well for service bays, recreational facilities, exhibition halls, shipping & receiving areas, floor-stacked storage, and production & assembly lines.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
119 in stock
Buying 12 or more?
Get a better price:
Lumens:
Watts:
Color Temp:
5 Year Warranty
119 in stock
Buying 12 or more?
Get a better price:
SPECIFICATIONS
| Wattage(s) | 150W |
| Replaces Wattage(s) | 400W |
| Light Output | 22,305 lumens |
| Luminous Efficacy (lm/W) | 149 lm/W |
| Average Lamp Life |
L90: 40,000 hours L80: 82,000 hours L70: 131,000 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 80 |
| Dimming | 0-10V |
| Beam Angle |
80° x 100° standard 60° x 100° and 25°x85° optional with lens kit accessories |
| Enclosure Rating | IP66 & IK10 |
| Light Type | Wired fixture |
| LED Type | LED 3030 |
| Input Voltage | Available in 100-277 VAC or 347-480 VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | SOSEN |
| Power Factor | >0.95 |
| Surge Protection | 6kV line-line, 10kV line-earth |
| Temperature Rating | -22°F to 122°F |
| Housing Material | Aluminum Alloy & PC Lens |
| Housing Color | Gray |

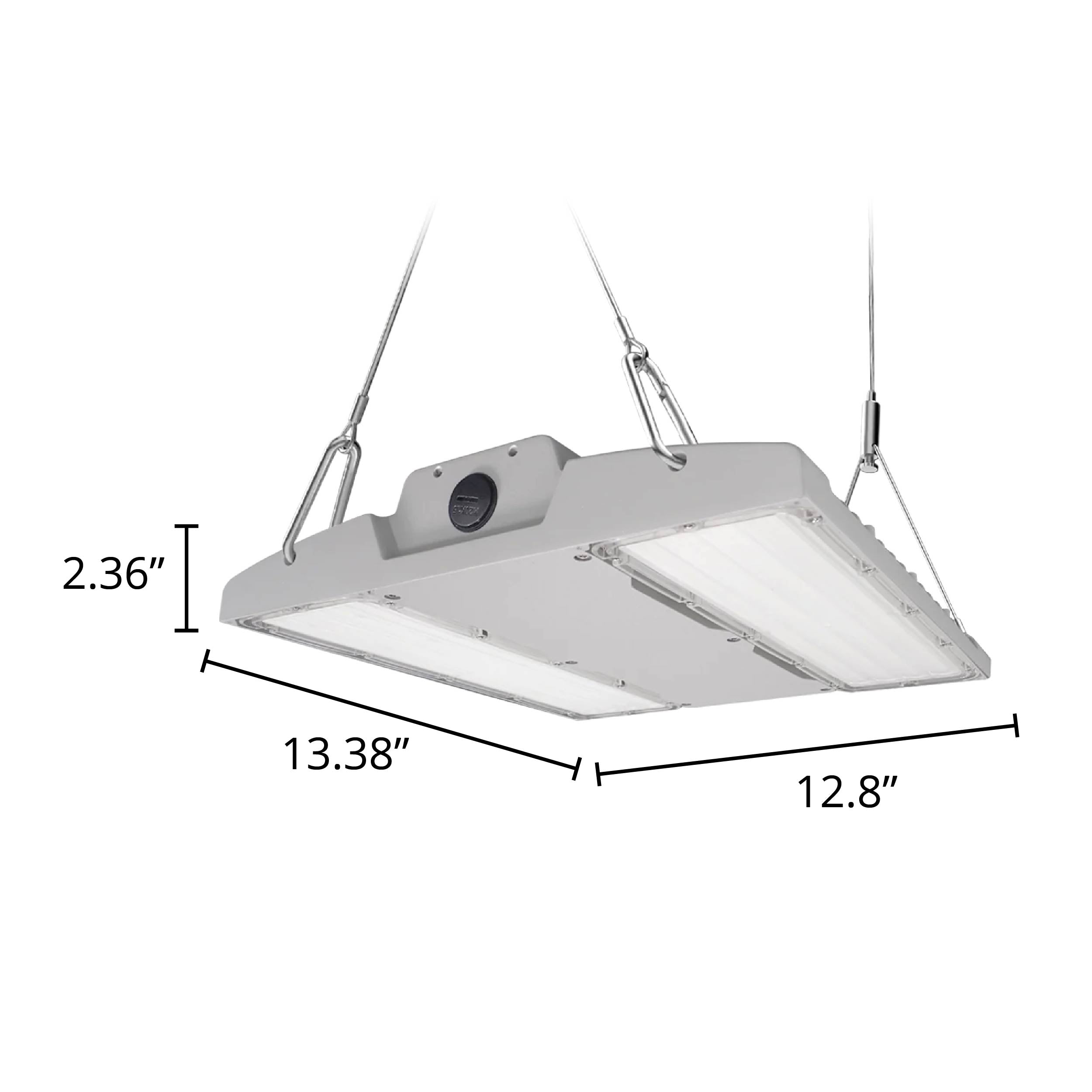

| Dimensions | 13.38" x 12.8" x 2.36" |
| Weight | 8.81 lbs |
| Certification | DLC Premium, ETL |
| DLC ID(s) | S-C901M4 |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
Key Features
Rugged, Waterproof Enclosure
Optics for Narrow, Standard, or Open Areas
Great for Ceiling Heights Up to 20'
Tough Lighting for Cold, Dusty, Wet, and Impact-Risk Locations
- Safe to be washed down and exposed to the weather.
- Operates at low temps for drive-in cooler/freezer applications.
- Resists impact for use in indoor ball courts & sports arenas.
An Adaptable Solution for Warehouse Storage and Open Spaces
- For Open Areas: Standard wide angle lens included.
- For Wide Aisles: Choose the 60° x 100° lens accessory.
- For Narrow Aisles: Choose the 25° x 85° lens accessory.
Performs well for service bays, recreational facilities, exhibition halls, shipping & receiving areas, floor-stacked storage, and production & assembly lines.
Light Distribution Options
80° x 100° Wide Beam Angle
For open areas and wide inter-shelf corridors—comes standard with each light
60° x 100° Narrow Beam Angle
For standard warehouse aisles, including pallet-flow and cantilever racking.
25° x 85° Very Narrow Beam Angle
For production lines and narrow or very narrow warehouse aisles.
