LED High Bay Lighting Guide: Selection, Layout, Efficiency & ROI

LED high bay lighting is the standard solution for illuminating large industrial spaces with high ceilings. Warehouses, manufacturing plants, distribution centers, gyms, and big-box retail environments all rely on high bay fixtures to deliver safe, uniform, and energy-efficient light from mounting heights that standard commercial fixtures can’t handle.

This guide explains how LED high bay lighting works, when it’s required, how to choose the right fixtures, and how to evaluate performance, cost, and payback—so you can make confident, planning-level decisions before selecting products or requesting a layout.

What Are LED High Bay Lights?

LED high bay lights are industrial lighting fixtures designed for spaces with high ceilings, typically 15 feet or higher. They’re engineered to deliver high lumen output, controlled light distribution, and long operating life when mounted well above the work plane.

Unlike traditional metal halide or HID fixtures, LED high bays provide:

• Instant-on performance: no restrike time or delayed start
• Higher efficiency (lumens per watt), providing the same amount of light with significantly lower energy consumption
• Longer lifespan with minimal maintenance and reduced relamping and labor costs
• Better optical control and uniformity
• Less heat output, which reduces HVAC loads in temperature-sensitive environments

High bay fixtures are purpose-built to throw light downward effectively without excessive glare or wasted spill light.

Related:

• What Are LED High Bay Lights? Ceiling Height, Types & Applications
• High Bay vs Low Bay Lighting: What’s the Difference?

When Do You Need High Bay Lighting?

High bay lighting is typically required when ceiling heights exceed 15 feet and extend up to 40 feet or more.

Ceiling height directly affects:

• Required lumen output
• Beam angle selection
• Fixture spacing
• Total fixture count

As mounting height increases, fixtures must produce more lumens and use tighter optics to ensure adequate light reaches the floor. Using fixtures designed for lower mounting heights in tall spaces often results in poor uniformity and insufficient illumination.

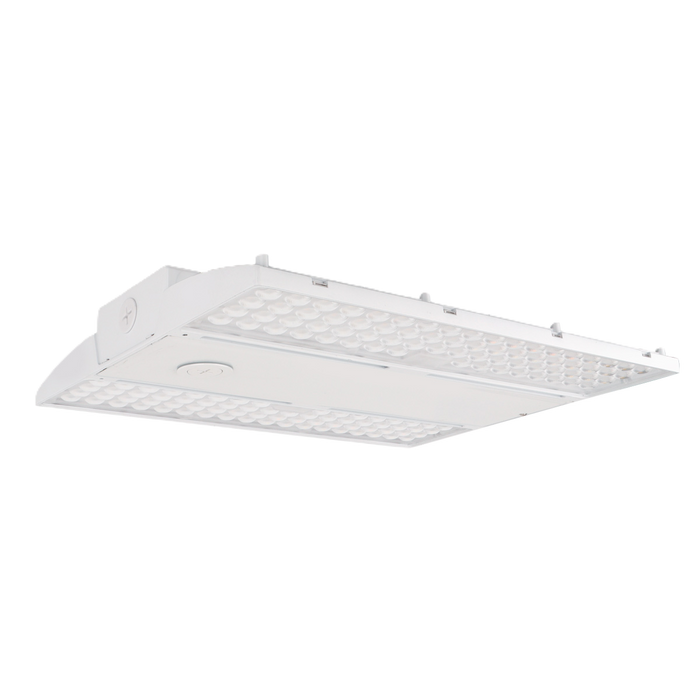

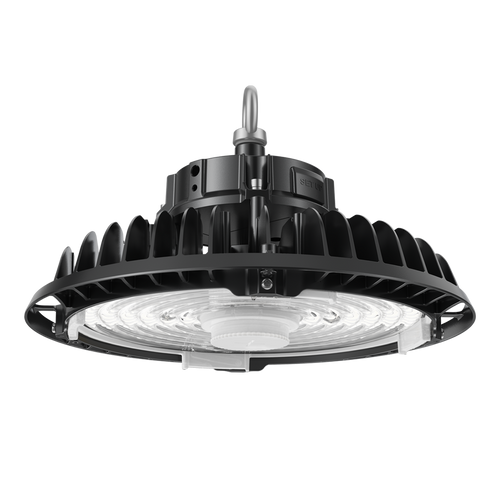

Types of LED High Bay Fixtures

Related:

• UFO vs Linear LED High Bays: Which Is Right for Your Facility?

How to Size LED High Bay Lighting for Your Space

Lumens vs Watts

When selecting LED high bays, lumens—not watts—matter most. Watts only indicate power consumption, while lumens define how much light the fixture produces.

Typical high bay lumen ranges:

• 15–20 ft ceilings: ~15,000–25,000 lumens
• 20–30 ft ceilings: ~25,000–40,000 lumens
• 30–40+ ft ceilings: 40,000+ lumens

Actual requirements depend on spacing, optics, surface reflectivity, and target light levels for the space.

Because these variables can change significantly from one facility to another, ELEDLights provides free lighting layouts that recommend the appropriate lumen output, optics, and fixture spacing based on your actual ceiling height, layout, and application—not generic rules of thumb.

How Many High Bay Lights Do I Need?

Determining fixture quantity depends on:

• Ceiling height
• Desired foot-candle levels
• Fixture lumen output
• Beam angle and optics
• Space layout and racking

At the planning stage, many facilities rely on estimated spacing guidelines to develop a rough count. For accurate results, layouts are typically validated with photometric analysis to confirm uniformity and code compliance.

As part of the layout process, ELEDLights can model your space and provide a fixture count and spacing plan at no cost, helping ensure the design meets both performance goals and efficiency targets before any products are selected.

Related:

• How to Choose LED High Bay Lights by Ceiling Height & Lumens
• High Bay Lighting Layout Guide: Spacing, Quantity & Beam Angles

Beam Angles, Optics & Light Distribution

Choosing the Right Beam Angle

Beam angle controls how wide or narrow light is distributed from a high bay fixture and plays a major role in uniformity, glare control, and efficiency.

Common beam patterns include:

• Narrow beams that focus light downward for high ceilings or tall racking
• Medium beams that balance coverage and intensity in mixed-use spaces
• Wide beams that spread light across open floor areas

In addition to symmetric beam patterns, many high bay fixtures are available with asymmetric beam angles, which direct light more strongly in one direction. Asymmetric optics are commonly used in aisle lighting and perimeter applications where light needs to be pushed forward or sideways rather than evenly in all directions.

Improper beam selection can lead to dark spots, excessive glare, or wasted light outside the intended area.

Modern LED high bay lights often offer field-adjustable beam angles, allowing fixtures to be adapted to the space without replacing the entire unit. This is typically accomplished through:

• Tool-free lens swaps that can be performed during installation or after deployment
• Rotatable lenses on certain fixtures, allowing the beam orientation to be adjusted simply by rotating the optic

These features provide added flexibility when layouts change or when aisle orientation and spacing need to be fine-tuned in the field.

Optics for Aisles vs Open Areas

Warehouses with racking often require narrow or asymmetric aisle optics to direct light between shelves and reduce wasted spill onto rack faces. In contrast, open production floors and staging areas typically benefit from wider, symmetric distributions that provide even coverage across large areas.

As mounting height increases, optical control becomes more critical. Proper selection of beam angle and optic type helps ensure consistent light levels, minimizes glare, and maximizes the efficiency of the lighting system.

Common High Bay Beam Angles & Applications

Related:

• High Bay Optics Explained: Narrow Aisle vs Wide Distribution
• High Bay Lighting Layout Guide: Spacing, Quantity & Beam Angles

Color Temperature & Visual Comfort

Color temperature plays an important role in visibility, contrast, and worker comfort, especially in large industrial environments where lighting is on for long hours.

Common color temperature choices for LED high bay lighting include:

• 4000K – A neutral white light that offers good visibility with reduced visual fatigue. This is often preferred in manufacturing, assembly, or mixed-use spaces where comfort and long-term occupancy are important.
• 5000K – A crisp, daylight-like white that maximizes contrast and perceived brightness. This is commonly used in warehouses, distribution centers, and facilities where task visibility, safety, and visual acuity are top priorities.

Higher color temperatures can make spaces feel brighter at the same measured light level, which can sometimes allow for lower overall light levels without sacrificing visibility. However, they may feel harsher in areas where employees spend extended periods of time.

In many facilities, color temperature is selected based on how the space is used, with 5000K favored for high-activity, task-oriented environments and 4000K chosen for areas where visual comfort and reduced glare are more important. Consistency within a space is also important, as mixing color temperatures can create visual distractions and uneven appearance.

Related:

• Best Color Temperature for LED High Bay Lighting

Controls & Smart Lighting for High Bays

Occupancy & Motion Sensors

LED high bays pair well with occupancy sensors, reducing energy use in areas with intermittent activity. When no motion is detected, fixtures automatically dim or turn off, then instantly return to full output when activity resumes.

Integrating Sensors with LED High Bay Fixtures

Sensors may be:

• Integrated directly into fixtures
• Mounted externally
• Networked into centralized lighting controls

Compatibility depends on fixture drivers, control protocols, and facility requirements.

Related:

• Using Motion Sensors & Controls with LED High Bay Lights

Should I Retrofit or Replace My Existing High Bay Lights?

If you're upgrading from HID high bay lighting, you have two main paths:

Bottom Line:
If your current fixtures are in poor shape or outdated, replacing them with new LED high bay lights is usually the smarter move.

Replacing Metal Halide & HID High Bay Lights with LED

LED high bay fixtures are a common replacement for metal halide and other HID lighting systems due to their significant energy savings, improved performance, and lower maintenance requirements.

Compared to HID fixtures, LED high bays offer several advantages:

• Immediate energy reduction through higher efficiency and lower wattage
• Instant-on operation with no warm-up or restrike delays after power interruptions
• Improved light uniformity and consistency over the life of the fixture
• Reduced maintenance and relamping costs, as LEDs maintain light output far longer than HID lamps

In addition, LED systems eliminate common HID issues such as lumen depreciation, color shift, and frequent lamp or ballast failures.

High bay LED retrofits can typically be approached in two ways:

The best retrofit approach depends on ceiling height, existing fixture placement, performance goals, and budget. In many cases, a redesigned LED layout delivers the best overall return, especially for facilities planning long-term operation.

Related:

• Replacing Metal Halide & HID High Bays with LED

High Bay Customer Case Study: Mountune® USA

Mountune's motor-building facility in Southern California switched from 150 fluorescent tube light fixtures in their warehouse, machine shop, and motor-building area to 21 linear LED high bays. They went from around 4800W in lighting to 3780W, a reduction of more than 1000W, while also solving the pain of having to frequently re-lamp 75 fluorescent fixtures.

“The difference is amazing—we couldn't be happier.” – Ken Anderson, President, Mountune USA

Efficiency, Performance & Reliability

What Makes a High Bay Fixture Efficient?

High bay lighting efficiency is most commonly measured in lumens per watt (LPW), which indicates how much usable light a fixture produces for each watt of power consumed. Higher LPW values mean greater energy efficiency and lower operating costs over time.

However, efficiency isn’t determined by LPW alone. High-performing LED high bay fixtures also account for:

• Optical efficiency, ensuring light is directed where it’s needed rather than wasted outside the target area
• Driver quality, which affects power conversion efficiency and long-term reliability
• Thermal management, allowing LEDs to maintain output and lifespan without overheating

Many efficient high bay fixtures qualify for DLC Premium, a designation that verifies performance, efficiency, and quality standards. DLC Premium qualification is often required to access utility rebates and incentive programs, making it an important consideration when evaluating total project cost.

When comparing high bay fixtures, evaluating both LPW and overall system design helps ensure energy savings without sacrificing light quality or reliability.

Performance in Demanding Environments

LED high bays can perform well in:

• Cold storage (instant-on even at low temperatures)
• Dusty environments with sealed housings
• Wet locations when properly rated (IP-rated fixtures)

Proper performance depends on selecting fixtures with appropriate environmental ratings.

Hazardous Location Considerations

Some environments require hazardous-rated fixtures due to flammable gases, vapors, or dust. These applications require specialized certifications and should be evaluated carefully.

Chart: Environment & Recommended High Bay Ratings

Related:

• Most Efficient LED High Bay Lights
• LED High Bay Performance in Cold, Wet & Dusty Environments
• Hazardous Location LED High Bay Lighting

Cost, Payback & Total Cost of Ownership

Upfront Cost vs Long-Term Operating Cost

While LED high bays may cost more upfront than legacy fixtures, they typically deliver:

• Lower energy consumption
• Minimal maintenance
• Longer service life

Over time, operating savings often outweigh initial investment.

Typical Payback Period for LED High Bay Upgrades

Payback periods commonly range from 1 to 3 years, depending on:

• Existing fixture wattage
• Operating hours
• Utility rates
• Available rebates

Energy savings calculators are often used to estimate planning-level ROI.

Related:

• Total Cost of Ownership for LED High Bay Lighting
• LED High Bay Retrofit Payback Period & Energy Savings

Rebates, Incentives & Utility Programs

Many utility providers offer rebates for upgrading to high-efficiency LED high bay lighting. Incentives often depend on:

• DLC qualification
• Fixture efficiency
• Project scope
• Geographic location

Rebates can significantly reduce upfront costs and shorten payback periods.

Related:

• LED High Bay Rebates & Utility Incentives

How to Get the Right LED High Bay Solution

Every facility has unique requirements. Before selecting fixtures, it helps to know:

• Ceiling height
• Existing lighting type and wattage
• Operating hours
• Space layout and usage
• Local utility rates

With this information, facilities can estimate savings, evaluate fixture options, and determine whether a lighting layout or photometric analysis is needed.

Next Steps

• → Request a free lighting layout for your facility
• → Know what you want? Get a price quote
• → Questions about high bay lighting? Call 215.355.7200, text 858.650.9400, or email our team.

Frequently Asked Questions

What is high bay lighting?

High bay lighting refers to lighting fixtures designed for spaces with ceiling heights typically between 20 and 45 feet. They're commonly used in warehouses, manufacturing facilities, gymnasiums, retail stores with high ceilings, and distribution centers. These fixtures are engineered to produce powerful, uniform illumination from greater mounting heights.

What’s the difference between high bay and low bay lighting?

High bays are used for ceilings 15 feet and higher, while low bays are designed for lower mounting heights. High bay lights use different optics and higher lumen outputs to ensure light reaches the floor effectively from greater distances.

Should I choose LED high bay lights or traditional options like metal halide or fluorescent?

LED high bay lights have become the industry standard for good reason. They use 40–60% less energy than metal halide or fluorescent equivalents, last 50,000–100,000 hours compared to 15,000–25,000 for traditional options, turn on instantly with no warm-up time, produce less heat, and require far less maintenance. While the upfront cost is higher, most facilities see a return on investment within 1–3 years through energy savings alone.

Can LED high bays be dimmed?

Yes, many LED high bays support dimming and control integration. This can add another 10–30% in energy savings on top of the LED conversion itself, particularly in spaces that aren't occupied around the clock. Dimming for high bays requires a compatible 0–10V controller or dimmer switch and proper connection of low-voltage dimming wires.

How long do LED high bay lights last?

Most high-quality fixtures are rated for 50,000–100,000 hours.

How many lumens do I need for my space?

This depends on the application. General warehousing typically requires 10–30 foot-candles of illumination, while detailed manufacturing or inspection work may need 50 foot-candles or more. The number of fixtures and their lumen output will depend on your ceiling height, room dimensions, and the specific tasks performed. A photometric lighting layout can help determine the exact requirements for your space.

What beam angle should I choose?

Narrower beam angles (60°–90°) concentrate light downward and are best for very high ceilings or spaces where focused task lighting is needed, such as warehouse aisles. Wider beam angles (120°+) spread light more broadly and work well for open areas where general, even illumination is the priority. Many LED high bay fixtures offer interchangeable reflectors so you can customize the distribution.

How much can I save by switching to LED high bay lighting?

Savings vary based on your current lighting, energy costs, and hours of operation, but most facilities reduce lighting energy consumption by 50–70%. A warehouse running traditional 400W metal halide fixtures 16 hours a day, for example, could replace them with 150–200W LED equivalents and save thousands of dollars per year in electricity and maintenance costs.

What IP rating do I need?

The IP (Ingress Protection) rating indicates resistance to dust and moisture. For standard indoor environments like warehouses and gyms, IP40 or IP65 is typically sufficient. For food processing plants, car washes, or facilities that require regular washdowns, look for IP65 or IP66. Outdoor or extremely harsh environments may require IP67 or higher.

How do I know when it's time to replace my existing high bay lights?

Common signs include noticeably dimmer output, frequent bulb or ballast failures, flickering, uneven lighting across the space, and rising energy costs. If you're spending significant time and money on maintenance or if your fixtures are more than 8–10 years old, it's likely a good time to evaluate an LED retrofit or replacement.

Can I retrofit my existing fixtures or do I need to replace them entirely?

Both options exist. Retrofit kits allow you to install LED technology into your existing fixture housings, which can reduce upfront costs and installation time. Full fixture replacement gives you access to the latest optics, thermal management, and design features. The best choice depends on the condition of your current fixtures, your budget, and your long-term goals.
