80W-160W Selectable LED Linear High Bay, Ceilings 10 to 30 ft

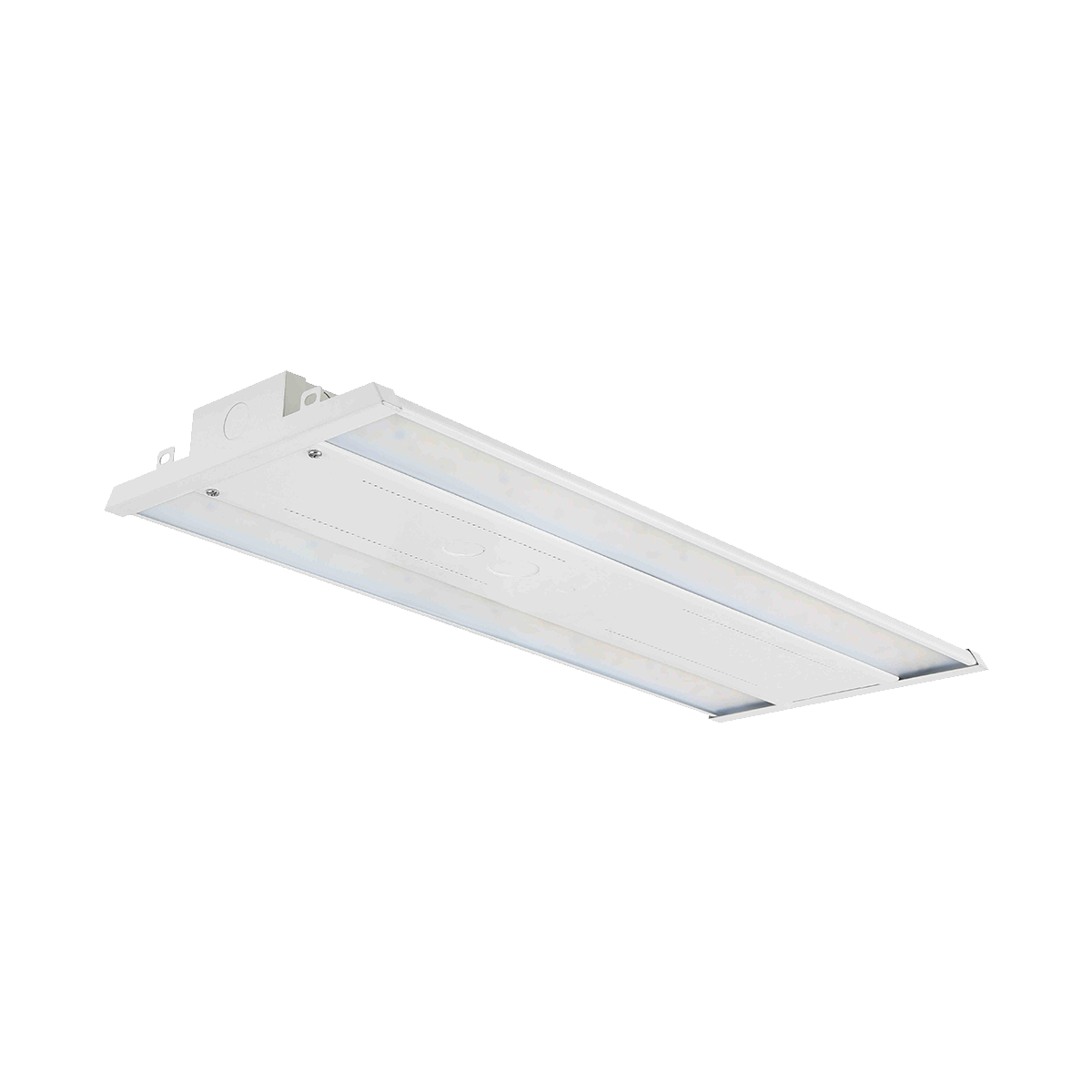

White linear LED high bay with LED lens panels and a center sensor port, angled view
Large warehouse with pallet racks lit by rows of linear LED high bays
Linear LED high bay dimensions: 14.4 in long, 11.5 in wide, 2 in tall
Linear LED high bay features: low glare under 28 UGR, IP20 and IK10 rated, built-in surge protection, 102,000 hour life
Linear high bay at 4000K and 5000K: 50W to 160W settings, up to 25,920 lumens
Linear high bay lens options: clear or frosted 95 degree lenses, or a 60 x 110 degree asymmetric aisle lens
Linear high bay accessories: motion sensor, remote controller, aisle optical lens and frosted diffuser lens
Linear LED high bays mounted on steel trusses in a warehouse ceiling
ELEDLights

80W-160W Selectable LED Linear High Bay, Ceilings 10 to 30 ft

SKU: LHB5XE160WCS
Sale price$63.95
Regular price$94.95
Save $31.00 (33%)

This high bay scales from low bay to high bay duty on ceilings 10–30 ft, with tool-free lens swaps to accommodate open areas and aisles.

  • Up to 162 lm/W for lower energy bills
  • IK10-rated and cold-capable to -13°F
  • 102,000 hour lamp life and 5-year U.S.-supported warranty
Free Shipping Over $500

This high bay scales from low bay to high bay duty on ceilings 10–30 ft, with tool-free lens swaps to accommodate open areas and aisles.

  • Up to 162 lm/W for lower energy bills
  • IK10-rated and cold-capable to -13°F
  • 102,000 hour lamp life and 5-year U.S.-supported warranty

Specs

Wattage(s) 50/80/110/160W Selectable
Replaces Wattage(s) 500W
Light Output @4000K:
8,100/12,960/17,820/25,920 lumens
@5000K:
8,000/12,800/17,600/25,600 lumens
Luminous Efficacy (lm/W) @4000K: 162 lm/W
@5000K: 160 lm/W
Average Lamp Life L90: 43,000 hours
L80: 91,000 hours
L70: 102,000 hours
Color Temperature(s) 4000/5000K Selectable (Call for 4000K or 5000K fixed)
CRI (Color Accuracy) 80
UGR (Unified Glare Rating) <28
Dimming 0-10V Dimming
Occupancy Sensor Integral Sensor Receptacle
Beam Angle 95° (Standard) changeable to 60°x110° for Aisle Application with field-swappable lens
Lens Cover Polycarbonate Optical Lens
Installation Suspension Mount (Standard), Surface Mount
Enclosure Rating IP20, IK10
LED Type 2835
Input Voltage 120-277VAC
Contact us for 120-347VAC or 277-480VAC, 50/60Hz
Driver Type Constant Current (CC)
Power Supply Sosen
Power Factor >0.9
Surge Protection 6kV line-line, 10kV line-earth
Operating Temperature -25°C to +50°C (-13°F to +122°F)
Housing Material Die Cast Aluminum
Housing Color White
Dimensions 14.4” x 11.5” x 2.0” (366 x 292 x 51 mm)
Weight 7.1lbs (3.2kg)
Certification DLC Premium, UL
Warranty 5 Years

Details

The Most Adaptable Linear High Bay for Ceilings 10–30 ft

One Fixture, Every Wattage — selectable from 50W to 160W without changing SKUs.

Outfit an Entire Facility with a single model number, even as ceiling heights and room types change.

Dial-In the Exact Lighting Performance You Need:

  • Selectable Wattage: Choose 50W, 80W, 110W, or 160W to match ceiling height and light-level needs.
  • Selectable CCT: Switch between 4000K and 5000K to fit the space.
  • Tool-Free Lens Swap: Use the included 95° lens for open floors, or add the 60°x110° lens to focus light down aisles.
  • Frosted Diffuser Option: Reduces glare and evens out light distribution for visual comfort.
  • 0-10V Dimming: Compatible with standard dimming controls for added energy savings.
  • Motion Sensor Ready: Integral sensor receptacle accepts a plug-in occupancy sensor.

Built to Perform in Demanding Environments

  • Up to 162 lm/W: High efficacy keeps energy costs down at every wattage setting.
  • IK10 Impact Rating: Withstands impacts in gyms, sport courts, and busy warehouse floors.
  • Cold-Capable to -13°F: Performs reliably in cold storage environments.
  • 102,000-Hour Rated Life: Fewer replacements and lower maintenance costs over time.
  • Built-In Surge Protection: 6kV line-line / 10kV line-earth protects against power spikes.

Ideal for a wide range of applications, from warehouses to cold storage, gymnasiums to supermarkets, and big box retail to exhibition halls.



Step Up to Smart Controls with Lightcloud Blue

Integrate this fixture with RAB's Lightcloud Blue wireless controls system for phone-based switching, dimming, and scheduling, and add a compatible sensor for occupancy sensing and daylight harvesting too. Maximize your savings and control.

⚙ Controller
LCBC-X/W Lightcloud Blue extended-range line-voltage controller for 160W linear high bay
LCBC-X/W
Extended Range/High Load
Adds: Switching + Scheduled Dimming
Higher load capacity for more lights per controller, plus longer range for bigger spaces.
Placeholder
◎ Sensor
PIRW40/LCB wireless ceiling occupancy sensor for 160W linear high bay
PIRW40/LCB
Passive Infrared (PIR)
Adds: Occupancy + Daylight Sensing*
Best for open floors with a clear line of sight to the space below.
*Requires an LCB controller to control this fixture.
◎ Sensor
MVSW50/LCB wireless ceiling microwave occupancy sensor for 160W linear high bay
MVSW50/LCB
Microwave
Adds: Occupancy + Daylight Sensing*
Best when racking, shelving, or stacked inventory would block a sensor's view.
*Requires an LCB controller to control this fixture.

Shown above are our most common recommendations for this fixture's 10–30 ft mounting height. Explore the full Lightcloud Blue Lighting Controls by RAB collection for other configurations, or contact us if you're not sure what fits your space.

Layout & Planning

Request a Custom Layout

Complex or unique space? Get a custom layout plan from our lighting experts.

Save More with Rebates

Check available incentives in your area to reduce your upfront cost.
