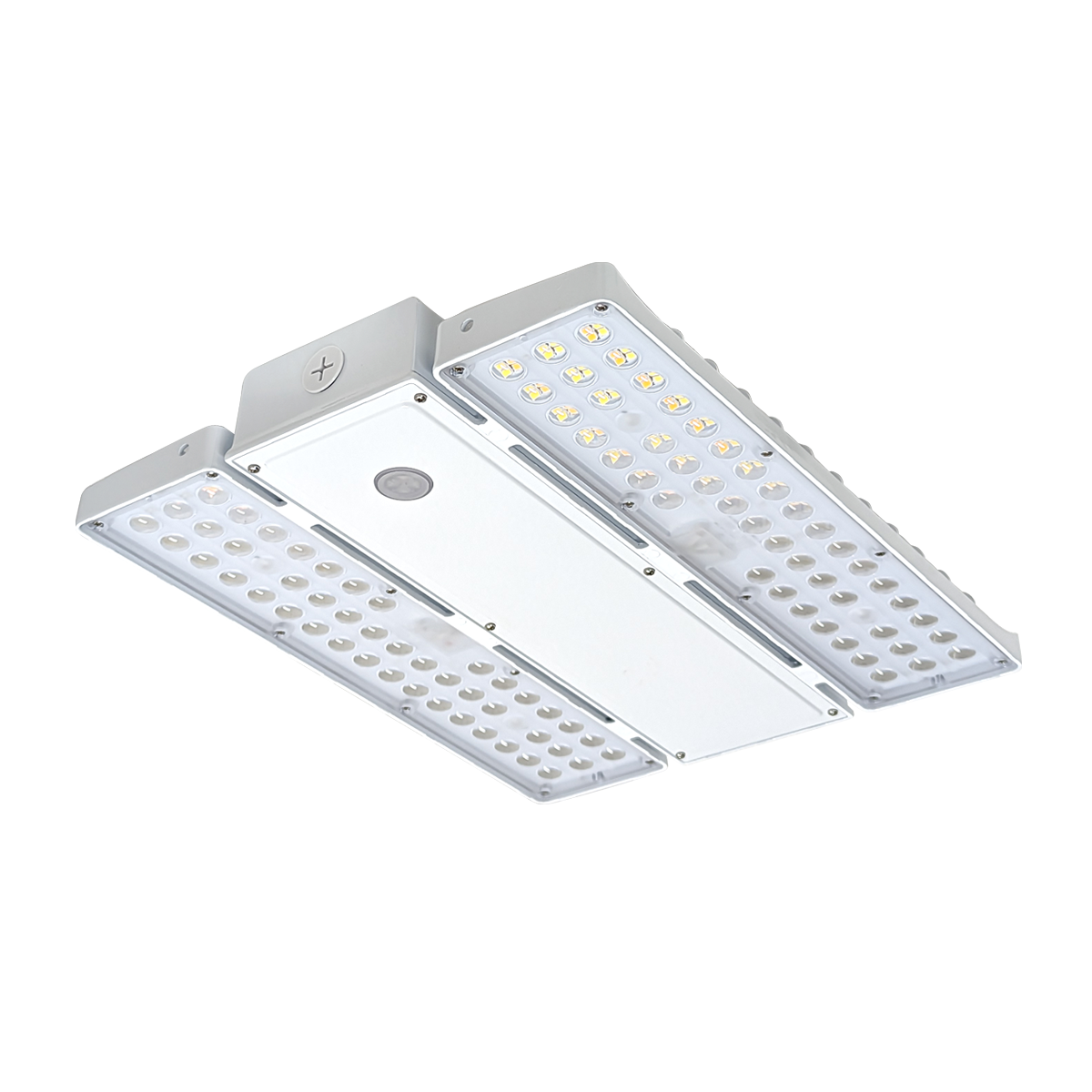

Color & Wattage-Selectable Linear High Bay, Optional High Voltage Available, 20 to 30 ft
Lumens:
Watts:
Color Temp:
5 Year Warranty
Versatile Linear LED High Bay Outlasts & Outperforms 600W HID & Fluorescent High Bays
- Average Lifespan of 50,000 Operating Hours
- Protected by a 5-Year Warranty
- Built-In Surge Protection
- Die-Cast Aluminum, Corrosion-Resistant Housing
Ideal for industrial facilities, warehouses, automotive service bays, and more. A chain suspension mount kit is included; a surface mount kit is available as an accessory.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price & free shipping:
Versatile Linear LED High Bay Outlasts & Outperforms 600W HID & Fluorescent High Bays
- Average Lifespan of 50,000 Operating Hours
- Protected by a 5-Year Warranty
- Built-In Surge Protection
- Die-Cast Aluminum, Corrosion-Resistant Housing
Ideal for industrial facilities, warehouses, automotive service bays, and more. A chain suspension mount kit is included; a surface mount kit is available as an accessory.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
SPECIFICATIONS
| Wattage(s) | 155W/180W/210W |
| Replaces Wattage(s) | Replaces 600W |
| Light Output |
120-277V Model: 23,250 / 27,000 / 31,500 lumens 277-480V Model: 22,750 / 26,460 / 31,000 lumens |
| Luminous Efficacy (lm/W) | Up to 150 lm/W |
| Average Lamp Life | 50,000 hours |
| Color Temperature(s) | 4000K/5000K |
| CRI (Color Accuracy) | >80 |
| Dimming | 0-10V |
| Beam Angle | 95° |
| Working Environment | Indoors |
| Input Voltage | 120-277V or 277-480V |
| Temperature Rating | -40˚F to 122˚F |
| Housing Material | Die-cast aluminum with powder coat corrosion-resistant finish and high transmittance polycarbonate lens |
| Housing Color | White |
| Dimensions | 14" long x 11.5" wide x 2.1" tall |
| Weight | 5.5 lbs |
| Certification | DLC 5.1 Premium, UL |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
COMPARE KEY FEATURES
Linear LED High Bay – 2 CCT – 210/180/155W
|
LED Linear High Bay - 4000K/5000K CCT - 60/105/140/210W Selectable
|
Linear LED High Bay – Swappable Optics – IP66, IK10 – 200W
|
|
|---|---|---|---|
| Wattage | 155W/180W/210W | 60/105/140/210W Selectable | 200W |
| Efficacy | Up to 150 lm/W | Standard Efficiency Model: @4000K: 162 lm/W @5000K: 160 lm/W High Efficiency Model: @4000K: 172 lm/W @5000K: 170 lm/W |
149 lm/W to 150 lm/W |
| Color Temperature (CCT) | 4000K/5000K | 4000/5000K Selectable (Call for 4000K or 5000K fixed) | 5000K |
| Color Accuracy (CRI) | >80 | 80 | 80 |
| Temperature Rating | -40˚F to 122˚F | -25°C to +50°C (-13°F to +122°F) | -22°F to 122°F |
| Warranty | 5 Years | 5 Years | 5 Years |
|
$89.99
|
$98.95
View Details
|
$486.95
View Details
|
Key Features
Selectable Wattage & CCT
Compact Design for Easy Install
Built-In Surge Protection
A Flexible Lighting Solution for Industrial Spaces
- Choose between 3 wattages during install to get the right level for each space.
- Choose between neutral and cool light tones during install to get the right ambiance.
- Dim the lights as needed from 100% brightness to off.
- Add smart controls easily by selecting motion or daylight sensors as accessories.
Tough, Compact High Bay Light - Built to Last
- Average Lifespan of 50,000 Operating Hours
- Protected by a 5-Year Warranty
- Built-In Surge Protection
- Die-Cast Aluminum, Corrosion-Resistant Housing
Ideal for industrial facilities, warehouses, car service bays, and more. A chain suspension mount kit is included; a surface mount kit is available as an accessory.
Light Output
This light is wattage-selectable. Click a wattage to see the light output for that setting.
