80-160W Selectable LED Linear High Bay, Ceilings 10 to 30 ft
80-160W Selectable LED Linear High Bay, Ceilings 10 to 30 ft
80-160W Selectable LED Linear High Bay, Ceilings 10 to 30 ft
ELEDLights
0 Reviews

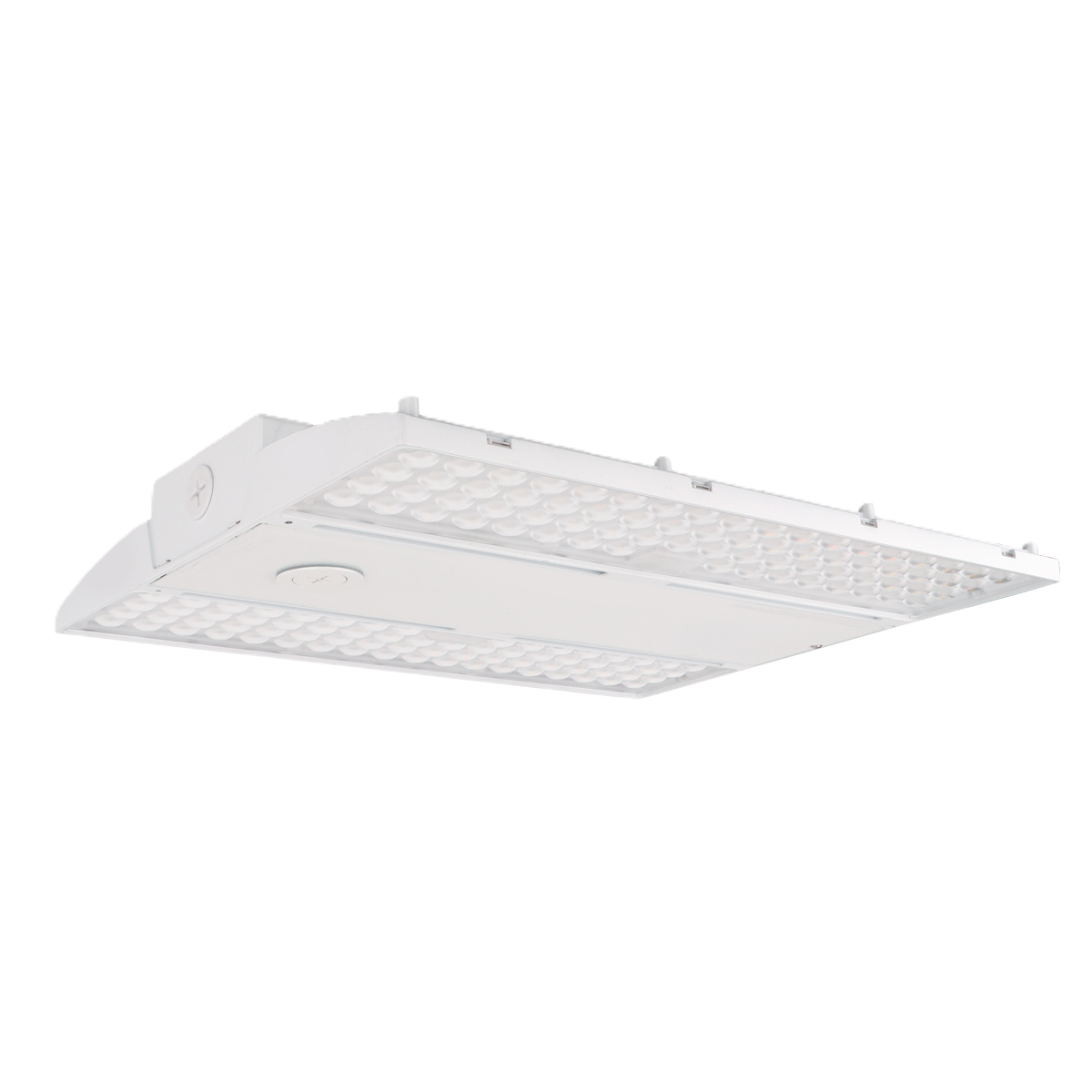

80-160W Selectable LED Linear High Bay, Ceilings 10 to 30 ft
Regular price$92.95
This high bay scales from low bay to high bay duty on ceilings 10–30 ft, with tool-free lens swaps to accommodate open areas and aisles.
- Up to 162 lm/W for lower energy bills
- IK10-rated and cold-capable to -13°F
- 102,000 hour lamp life and 5-year U.S.-supported warranty
This high bay scales from low bay to high bay duty on ceilings 10–30 ft, with tool-free lens swaps to accommodate open areas and aisles.
- Up to 162 lm/W for lower energy bills
- IK10-rated and cold-capable to -13°F
- 102,000 hour lamp life and 5-year U.S.-supported warranty
Choose options
Regular price$92.95
Regular price$92.95
Specs
| Wattage(s) | 50/80/110/160W Selectable |
| Replaces Wattage(s) | 500W |
| Light Output |
@4000K: 8,100/12,960/17,820/25,920 lumens @5000K: 8,000/12,800/17,600/25,600 lumens |
| Luminous Efficacy (lm/W) |
@4000K: 162 lm/W @5000K: 160 lm/W |
| Average Lamp Life |
L90: 43,000 hours L80: 91,000 hours L70: 102,000 hours |
| Color Temperature(s) | 4000/5000K Selectable (Call for 4000K or 5000K fixed) |
| CRI (Color Accuracy) | 80 |
| UGR (Unified Glare Rating) | <28 |
| Dimming | 0-10V Dimming |
| Occupancy Sensor | Integral Sensor Receptacle |
| Beam Angle | 95° (Standard) changeable to 60°x110° for Aisle Application with field-swappable lens |
| Lens Cover | Polycarbonate Optical Lens |
| Installation | Suspension Mount (Standard), Surface Mount |
| Enclosure Rating | IP20, IK10 |
| LED Type | 2835 |
| Input Voltage | 120-277VAC / 120-347VAC / 277-480VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | Sosen |
| Power Factor | >0.9 |
| Surge Protection | 6kV line-line, 10kV line-earth |
| Temperature Rating | -25°C to +50°C (-13°F to +122°F) |
| Housing Material | Die Cast Aluminum |
| Housing Color | White |
| Dimensions | 14.4” x 11.5” x 2.0” (366 x 292 x 51 mm) |
| Weight | 7.1lbs (3.2kg) |
| Certification | DLC Premium, UL |
| DLC ID(s) | S-1LQ84J |
| Warranty | 5 Years |
Data SheetDetails
The Most Adaptable Linear High Bay for Ceilings 10–30 ft
One Fixture, Every Wattage — selectable from 50W to 160W without changing SKUs.
Outfit an Entire Facility with a single model number, even as ceiling heights and room types change.
Dial-In the Exact Lighting Performance You Need:
- Selectable Wattage: Choose 50W, 80W, 110W, or 160W to match ceiling height and light-level needs.
- Selectable CCT: Switch between 4000K and 5000K to fit the space.
- Tool-Free Lens Swap: Use the included 95° lens for open floors, or add the 60°x110° lens to focus light down aisles.
- Frosted Diffuser Option: Reduces glare and evens out light distribution for visual comfort.
- 0-10V Dimming: Compatible with standard dimming controls for added energy savings.
- Motion Sensor Ready: Integral sensor receptacle accepts a plug-in occupancy sensor.
Built to Perform in Demanding Environments
- Up to 162 lm/W: High efficacy keeps energy costs down at every wattage setting.
- IK10 Impact Rating: Withstands impacts in gyms, sport courts, and busy warehouse floors.
- Cold-Capable to -13°F: Performs reliably in cold storage environments.
- 102,000-Hour Rated Life: Fewer replacements and lower maintenance costs over time.
- Built-In Surge Protection: 6kV line-line / 10kV line-earth protects against power spikes.
Ideal for a wide range of applications, from warehouses to cold storage, gymnasiums to supermarkets, and big box retail to exhibition halls.
×
×
