LED Magnetic Retrofit Kit for 2x2 Troffer - 5-CCT - 15W/20W/25W
1294 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
Easy LED Upgrade for 2x2 Fluorescent Lights
- Cut Energy Costs by 50% or More: Swap out fluorescent 2ft or U-bend tubes for LED with easy-install kit.
- Magnetic-Backed Strips & Driver: Makes install easier by holding everything in place and allowing for adjustments.
- Plug-in Strip Connector: Speeds up install by limiting the wiring required.
- Selectable Wattage & Color Temp: Improves flexibility by suiting the needs of multiple spaces and uses.
Suitable for use in a variety of settings, including offices, classrooms, restrooms, hallways, hospitals, utility rooms, retail stores, fitness centers, and more.

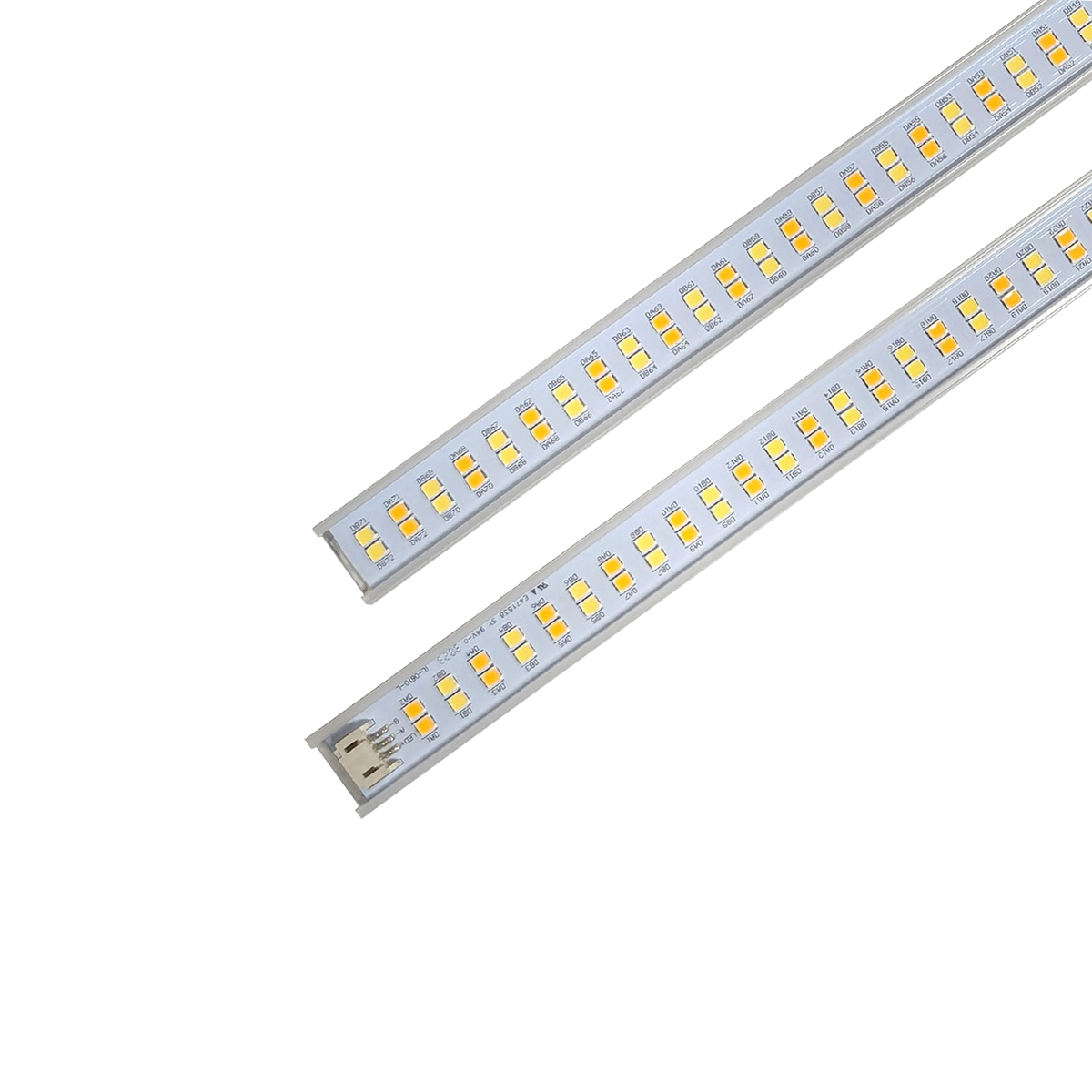

Each Kit Includes: Two 2ft Light Strips and One 0-10V Dimmable LED Driver

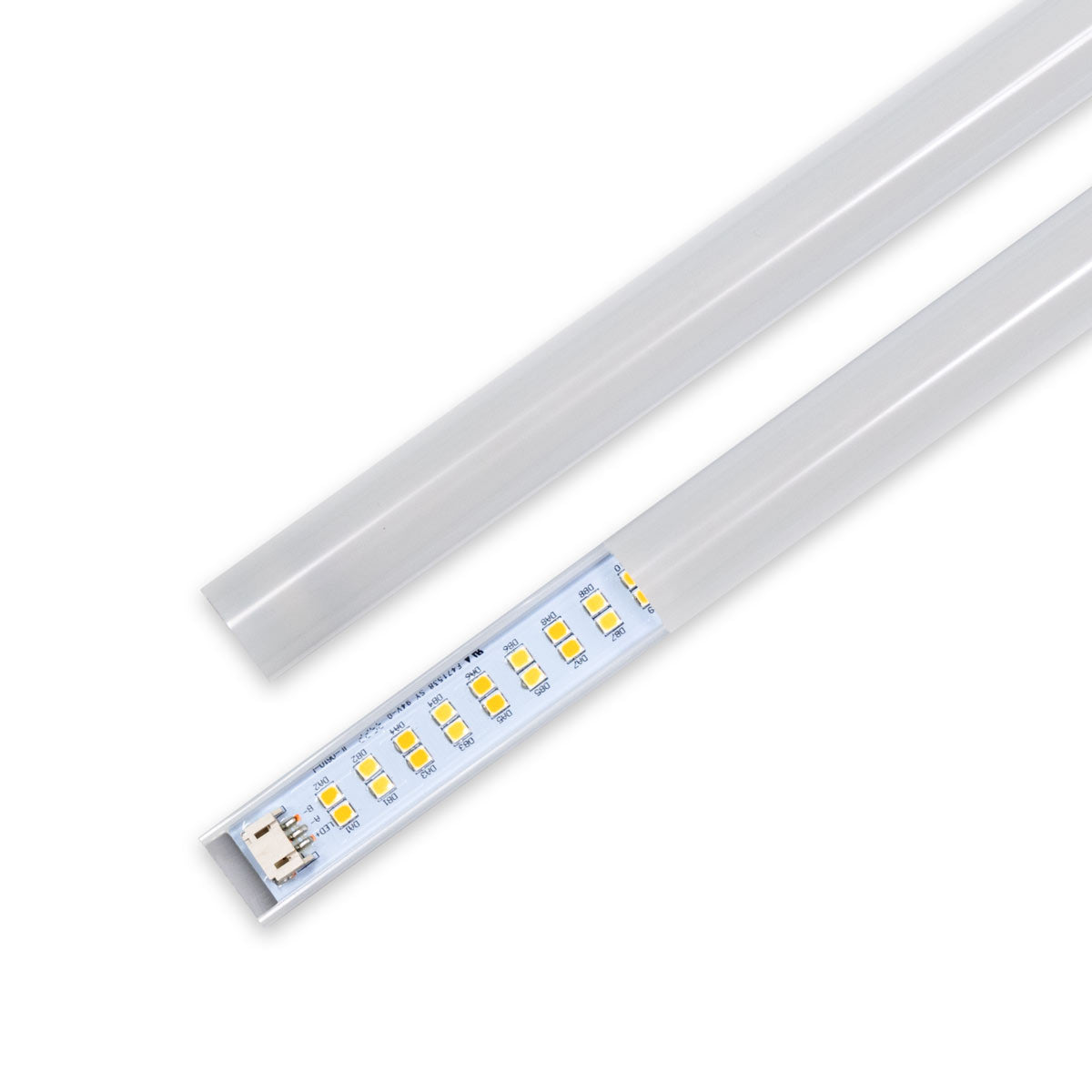

Optional: Screw-in Frosted Lenses (A great solution for non-magnetic troffers)
Saves $/year in energy costs*
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
Easy LED Upgrade for 2x2 Fluorescent Lights
- Cut Energy Costs by 50% or More: Swap out fluorescent 2ft or U-bend tubes for LED with easy-install kit.
- Magnetic-Backed Strips & Driver: Makes install easier by holding everything in place and allowing for adjustments.
- Plug-in Strip Connector: Speeds up install by limiting the wiring required.
- Selectable Wattage & Color Temp: Improves flexibility by suiting the needs of multiple spaces and uses.
Suitable for use in a variety of settings, including offices, classrooms, restrooms, hallways, hospitals, utility rooms, retail stores, fitness centers, and more.
Each Kit Includes: Two 2ft Light Strips and One 0-10V Dimmable LED Driver
Optional: Screw-in Frosted Lenses (A great solution for non-magnetic troffers)
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
1294 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
1294 in stock
5 Year Warranty
Lumens:
Watts:
Color Temp:
$12 Flat Rate, FREE over $500
Lighting layouts, rebate assistance, project guidance, or special requirements:
SPECIFICATIONS
| Wattage(s) | 15W / 20W / 25W selectable |
| Light Output | 1,650 to 3,265 lumens |
| Luminous Efficacy (lm/W) | Up to 145 lm/W |
| Average Lamp Life | L70: Calculated >100,000 hours, Reported: >60,000 hours |
| Color Temperature(s) | 2700K/3000K/3500K/4000K/5000K selectable |
| Dimming | 0-10V |
| Bulb Shape | Linear Strips |
| Lens Cover | Frosted lens cover optional |
| Installation | Wire driver into your mains, attach kits to metal surface, plug kits into driver |
| Working Environment | Indoor |
| Light Type | Retrofits and Conversion Kits |
| LED Type | LED 2835 |
| Input Voltage | 120-277VAC / 120-347VAC, 50/60 Hz |
| Power Factor | >0.90 |
| Surge Protection | 1kV line-line, 2kV line-earth |
| Housing Material | Aluminum |
| Certification | DLC 5.1, ETL |
| DLC ID(s) | S-FR8F2S |
| Warranty | 5 Years |
| Additional Specifications | Each kit contains two 2ft magnetic linear LED retrofit strips + an external magnetic-mount LED driver capable of 0-10V dimming. Frosted lenses available as an accessory. |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
Key Features
Selectable Wattage & CCT
Big Energy Saver
Magnetic for Easy Install
Easily Upgrade Your 2x2 Fluorescent Troffers
- Magnetic-Backed Strips & Driver: Makes install easier by holding everything in place and allowing for adjustments.
- Plug-in Strip Connector: Speeds up install by limiting the wiring required.
- Selectable Wattage & Color Temp: Improves flexibility by suiting the needs of multiple spaces and uses.
- 3-Strip Option: Great choice for open grate ceiling lights; the extra strip prevents a dark middle in the troffer at the same low energy cost as the 2-strip kit. Find it here.
Each Kit Includes: Two 2ft Light Strips and One 0-10V LED Driver
Optional: Screw-in Frosted Lenses (A great solution for non-magnetic troffers)
Enjoy Impressively Efficient Lighting That Lasts
- Save 50% or More in Energy Costs: Swap out fluorescent 2ft or U-bend tubes.
- Average Lifespan of 50,000 hours: Get 5 1/2 years of 24/7 operation or 11+ years of 12-hour operation or less.
- Dimmable from 100% to 0%: Increases energy savings and average lifespan.
Suitable for use in a variety of settings, including offices, classrooms, restrooms, hallways, hospitals, utility rooms, retail stores, fitness centers, and more.
