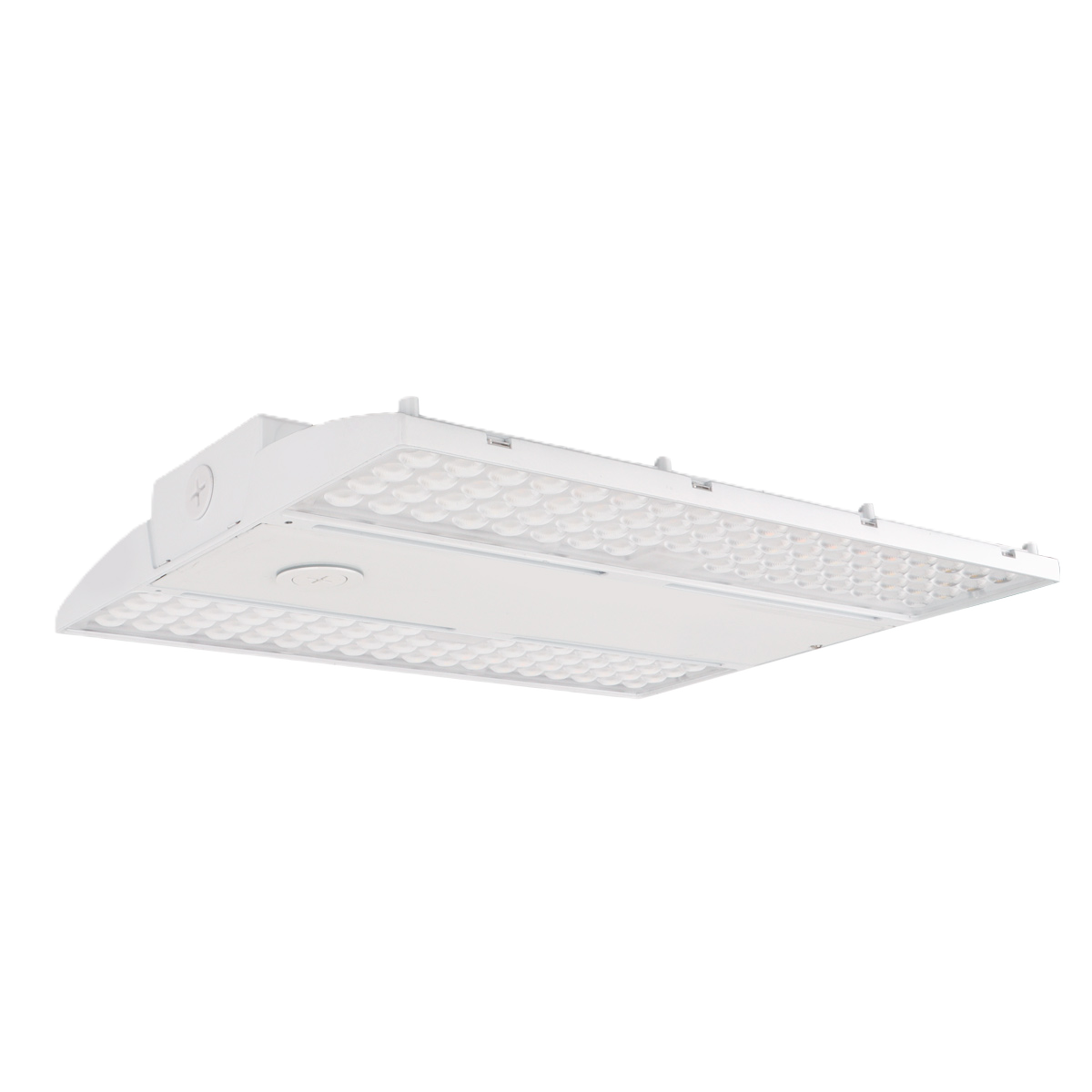

Color- and Power-Selectable Linear High Bay with Ultra High Efficiency Option, Ceilings Up to 35 ft
Lumens:
Watts:
Color Temp:
5 Year Warranty
Up Your Efficiency with This Tough, Adaptable Fixture
- Choose standard for 162lm/W, or step up to an ultra-efficient 172lm/W.
- Rated down to -13°F for cooler/freezer applications.
- Adjust power, color temperature, and lensing to meet your site's needs.

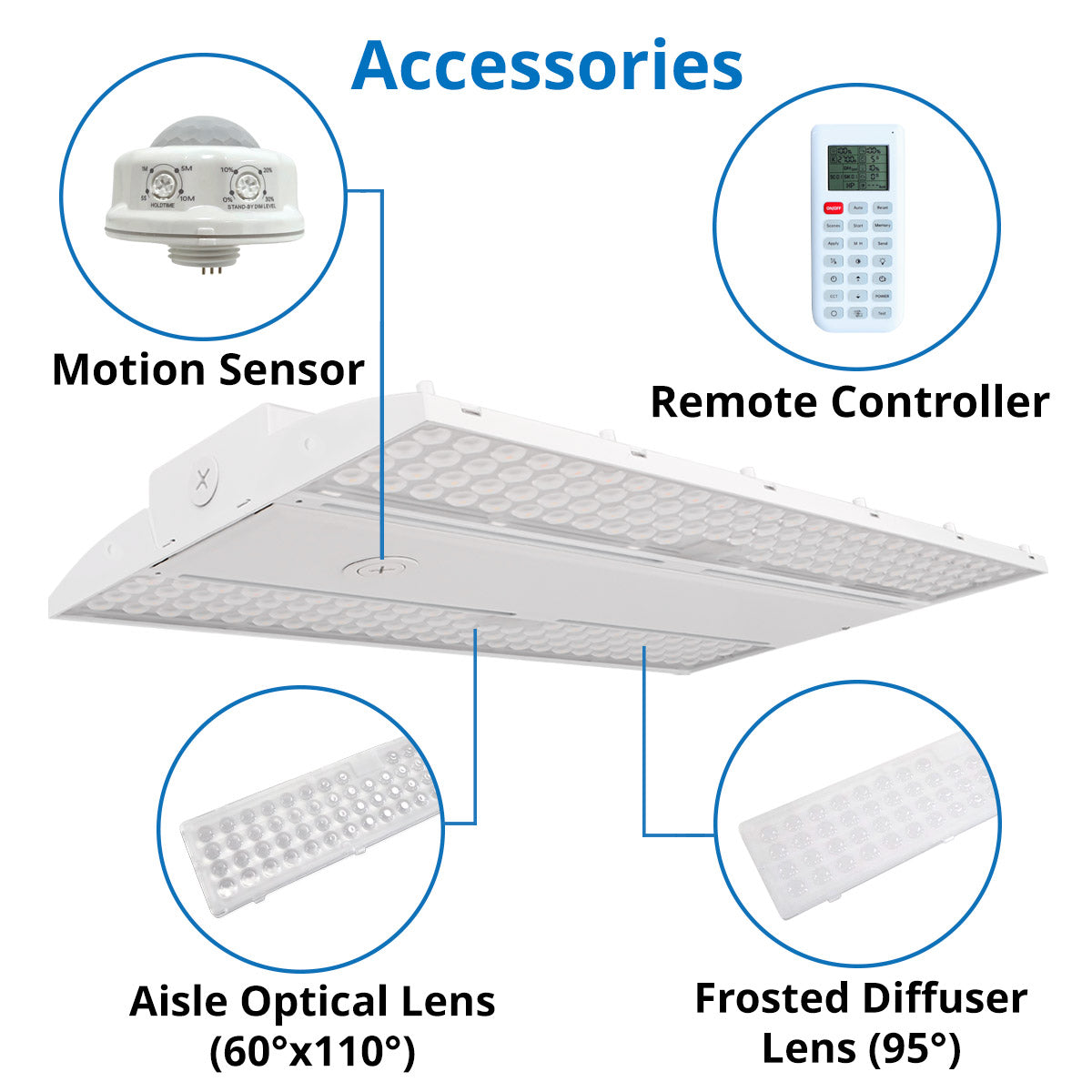

Tool-Free Lens Swapping for Easy Adaptation to Aisles and Open Spaces:
- For Open Areas: Standard 95° lens (included) provides even coverage.
- For Aisles: Add the 60°x110° Optical Lens to focus light on shelved product.
- For Extra Visual Comfort: Add the frosted diffuser to reduce glare and optimize even light distribution.
A great choice for warehouses, cold storage, industrial facilities, big box retail, supermarkets, exhibition halls, gymnasiums, & more.
Saves $/year in energy costs*
Buying 12 or more?
Get a better price & free shipping:
Up Your Efficiency with This Tough, Adaptable Fixture
- Choose standard for 162lm/W, or step up to an ultra-efficient 172lm/W.
- Rated down to -13°F for cooler/freezer applications.
- Adjust power, color temperature, and lensing to meet your site's needs.
Tool-Free Lens Swapping for Easy Adaptation to Aisles and Open Spaces:
- For Open Areas: Standard 95° lens (included) provides even coverage.
- For Aisles: Add the 60°x110° Optical Lens to focus light on shelved product.
- For Extra Visual Comfort: Add the frosted diffuser to reduce glare and optimize even light distribution.
A great choice for warehouses, cold storage, industrial facilities, big box retail, supermarkets, exhibition halls, gymnasiums, & more.
Saves $/year in energy costs*
See how much you would save in energy
costs by allowing access to your location.
Choose options
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
Lumens:
Watts:
Color Temp:
5 Year Warranty
Buying 12 or more?
Get a better price & free shipping:
SPECIFICATIONS
| Wattage(s) | 60/105/140/210W Selectable |
| Replaces Wattage(s) |
Standard Efficiency Model: 600W High Efficiency Model: 650W |
| Light Output |
Standard Efficiency Model: @4000K: 9,720/17,010/22,680/34,020 lumens @5000K: 9,600/16,800/22,400/33,600 lumens High Efficiency Model: @4000K: 10,320/18,060/24,080/36,120 lumens @5000K: 10,200/17,850/23,800/35,720 lumens |
| Luminous Efficacy (lm/W) |
Standard Efficiency Model: @4000K: 162 lm/W @5000K: 160 lm/W High Efficiency Model: @4000K: 172 lm/W @5000K: 170 lm/W |
| Average Lamp Life |
L90: 43,000 hours L80: 91,000 hours L70: 102,000 hours |
| Color Temperature(s) | 4000/5000K Selectable (Call for 4000K or 5000K fixed) |
| CRI (Color Accuracy) | 80 |
| UGR (Unified Glare Rating) | <28 |
| Dimming | 0-10V Dimming |
| Occupancy Sensor | Integral Sensor Receptacle |
| Beam Angle | 95° (Standard) changeable to 60°x110° for Aisle Application with field-swappable lens |
| Lens Cover | Polycarbonate Optical Lens |
| Installation | Suspension Mount (Standard), Surface Mount |
| Enclosure Rating | IP20, IK10 |
| LED Type | 2835 |
| Input Voltage | 120-277VAC / 120-347VAC / 277-480VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | Sosen |
| Power Factor | >0.9 |
| Surge Protection | 6kV line-line, 10kV line-earth |
| Temperature Rating | -25°C to +50°C (-13°F to +122°F) |
| Housing Material | Die Cast Aluminum |
| Housing Color | White |
| Dimensions | 14.4” x 11.5” x 2.0” (366 x 292 x 51 mm) |
| Weight | 7.1lbs (3.2kg) |
| Certification | DLC Premium, UL |
| Warranty | 5 Years |
FIXTURE CALCULATOR
Our easy tool tells you how many lights you need & how far apart they should be installed.
Click the cube icon
& enter the room's dimensions. "Workplane Height" is where the light levels will be measured from. For example, 2.5 ft is about desk height. "Suspension Length" is how far your fixture will hang below the ceiling. If the fixture will be flush with the ceiling or recessed, enter 0.
As you make changes, the layout updates instantly to show recommended fixture (luminaire) quantities and spacing. Click the printer icon
in the top bar to get a report you can print or share.
COMPARE KEY FEATURES
LED Linear High Bay - 4000K/5000K CCT - 60/105/140/210W Selectable
|
LED Linear High Bay - 4000K/5000K CCT - 95/160/215/320W Selectable
|
Linear LED High Bay – Swappable Optics – IP66, IK10 – 200W
|
|
|---|---|---|---|
| Wattage | 60/105/140/210W Selectable | 95/160/215/320W Selectable | 200W |
| Efficacy | Standard Efficiency Model: @4000K: 162 lm/W @5000K: 160 lm/W High Efficiency Model: @4000K: 172 lm/W @5000K: 170 lm/W |
Standard Efficiency Model: @4000K: 162 lm/W @5000K: 160 lm/W High Efficiency Model: @4000K: 172 lm/W @5000K: 170 lm/W |
149 lm/W to 150 lm/W |
| Color Temperature (CCT) | 4000/5000K Selectable (Call for 4000K or 5000K fixed) | 4000/5000K Selectable (Call for 4000K or 5000K fixed) | 5000K |
| Color Accuracy (CRI) | 80 | 80 | 80 |
| Temperature Rating | -25°C to +50°C (-13°F to +122°F) | -25°C to +50°C (-13°F to +122°F) | -22°F to 122°F |
| Warranty | 5 Years | 5 Years | 5 Years |
|
