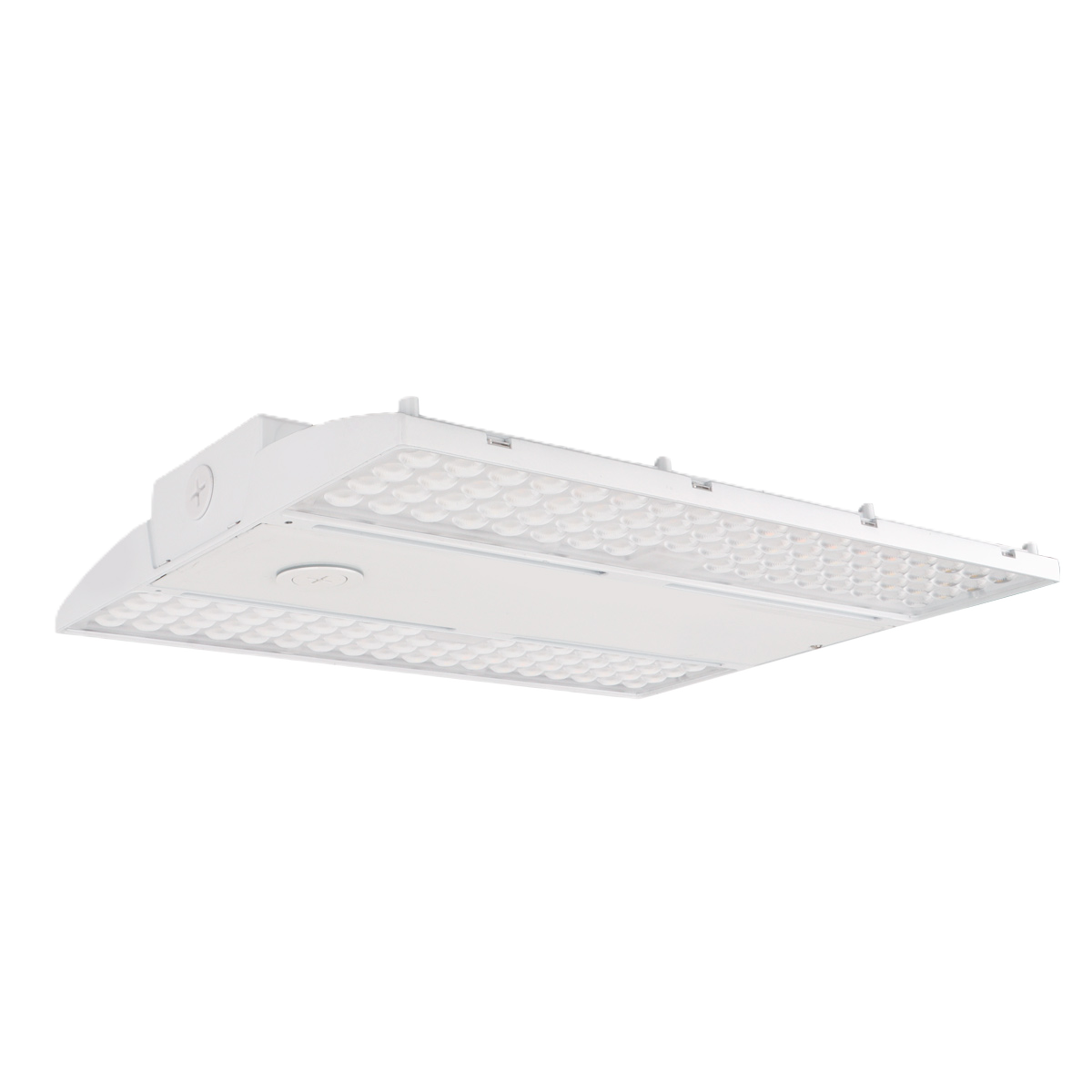

120W Selectable LED Linear High Bay, Ceilings 10 to 25 ft
120W Selectable LED Linear High Bay, Ceilings 10 to 25 ft
120W Selectable LED Linear High Bay, Ceilings 10 to 25 ft
ELEDLights
0 Reviews
120W Selectable LED Linear High Bay, Ceilings 10 to 25 ft
Regular price$87.95
This linear high bay adapts from low bay to high bay duty on ceilings 10–25 ft, with tool-free lens swaps for open floors or aisles.
- Up to 164 lm/W for lower energy bills
- IK10-rated and cold-capable to -13°F
- 5-year warranty on every fixture
This linear high bay adapts from low bay to high bay duty on ceilings 10–25 ft, with tool-free lens swaps for open floors or aisles.
- Up to 164 lm/W for lower energy bills
- IK10-rated and cold-capable to -13°F
- 5-year warranty on every fixture
Choose options
Regular price$87.95
Regular price$87.95
Specs
| Wattage(s) | 35/60/80/120W Selectable |
| Replaces Wattage(s) | 400W |
| Light Output |
@4000K: 5,740/9,840/13,120/19,680 lumens @5000K: 5,670/9,720/12,960/19,440 lumens |
| Luminous Efficacy (lm/W) |
@4000K: 164 lm/W @5000K: 162 lm/W |
| Average Lamp Life |
L90: 43,000 hours L80: 91,000 hours L70: 102,000 hours |
| Color Temperature(s) | 4000/5000K Selectable (Call for 4000K or 5000K fixed) |
| CRI (Color Accuracy) | 80 |
| UGR (Unified Glare Rating) | <28 |
| Dimming | 0-10V Dimming |
| Occupancy Sensor | Integral Sensor Receptacle |
| Beam Angle | 95° (Standard) changeable to 60°x110° for Aisle Application with field-swappable lens |
| Lens Cover | Polycarbonate Optical Lens |
| Installation | Suspension Mount (Standard), Surface Mount |
| Enclosure Rating | IP20, IK10 |
| LED Type | 2835 |
| Input Voltage | 120-277VAC / 120-347VAC / 277-480VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | Sosen |
| Power Factor | >0.9 |
| Surge Protection | 6kV line-line, 10kV line-earth |
| Temperature Rating | -25°C to +50°C (-13°F to +122°F) |
| Housing Material | Die Cast Aluminum |
| Housing Color | White |
| Dimensions | 14.4” x 11.5” x 2.0” (366 x 292 x 51 mm) |
| Weight | 7.1lbs (3.2kg) |
| Certification | DLC Premium, UL |
| Warranty | 5 Years |
Data SheetDetails
The Most Adaptable Linear High Bay for Ceilings 10–25 ft
One Fixture, Every Wattage — selectable from 35W to 120W without changing SKUs.
Outfit an Entire Facility with a single model number, even as ceiling heights and room types change.
Dial-In the Exact Lighting Performance You Need:
- Selectable Wattage: Choose 35W, 60W, 80W, or 120W to match ceiling height and light-level needs.
- Selectable CCT: Switch between 4000K and 5000K to fit the space.
- Tool-Free Lens Swap: Use the included 95° lens for open floors, or add the 60°x110° lens to focus light down aisles.
- Frosted Diffuser Option: Reduces glare and evens out light distribution for visual comfort.
- 0-10V Dimming: Compatible with standard dimming controls for added energy savings.
- Motion Sensor Ready: Integral sensor receptacle accepts a plug-in occupancy sensor.
Built to Perform in Demanding Environments
- Up to 164 lm/W: High efficacy keeps energy costs down at every wattage setting.
- IK10 Impact Rating: Withstands impacts in gyms, loading docks, and busy industrial floors.
- Cold-Capable to -13°F: Performs reliably in coolers and moderate cold storage.
- 102,000-Hour Rated Life: Fewer replacements and lower maintenance costs over time.
- Built-In Surge Protection: 6kV line-line / 10kV line-earth protects against power spikes.
Ideal for a wide range of applications, from warehouses to cold storage, big box retail to supermarkets, and exhibition halls to industrial facilities.
×
×
