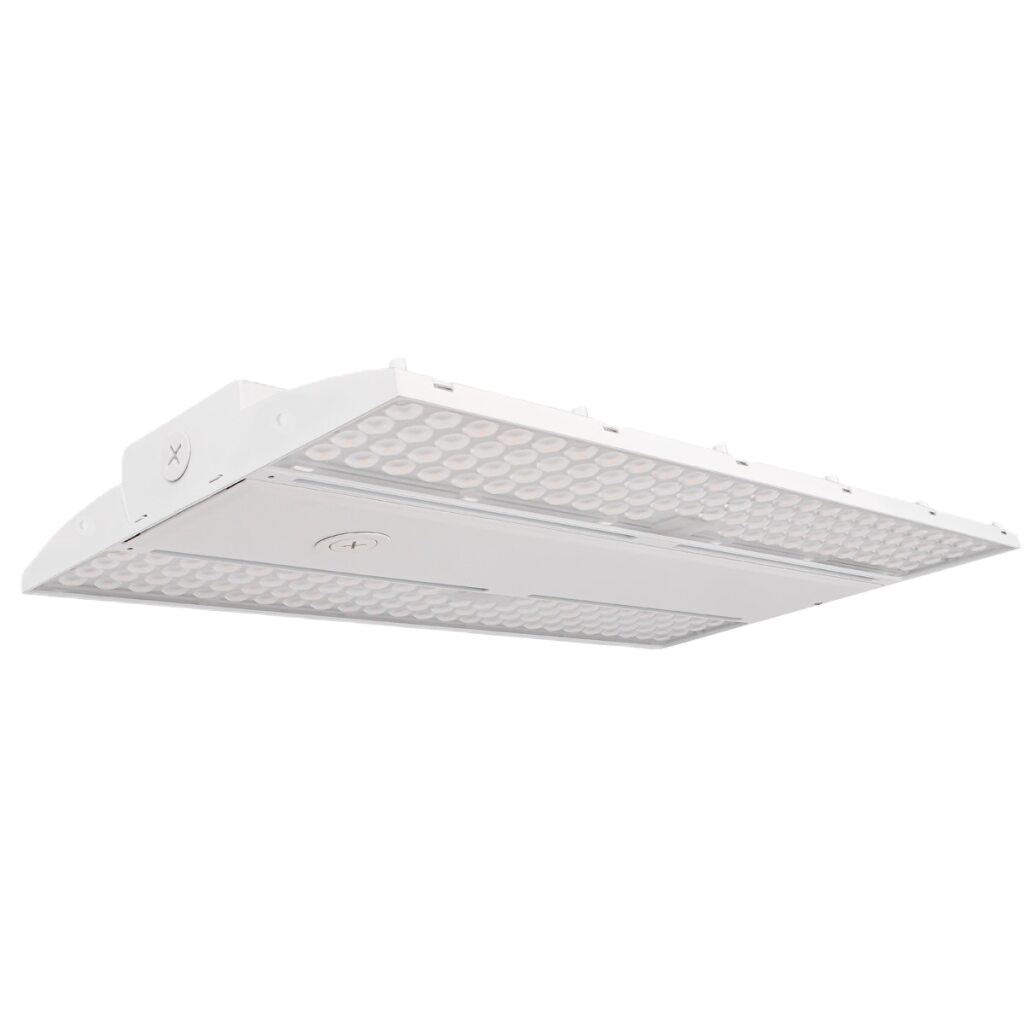

320W Selectable LED Linear High Bay, Ceilings Up to 40 ft

LED Living

320W Selectable LED Linear High Bay, Ceilings Up to 40 ft

(4)

0 Reviews

SKU: LLTVLHB03-320WCS

$127.95

The high-output model — up to 320W and 172 lm/W for the largest spaces and highest ceilings.

Up to 172 lm/W with the High Efficiency option
IK10-rated for arenas and cold-capable to -13°F
5-year warranty on every fixture

Standard vs High Efficiency

Variant

The high-output model — up to 320W and 172 lm/W for the largest spaces and highest ceilings.

Up to 172 lm/W with the High Efficiency option
IK10-rated for arenas and cold-capable to -13°F
5-year warranty on every fixture

Details

The Most Adaptable Linear High Bay for Ceilings Up to 40 ft

One Fixture, Every Wattage — selectable from 95W to 320W without changing SKUs.

Choose Your Efficiency Level — Standard (162 lm/W) or High Efficiency (172 lm/W) — to fit your energy targets and budget.

What You Get

Spec	Value	Why It Matters
Light Output	15,390–55,040 lm	Scales to light the largest floor plans and tallest ceilings
Efficacy	Up to 172 lm/W (High Efficiency) or 162 lm/W (Standard)	Choose the efficiency level that fits your energy targets and budget
Wattage & CCT	4 selectable wattages (95/160/215/320W), 2 CCTs (4000K/5000K)	One fixture replaces four separate SKUs
Beam Control	95° standard, swappable to 60°x110°	Tool-free lens change adapts the fixture to high-rack aisles or open floors
Lamp Life	L90: 43,000 hrs / L70: 102,000 hrs	Fewer replacements and lower long-term maintenance cost
CRI	80	Accurate color rendering for tasks and safety
Dimming	0-10V	Compatible with standard commercial dimming controls
Certifications	DLC Premium, UL	Qualifies for utility rebates; meets safety code

Dial-In the Exact Lighting Performance You Need:

Selectable Wattage: Choose 95W, 160W, 215W, or 320W to match ceiling height and light-level needs.
Selectable CCT: Switch between 4000K and 5000K to fit the space.

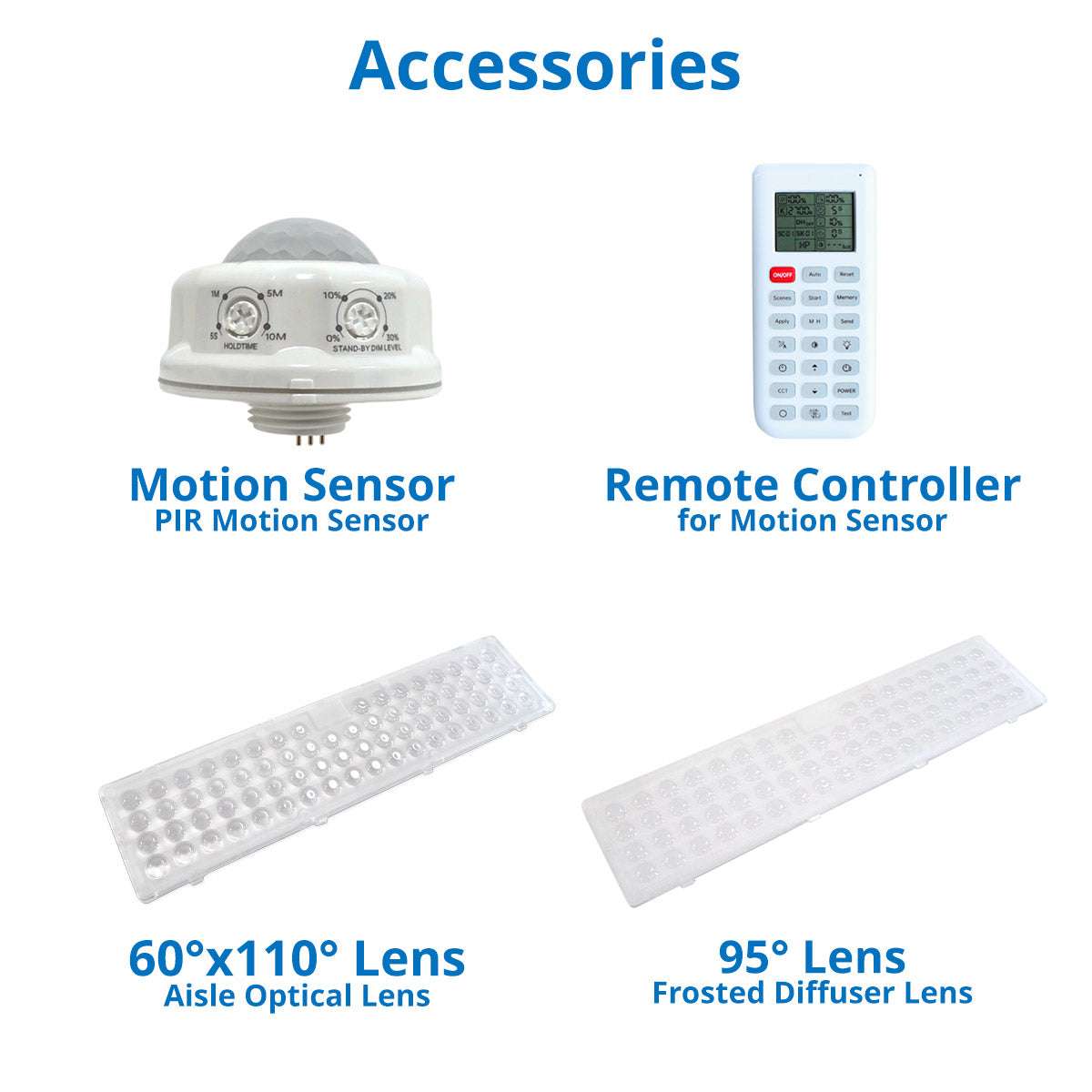

Tool-Free Lens Swap: Use the included 95° lens for open floors, or add the 60°x110° lens to focus light down high-rack aisles.
Frosted Diffuser Option: Reduces glare and evens out light distribution for visual comfort.
0-10V Dimming: Compatible with standard dimming controls for added energy savings.
Motion Sensor Ready: Integral sensor receptacle accepts a plug-in occupancy sensor.

Built to Perform in Demanding Environments

Up to 172 lm/W: Step up to the High Efficiency model for maximum energy savings. (Requires a 10–12 week lead time.)
IK10 Impact Rating: Withstands impacts in sports arenas and high-traffic industrial floors.
Cold-Capable to -13°F: Performs reliably in demanding cold storage environments.
102,000-Hour Rated Life: Fewer replacements and lower maintenance costs over time.
Built-In Surge Protection: 6kV line-line / 10kV line-earth protects against power spikes.

Not All Linear High Bays Are Built the Same

A cheaper linear high bay might look similar in a listing photo. Here's what's different when it arrives — and years later.

	This Fixture	Typical Marketplace Import
Driver Quality	Sosen commercial-grade driver; stable, flicker-free output	Consumer-grade; flicker common
Lamp Life	102,000 hours (L70)	Often 50,000 hours or less, with output degrading faster than advertised
Temperature Rating	-13°F to 122°F	Typically 32°F–104°F
Impact Rating	IK10	Rarely rated
Wattage & CCT Control	4 selectable wattages + 2 CCTs, tool-free lens swap	Fixed; no field adjustment
Efficiency Options	Standard or High Efficiency (up to 172 lm/W)	Single fixed efficiency tier, typically lower
Dimming	0-10V + sensor port	Rarely supported
Housing	Die-cast aluminum; built for continuous duty	Often thin stamped metal or plastic
Warranty Support	5 years; ELEDLights US-based team	Typically 1 year or less; seller may vanish
Rebate Eligible	✓ Yes, DLC Premium listed	✗ No, disqualified without DLC

Ideal for a wide range of applications, from tall warehouses to sports arenas, distribution centers to cold storage, and industrial ceilings topping 30–40 ft.

Specs

Wattage(s)	95/160/215/320W Selectable
Replaces Wattage(s)	Standard Efficiency Model: 900W High Efficiency Model: 1000W
Light Output	Standard Efficiency Model: @4000K: 15,390/25,920/34,830/51,840 lumens @5000K: 15,200/25,600/34,400/51,200 lumens High Efficiency Model: @4000K: 16,340/27,520/36,980/55,040 lumens @5000K: 16,150/27,200/36,550/54,400 lumens
Luminous Efficacy (lm/W)	Standard Efficiency Model: @4000K: 162 lm/W @5000K: 160 lm/W High Efficiency Model: @4000K: 172 lm/W @5000K: 170 lm/W
Average Lamp Life	L90: 43,000 hours L80: 91,000 hours L70: 102,000 hours
Color Temperature(s)	4000/5000K Selectable (Call for 4000K or 5000K fixed)
CRI (Color Accuracy)	80
UGR (Unified Glare Rating)	<28
Dimming	0-10V Dimming
Occupancy Sensor	Integral Sensor Receptacle
Beam Angle	95° (Standard) changeable to 60°x110° for Aisle Application with field-swappable lens
Lens Cover	Polycarbonate Optical Lens
Installation	Suspension Mount (Standard), Surface Mount
Enclosure Rating	IP20, IK10
LED Type	2835
Input Voltage	120-277VAC / 120-347VAC / 277-480VAC, 50/60Hz
Driver Type	Constant Current (CC)
Power Supply	Sosen
Power Factor	>0.9
Surge Protection	6kV line-line, 10kV line-earth
Temperature Rating	-25°C to +50°C (-13°F to +122°F)
Housing Material	Die Cast Aluminum
Housing Color	White
Dimensions	20.5” x 11.5” x 2.0” (520 x 292 x 52 mm)
Weight	11.0lbs (5.0kg)
Certification	DLC Premium, UL
DLC ID(s)	Standard Efficiency Model: S-VPFQWN High Efficiency Model: S-6W4RJK
Warranty	5 Years

Data Sheet

Install Guide

Compare Key Features

Compare

	320W Selectable LED Linear High Bay, Ceilings Up to 40 ft	310W Linear LED High Bay, Ceilings 30 to 40 ft	300W Linear LED High Bay, Swappable Optics, Ceilings Up to 40 ft
Wattage	95/160/215/320W Selectable	240W/270W/310W	300W
Efficacy	Standard Efficiency Model: @4000K: 162 lm/W @5000K: 160 lm/W High Efficiency Model: @4000K: 172 lm/W @5000K: 170 lm/W	Up to 150 lm/W	149 lm/W
Temperature Rating	-25°C to +50°C (-13°F to +122°F)	-40˚F to 122˚F	-22°F to 122°F
Warranty	5 Years	5 Years	5 Years
	$127.95	$151.56 View Details	$315.95 View Details
