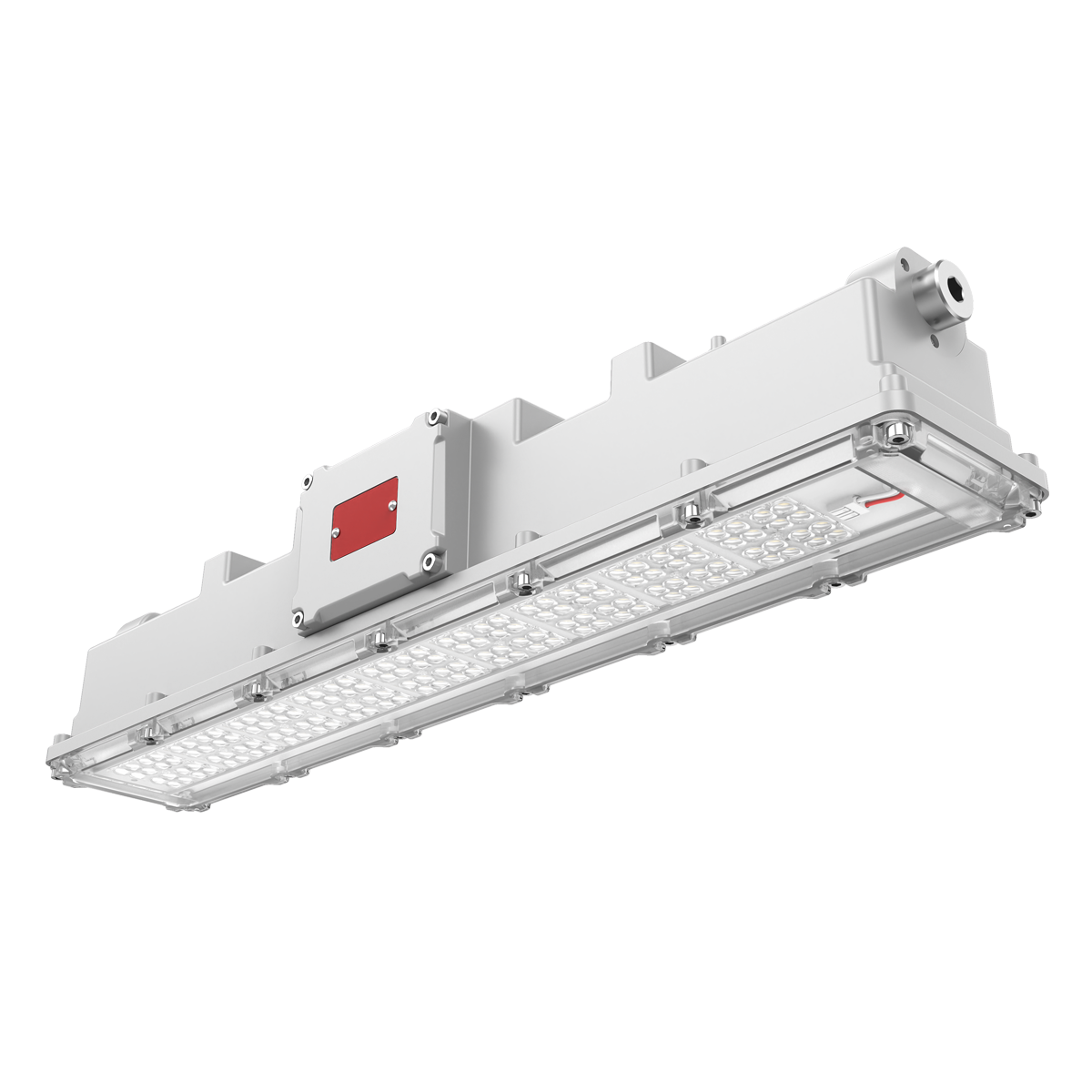

2ft 50W Hazardous Location & Marine Grade LED Living Linear Light
2ft 50W Hazardous Location & Marine Grade LED Living Linear Light
2ft 50W Hazardous Location & Marine Grade LED Living Linear Light
2ft 50W Hazardous Location & Marine Grade LED Living Linear Light
A 4ft Class I Div 2 linear light for both gas and dust hazards — linkable for long industrial runs.
- Class I Div 2 and Class II Div 2 certified — Type 4X, IP66, marine-rated for hose-downs.
- Self-locking spring terminals and double-cable entry for fixture-to-fixture linking.
- 5-year warranty for refineries, chemical processing, marine vessels, and grain facilities.
Bulk Pricing: Text (858) 650-9400 or Request Quote
A 4ft Class I Div 2 linear light for both gas and dust hazards — linkable for long industrial runs.
- Class I Div 2 and Class II Div 2 certified — Type 4X, IP66, marine-rated for hose-downs.
- Self-locking spring terminals and double-cable entry for fixture-to-fixture linking.
- 5-year warranty for refineries, chemical processing, marine vessels, and grain facilities.
Choose options
Details
Robust Structure with Outstanding Performance
Unmatched durability combined with energy efficiency and safety certifications to deliver powerful illumination in hazardous and marine environments.
-

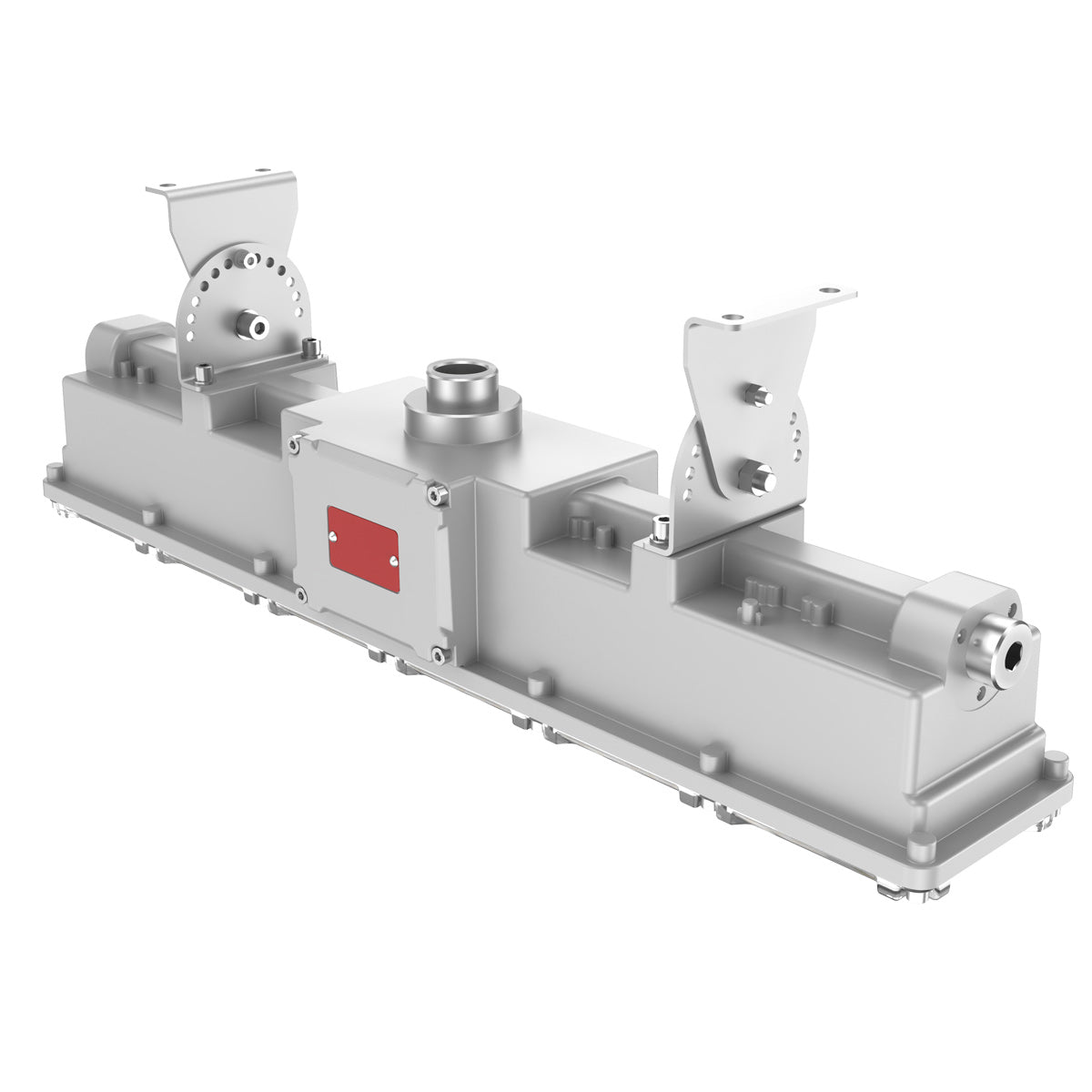

Easy Installation with self-locking spring terminals, an angle-adjustable mounting bracket, and double-cable entry for interconnection between fixtures.
- Hazardous Location Rated (Class I Div 2) – For areas where explosive gases may be present only under abnormal conditions, such as in the event of a leak or failure.
- Dust-ignition Proof (Class II Div 2) – Safe for use in environments where combustible dusts are present but not normally in explosive concentrations.
- Simultaneous Presence – This light can be used in environments with both flammable gases/vapors and combustible dust/fibers.
- Weather Resistant (Type 4X, IP66, Marine-rated) – Withstands rain, hose-downs, and salt spray.
- Suited to Cold Environments with an operating temperature down to -40°F.
This linear LED light is an energy-saving choice for many textile & fabric manufacturing, wood & paper processing, chemical & pharmaceutical, and food & agricultural applications.
Specs
| Wattage(s) | 50W |
| Replaces Wattage(s) | 150W |
| Light Output | 8,000 lumens |
| Luminous Efficacy (lm/W) | 160 lm/W |
| Average Lamp Life |
L90: 77000 hours L80: 175,200 hours L70: 282,900 hours |
| Color Temperature(s) | 5000K |
| CRI (Color Accuracy) | 70 |
| Beam Angle | 120° |
| EPA (Effective Projected Area) | 0.09m2 (0.96ft2) |
| Enclosure Rating | IP66, IK08 |
| LED Type | LED 3030 |
| Input Voltage | 100-277VAC, 50/60Hz |
| Driver Type | Constant Current (CC) |
| Power Supply | INVENTRONICS |
| Power Factor | >0.9 |
| Surge Protection | 4kV line-line, 6kV line-earth |
| Temperature Rating | -40°F to +104°F |
| Housing Material | Fiberglass Reinforced Polycarbonate Housing, Polycarbonate Lens |
| Housing Color | Gray |
| Dimensions |
Pendant Mount: 618x120x178mm (24.33” x 4.73” x 6.99”) Trunnion Mount: 618x120x202mm (24.33” x 4.73” x 7.96”) |
| Weight |
Pendant Mount: 3.3kg(7.26lbs) Trunnion Mount: 3.5kg(7.7lbs) |
| Certification | UL, CSA |
| Warranty | 5 Years |
| Additional Specifications |
Classifications Class I, Div. 2, GR. A, B, C, D Class II, Div. 2, GR. F, G Class III |
Data SheetCompare Key Features
Compare
2ft 50W Hazardous Location & Marine Grade LED Living Linear Light
|
4ft 80W Hazardous Location & Marine Grade LED Living Linear Light
|
2ft 40W Hazardous Location & Marine Grade MaxLite Linear Light
|
|
|---|---|---|---|
| Wattage | 50W | 80W | 40W |
| Efficacy | 160 lm/W | 160 lm/W | 137 lm/W |
| Color Temperature (CCT) | 5000K | 5000K | 5000K |
| Color Accuracy (CRI) | 70 | 70 | >70 |
| Temperature Rating | -40°F to +104°F | -40°F to +104°F | -40°F to 122°F |
| Warranty | 5 Years | 5 Years | 5 Years |
|
